ESP8266 ESP-01S Serial WIFI Wireless Transceiver Module Adapter PCB Board
Product Image:
Product Description:
ESP8266
ESP8266 is a highly integrated chip designed for the needs of a new connected world. It offers a complete and self-contained Wi-Fi networking solution, allowing it to either host the application or to offload all Wi-Fi networking functions from another application processor.
ESP8266 has powerful on-board processing and storage capabilities that allow it to be integrated with the sensors and other application specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, and the entire solution, including front-end module, is designed to occupy minimal PCB area.

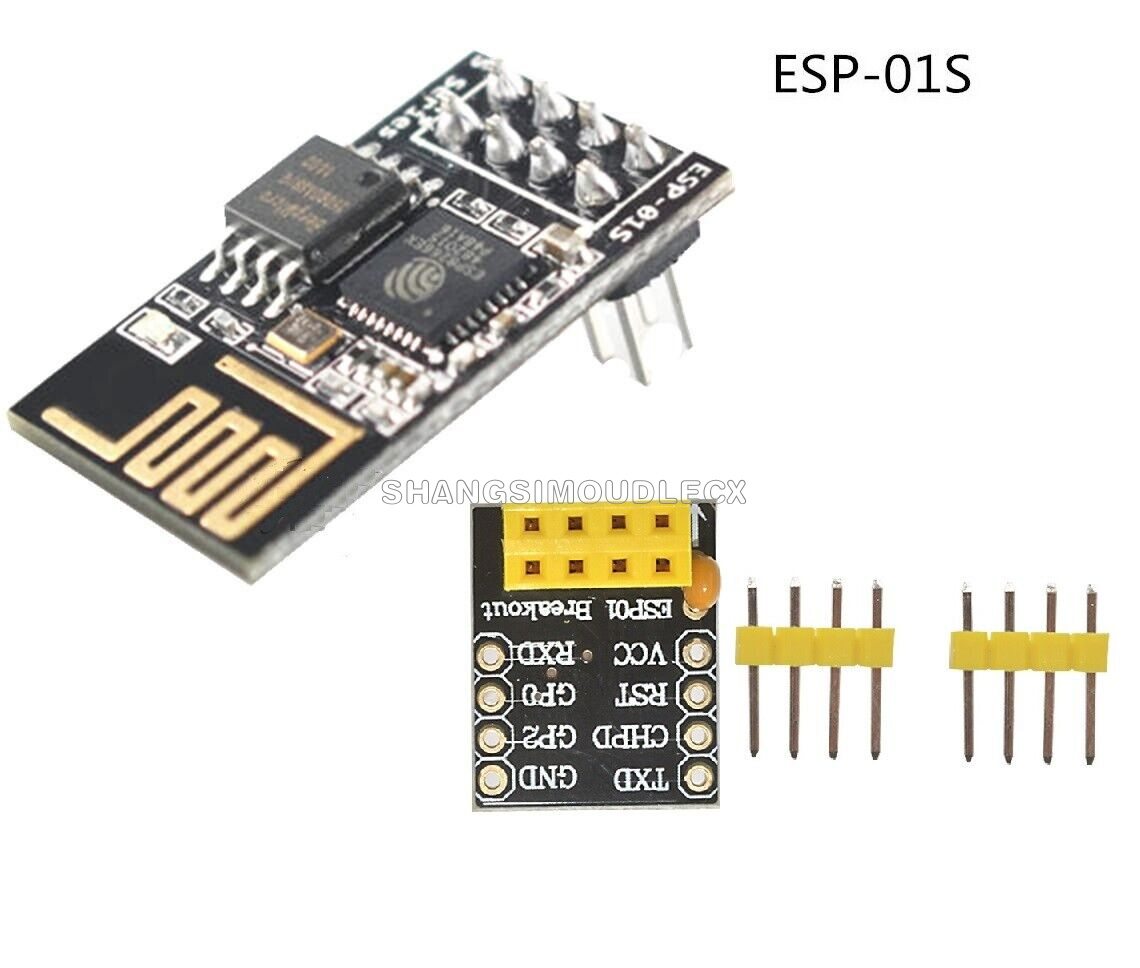

ESP8266 ESP-01S Transceiver Module
Wireless Standard:802.11b/g/n
Frequency Range:2.4GHz-2.5GHz(2400M-2483.5M)
Data Interface:UART/HSPI/I2C/I2S/Ir Remote Control/GPIO/PWM
Operating Voltage:3.0-3.6V(We recommended 3.3V)
Operating Current:Average 80mA
Operating Temperature:-40~125℃
Wireless Network Mode:station/softAP/SoftAP+station
Safety Mode:WPA/WPA2
Encryption Type:WEP/TKIP/AES
Network Protocol:IPV4,TCP/UDP/HTTP/FTP

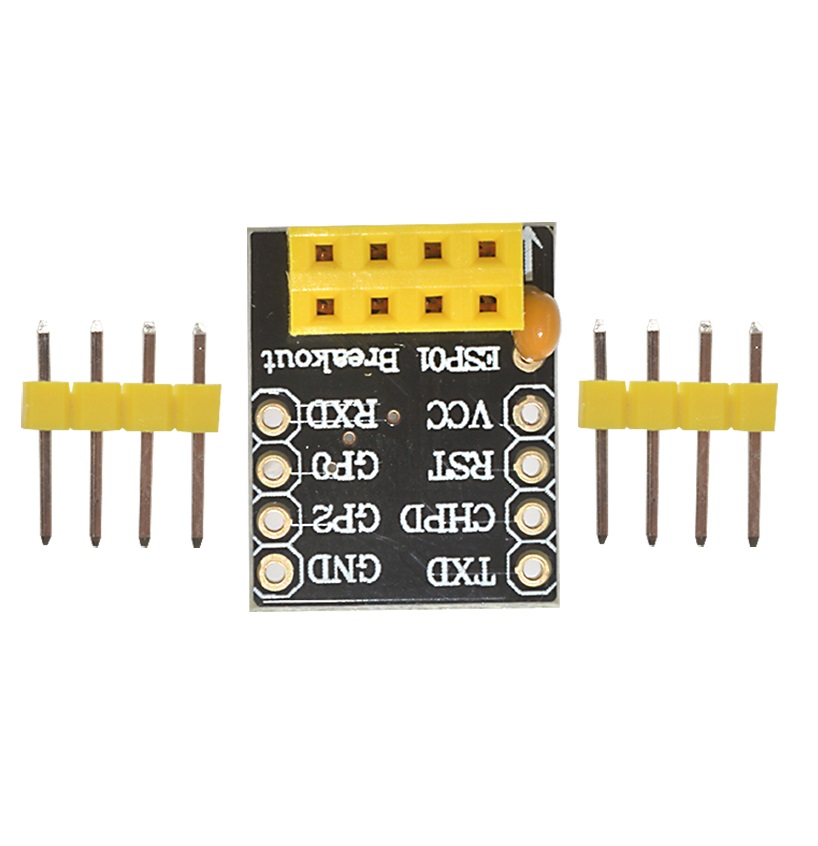

ESP-01/ESP-01S Breadboard Adapter
This is a breadboard adapter for the popular ESP-01 model of the ESP8266 serial-to-WiFi transceiver module.
As ESP-01 Pin arrangements are not breadboard friendly and are not labeled, which makes it little inconvenient for rapid prototyping.This breadboard adapter will help you to make
prototyping with esp-01 module much more easier.
This breakout conveniently offers clear pinout silkprint on top and will nicely fit your prefered breadboard.
Last but not least, we added a 0.1µF decoupling capacitor so the ESP-01 will always run smoothly and without a hitch.
Connection:
URAT        Adapter
3.3V           VCC
3.3V           CH-PD
TX               RX
RX              TX
Choose both NL CR 15200 baud rate
Package Included:
1 X ESP8266 ESP-01S Transceiver Module
1 X (ESP-01 Breakout Board Breadboard Adapter+2*4P male header)
