2. Stable performance
3. Compact size
4. Easy to use
5. Wide range of applications
Working voltage: DC3-20V
Load current: 0-3A (DC 3-4.2V); 0-5A (DC 4.2-20V)
The board is equipped with a toggle switch (or external switch)
Static current: 15uA
Operating ambient temperature: -40° to +85°
Storage temperature: -65° to +125°

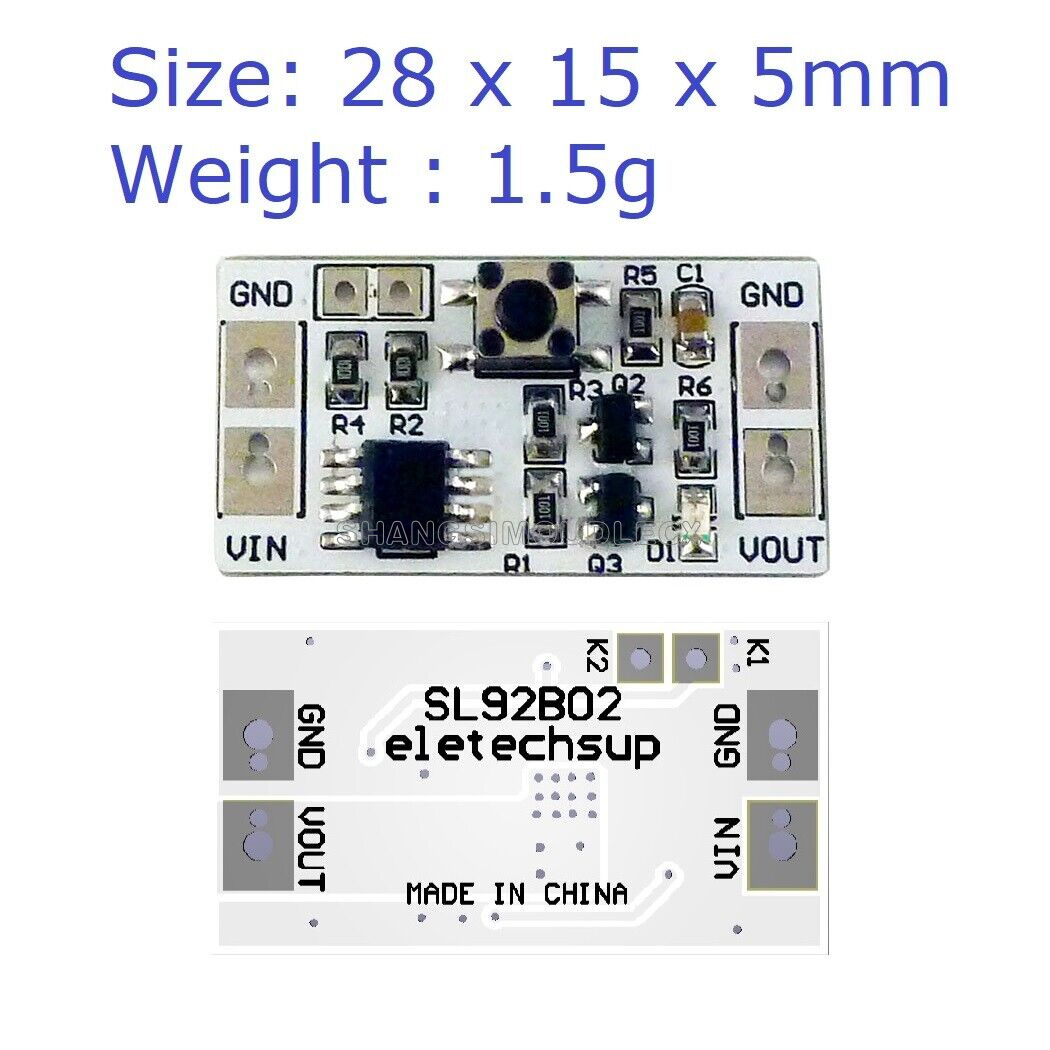

Dimensions: 28 x 15 x 5mm
1.VIN: Positive power supply (VCC)
2. GND: negative power supply (GND)
3.GND: Negative output (GND)
4 VOUT: Positive output
5 K1: Button port 1
6 K2: Button port 2

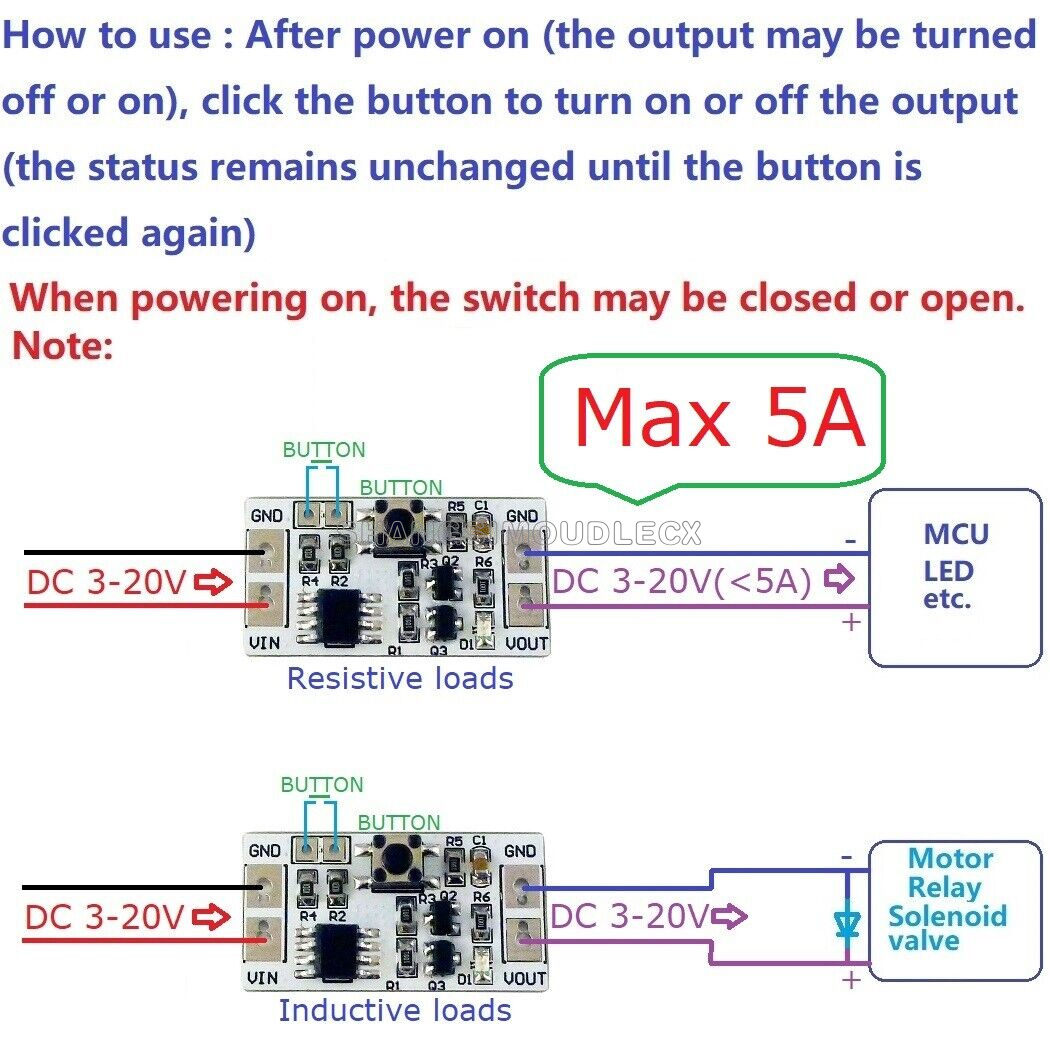

After power on (the output may be off or on), click the button to turn the output on or off (the state remains unchanged until the button is clicked again)
When energized, the output state may be on or off, connecting 220-1000UF electrolytic capacitors in parallel at the input can reduce the uncertainty
1/2/5/10 Pieces self-locking module switch
