AD9851 DDS 0-70MHz 2 Sine Wave 2 Square Wave Output Signal Generator Module

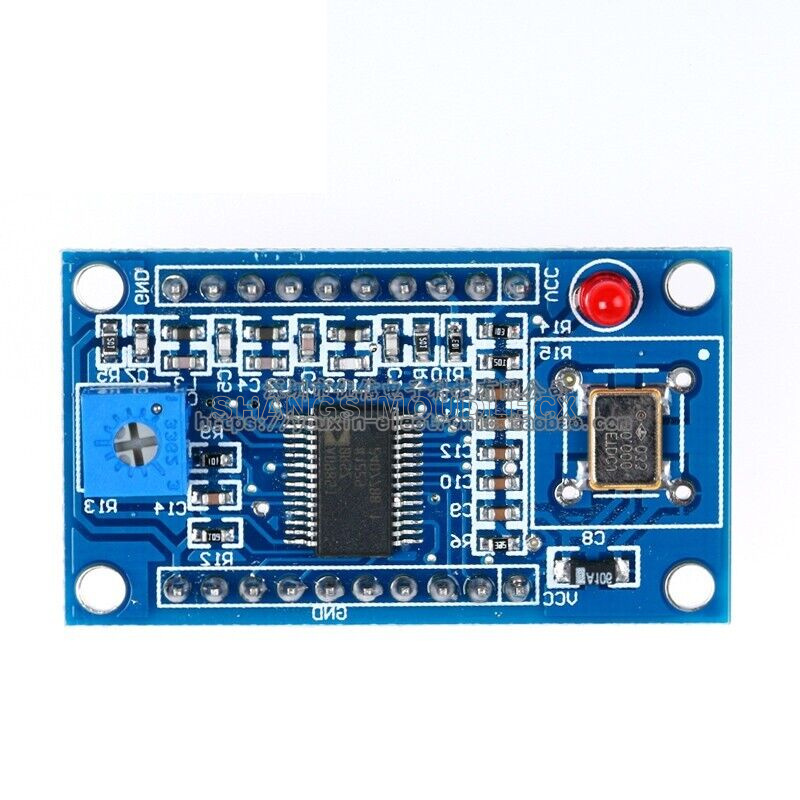

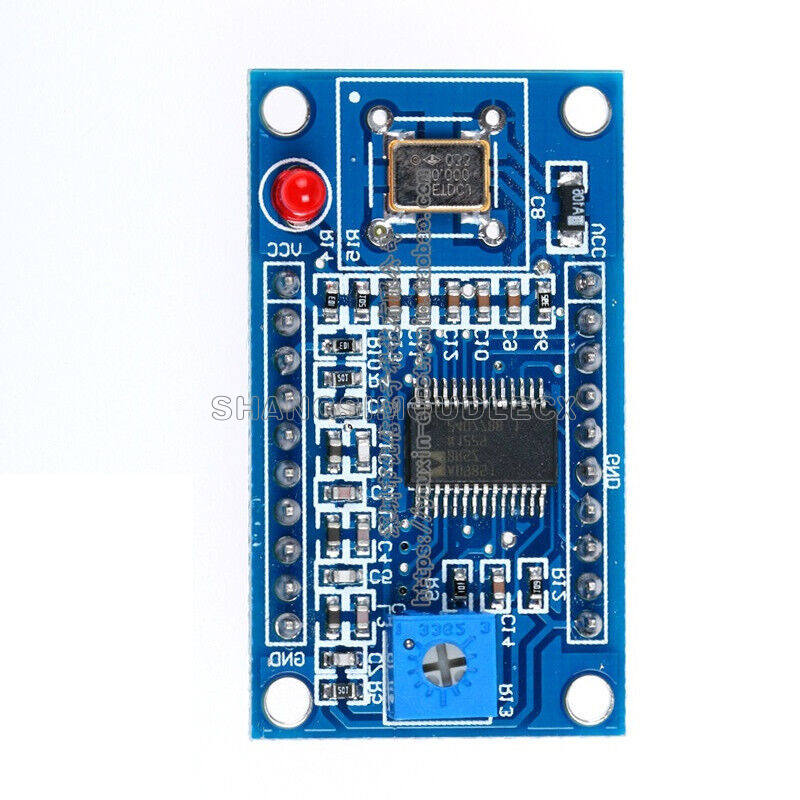

Product Image:
Product Description:
Features:

1. 2 sine wave and 2 square wave output

2. AD9851: 0-70MHz

3. After the 20-30MHz frequency harmonics increases,
the waveform will be less and less clean


4. Square Wave: 0-1MHz

5. Low-pass filter with 70MHz, so the waveform better than SN

6. Parallel and serial data input can be selected via a jumper

7. DA produced the benchmark pin (PIN12) leads for
easy adjustment to do the magnitude of the output waveform Application



8. Comparator reference input voltage generated by the variable resistor,
the resistor can be adjusted duty cycle square wave of different


9. AD9851 module Using 30MHZ Active crystal

10. AD9851 Clock frequency up to 180MHz, AD9851 has 6 octave



Package Included:

1 x AD9851 DDS Signal Generator Module 0-70MHz 2 Sine Wave and 2 Square Wave NEW
