Feature:
Wide voltage operation (DC 5 -30V), most equipment can be used, very convenient
The interface is clear and simple, powerful, easy to understand, and almost meets all your needs

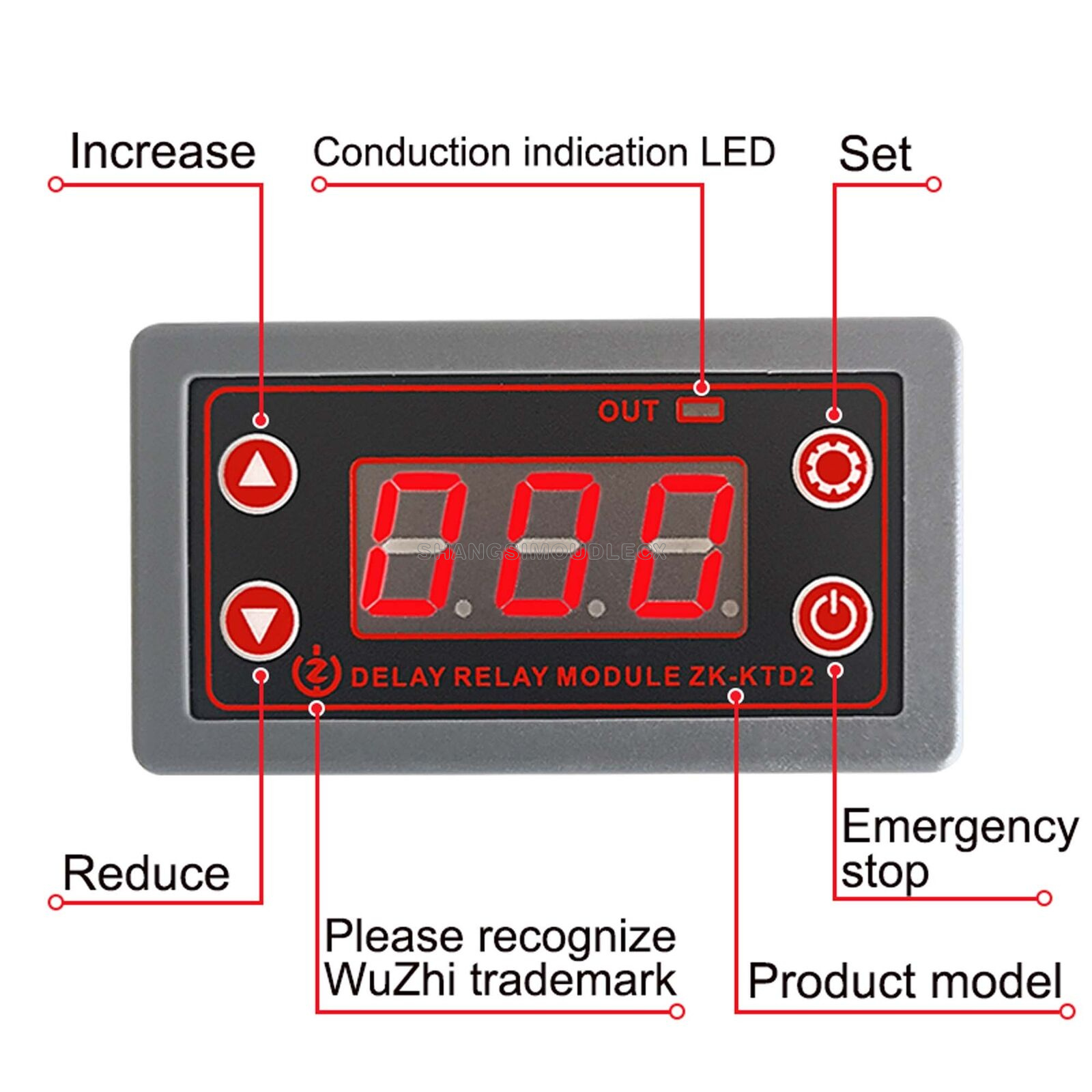

There is a key emergency stop function (STOP key), with reverse connection protection, reverse connection does not burn
Sleep mode, after enabling, without any operation within 3 minutes, automatically turn off the display; any key to wake up
You can set different OP, CL, LOP, CLL, CLH parameters, these parameters are independent of each other and saved separately
New serial port communication function, convenient to read and set parameters
All set parameters are automatically saved after power-off

Parameter:
Working voltage: DC 5V -30V, support micro USB 5.0V power supply

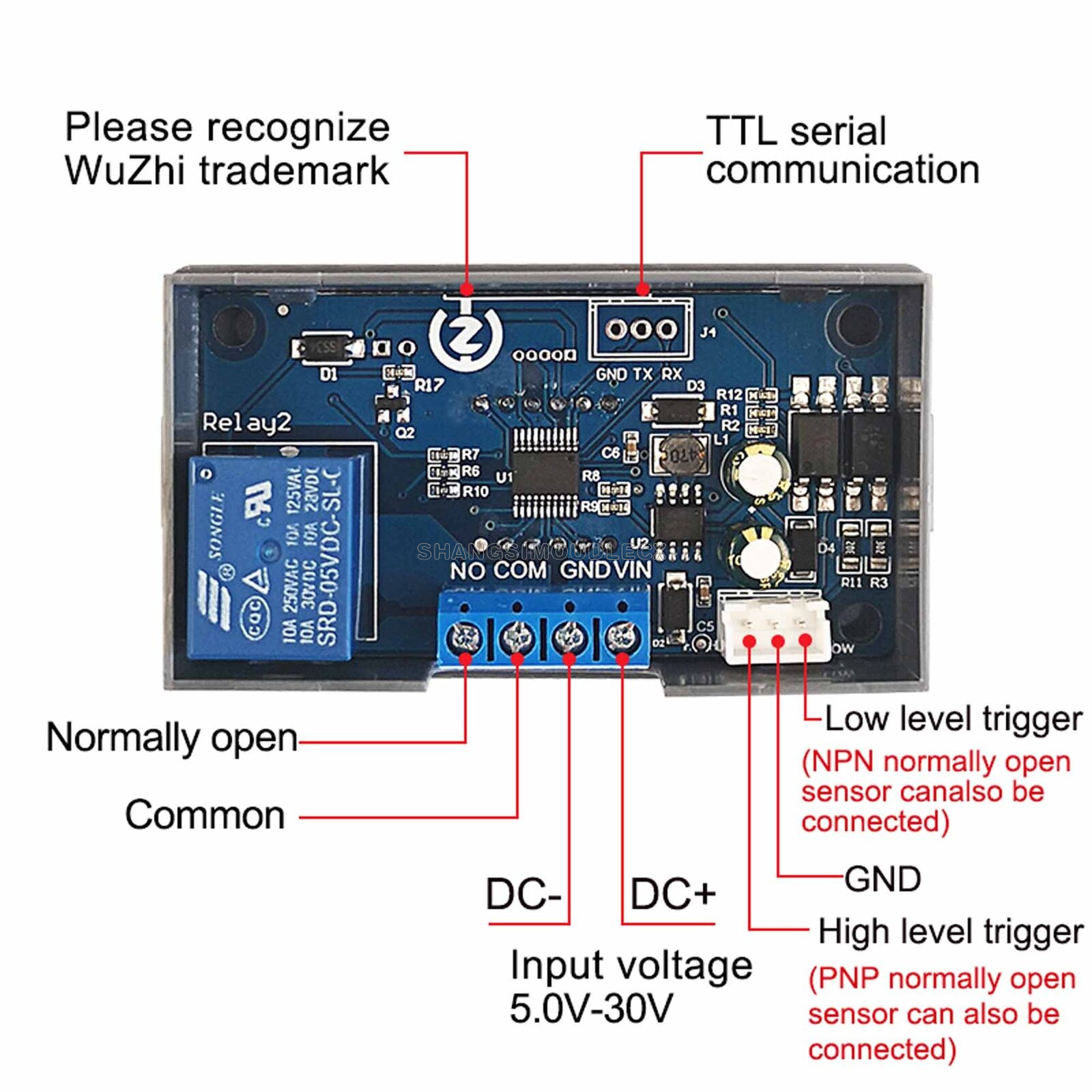

Trigger signal source:
①High level trigger (DC 3.0V -24V)
②Switch trigger
③Serial communication trigger
Output capability: can control equipment within DC 30V 5A or AC 220V 5A
Quiescent current: 20mA
Working current: 50mA
Service life: more than 100,000 times
Working temperature: -40 -85℃
Size: 79*43*27mm
With optocoupler isolation, enhanced anti-interference ability, industrial-grade circuit board, set parameters are always remembered after power failure.

Note: The relay output is a passive contact, uncharged output, which controls the on-off function of a line

Package Included:
1 * DC 5 -30V Delay Timer Trigger Cycle Relay
