Product Overview
Details

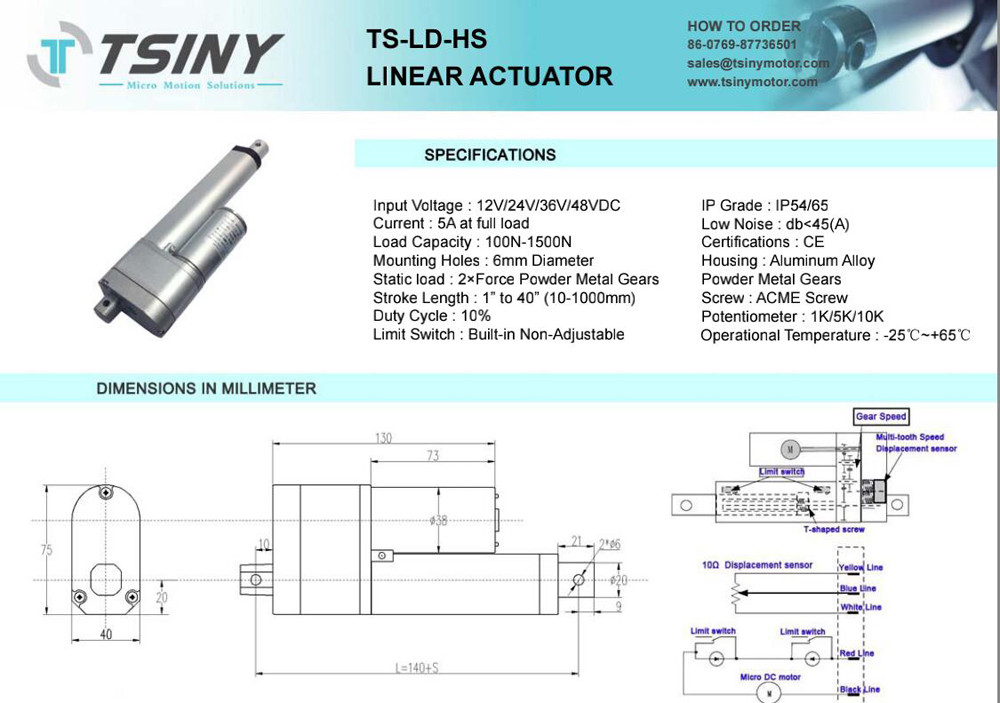

Specifications:
Rated Voltage: 12V DC
Stroke size: 200mm(8 inches)
Load Capacity: 750N(75KG/165Lbs)
No-Load Speed: 10mm(0.393 inch)/sec
Duty cycle: 10%
Operational temp: -25ºC~+65ºC
Protection class: IP54
Potentiometer: 10 KΩ
Certification: CE
Low noise: db<45 (A) Built-in limit switches, not adjustable
Fully Retracted Length 140mm + Stroke Size
Fully Extended Length 140mm + Stroke Size + Stroke Size
