Introduction:

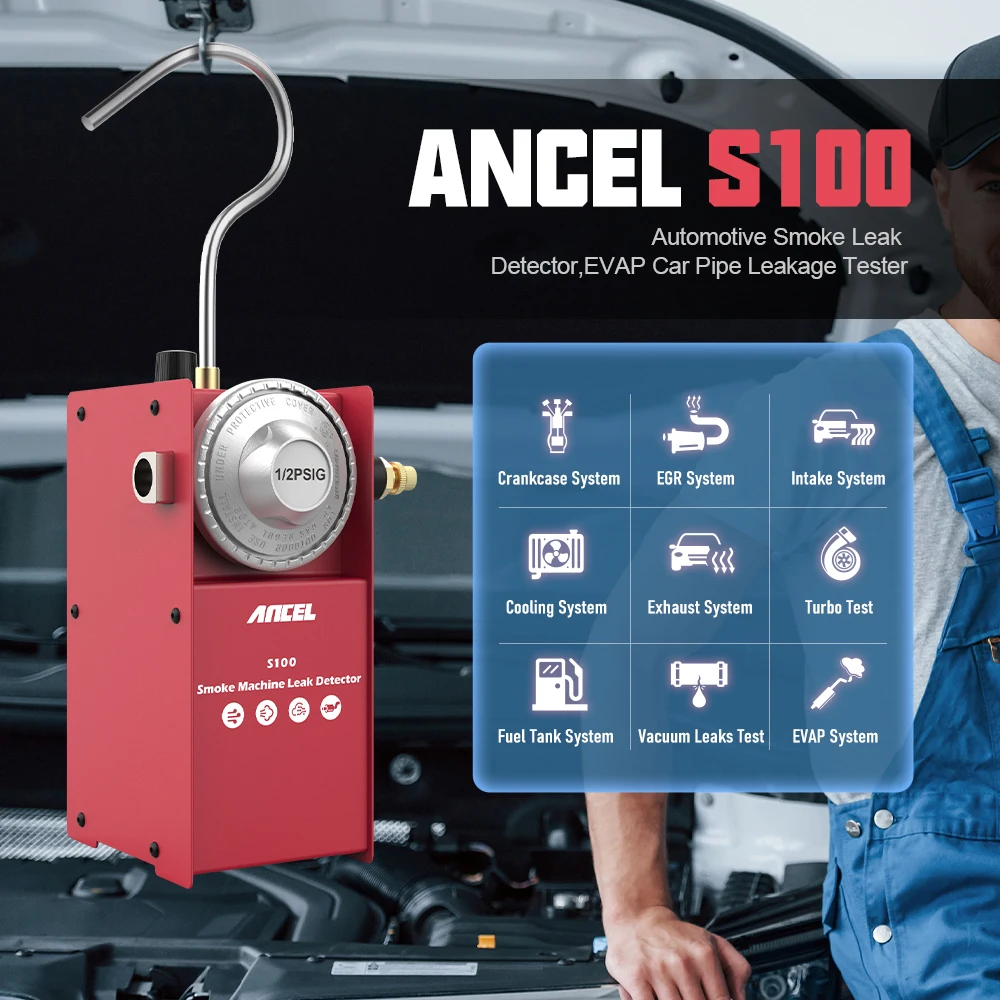

Ancel S100 Car Smoke Leak Detector is a professional auto pipe leak detect tool. It will help us position cars motorcycles leakage on pipe system quickly and exactly ,such as :
*Vacuum Leaks Test
*Intake System Test
*Exhaust Systems Test
*Fuel Tank System Test
*Turbo Test
*Cooling System Test
*EGR System Test
*Crankcase System Test
Why We Choose ANCEL S100?
1.[Wide range of applications] For detecting the leakage of pipe systems on cars, motorcycles, snowmobiles, off-road vehicles, ATVs, light trucks and speedboats boats.Works on all car makes and models.
2.[Advanced technology] It works on the EVAP system.
3.[Overheat & Anti-frost protection] When the temperature of the device exceeds 120℃,power protection will be intelligently activated to turn it off.
4.[Anti-frost Protection] The device can also work normally at -20℃
Why We Need AS100 Smoke Machine?
Unmetered air entering an engine will cause all sorts of lean conditions. You cannot see the leaks without the help of smoke. A vacuum line can just become porous over time but look ok. O-rings can become hardened and no longer seal. Plastic parts can be separated or cracked.
Exhaust leaks can be bad for your health and can cause backfiring in carbureted cars. You can use the S100 smoke machine to help find exhaust leaks, without running the engine and gassing yourself.
You can smoke test EVAP systems, vacuum leaks, low-pressure turbo leaks, intake manifolds, cooling / EGR / exhaust systems, worn rubber, gaskets, seals, connectors, and more.
In modern cars, many check engine codes are set off by an air/vacuum leak. Quickly dialing in the problem will save you time and money in a shop and help a home mechanic find the problem instead of just changing parts.
How to do leakage test?
1. Attach the hook to the device.
2. Attach the workshop air adapter to the unit.
3. Plug the power cord into the power outlet.
4. Screw the smoke hose to the unit.
5. Fill smoke oil (mineral oil based) into the unit via the refill opening on the top.
(Note: The oil level must not be higher than the level indicator. )
6.Connect the factory air supply.
7.Connect the vehicle's 12V power supply.
8. Introduce workshop air into the unit. 9.
9. Turn the flow control knob counterclockwise to open the air flow.
10. Turn on the power on the back of the unit, then the unit will start to generate smoke.
11. Introduce the smoke into the system
Smoke Leak Detector ANCEL S100
Output pressure:0.5PSI
Output Volume:<8LPM
Power Supply:DC12V
Current:5AMP
Product Package:
1pc * ANCEL S100 Car Smoke Leak Detector Main Unit
1pc * Power Cord
1pc * Hook up
2pc * EVAP Kit
1pc * Smoke Delivery Hose
1pc *Air Adpt
