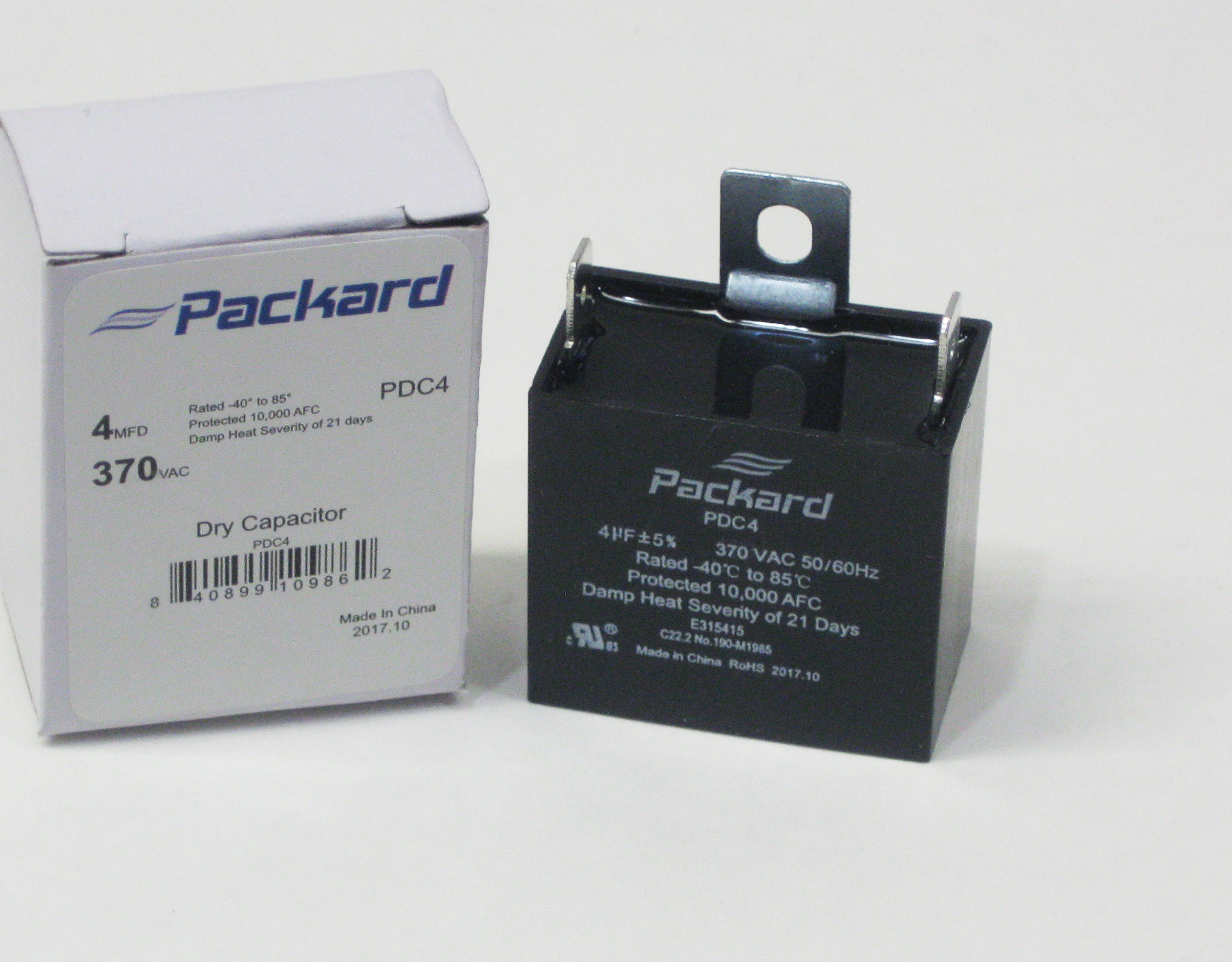

Packard PDC4 HVAC Dry Motor Run Capacitor. 4 MFD/UF 370 Volts



Packard PDC4 HVAC Dry Motor Run Capacitor. 4 MFD/UF 370 Volts


Specifications:



  • Dimensions: Height- 2 Length- .94 Width- 2 Add 1/2 inch to height for terminal length

  • Rectangular in shape

  • There are 1/4" male blade quick connect terminals on the capacitor

  • Rated at 4 MFD/uf 370 Volts 50/60HZ


Features:



  • Heat tolerant, capacitance tolerance of +/-5%

  • Capacitors are constructed with Self-Healing Dielectric

  • Metalized Polypropylene Film, with a Plastic ABS Case

  • Two sets of terminals and a mounting bracket

  • Rated to 185 Degrees (Fahrenheit), Protected to 10,000 AFC

  • UL recognized, RoHS compliant


Product Details

BrandPackard
ManufacturerPackard
Product TypeRun Capacitor
MpnPDC4
  • Packard PDC4 HVAC Dry Motor Run Capacitor. 4 MFD/UF 370 Volts
  • Dimensions: Height- 2 Length- .94 Width- 2 Add 1/2 inch to height for terminal length. Rectangular in shape.
  • There are 1/4" male blade quick connect terminals on the capacitor.
  • Rated at 4 MFD/uf 370 Volts 50/60HZ.
