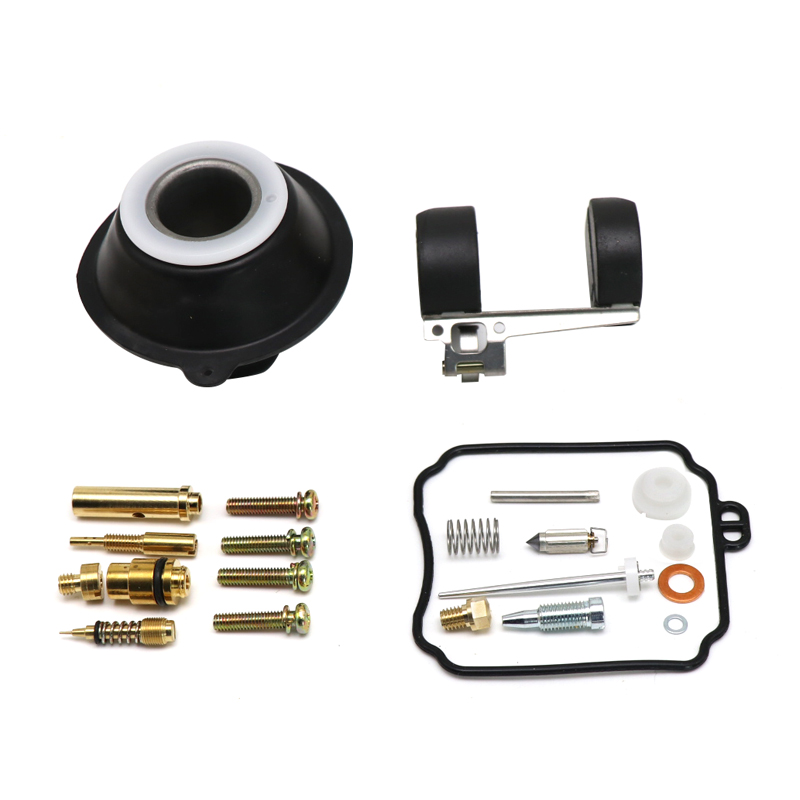

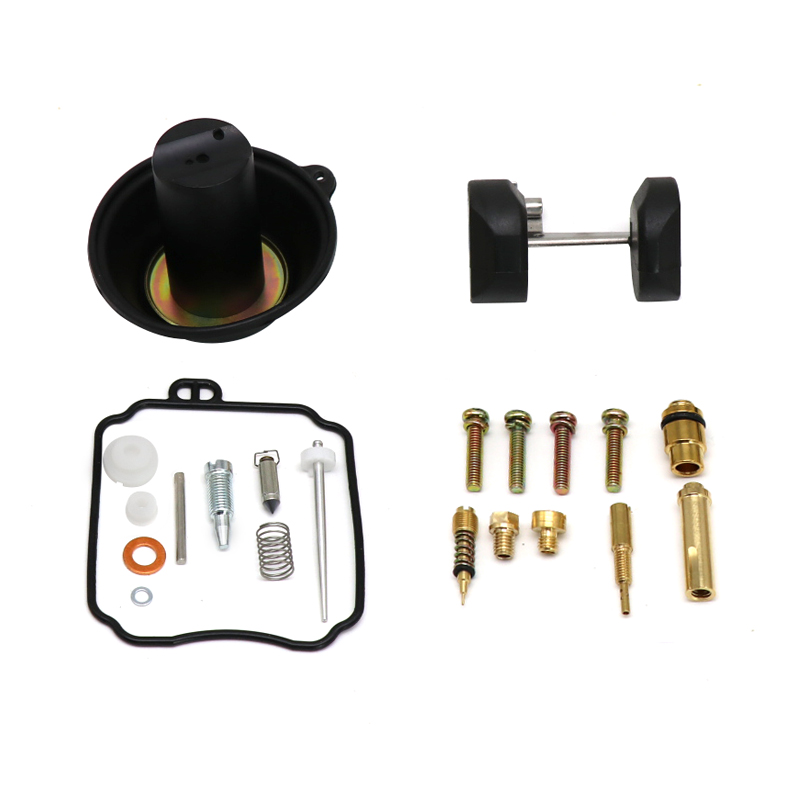

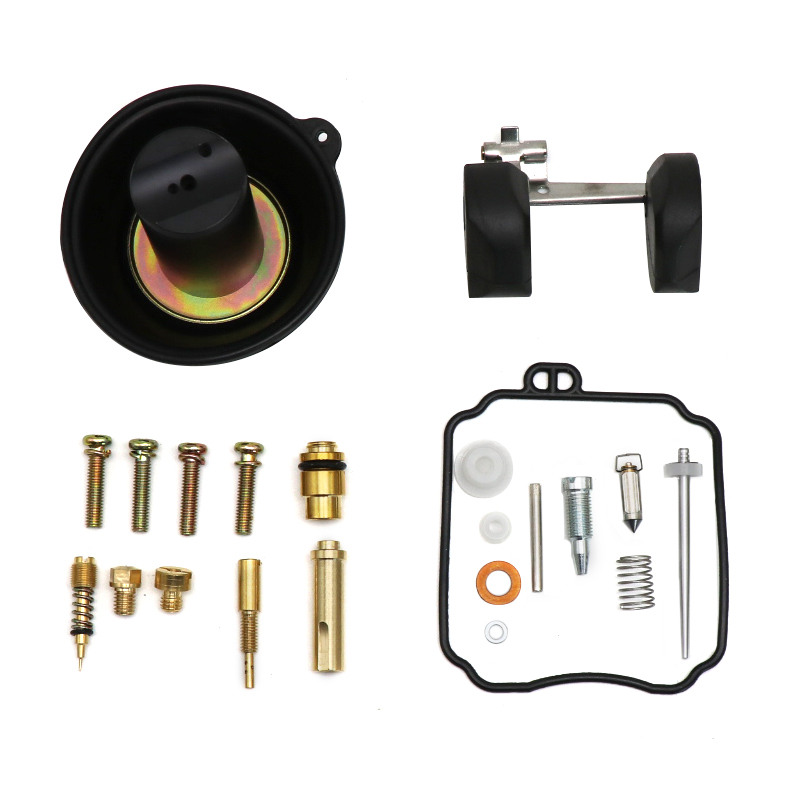

The XV250 Carburetor Rebuild Kits including following parts,

   NEEDLE SET：3DM-1490J-00

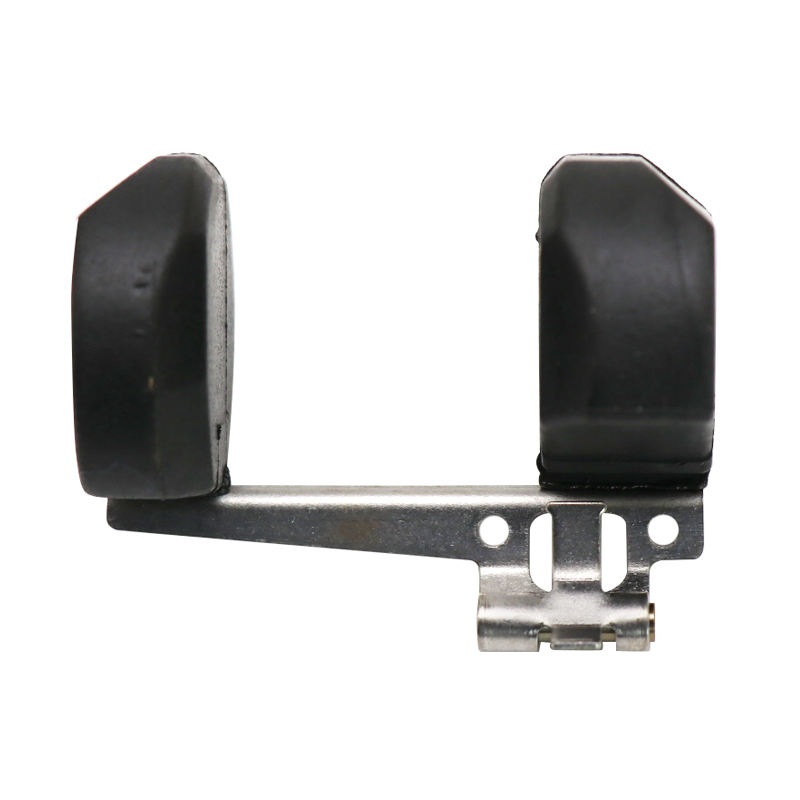

   FLOAT：1HX-14985-00

   SCREW, PAN HEAD(GA5) (C86)：98580-04014*4

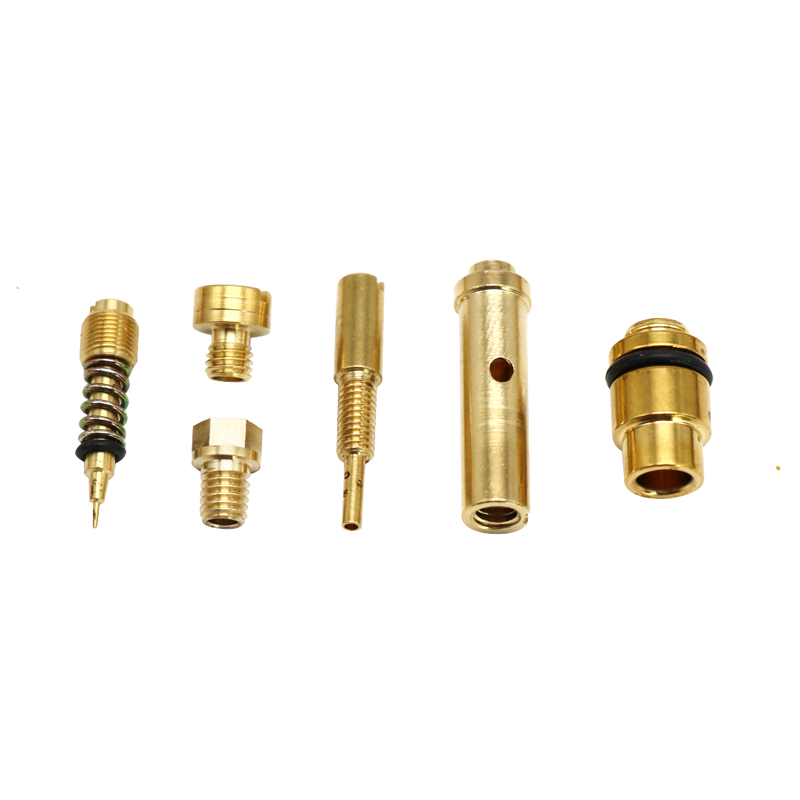

   JET, MAIN (#158) (3J6）：620-14231-22-A0(N100.604)

   JET, PILOT (# 17.5):22F-14142-17(VM28/486)

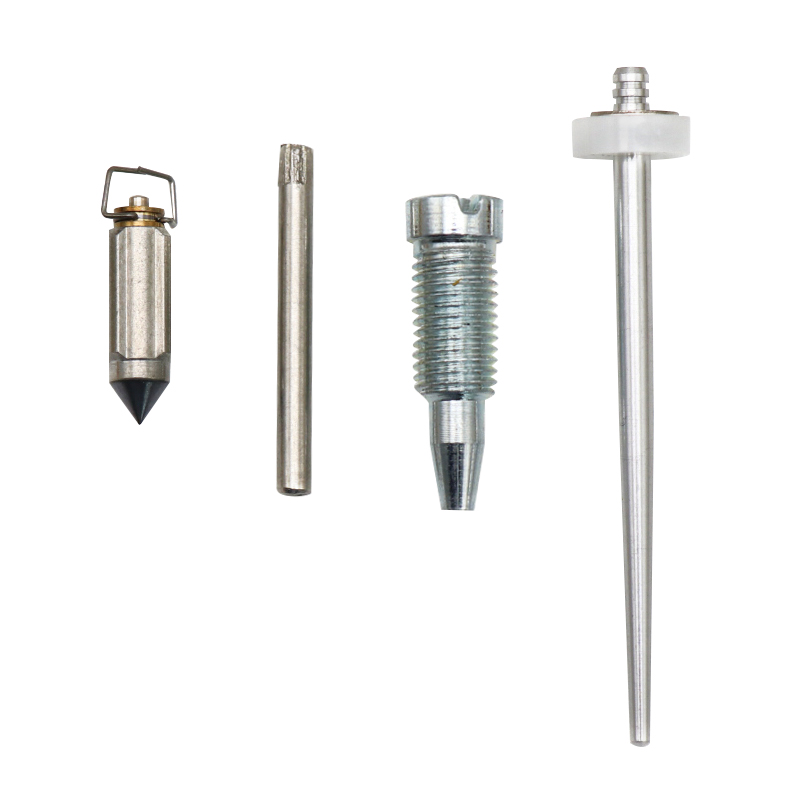

   NEEDLE VALVE SET:3CF-14107-10

   SCREW:1HX-14565-00

   PIN, FLOAT:353-14186-00

   O-RING:1HX-14147-00

   PILOT SCREW SET:12R-14105-00

   PLUG, DRAIN:12R-14191-00

   WASHER, MAIN JET:137-14153-00

   MAIN NOZZLE:3DM-14141-30-00

   DIAPHRAGM ASSY.: 3BG-14940-00

fitment:

for Yamaha XV250 V Star 250 2008-2021

for Yamaha XV250 Virago 250 1995-2007

Description

If your machine is suffering from poor performance, misfires, and trouble starting, then it's likely time for you to check your carburetor for signs of wear or deterioration on your gaskets, jets, and float bowl. If it's time to replace even just one part of your carburetor, then this All Balls Carburetor Rebuild Kit is what you need! These high-quality repair kits come with all necessary gaskets, O-Rings, and jets to bring your carburetor back to life and make your machine run like new again!

Features

Off-road use only.

OEM jet sizes are included in the kit.

Kits include all of the necessary components to repair a carburetor

Kit includes all O-rings, gaskets, jets, needle, mixture screw, float bowl screws, float valve needle, and seat.

Applications that use paper float bowl gaskets are upgraded to High-Performance Interface Gasket material.

NBR rubber material is used on all O-rings and rubber gaskets NBR has excellent resistance to the ethanol used in today’s fuels.

Components included in the kits are based on U.S. models and discretion must be used when attempting to install the kit on a non U.S. model as Needles and Jets may vary.
