Description:

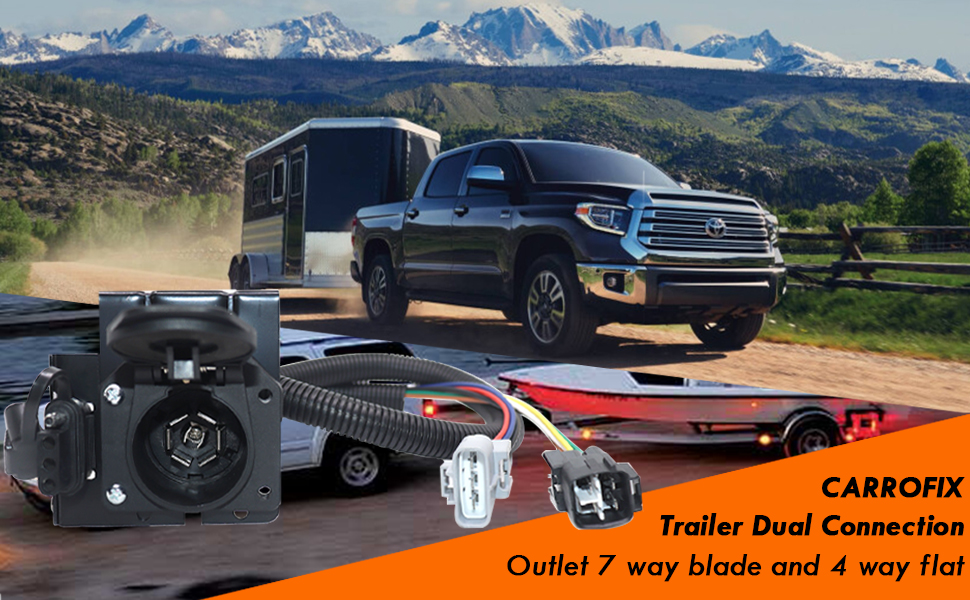

Multi-Tow Trailer Connector Adapter - 7-Way RV and 4-Way Flat Custom Fit Wiring Harness

This vehicle wiring kit is designed to connect the trailer wiring system into vehicle's wiring system, it gives you both a 4-way and a 7-way connector for various trailer towing options. If your vehicle is from the years of 2003 - 2006 Toyota Tundra and it did come with the tow package and you are going to have a muliti-tow application then you can use this carrofix plug-In simple vehicle wiring harness.

Features:

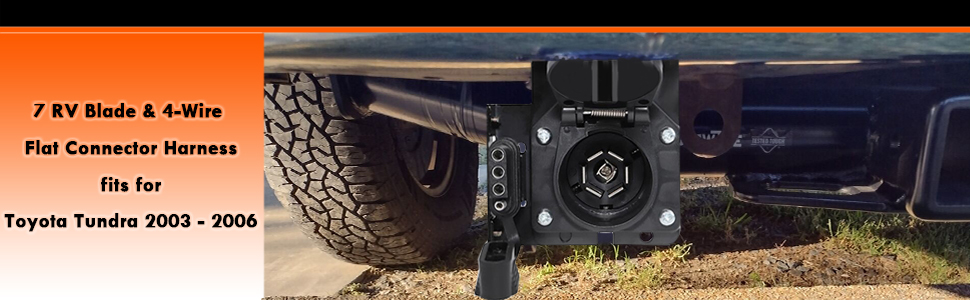

* Vehicle Fitment - This Custom Fit vehicle-side T-connector wiring harness provides both a 7-way RV-style and a 4-pole flat connector for select 2003 - 2006 Toyota Tundra with Factory Tow Package

* Stable Connection - This trailer replacement harness is designed to plug into existing vehicle wiring by pluging in OEM plug to output the taillights, left turn brake, right turn brake, ground, bakc up, electric trailer brake and aux power

* Durable Construction - This trailer light connector comes a dust cap for 4 way flat to keep the plug socket clean when not in use. Weathertight spring-loaded cover on 7 way blade keeps out water and debris. The pigtail wiring guage is from 14-18ga, and is well-protected with the included split loom

* Simple Installation - Equiped with OEM plugs for quickly and easily assembly, put your carrofix T-connector wiring kit to plug directly into OEM factory tow package wiring harness, no cutting, splicing or tapping required, up to 34 inches pigtails for flexible connection

* Effective Solution - Provide all the needed electrical and mounting hardware wiring kit to provide both a 4 wire flat and 7 way blade towing plug for your trailer, and support MONEY BACK GUARANTEE, if you are not 100% satisfied for any reasons, we will refund you all



Installation Instructions:

1. Vehicle 7-way RV wiring harness plugs at the rear of vehicle above the factory 7-way RV socket assembly, usually found over toward the drivers side frame member. This connector harness will have the same connector ends as the carrofix T-Connector.

2. Disconnect the vehicle 7-way RV wiring harness plugs. Connectors will disconnect by pressing or lifting on a locking tab and pulling apart.

3. Remove factory 7-way RV socket from vehicle 7-way mounting bracket.

4. Insert the Toyota vehicle specific wiring harness into the vehicle 7-way and 4-pin mounting bracket (Provided) and secure with mounting bolts (Provided).

5. Route the wire harness from the installed 7 way and 4 pin connector to the factory exsiting plugs. Connect the plugs making sure the connectors are fully inserted

6. Plug trailer connectors into 4-way and 7-way receptacles and test all functions with the engine running to ensure proper operation.



Package List:

* Toyota Specific Wiring Kit

* Mounting brackets and hardware

* Zip-ties
