FAN Specification:

Maximum Fan CFM: 1730 cfm

Fan Diameter (in): 12.050”

Thickness (in): 2.500”

Number of Blades: 10 S-Type blades

Blade Material: Plastic

Includes the Mounting Tabs for an Easy Zip Tie Installation

FITMENT:

For 1992-2000 Honda Civic EG EK

For 1992-2000 Honda Civic    CX Hatchback 3-Door/ LX Sedan 4-Door

For 1992-2000 Honda Civic    DX Coupe 2-Door

For 1992-2000 Honda Civic    DX Hatchback 3-Door

For 1992-2000 Honda Civic    DX Sedan 4-Door

For 1993-2000 Honda Civic    EX Coupe 2-Door

For 1992-2000 Honda Civic    EX Sedan 4-Door

For 1997-2001 Acura Integra  GS Hatchback 3-Door

For 1997-2001 Acura Integra  GS Sedan 4-Door

For 1994-2001 Acura Integra  GS-R Hatchback 3-Door

For 1994-2001 Acura Integra  GS-R Sedan 4-Door

For 1998-2000  Honda Civic   GX Sedan 4-Door

For 1996-2000  Honda Civic    HX Coupe 2-Door

For 1994-2001  Acura Integra   LS Hatchback 3-Door/ LS Sedan 4-Door

For 1994-1998  Acura Integra   RS Hatchback 3-Door

For 1994-1996  Acura Integra    RS Sedan 4-Door

For 1993-1997  Honda  Civic del Sol  S Coupe 2-Door / Si Coupe 2-Door

For 1999-2000  Honda  Civic             Si Coupe 2-Door

For 1992-1995  Honda  Civic           Si Hatchback 3-Door / VX Hatchback 3-Door

For 1995-1996  Acura Integra          Special Edition Hatchback 3-Door / Special Edition Sedan 4-Door

For 1997-2001  Acura Integra         Type R Hatchback 3-Door

For 1999 Honda  Civic          Value Package Sedan 4-Door

For 1994-1997  Honda  Civic del Sol     VTEC Coupe 2-Door

Thermostat Kit:

Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe included.

Probe typically threads into radiator, water outlet or manifold.

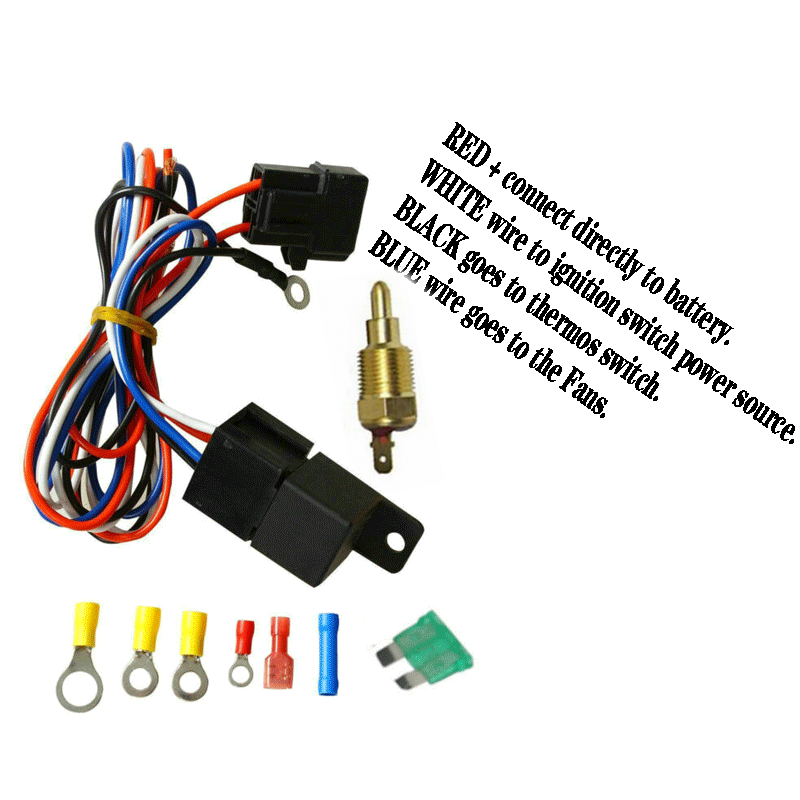

Thermostat Relay Kit Instructions：

RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.

BLUE wire goes to the Fans.

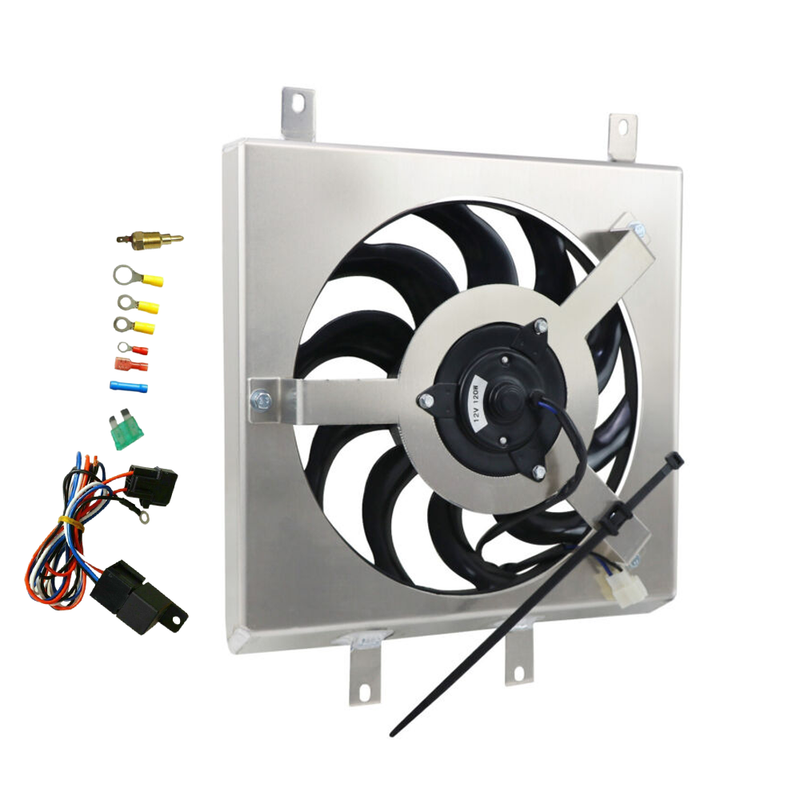

AA5052 Aluminum Shroud and Fans:

The New Design fan and the AA5052 fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.

1. AA5052 fan shroud to guaranteed airflow passes high efficiently. Make your engine bay perfect!
2. S blade fans, Push or Pull Type design, lightweight Plastic Durable Material.

3. Additional with thermostat, professional matching advice, consider for every detail and needed
