NEMA23 1NM Closed-Loop Stepper Encoder Motor 2ph + Driver Cables for CNC Router
Items Description

无标题 1

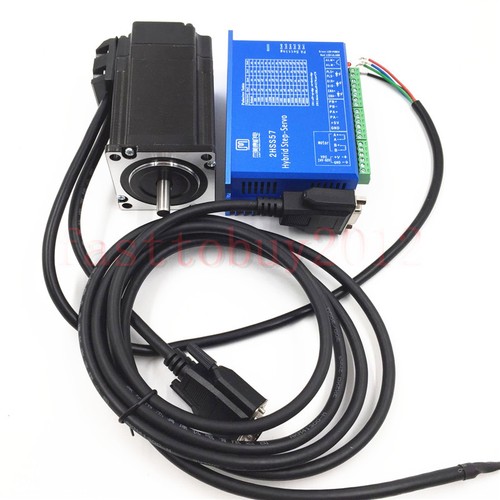

1NM Closed Loop Stepper Encoder Motor 2ph NEMA23 & Driver Cables for CNC Router

we offer two-year warranty

we will send as you choose, if you are not sure for the Packing or the unit,please feel free to contact us

Characteristic

1.      Full closed loop control, motor encoder with 1000 line, close to 100% of the torque output

2.      Segment set range is 2-256, fast response, high speed, light isolation fault alarm output interface ALM

3.      Current loop bandwidth (-3 db) 2 KHZ (typical), speed loop bandwidth 500 hz (typical), the position loop bandwidth 200 hz (typical)

4.      RS232 serial port communication available to download or change parameters; Over-current, over-voltage, undervoltage, overheating, speeding, differential protection; Alarm clear input ENA

 Drive specification

Model Current Voltage Matched motor Weight Dimension Control signal
2HSS57 0-6A DC(24-48V) NEMA23.NEMA34 0.27kg 118*75.5*34 Differential
2HSS86 0-6A DC(24-80V) NEMA23.NEMA34 0.57kg 150*97.5*53 Differential
2HSS86H 0-7A DC(40-110V) NEMA23.NEMA34 NEMA42 0.60kg 150*97.5*53 Differential
AC(60-80V)
2HSS1108H 0-8A AC(80-220V) NEMA34 NEMA42 1.50kg 181*140*70 Differential
2HSS2208H AC(110-240V) NEMA42 NEMA52

Motor specification

model

Step Angle

Holding Torque

Current/

Phase

Resis

Tance/ Phase

Inductance/Phase

Detent Torque

Rotor Inetria

57J1854EC-1000

1.8

0.9NM

2.8A

0.4

1.2

400

280

57J1880EC-1000

1.8

2.2NM

4A

0.35

1.8

700

480

86J1880EC-1000

1.8

4.5NM

4A

0.4

3.5

1300

1400

86J1895EC-1000

1.8

7NM

5A

0.37

3.3

2000

1850

86J18118EC-1000

1.8

8.5NM

5A

0.44

4.4

2500

2700

86J18156EC-1000

1.8

12NM

6A

0.72

5.5

4000

4000



Main application fields

Advertising industry, Engraving, packaging, lasers, electron industry, medical industry, Printing industry, woodworking, machinery industry, Ceramic Industry, stone industry and so on.

Brief introduction

2HSS two phase hybrid stepper servo drive system integrated servo control technology into the digital step driver. It adopts typical tricyclic control

method which include
current loop,speed loop and position loop.This product has the advantage of both step and servo system, is a highly cost-effective motion control products.
