1. Full HD 1920x1080 resolution

2. HDMIX4 inputs and outputs

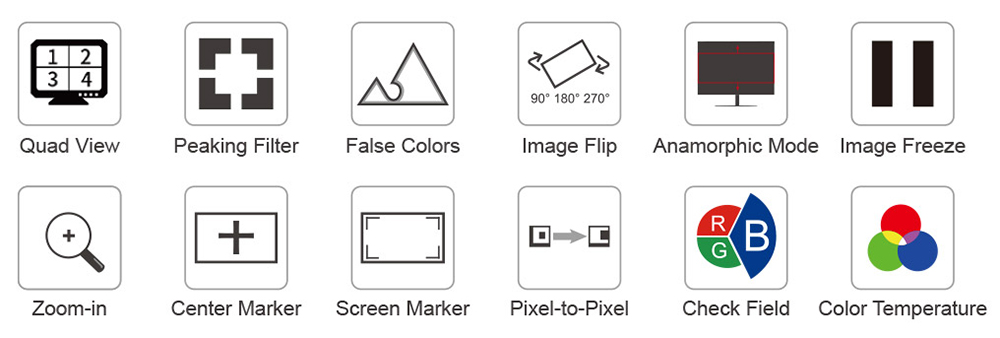

3. Special Features:

* Quad Split Display (1P, 2P LR, 2P TB, 2P PIP, 4P)

* Peaking Focus Assist

* False Color

* Anamorphic (x1.33, x1.5, x1.8, x2.0)

* Display Rotate (0°, 90°, 180°, 270°, H Mirror, V Mirror)

* Check Field (Red, Green, Blue, Mono)

* Image Freeze

* Zoom

* pixel to Pixel

* Center Marker

* Safety Marker(80%, 85%, 90%, 93%, 96%, 4:3, 2.39:1, 2.35:1, 1.85:1)

* Line Color (Red, Green, Blue, White)

4. Monitoring via front panel 3.5mm stereo headphone jack

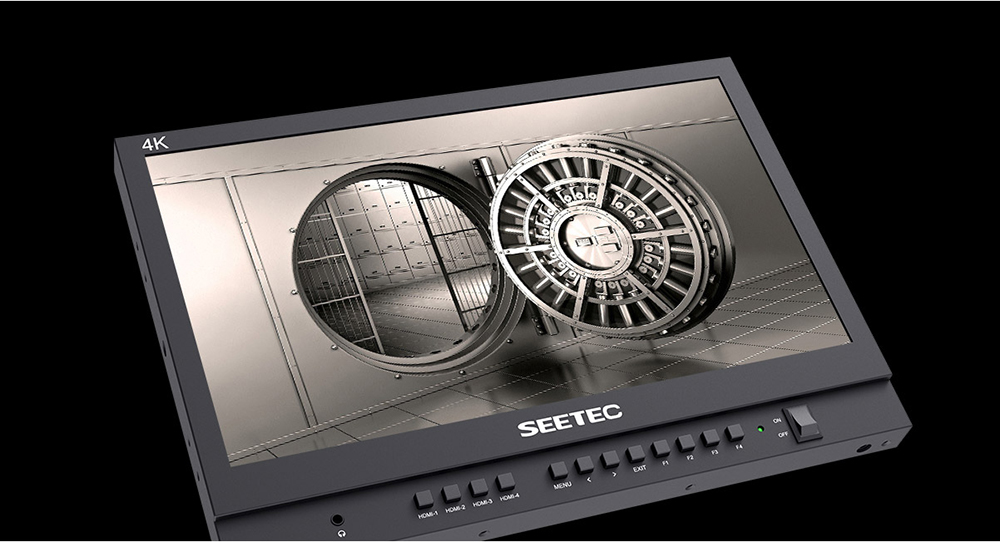

15.6” LCD, Full HD 1920x1080

The SEETEC ATEM156 equipped with a 15.6 inch IPS LCD panel. The IPS LCD panel itself has a resolution of 1920 x 1080, a contrast ratio of 800:1,

and an LED backlight with a brightness of 250cd/m², giving you an accurate reproduction of video. It combines a wide 170° viewing angle in both

horizontal and vertical directions. Easy viewing is ensured by reducing color changes due to the viewing angle.

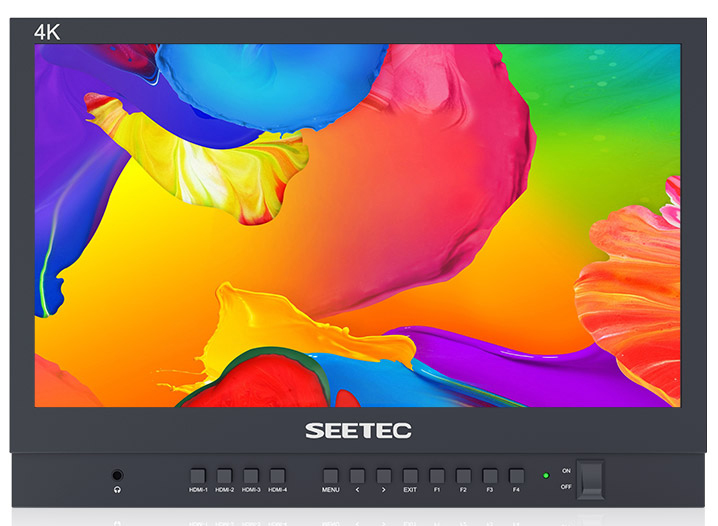

Easy Button Operation

When you are busy at the shooting scene, you need to be able to easily control the equipment, and the ATEM156 can meet your needs. It is equipped

with a simple control panel, , allowing you to be comfortable in the shooting process. With 4 separated HDMI buttons, you can switch the HDMI

signal source quickly; with 4 shortcut keys (F1 ~ F4), you can customize the shortcut key functions and quickly call them out.

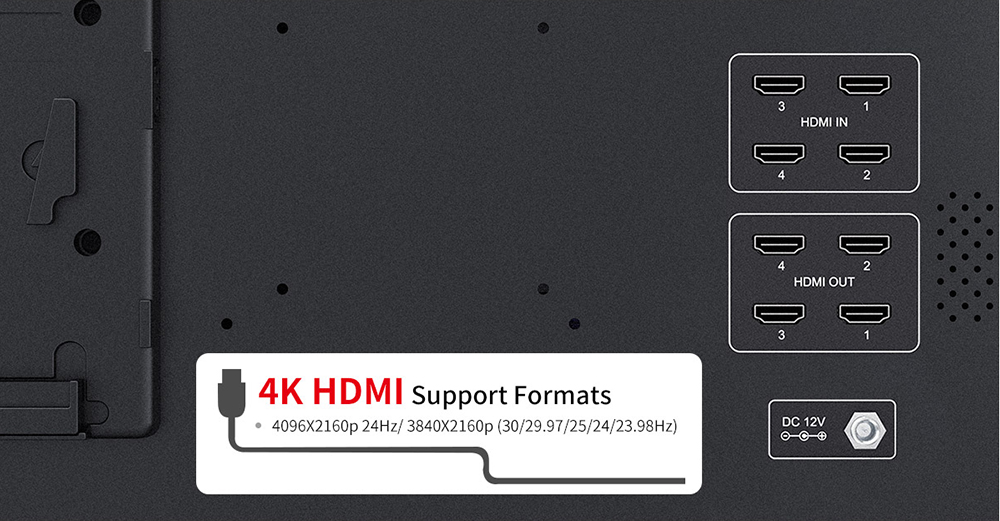

4 X 4K HDMI Inputs and Outputs

Connect up to 4 cameras, game consoles or computers!

ATEM156 has 4 X 4K HDMI input and output, which can connect up to 4 cameras, game consoles, computers and other equipment. At the same time, it can

also loop out 4 HDMI signals to other devices, such as ATEM Mini or ATEM Mini Pro. This is very useful for studio and live multi-camera shooting.

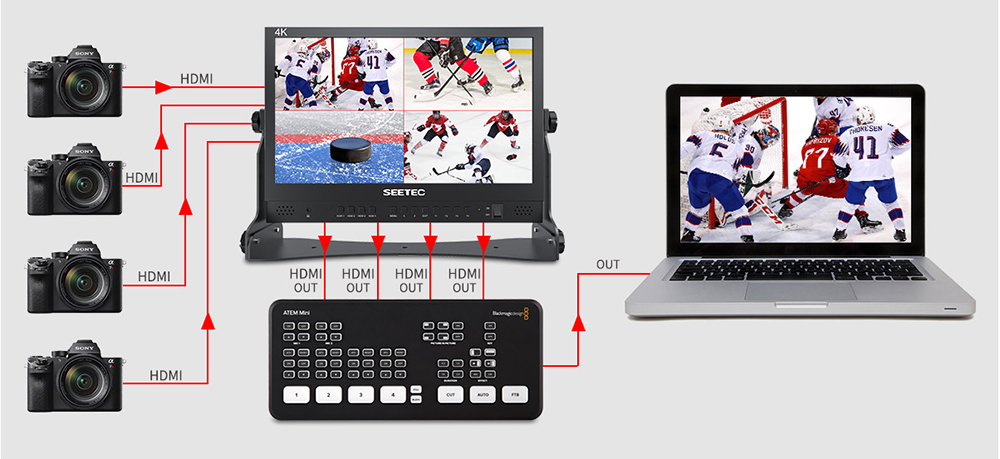

Realize ATEM Mini Multiview Monitoring

When your switcher does not have a multiview function, such as ATEM Mini, then you may need an ATEM156. When doing larger live productions with

multiple cameras, you can first connect the camera to the ATEM156 monitor, check the shooting images of each camera on the ATEM156 monitor, and

then put them to air, so you don't have to worry about the broadcast content. Help you preview the image and avoid the "blind cut" channel status.

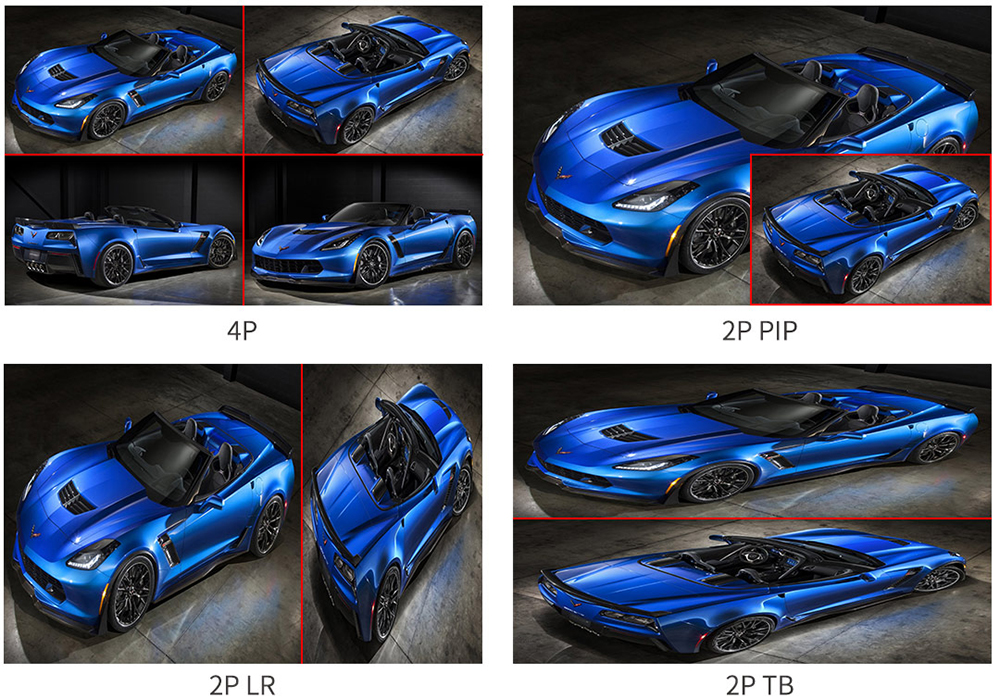

Multiview

Quad View/ Dual View

When you’re creating a live program from multiple cameras, it’s important to be able to see more video sources at the same time. ATEM156 has four

4K HDMI inputs and outputs, supports quad view, dual view, single view monitoring functions, allowing you to get perfect multi camera monitoring in

any location!

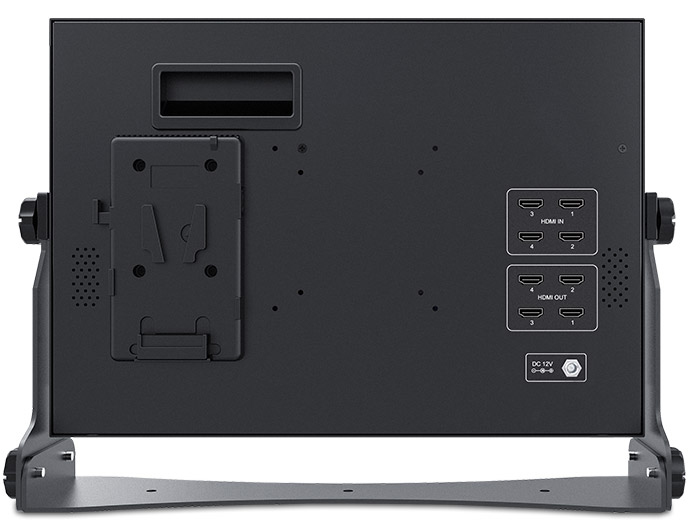

Flexible Power Supply

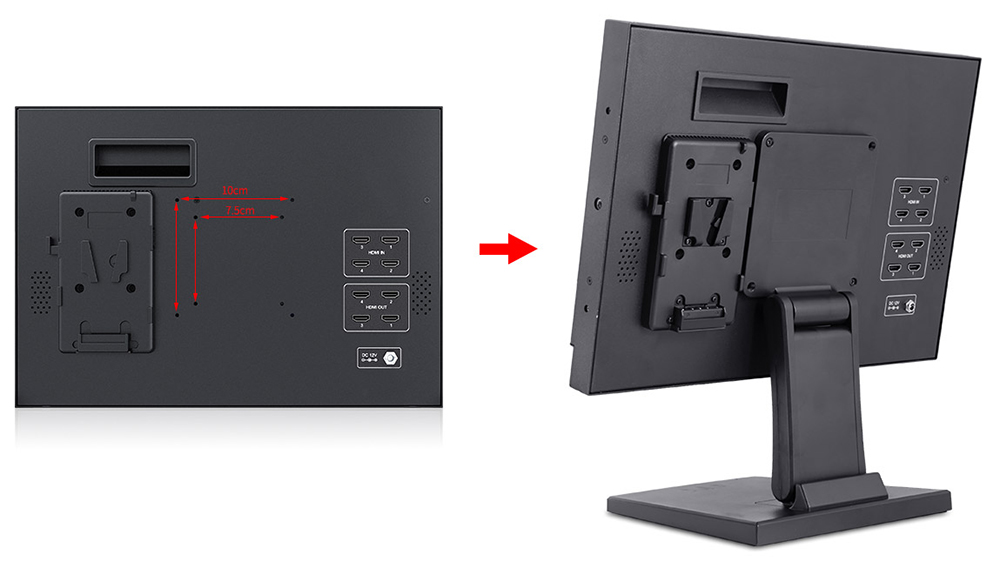

The back of ATEM156 is equipped with a 12V DC power input and a V-mount battery plate. You can connect its 12V DC input for continuous power, or

you can install a V-mount rechargeable battery on the V-mount battery plate to realize mobile applications. For outdoor shooting, you can use an

external battery, and you can connect a standard DC power supply when using it in a shed or post-production room.

Note: Battery is not included.

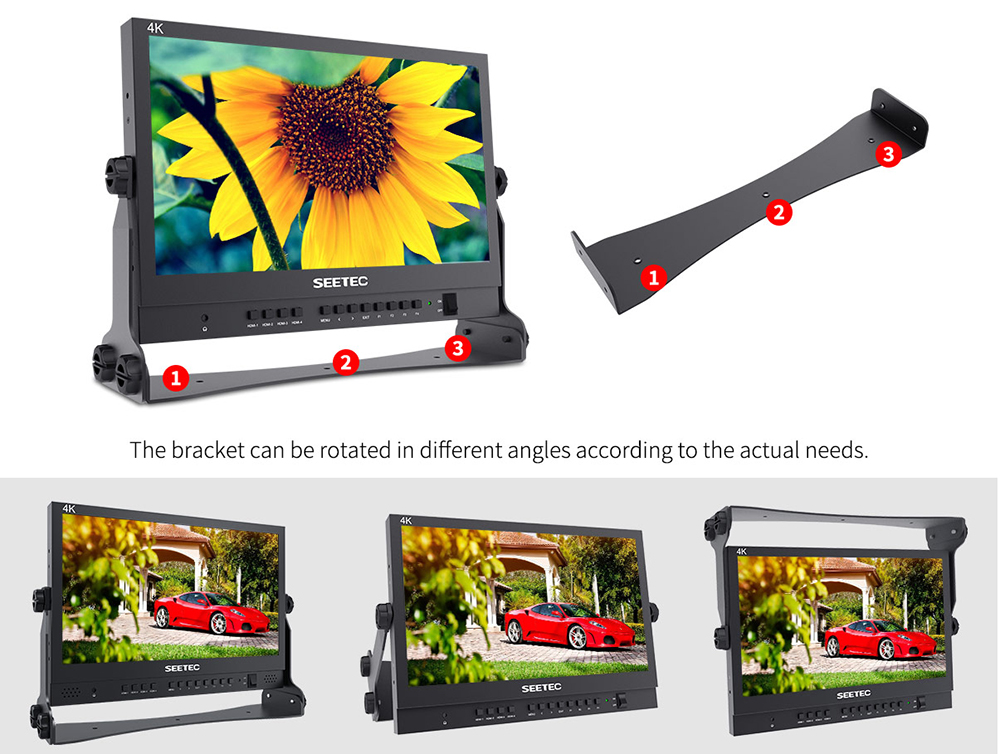

Attach to Camera Support or Hang It Anywhere

There are 3 mounting points located on the U-shaped bracket. The standard sized mounting points make it easy to mount and are compatible with

third-party rigging equipment. Using the 1/4 inch holes, you can hang it from rigs or mounted it on the camera support, and use it as a monitor for

the entire crew. And you can also set it up on a table to monitor.



VESA Mount Points

The included VESA mount points mean you don’t have to rack mount ATEM156, as you can use a wide range of computer monitor mounting hardware if you

want to mount your broadcast monitor in cubicles, on walls or anywhere you need!



Aluminum Metal Frame

The frame of ATEM156 is made from extremely durable and lightweight aircraft grade aluminum, the weight of the ATEM156 is as low as 1.57kg (without

bracket), and this metal material has very sturdy and durable characteristics, suitable for high-intensity production such as mobile shooting,

location shooting or live broadcast.



Live Production Broadcast Monitor

ATEM156 is an affordable way to create incredible programs immediately from live events! It is very suitable for the use of broadcasters, live

sports, concerts, lectures and seminars, eSports and gaming competitions, web broadcasters, and other scenarios. It can meet your indoor and

outdoor multi-camera monitoring needs.
