Meet UL, CE requirements,
Ultra-thin, ultra-small
Full voltage input (90 ~ 240VAC)
Low ripple, low noise
Output overload short circuit protection
High efficiency, high power density
Product design to meet EMC and safety testing requirements
Low power consumption, green, no-load loss <0.1W
100% load aging and testing
The use of high-quality environmentally friendly waterproof plastic thermal conductivity potting, moisture, vibration.
One year of quality shelf life.
Environmental conditions
Operating temperature: -20 - +60 ℃
Storage temperature: -40- + 80 ℃
Relative Humidity: 5-95%
Cooling: Natural cooling
Atmospheric pressure: 80-106Kpa
Altitude ≤ 2000m
Vibration: vibration coefficient 10 ~ 500Hz, 2G10min. / 1cycle, 60min.each along X, Y, Z axes (to meet the secondary road transport requirements)
Input characteristics
Rated input voltage: 100-240VAc
Input voltage range: 90-264VAc
The maximum input current ≤ 0.2A
Input inrush current ≤10A
The maximum input voltage ≤ 270VAc
Input slow start ≤ 50mS
Input low voltage efficiency: Vin = 110VAc, output full load ≥69%
Input high voltage efficiency: Vin = 220VAc, the output full load ≥ 70%
Long-term reliability: MTBF ≥100,000h

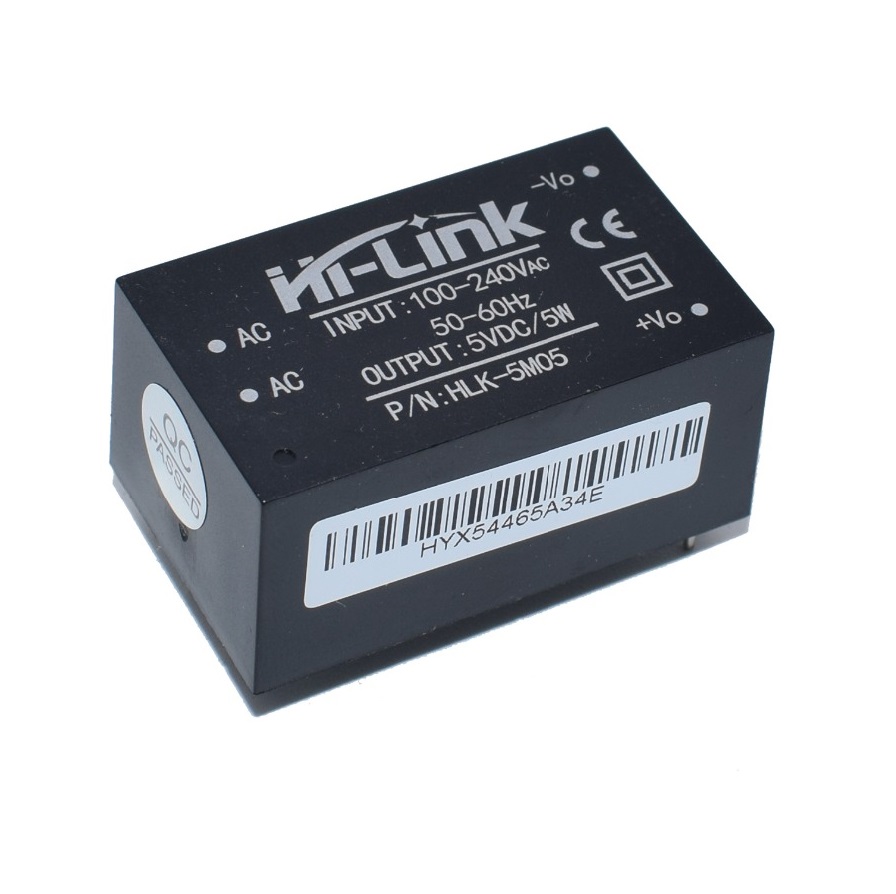

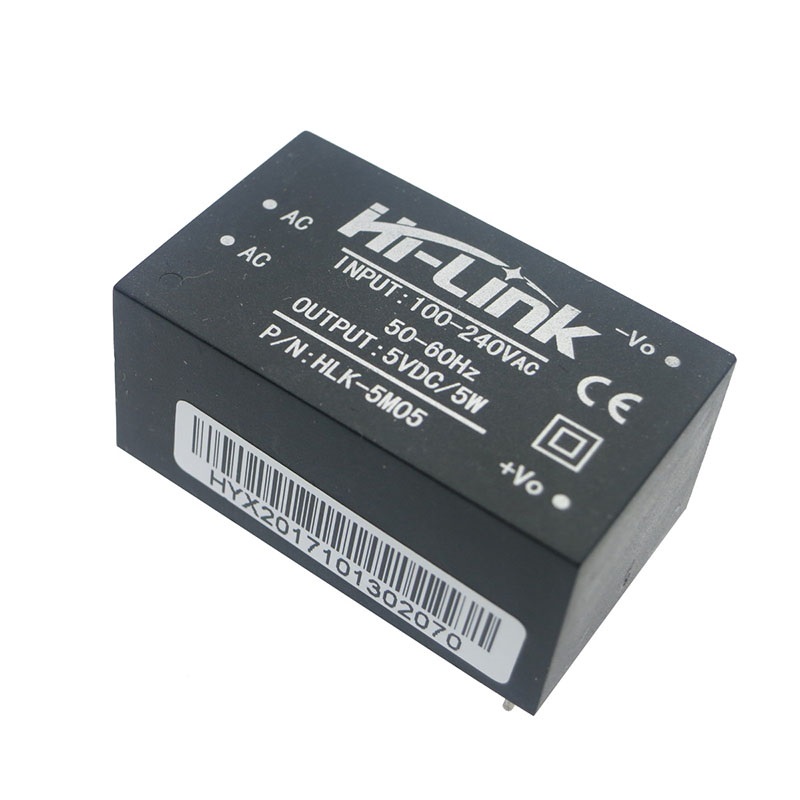

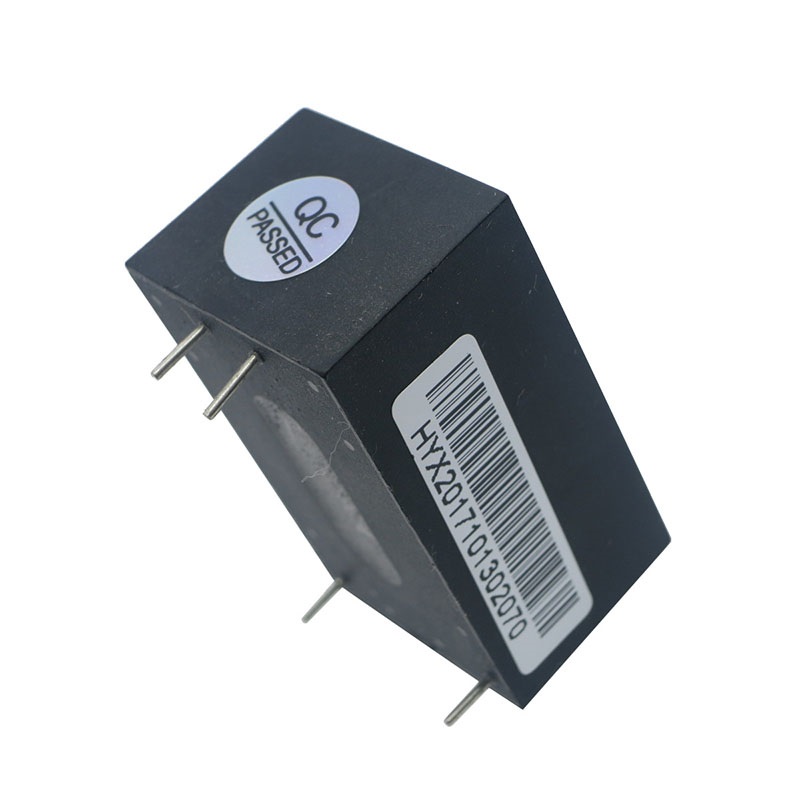

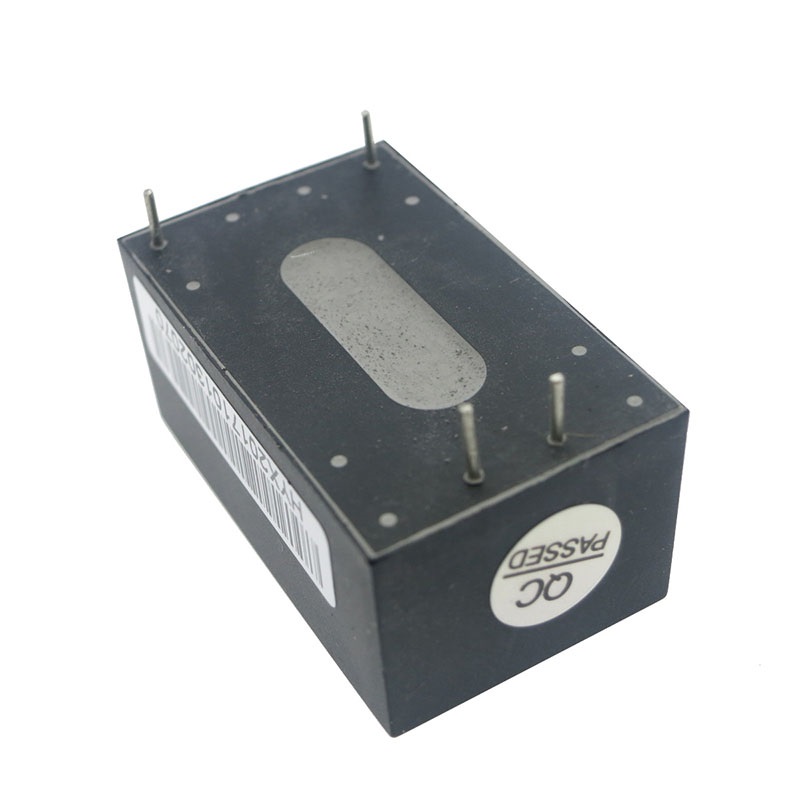

Output Characteristics (5V / 1000mA) For type HLK-5M05
In this case,
No-load rated output voltage: 5 ± 0.1VDc
Full load rated output voltage: 5 ± 0.2VDc
Short-term maximum output current ≥ 1200mA
Long time maximum output current ≥1000mA
Voltage regulation: ± 0.2%
Load regulation: ± 0.5%
Output ripple and noise (mVp-p): ≤ 70 rated input voltage, output full load. With a 20MHz bandwidth oscilloscope,
Load side and 10uF and 0.1uF capacitor for testing. (MV)
Switching machine overshoot amplitude: rated input voltage, output plus 10% ≤ 5% VO
Output Overcurrent Protection: Outputs 150-200% of the maximum load
Output short-circuit protection: normal output directly short-circuit, short circuit removed automatically restored to normal work (without damaging the whole machine)
