Application

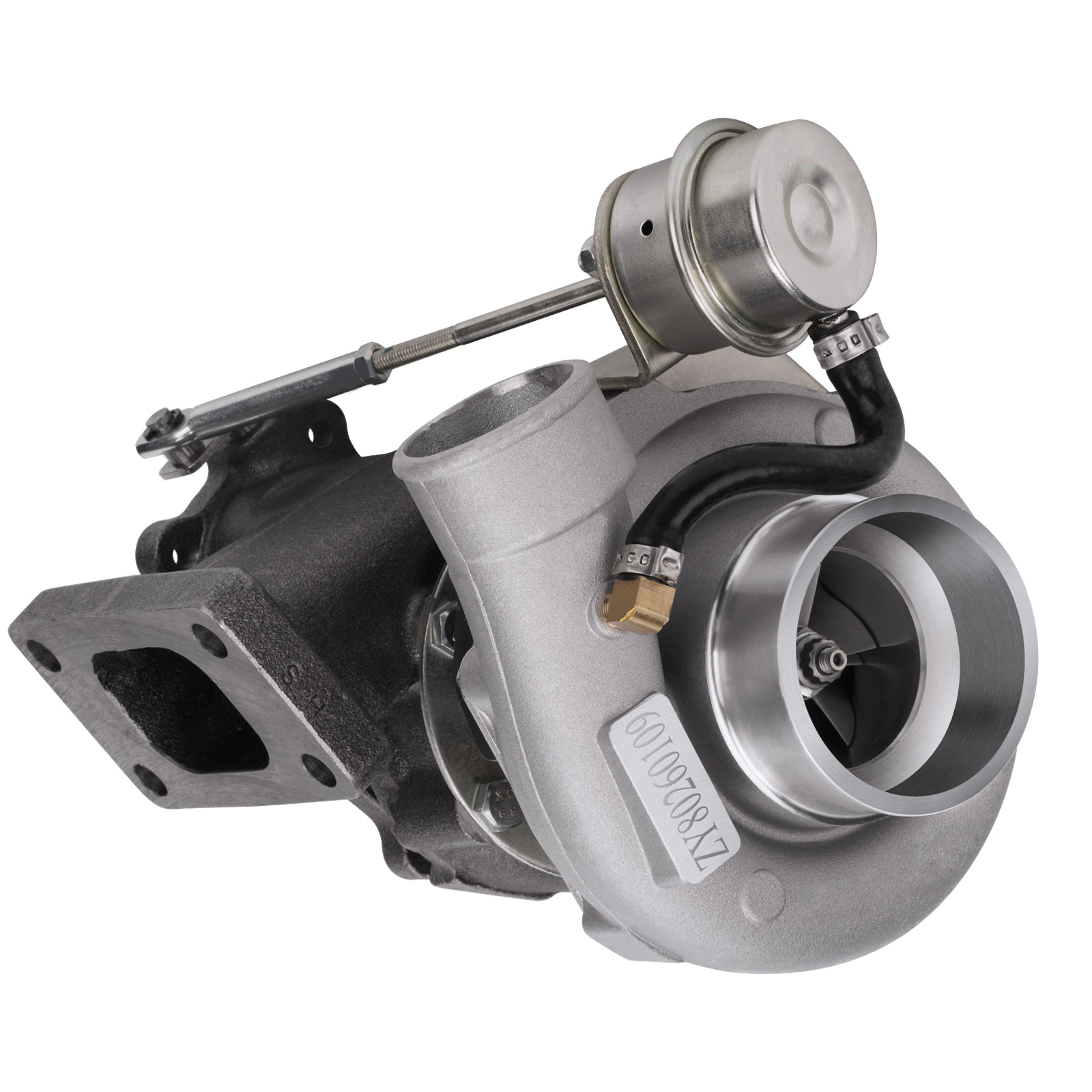

Directly bolt on for Nissan Skyline R32 R33 R34 2.0L-2.5L RB20DET RB25DET engine
For some R33 models few modifications may be required(A direct Bolt on turbo upgrade for RB20DET and RB25DET for Skyline Engines!Will require a coupler to connect turbo to hotpipe but other than that its a OEM Bolt on with upgrade 3" air inlet and larger wheels for optimum power. )


Specification

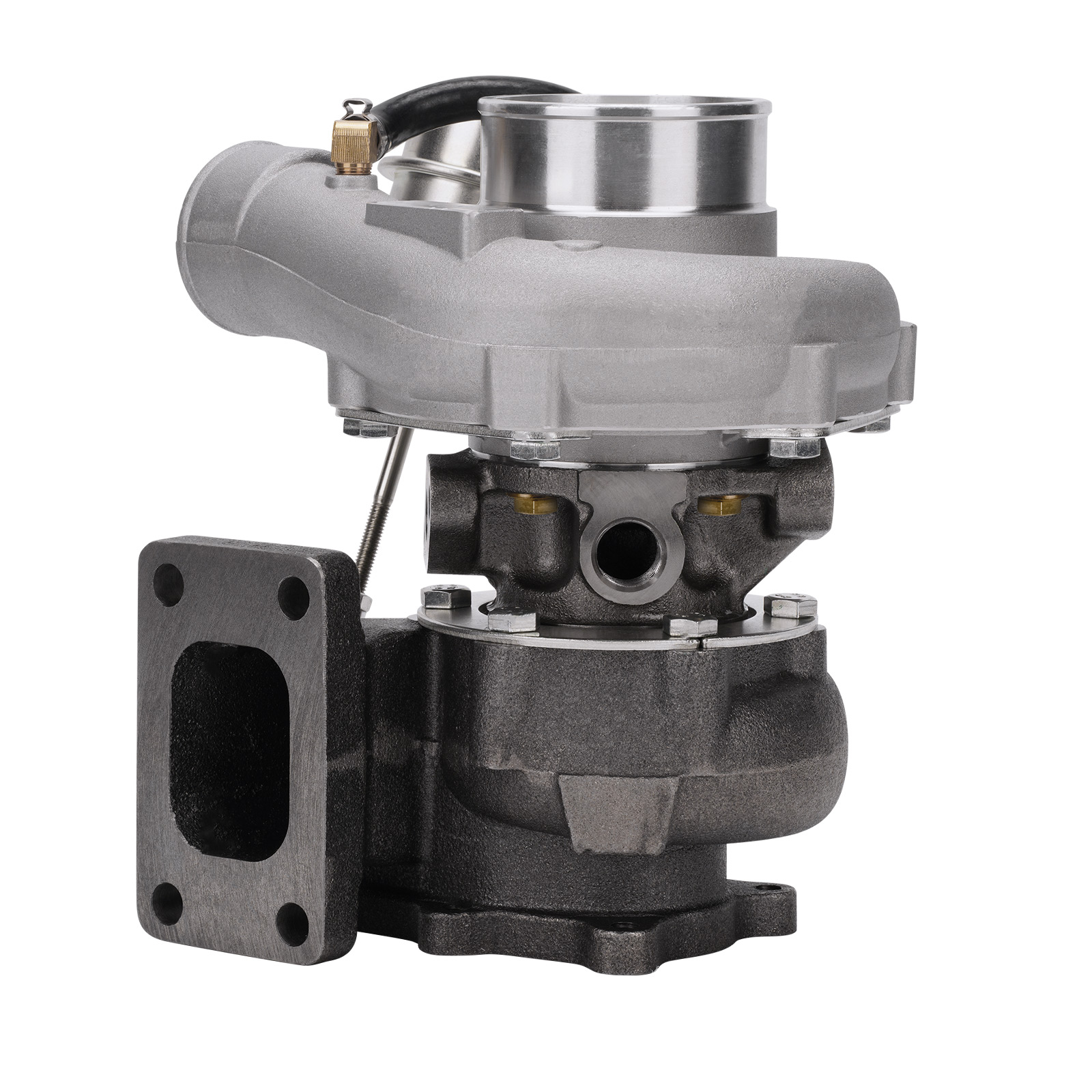

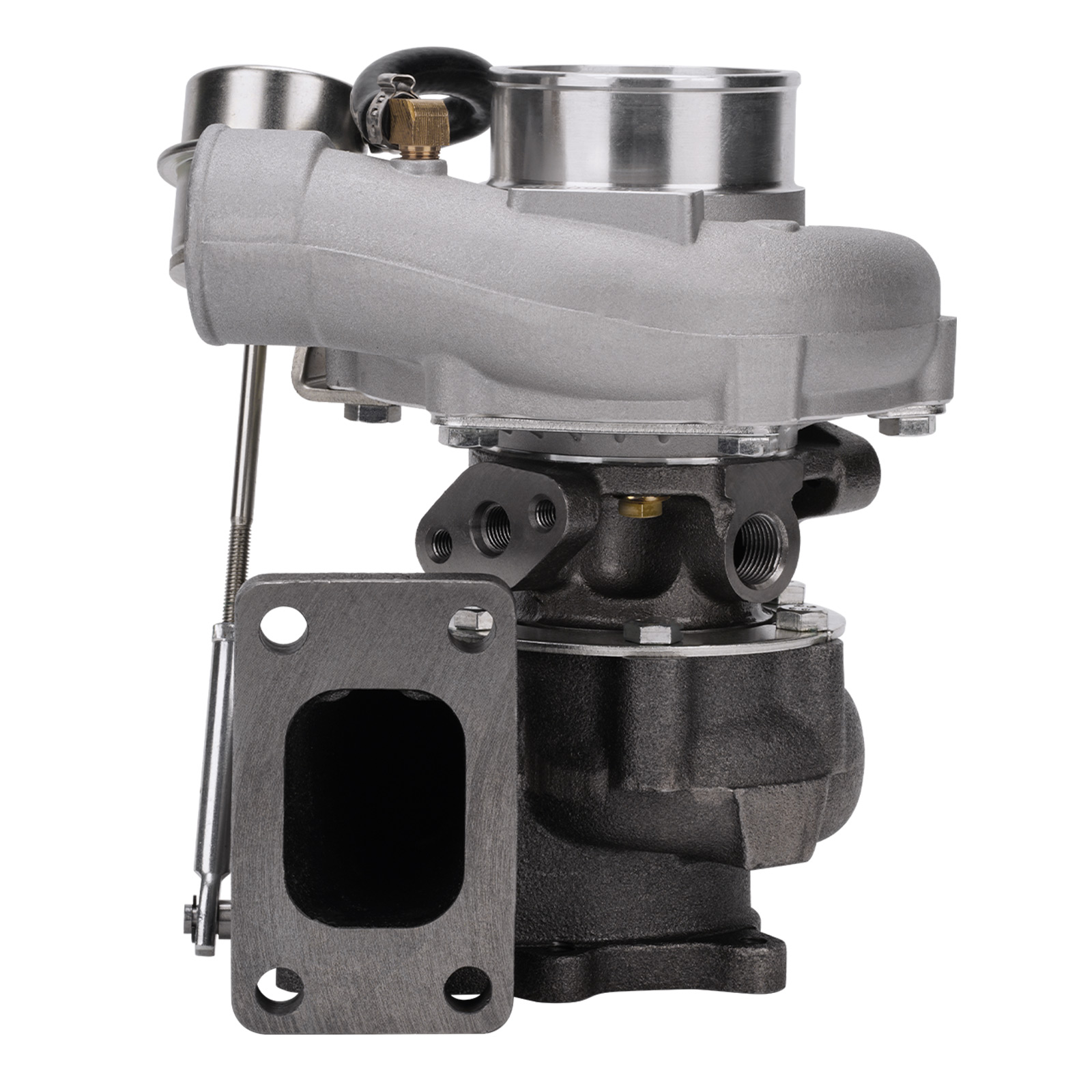

Exhaust Inlet (Turbo Manifold) Flange: T3 Flange

Exhaust Outlet  Flange: 6-Bolt Flange

Turbine Inducer Diameter: 64.4mm

Turbine Exducer Diameter: 47.9mm

Turbine Trim: 55.3

Turbine A/R: 0.63

Compressor Inducer Diameter: 52.7 mm

Compressor Exducer Diameter: 76mm

Compressor Trim: 48.1

Compressor A/R: 0.5

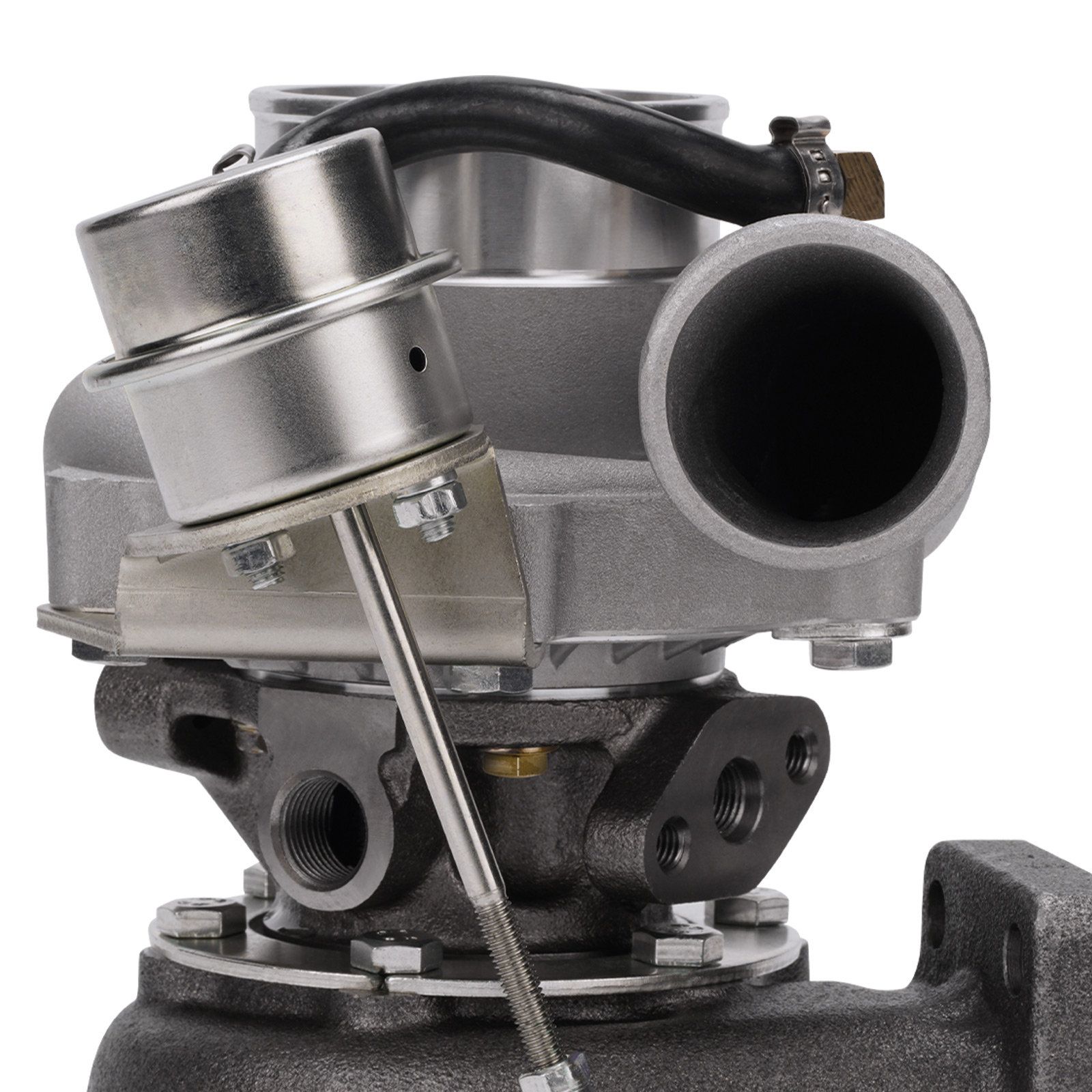

Wastegate: with Wastegate

Bearing: Wet Float

Cooling Type: Water + Oil

Warranty: 2 Years for any manufacture defects

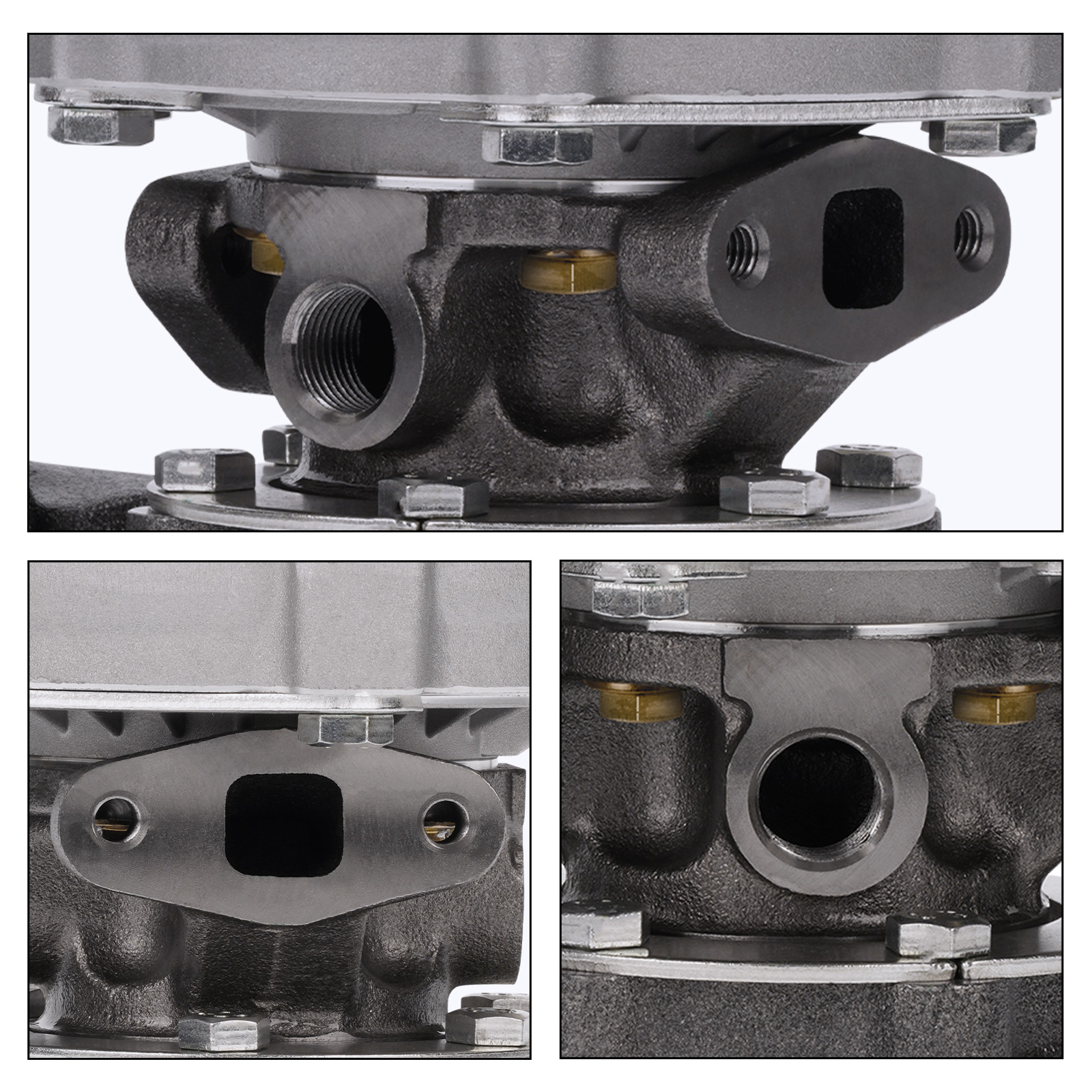

Oil Inlet: M12*1.25  side hole: 2*M8*1.25

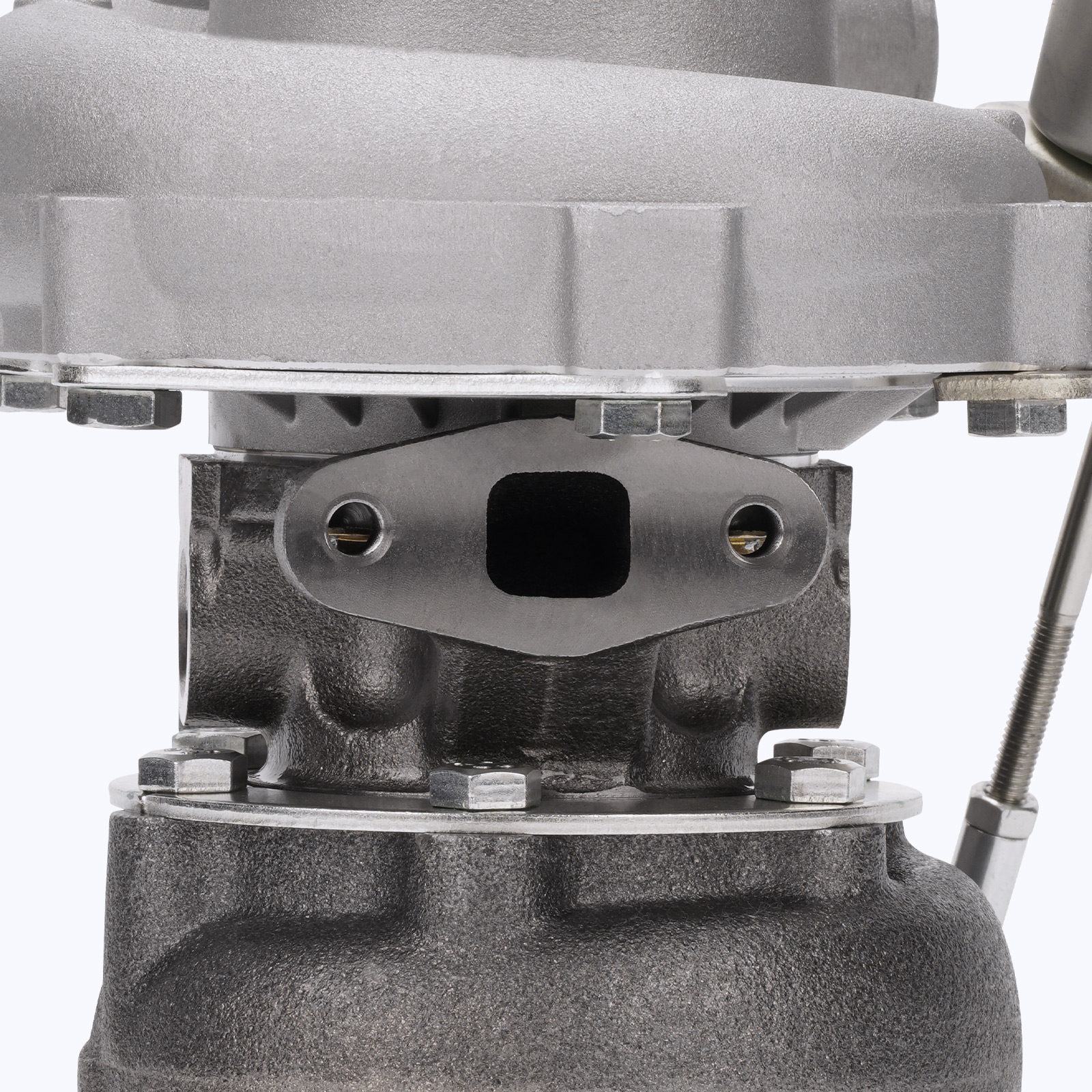

Oil Outlet: 2*M8*1.25 Center-center: 50.8

Water Hole: M18*1.5

Horse Power: Boost Horse Power up to 500BHP

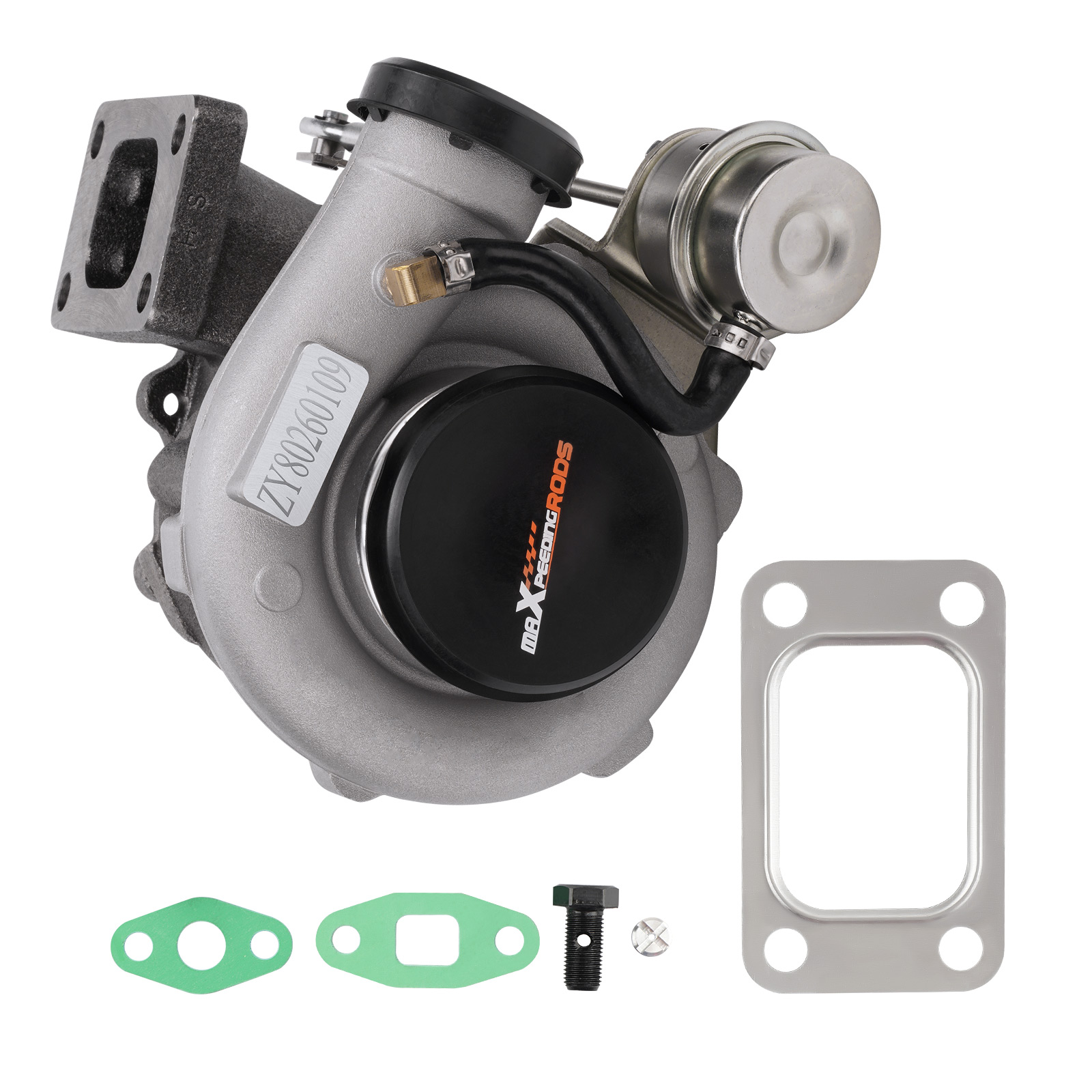

Accessories: You will get exactly as picture shown

Feature

1. Turbine housing : Ductile iron QT450-10 shell with high-temperature resistance up to 700 degrees Celsius

2. Steel Turbine Wheel: Made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 degrees Celsius

3. Compressor housing: ZL104 aluminum with lightweight

4. compressor wheel/blades: Cast aluminium with good gas tightness and corrosion resistanceProduct  ：

1. Rich Experience In Turbo Production And Own Factory

2. Quality Assurance

3. High Rotor

4. High-Speed Oil Seal Ring

5. Strict Quality Inspection

6. Precision Clearance

7. High-speed Accessories

Notice

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding
* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
