Mini Sticker Cutter A4 Vinyl Cutter Plotter Cutting Machine Contour Cut Function
- The new model features upgraded movable paper rollers, which can be adjusted to better stabilize the material during cutting. The older version had fixed rollers that could not be moved.
- An additional communication interface has been added, allowing support for USB flash drives (U-disk) for data transfer and file loading.
- A new screen display has been integrated for improved user interaction and operation.
- For A4 models, there is no positioning function available. If customers require positioning capabilities, we recommend choosing the A3 model, which supports material widths ranging from 60mm to 350mm.
Technical parameters
Structure: Steel Needle
Drive System: Stepper Motor
Maximum Cutting Range: 210mm x 2000mm
Paper Width Range: 60mm - 330mm
Contour Cutting Method: Supports Manual Contour Cutting
System/Software Support: Windows System Win7-Win11 CDR/AI
Cutting Pressure: 20-500gf
Cutting Speed: 10-800mm/s
Language: Chinese/English Switch
Communication Port: USB, U Disk
Power Supply: External Adapter, Input AC 100V-240V; 50HZ-60HZ
Device Power: <100W
Working Environment: 5 to 30°C to 80% R.H. (No Condensation)

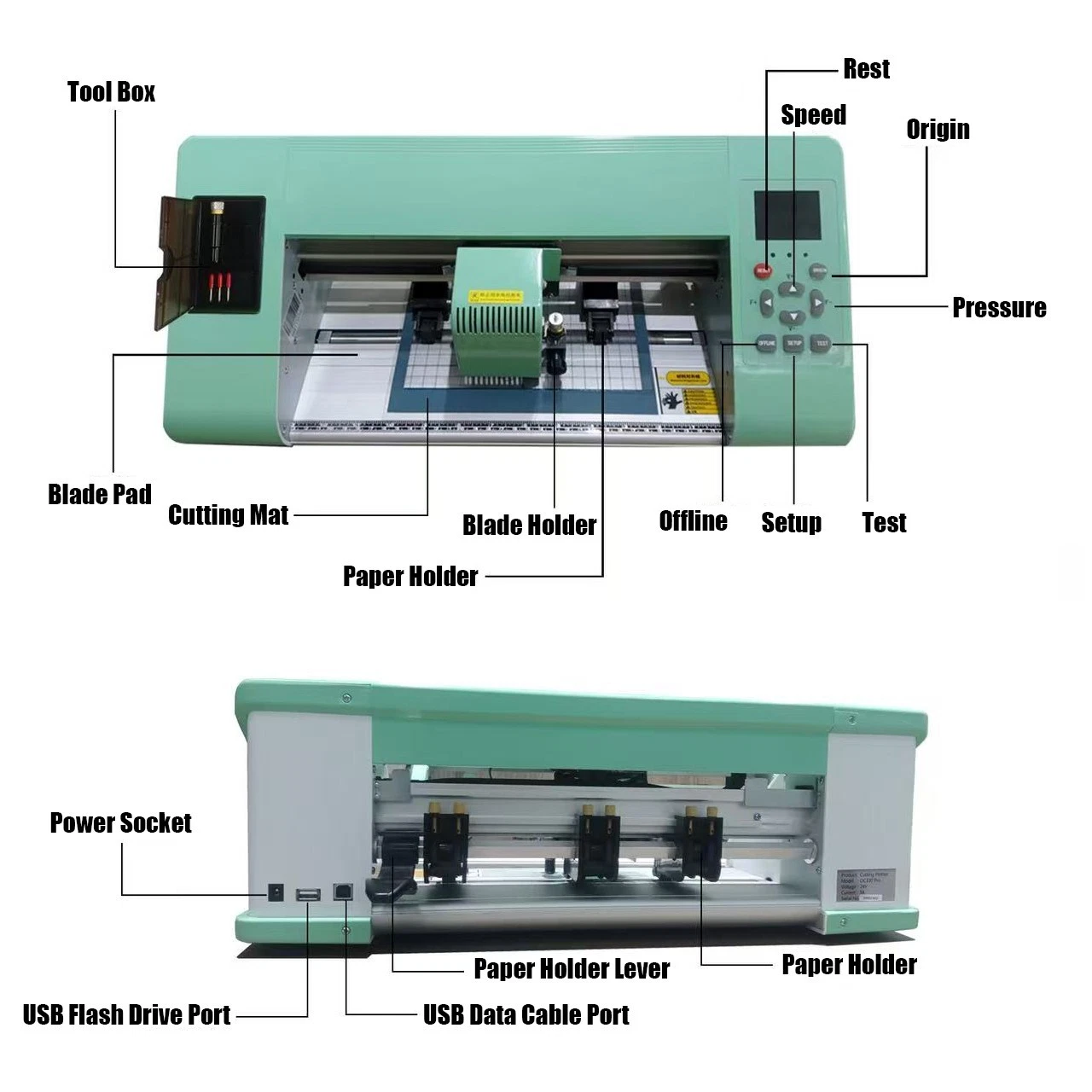

Movable Paper Holder: 2
Dimensions: Approximately 500x180x175mm
Packaging Dimensions: Approximately 610x320x270mm
Net Weight/Gross Weight Approximately: 4.7kg/6kg
Cuttable Materials: Instant Stickers, Car Stickers, Back Adhesive Photo Paper, Transfer Film, Crystal Labels, Heat Transfer Printing, Film Sheets, Non-adhesive Sticker Paper, Tags, Reflective Film, Name Stickers, Large Head Stickers, TPU Film, Shrink Film 0.3mm (Paper Thickness within 300g) (Not All Materials Can Be Cut or Cut Through in One Pass)
Packing List:
1 x Main Unit
1 x Power Adapter (110-240V)
1 x Power Cable
1 x USB Data Cable
1 x USB Flash Drive
1 x Cutting Blade Holder, Set of Blades (45°)
1 x Drawing Pen Holder, Pen Cartridge
2 x Cutting Mat
1 x Warranty Card
Precautions
1. Protective material must be removed before turning on the cutting plotter.
2. Check the label on the back side of the plotter to confirm that the rated voltage required by the plotter matches the voltage of the power base.

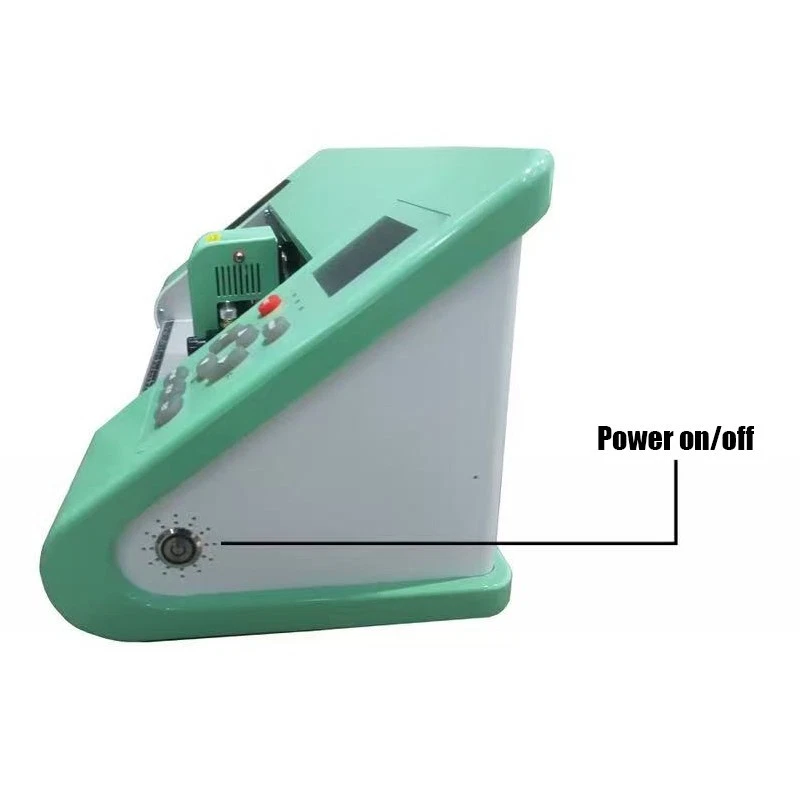

3. Firstly make sure that the power switch is off, then plug the power supply into grounded power outlet.
4. Please do not touch the power cord with wet hands to avoid electric shock.
5. Please only use the power cord, data cable provided with this product, or manufacturer-approved replacements.
6. Please do not drop metal objects and liquids into the machine to avoid malfunction.
7. After shutting down, you must wait another 5 seconds to turn on the cutting plotter again, otherwise it will cause damage to the cutting plotter.
8. In thunderstorms, turn the power switch to OFF and unplug the power cord.
9. Please do not privately change the manufacturer's components.
10. Manufacturer reserves the right to change product specifications without prior notice.
11. The manufacturer only bears the legal obligations of the product itself sold to the users, and does not bear other losses caused by the malfunction of the products.
12. Without our company’s permit, no part of this manual can be copied or transmitted in any name.
