Microlab-FXR BK-21N WLAN/Cellular Crossband Injector Diplexer Filter for UHF/UMTS/W-LAN 802.11(b/g)
Comes with what you see in the pictures. If you don't see it, you probably won't get it.
Specifications are from Microlab-FXR and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
This part was removed from a system that had to be scrapped due to contractual obligations. It is guaranteed to work.

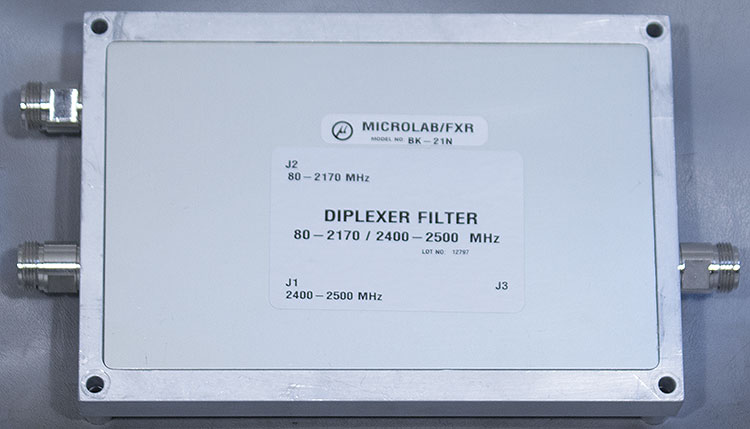

The Unit's Information Tag Reads:
Model Number: BK-21N
Description: 80 - 2170 / 2400 - 2500 MHz, Diplexer Filter

Features:

  • Combines W-LAN and Cellular on the same Distributed Antenna System
  • Indoor Model
  • 50 dB Input Isolation
  • 150 W Average Power
  • Minimal RF Insertion Loss
  • Rugged, High Reliability Design
  • Low Passive IM., PIM
  • RoHS compliant

    • Description:
    Microlab BK-21 series Wireless Local Area Network (WLAN) Injector is a filter diplexer for indoor. It links W-LAN designed to 802.11(b/g) with a coaxial distributed inbuilding cellular network or DAS. This gives W-LAN the benefit of the same controlled coverage as the DAS, eliminating many W-LAN uncertainties.

    To minimize the effects of the Injector to the DAS the inputs are well isolated and have minimal insertion loss.

    The W-LAN Injector has been designed using passive, proprietary techniques to ensure minimal loss and high reliability. Corner holes are provided for simple mounting to a surface or cable tray.

    Specifications:
    Pass Band:
      Input J1: 2400 - 2500 MHz
      Input J2: 80 - 2170 MHz
    DC Path to J3**:
      Input J1: Isolated
      Input J2: 2 A max.
    Pass Band Loss:
      Input J1: 0.6 dB ±0.1
      Input J2: 0.3 dB ±0.1
    Power Rating Avg., Peak:
      Input J1: 8W max
      Input J2: 150 W max, 3 kW

    Input J1-J2 Isolation: > 50 dB
    Input J1 & J2 VSWR: < 1.3:1
    Impedance: 50 Ω nominal
    Intermodulation (PIM): < -140 dBc; < -150 dBc typical. 2 x +43 dBm tones
    Environment*: 0 to +50°C
    Housing Finish:
      Indoor/IP64: Standard model, Passivated Aluminum

    Notes:
      *: Broader range available with relaxed VSWR.
      **: DC path: DC to 20 MHz
