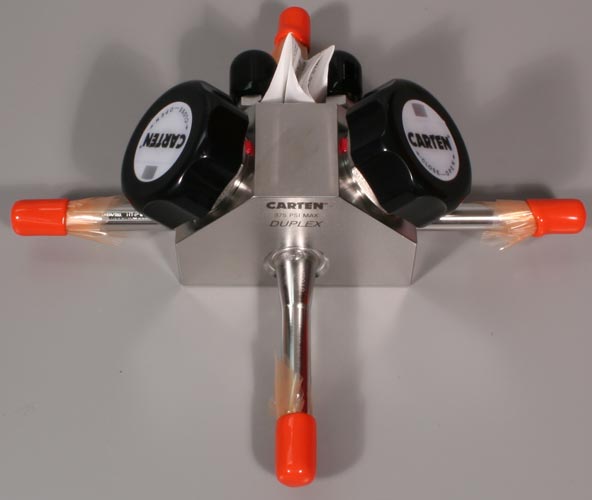

NEW Carten Ultra-High Purity Cross Duplex Diaphragm Valve with Black Handles - Part Number: 501314-01-BLK, Description: DPC500-500-10(2) PC1FSM
Comes with what you see in the pictures. If you don't see it, you probably wont get it.
Specifications are from Carten and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
MOST ITEMS CAN BE SHIPPED INTERNATIONALLY EVEN THOUGH EBAY'S SITE MAY SAY OTHERWISE. PLEASE CONTACT US FOR A SHIPPING QUOTE. WE CANNOT SHIP TO AN INTERNATIONAL FREIGHT FORWARDER ON SMALLER PACKAGES.
These valves are brand new and are in original factory packaging. This particular valve has had it's packaging opened for picture taking purposes.
We have quantity available, however only 1 unit is sold in the auction.

List Price: $985.00 with a 6-8 week delivery time

The Description Indicates: DPC500-500
The Branches (Outlet) are: 0.5" Outer Diameter
The Main (Inlets) are: 0.5" Outer Diameter

  • Duplex Cross Valve

    • Description:
    This compact Duplex (diaphragm design) valve series is intended for bulk gas distribution service where containment, cleanliness and purity are of utmost importance.

      Applications for this valve include:


  • Ultra-high purity gas system control valves

  • Ultra-high purity gas control for point-of-use of service for hookups

  • Superior containment and cleanliness for your most critical valve applications

  • Suitable for inert and most toxic gases

    •   Specifications:
    Construction:
      Wetted Areas: Elgiloy, 316L Stainless Steel, CTFE
      Non-Wetted Areas: 316L Stainless Steel, 303 Stainless Steel
    Maximum Operating Pressure: Vacuum to 375 psi (25 BAR)
    Maximum Operating Temperature: 180°F (82°C)
    Flow Efficient (CV): 2.96
    Helium Leak Test: Inboard/across the seat. Helium leak test performed with 100% helium.
      1 x 10-10 scc/s He max.: Rated
      1 x 10-9 scc/s He max.: Std. Protection
    Cleanliness: Purged and final packaged in Class 1 cleanroom. Double-bag packaging (2 mil nylon inner bag, 6 mil polyethylene outer bag) with N gas environment supplied from a liquid source 2 Assembled and tested in CLASS 10 cleanroom (this valve's packaging has been opened).
    Standard Finish: Electropolished to 10 Ra (0.25 m) on all wetted surfaces

    For Domestic Customers: Packaging, handling, and order processing included in shipping in all domestic shipments as quoted by the shipping calculator. For International Customers there is a $5.00 minimum for packaging, handling, and order processing. International shipping to be determined by destination.

    Prior to shipment I will need to know the following information (filled out on a form that I will send you) for International Customers or Packages/Freight being Forwarded internationally. International customers may also be subject to a freight forwarder form if applicable.:

    (1) Are you the end-user of this item?

    (2) If you are not the ultimate end-user of the item, please state the ultimate end user's name.

    (3) What is the ultimate country destination?

    09/26/05
