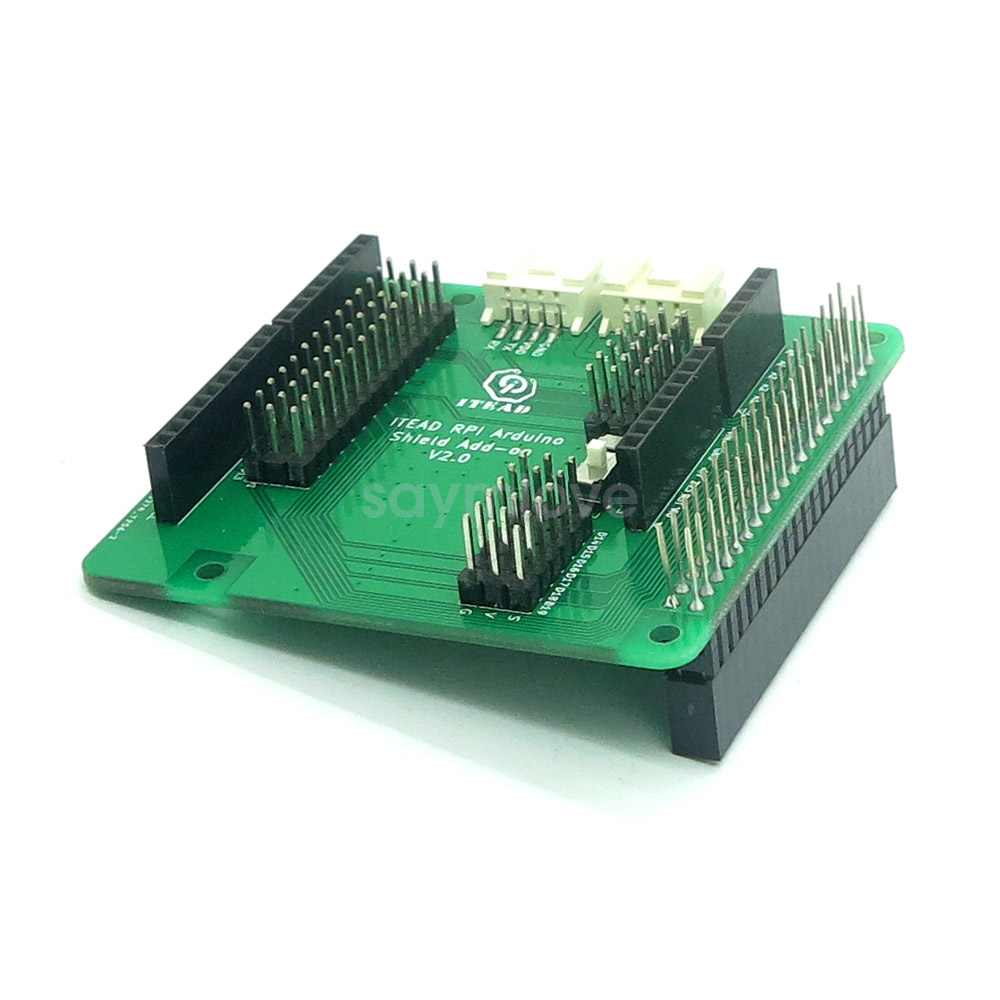

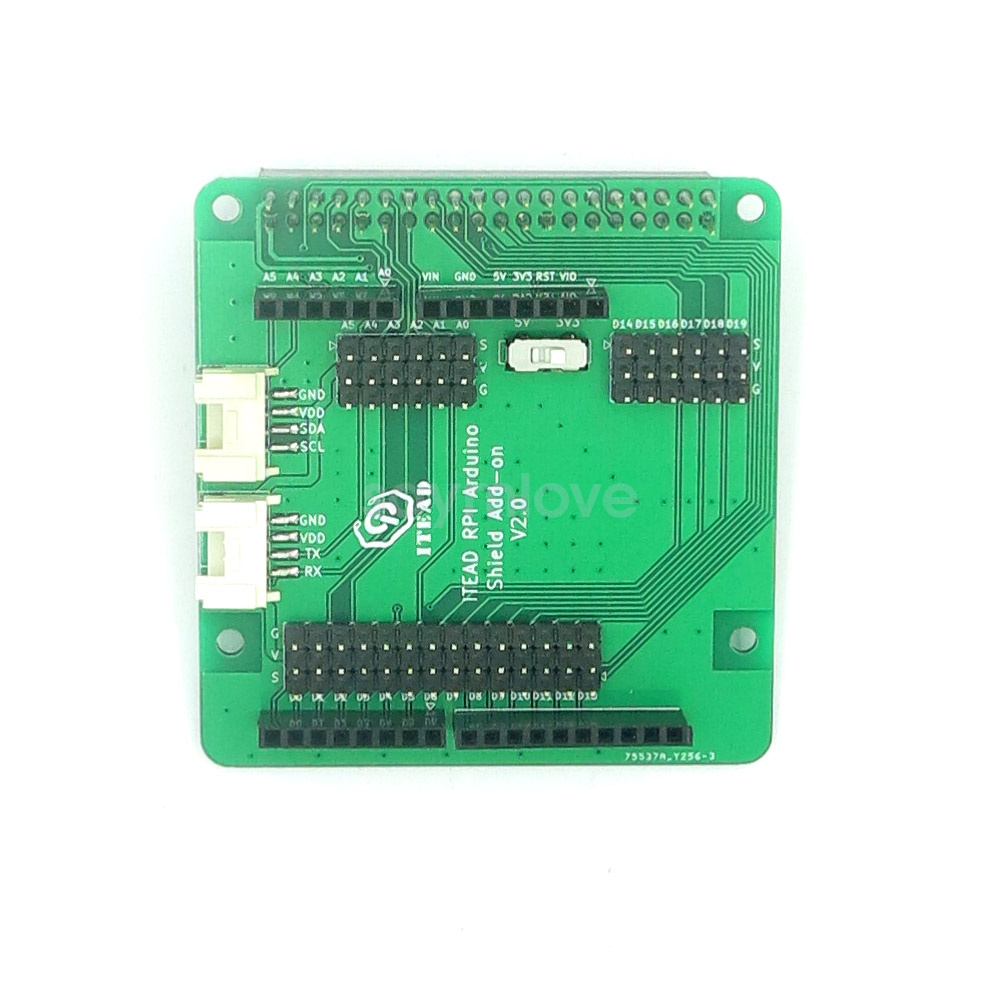

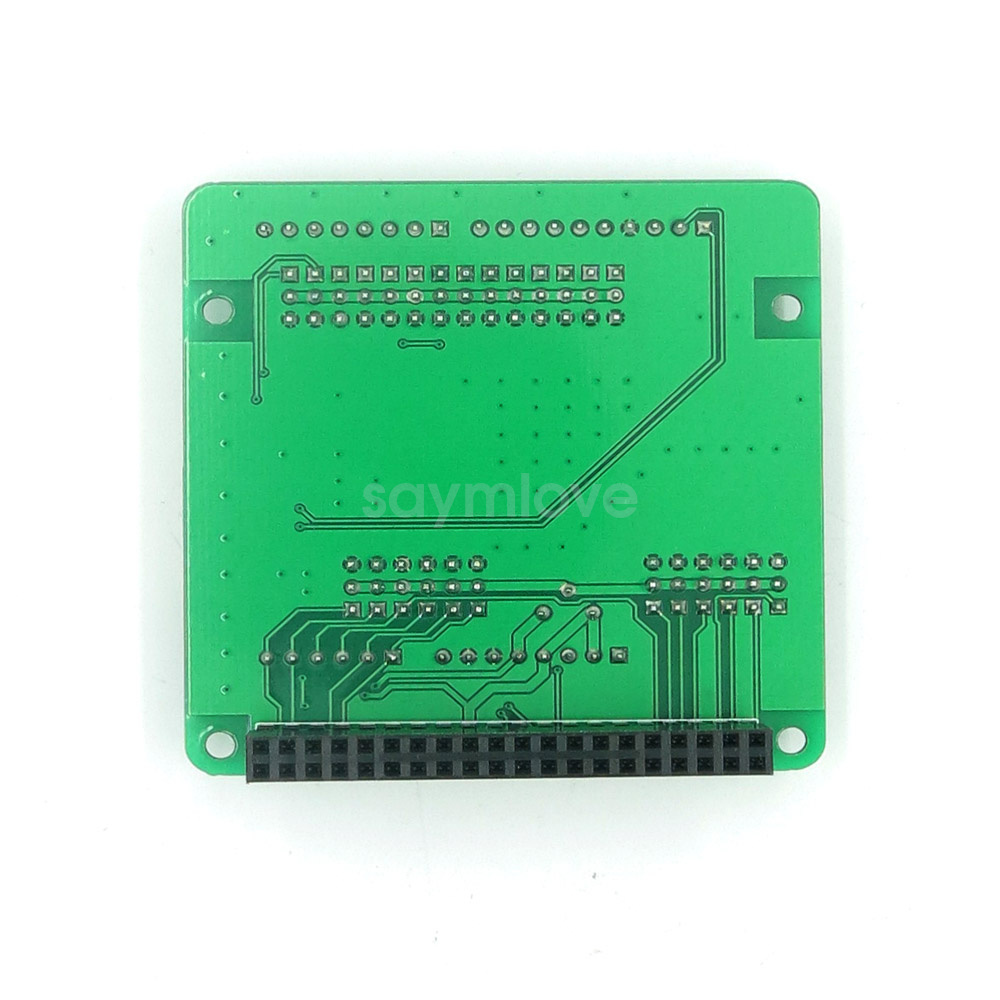

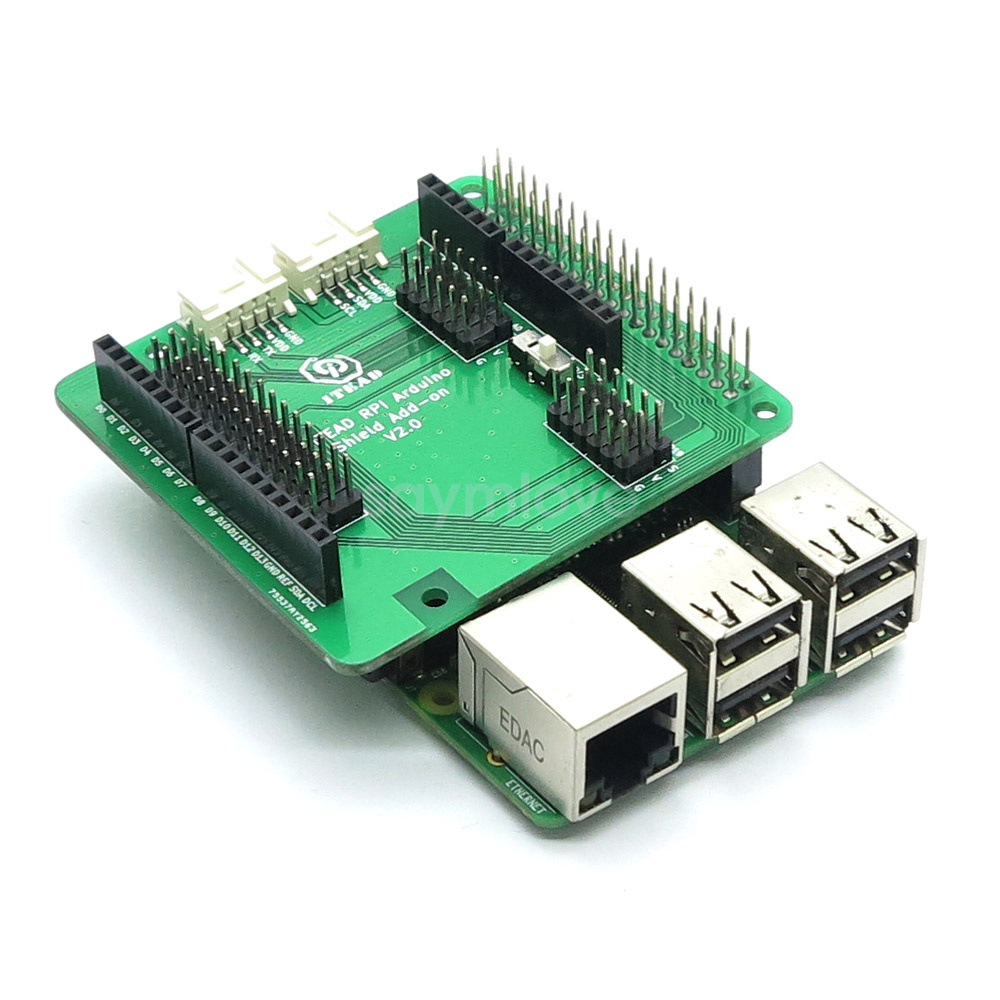

The RPI Arduino Shield Add-on the Raspberry Pi's 32PIN Connector extension for Arduino pin, you can easily connect a variety of Arduino Shields, at the same time leads to two groups Grove electronic building blocks interface for connecting a variety of electronic building blocks. We offer more than just a piece can be easily inserted in the Raspberry Pi above board, but also for supporting the provision of the SDK, porting the driver on the Arduino. After installing the SDK, you can be like under the Arduino platform, as this board is very easy to drive. Raspberry Pi's 32PIN interface extensions for Arduino pin 2 groups Grove electronic building blocks interface two electronic building blocks interface,

power supply voltage 3V3,5V adjustable PCB size 62.33X49.67X1.6mm interface IIC, UART

Arduino Shield Pin Figure Pin Index Pin Name Arduino Shield Description 1 3V3 - 2 5V - 3 SDA A4 UART SDA 4 5V - 5 SCL A5 UART SCL 6 GND - 7 GPIO7 D9 UART TXD 8 TXD D1 9 GND - 10 RXD D0 UART RXD 11 GPIO0 D2 12 GPIO1 D3 13 GPIO2 D4 14 GND - 15 GPIO3 D5 16 GPIO4 D6 17 3V3 - 18 GPIO5 D7 19 MOSI D11 20 GND - 21 MISO D12 22 GPIO6 D8 23 SCK D13 24 CE0 D10 25 GND - 26 CE1 A3

Package include:

1 x New Raspberry Pi to Arduino Shields Adapter
