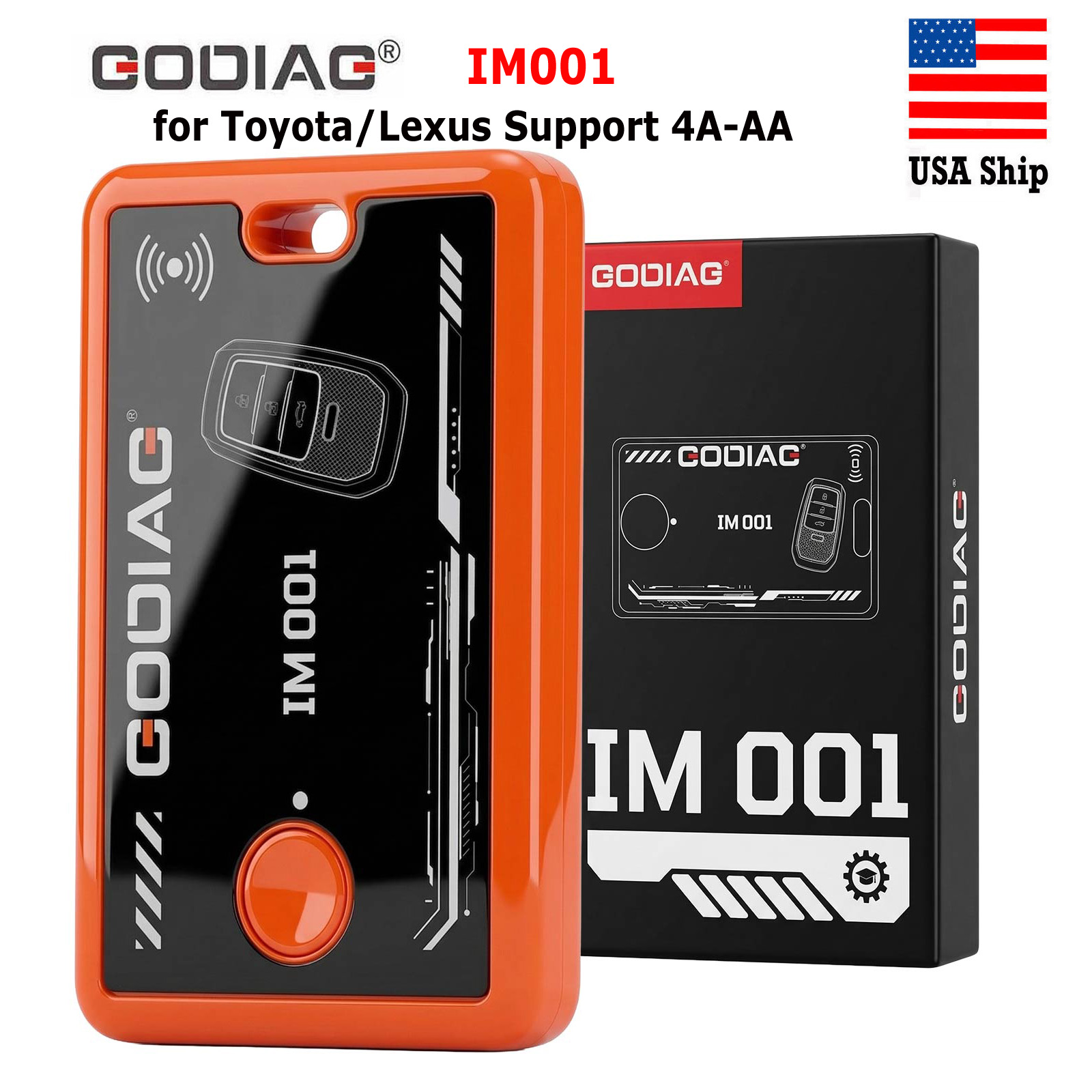

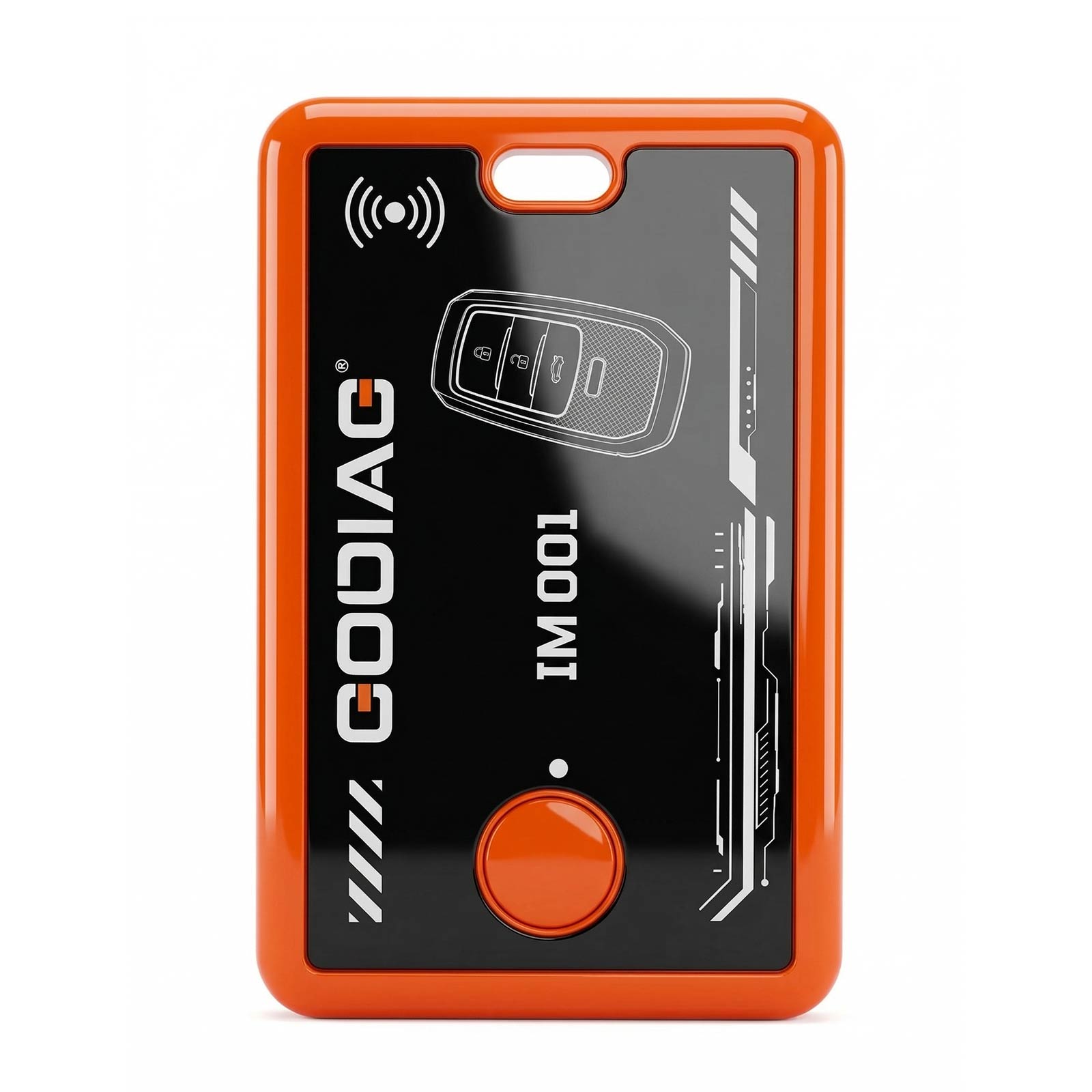

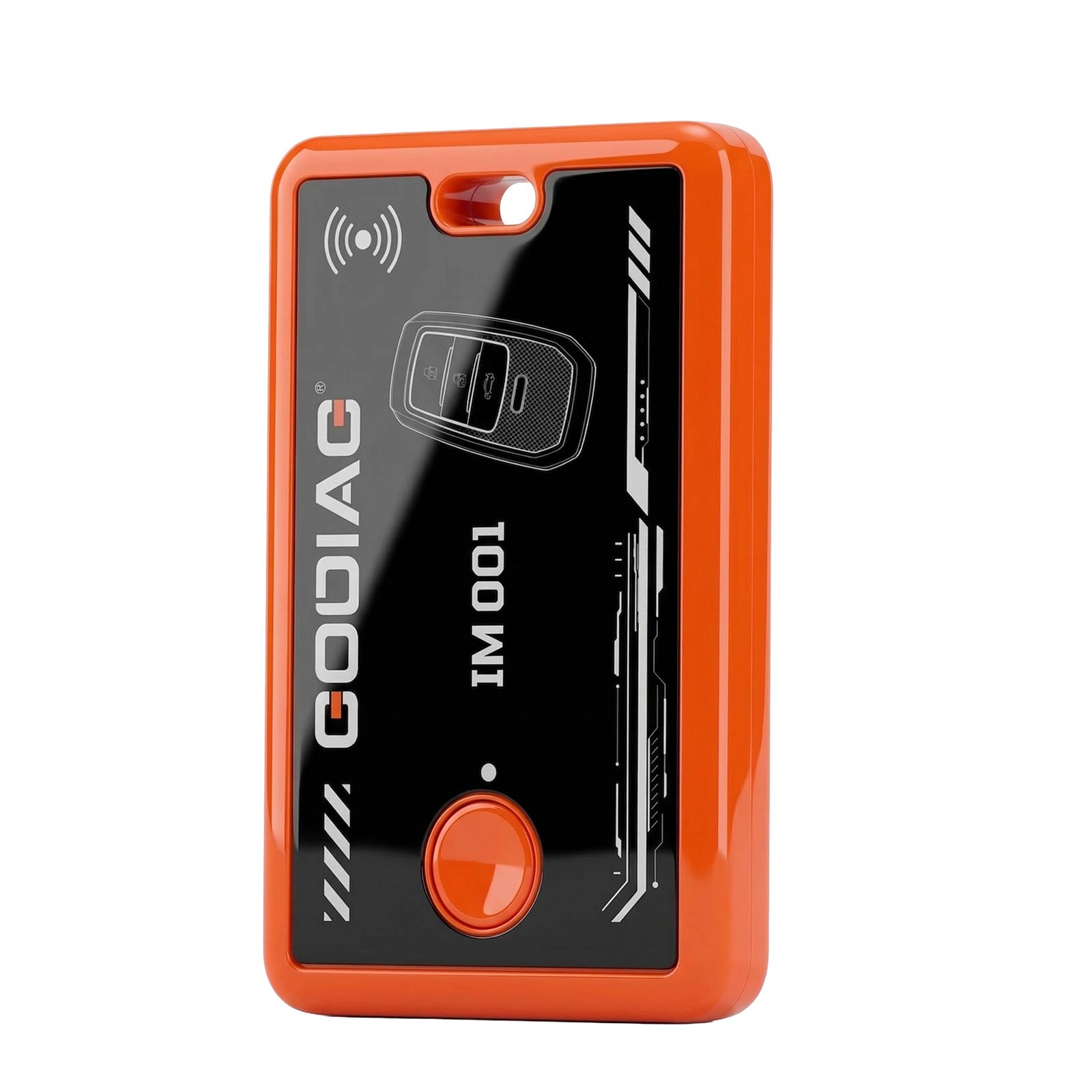

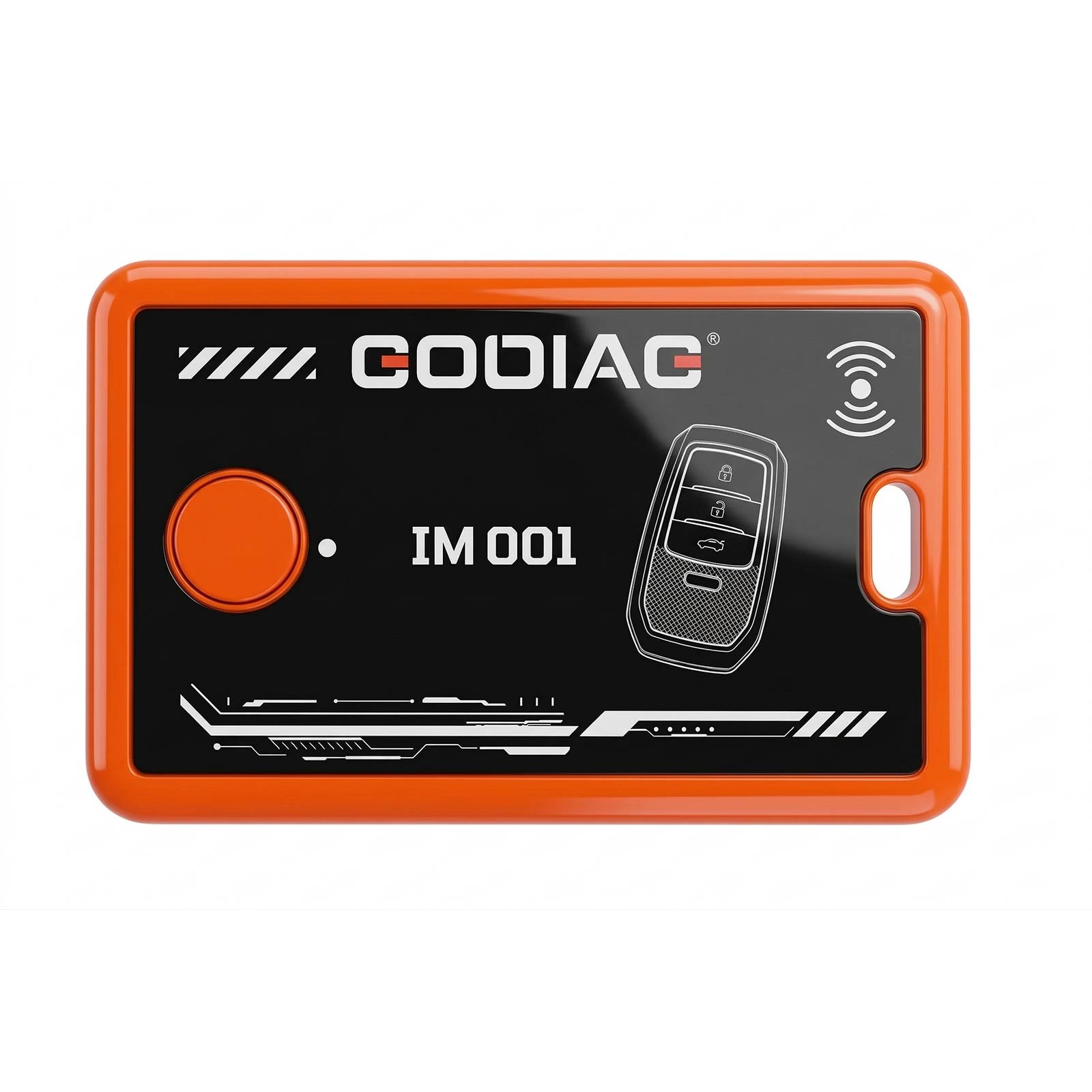

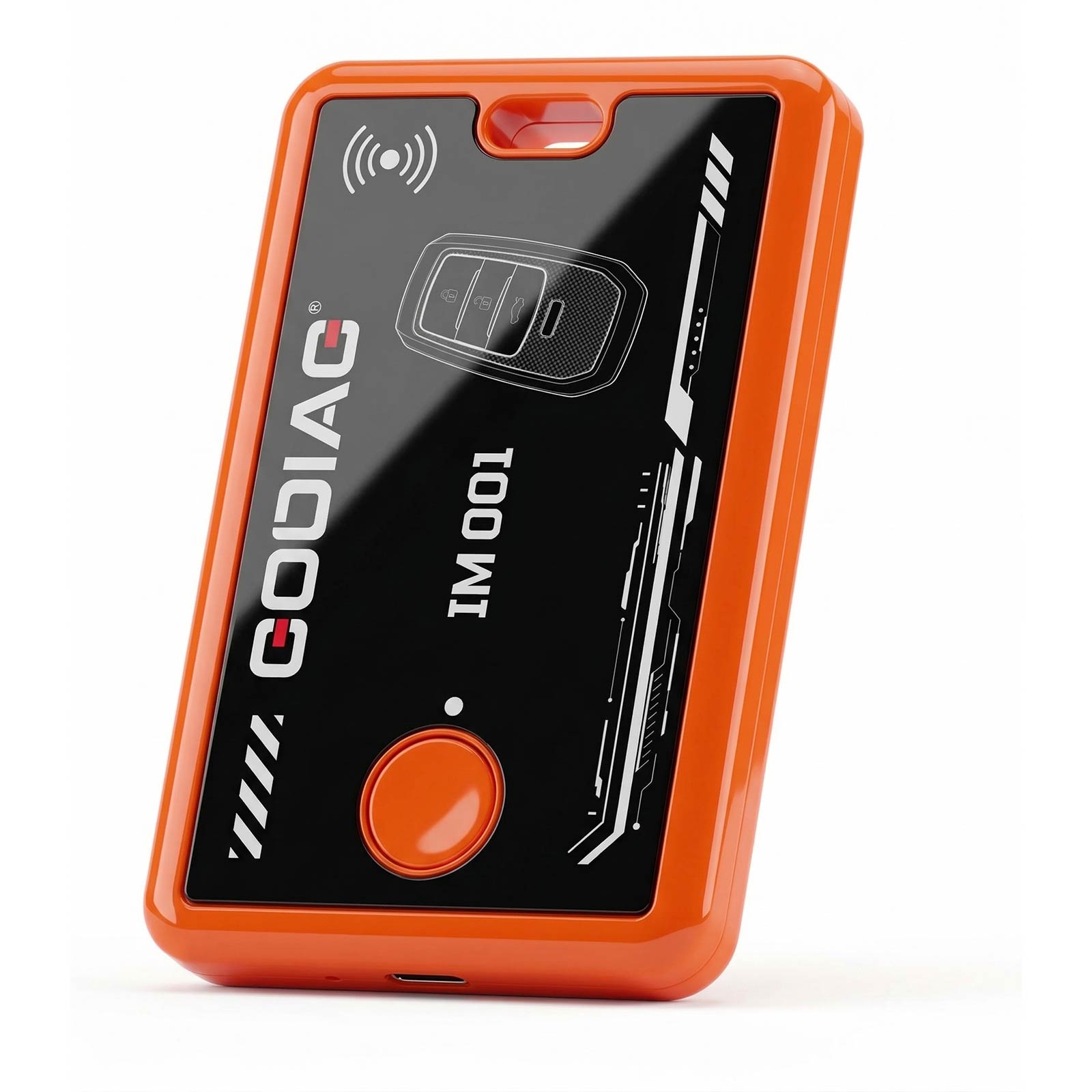

GODIAG IM001 L.0.c.ked Key Reuse Tool for Toyota/Lexus Support 4A-AA BA

Stop worrying about l0.c.ked original Toyota 4A-AA/BA keys! GODIAG IM001 offers the ultimate solution to breathe second life into original keys.

Core Highlights:

High Compatibility: Specifically engineered for Toyota 4A-AA BA original l0.c.ked keys.

Non-Destructive: 100% preserve original key integrity—no dismantling required.

Convenient & Efficient: A streamlined 3-step operation designed for speed.

Support Key Models:

for Toyota: 4A-AA BA
for Camry(2024-)
for Sienna(2024-)
for Corolla Cross(2022-)
for Corolla(2019-)
for Levin(2019-)
for Allion(2016-)

Function Introduction:
Status Light Indicators Description of corresponding functions

Green (solid): Device is connected and charging
Red (solid): Voice broadcast mode with real-time status updates
Flashing:Device is performing core operations (read, match, write)

Button Functions
Power On/Off: Long press (~3 seconds) to toggle power
Status Inquiry: Short press while powered on to hear current operation via voice prompt
Reset: Long press (~5 seconds) to reset the device

Power Options
Battery-Free Version: Requires 5 V / 500 mA power supply during operation

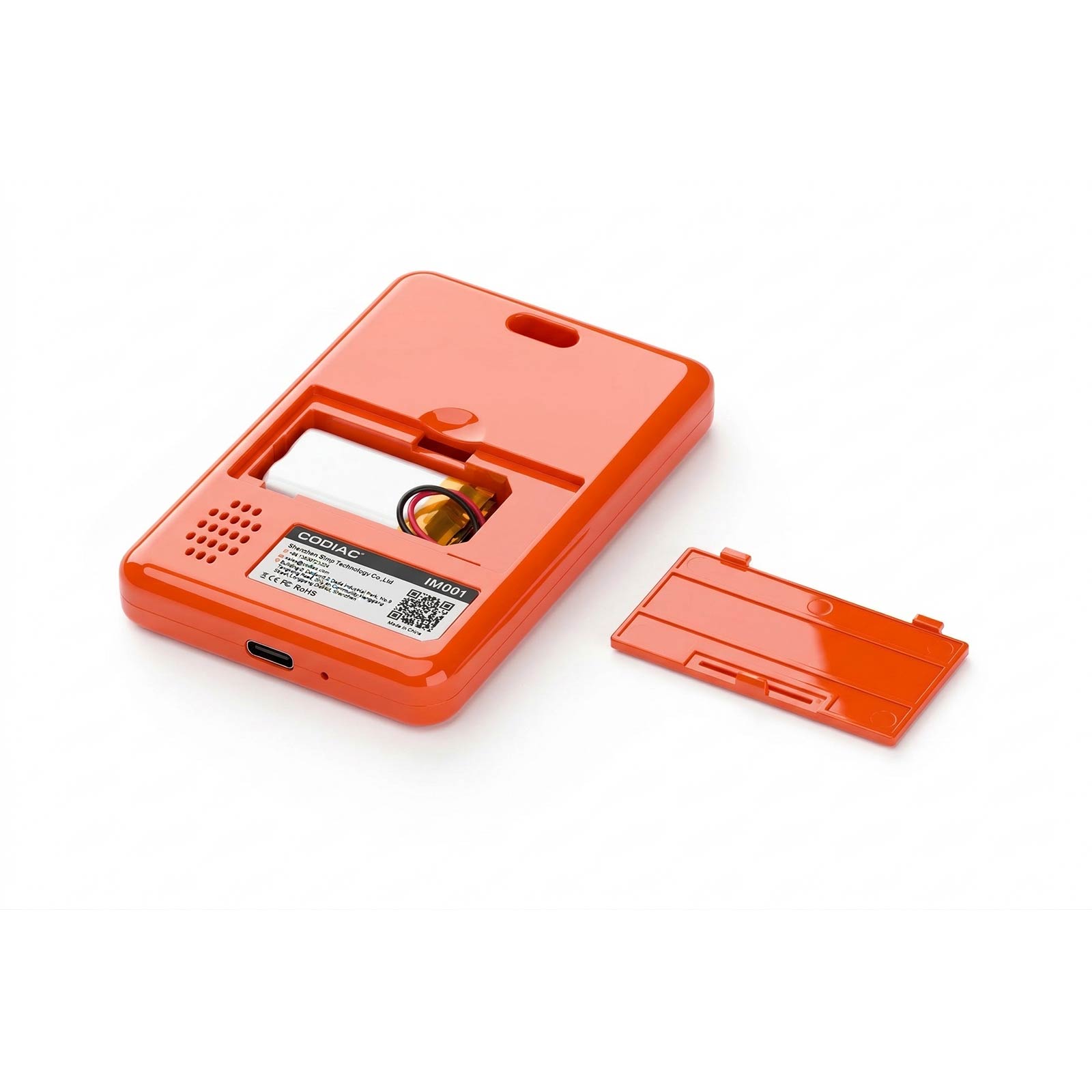

Battery Version: Includes a built-in 3.7 V, 450 mAh battery; supports simultaneous charging and use. Defaults to external power and switches to battery when needed

Compatible Power Sources
Can be powered by mobile phone chargers, computers (USB), power banks, and standard 5 V adapters

How to Use? The Simple 3-Step Process:

Step1: Simulate Key Generation: IM001 reads the secure identifier (Key ID) and simulates a matching key using smart internal data.

Step2: Match to Vehicle: Use the IM001 device as the repla-cement key during the vehicle matching process.

Step3: Write-Back Operation: IM001 writes the complete data back to the original l0.c.ked key, reactivating it perfectly.

Parameters:

Manufacturer	GODIAG	Dimensions	61.5x96.5x12.5mm
Packing Dimensions	136x 78.5x17.5mm	Material	ABS environmental protection material
Input Interface	USB Type-C	Core Chip	BLE 5.0 MCU with 32-bit ARM Cortex-M4F + Cortex-M0 dual cores
Battery Capacity (with battery version)	3.7V, 450mAh	Bluetooth	Single-mode BLE 5.0
Wireless Frequency Band	2.4GHz and 134.2KHz	Input Voltage	5V DC, 500mA
RF Transceiver	High sensitivity (-94dBm@BLE)	Transmitter Power	Up to +3 dBm
Working Temperature	-10°C~50° C	Storage Temperature	-20°C~70°C

Package includes

1pc x GODIAG IM001 Main unit

1pc x User manual
