Features:

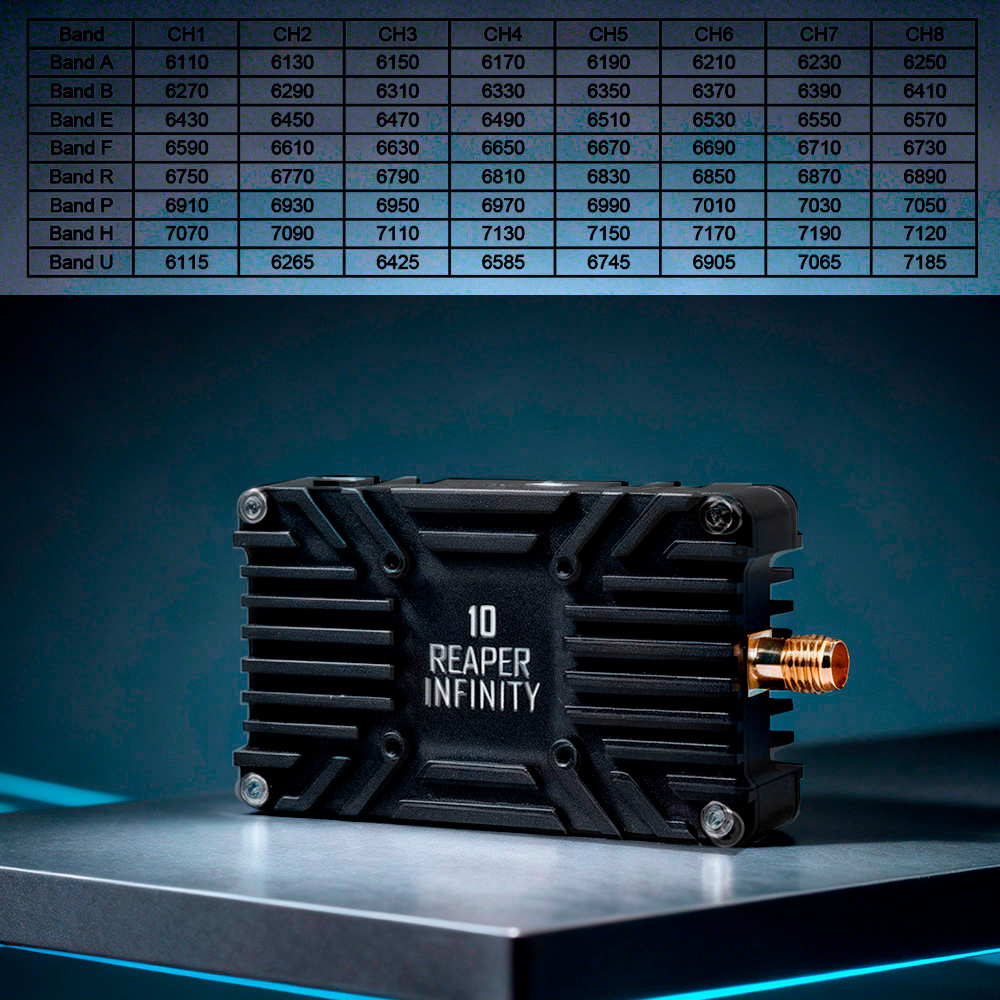

1. Adjustable Power: 5-level power output 1W/2.5W/5W/7.5W/10W, suitable for various long-range flight scenarios, with total 64 full 7.2G channels for flexible frequency selection.
2. Wide Voltage Design: 9-36V wide input with 5V BEC output, supports firmware upgrade.
3. Easy Operation: Double-click button to activate PIT mode for safe frequency configuration.

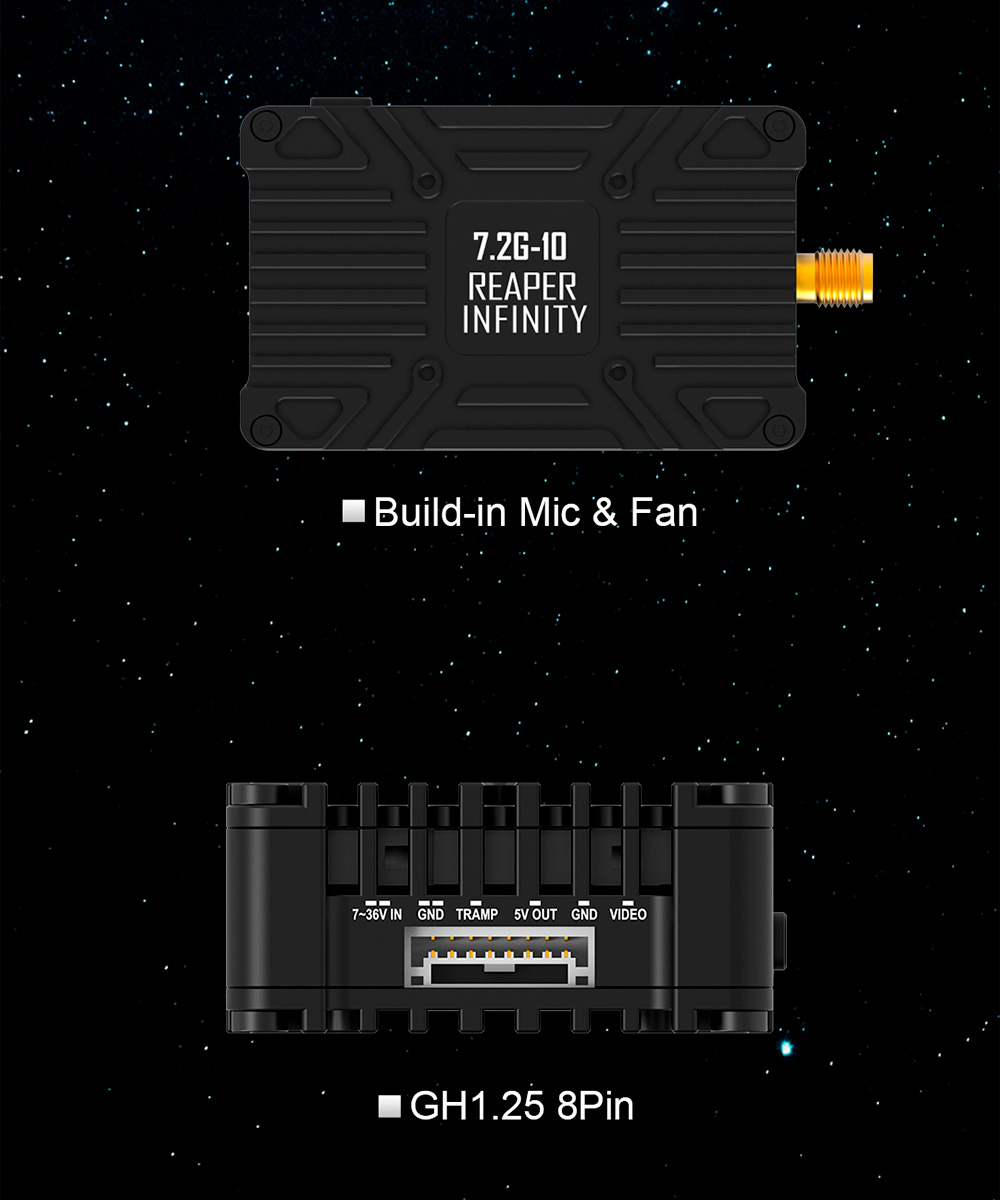

4. Built-in Fan & Microphone: Equipped with cooling fan and onboard microphone.
5. Standard 20*20mm Mounting Holes: Simple and quick installation, perfectly compatible with most long-range FPV frames.
Description:

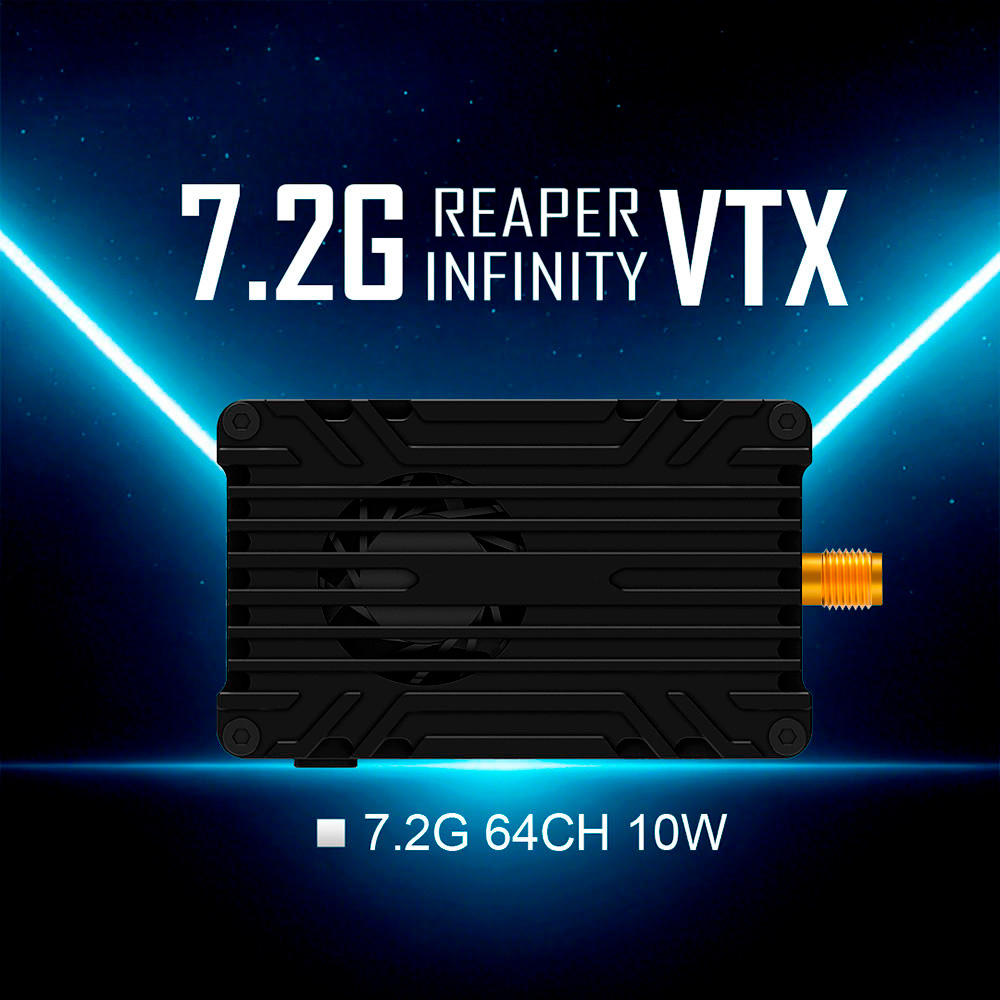

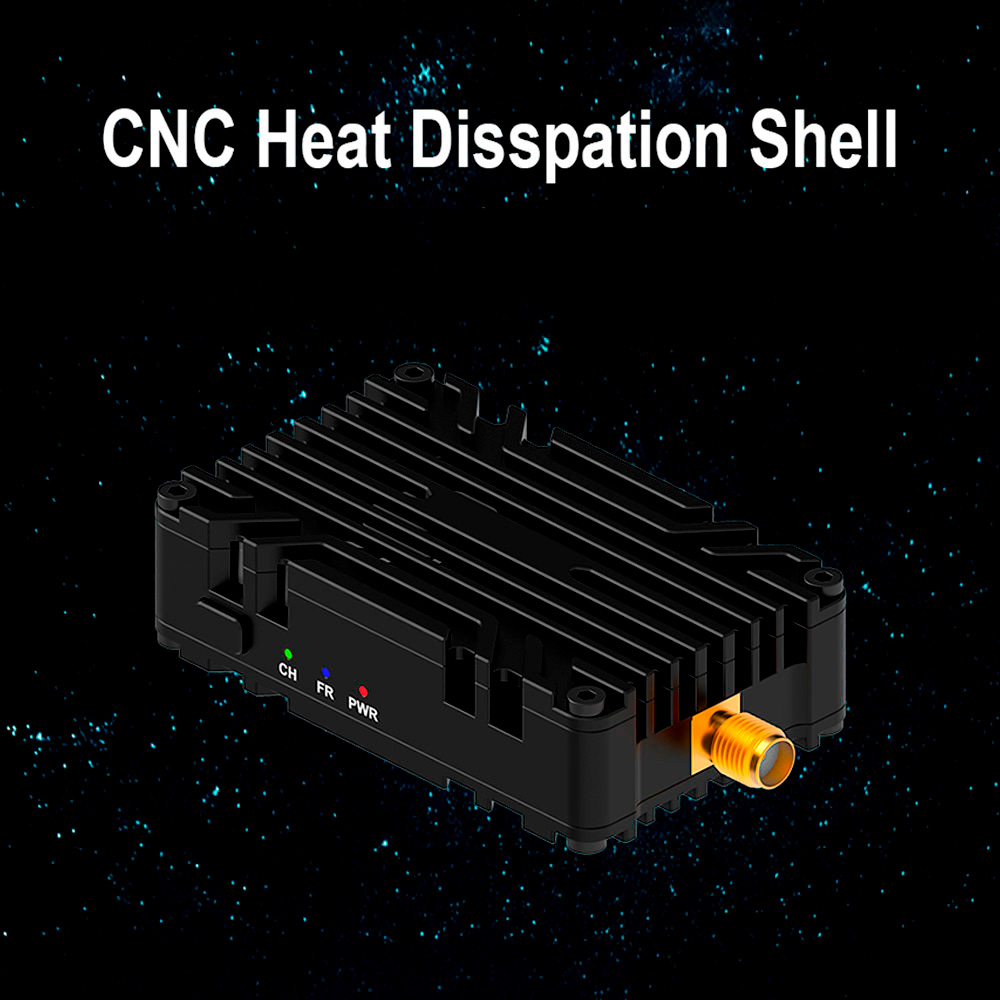

Foxeer Reaper Infinity 7.2G 10W VTX is a CNC cased long-range FPV video transmitter with 5-level adjustable power up to 10W, 64 channels, built-in cooling fan and microphone, supporting firmware upgrade and PIT mode.

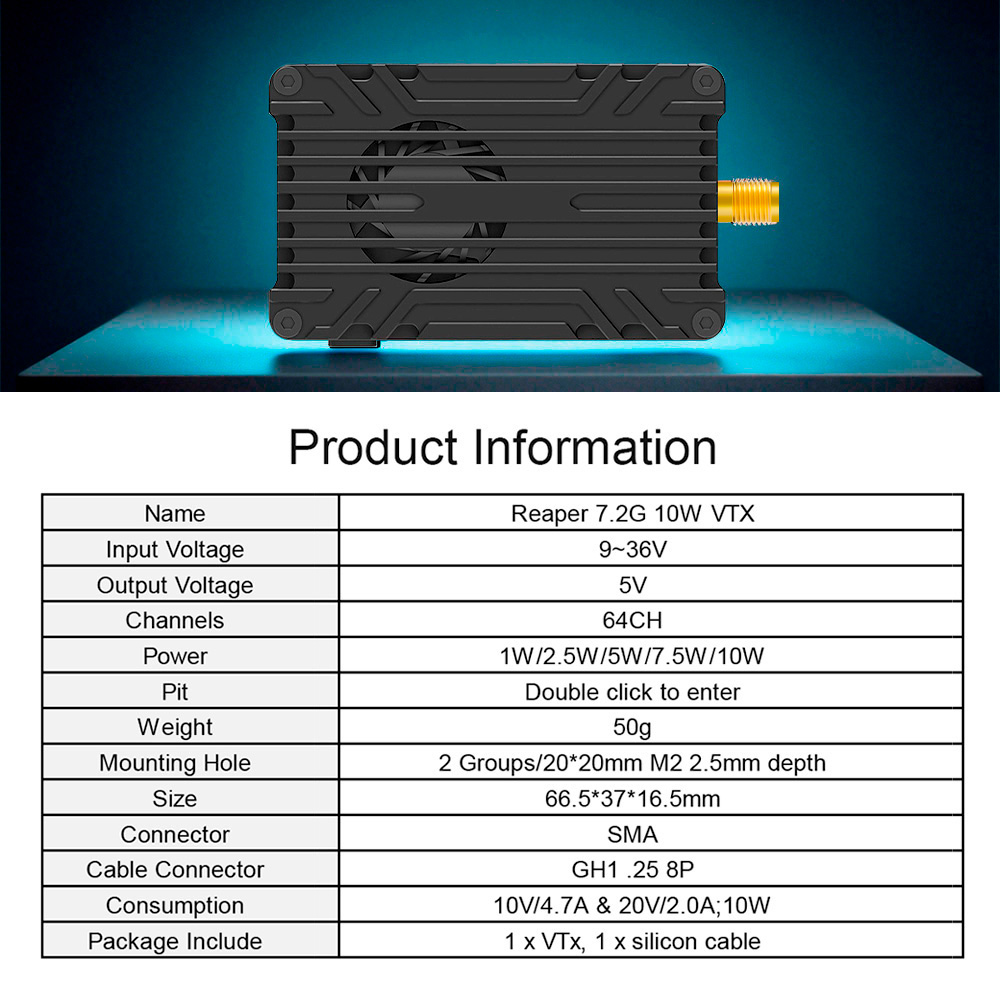

Specifications:
Name: Reaper 7.2G 10W VTX
Input Voltage: 9~36V
Output Voltage: 5V
Channels: 64CH
Power: 1W/2.5W/5W/7.5W/10W
Pit: Double-click to enter
Weight: 50g
Mounting Hole: 2 Groups/20*20mm M2, 2.5mm depth

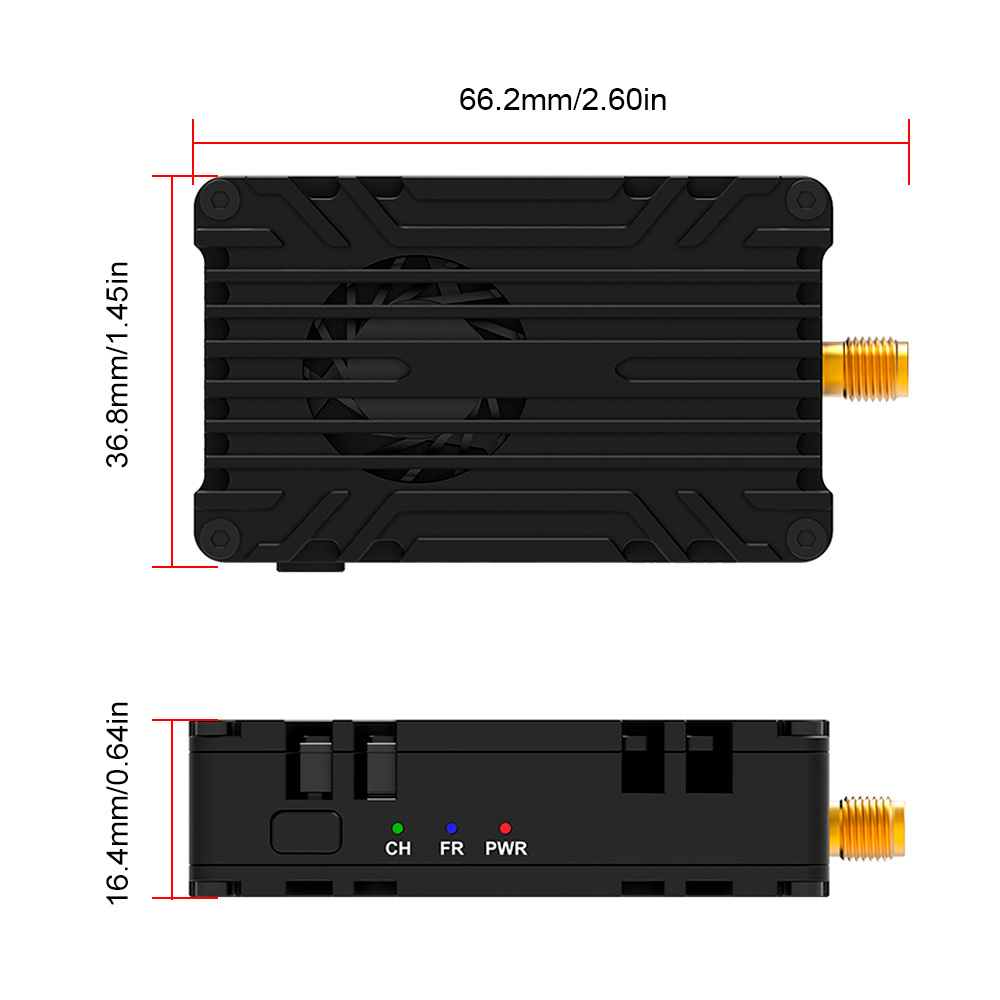

Size: 66.5*37*16.5mm
Antenna Connector: SMA
Cable Connector: GH1.25 8Pin
Consumption: 10V/4.7A & 20V/2.0A @10W
Package contents:
1 x VTX
1 x silicon cable
Note:
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
