General Features:

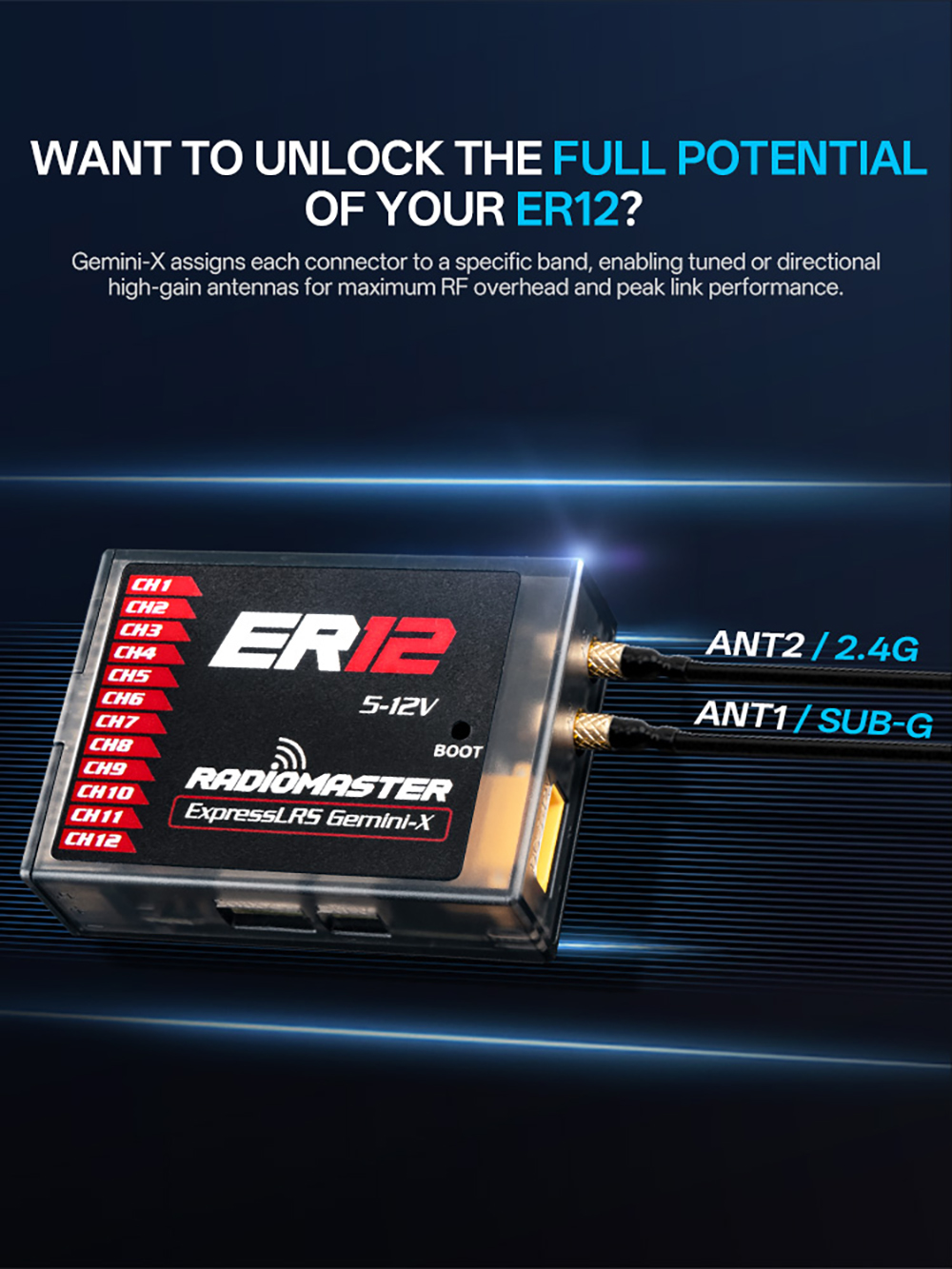

1. Gemini‑X True Diversity dual RF system: Stable link performance under complex radio‑frequency environment for safer flight

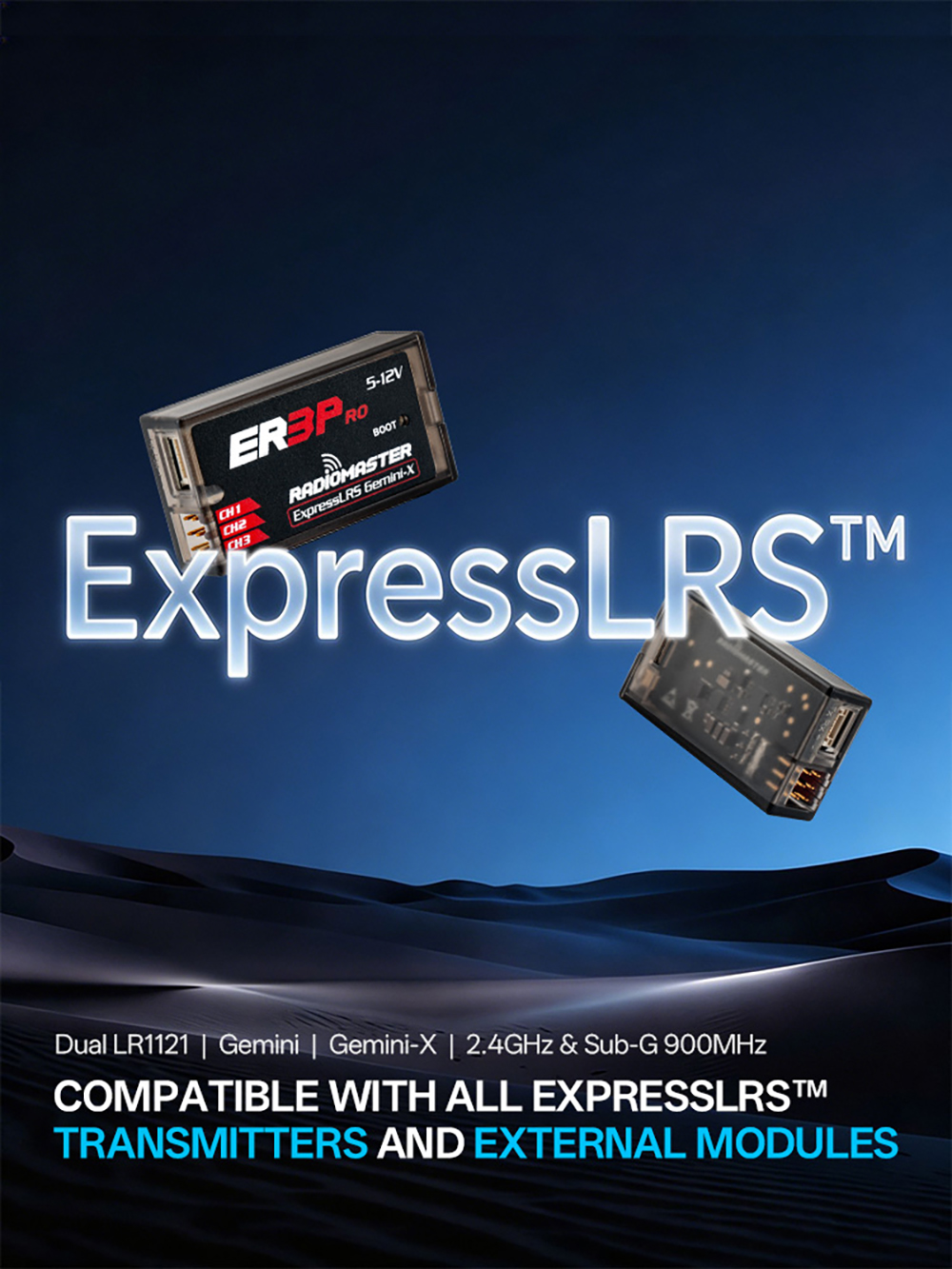

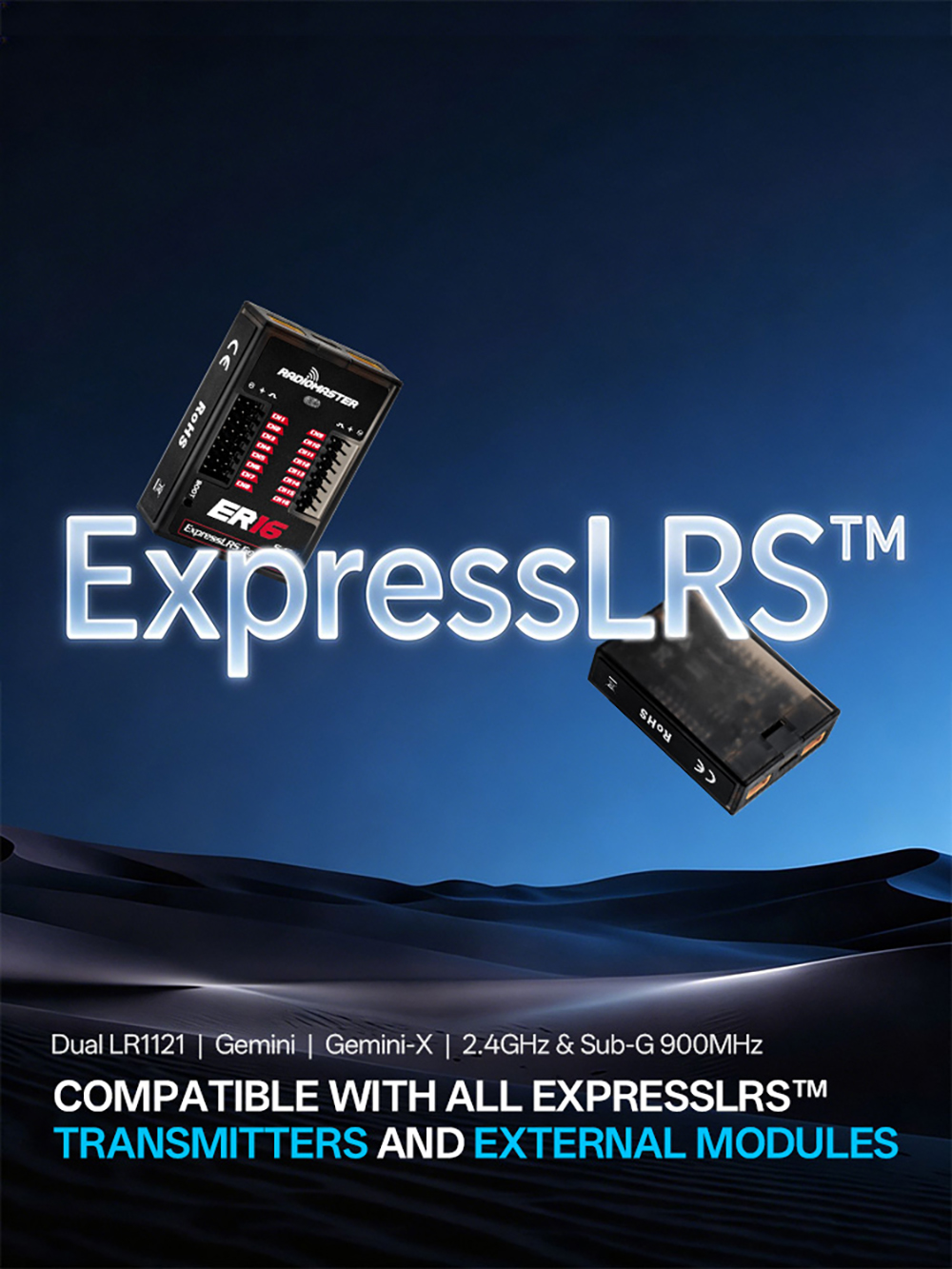

2. ExpressLRS 2.4GHz compatible: Works with all ExpressLRS transmitters and RF modules

3. Max 100mW telemetry power: Adjustable via LUA script for improved telemetry range

4. CRSF & SBUS output: Supports flight controller and external decoder connection

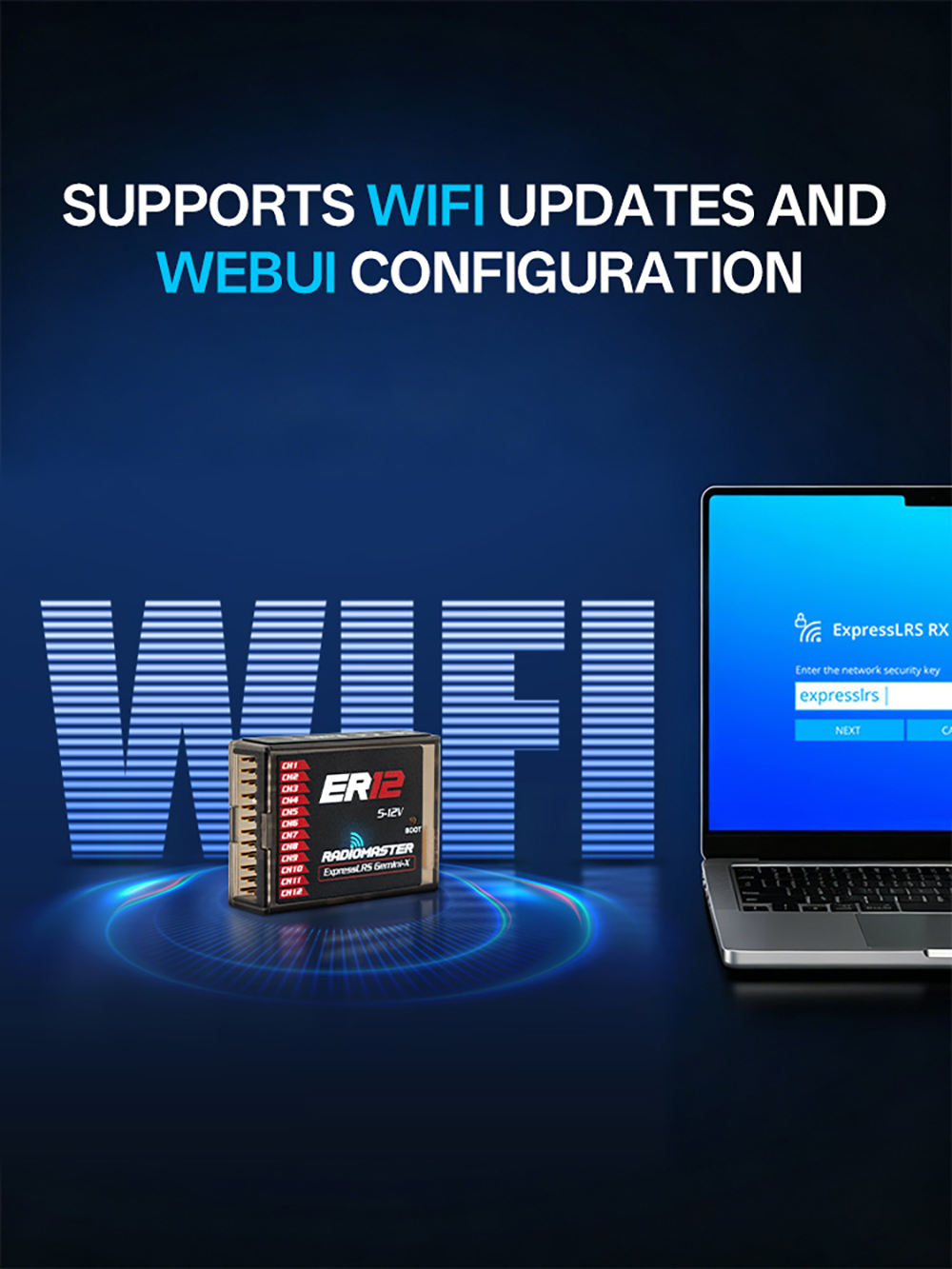

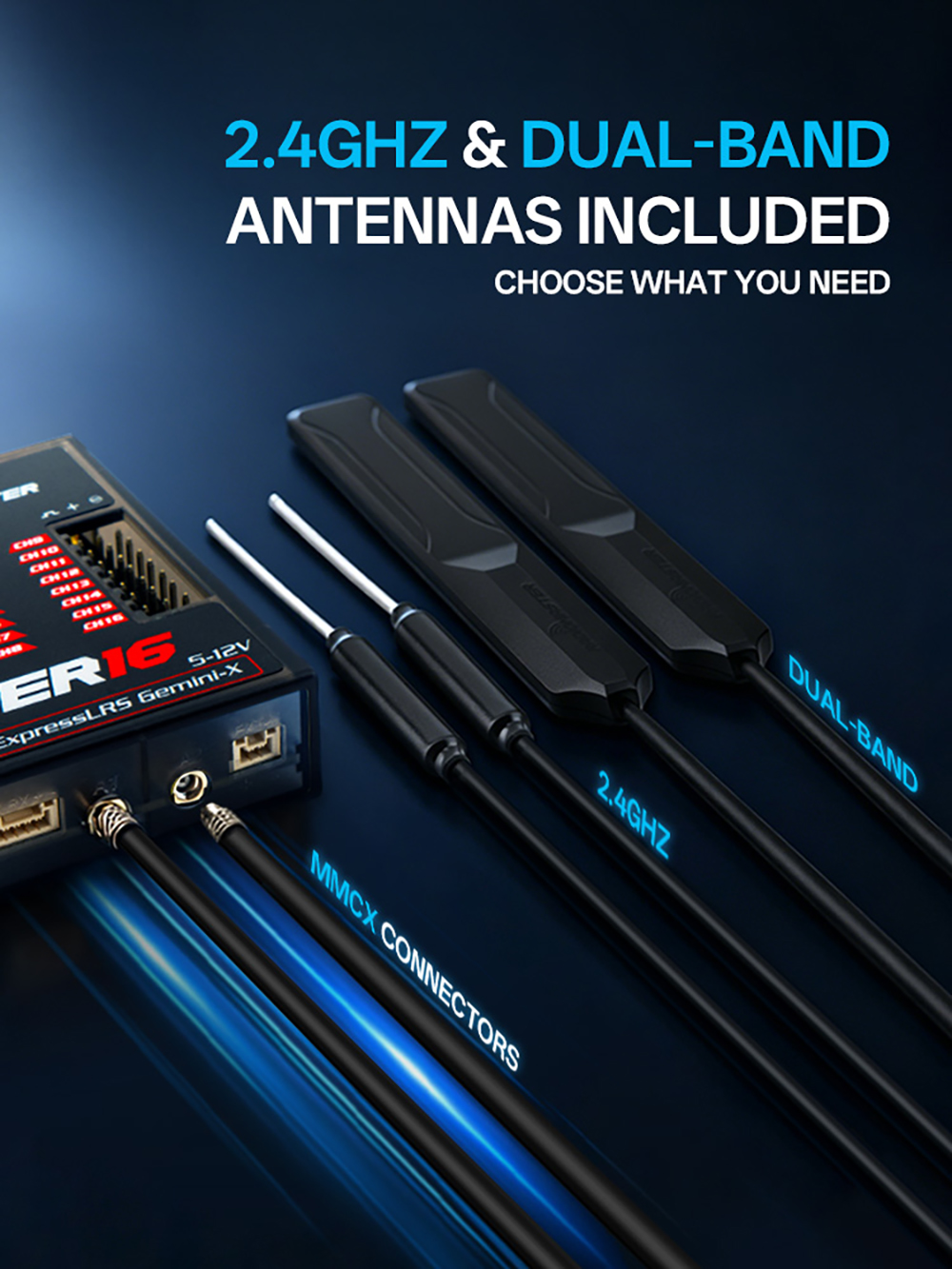

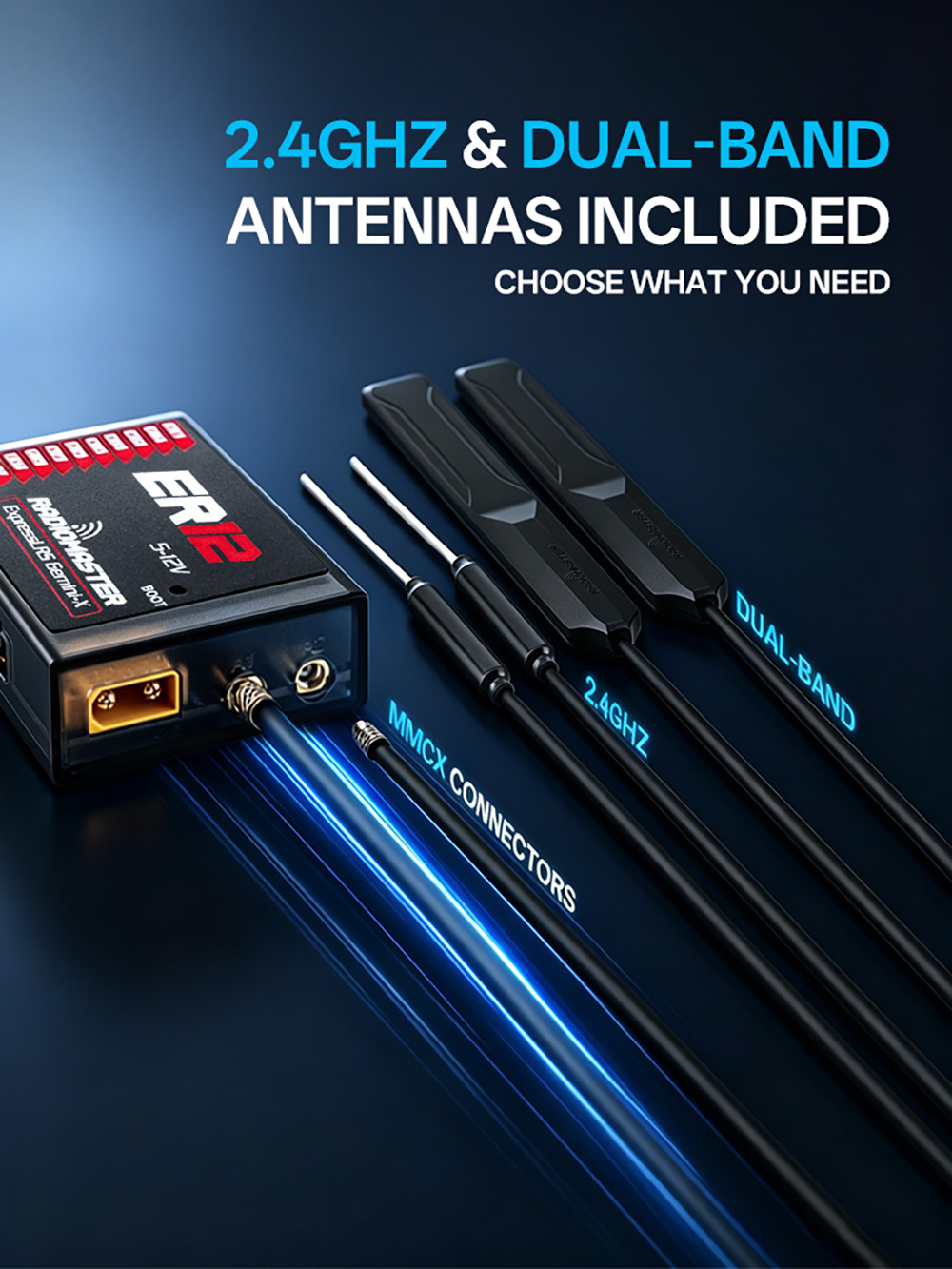

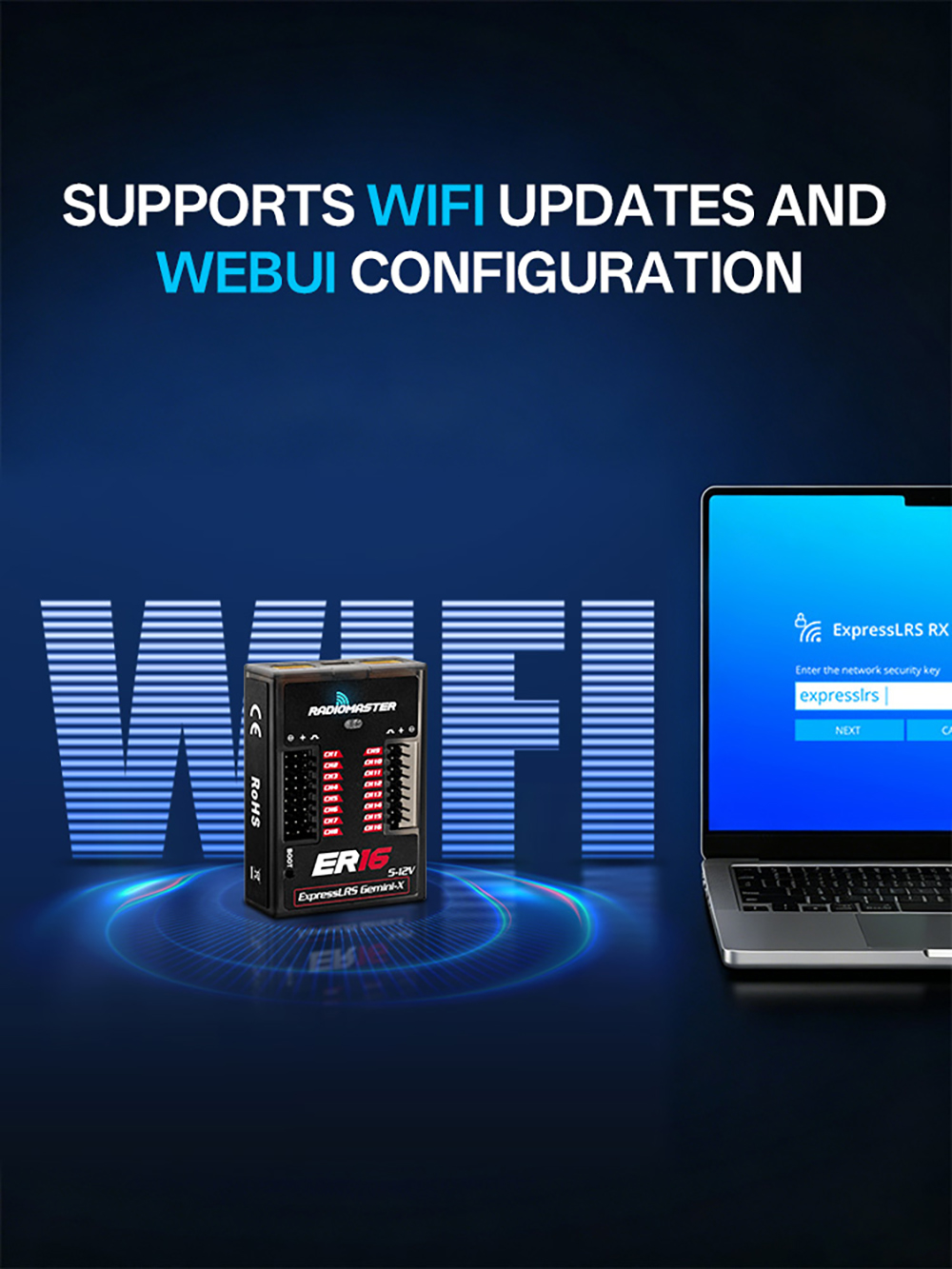

5. Practical hardware features: 25cm replaceable MMCX antenna; Wi‑Fi firmware update via WebUI; DC 5‑12V input, up to 70V voltage sensing for large fixed‑wing

Difference Features:

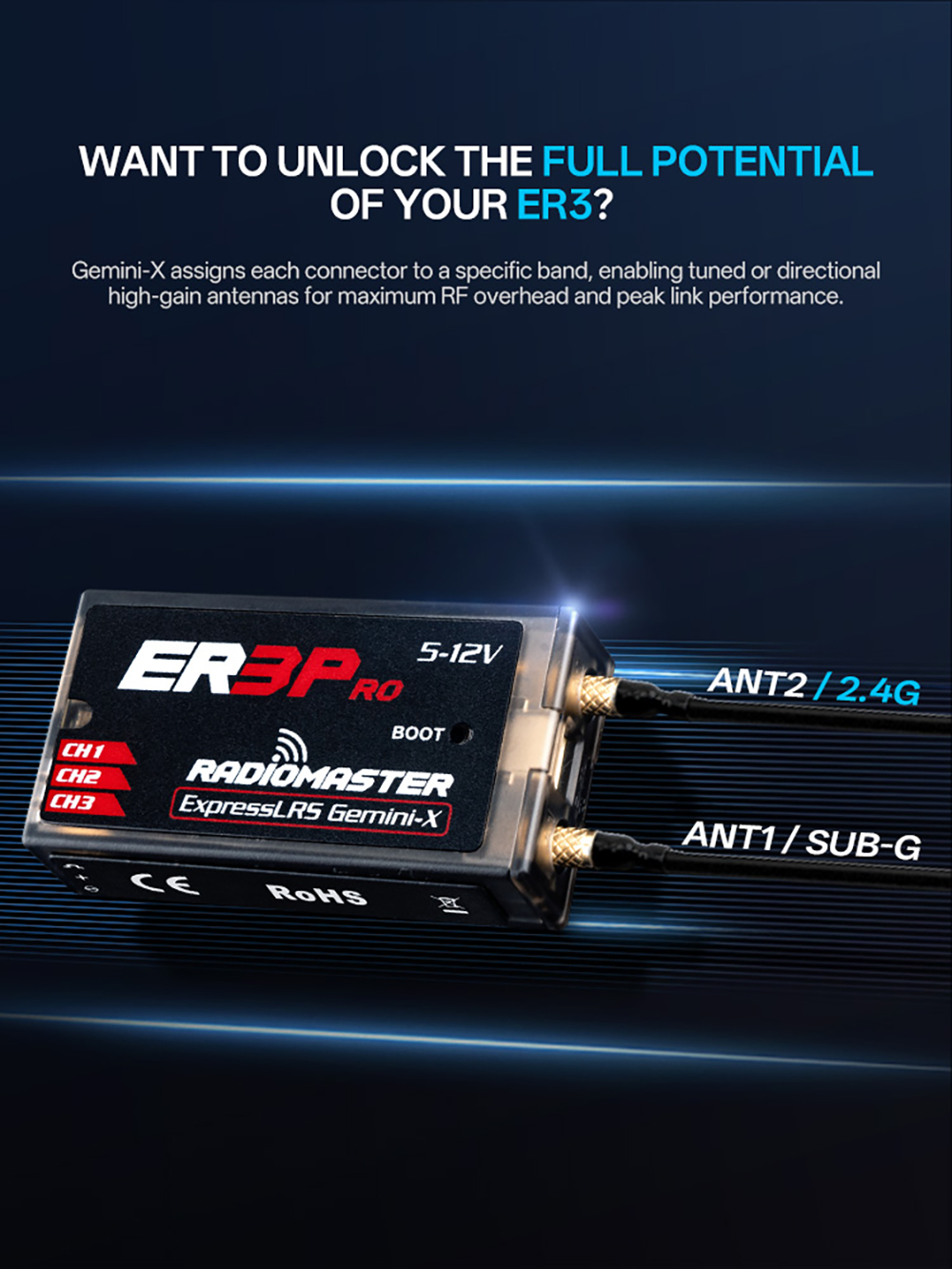

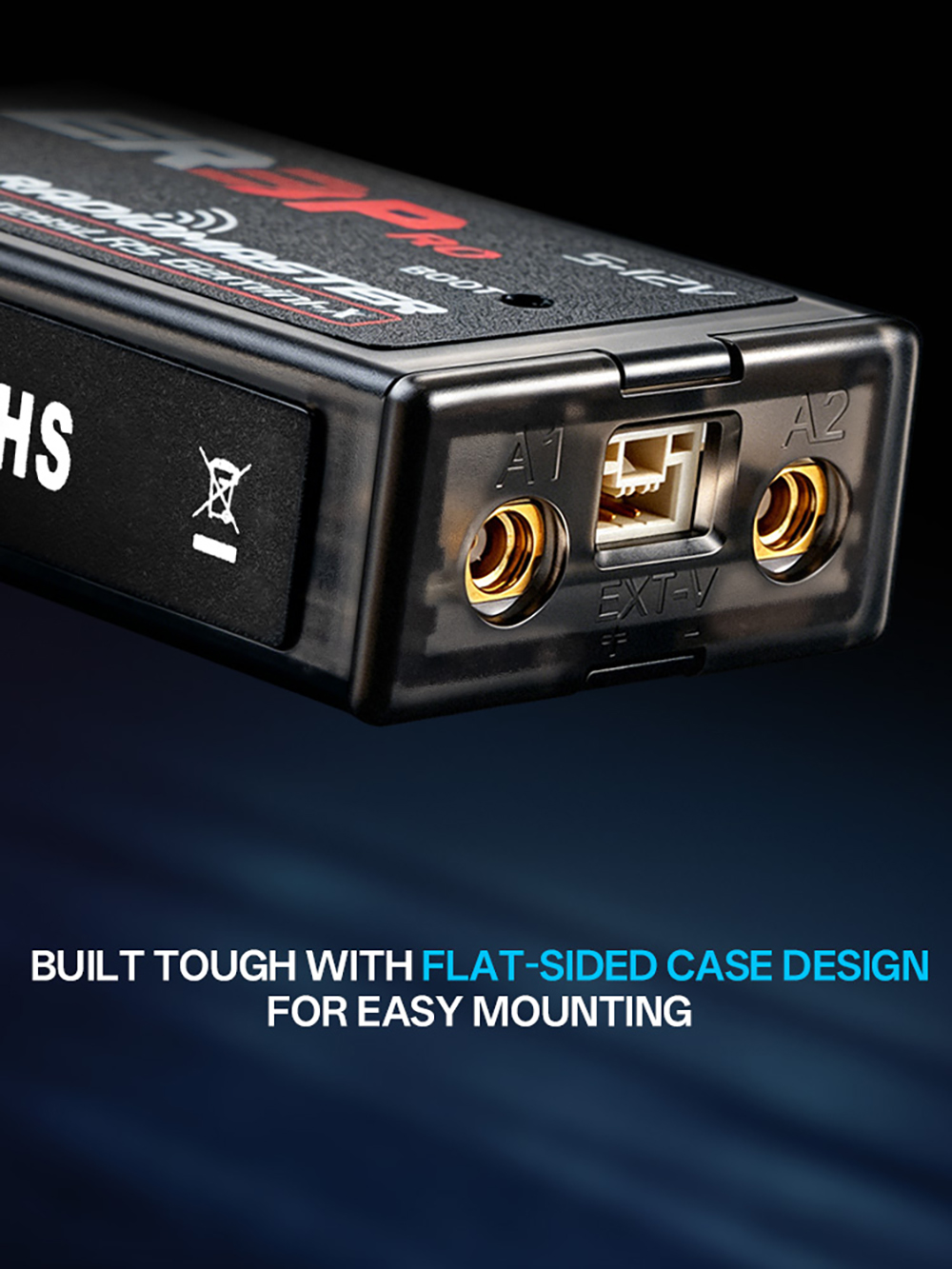

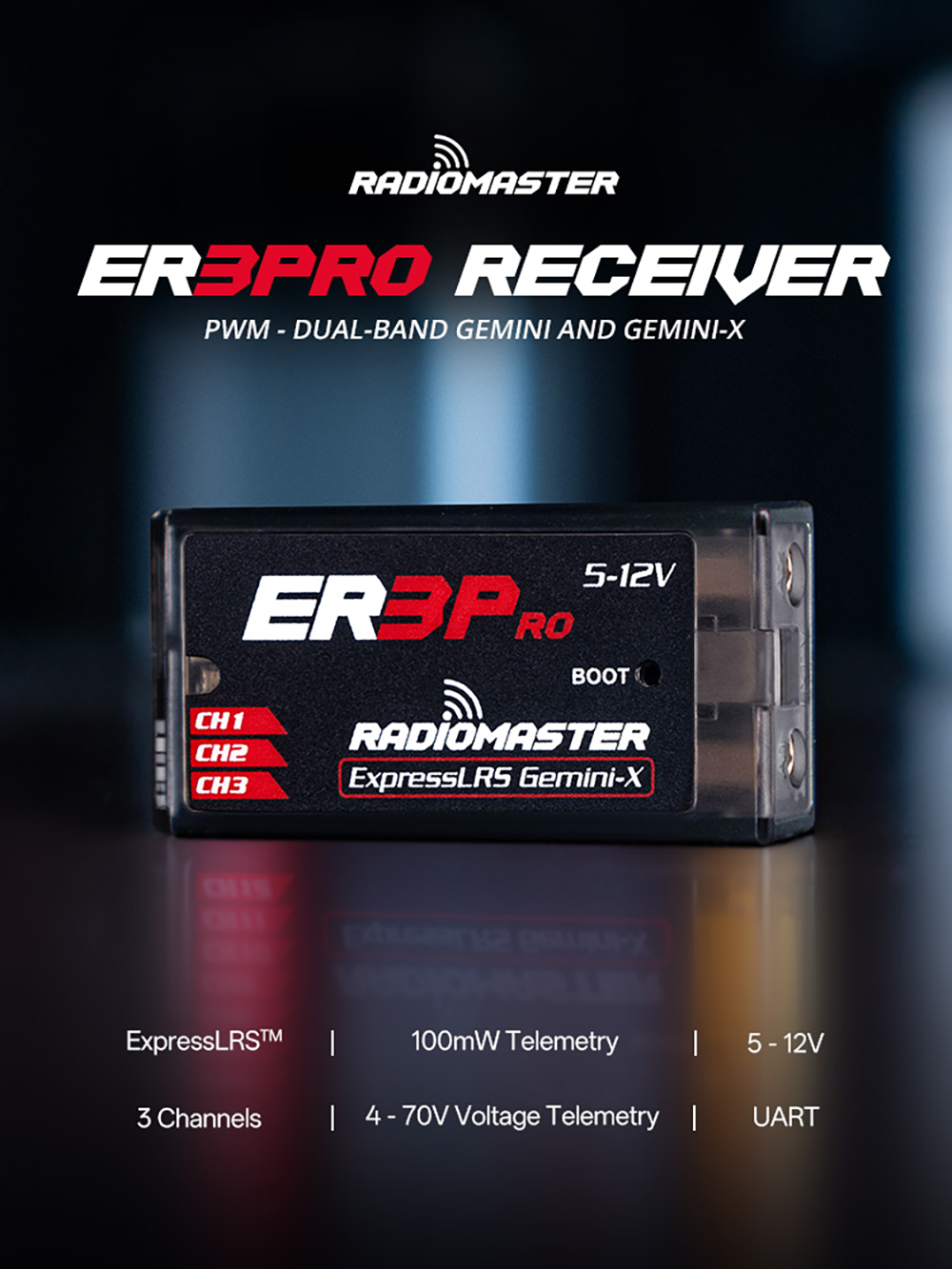

ER3 PRO:

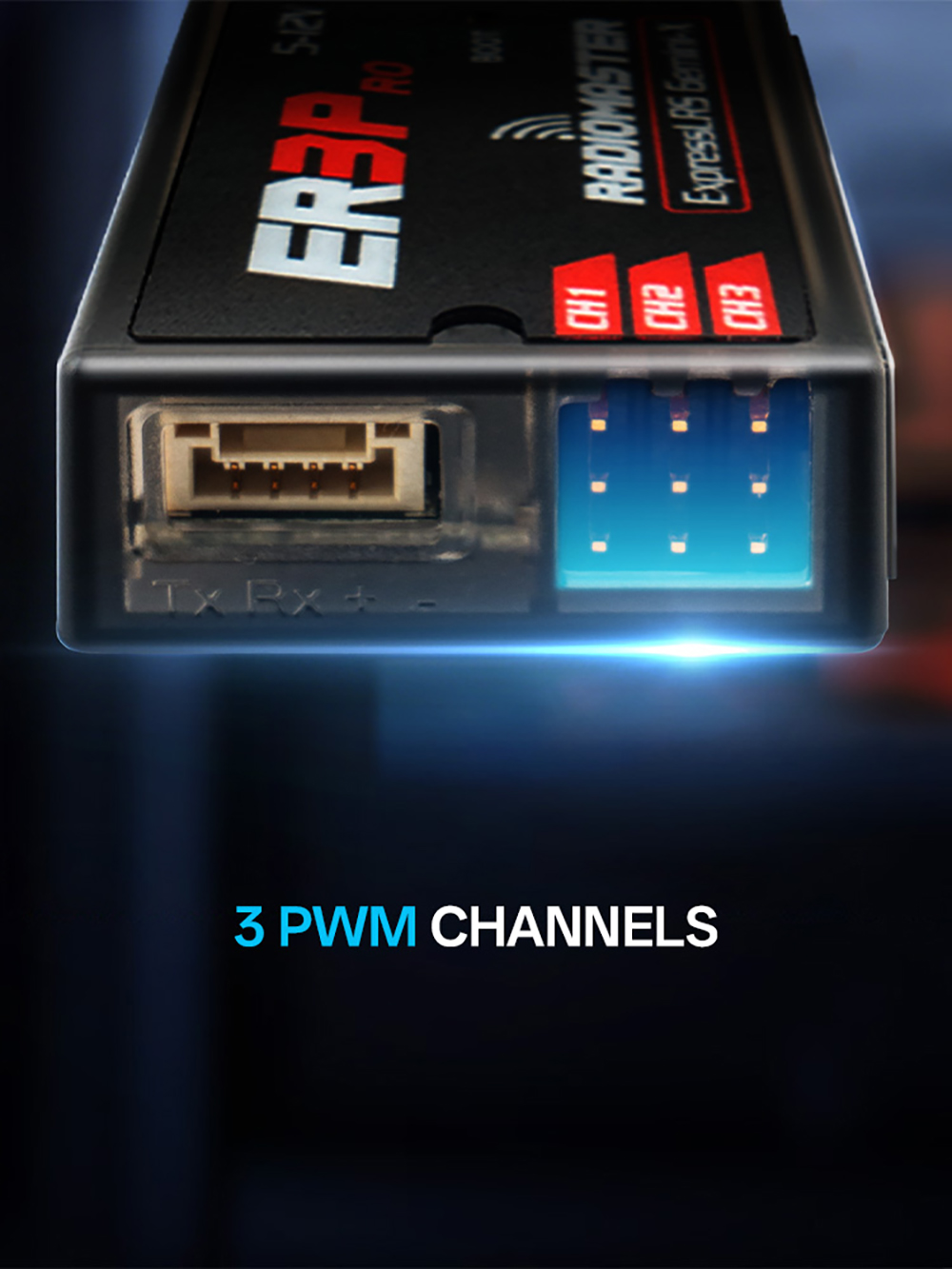

1. Ultra-light 3CH PWM satellite receiver (13.5g), ideal for large fixed-wing setups using an external decoder board.

2. Built for dual-RX redundancy backup, pairs with a second receiver for fail-safe redundancy.

3. Locking external UART connector,secure hookup for telemetry sensors & system expansion.

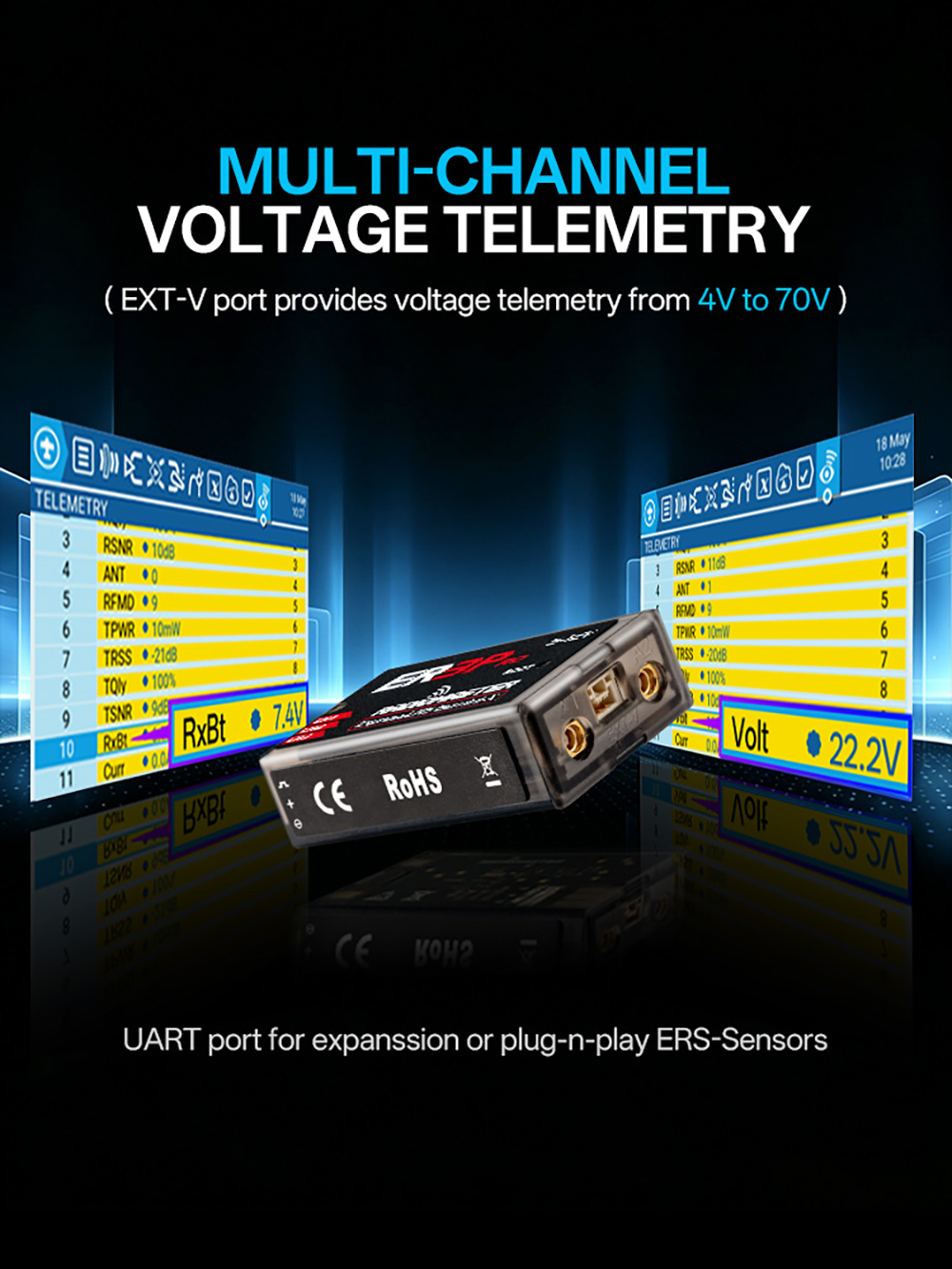

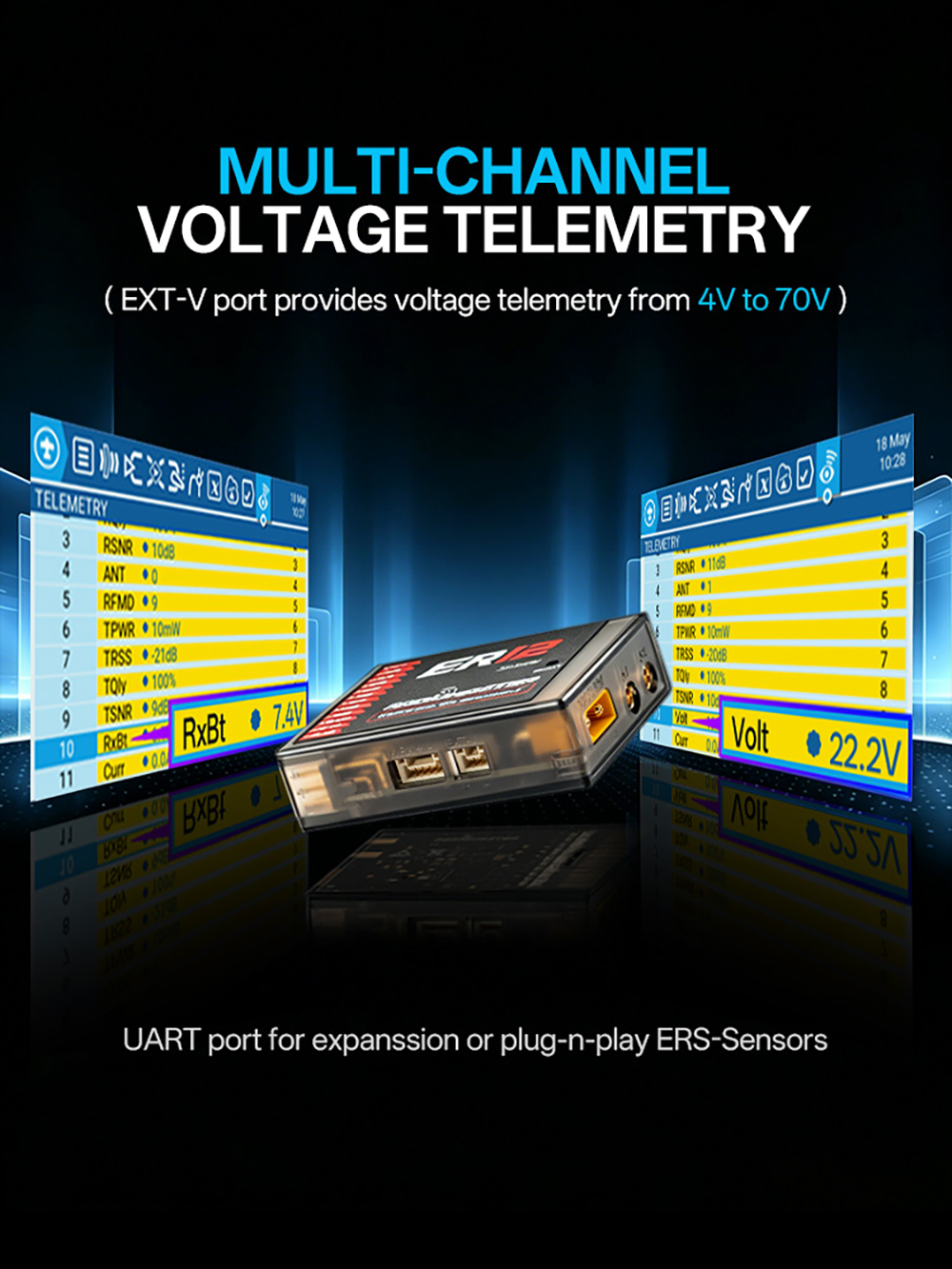

4. Independent dual-voltage telemetry, monitor RX voltage (≤12V) and Ext-V (≤70V) on separate ADC channels.

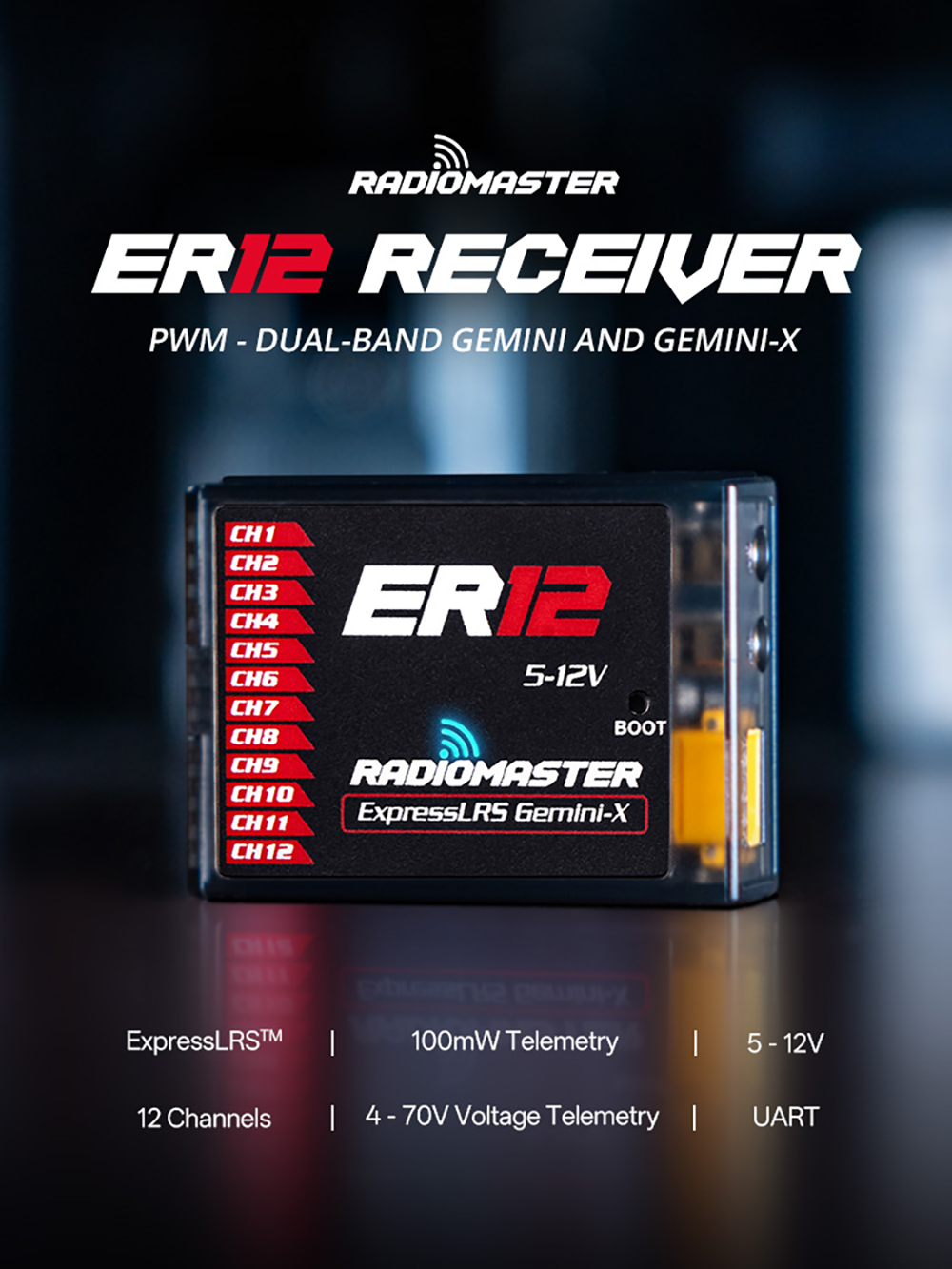

ER12:

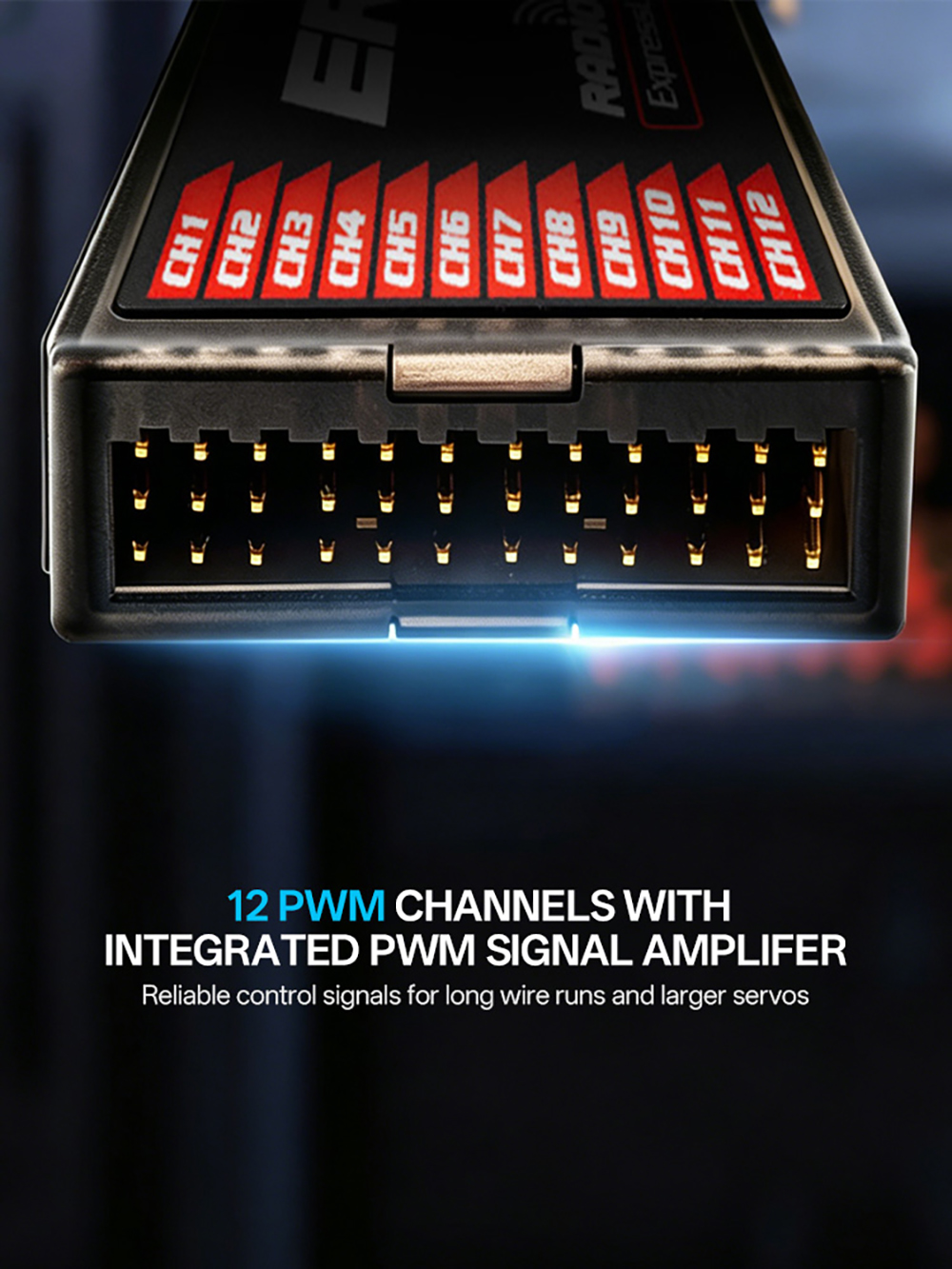

1. 12CH full PWM output + dedicated bidirectional UART,complete channel coverage for big airframes.

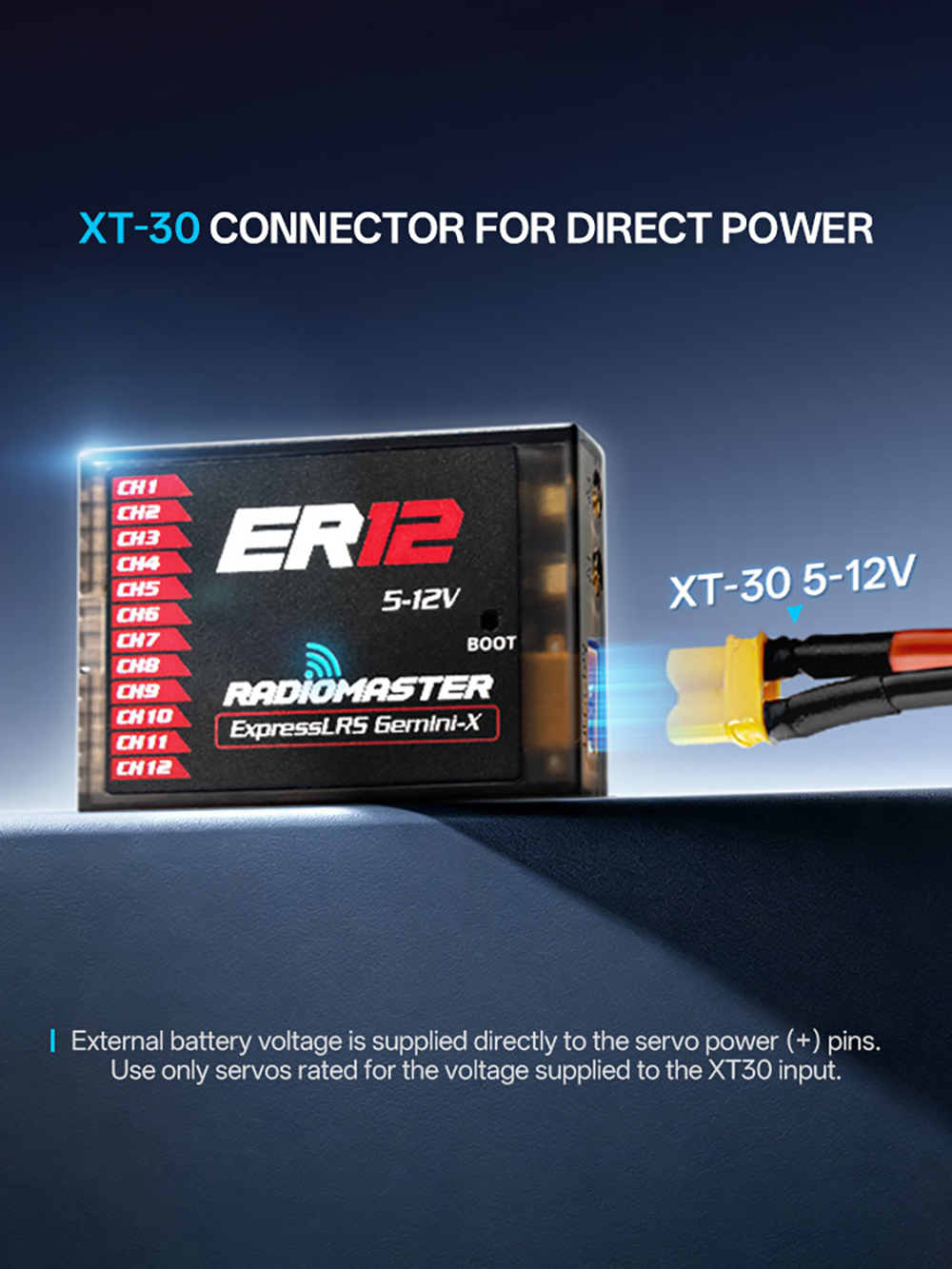

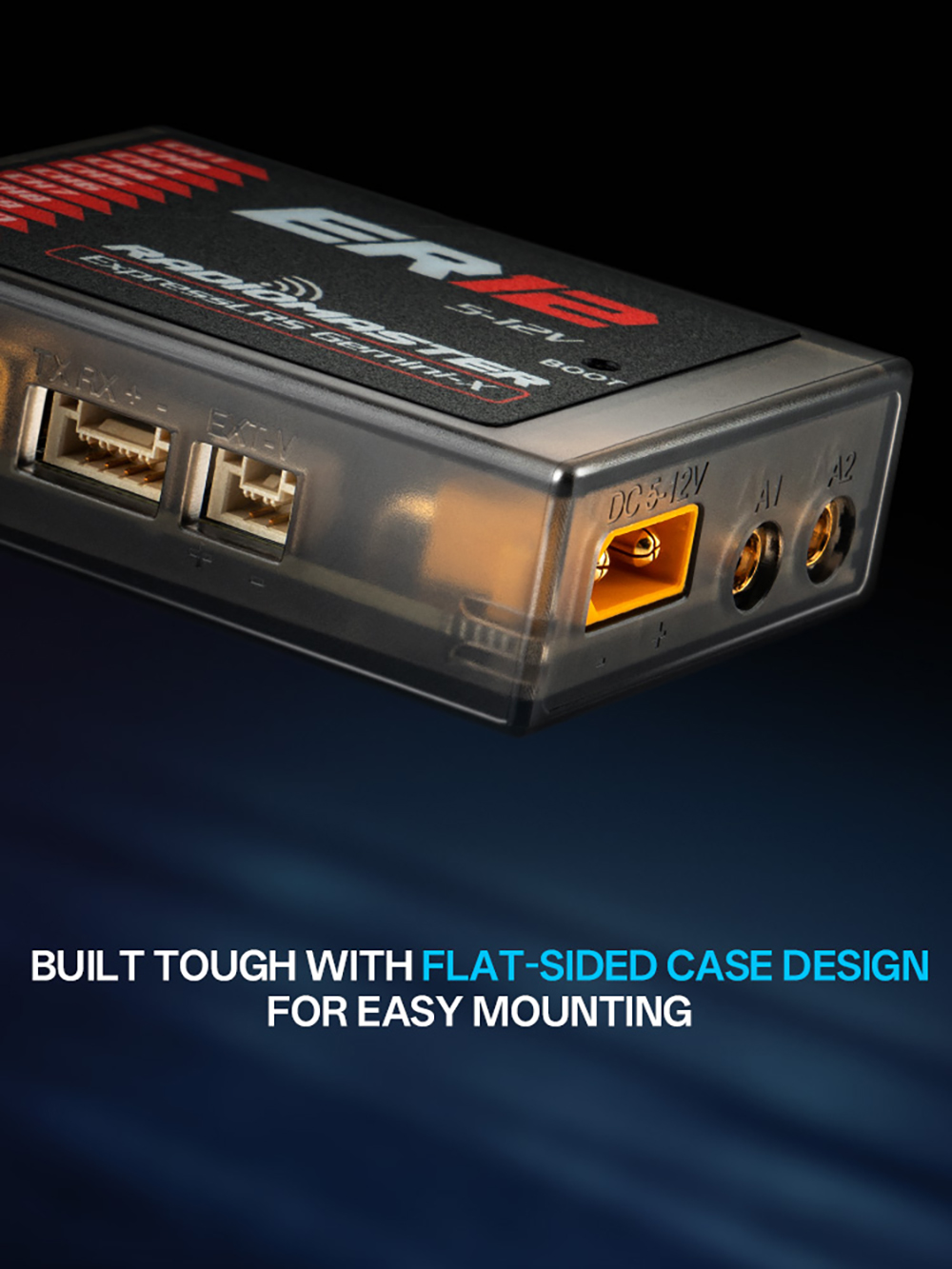

2. Dedicated XT30 power input, stable high-current feed for high-power servo systems.

3. PWM signal amplifier,stronger, cleaner signal over long servo leads & extensions common in large models.

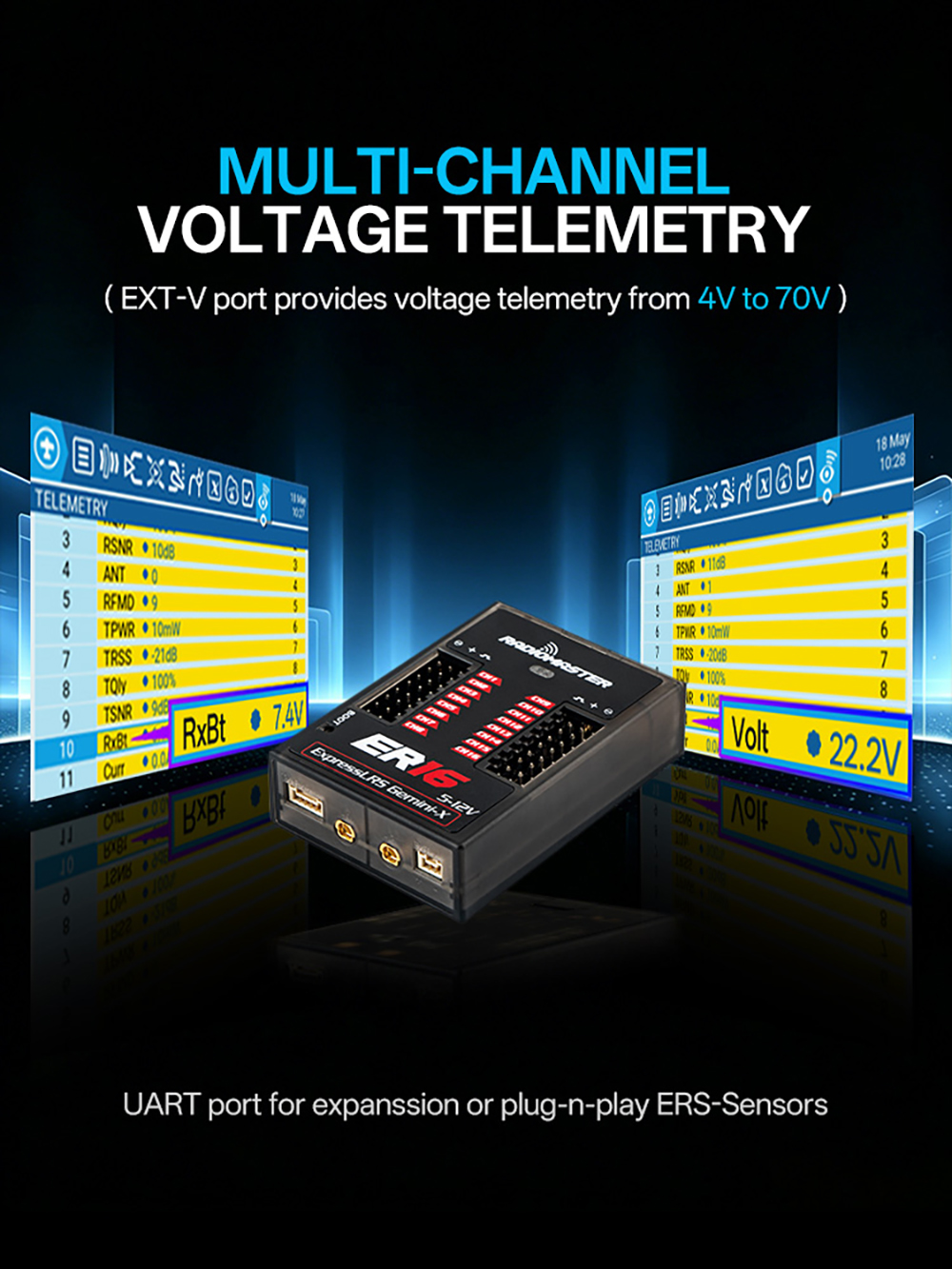

4. Triple independent voltage telemetry, RX / Ext-V / XT30 input monitored separately.

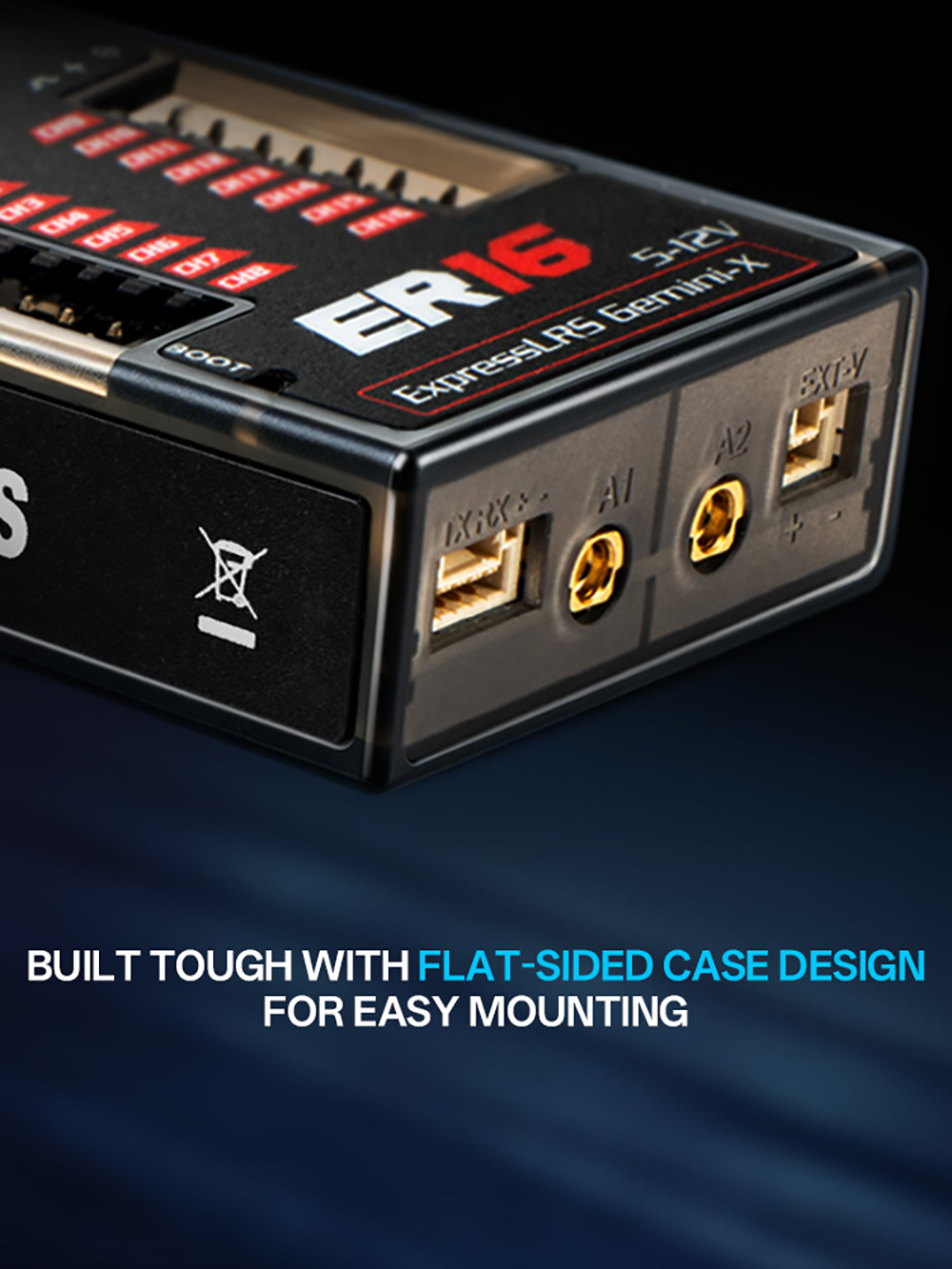

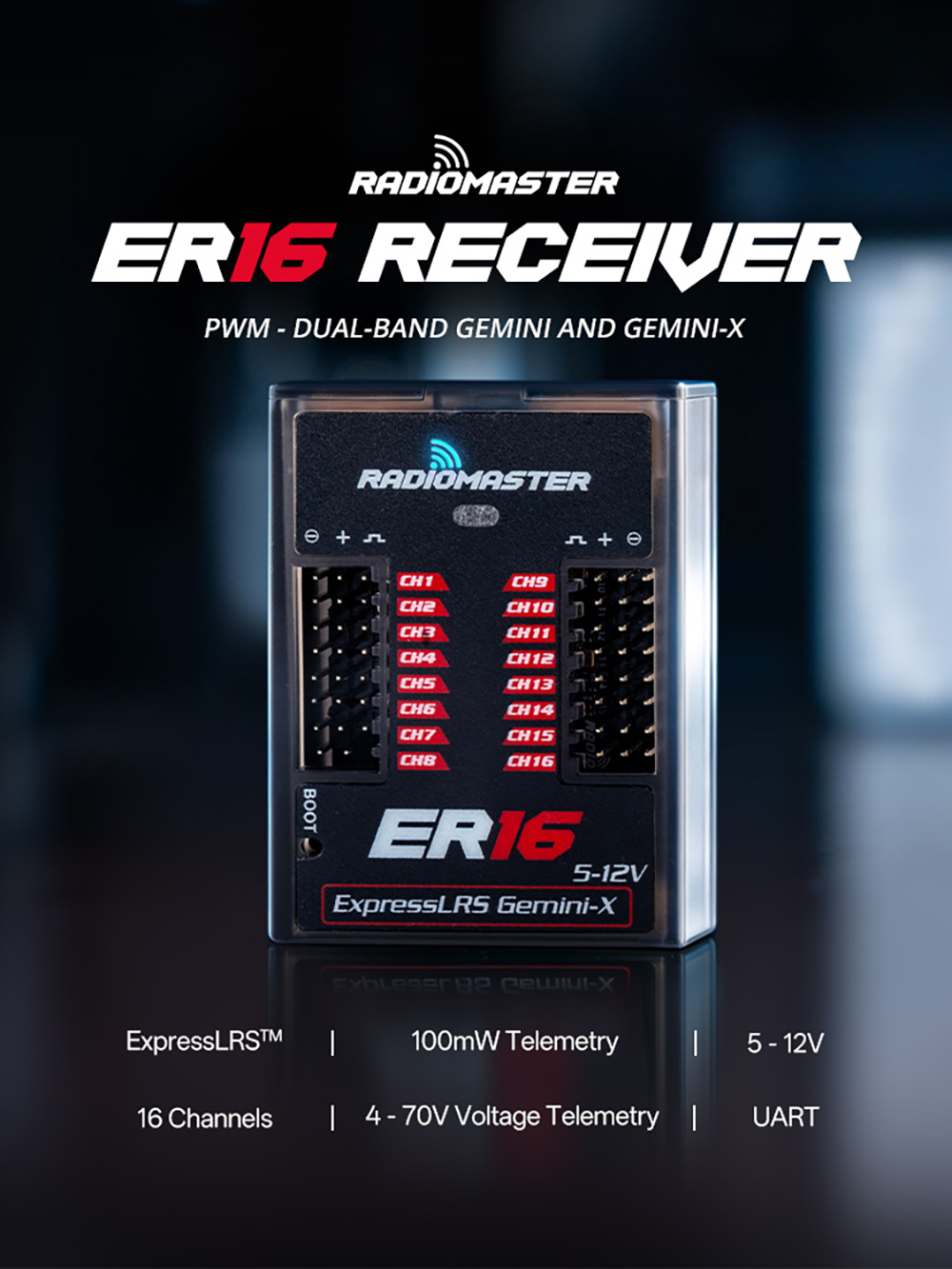

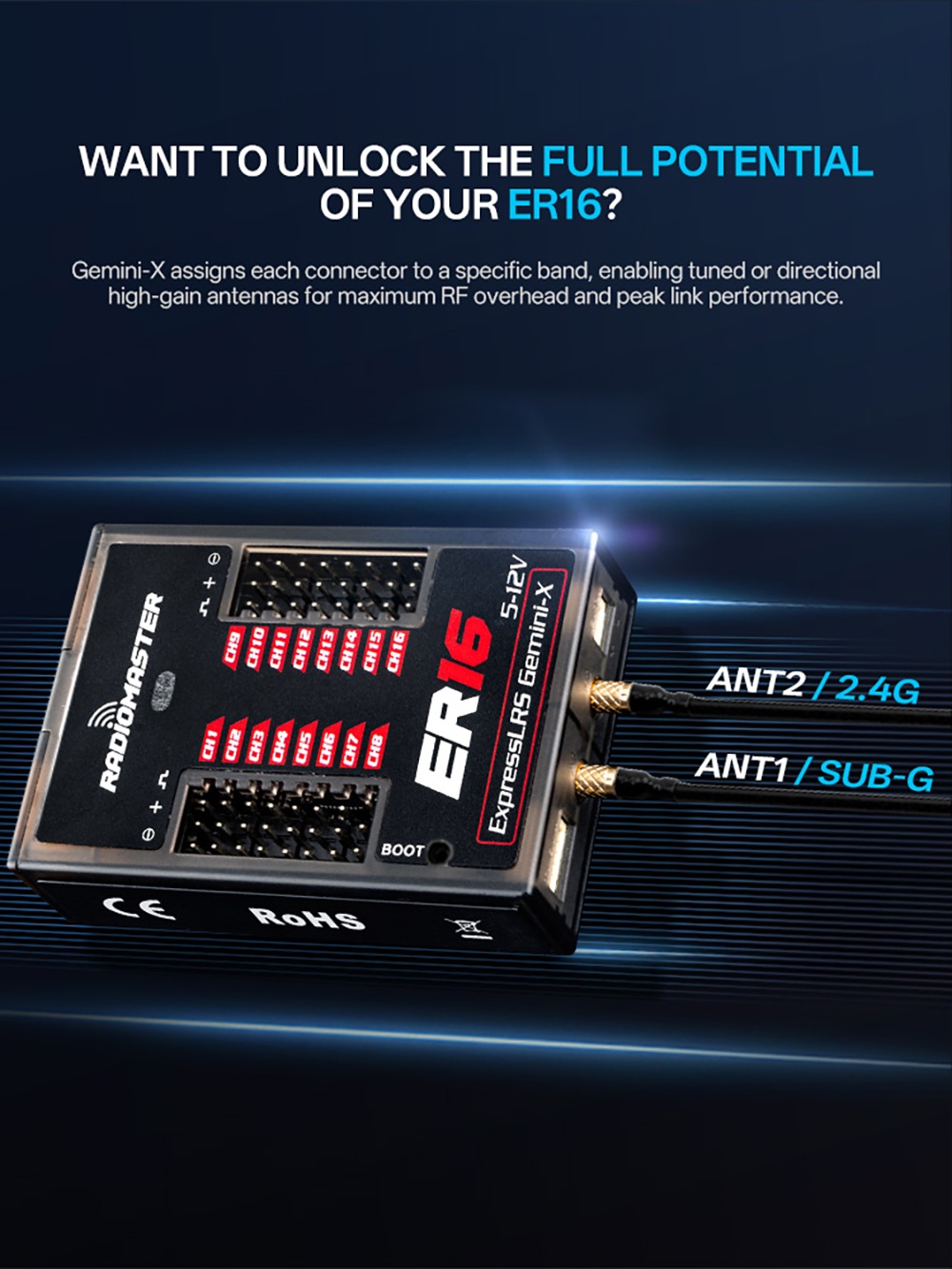

ER16:

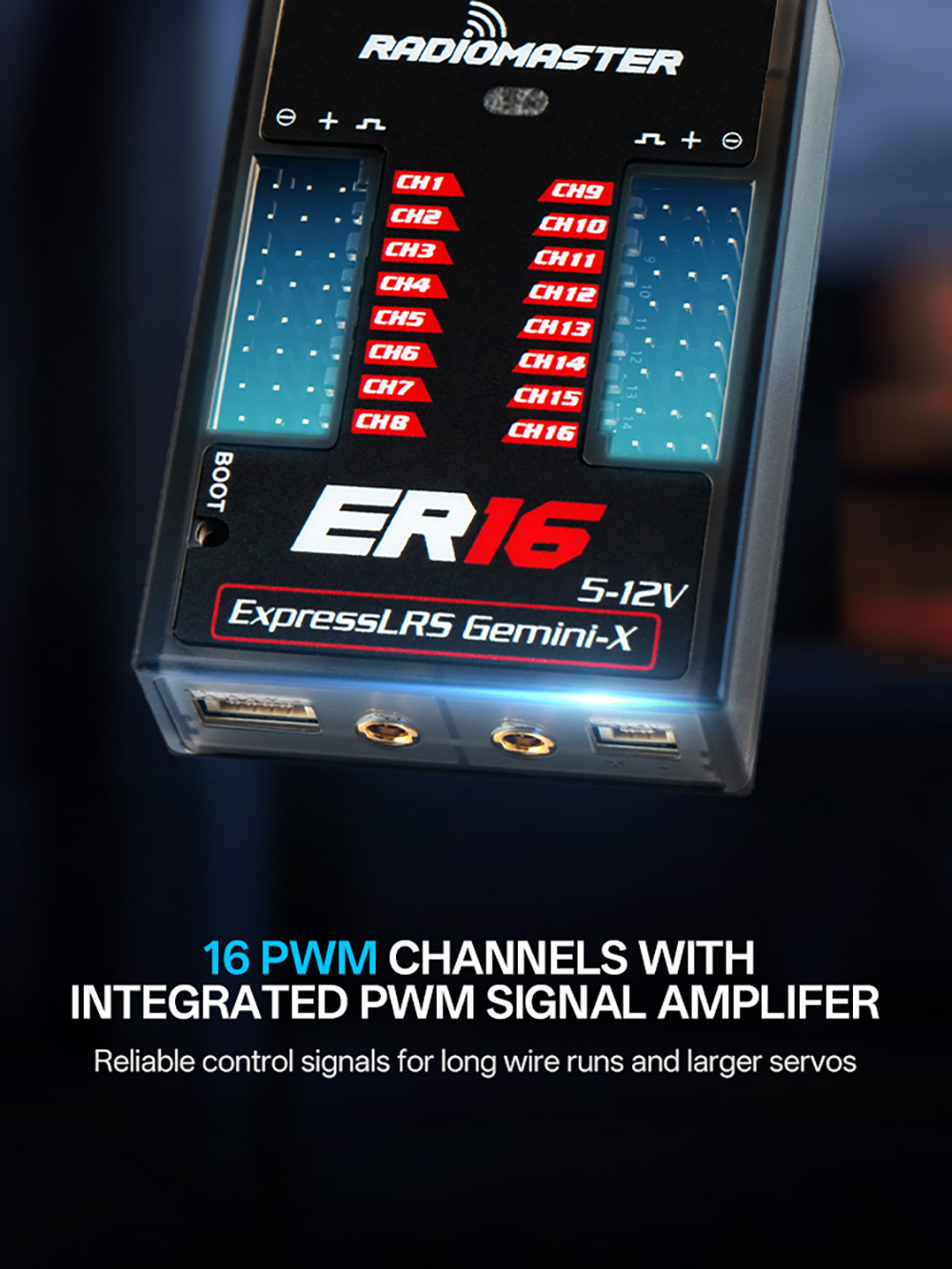

1. 16CH full PWM output + bidirectional UART: Max channel capacity for complex model setups.

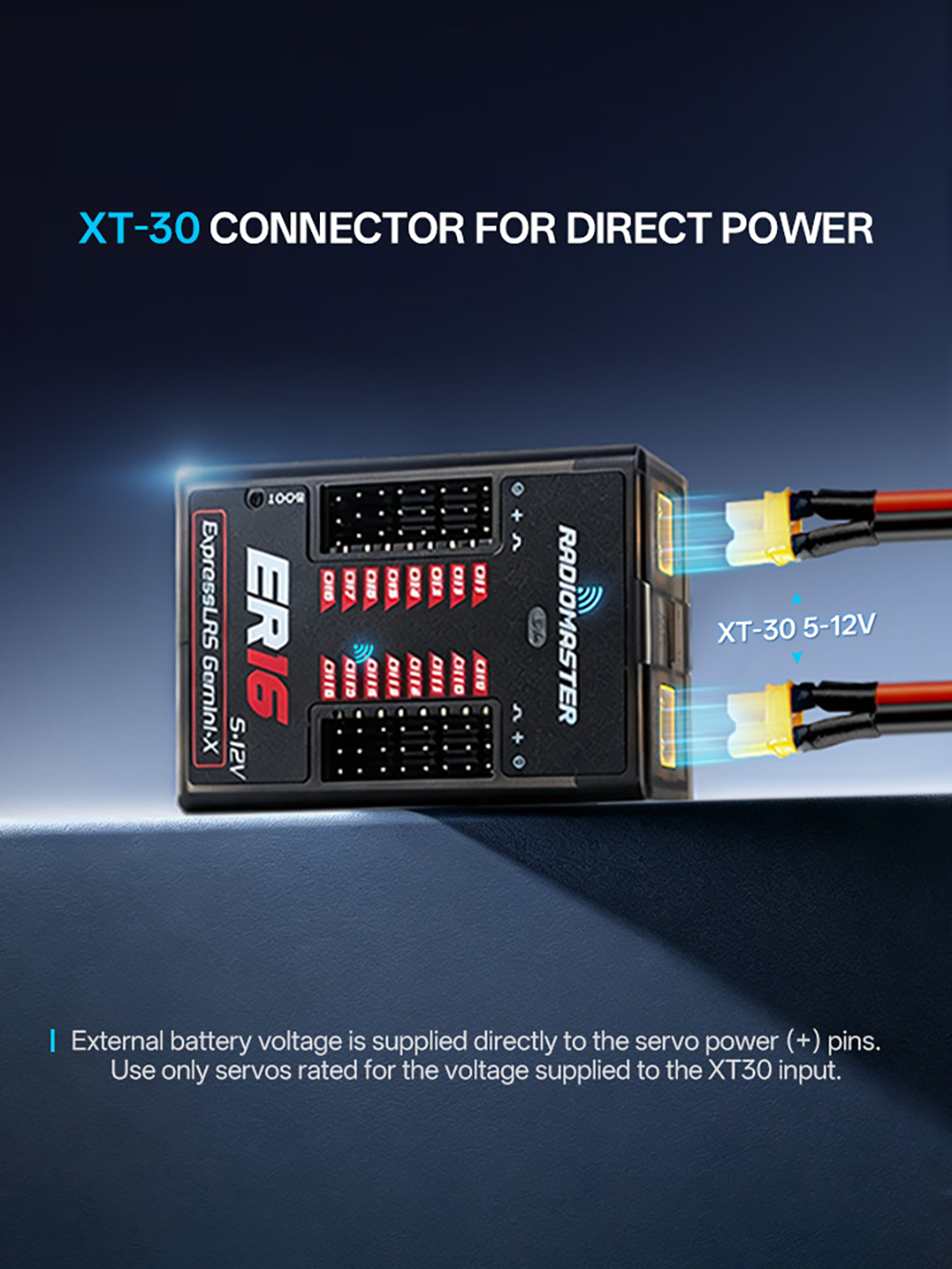

2. Dual isolated XT30 redundant power inputs: Auto‑switch to backup power if one source fails for uninterrupted flight.

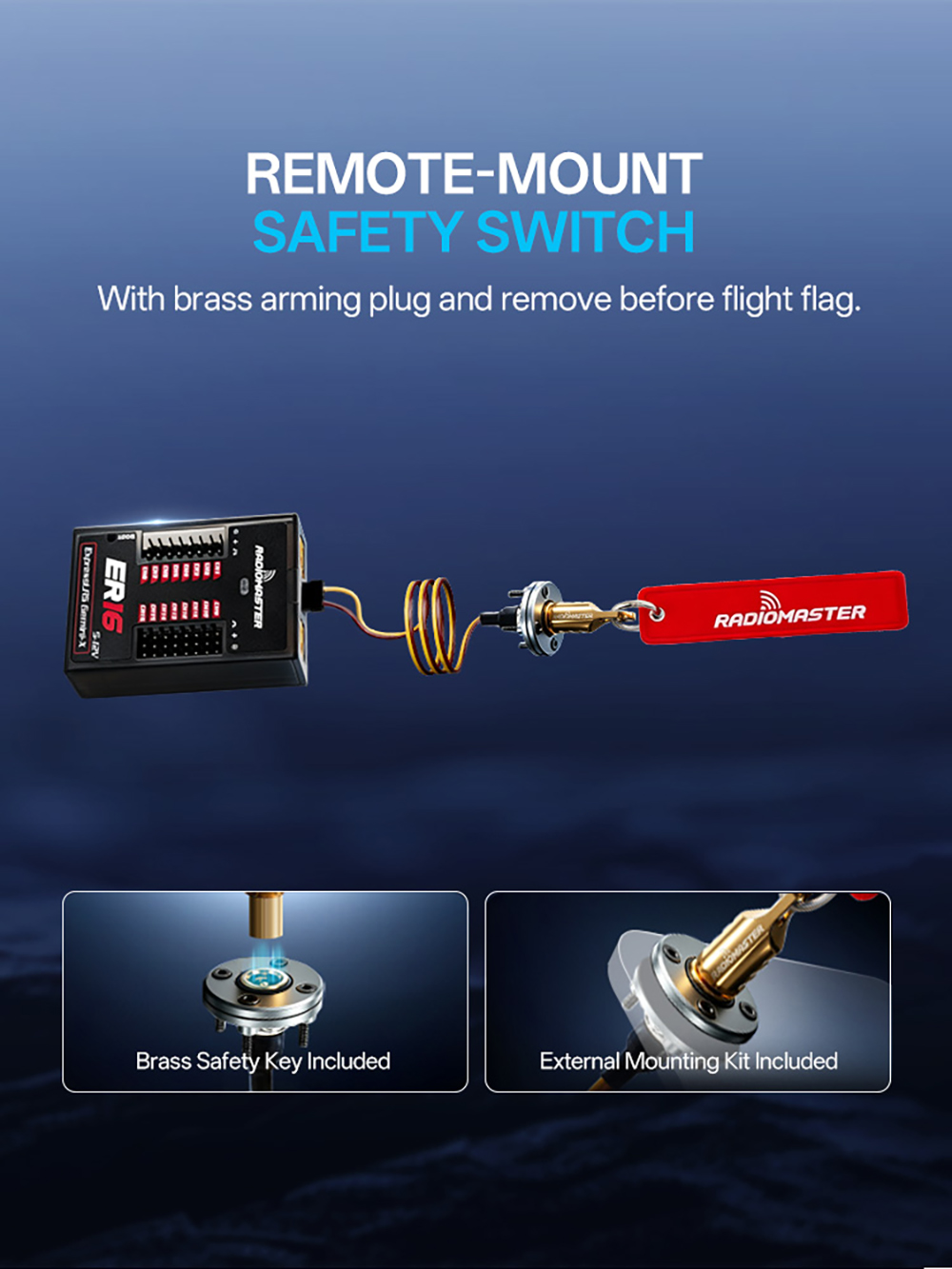

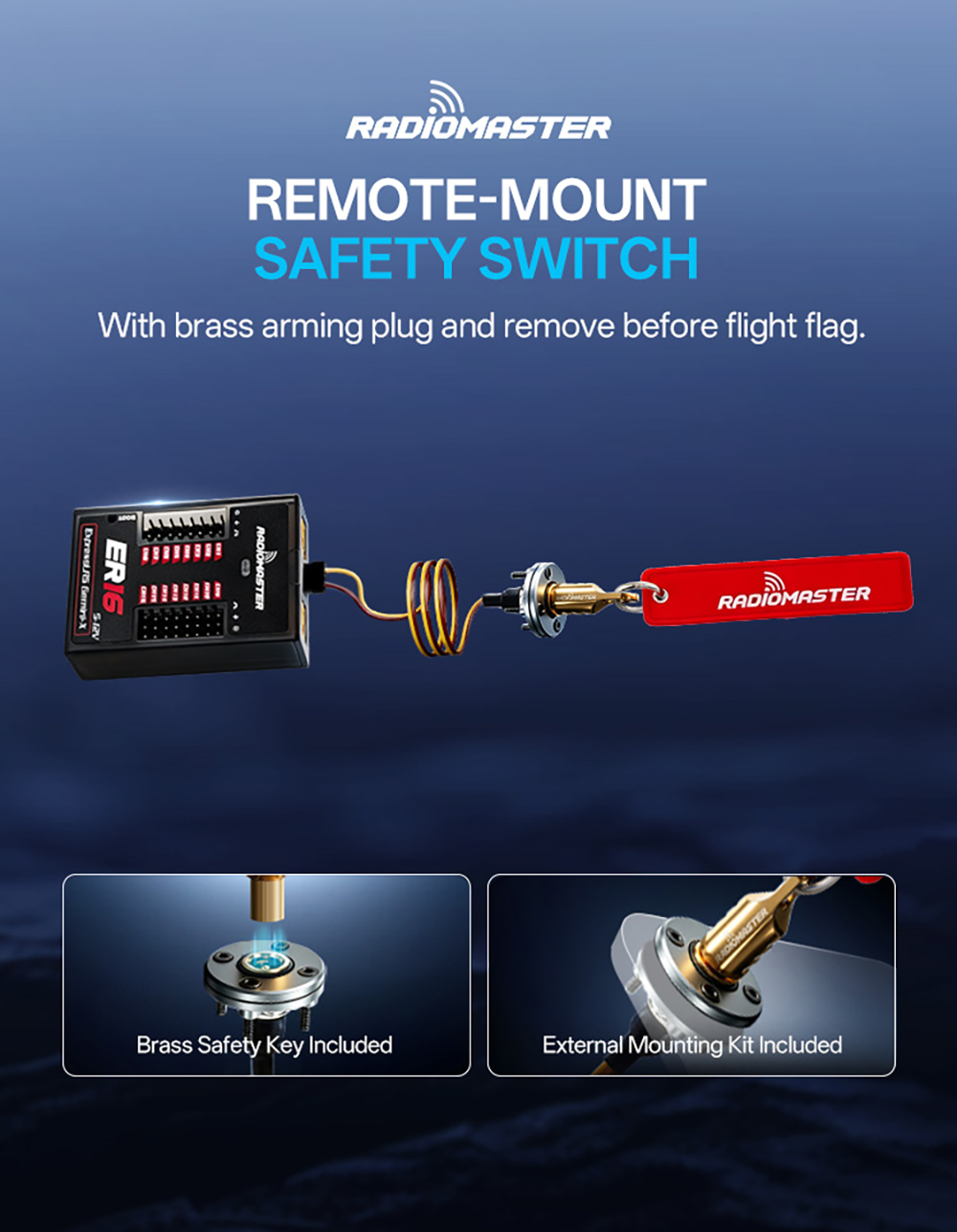

3. External safety switch port(SW): Powers on only when armed for safer transport and ground setup.

4. PWM signal amplifier: Ensures stable signal with long servo extension leads.

Description:

RadioMaster ER3 PRO, ER12 and ER16 are Gemini‑X diversity ELRS PWM receivers for large fixed‑wings, providing 3/12/16 PWM channels respectively; ER3‑PRO for satellite redundancy, ER12 with XT30 power input, ER16 features dual XT30 redundant power and safety switch.

Specifications:

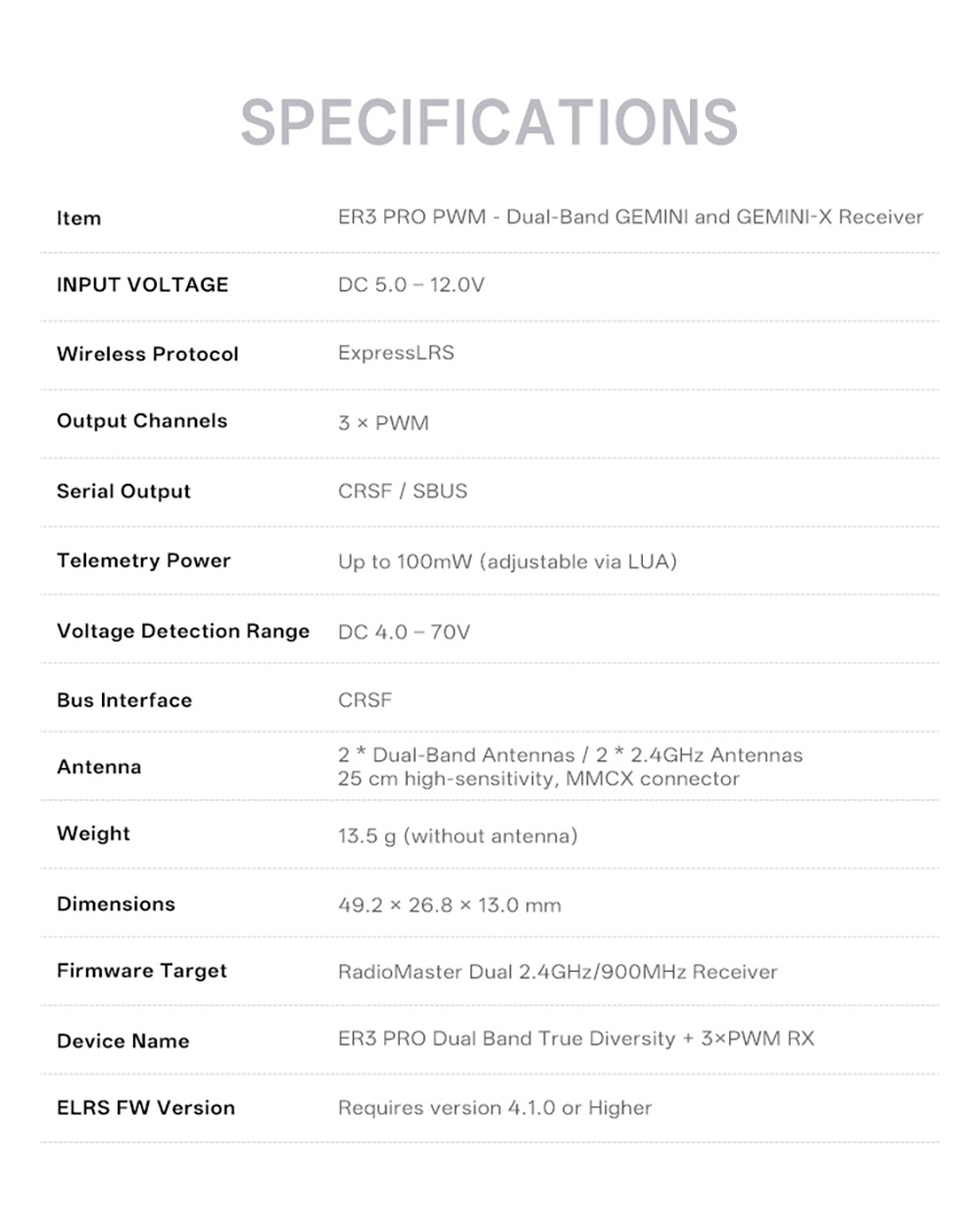

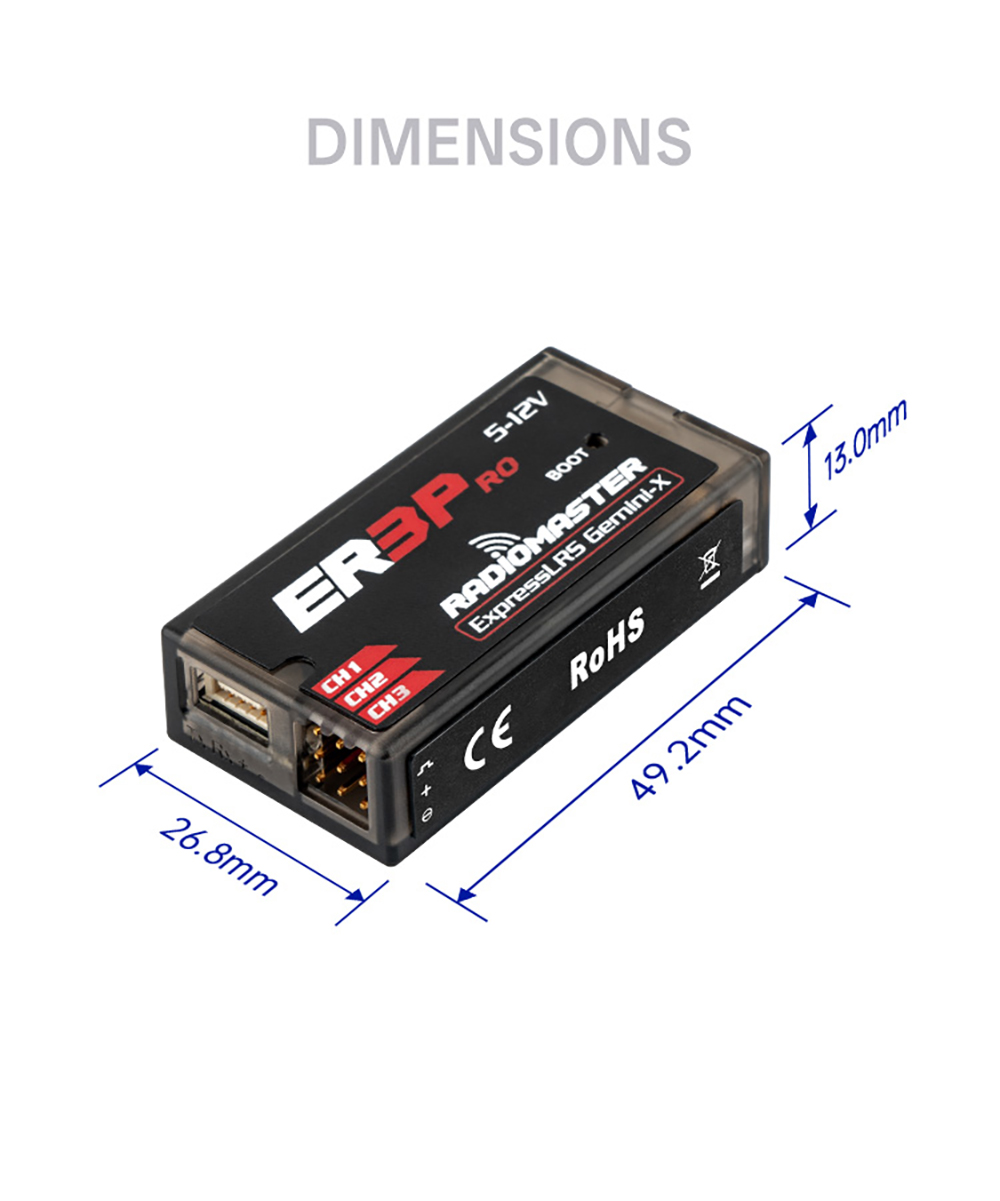

ER3 PRO

Channels: 3CH PWM

Power Input: DC 5‑12V

Weight: 13.5g (w/o antenna)

Highlight: Gemini‑X diversity, satellite redundant receiver setup

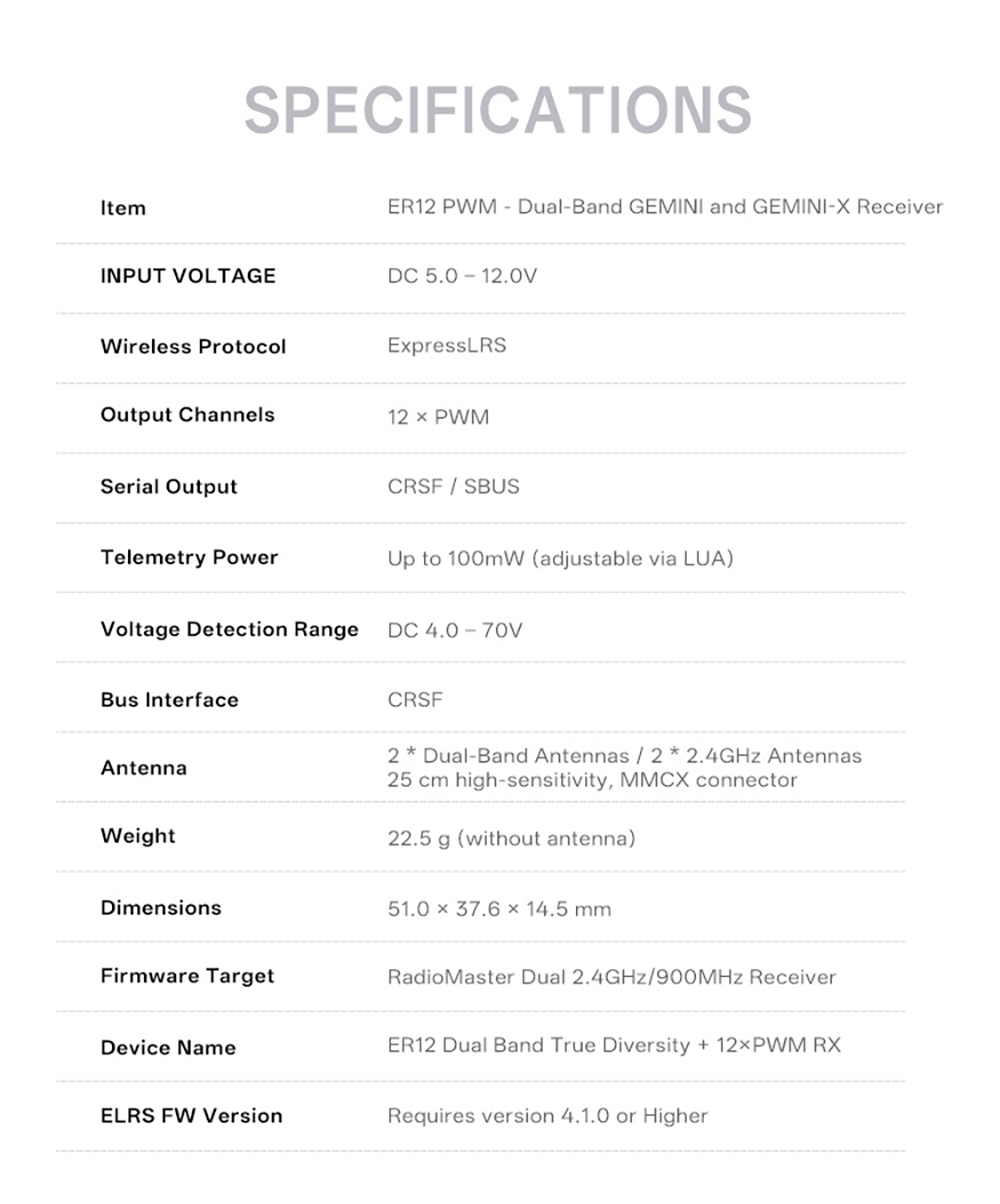

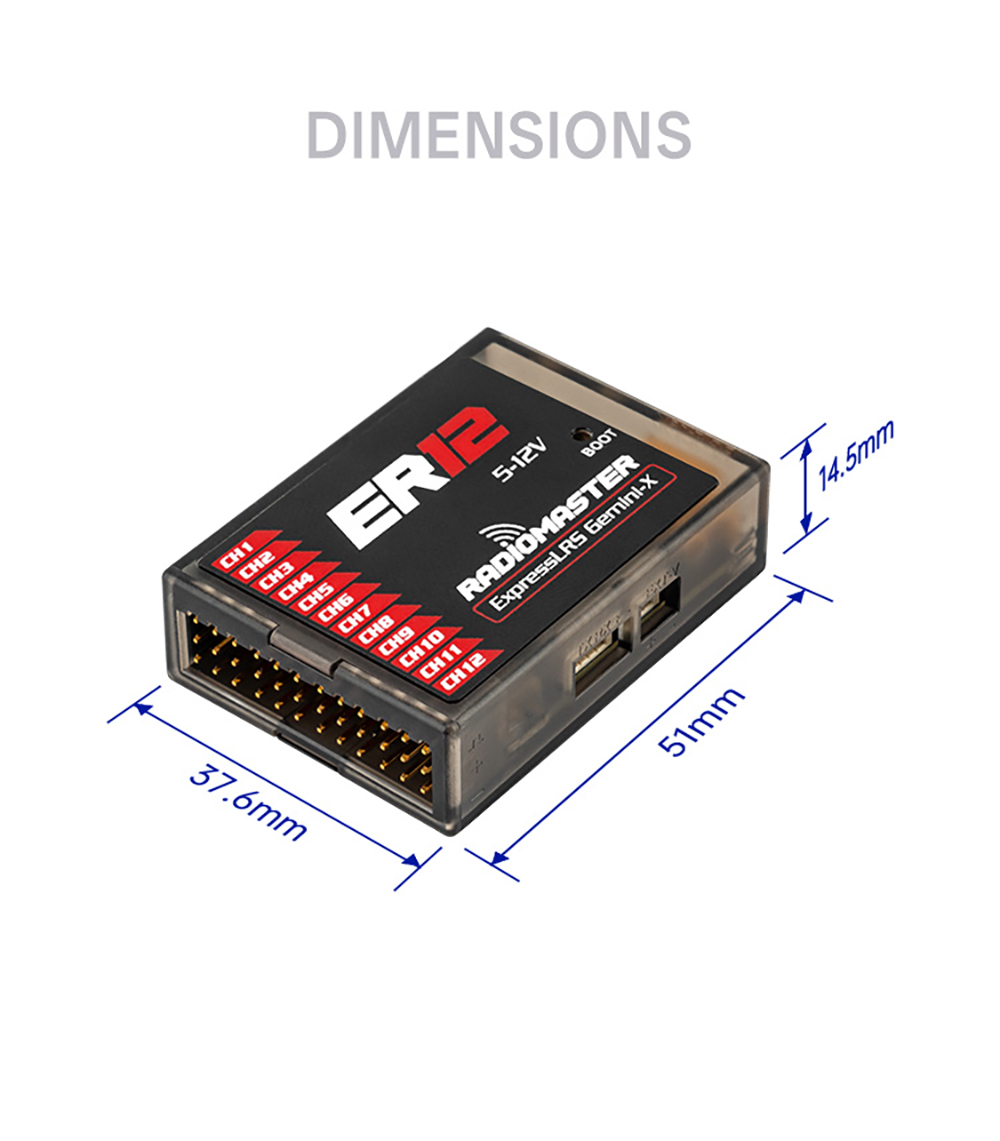

ER12

Channels: 12CH PWM

Power Input: DC 5‑12V, XT30 power input

Weight: 22.5g (w/o antenna)

Highlight: PWM signal amplifier for long servo leads

ER16

Channels: 16CH PWM

Power Input: DC 5‑12V, dual isolated XT30 redundant power

Weight: 33.0g (w/o antenna)

Highlight: PWM signal amplifier, external safety switch port

Package contents:

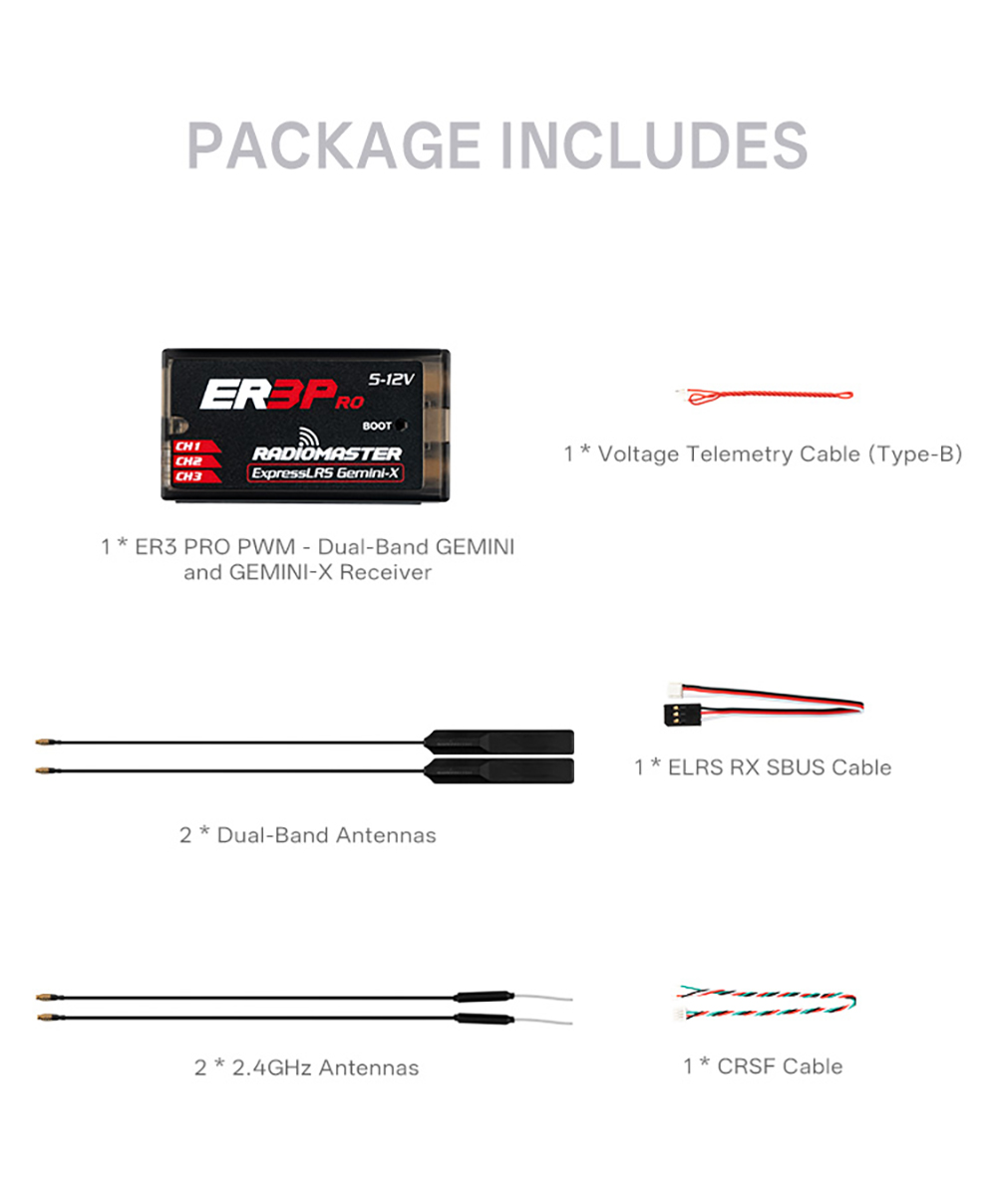

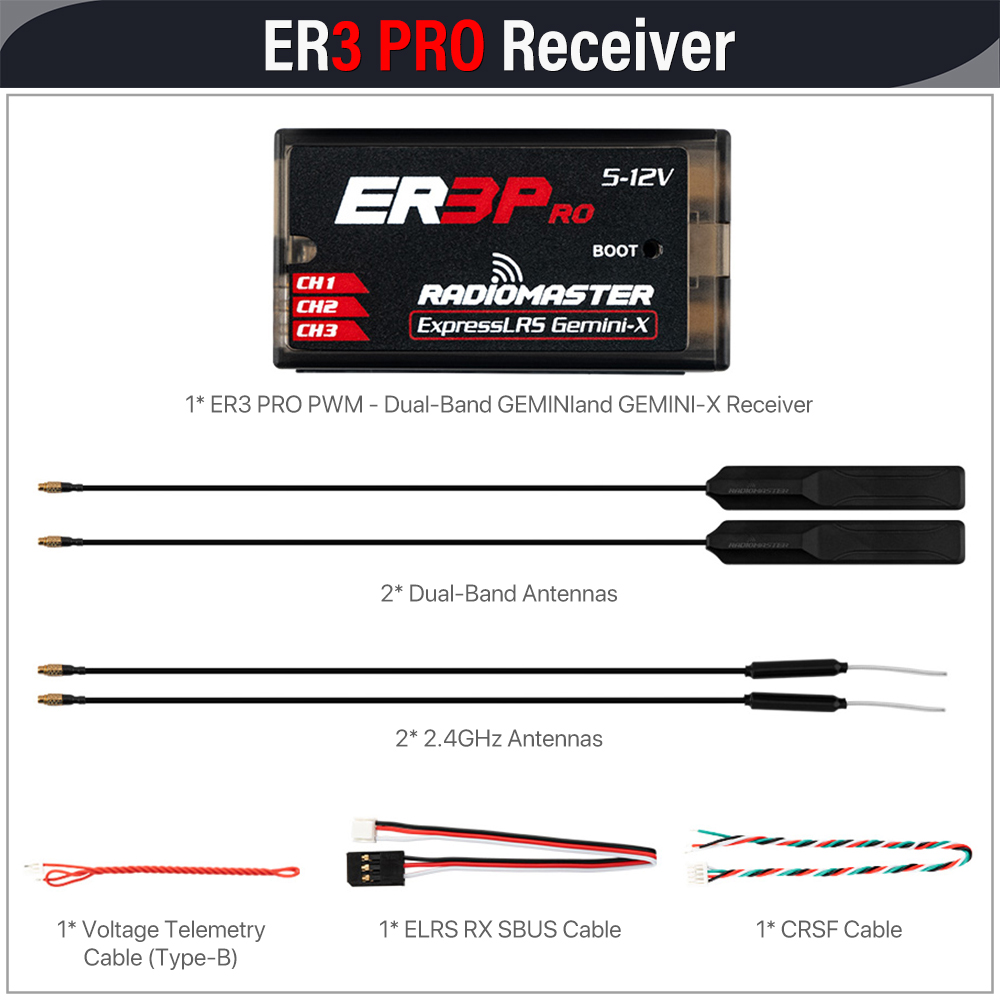

ER3 PRO

1 × ER3 PRO Gemini‑X ELRS PWM Receiver

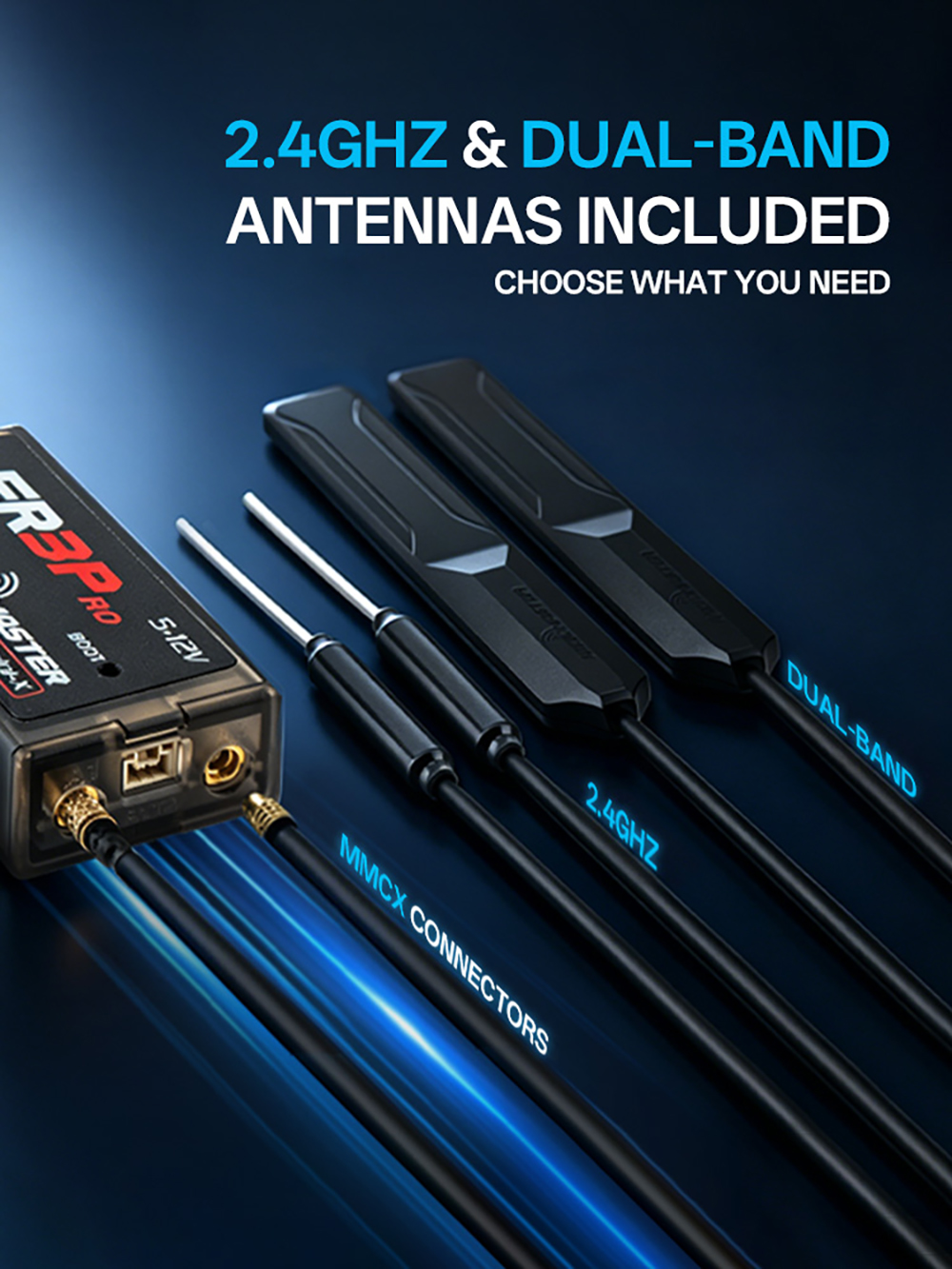

2 × 2.4GHz Antenna

2 × Dual Band Antenna

1 × Type‑B Voltage Telemetry Cable

1 × CRSF Cable

1 × ELRS‑RX‑SBUS Cable

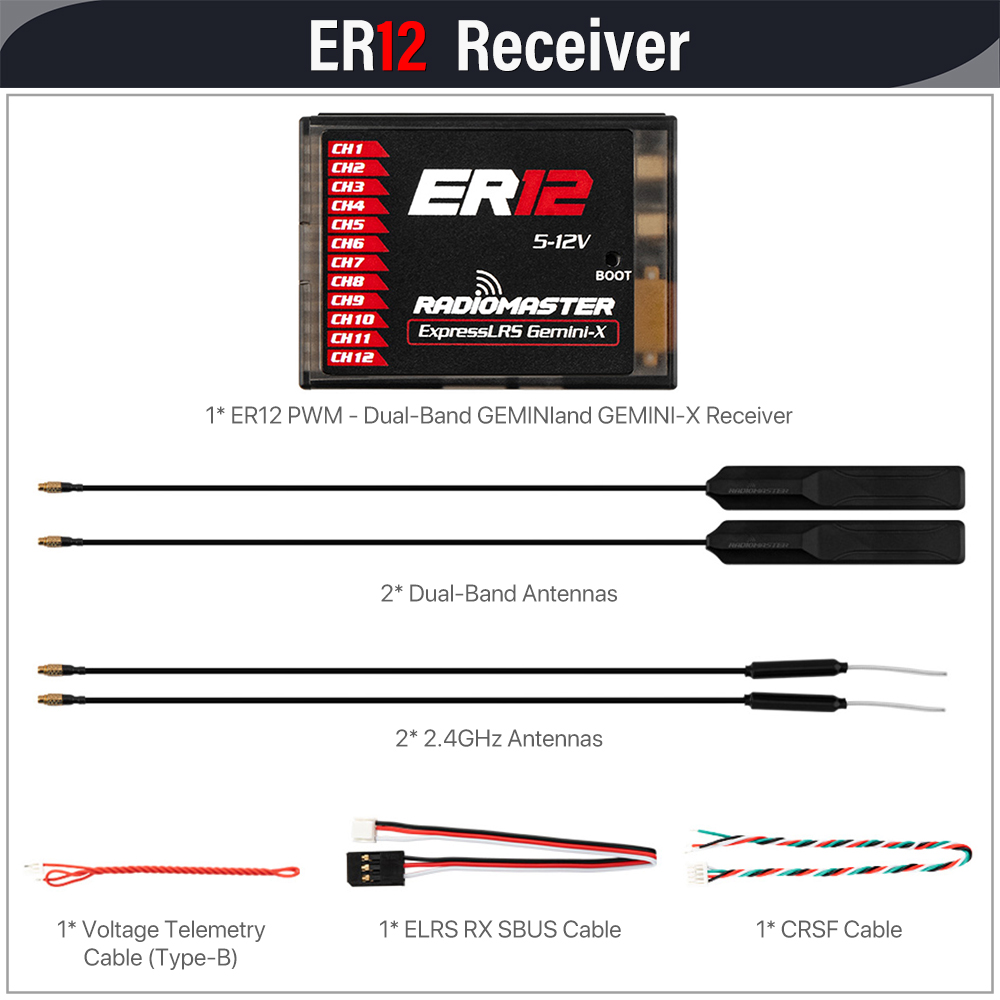

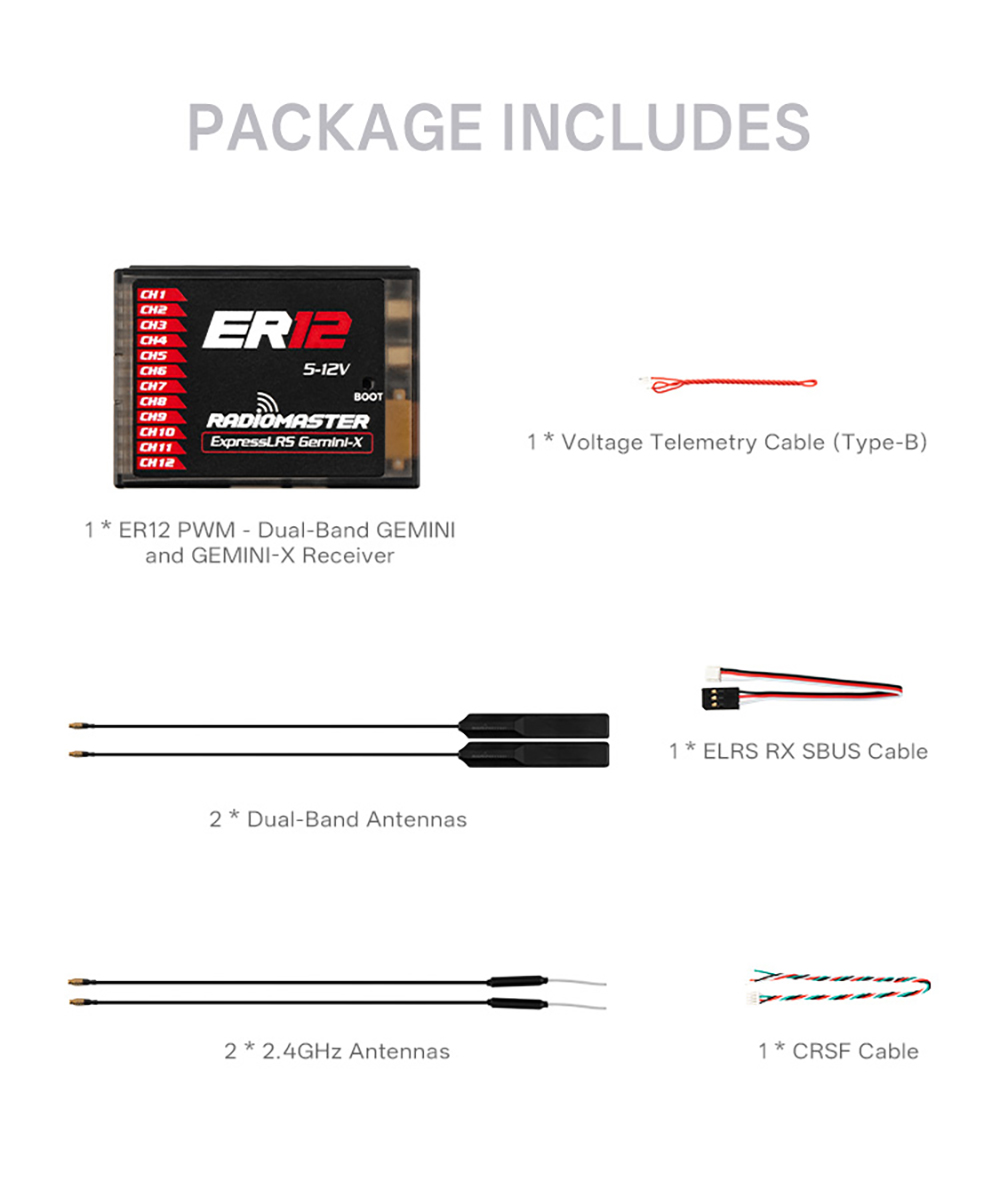

ER12

1 × ER12 Gemini‑X ELRS PWM Receiver

2 × 2.4GHz Antenna

2 × Dual Band Antenna

1 × Type‑B Voltage Telemetry Cable

1 × CRSF Cable

1 × ELRS‑RX‑SBUS Cable

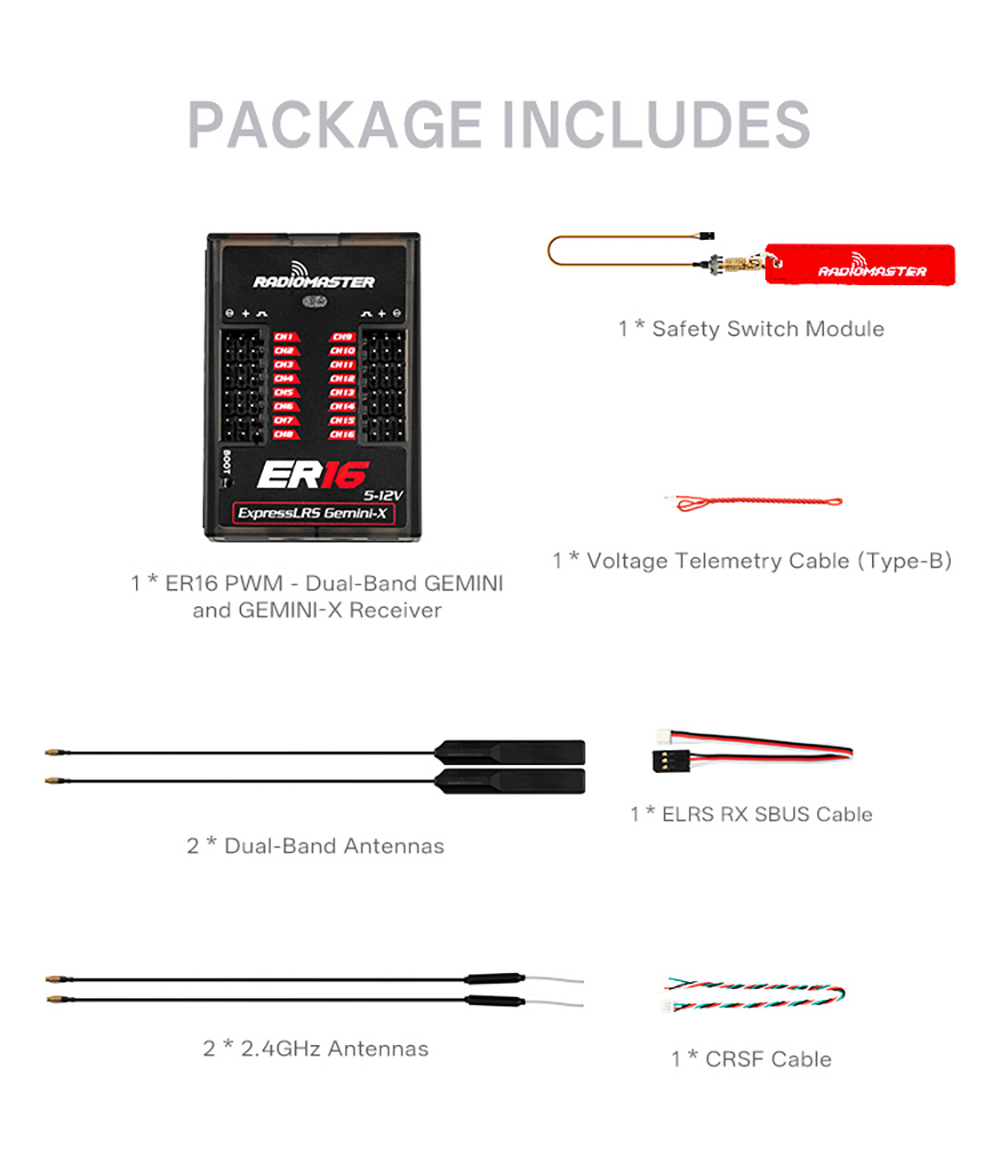

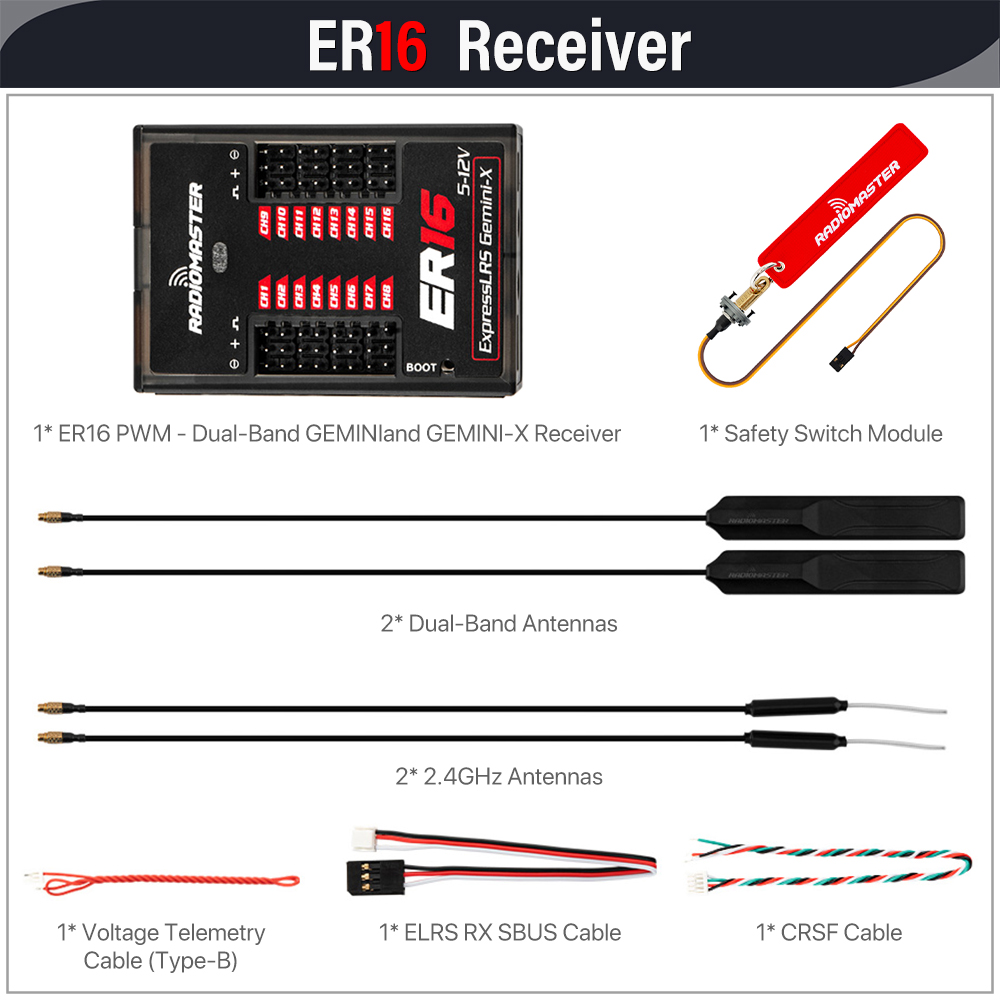

ER16

1 × ER16 Gemini‑X ELRS PWM Receiver

2 × 2.4GHz Antenna

2 × Dual Band Antenna

1 × Safety Switch Module

1 × Type‑B Voltage Telemetry Cable

1 × CRSF Cable

1 × ELRS‑RX‑SBUS Cable

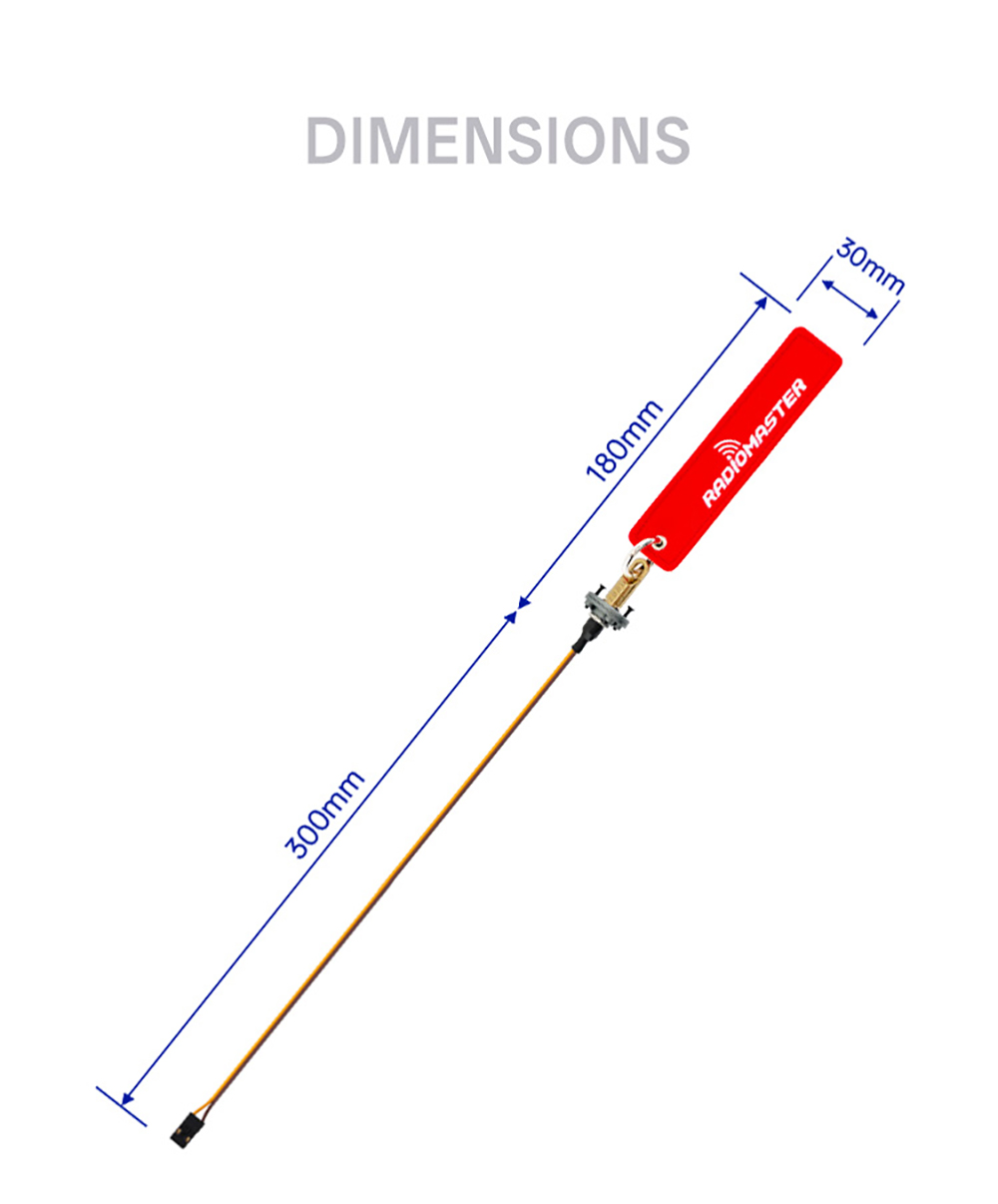

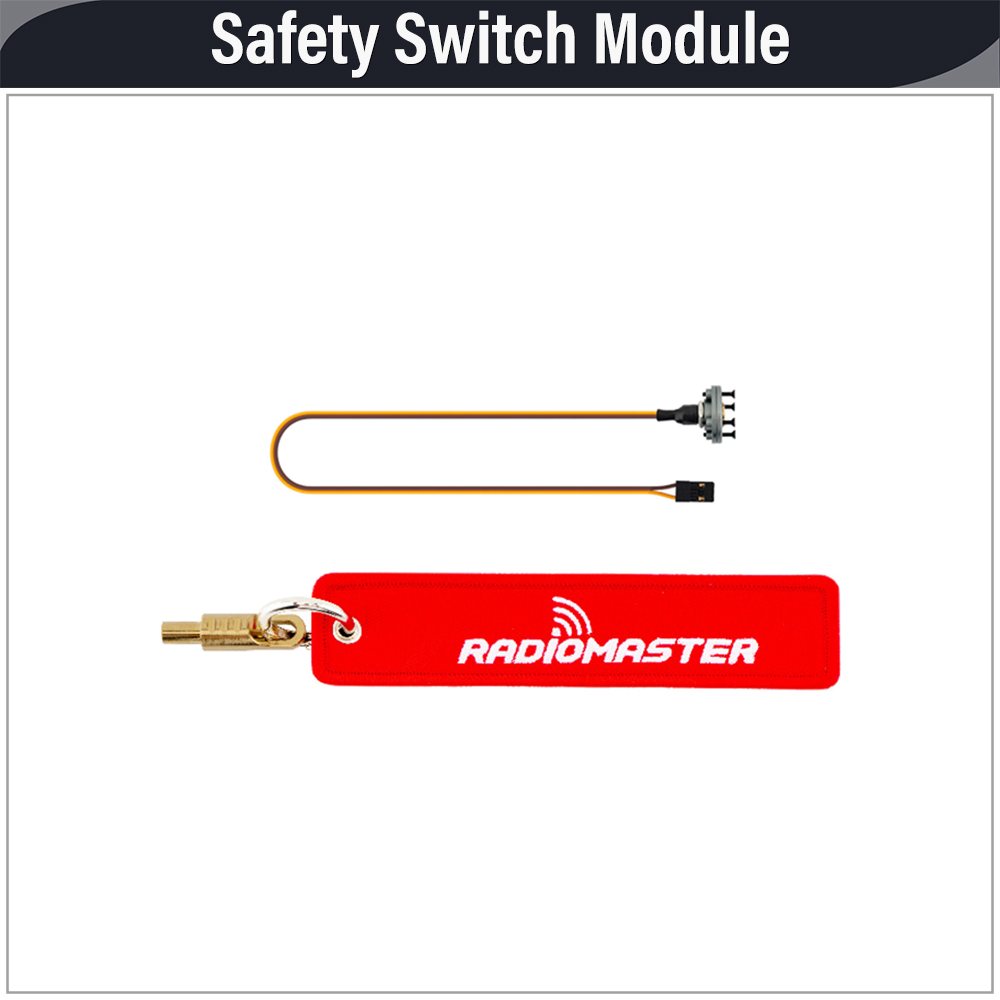

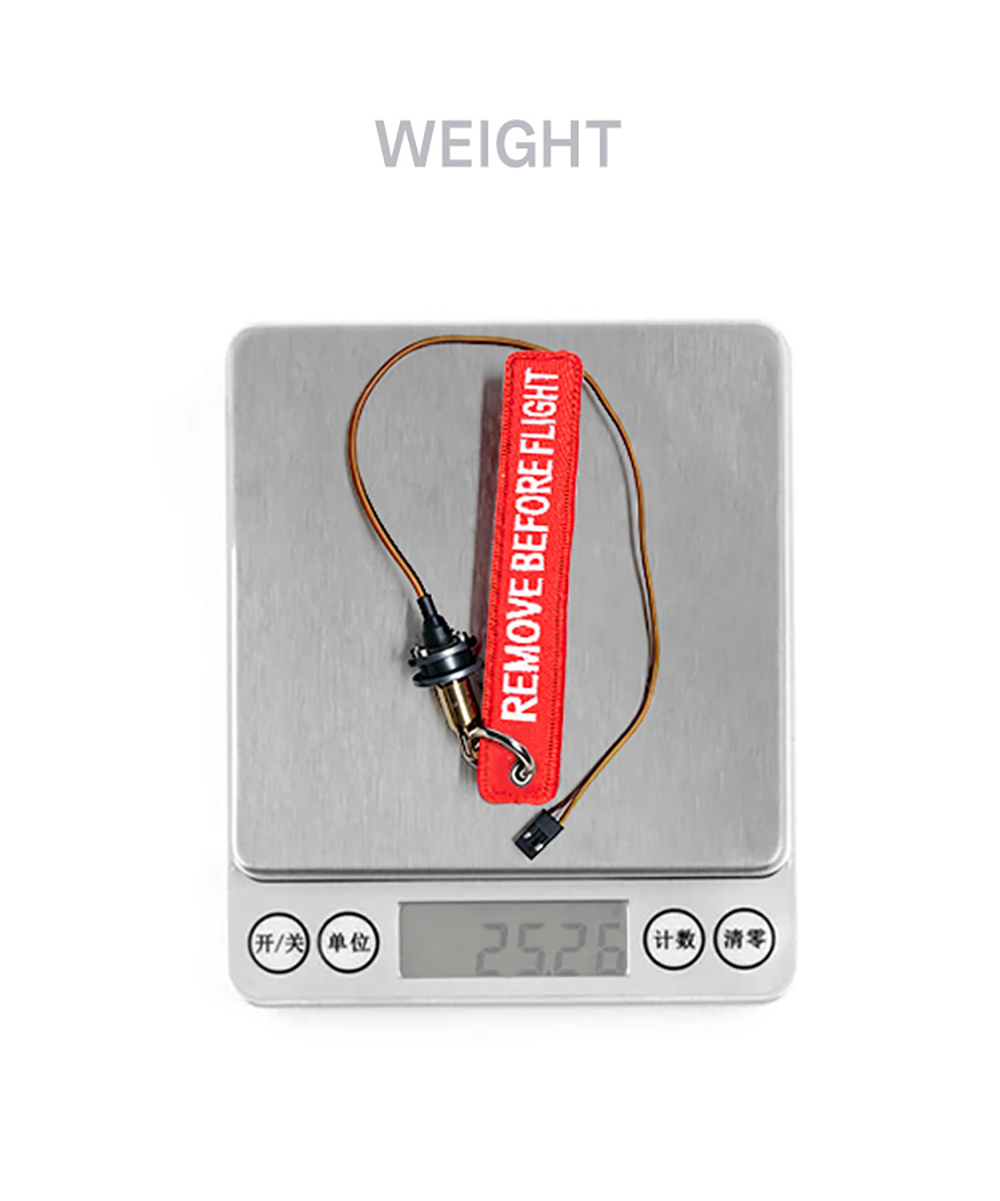

ER16 CNC Safety Switch Replacement Module

1 × "Remove Before Flight" Warning Lanyard

1 × Brass Safety Lock Plug

1 × Two‑piece Metal Mounting Panel

1 × 300mm Servo Connector Cable
