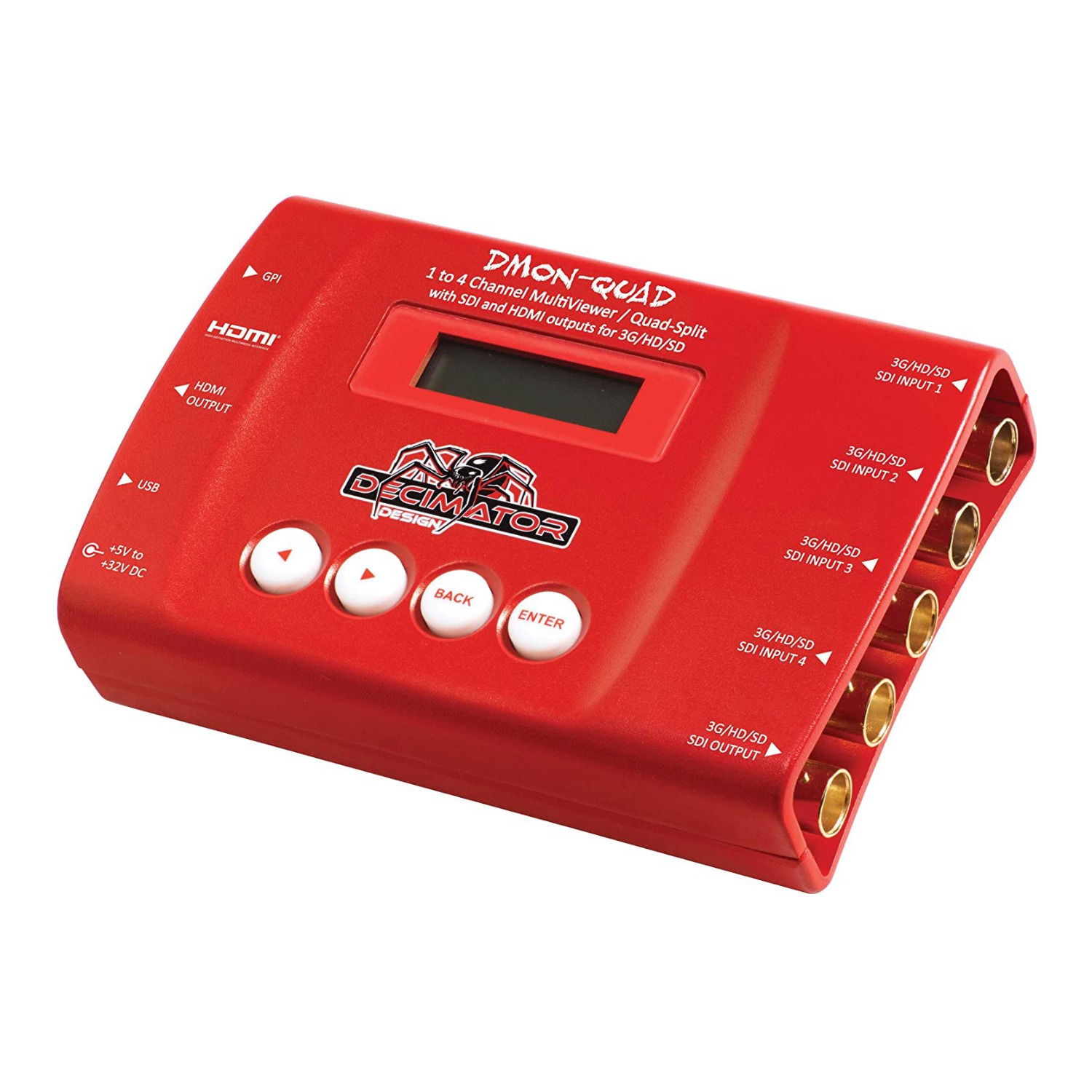

Decimator DMON-Quad 4-Channel 3G/HD/SD-SDI Quad Split Multiviewer
Decimator DMON-Quad 4-Channel 3G/HD/SD-SDI Quad Split Multiviewer
- GPI on RJ-45 connector for Tallies and Remote Switching
- RS422/485 on RJ-45 connector for Dynamic UMD and Tallies
- Linked (3G/HD/SD)-SDI and HDMI outputs
- Tally boxes allows for up to 4 Tallies per window
- Horizontal and/or vertical image flipping per window
- Easy-to-use LCD screen and button control system
- USB port for control and firmware updates
- Robust aluminum housing
- Metal thread locking DC power socket
- Includes a power supply and USB cable
- Decimator DMON-Quad 4-Channel 3G/HD/SD-SDI Quad Split Multiviewer with HDMI Outputs
- Power Supply
- HDMI Cable
- USB Cable
- Limited 3-Year Warranty
The Decimator DMON-Quad is a compact 4-channel 3G-SDI multiviewer and multiplexer for use in studios, post houses, and other professional video applications. It supports a variety of resolutions and formats up to 1080p60 over SDI, and can arbitrarily mix formats and aspect ratios. The four SDI inputs can be output simultaneously over the HDMI or SDI outputs for a quad-view display. Tally information can be supplied via the RJ-45 connector.
Multiviewer
The Decimator DMON-Quad offers four (3G/HD/SD)-SDI to HDMI converters with 1 to 4 multiviewer or 4 to 1 input multiplexer. Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously. In Pass-Through mode the selected input is passed through both 3G-SDI and HDMI outputs. The unit supports 3G level A and B on inputs and output, allowing conversion between 3G level A and B.
Easy To Use Features
The portable DMON-Quad 4-Channel 3G-SDI Multiviewer incorporates an easy-to-use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting. The unit gives you custom layouts with various standard layouts. It also provides an 8-channel audio metering overlay per window with individual enables, custom positioning and size. A 16-character UMD overlay per window offers individual enables, custom positioning and size.
Specifications
Decimator DMON-Quad 4-Channel 3G/HD/SD-SDI Quad Split Multiviewer with HDMI Outputs
SDI Input and Output Formats
- 3G: SMPTE 424M@2.97 and 2.967Gb/s
- 1080p@60/59.94/50Hz
- HD: SMPTE 292M/274M/296M@1.485 and 1.435Gb/s
- 1080i@60/59.94/50Hz
- 1080p/psf@30/29.97/25/24/23.98Hz
- 720p@60/59.94/50/30/29.97/25/24/23.98Hz
- SD: SMPTE 259M@270Mb/s
- 625i50 (PAL)
- 525i59.94 (NTSC)
HDMI Output Formats
- 1080p@60/59.94/50/30/29.97/25/24/23.98Hz
- 1080i@60/59.94/50Hz
- 720p@60/59.94/50/30/29.97/25
- 625i50 (PAL)
- 525i59.94 (NTSC)
LCD / Button Menu Options
- HDMI output type
- Output Select
- Multi-Viewer Output Format
- Multi-Viewer Number of Windows
- Multi-Viewer Layout
- Multi-Viewer Audio Source
- Multi-Viewer Reference
- Full Screen is Scaled
- Input Routing
- GPI mode
- Setup
Inputs
- 4 x (3G/HD/SD)-SDI
- USB for control and updates
- GPI on RJ-45
Outputs
- 1 x (3G/HD/SD)-SDI
- HDMI Type A
Power
- +5 to +32VDC
- Positive Centre Pin
Dimensions
- 3.1 x 4.8 x 1.2 inch (79.5 x 123 x 29.5 mm)
