POWER TILT AND TRIM MOTOR 12V REVERSIBLE BLADE SHAFT — HONDA BF75D BF90D BF100A:
5 CHECKS BEFORE YOU BUY:
• Engine generation: Honda 1496cc four cylinder from 2007
• Honda number on your own motor: 36120-ZY9
• Connection: 2 wire with a round plug-in connector
• Mount: 4 bolt flange at 66mm bolt centres
• Shaft: blade type
HONDA BF75D APPLICATIONS — 2007 ONWARD:
• Honda BF75DK0 LHTA and LRTA 75HP (2007-2025)
• Honda BF75DK2 LRTA 75HP four stroke (2007-2025)
• Honda BF75DK3 LRTA 75HP four stroke (2007-2025)
• Honda BF75DK4 LRTA 75HP four stroke (2007-2025)
HONDA BF90D APPLICATIONS — 2007 ONWARD:
• Honda BF90DK0 LHTA LRTA and XRTA 90HP (2007-2025)
• Honda BF90DK2 LRTA and XRTA 90HP (2007-2025)
• Honda BF90DK4 JRTA LRTA and XRTA 90HP (2007-2025)
• Honda BF90DK5 JRTA LRTA and XRTA 90HP (2007-2025)
HONDA BF100A APPLICATIONS:
• Honda BF100A LRTA 100HP four stroke (2016-2025)
• Honda BF100A XRTA 100HP four stroke (2016-2025)
• Honda BF100AK1 LRTA 100HP four stroke (2016-2025)
• Honda BF100AK1 XRTA 100HP four stroke (2016-2025)
SUZUKI DF70 DF80 AND DF90 APPLICATIONS:
• Suzuki DF70 four stroke outboard
• Suzuki DF80 four stroke outboard
• Suzuki DF90 four stroke outboard
• Arco lists ten Suzuki numbers against this motor
ENGINE GATE — READ THIS FIRST:
• Engine generation required: the 1496cc four from 2007
• Honda numbers on this motor: 36120-ZY9-003 013 or 023
• Read the Honda number off your own motor before ordering
• Connection: 2 wire ending in a round plug-in connector
• Confirm a 4 bolt flange at 66mm bolt centres
• Confirm a blade type shaft
OEM PART NUMBERS:
• Honda Supersession: 36120-ZY9-003 → 36120-ZY9-013 → 36120-ZY9-023
• Honda Current: 36120-ZY9-023
• Arco: 6236
• API Marine: PT314NM
• Recmar: REC36120-ZY9-003
• Suzuki DF70 DF80 DF90: 38100-87L00 • 38100-87L12 • 38100-90J00
• Suzuki DF70 DF80 DF90: 38100-90J01 • 38100-90J20 • 38100-90J30
• Suzuki DF70 DF80 DF90: 38100-92J01 • 38100-92J02 • 38100-92J10
• Suzuki DF70 DF80 DF90: 38100-99E01-EP
PART NUMBER CHAIN:
• 36120-ZY9-003 — the original Honda number
• 36120-ZY9-013 — the first supersession
• 36120-ZY9-023 — the current Honda number
• 6236 — the Arco number for this motor
• PT314NM — the API Marine number
• All three Honda numbers describe one motor

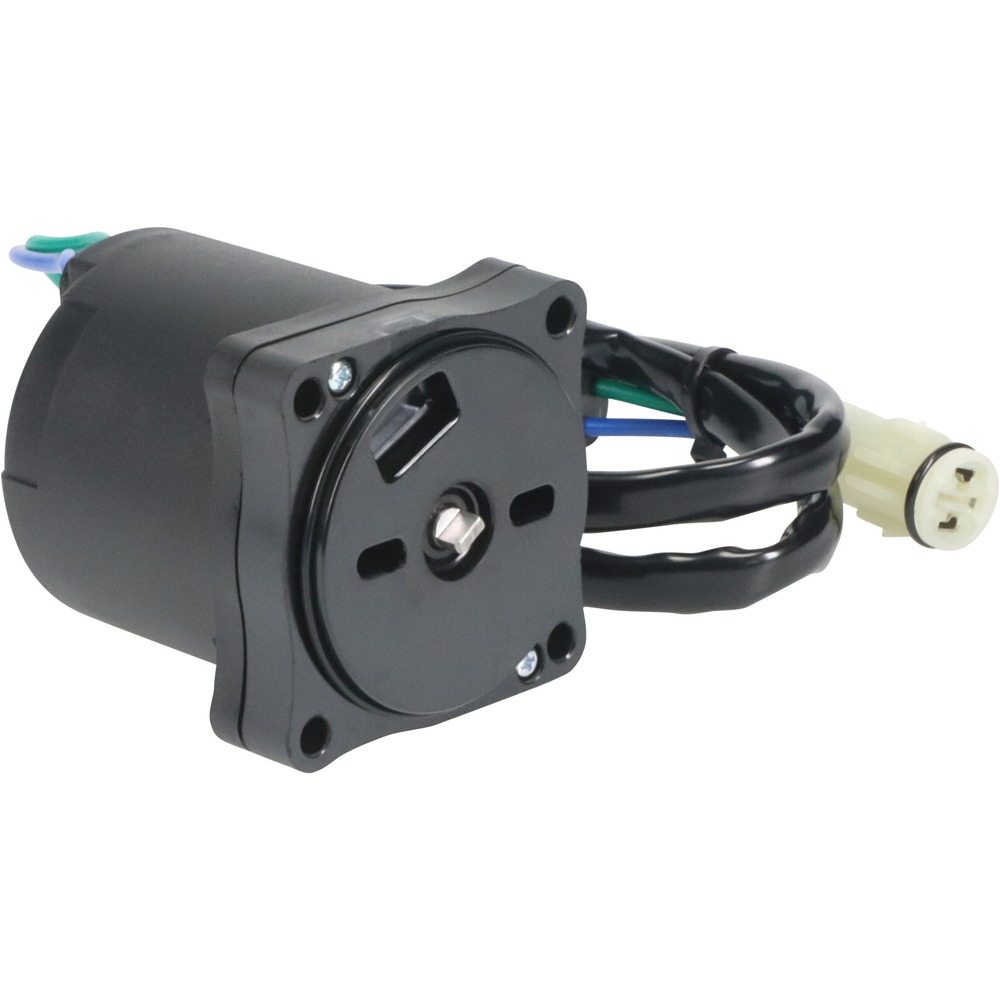

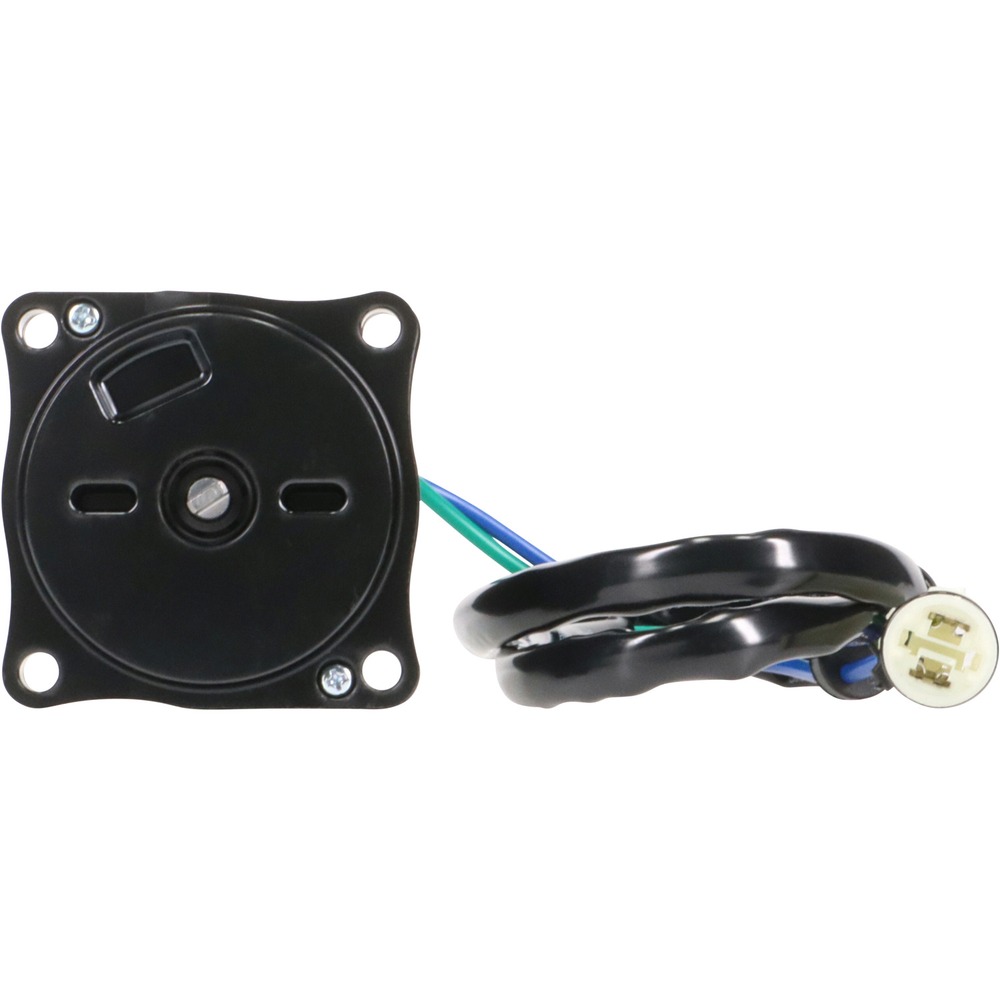

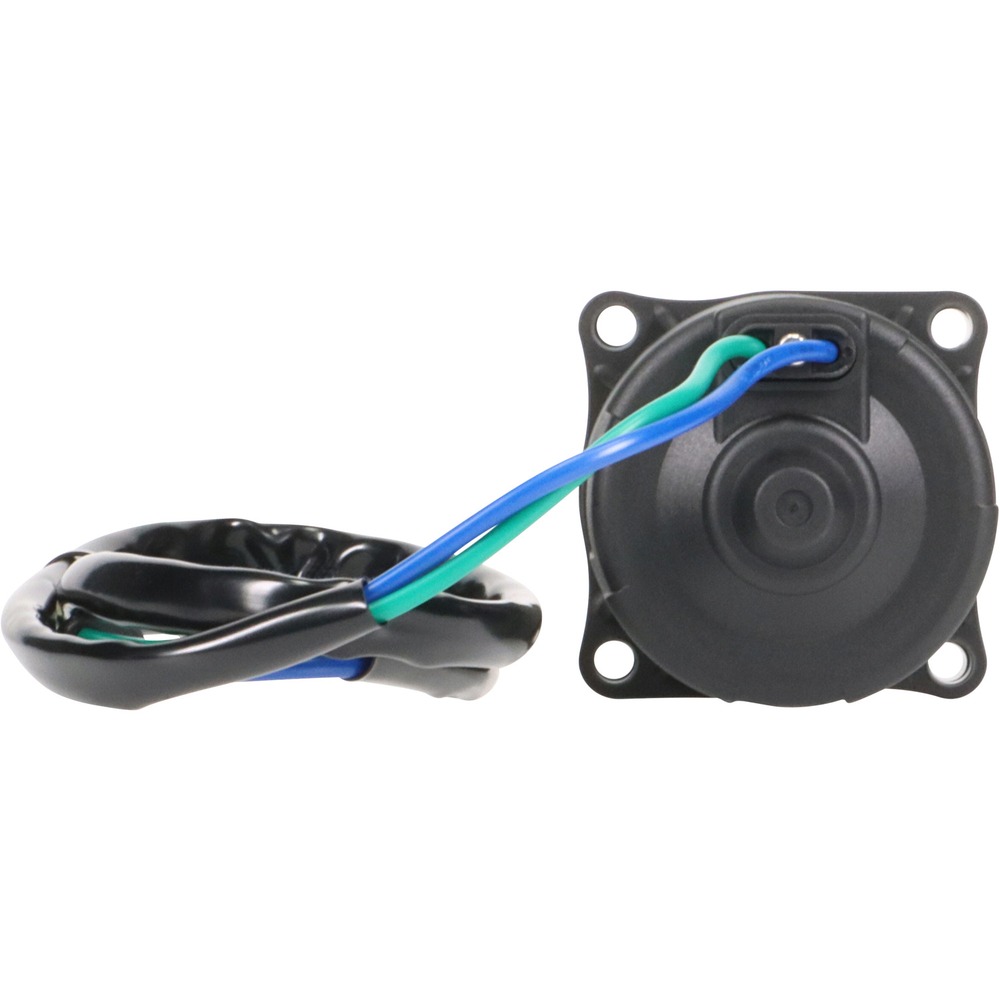

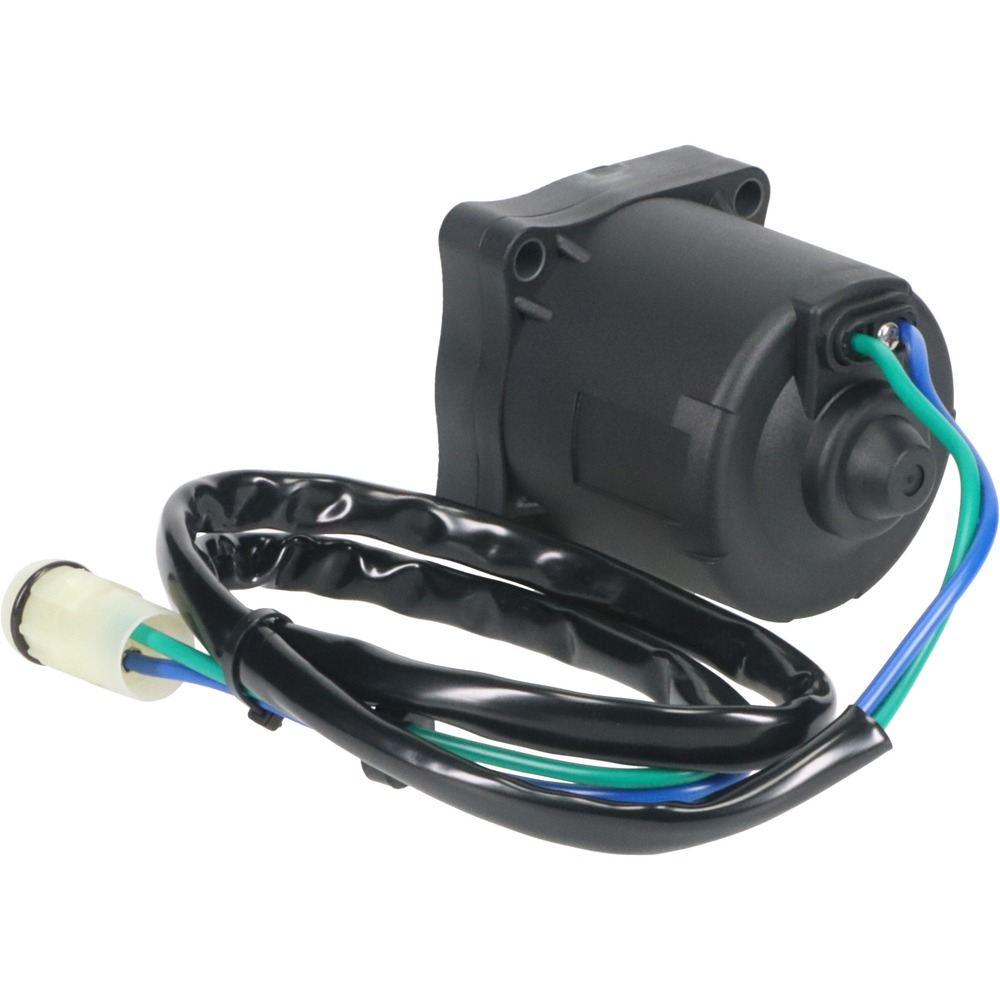

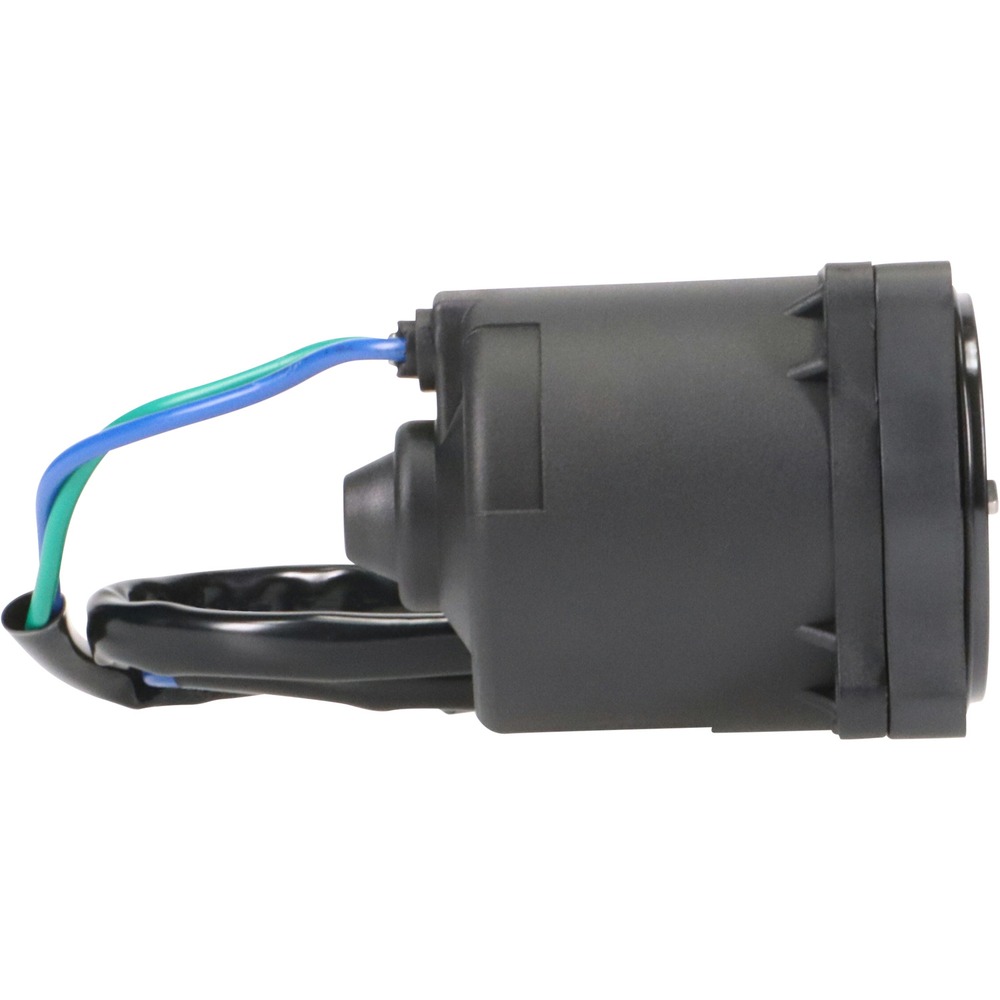

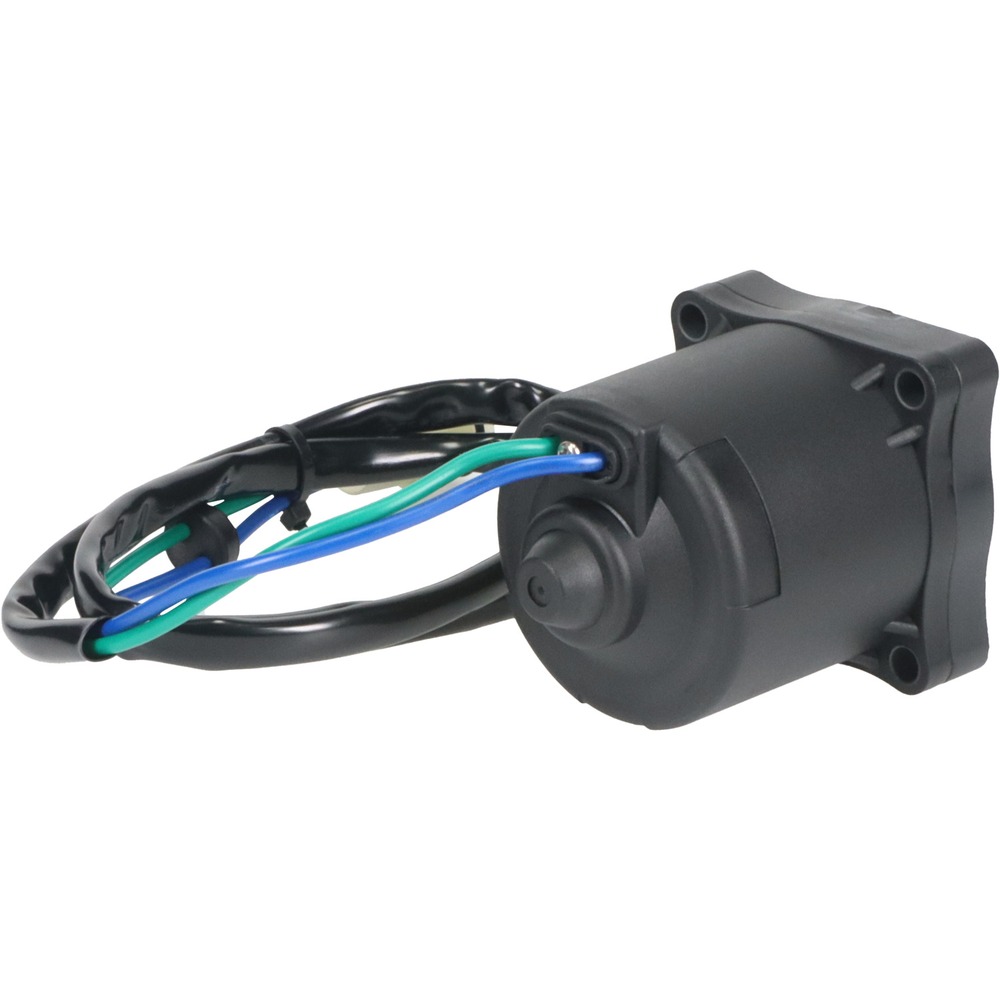

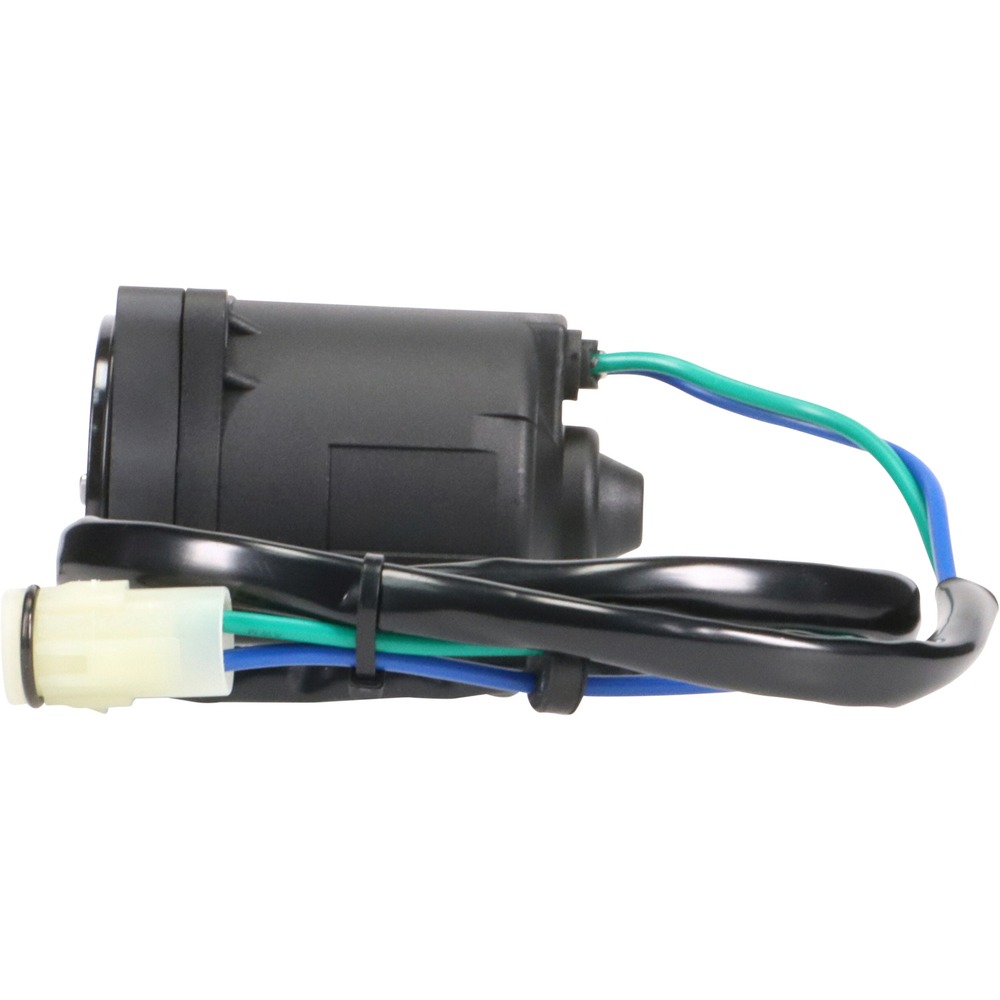

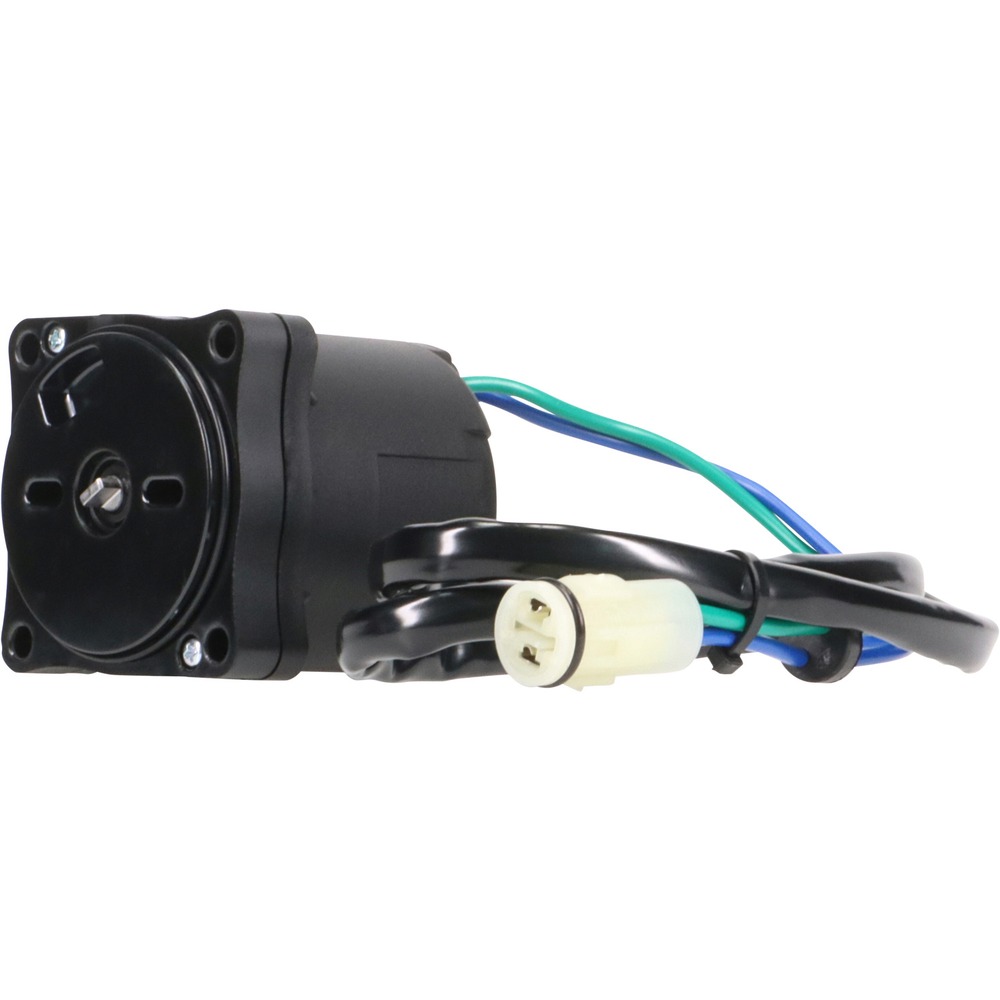

SPECIFICATIONS:
• 12 Volt / Reversible Bi-Rotational
• Type: Power Tilt and Trim Motor
• Shaft: Blade Type
• Mount: 4 Bolt Flange
• Bolt Centres: 66mm • Mounting Ring: 71mm OD
• Motor Case Outside Diameter: 79mm
• Overall Length: 113mm / 4.449 in
• Connection: 2 Wire with Round Plug-In Connector
• Wire Colours: Blue Up • Green Down
• O-Ring: Included
• Condition: New Aftermarket
HOW TO VERIFY FIT:
• Confirm a 4 bolt mounting flange
• Measure 66mm between the bolt centres
• Measure a 79mm motor case outside diameter
• Measure 113mm overall length
• Confirm 2 wires ending in a round plug-in connector
• Read 36120-ZY9 off your own motor
WHAT THIS UNIT IS:
• Type: 12 Volt reversible power tilt and trim motor
• Shaft: blade type on a 4 bolt flange
• Mount: 66mm bolt centres on a 71mm ring
• Wiring: 2 wire round plug-in with blue up and green down
• Engines: Honda BF75D BF90D and BF100A four strokes
