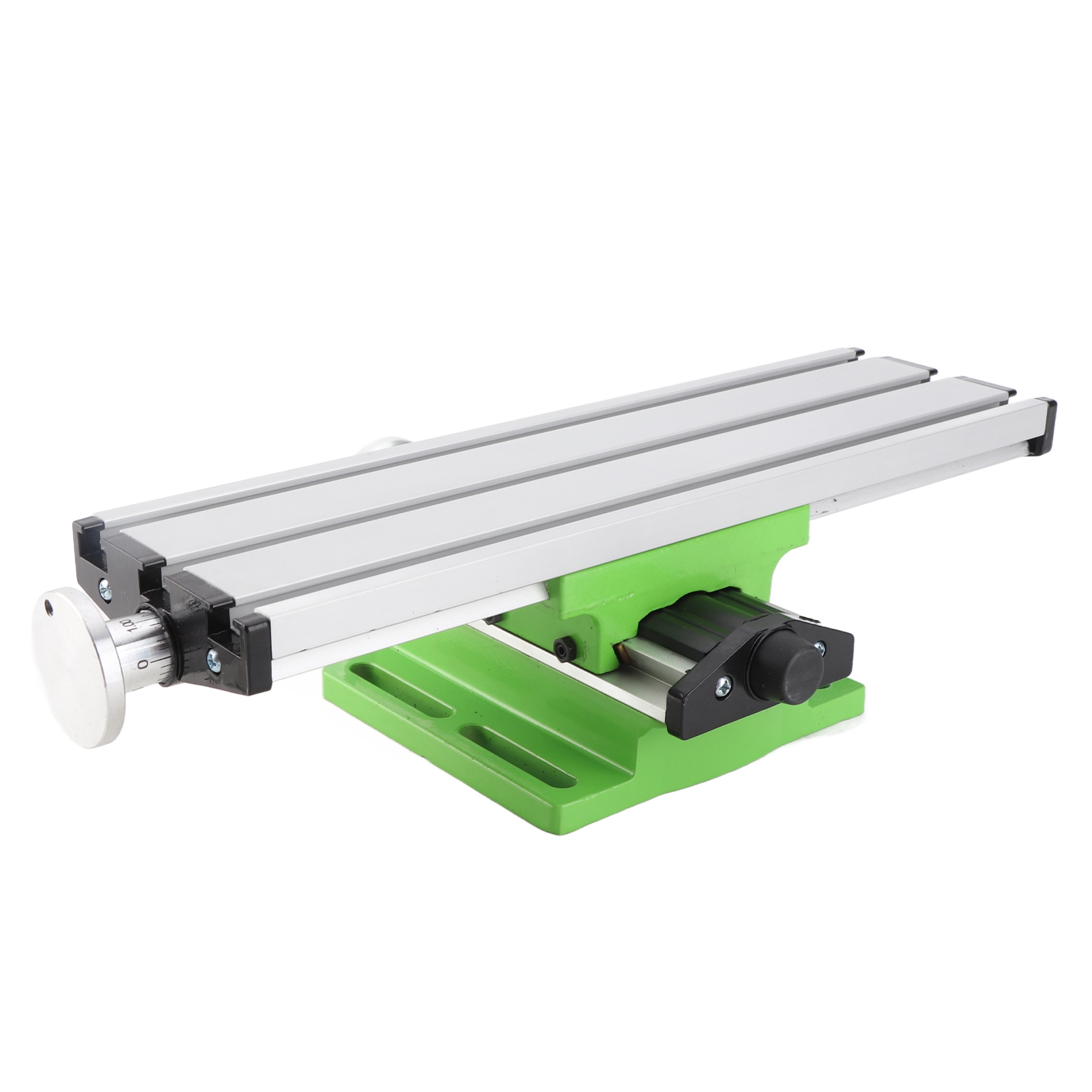

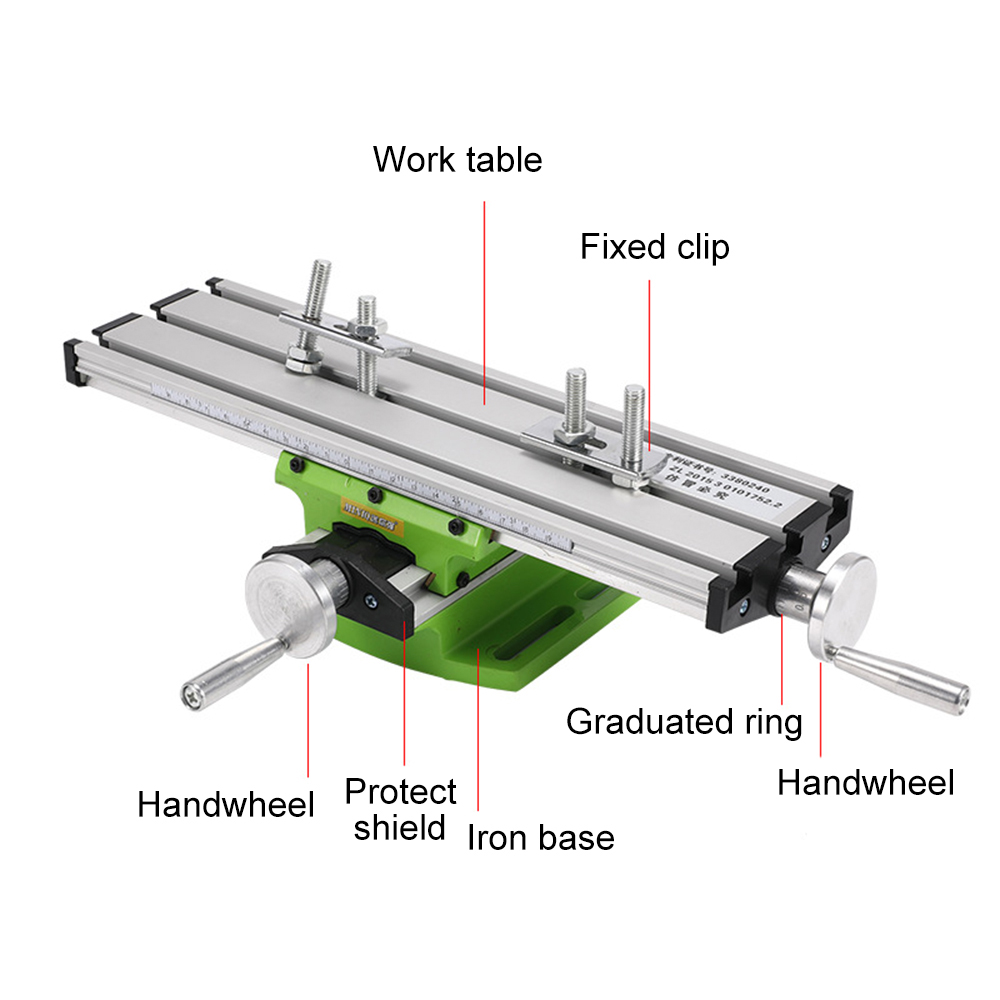

Feature:

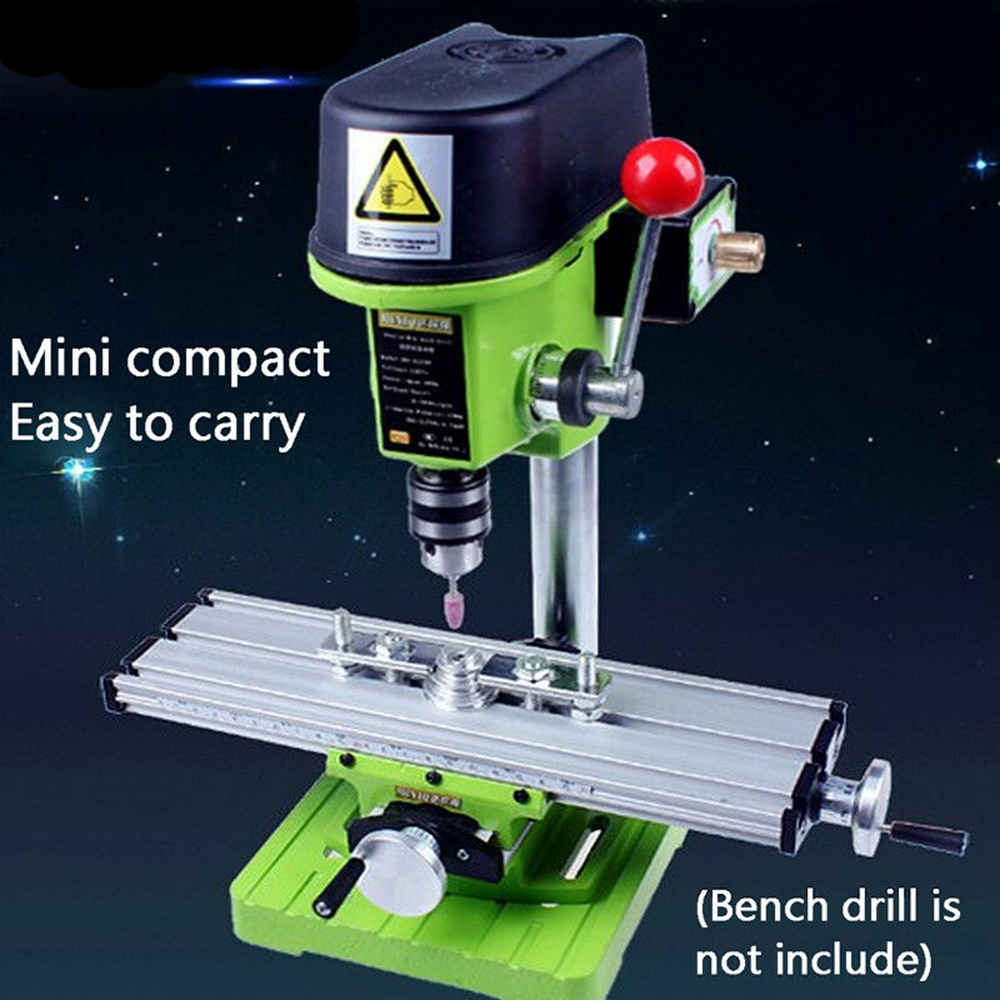

1. The table is suitable for Mini Drill and drill bracket series.
2. It can also apply to other suitable machine.

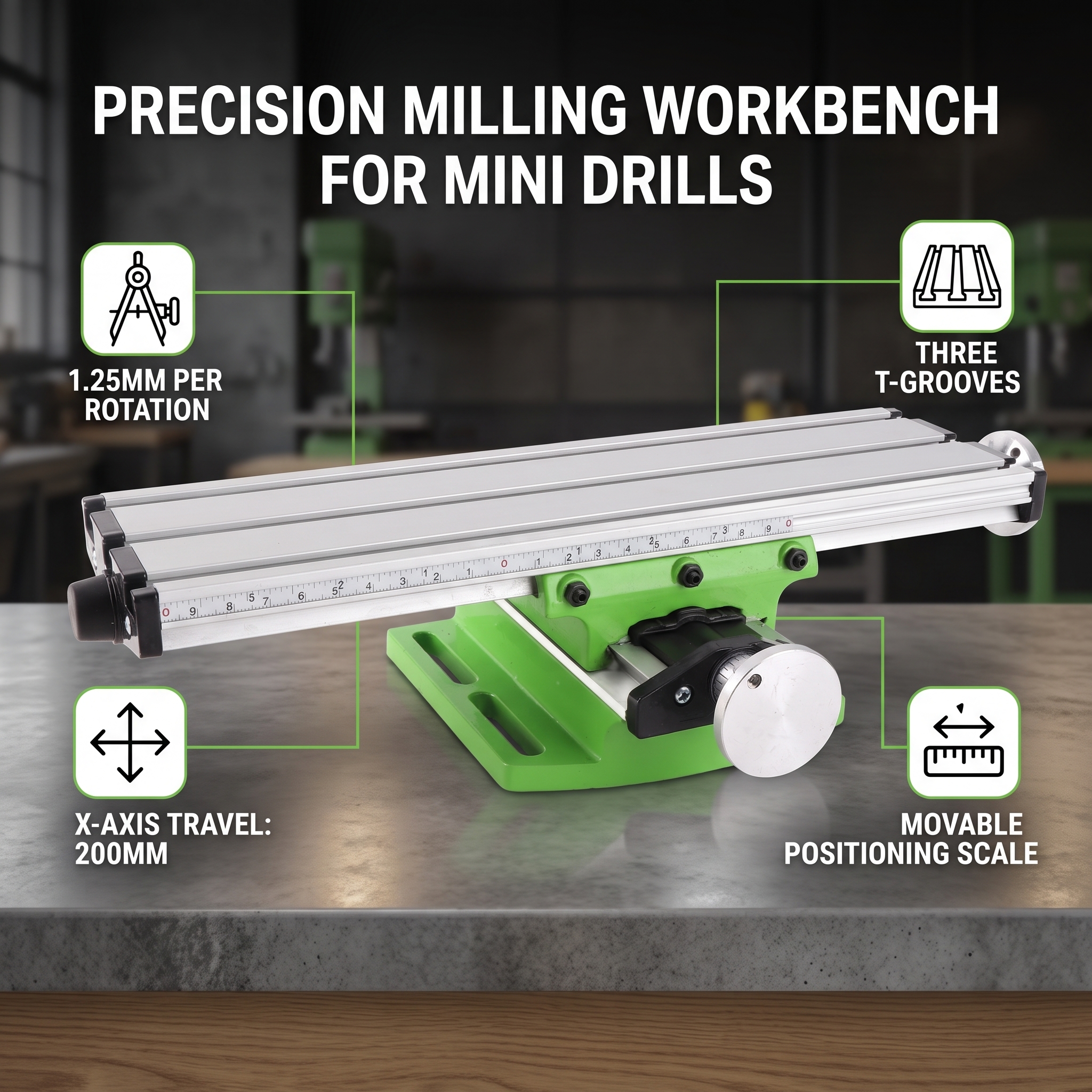

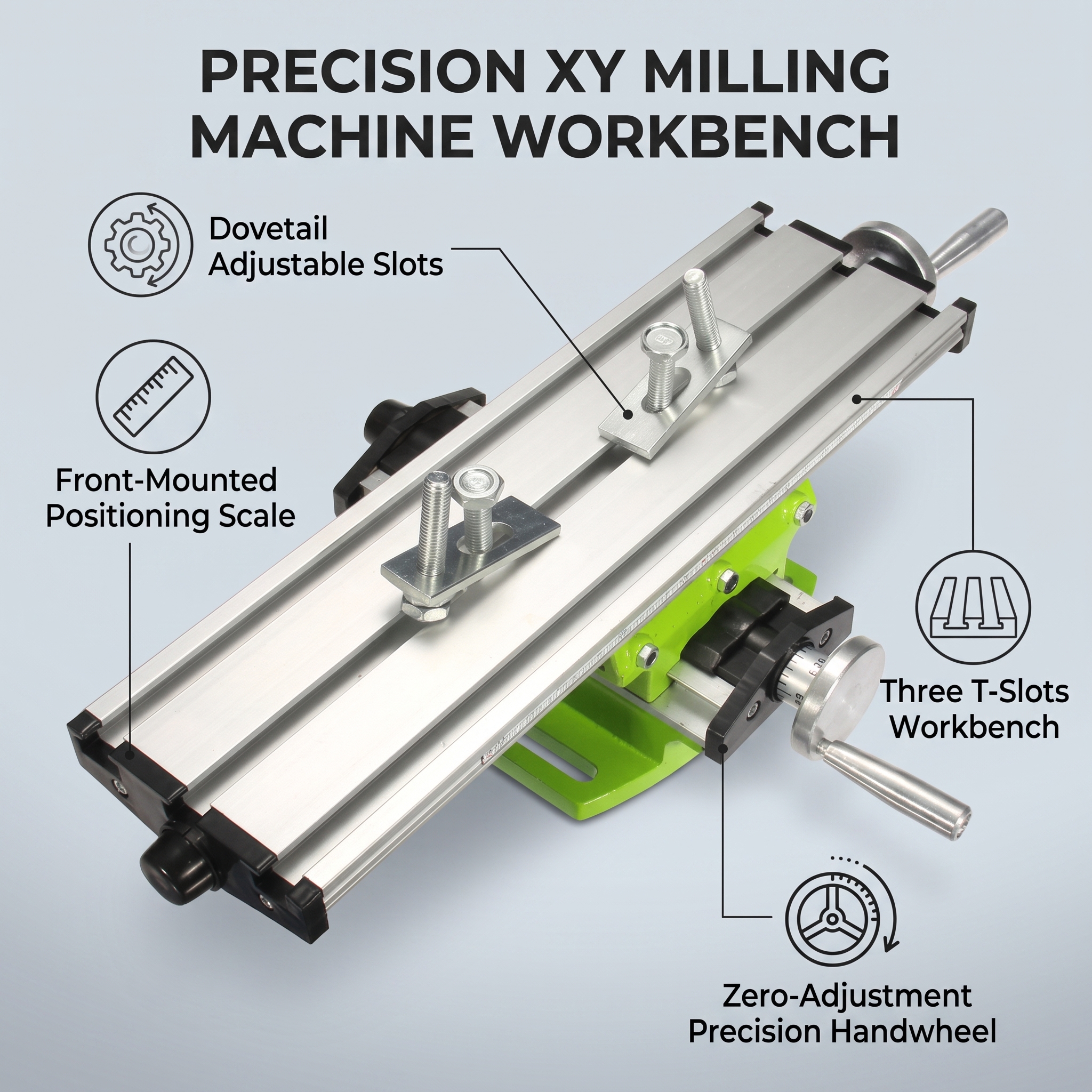

3. The work table is composed of several adjustable dovetail slot aluminum alloy composition, can guarantee the minimum space and ensure the accuracy.

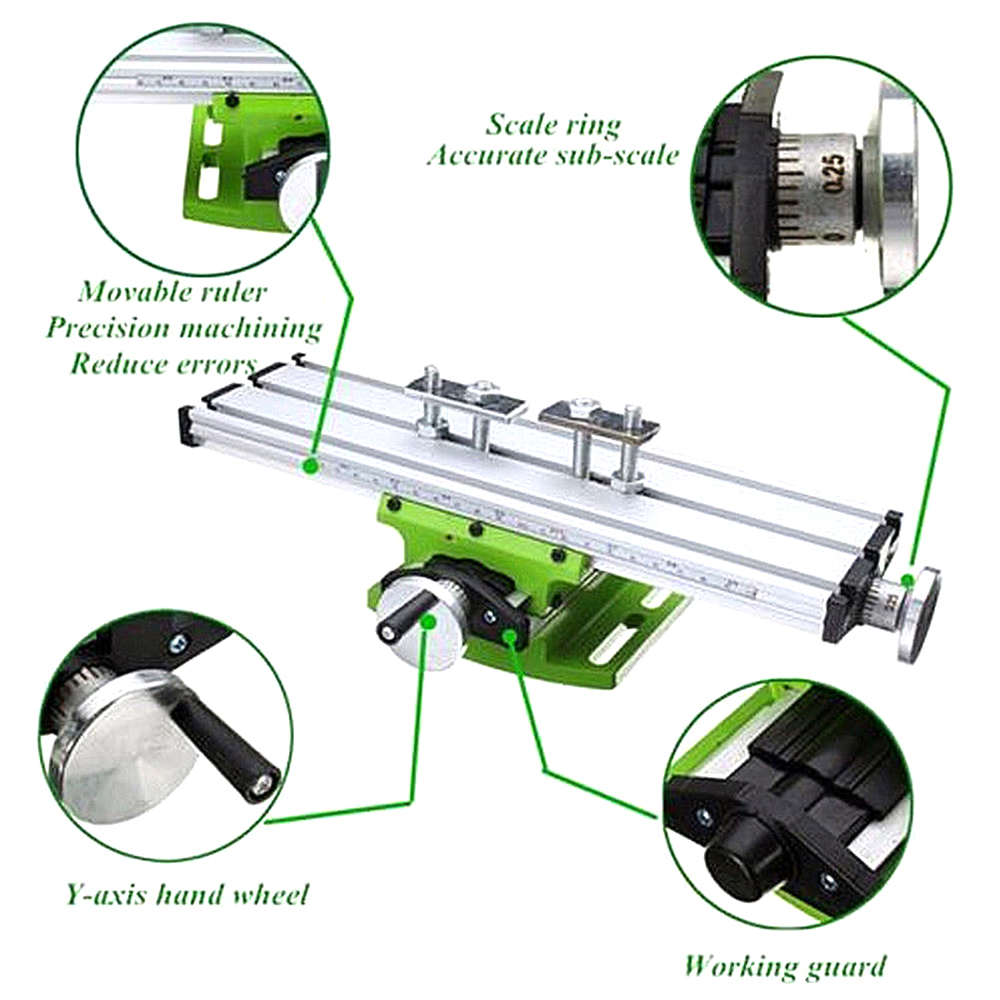

4. The working table with three T shaped groove.
5. Scale is in front of the movable positioning.
6. Zero adjustment hand wheel rotates a circle of 1.5mm.
7. The X axis Y axis distance is 190mm, the stroke is 67mm.
8. Working table size is 310 x 90mm and the height of 70mm, including two working clamp.
Specification:

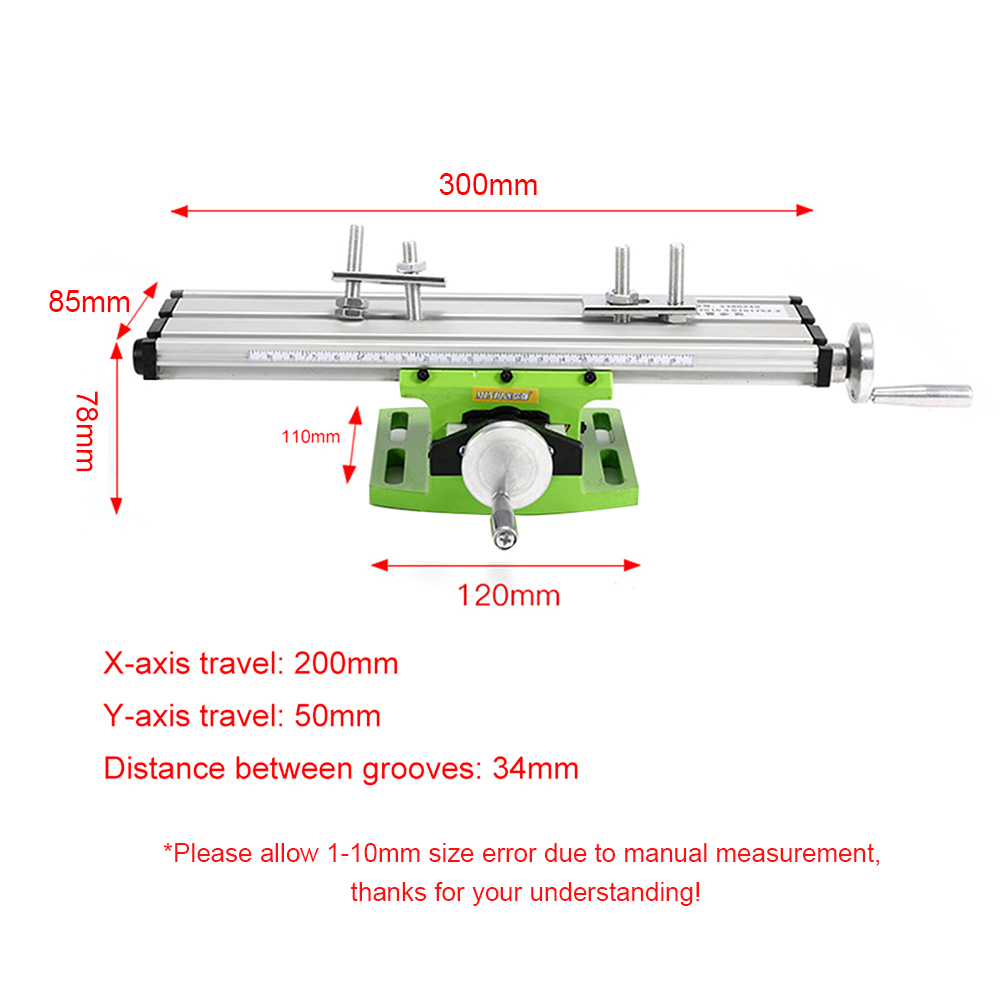

Table size: 300 * 85 * 78mm

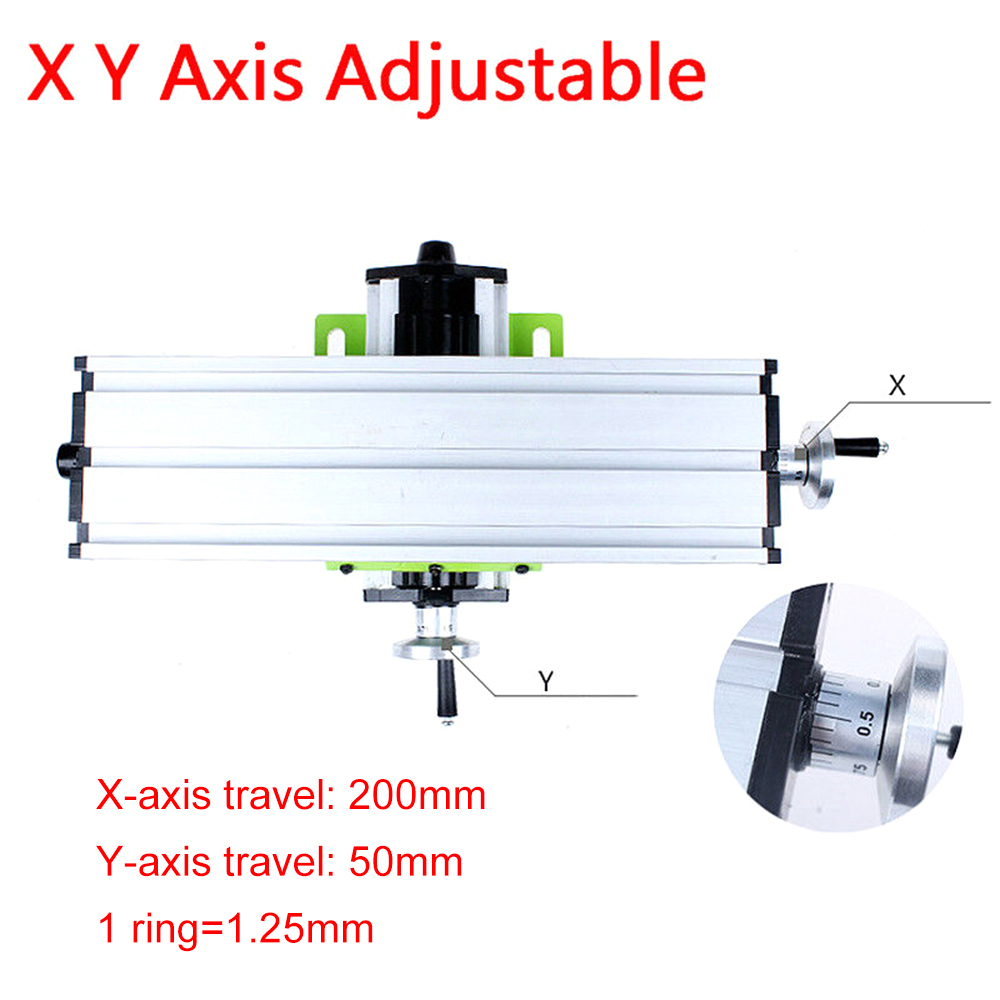

X-axis travel: 200mm
Y-axis travel: 50mm
Distance between grooves: 34mm
1 ring=1.25mm
1 scale=0.05mm
X-axis travel: 200mm
Y-axis travel: 50mm
Distance between grooves: 34mm
1 ring=1.25mm
1 scale=0.05mm
Package List:
1 * Mini Multi-function Table
1 * Accessories Set
Note:
Please allow 1-10mm size error due to manual measurement, thanks for your understanding!
