Features:

1. Wi-Fi connection model – unlike traditional designs, press a button to enter and press again to exit; does not forcibly bind to Wi-Fi.

2. 1080P HD resolution design.

3. Triple-lens recording: front + cabin + rear, providing all-around protection.

4. Parking monitoring.

5. Motion detection.

6. Multi-language switching.

7. On-screen display for simpler operation.

8. Loop recording.

9. Memory support – comes with a TF card slot.

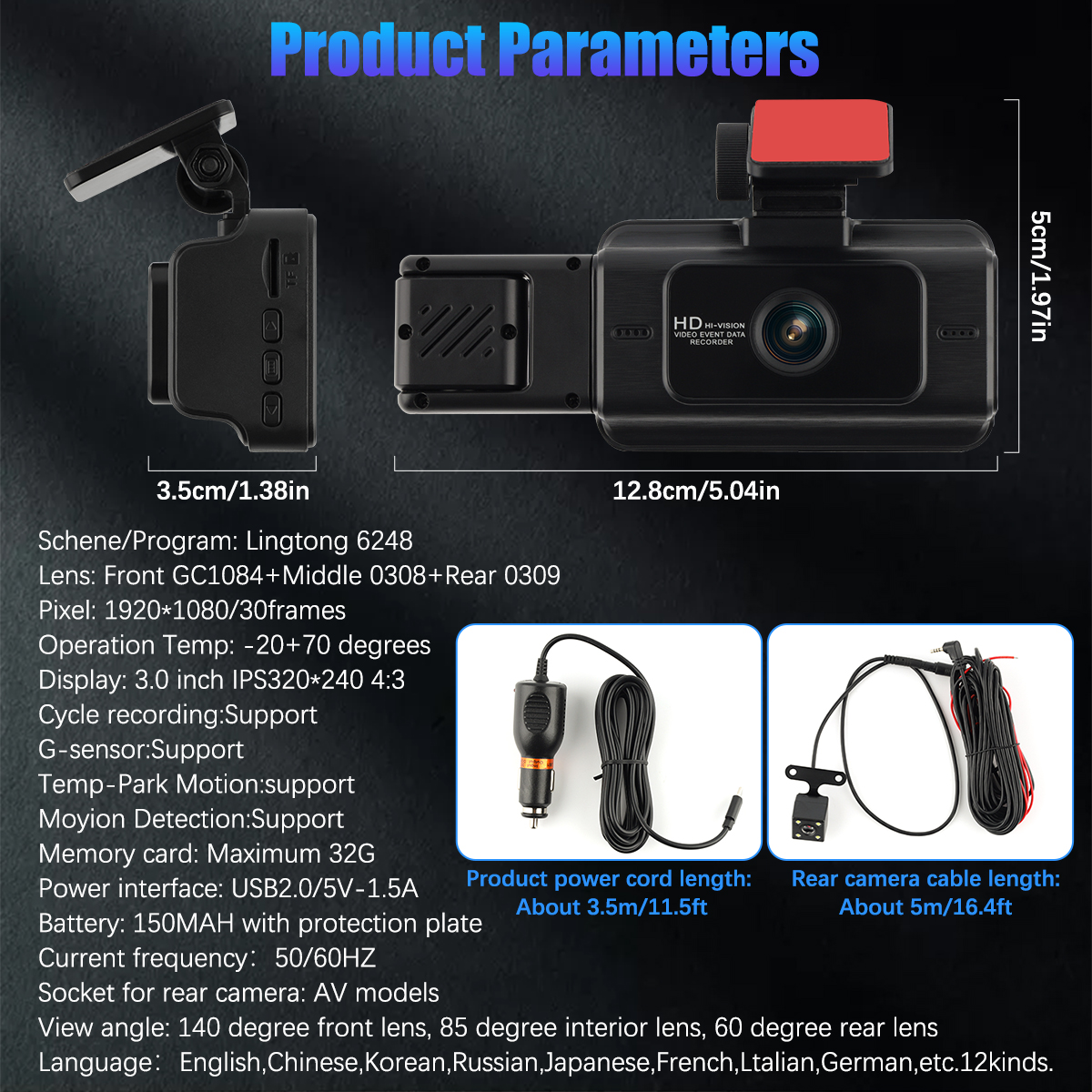

Specifications:

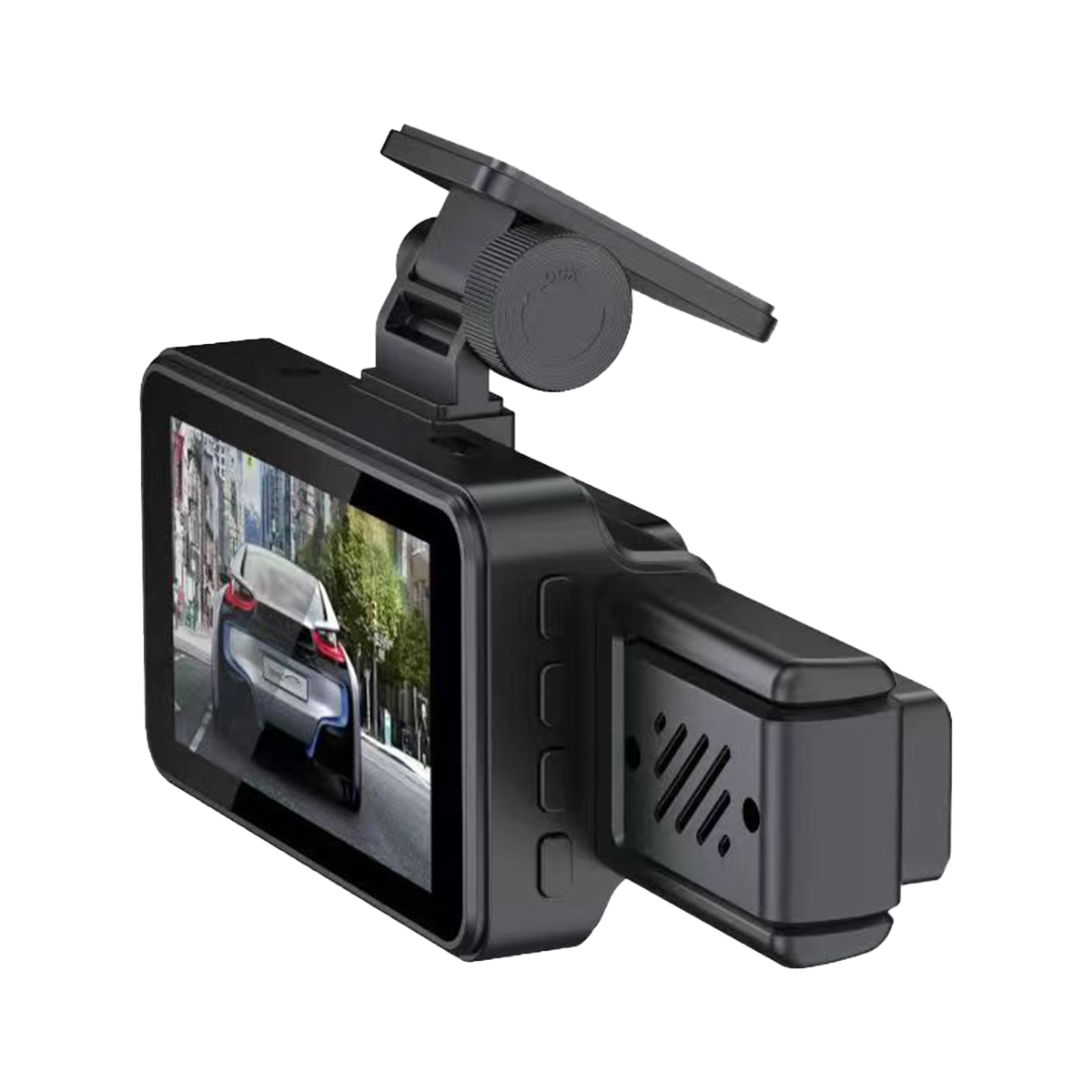

• Screen: 3.0-inch IPS screen, 1080p triple recording + Wi-Fi

• Solution/Platform: Lingtong 6248

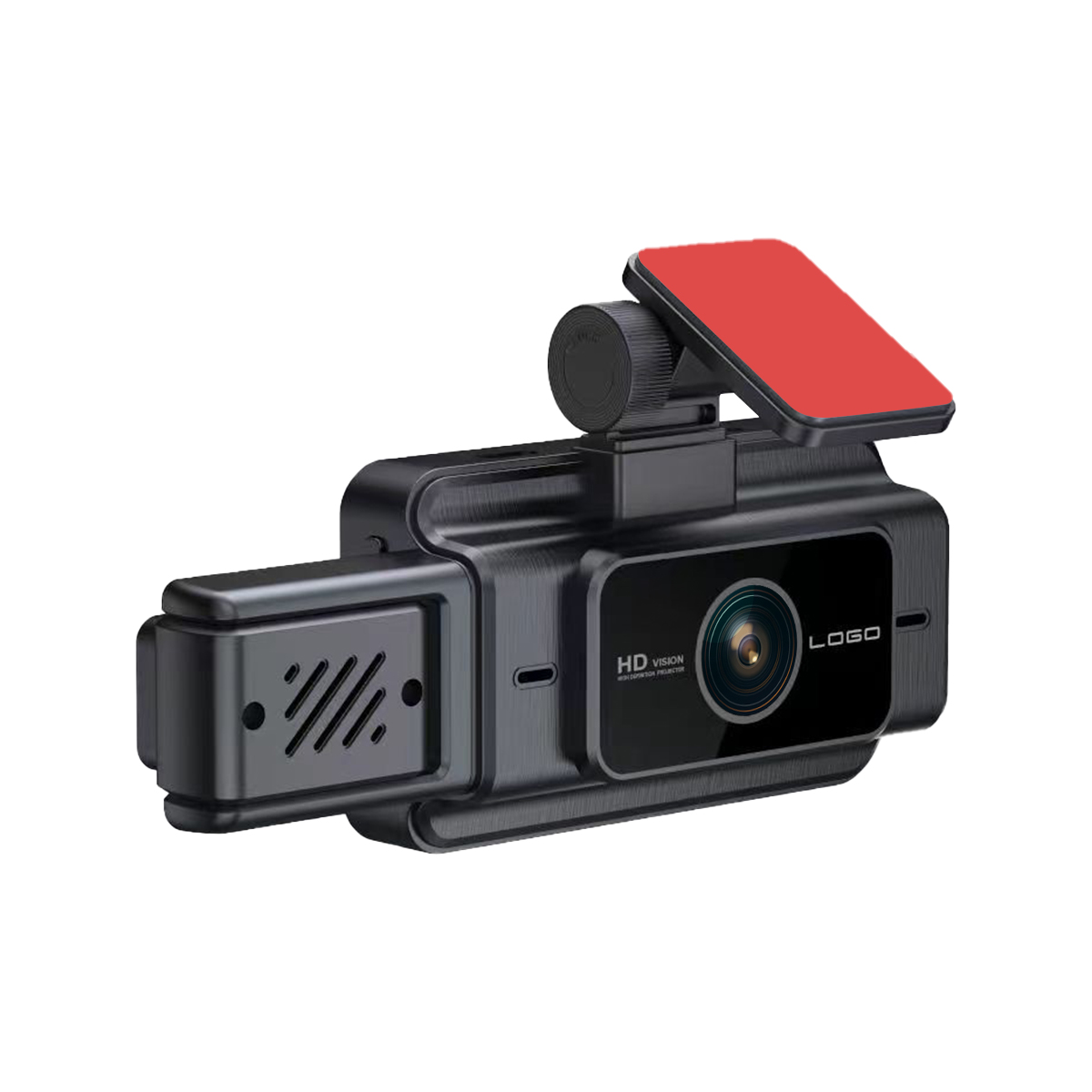

• Lens: Front GC1084 + Cabin 0308 + Rear 0309

• Pixel: 1920*1080 @ 30fps

• Viewing Angle: Front lens 140°, cabin lens 85°, rear lens 60°

• Display: 3.0" IPS, 320*240, 4:3

• Loop Recording: Supported

• G-sensor: Supported

• Parking Monitoring (Temp-Park Motion): Supported

• Motion Detection: Supported

• Memory Card: Supports up to 32GB TF card

• Power Interface: USB 2.0 / 5V-1.5A

• Battery: 150mAh with protection board

• Frequency: 50/60Hz

• Languages: Supports 12 languages including English, Chinese, Korean, Russian, Japanese, French, Italian, German, etc.

• Operating Temperature: -20°C to +70°C

• APP Name: 6帧探 (6-Frame Detective)

• Product Dimensions: Approx. 12.8*5*3.5 cm

• Power Cable Length: Approx. 3.5 meters

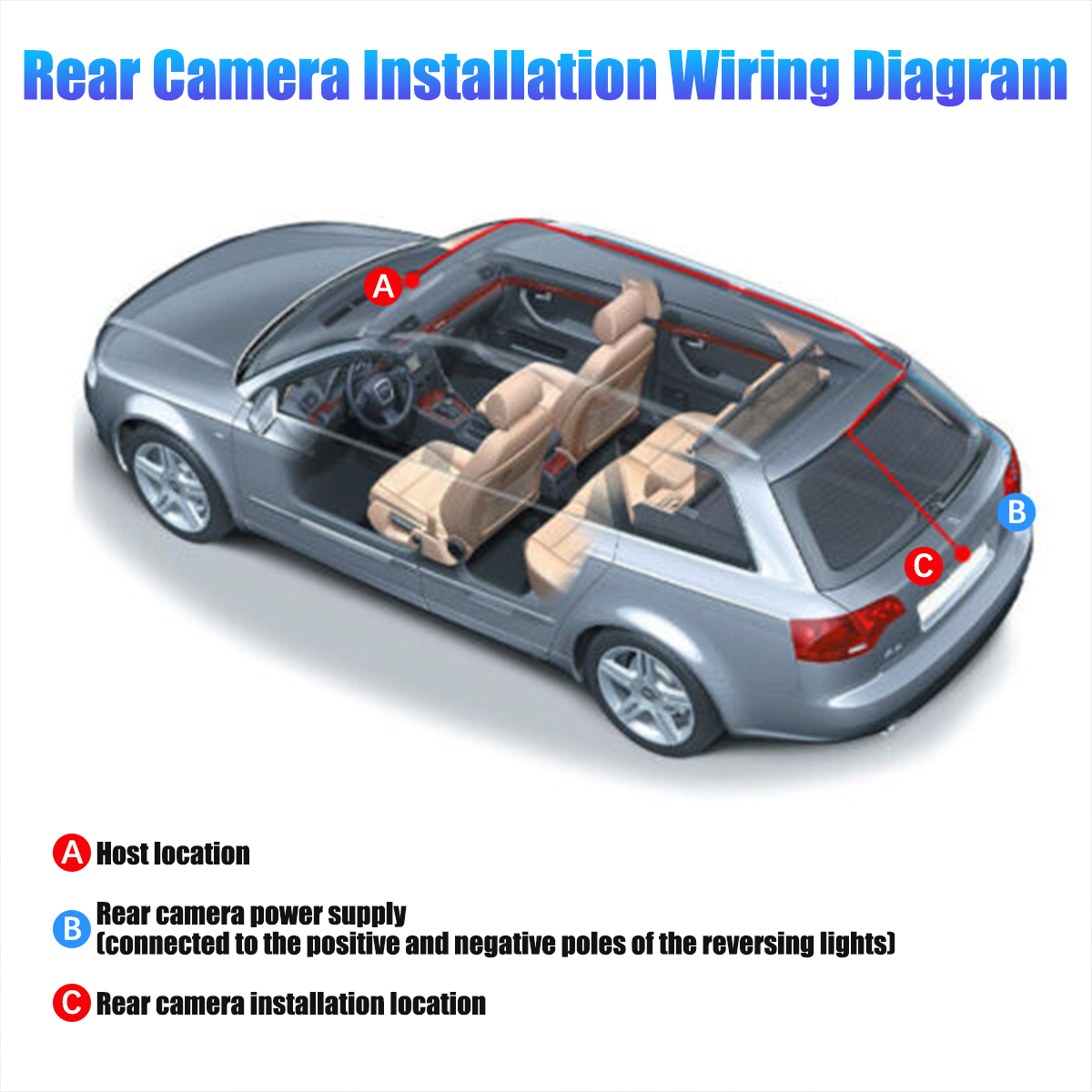

• Rear Camera Cable Length: Approx. 5 meters

• Rear Camera Connector: AV type

Product Operation:

1. Scan the QR code with your phone to download the APP. Power on the device. After startup, long-press the upper button on the device until the Wi-Fi network name and password appear on the screen.

2. Open the APP, tap "Add Device", go to your phone's Wi-Fi settings, find the network name (e.g., S15...), connect, and enter password: 12345678.

3. Once the APP connects to the device, the device screen will not be operable. You can only operate the screen after the device disables the Wi-Fi connection. This prevents previously paired phones from auto-connecting to Wi-Fi as soon as they enter the vehicle, which could interfere with phone usage.

Notes:

1. The Wi-Fi signal only appears when you press the upper button. After powering on the device, long-press the upper button until the Wi-Fi name and password show on the screen.

2. The screen and camera lenses have protective films – please remove them before use to avoid affecting performance.

3. The product comes with a TF card slot and supports up to 32GB TF cards. It supports loop recording.

4. If the device freezes or behaves abnormally: (a) format the memory card; (b) press the reset button to restore factory settings.

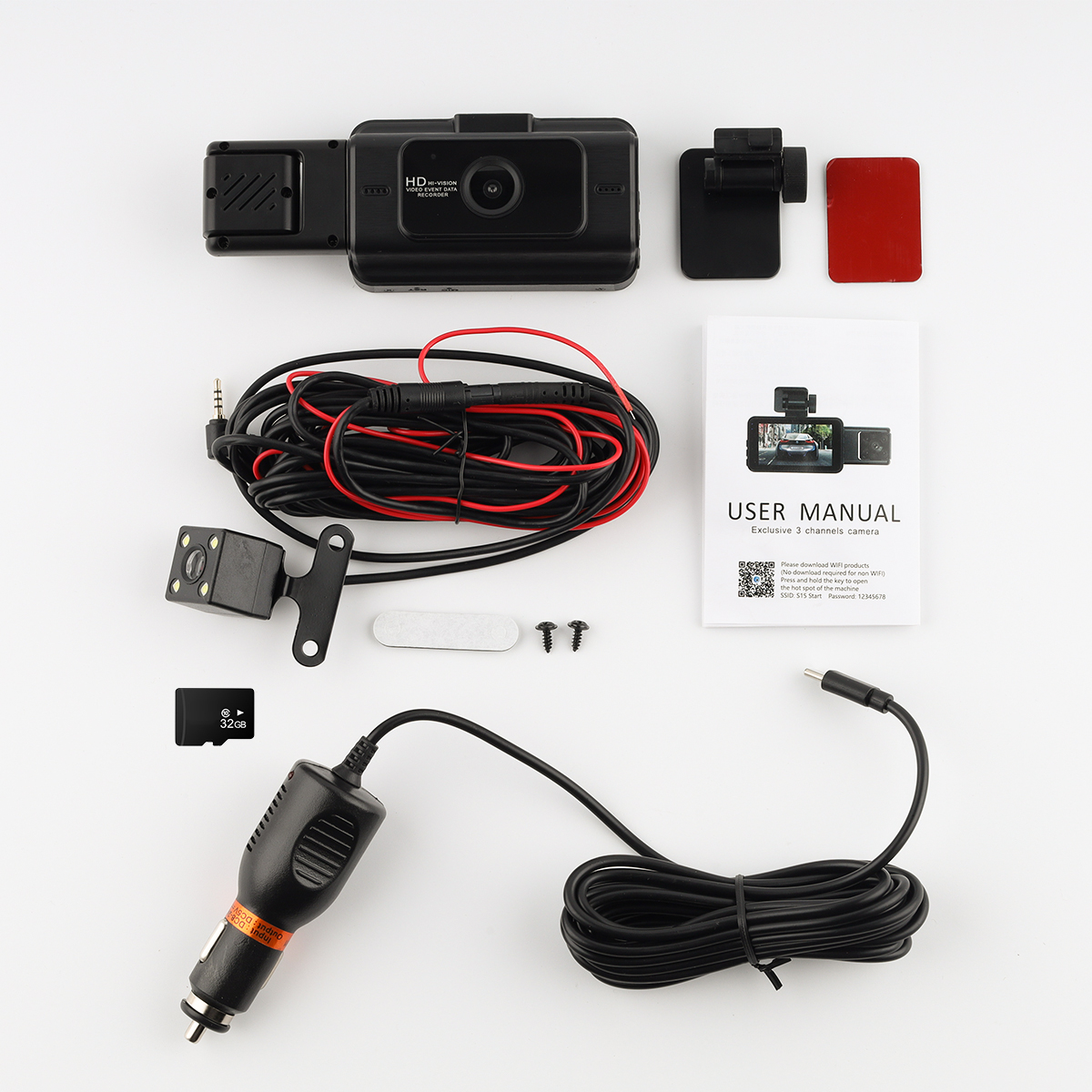

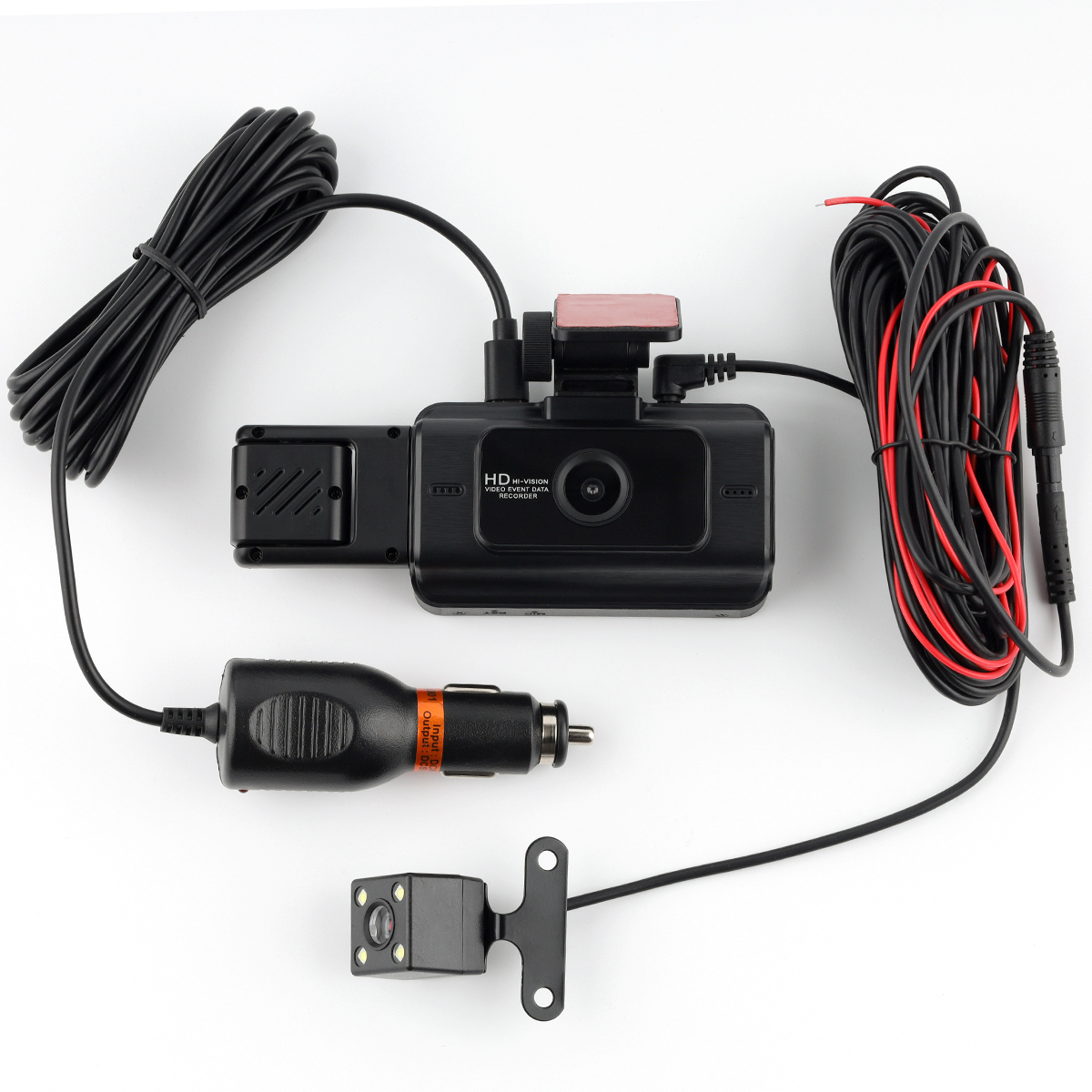

Package Contents:

• Dashcam unit ×1

• Mounting base + adhesive pad ×1

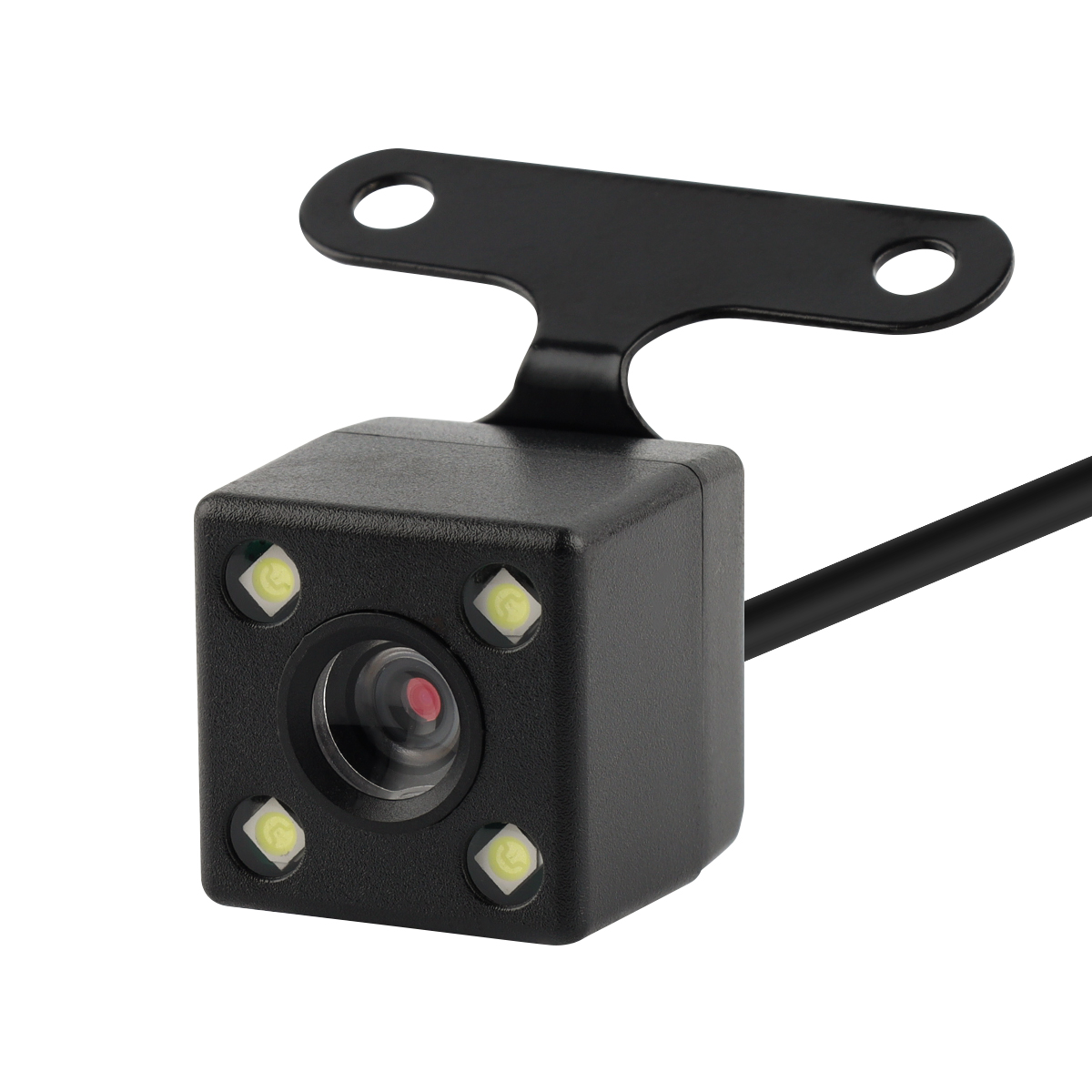

• Rear camera + cable ×1

• Rear camera mounting adhesive pad ×1

• Power cable ×1

• User manual ×1
