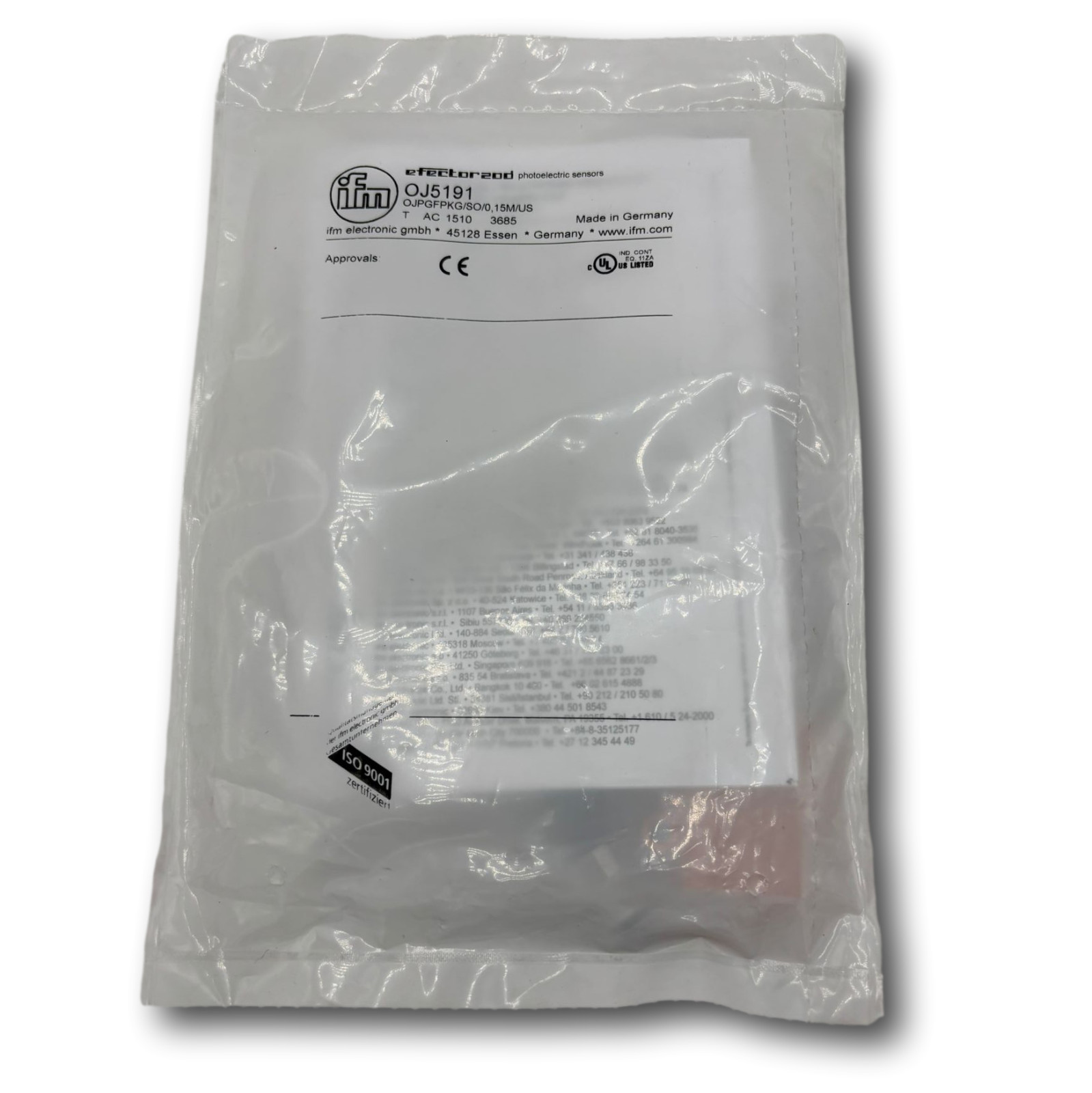

ifm OJ5191 OJPGFPKG/SO/0.15M/US Transparent Object Sensor M12 (New) B136

ifm OJ5191 OJPGFPKG/SO/0.15M/US Transparent Object Sensor M12

Genuine ifm OJ5191 retro-reflective photoelectric sensor designed for detecting transparent objects in fast industrial processes. The exact ifm engineering code is OJPGFPKG/SO/0.15M/US.

Official specifications

• Function: retro-reflective sensor for transparent-object detection

• Optical feature: polarisation filter

• Light source: visible red light, 660 nm

• Range: 0.2 to 1.5 m with ifm E20722 50 x 50 mm prismatic reflector

• Sensitivity/range: adjustable by pushbutton

• Supply voltage: 10 to 30 V DC

• Electrical design: PNP

• Output function: programmable light-on / dark-on

• Permanent output-current rating: 200 mA

• Switching frequency: 2,000 Hz

• Connection: 0.15 m PVC cable to one A-coded M12 4-pin connector

• Protection: IP67, protection class III

• Ambient temperature: 0 to 60 °C

• Housing: rectangular ABS, side-facing glass lens

• Dimensions: approximately 35 x 11 x 24 mm

• Product weight: approximately 40.8 g

• Unit quantity: 1

• Unit type: Unit

Application note

The quoted range is based on the specified E20722 reflector. Actual performance depends on reflector, target transparency, alignment, contamination and ambient conditions. Confirm the required detection margin in the installed application.

Condition

Important photo note

Safety note

Disconnect power before wiring. Do not exceed the stated voltage, current, temperature or ingress limits. Installation, alignment and function testing require competent personnel using the ifm documentation.

UK stock. Free UK delivery via Evri. 60-day returns under the listing policy. Price includes 20% VAT; a VAT invoice is available.
