LOGIX 14th Gen i3 SFF PC | 8GB RAM | 500GB SSD | Wi-Fi 6 | Windows 11 Home | Mouse
Designed with modern home office needs in mind, the LOGIX S4 386H delivers dependable performance in a compact and efficient form factor. Powered by a 14th Gen Intel Core i3 Quad-Core processor, this desktop ensures smooth multitasking across everyday tasksfrom video conferencing and document editing to web browsing and light creative work. With 8GB of RAM and a fast 500GB SSD, users benefit from quick boot times, responsive applications, and ample storage for essential files and software.
Connectivity is seamless thanks to built-in WiFi 6, while Windows 11 Home provides a secure and user-friendly environment. The small form factor design saves valuable desk space, making it perfect for compact home offices. Included peripherals like a keyboard and mouse, along with a 3-year warranty, make this system a complete, worry-free solution for professionals working remotely or managing household productivity.
Main Features
Reliable, Fast, and Built to Last
Compact Yet Powerful Case
Housed in a sleek and space-saving LOGIX small form factor case, this PC strikes the perfect balance between size, performance, and efficient cooling.
14th Gen Intel Core i3 Processor
Experience fast and responsive computing with a powerful Intel Core i3 CPU (4 cores / 8 threads), running at a base speed of 3.50GHz and reaching up to 4.70GHz with Turbo Boost ideal for multitasking and everyday productivity.
8GB Kingston DDR4 RAM
Equipped with reliable Kingston Technology 8GB DDR4 memory, with room to upgrade later if you need more performance.
500GB Kingston PCIe 4.0 NVMe SSD
Enjoy ultra-fast load times and data transfers with a 500GB solid-state drive, far superior to traditional hard drives perfect for quick start-ups, file access, and smooth multitasking.
Built for Everyday Use
Hand-built in the UK and rigorously tested for durability, this versatile PC is ideal for home or business use from working on large reports to video calls via Teams or Zoom, browsing the web, and more.
Cyber-Secure by Design
A wired-only setup helps reduce cyber threat exposure by eliminating wireless entry points.
Windows 11 Home Clean Install
Comes fully installed and updated with Microsoft Windows 11 Home. No bloatware just a clean, fast system ready to use right out of the box. No unnecessary apps, no time wasted uninstalling junk.
Plug-and-Play Ready

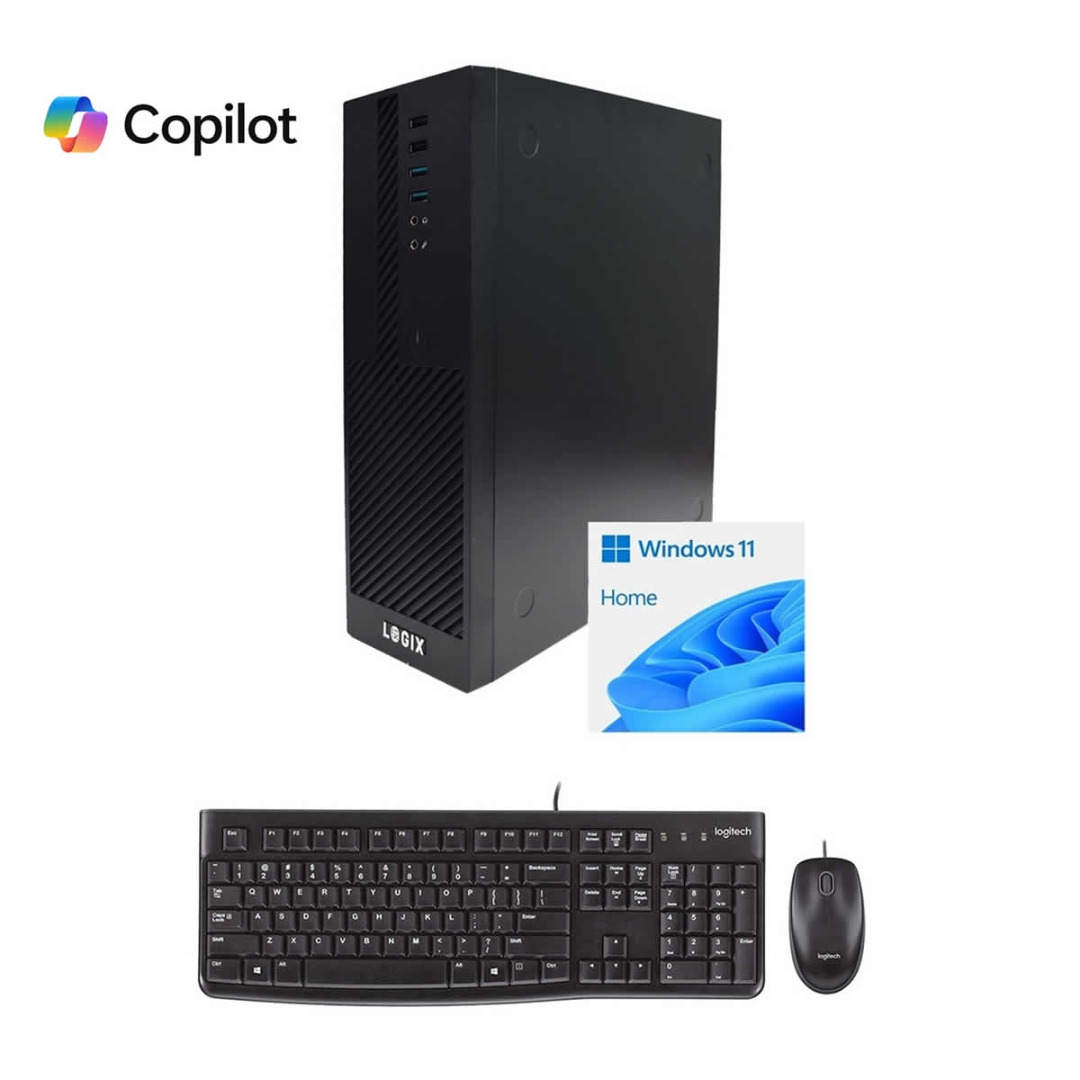

Includes a Logitech MK120 keyboard and optical mouse so you can start using it immediately.
Built to Last Backed by Warranty
Assembled with trusted, industry-leading components
Designed for long-term reliability and performance
Futureproofed for upgrades and long-term use
Specification:
Operating System: Windows 11 Home
Processor: 14th Gen Intel Core i3-14100
Memory (RAM): Kingston Technology 8GB DDR4 (upgradeable to 64GB DDR4 additional memory slot available)
Storage: Kingston Technology 500GB PCIE 4.0 NVMe M.2 SSD
Graphics: Intel UHD Graphics 730 (maximum resolution 7680 x 4320 pixels @ 60Hz using DisplayPort, 4096 x 2160 @ 60Hz using HDMI)
Motherboard: Gigabyte H610M Ultra Durable Motherboard
Case: LOGIX Small Form Factor
Connections:

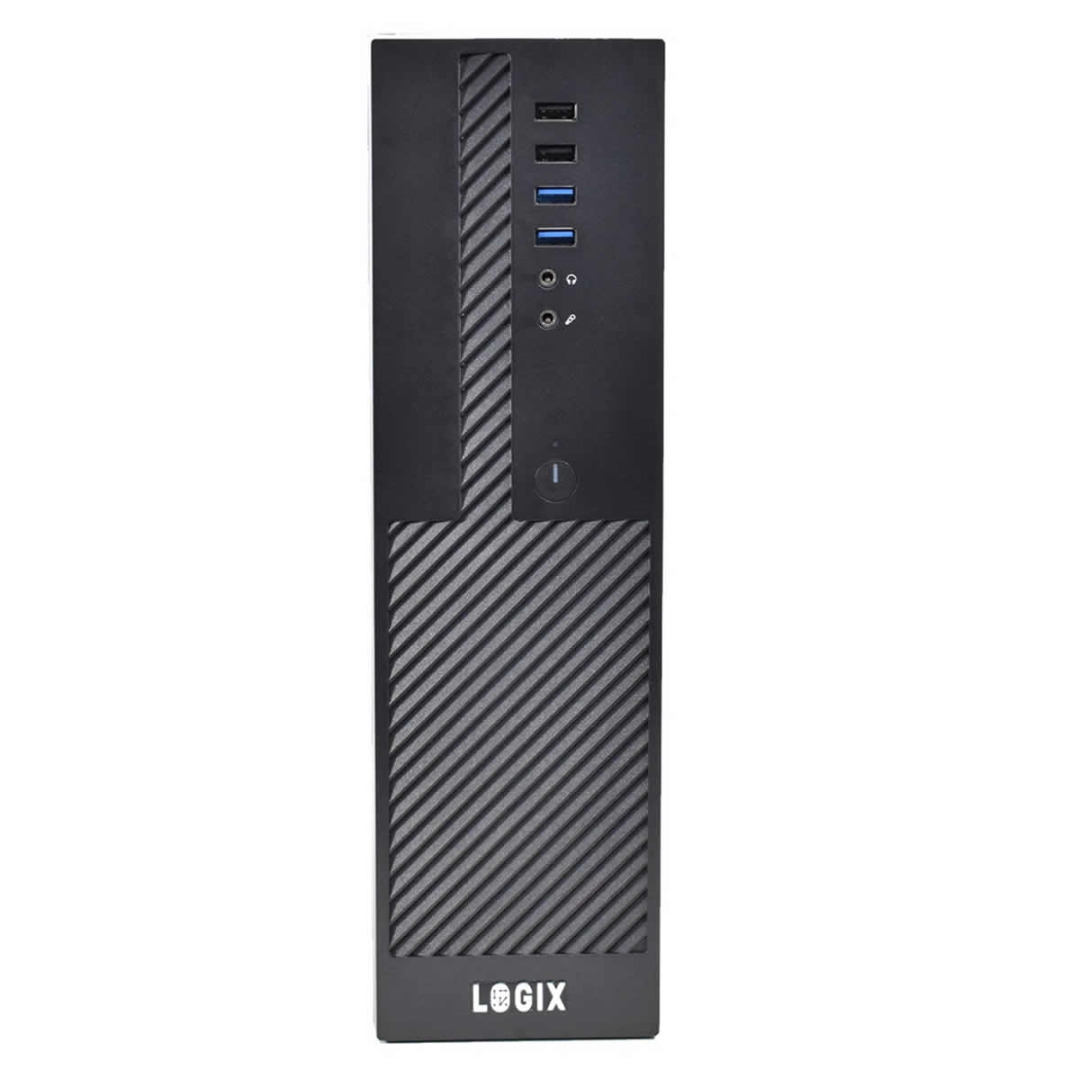

Front
2 x USB-A 3.0
2 x USB-A 2.0
3.5mm HD microphone & audio

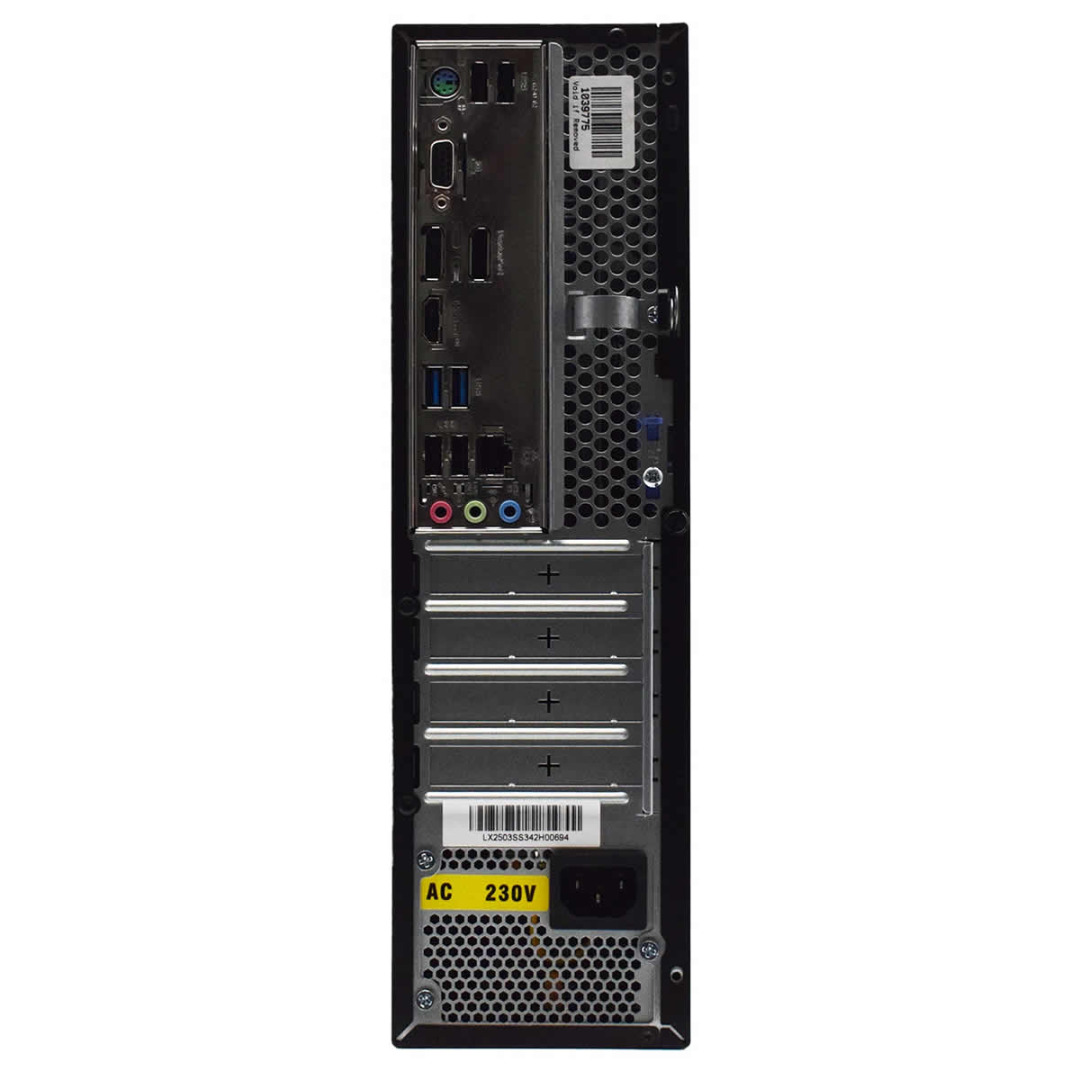

Back:
2 x PS/2
1 x VGA
2 x DisplayPort
1 x HDMI
2 x USB-A 3.2 Gen 1
4 x USB-A 2.0
1 x RJ-45 Ethernet
3 x 3.5mm Audio
Networking:
Wired: Realtek 1Gbps GbE LAN
Wireless:Wireless: WiFi 6E 802.11ax
Peripherals: Logitech MK120 Wired Keyboard & Mouse
Processor
Intel Core i3 14100 4 Core Processor 8 Threads, 3.5GHz up to 4.7GHz Turbo Raptor Lake Refresh Socket LGA 1700 12MB Cache
Processor Cores 4
Processor Threads 8
Core Clock Speed 3.50GHz
Core Boost Speed 4.70GHz
Memory
Kingston Technologies RAM 8GB No Heatsink DDR4 3200MHz System Memory
Voltage: 1.20V
Latency Timing: CL22
Speed: 3200MHz (PC4-25600)
1 x 8GB DIMM Memory
Intel XMP Profile Support
Memory Configuration
1 x 8GB
2 Lanes (1 occupied)
SSD Drive
Kingston NV3 (SNV3S/500G) 500GB, NVMe M.2 Interface, PCIe 4.0, 2280 SSD, Read 6000 MB/s, Write 2200 MB/s
Data storage life
160 TBW
MTBF
1,500,000 hours
Interfaces/Ports
PCIe Gen4 x4 NVMe
Format Gen4 x4 NVMe
Max Read/Write Speeds
Read: Up to 6000MB/S
Write: Up to 2200MB/S
Hard Drive No Additional Drive Fitted
Optical Drive No Optical Drive Fitted
Graphics
Intel UHD Graphics 730
Graphics Base Frequency 300 MHz
Graphics Max Dynamic Frequency 1.40 GHz
Graphics Output eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units 32
Max Resolution (HDMI) 4096 x 2160 @ 60Hz
Max Resolution (DP) 7680 x 4320 @ 60Hz
Graphics Card I/O
No Graphics Card Fitted. Uses Intel On-Chip Graphics
Operating System
Microsoft Windows 11 Home 64bit English OEI DVD Operating Software - installed and up to Date. No Bloatware
Card Reader
No Card Reader Fitted
Networking
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
TP-Link Archer TX20E AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter
Wireless Standards:
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/g/b 2.4 GHz
Bluetooth 5.2
WLAN Signal Rate:
5 GHz
11ax: Up to 1201 Mbps(dynamic)
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz
11ax: Up to 574 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)
Power Supply
300w TFX Pre-Fitted PSU
Motherboard
Gigabyte H610M S2H V2 Motherboard, LGA1700 Socket, Micro ATX, DDR4, PCIe Gen3 x4 M.2
Expansion Slot
CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors
Rear I/O
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
2 x DisplayPort
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper
Chassis
LOGIX Small Form Purpose Built Robust Chassis
Drive Bays
5.25" x 0
3.5" x 1
2.5" x 2
IO Ports
2 x USB 3.0
2 x USB 2.0
HD Mic
HD Audio
Power
Cooling
1 x 80mm fan included
Dimensions 321mm x 95mm x 283mm (W x H x D)
Package Weight 4.0 kg
