MSI Cubi NUC 1M Barebone | Intel Core 5 120U 14th Gen | Dual Thunderbolt 4 HDMI
Power through your daily workload with the ultra-compact MSI Cubi NUC 1M Barebone Mini PC. Driven by the efficient Intel Core 5 120U (14th Gen) processor and integrated Intel Graphics, this customizable powerhouse delivers desktop-class performance in a chassis that fits in the palm of your hand.
Because it is a barebone system, you have the ultimate flexibility to install your preferred operating system and scale your hardware. It features two DDR5 SO-DIMM slots to handle high-speed memory and fast storage expansion, making it ideal for business, home offices, or digital signage.
Ultimate Quad-Display Connectivity
Equipped with Dual Thunderbolt 4 ports and Dual HDMI outputs, this Mini PC allows you to connect up to four displays simultaneously. Boost your productivity, manage massive spreadsheets, or create an immersive multi-monitor trading station with ease.
Enterprise-Grade Networking
Stay connected with maximum stability and speed. The Cubi NUC 1M features Dual LAN ports for network redundancy or separate intranet/internet setups, alongside cutting-edge Wi-Fi 6E and Bluetooth 5.3 for lightning-fast wireless peripherals and data transfers.
Complete Desktop Package
Save desk space and deployment costs right out of the box. This kit includes a standard VESA mount to easily hide the PC behind your monitor, plus a matching keyboard and mouse to get your workstation up and running immediately.
Mini Yet Powerful
The Cubi NUC is the ideal solution for confined spaces. It confidently handles a myriad of tasks, from basic computing to multimedia streaming and multitasking, leveraging their compact size.
Tailored for Professional Users
Equipped with Intel Core 5 Processor 120U, it provides faster and more reliable performance, which allows users to multitask a variety of applications with ease.
VESA Mountable Design
With its VESA Mountable design, the Cubi NUC Series can be easily installed in any location, providing users with greater flexibility and efficient space management in both home and office settings.
Specification
Model Name Cubi NUC 1M i5 120U BB
CPU Intel Core 5 Processor 120U
Cooling System Air cooling
Chipset SoC
Graphics Intel Graphics
System Memory
Max 64GB
2 Slots
SO-DIMM DDR5 5600 MHz
Storage Slots
2x M.2 slots
1x 2.5" Drive Bays
LAN 2x Intel I226-V
Wireless LAN
INTEL Wi-Fi 6E AX211.NGWG.NV
(Wi-Fi 6E - 802.11ax 2x2+BT)
BLUETOOTH 5.3
VESA Mount 100 x 100 mm

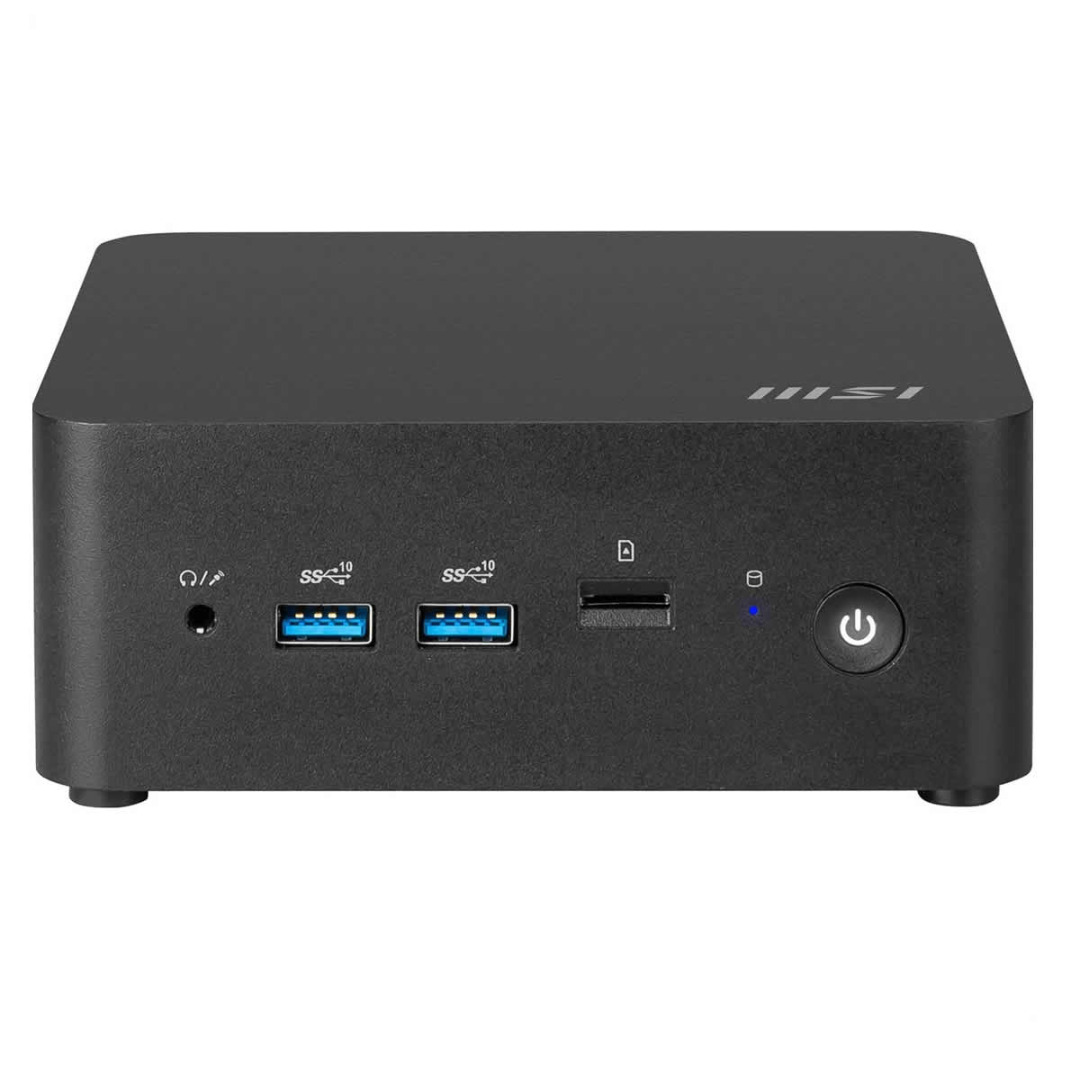

I/O (FRONT)
1x Mic-in / Headphone-out Combo
2x USB 10Gbps Type A
1x Micro-SD card Reader

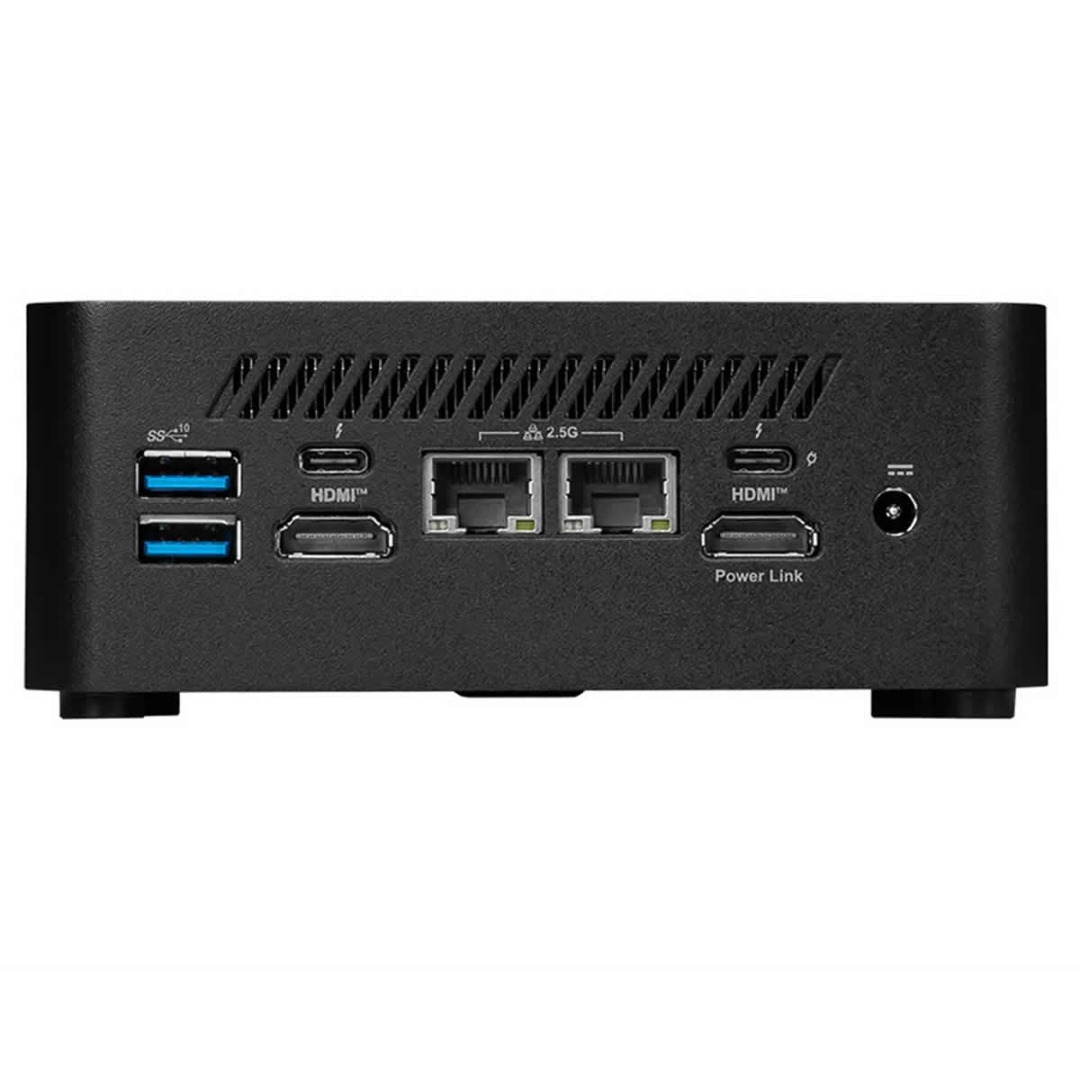

I/O (REAR)
2x USB 10Gbps Type A
1x HDMI out (supports 4K @60Hz as specified in HDMI 2.1)
2x RJ45 LAN (2.5G)
1x HDMI out (supports 4K @60Hz as specified in HDMI 2.1)
which supports the MSI Power Link
1x DC Jack
1x Thunderbolt 4 (DP 1.4 alt-mode up to 4K@60Hz / PD-out
15W)
1x Thunderbolt 4 (DP 1.4 alt-mode up to 4K@60Hz / PD-out
15W / PD-in up to 100W)
Side
1x External Power Switch Slot
1x Kensington Lock Slot
AC Adapter / PSU 120W
Operation System None
Dimension (WxDxH) 135.6 x 132.5 x 50.10 (mm)
Net/Gross Weight (kg) 0.625/1.45 kg
Volume 0.826 Liter
Certificates
FCC(Class B)
CB/CE
UL(CUL)
BSMI
VCCI
RCM(C-Tick)
Accessories
1x UK Power Cord
1x AC Adaptor
2x Quick Guide
1x VESA Mount kit
1x Power Switch
