Gigabyte BRIX Barebone | Core Ultra 5 225H 14-Core | Dual DDR5 | Dual M.2 | Wi-Fi 7

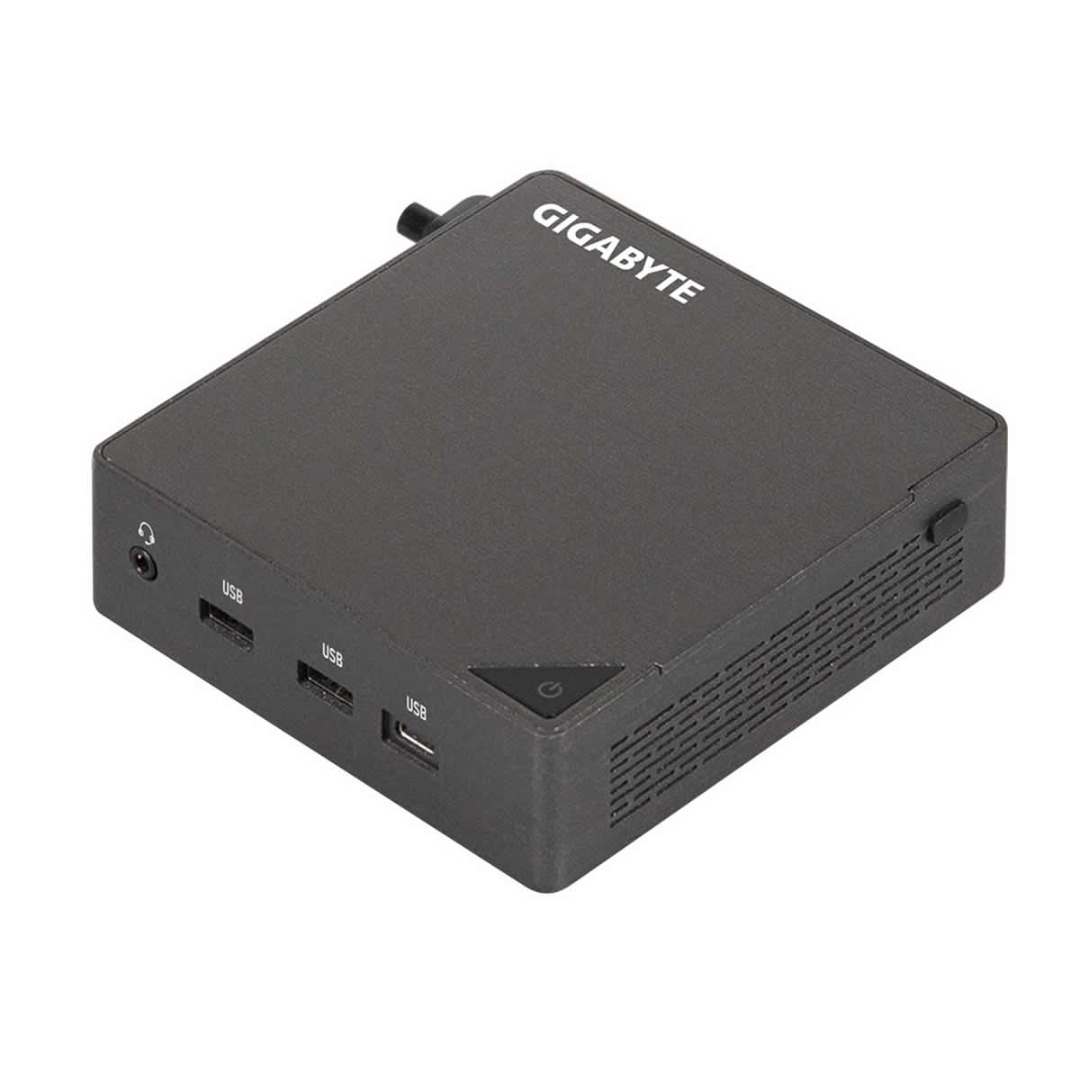

The GIGABYTE BRIX GB-BRU5-225H is a new mini-PC featuring the latest Intel Core Ultra processors (Series 2) and boasts an integrated GPU with a remarkable 20% performance increase over the previous generation. Furthermore, it unleashes exceptional AI performance, delivering up to 83 Tera Operations Per Second (TOPS), making it perfectly suited for demanding generative AI tasks and intensive multitasking scenarios.
The Gigabyte BRIX (GB-BRU5-225H) Barebone Kit represents the next generation of ultra-compact computing, cramming desktop-tier AI acceleration and immense processing power into a pocket-sized 0.46-litre chassis. Driven by Intels sophisticated hybrid processing technology, this mini-PC kit is engineered as a highly efficient, customizable ecosystem. It provides enthusiast builders, IT engineers, and creative professionals total sovereignty over their hardware choicesletting you source your own ultra-fast system memory, local storage tier, and operating system.
14-Core AI-Accelerated Silicon: Driven by the Intel Core Ultra 5 225H processor (Series 2), deploying 4 Performance cores, 8 Efficient cores, and 2 Low-Power Efficient cores pushing up to 4.9GHz. This chip features an integrated Intel AI Boost NPU for local machine learning tasks.
High-Speed DDR5 Platform: Engineered with 2 x DDR5 SO-DIMM slots, supporting up to 96GB of high-speed memory modules running at up to 6400 MT/s to maximize multi-threaded data throughput.
Dual M.2 Storage Arrays: Features 2 x M.2 2280 slots supporting high-bandwidth solid-state drives, giving you the capacity to construct a rapid boot array alongside large independent scratch disks.
Integrated Intel Arc Graphics: Leveraging the embedded Intel Arc 130T graphics processor which unlocks hardware ray tracing, smooth 4K video rendering across multiple panels, and AI task acceleration.
Space-saving
Ultra compact PC design. Particularly useful in environments with limited space.
Low power
Energy savings and lower electricity bills.
Portability
Easily carried around for use in different locations.
Low noise
Quieter operation, which is particularly appreciated in quiet working environments.
Suitability for specific purposes
Designed for specific purposes, such as home theater PCs, smart home controllers, data storage servers, etc.
Low maintenance costs
With a simple design and fewer components, it reduces maintenance costs and makes upgrades or repairs easier.
DIMENSIONS
Size
112.6 x 34.4 x 119.4 mm (W x H x D) (Slim chassis design)
Motherboard Size
105 mm x 114.49 mm
PERFORMANCE
CPU
Intel Core Ultra 5 processor 225H, 14C (4P + 8E + 2LPE), 28W
Memory
2 x SO-DIMM DDR5 slots, support up to 5600MHz, Max. 96GB
or
2 x CSO-DIMM DDR5 slots, support up to 6400MHz, Max. 96GB
Graphics
Intel Arc Graphics, 130T GPU
2 x HDMI v2.1, 4096x2160 60Hz (TMDS, CEC)
2 x USB Type-C ALT (DisplayPort v2.1)
(Intel Arc Graphics requires using 2 x SO-DIMM/CSO-DIMM dual channel memory)
Audio
Realtek ALC245
NETWORKING
LAN
2.5GbE LAN (Intel I226V)
EXPANSION SLOTS
1 x M.2 M Key 2280 slot (PCIe Gen4x4) (PCIe Gen5x4, ready design)
1 x M.2 M Key 2280 slot (PCIe Gen4x4 + SATA)
1 x M.2 E Key 2230 Wi-Fi & BT slot (Wi-Fi 7 RTL8922AE)
I/O PORTS

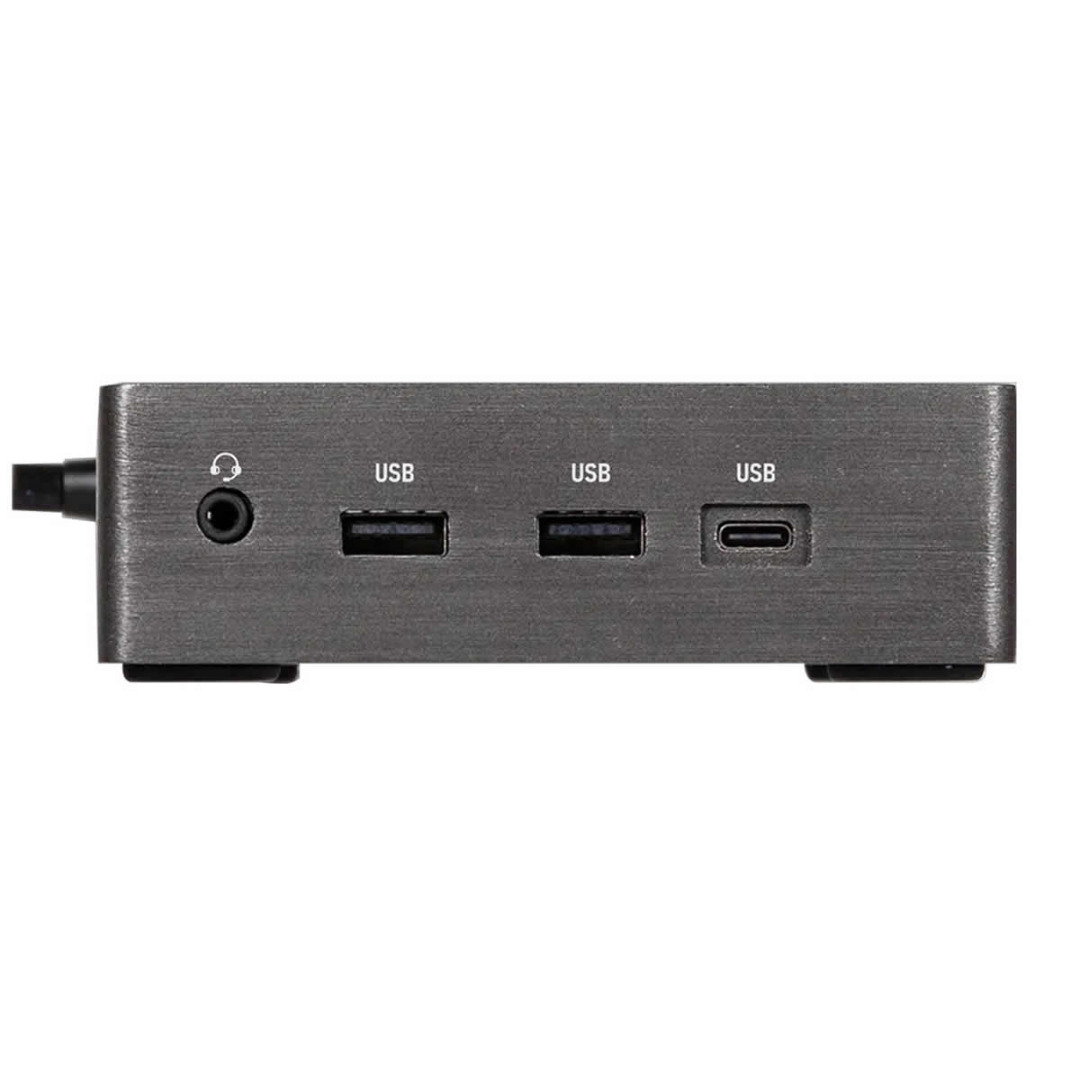

Front I/O
1 x Headset
2 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C (ALT)

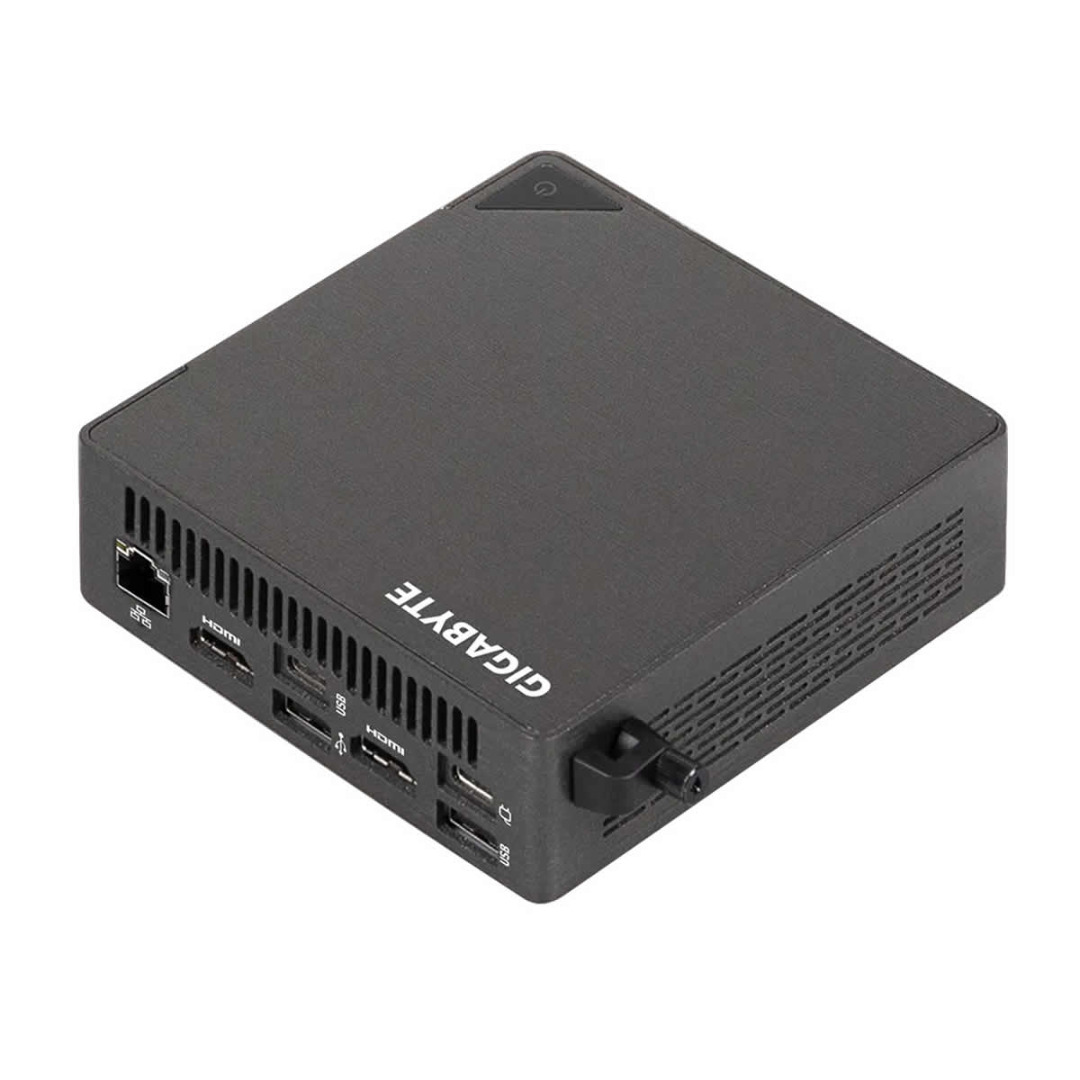

Rear I/O
2 x HDMI (TMDS & CEC)
1 x USB4
1 x USB 3.2 Gen2 Type-C (PD IN)
1 x USB 3.2 Gen2 Type-A
1 x USB 2.0 Type-A
1 x RJ45
Left I/O
1 x Kensington Lock Slot
POWER
Input: AC 100-240V
Output: DC 20V/5A, 100W (Type-C PD)
VESA MOUNT
Supports 75 x 75 and 100 x 100 mm
OPERATING SYSTEM
Windows 11 64-bit
ENVIRONMENT
System Operating Temperature: 0C to +35C
System Storage Temperature: -20C to +60C
NPU
Intel AI Boost NPU up to 13 TOPs
