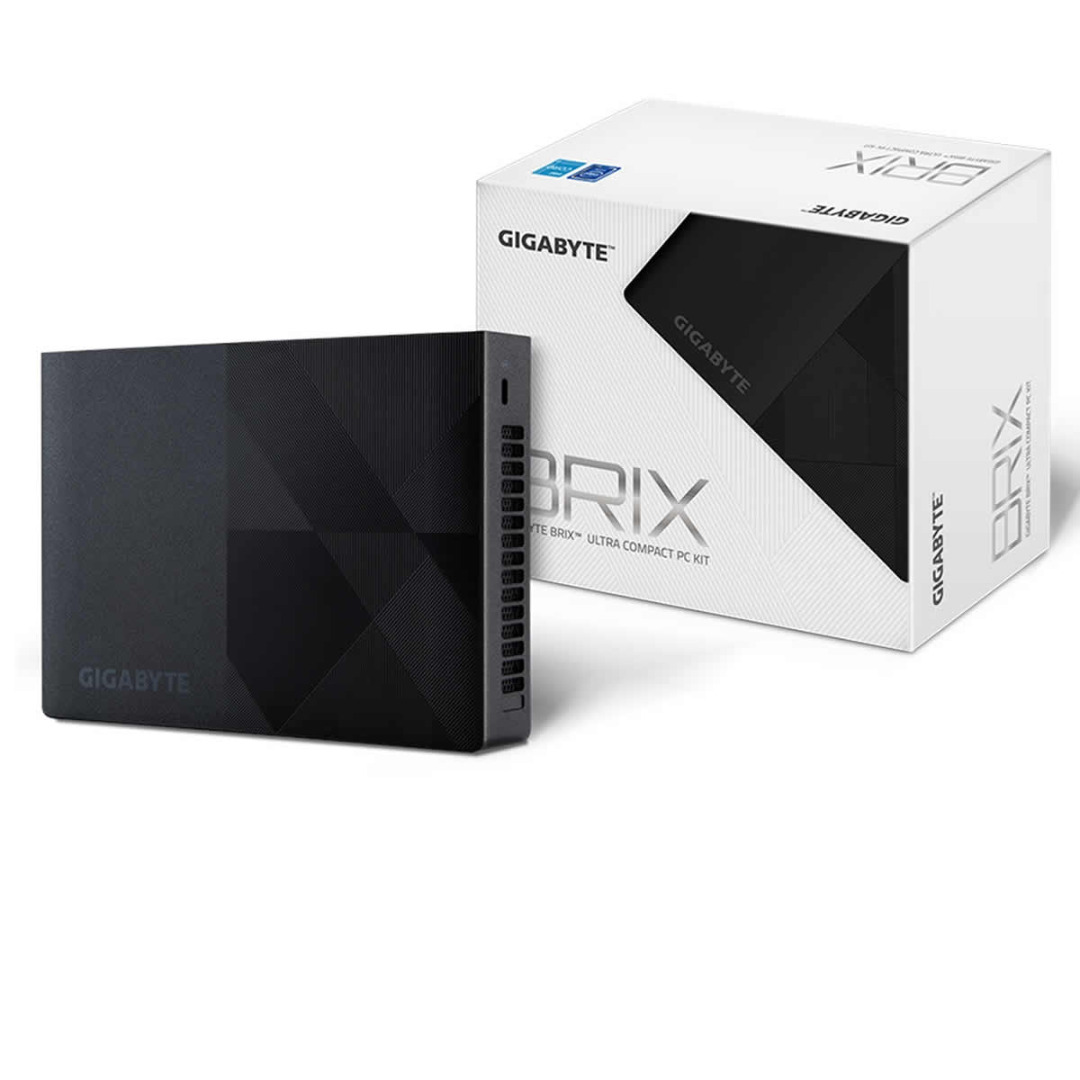

Gigabyte BRIX Barebone Kit | Intel N200 Quad Core | Single DDR4 | Dual M.2 Slots
The Gigabyte BRIX (GB-BN1P-N200) Barebone Kit provides an ultra-efficient, highly modular computing framework enclosed in a lightweight 0.54L mini-PC chassis. Powered by an Intel N-Series processor, this barebone kit serves as a quiet, space-saving foundation for home offices, student desks, digital signage, or media streaming setups. It gives budget-conscious builders total control over system optimization, allowing you to install your own memory, high-speed storage configurations, and operating system.
Quad-Core Efficiency: Driven by an Intel N200 processor throttling up to 3.7GHz, delivering balanced performance with minimal heat output and low-noise operation.
Modular Memory Configuration: Built with 1 x DDR4 SO-DIMM slot, supporting up to 32GB of 3200MHz system RAM for smooth local data calculations.
Dual M.2 Storage Slots: Features a rare layout of 2 x M.2 2280 SSD slots (supporting PCIe and SATA interfaces), allowing you to run a dedicated high-speed boot drive alongside an independent high-capacity data storage drive.
Next-Gen Wireless & Core I/O: Pre-equipped with Wi-Fi 6, Bluetooth 5.2, and ultra-fast 2.5GbE LAN alongside a reversible USB 3.2 Gen2 Type-C port for speedy data transfers.
USB Type-C Connector
The USB Type-C is a new reversible connector that comes with a variety of useful features, including support for USB 3.2 gen2, which provides transfer speeds of up to 10 Gb/s.
Support HDMI 2.1 / DP 1.4 Dual Output
HDMI 2.1 offers 18 Gb/s of bandwidth, which is nearly twice that of the previous generation, and it is also backward compatible with HDMI 1.4.
Dual M.2 Storage Supports
It can support dual M.2 SSDs (2x2280) based on PCI-e/SATA technology. Users can install two M.2 SSDs for faster boot-up and application loading, as well as a double-capacity HDD for all kinds of media content, files, and documents without any space limitations.
Dimension
163.5 x 116.8 x 28.5 mm
0.54 L
Motherboard Size
154 x 110 mm
CPU
Intel Processor N200
CPU 3.2G-3.7G Turbo, 4C/4T Core, 6MB L3 Cache
Memory
1 x SO-DIMM DDR4 slot
3200MHz
Max. 32GB
LAN
2.5GbE LAN (Realtek RTL8125)
Wifi Card
Intel AX101
Wi-Fi 6 ; 802.11ax ; 2.4 & 5 GHz
Graphics
Intel UHD Graphics 750
Audio
Realtek ALC897
HDMI Resolution (Max.)
HDMI 2.1
Support 4K@60P HDR10
Mini DP Resolution (Max.)
DP 1.4
support 4K@60P HBR2
Storage
1 x M.2 2280 slots for SSD (PCI-e x2 or SATA)
1 x M.2 2280 slots for SSD (PCI-e x2)
Expansion Slots
1 x M.2 2280 slots for SSD (PCI-e x2 or SATA)
1 x M.2 2280 slots for SSD (PCI-e x2)
1 x M.2 2230 slot (PCI-e x1 ; A-E key slot occupied by the Wi-Fi+Bluetooth card)

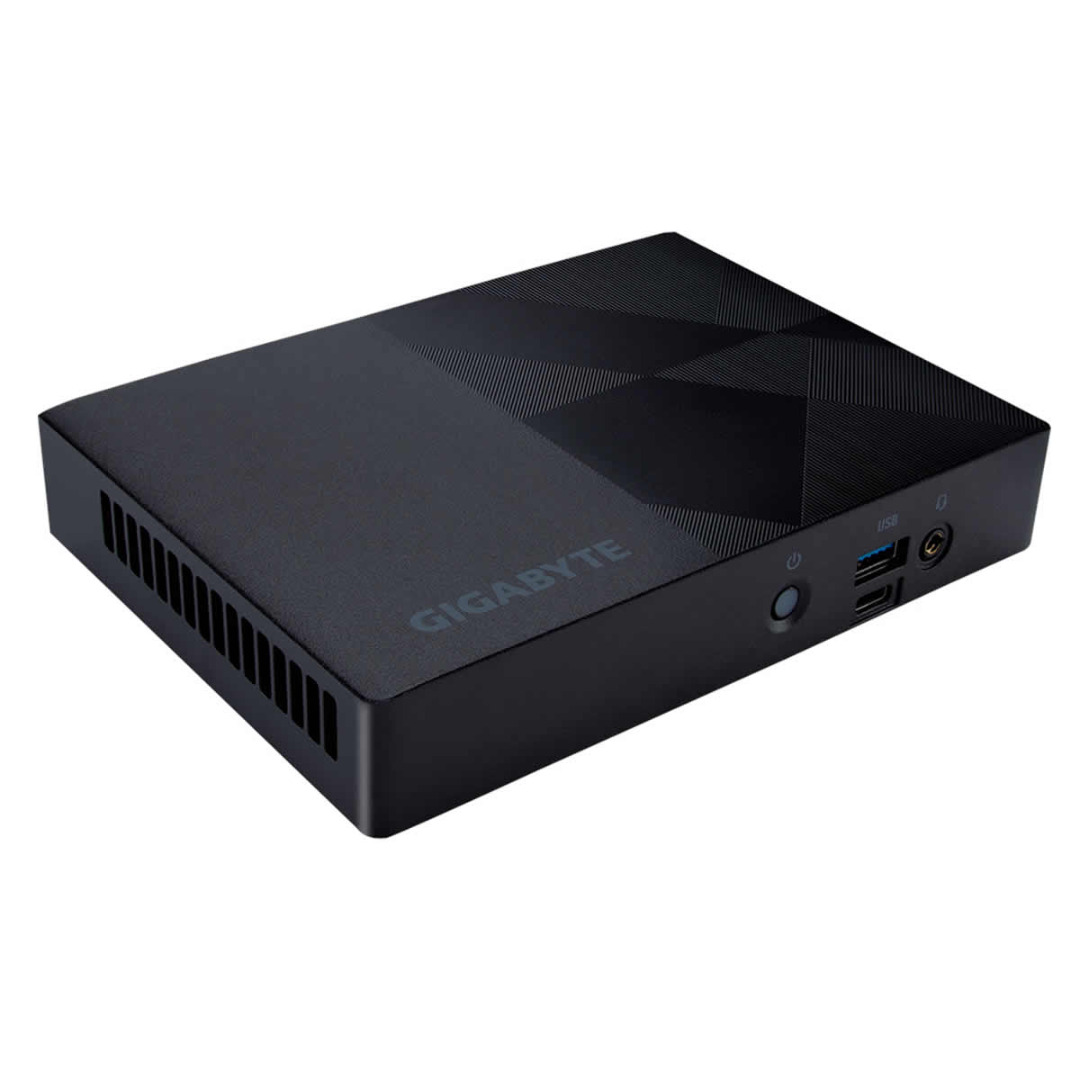

Front I/O
1 x Power Button
1 x USB3.2 Gen2 Type-A
1 x USB3.2 Gen2 Type-C
1 x Headphone / Microphone

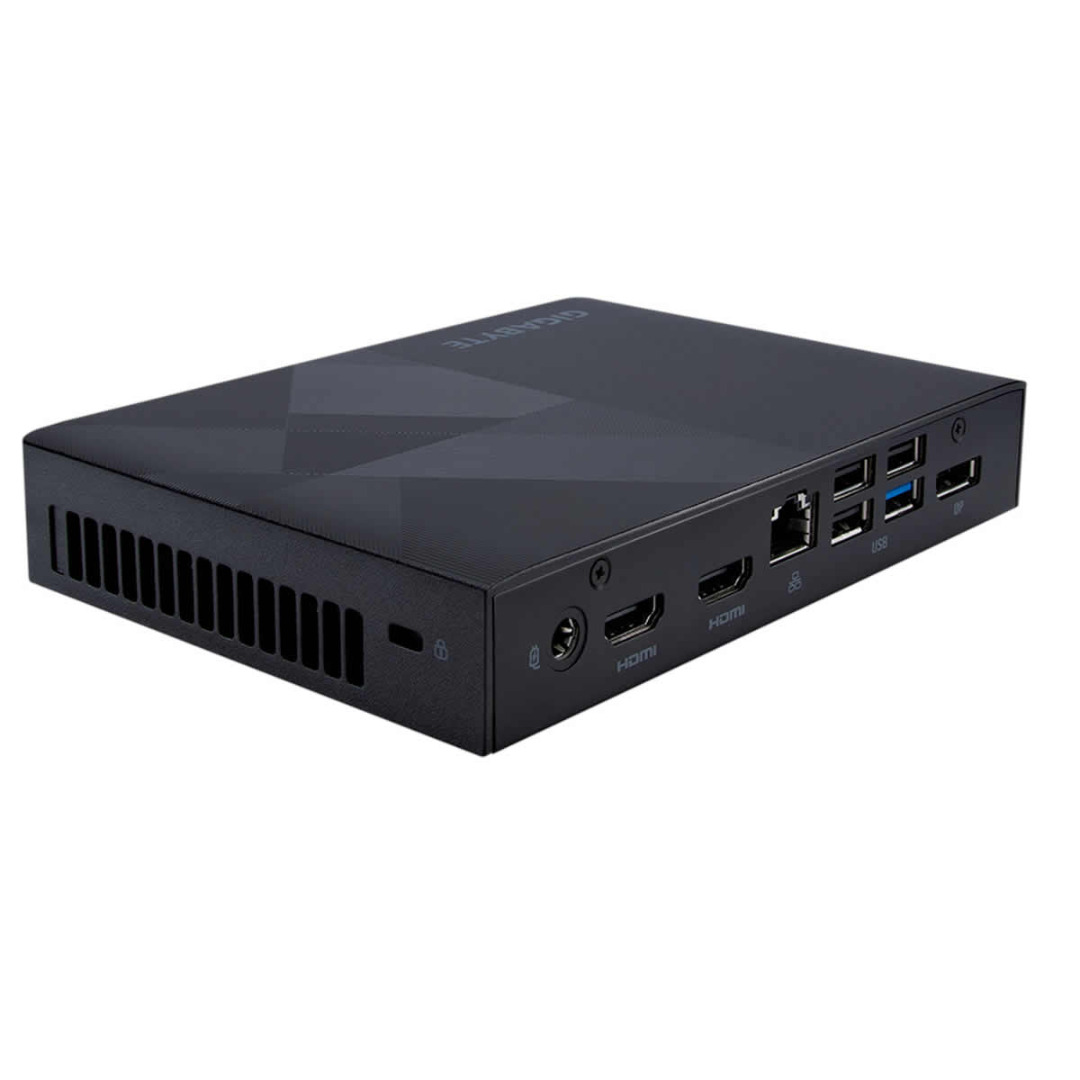

Rear I/O
2 x HDMI 2.1
1 x 2.5 GbE RJ45
3 x USB 2.0 Type-A
1 x USB 3.2 Gen2 Type-A
1 x DC-In
1 x DP 1.4
1 x Kensington lock slot
Power Supply
Input: AC 100-240V
Output: DC 19V/3.42A, 65W
VESA
VESA support
Supports 75 x 75 and 100 x 100 mm
*VESA Bracket to be purchased seperately.
Support OS
Win11 64bit
Environment
System Environment Operating Temperature: 0C to +35C
System Storage Temperature: -20C to +60C
