Protection Class:2

Rated Current:22(2.5 mm),30A(4 mm)

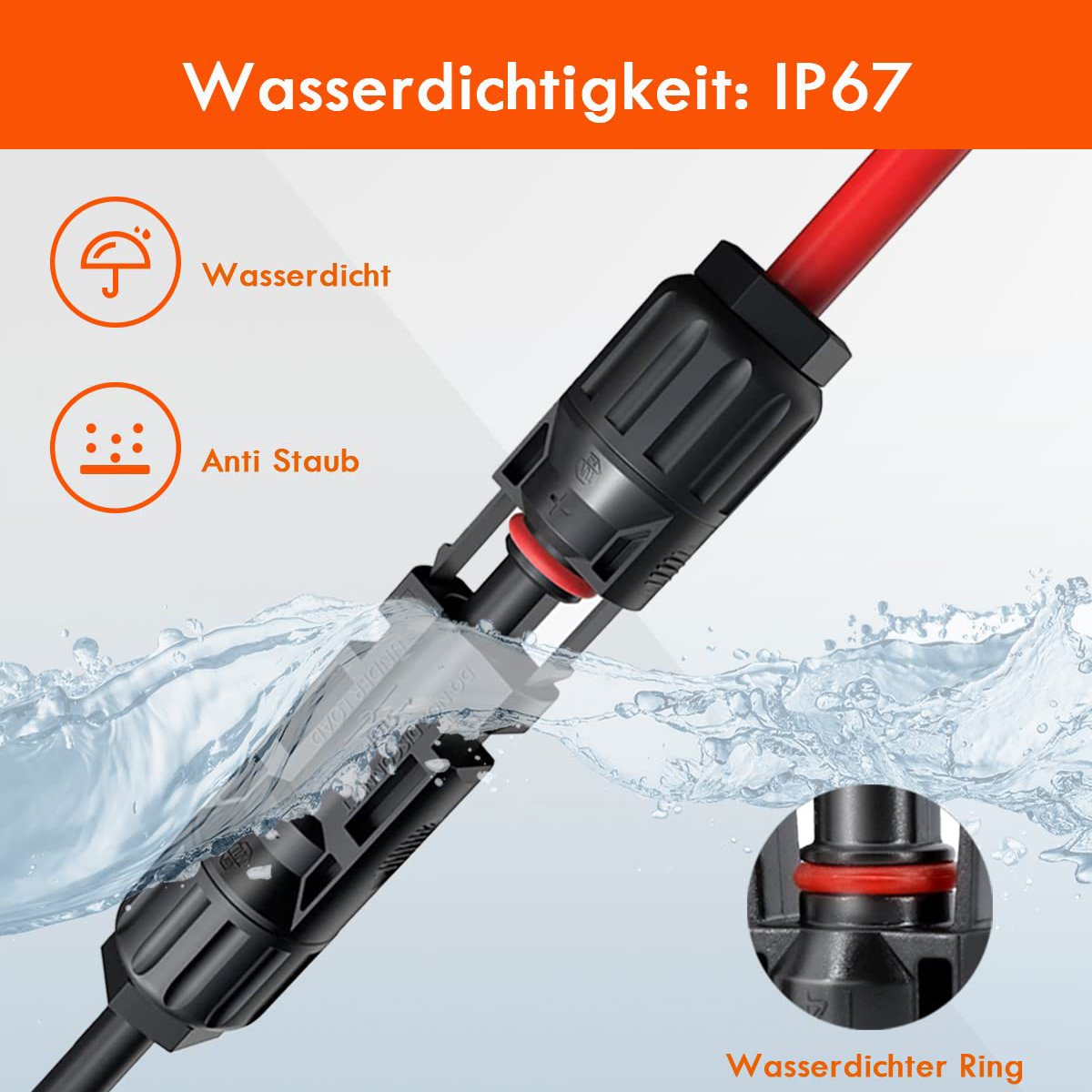

Protection Degree:IP2X,unmated;IP67,mated

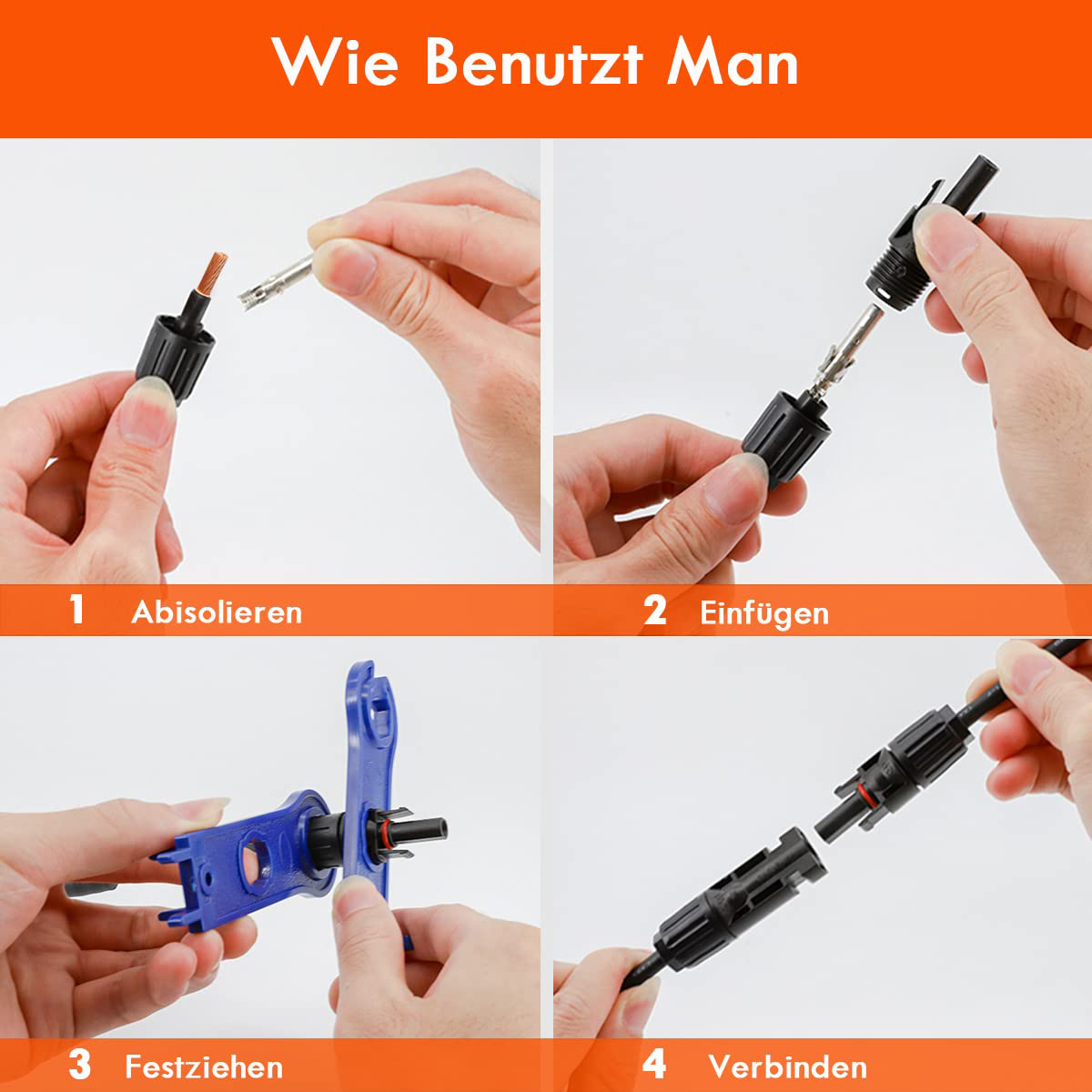

Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument

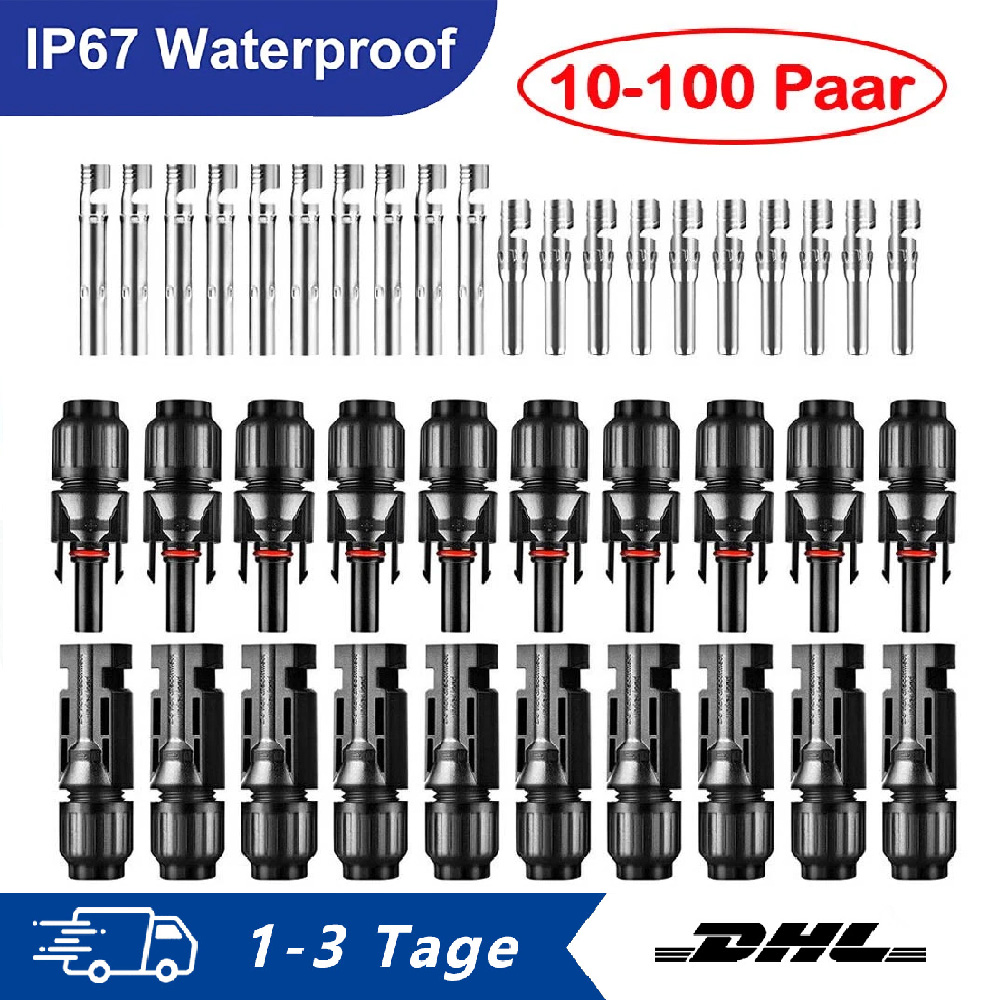

1 pairs of Solar Panel Cable Connectors (1Pcs of Male and 1Pcs of Female) Double seal rings for better waterproof effect

Compatible with PV cables with different insulation diameters

Resistance of extra high & low temperature and fireproof

Load capability with big current and high voltage

Details:

Protection Class:2

Withstanding Voltage:1000 V DC

Rated Current:22(2.5 mm),30A (4mm)

Contact Resistance:Less than 0.5 Mohms

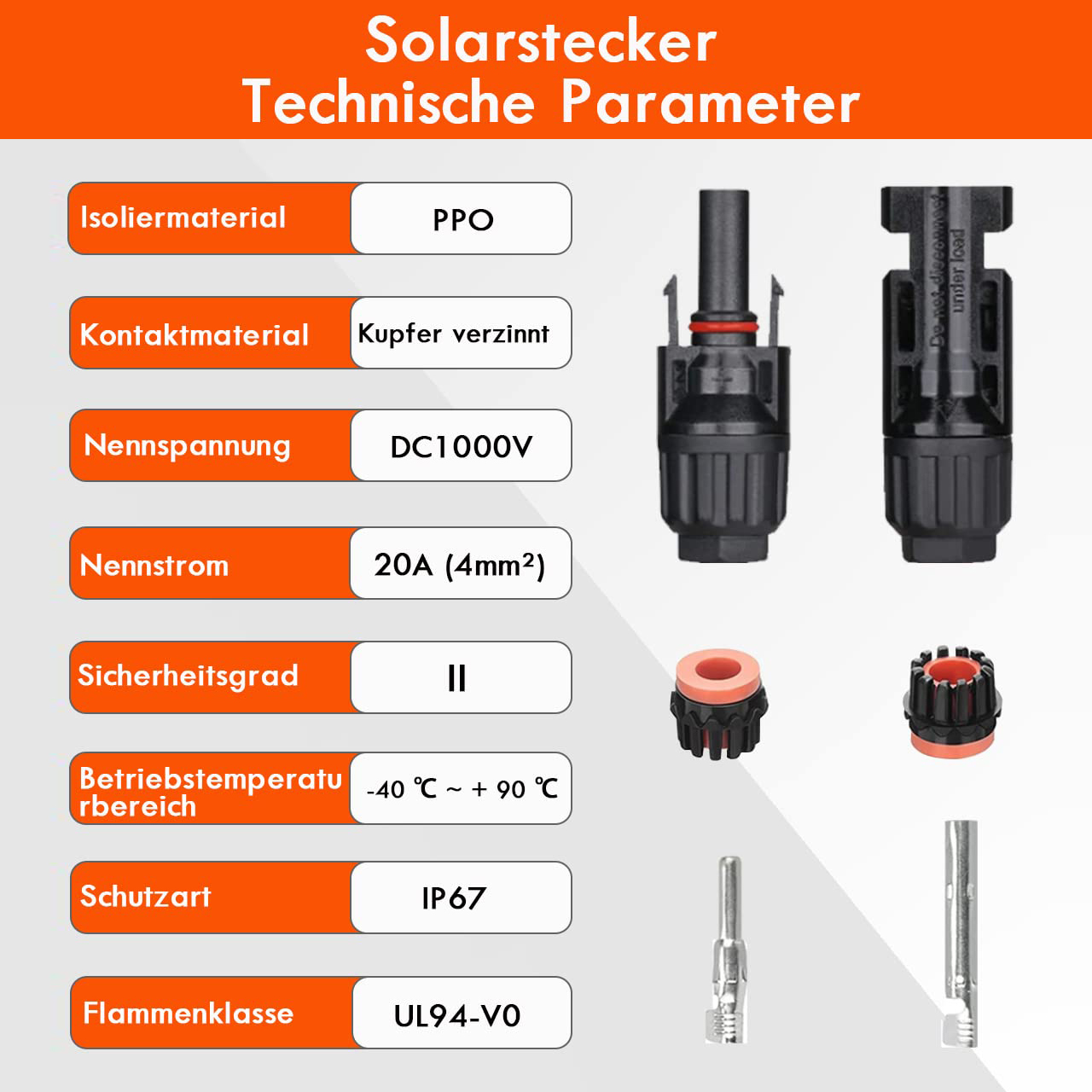

Specification:

Insulation Material:PC/PA, black

Temperature Range: -40 C ~ +90 C

Contact Material: Copper, Sliver plated

Flame Class: UL94-VO or UL94-5VA

Rated Current: 30A

Suitable cable: 2.5mm2, 4mm2, (AWG14, AWG12)

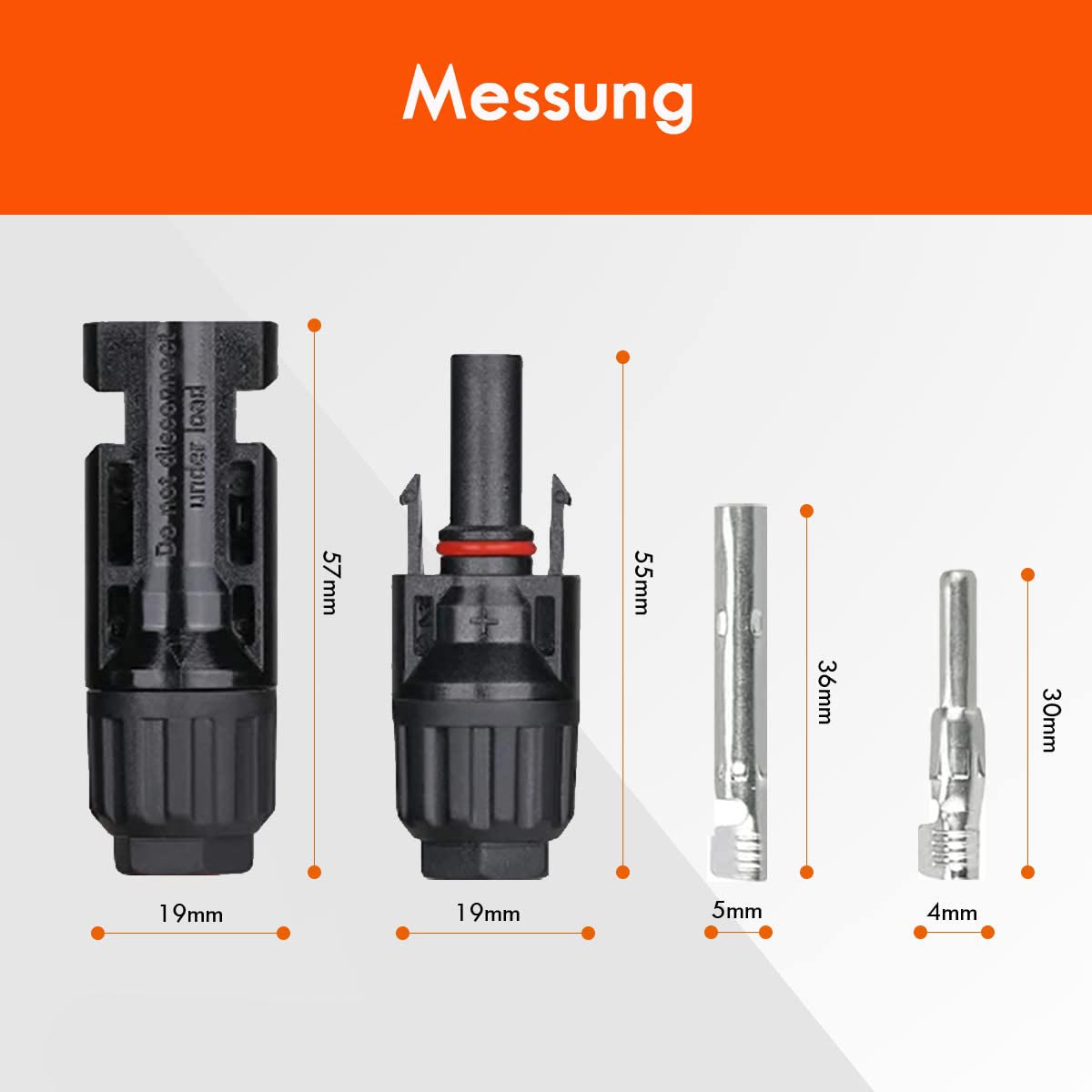

Pin dimension: 4.0 mm dia.

Contact resistance: ≤0.2mmΩ

Waterproof degree: IP67

Flame class: UL94-VO

Safety Class: Ⅱ

Withdrawal force: ≥50N

Insertion force: ≤50N

Insulation material: PPO + PA

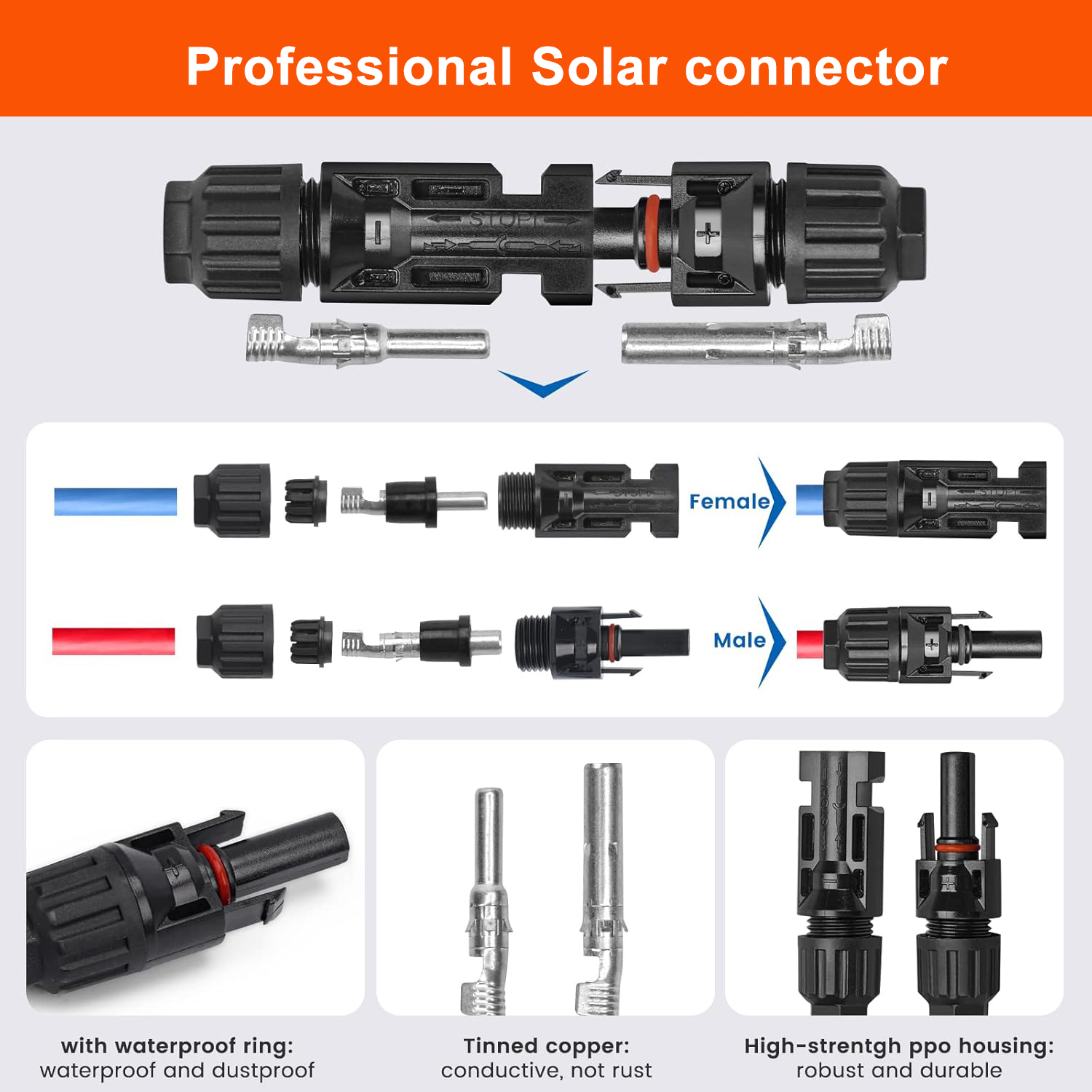

Connecting system: crimping connection

Contact material: copper, tin plated

Temperature range: -40 ℃ ~ +125 ℃

Protection Degree: IP 2X unmated; IP67, mated

Wire Size Range: 2.5mm2, 4mm2, [AWG14, AWG12]

Material Features:

Insulation Material: PC/PA, black

Contact Material: Copper, Sliver plated

Flame Class: UL94-VO or UL94-5VA

Package included:

We will send you quantity what you choose, pls check the item option carefully before you purchase, thanks.
