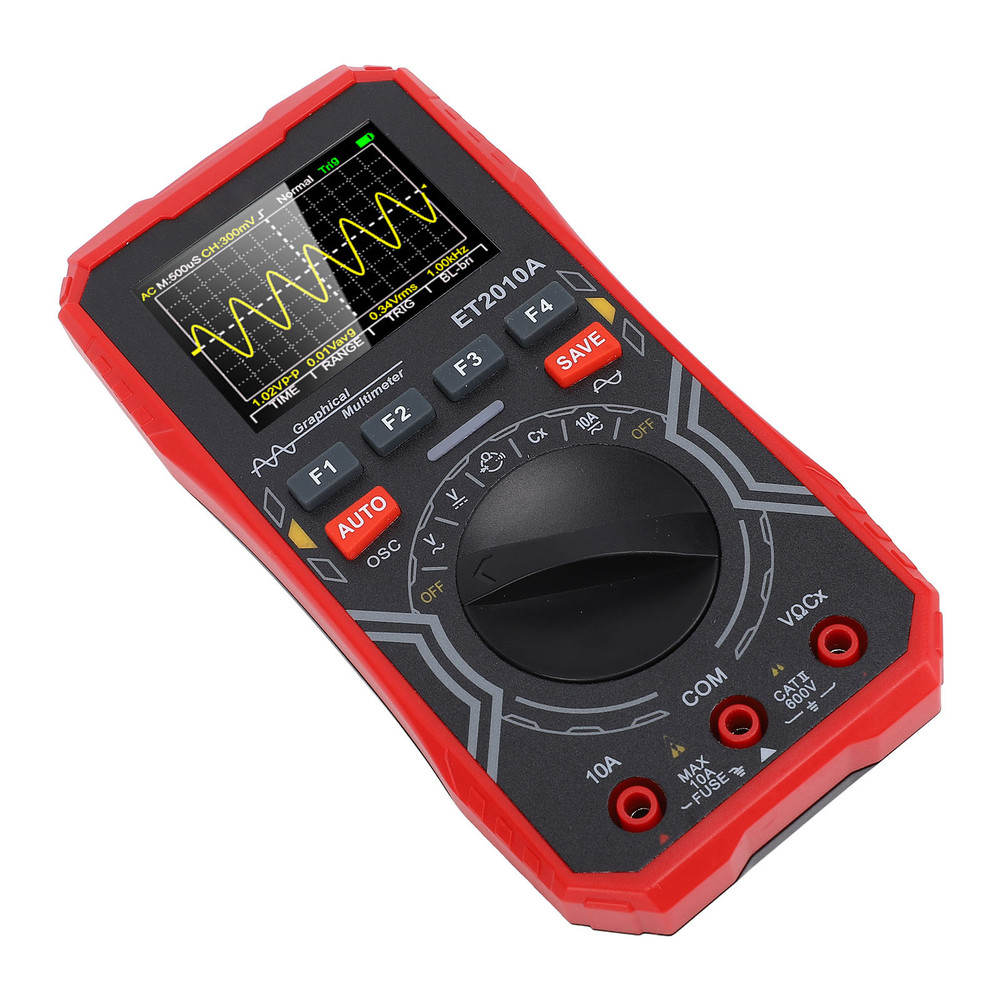

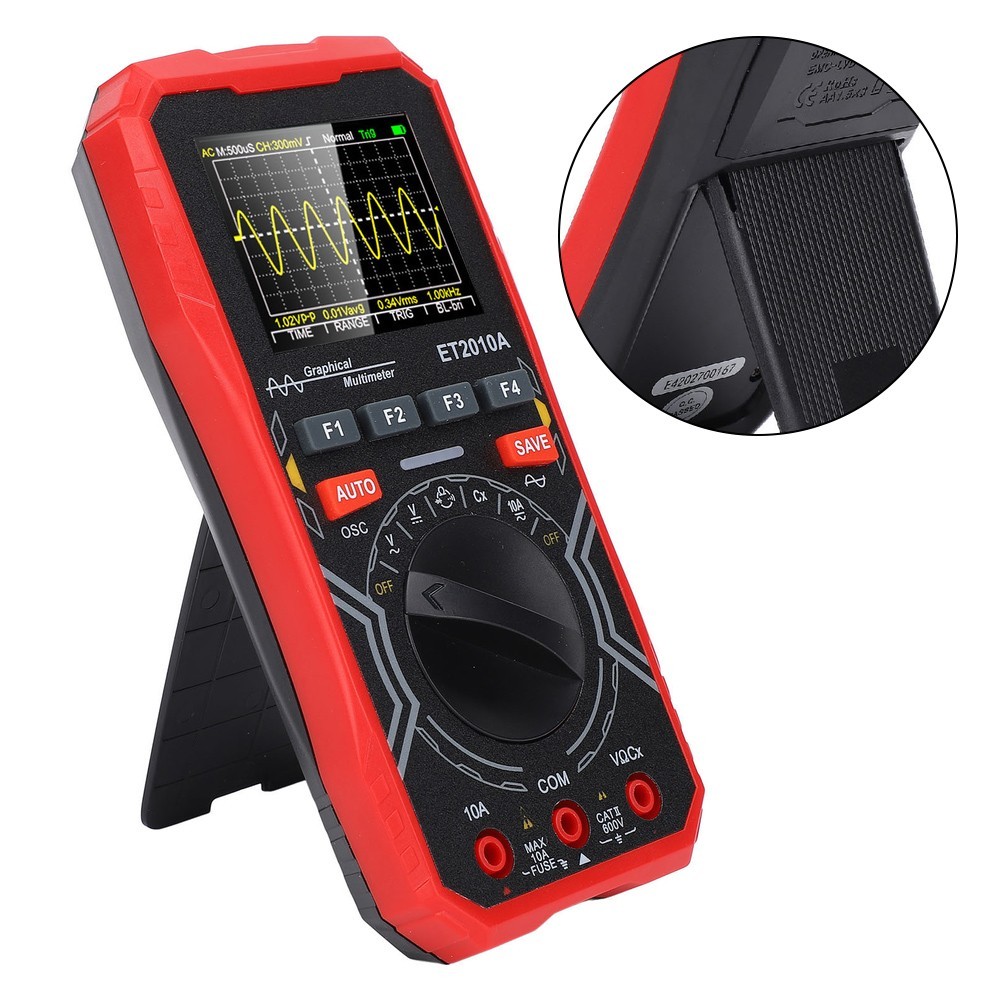

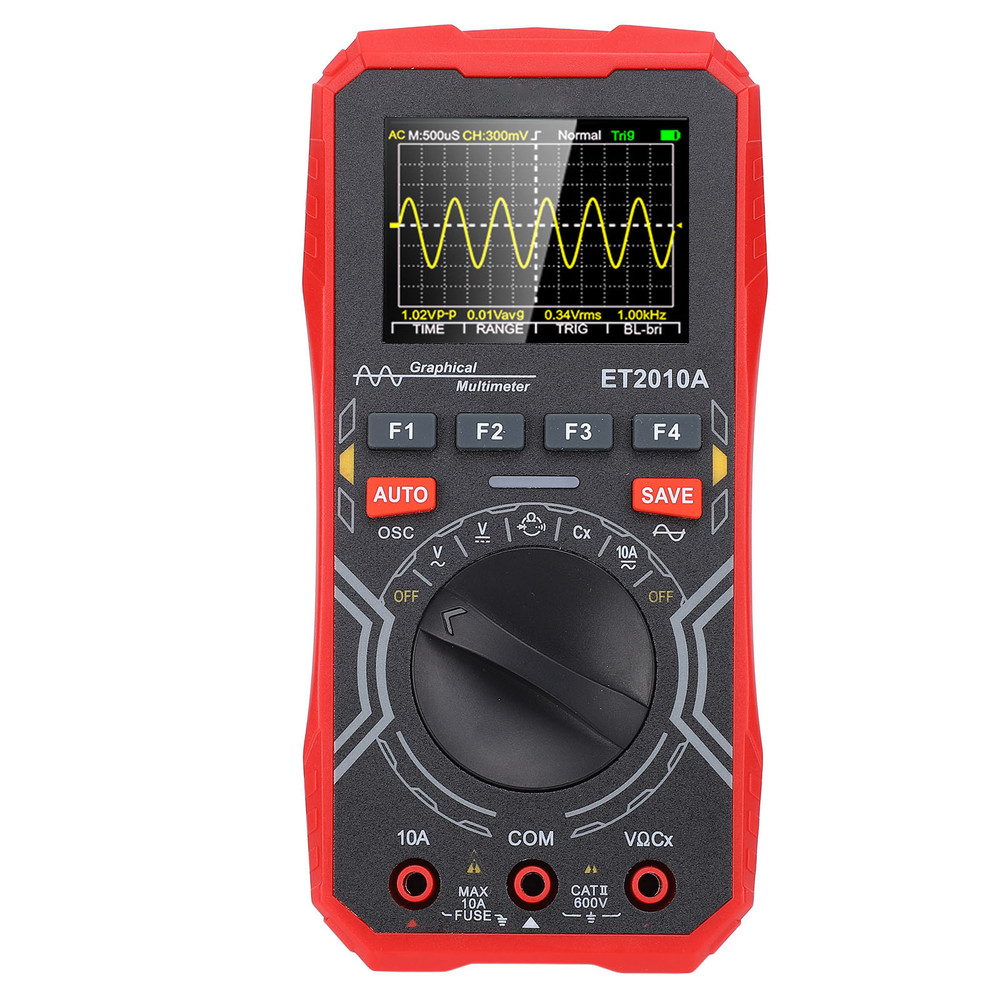

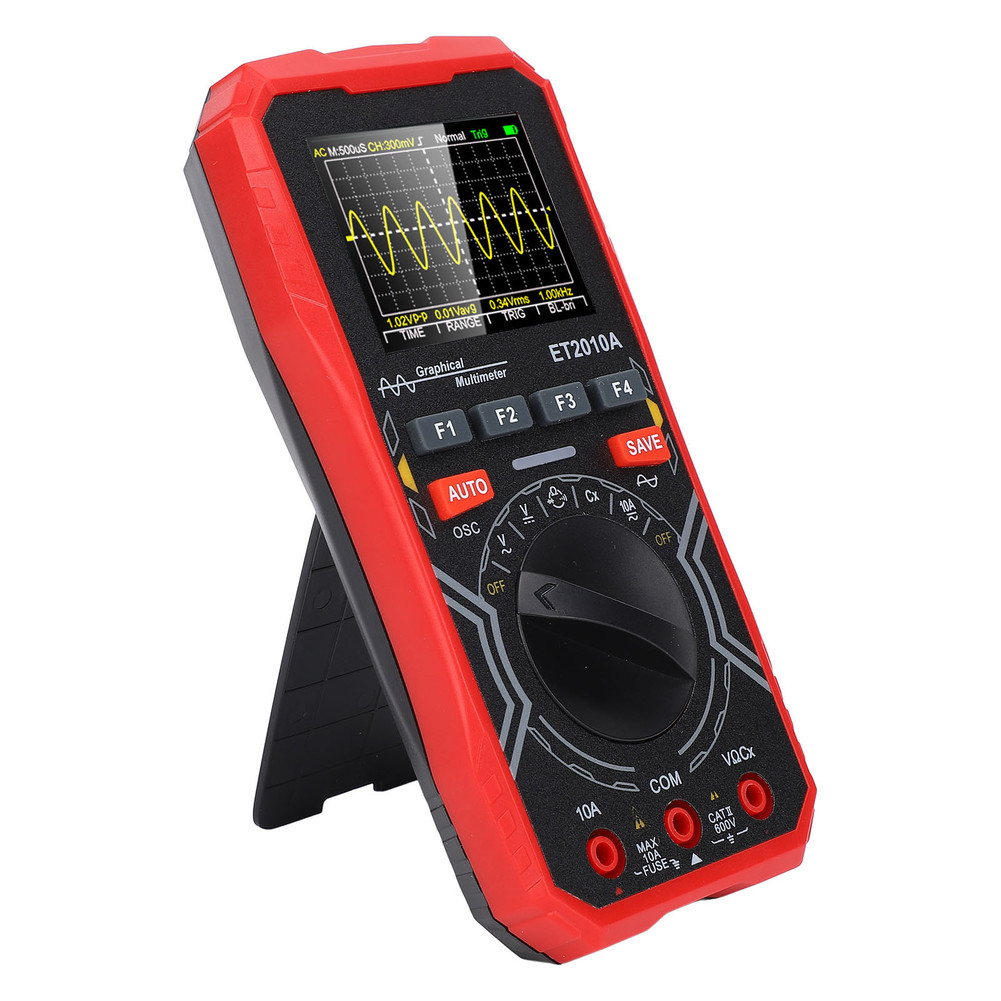

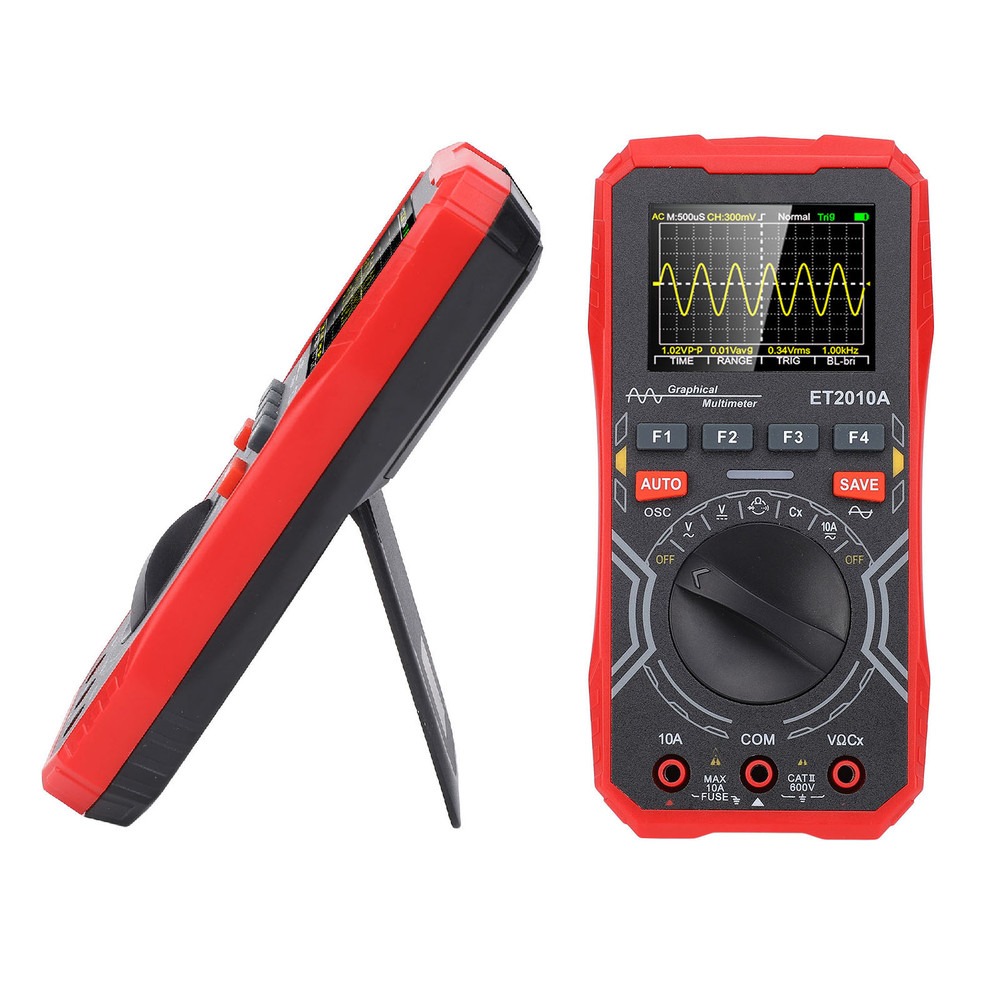

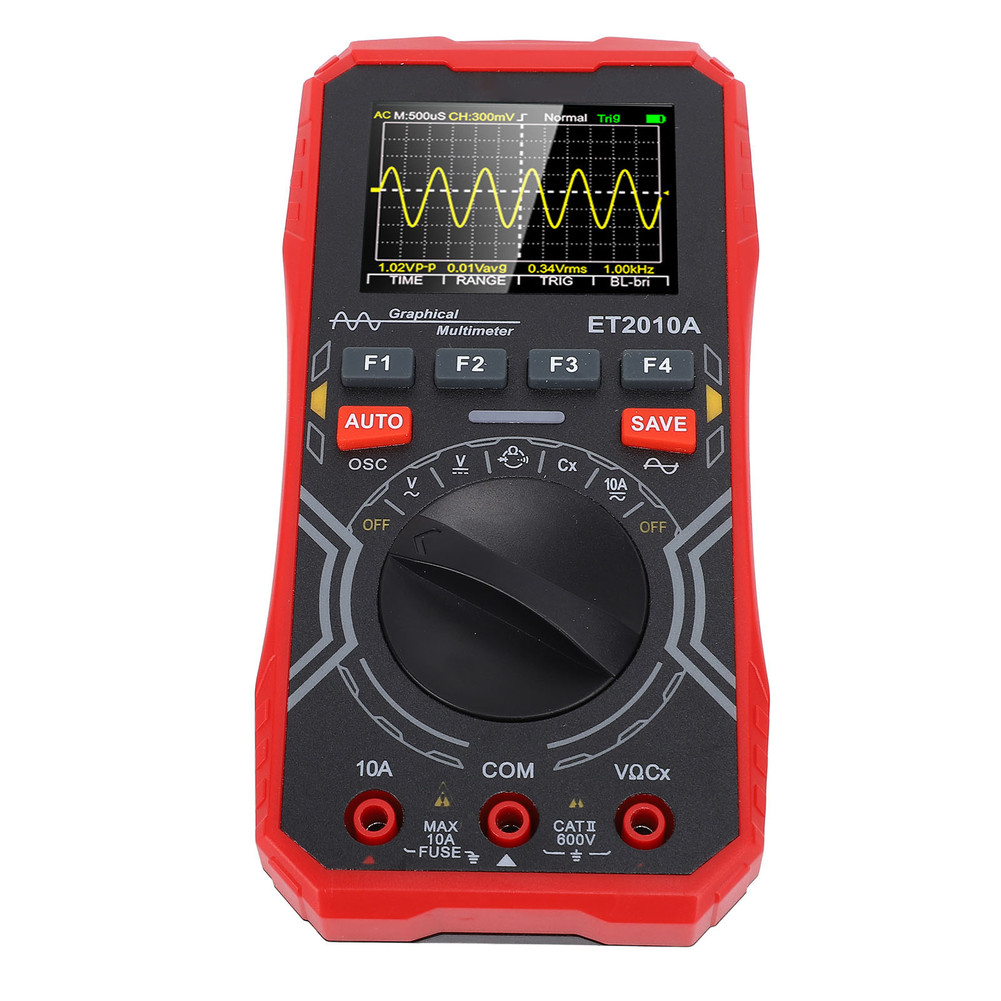

ET2010A 1MHz Oscilloscope and Multimeter with 10 Waveform Memory Slots
ET2010A 1MHz Oscilloscope and Multimeter with 10 Waveform Memory Slots
DESCRIPTION
Features:

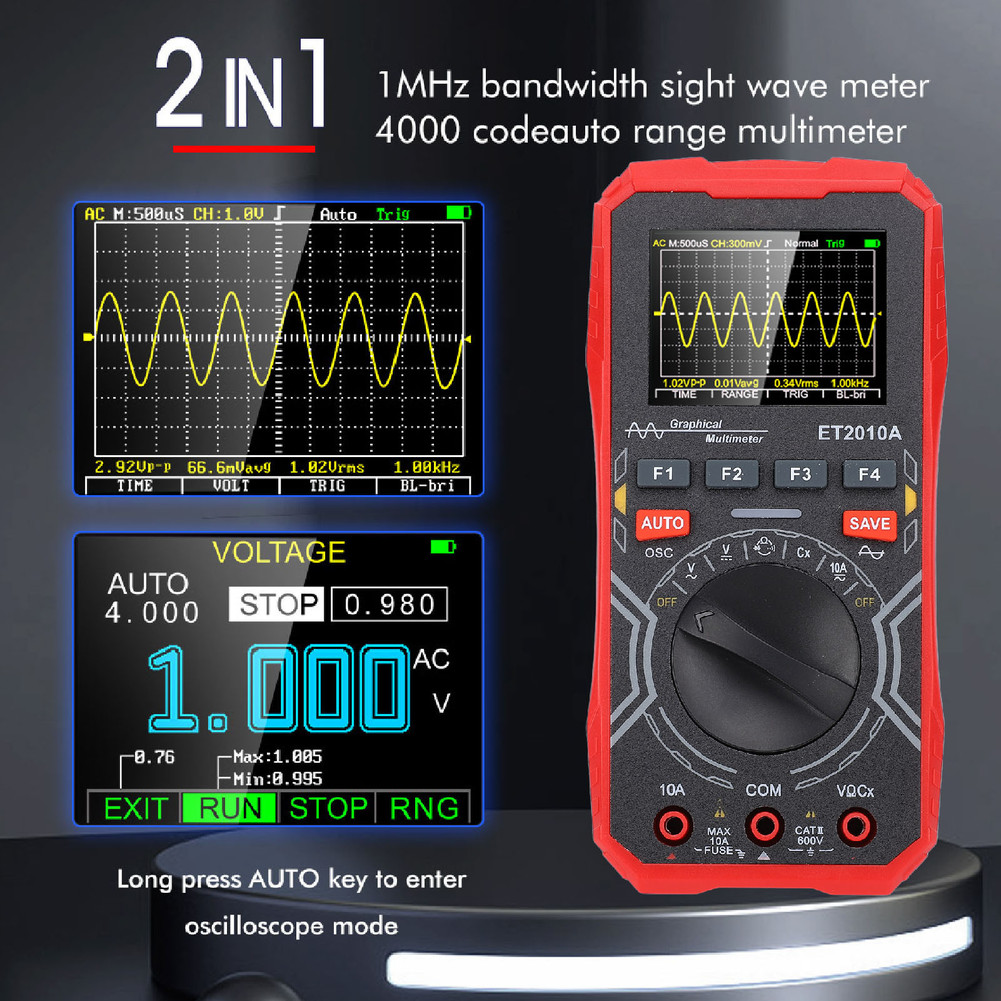

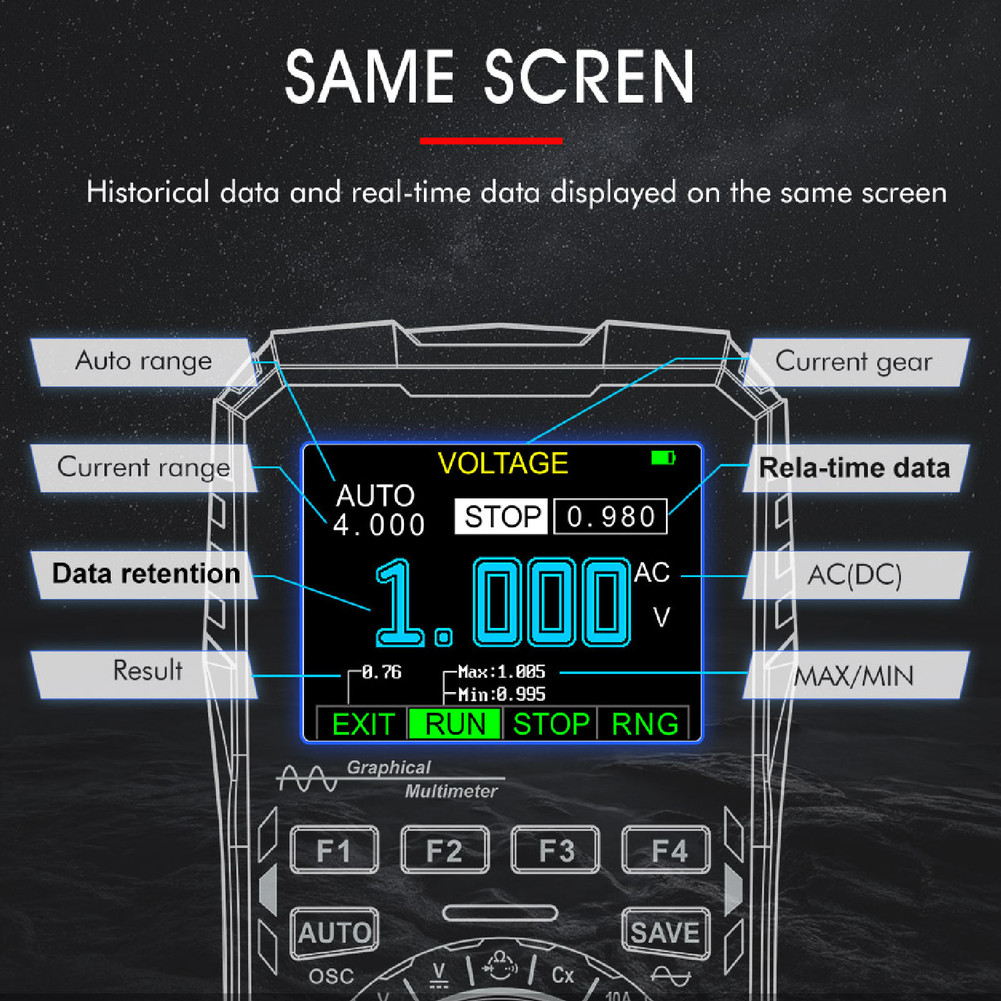

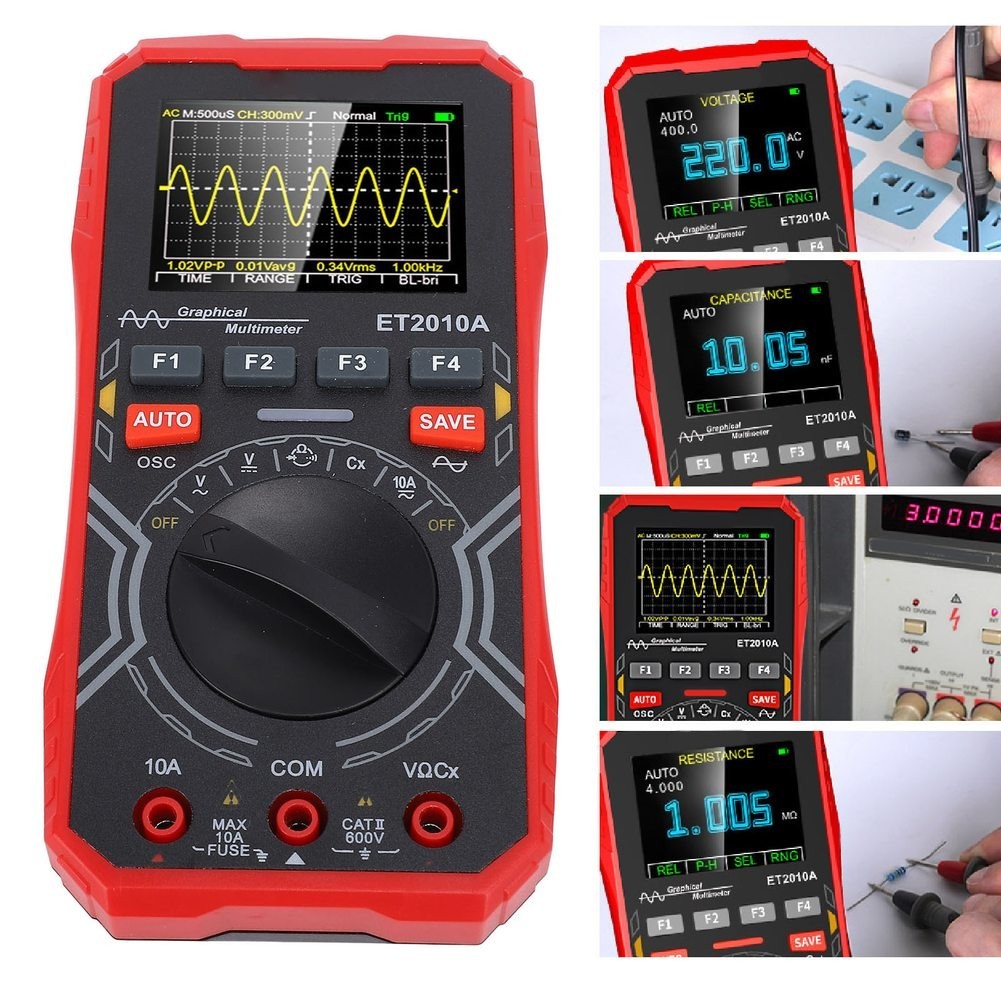

1. Digital Display: This handheld digital oscilloscope combines a 1MHz oscilloscope and a 4000-count auto-ranging multimeter, providing a comprehensive diagnostic tool for automotive, electronics, and industrial applications. The 320x240 high-resolution color display for ensures clear waveform and numerical readings, with historical and real-time data displayed on the same screen.

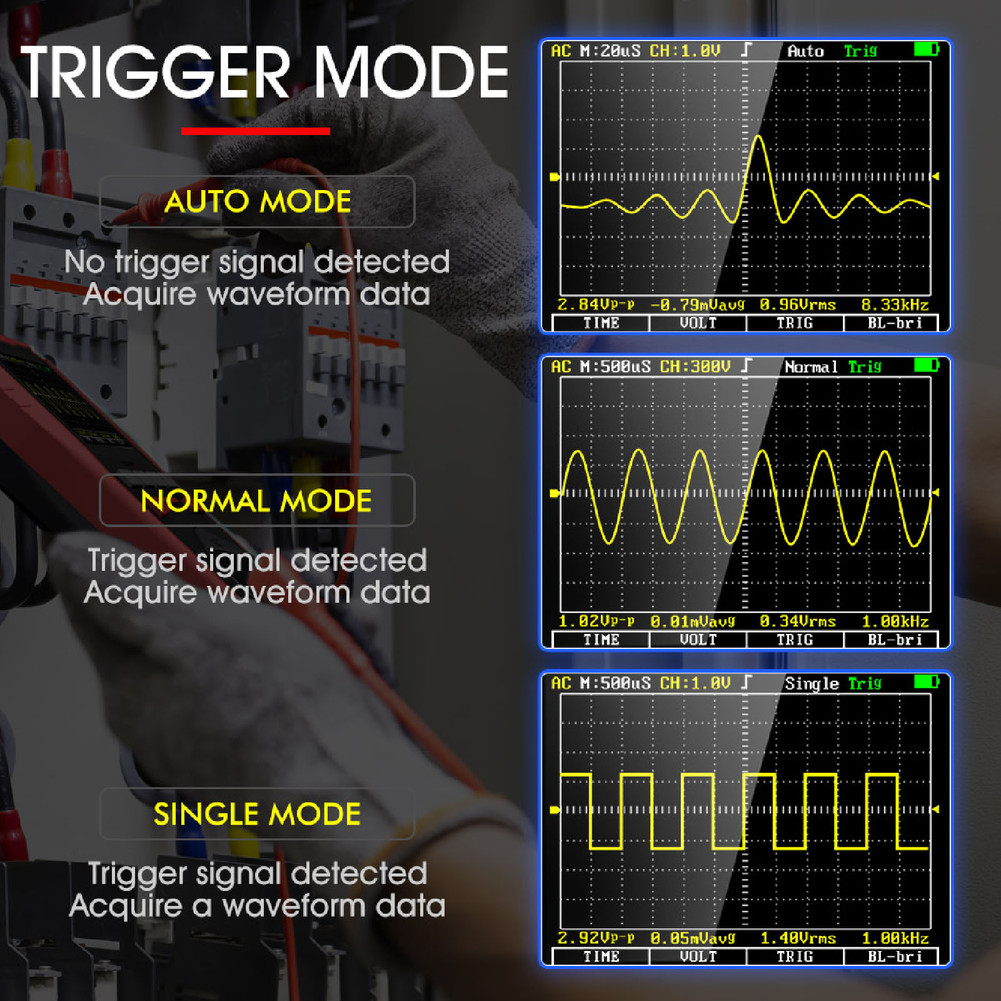

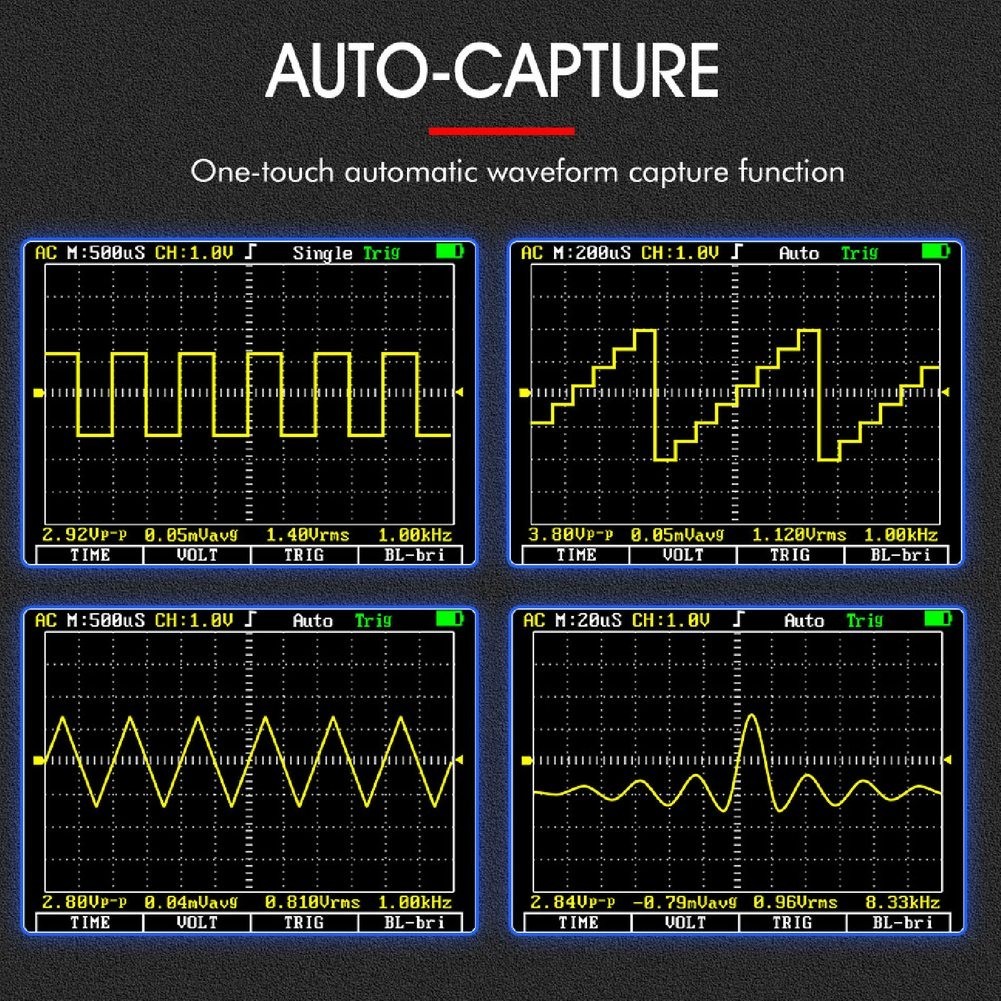

for 2. Three Trigger Modes: This for 2-in-1 oscilloscope and multimeter features three trigger modes: Auto, Normal, and Single Trigger, allowing for precise control over waveform acquisition. Its automatic for capture function simplifies , facilitating for rapid analysis and troubleshooting. Furthermore, it features adjustable time base, amplitude, data storage, and an automatic sleep function, further enhancing ease of use.

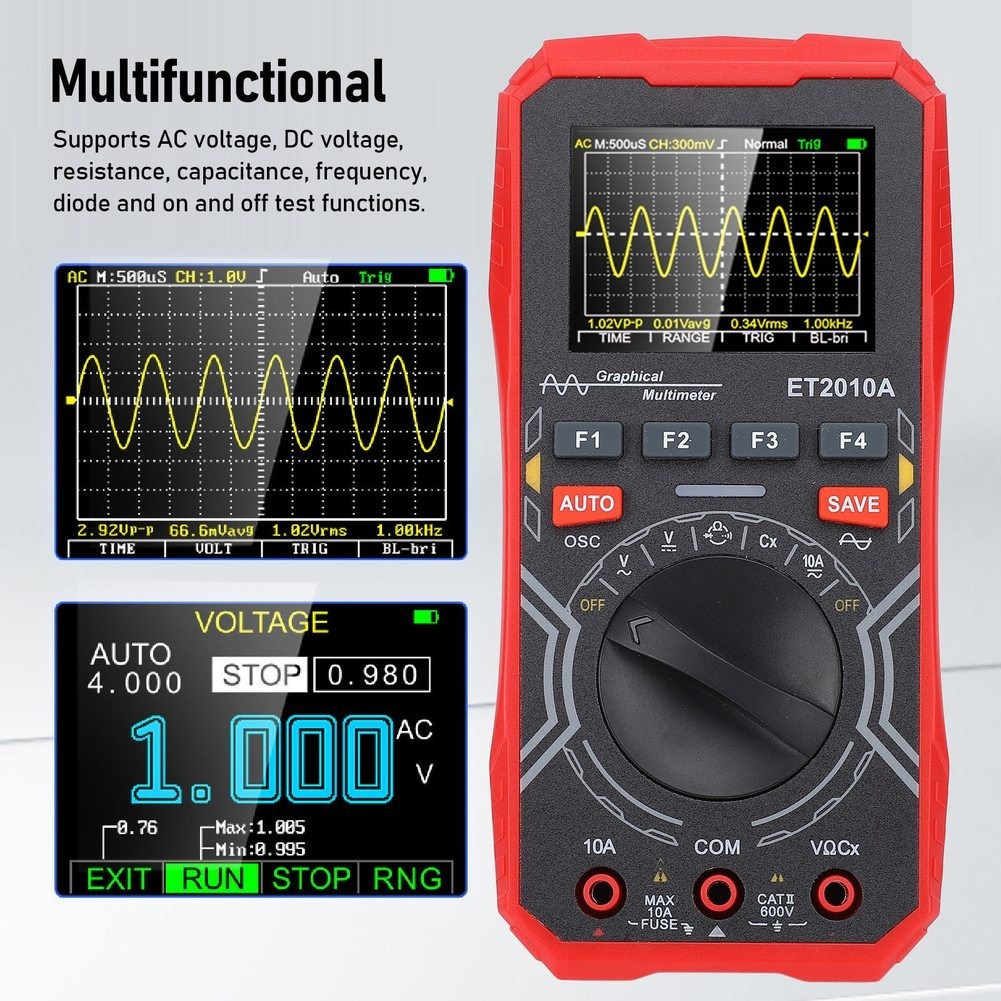

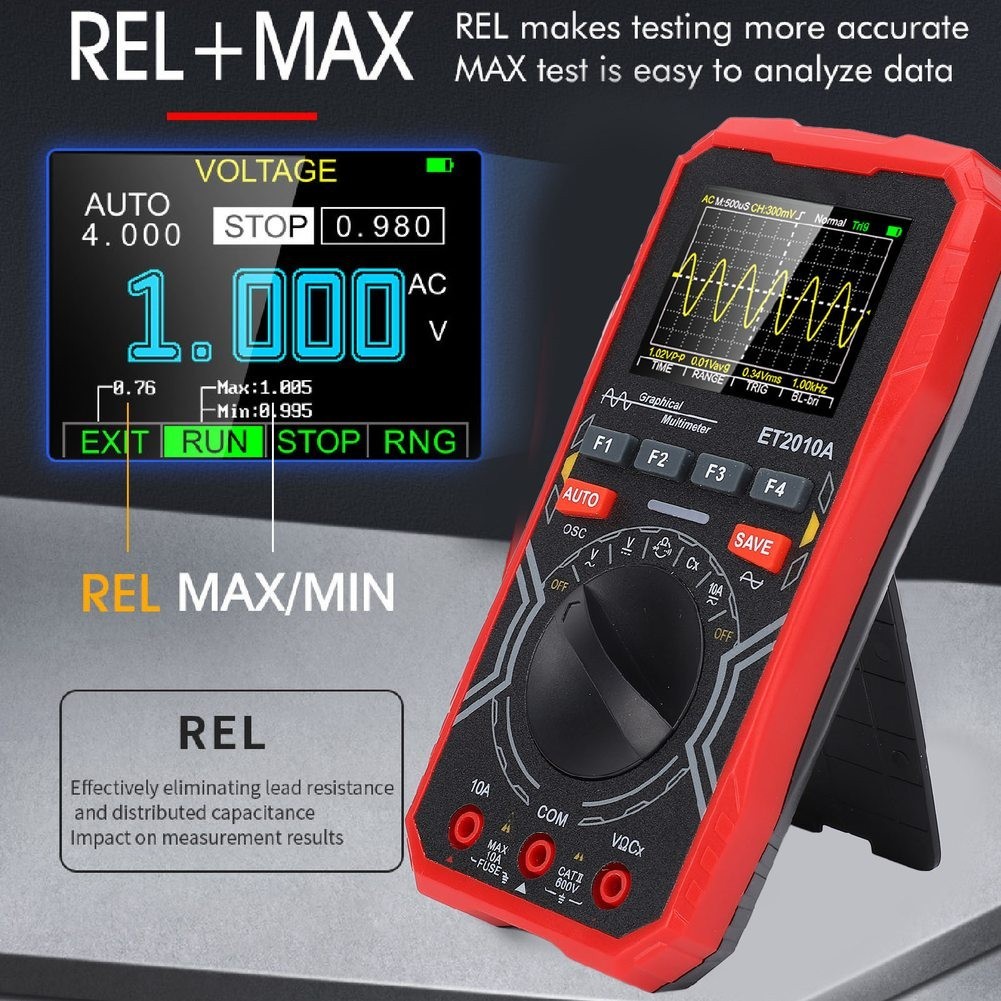

3. In-Depth Measurement Capabilities: This portable multimeter oscilloscope offers a variety of measurement functions, such as peak-to-peak voltage ( for Vp-p), average voltage (Vavg), for RMS voltage (Vrms), and for Frequency (Hz), enabling detailed analysis of voltage, current, resistance, capacitance, for Frequency, and duty for Cycle. It includes REL testing and for Maximum/minimum value testing to improve measurement accuracy and data analysis capabilities, effectively eliminating the influence of resistance and distributed capacitance on measurement results.

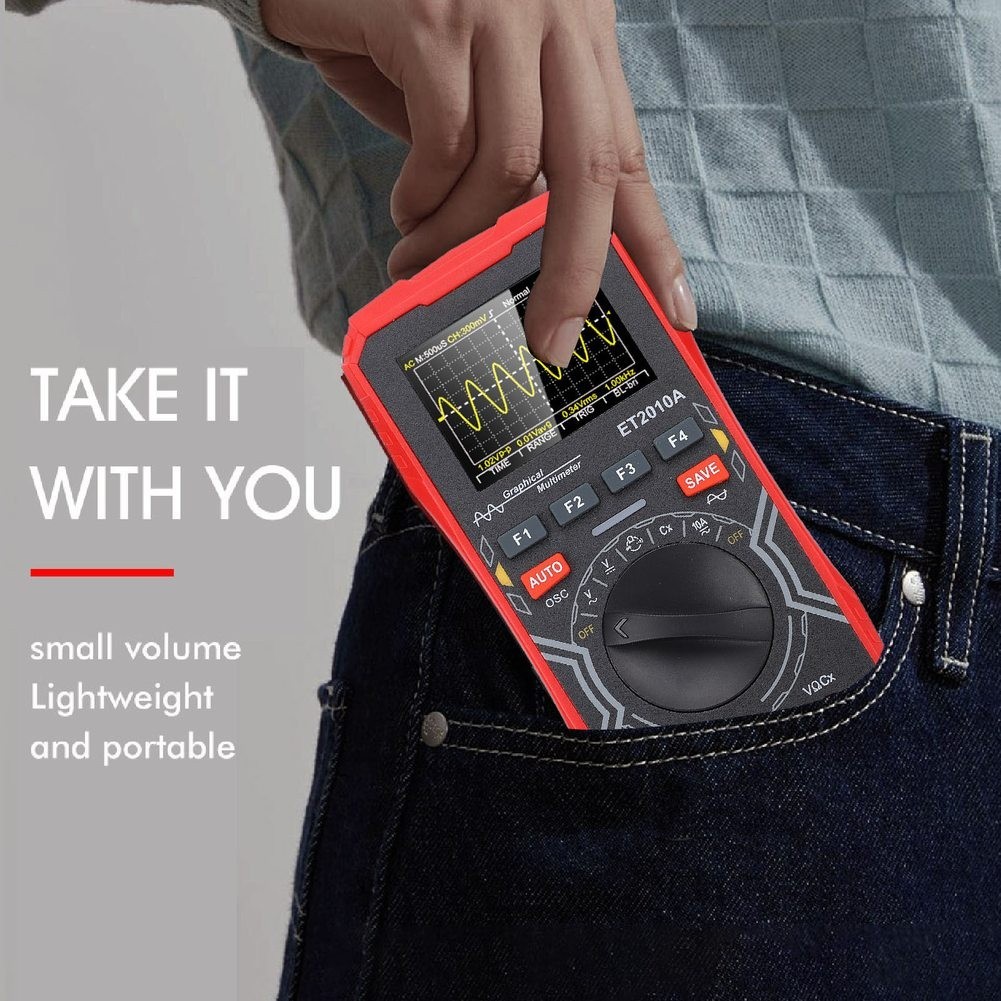

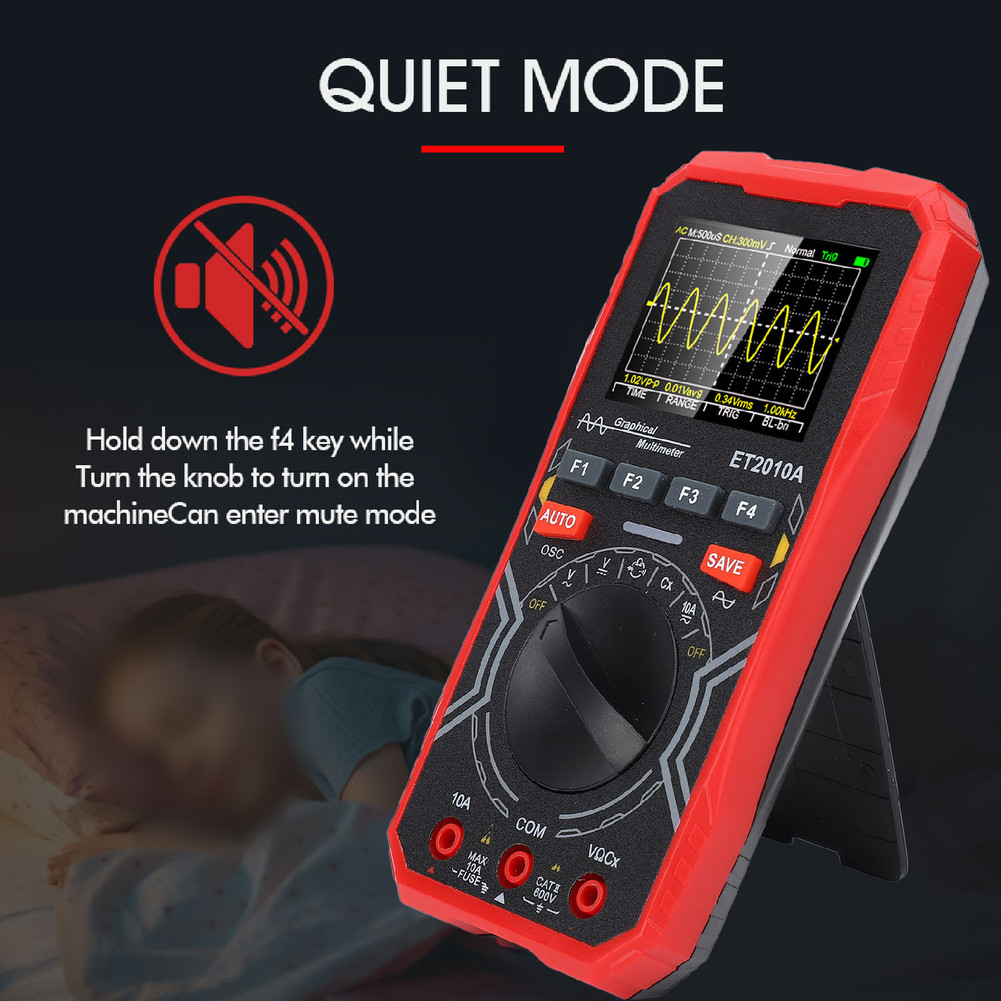

4. Enhanced User Experience: With a storage capacity of 100 data sets and 10 waveform memories, users can easily store and retrieve key measurement values. Silent mode and automatic sleep function improve user comfort and work efficiency, while its compact size and lightweight design for ensure high portability.

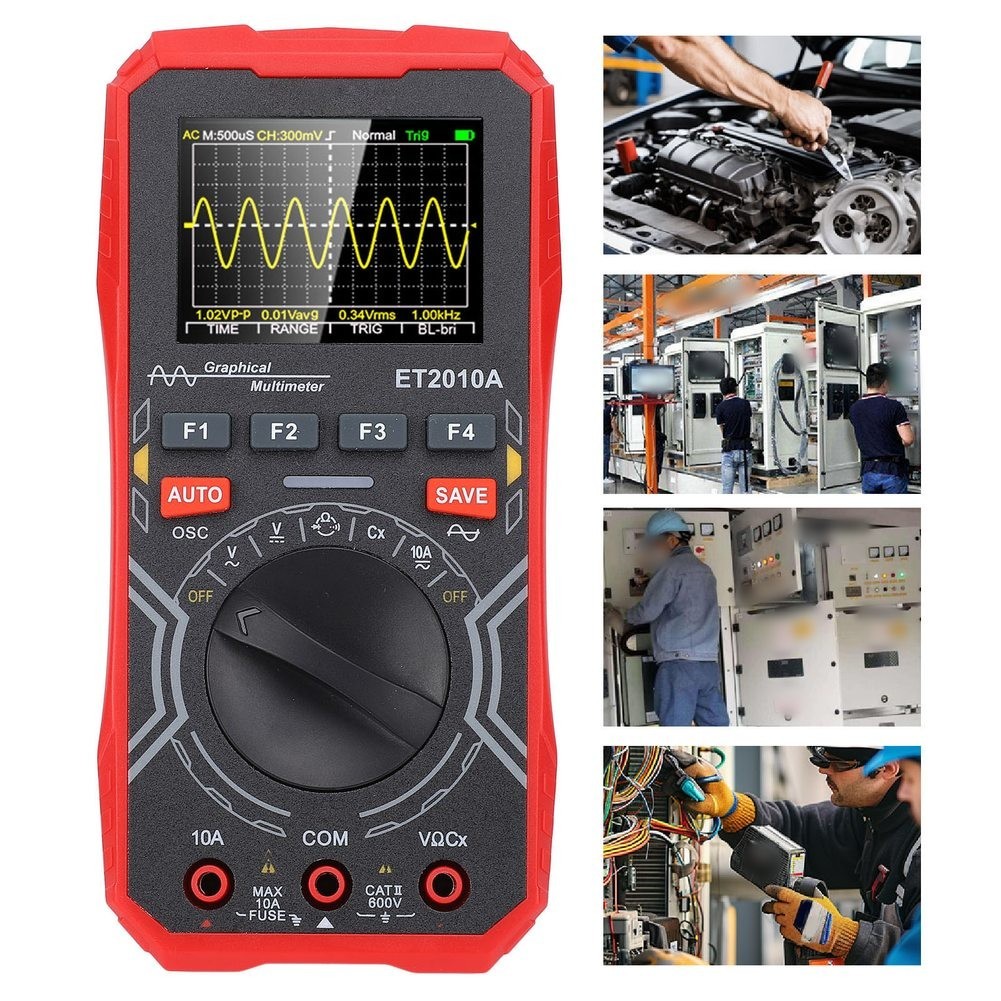

5. Wide Application: This portable handheld flatbed oscilloscope is equipped with dual fuses, improving safety and reliable in various environments. It performs excellently in electronic circuit testing and debugging, electronic equipment troubleshooting and repair, and measurements in fields such as communications and computers.
Specifications:

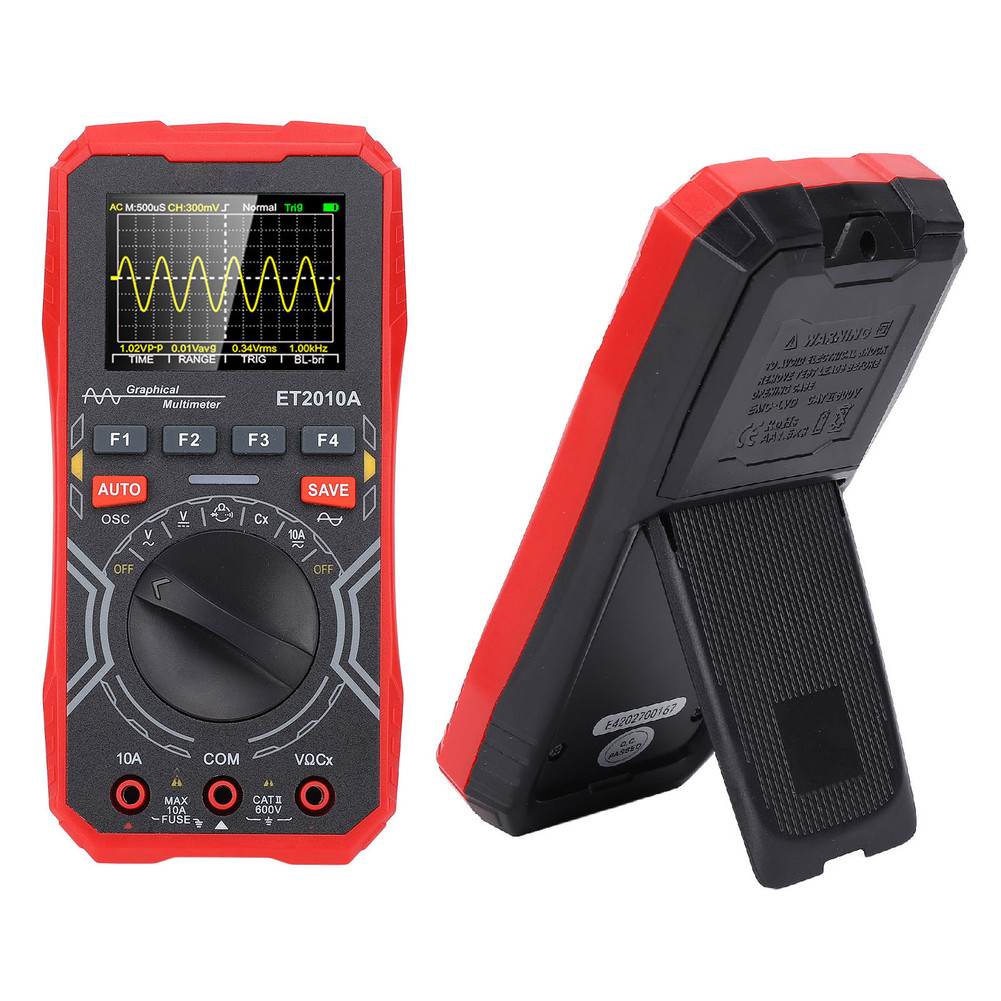

Part Name: ET2010A Multimeter
Material: ABS
Color: Red and Black

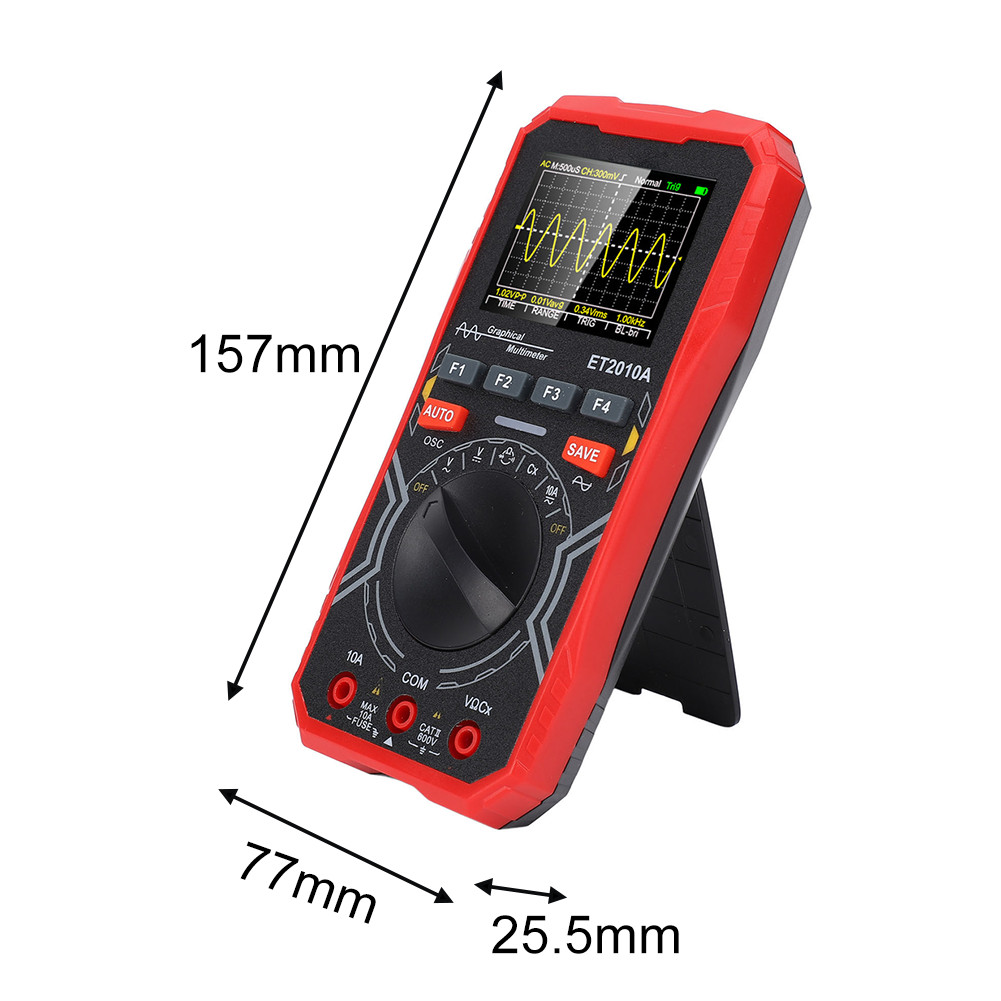

Size: 157*77*25.5mm

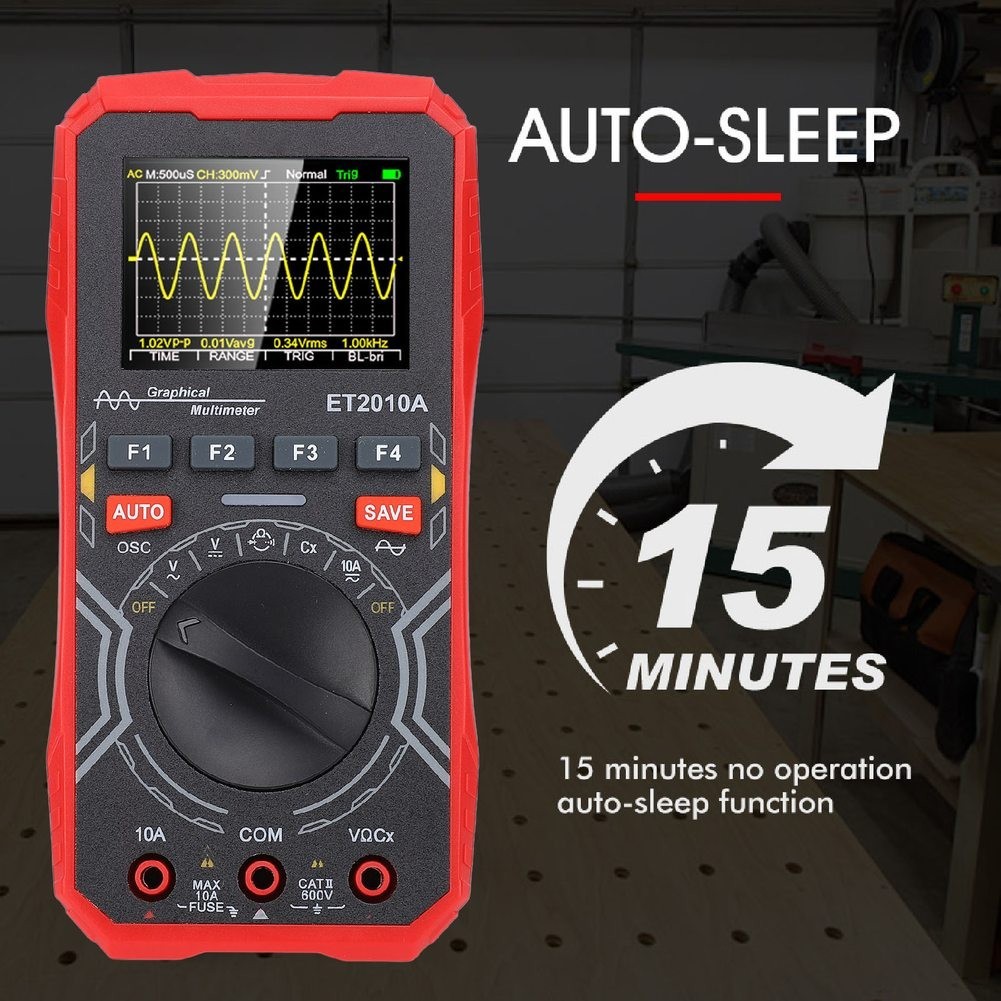

Automatic Sleep: Automatically sleeps after 15 minutes of inactivity or disabling. Storage: 100 sets of data from the digital multimeter, 10 sets of oscillation waveforms

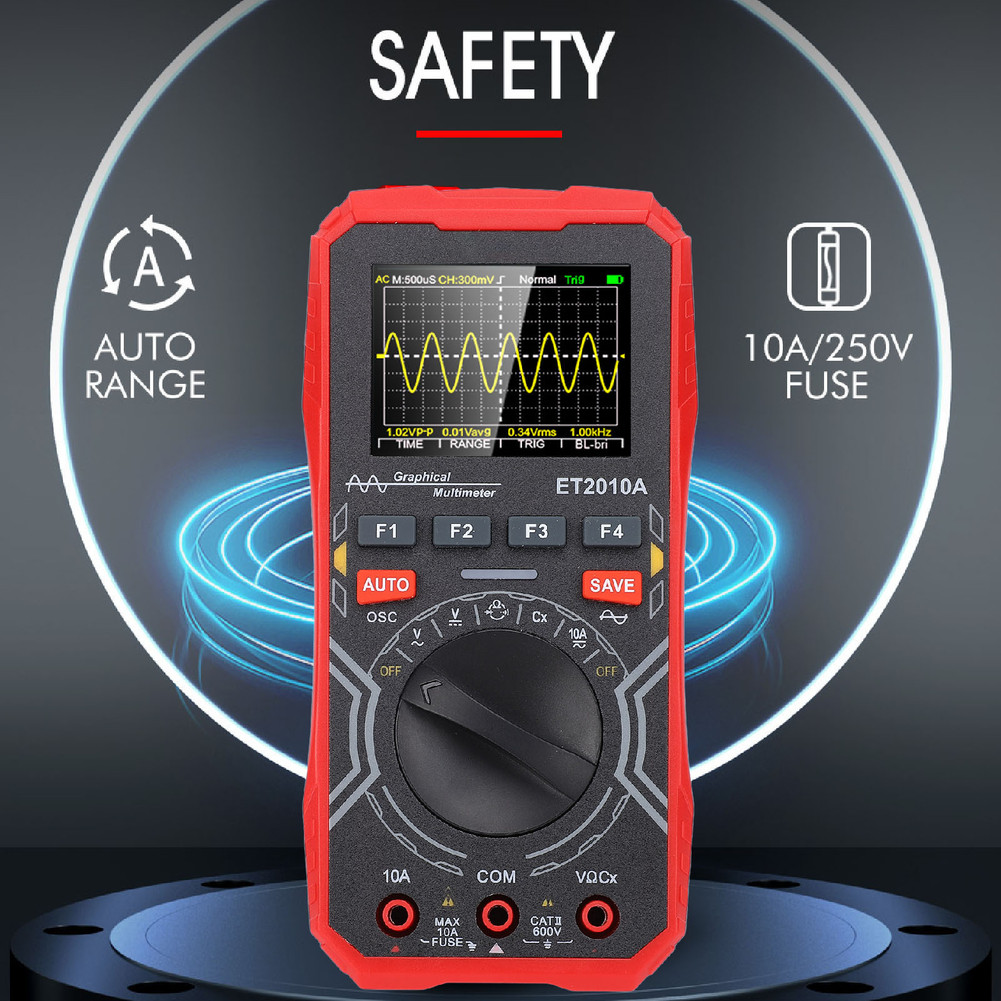

Fuse: 10A, 250V
AC Voltage: 4V-600V
DC Voltage: 4V-600V
AC Current: 4A-10A
DC Current: 4A-10A
Resistance: 400Ω-40MΩ
Capacitor: 51.2nF-100uF
for Frequency: 5Hz-5MHz
Duty for Cycle: 0%-100%
Diode Test: Open circuit voltage approximately 1.5V
Continuity Test: Resistance To determine the resistance, use a buzzer (approximately 50Ω).
Bandwidth: 1MHz

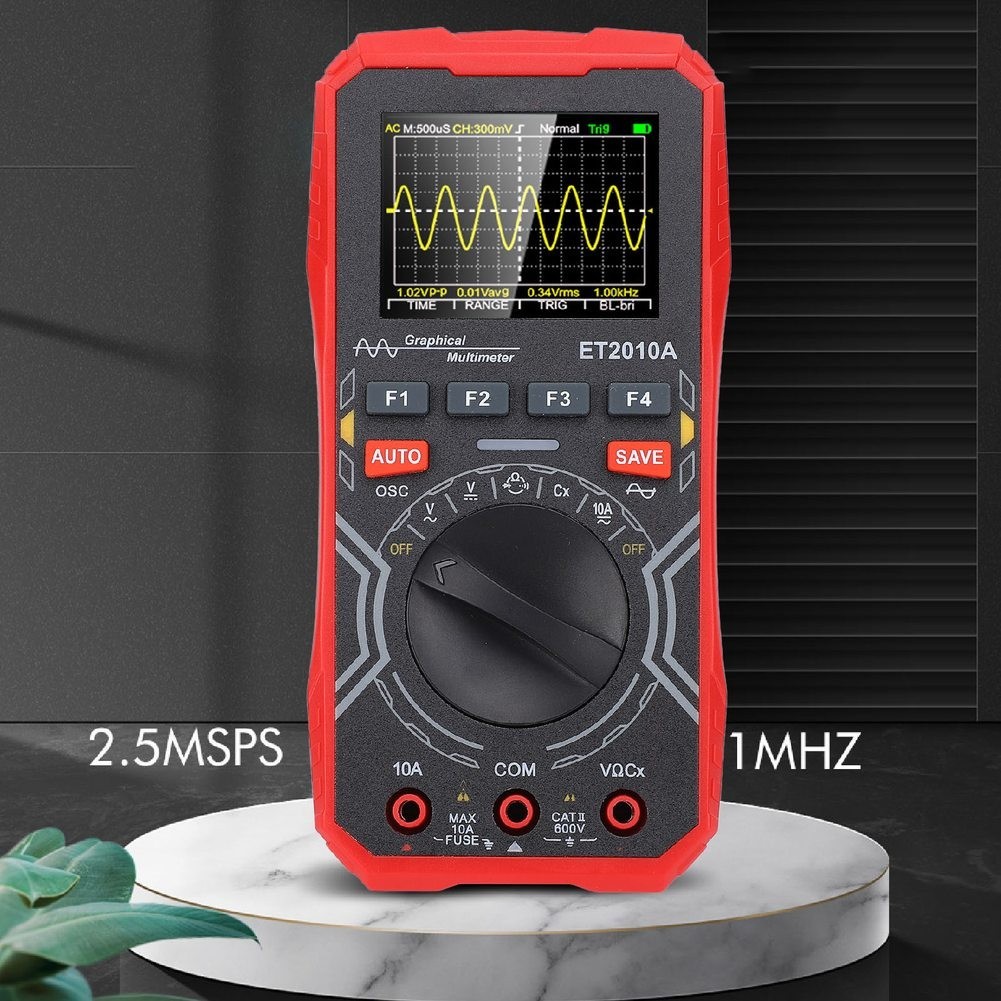

for Maximum Real-Time Sampling Rate: for 2.5Msps
Number of Channels: 1
Vertical Sensitivity Range: 300mV-1000V/division
Vertical Range Accuracy: ±(5%+0. for 2 divisions)
Time Base Range: for 2.5us-10s/division
Time Base Accuracy: ±(0.01%+0.1 divisions)
Trigger Modes: Auto, Single, Normal
Trigger Edge Selection: Rising Edge, Falling Edge
Measurement Functions: Peak-to-Peak Voltage ( for Vp-p), Average Voltage (Vavg), for RMS Voltage (Vrms), for Frequency (Hz)
Input Resistance: Approximately 10MΩ

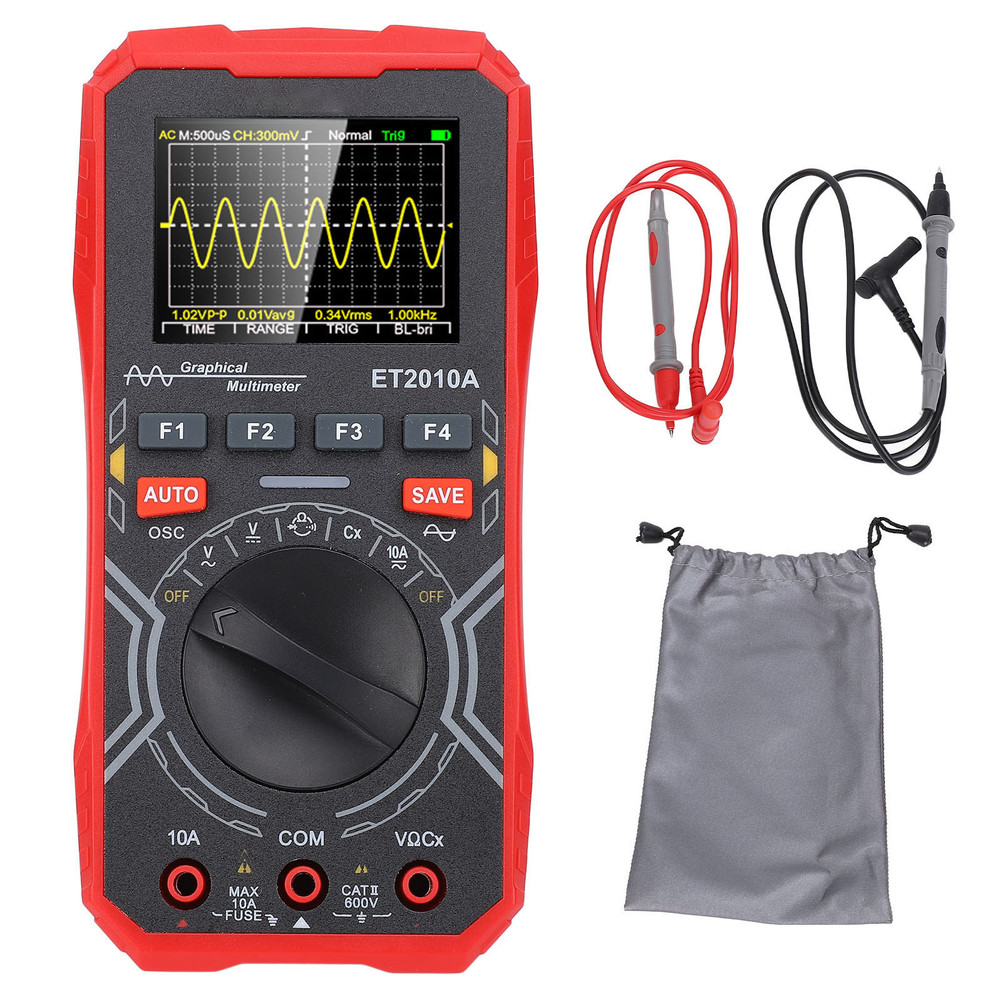

Package Contents:
1* Multimeter
for 2* Test Pen
1* Storage Bag
Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
for 2. Please allow slight manual measurement deviation for the data.
