Description

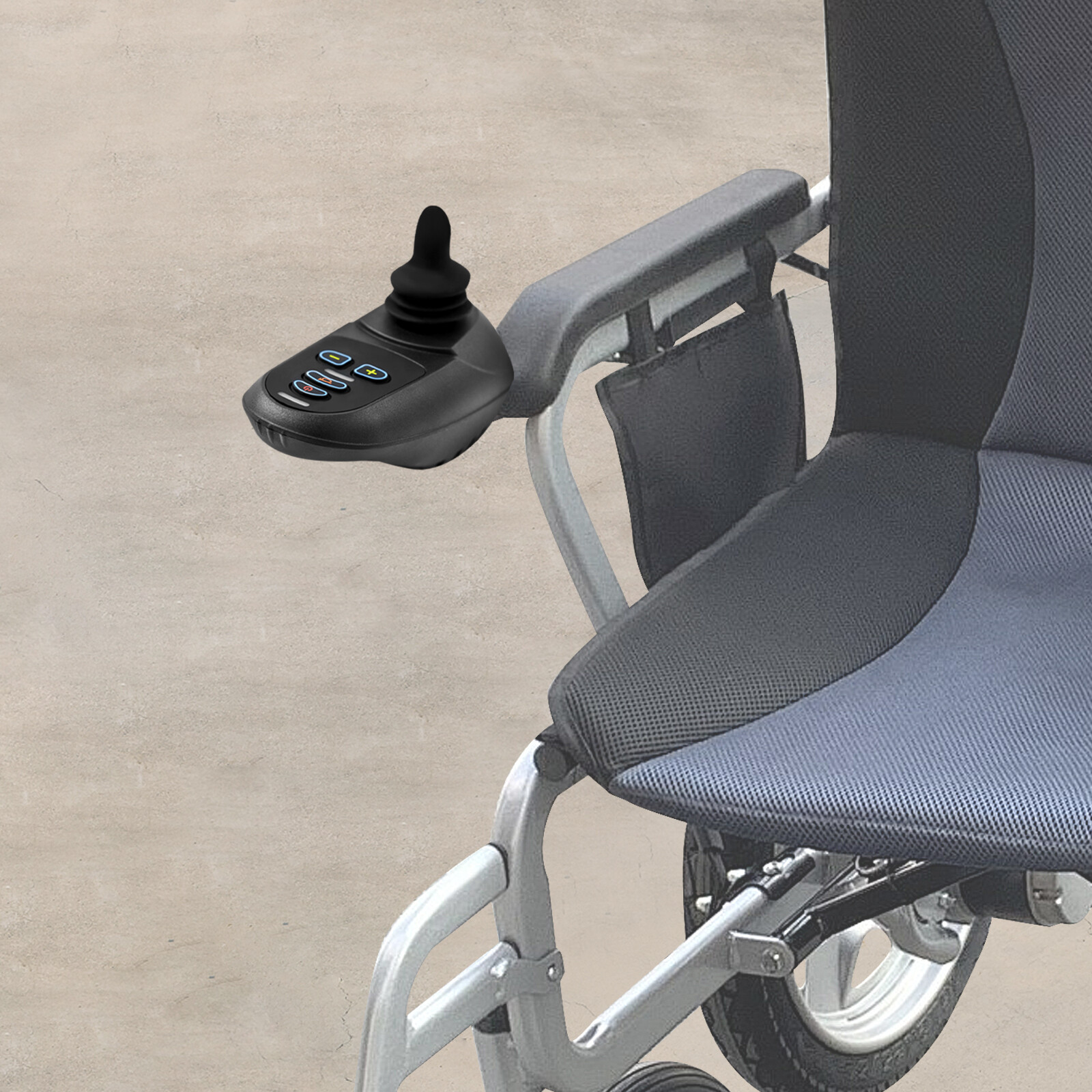

With heartfelt dedication, we bring you products designed to uplift your happiness. Our electric wheelchair joystick controller features an intelligent operating mechanism, delivering smooth starts, responsive acceleration, and deceleration, ensuring an effortless, uninterrupted experience for ultimate enjoyment.

Key Features

Premium Material: The product is made of high-class aluminum and ABS, featuring high hardness, waterproof, and wear-resistant properties, ensuring a long service life.

Powerful Performance: The 50A output current provides strong power to drive the motor of the wheelchair for effortless slope climbing, enabling your wheelchair to easily cross various road surfaces.

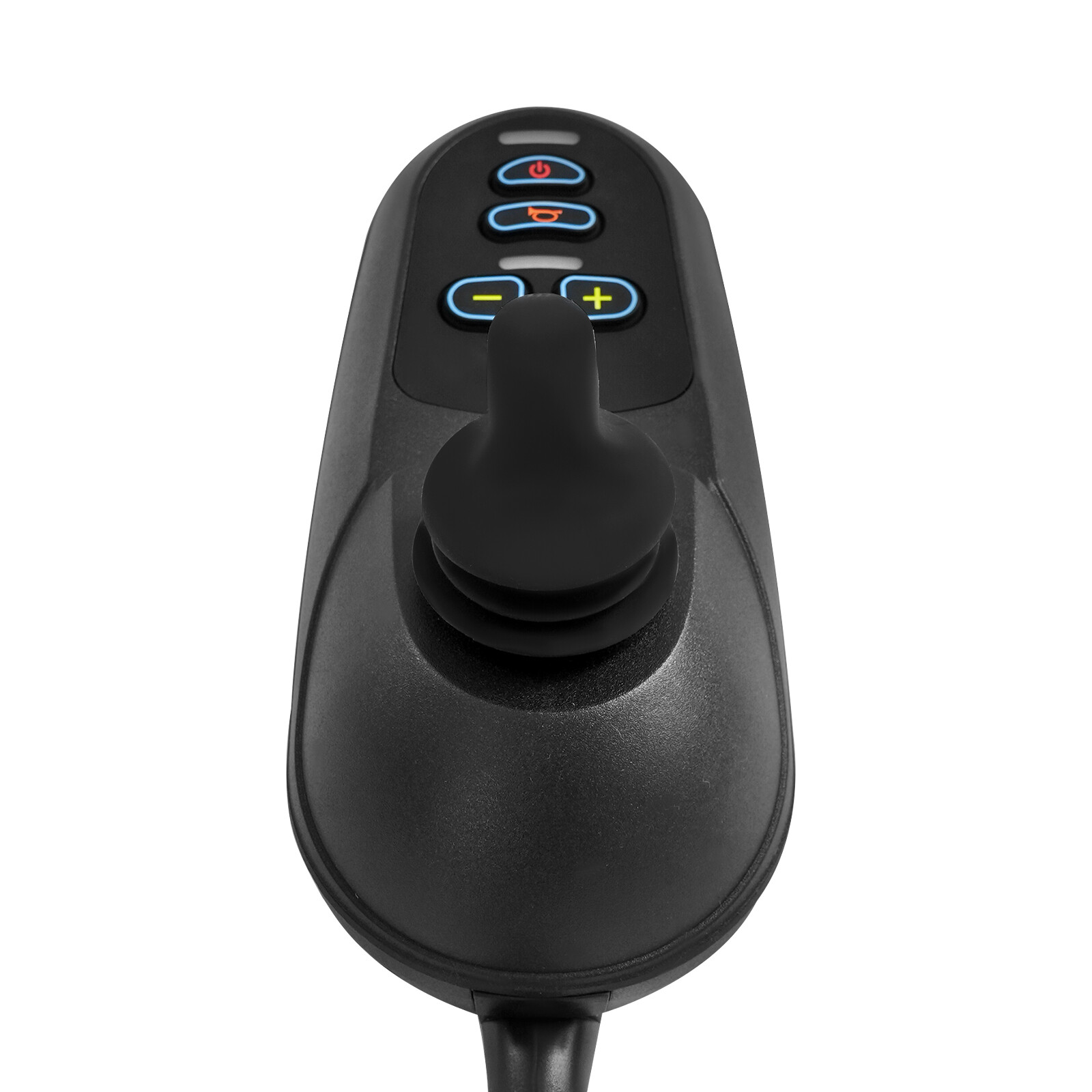

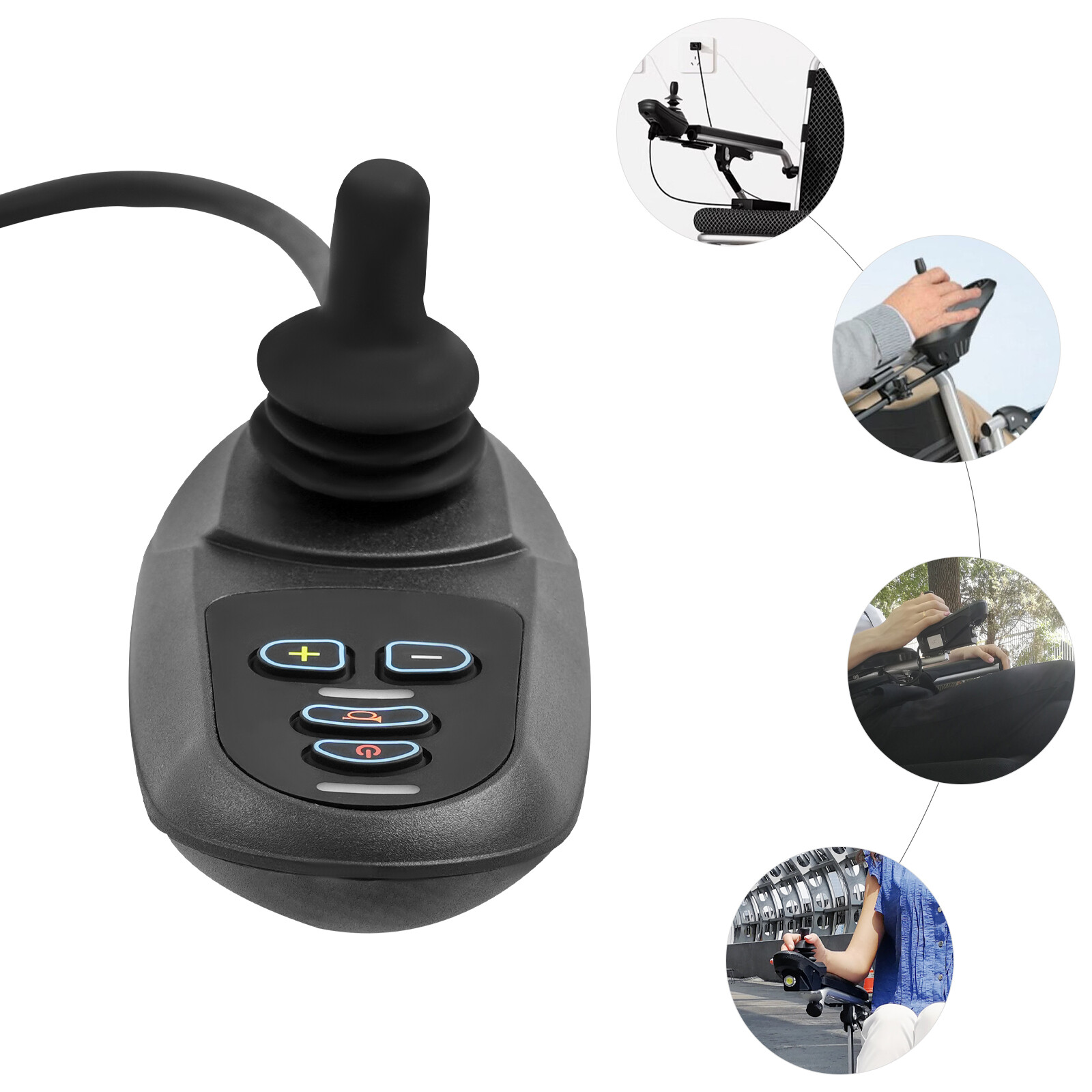

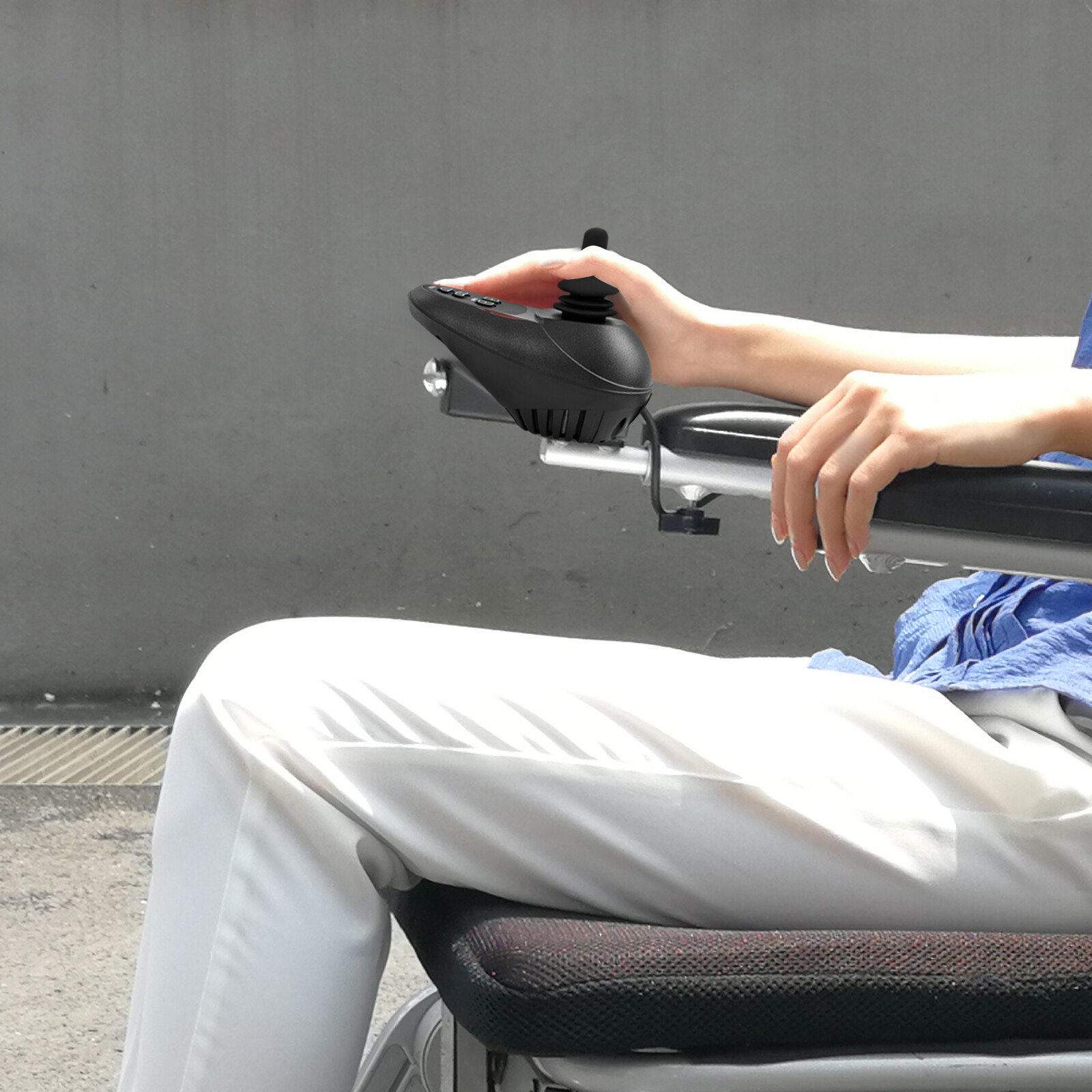

Convenient to Use: The 360° omnidirectional joystick enables precise and flexible control in all directions (forward, backward, left, right), making operation easy and convenient.

Powerful Function: This electric wheelchair rocker controller is used to control the speed and direction of the wheelchair. It has a stable start, flexible control, and high sensitivity. Five adjustable speed levels can meet various needs. It comes with sound prompts, such as reverse and gear reminders to enhance the user experience.

Safety & Reliability: The product includes a ramp parking brake function to prevent sliding or tipping on slopes. The wheelchair stops immediately when the handle is released. Additionally, it also has short-circuit protection, temperature protection, speed protection, battery protection, charge suppression, and controller connector detachment protection to ensure safer use. It also provides fault alerts for motor or battery issues.

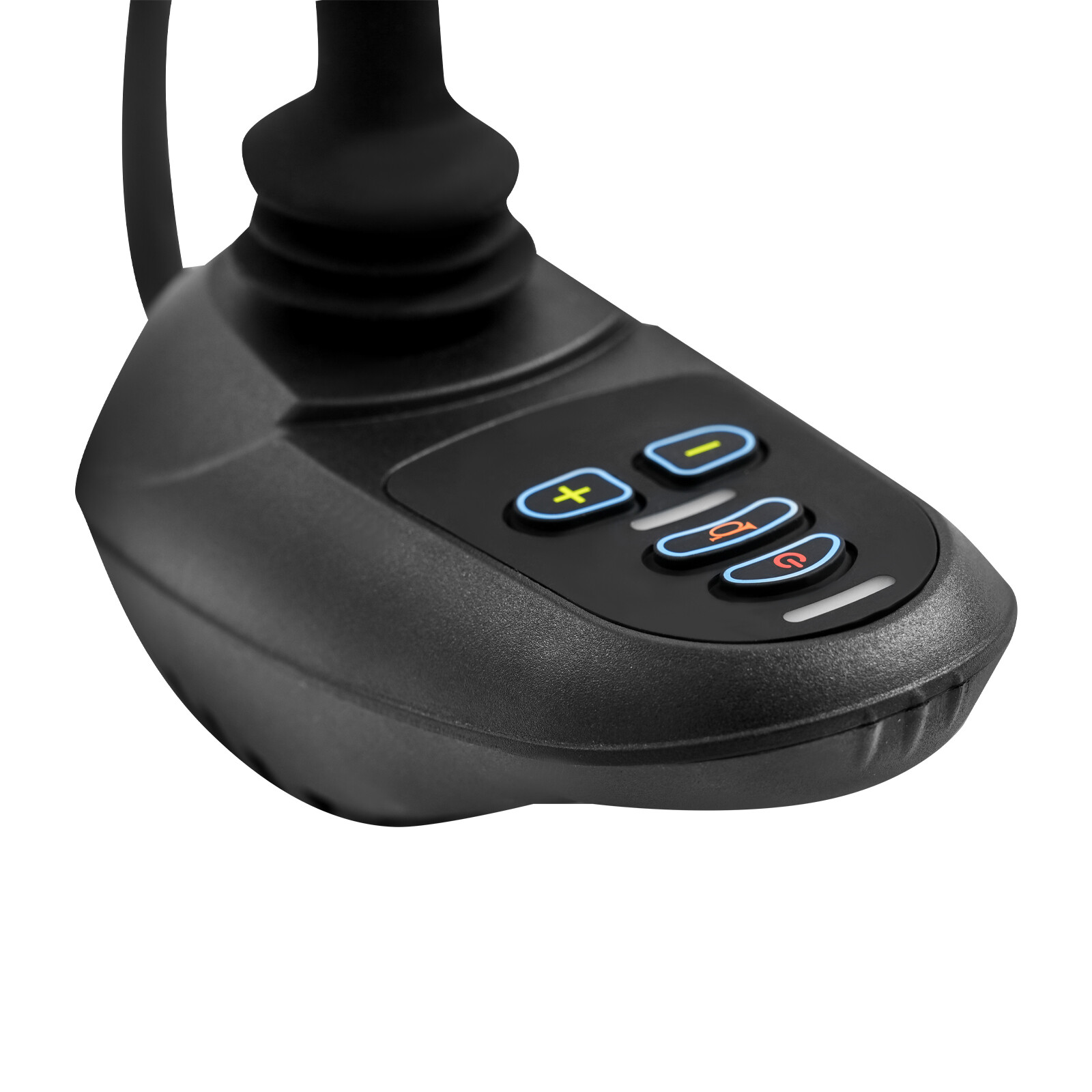

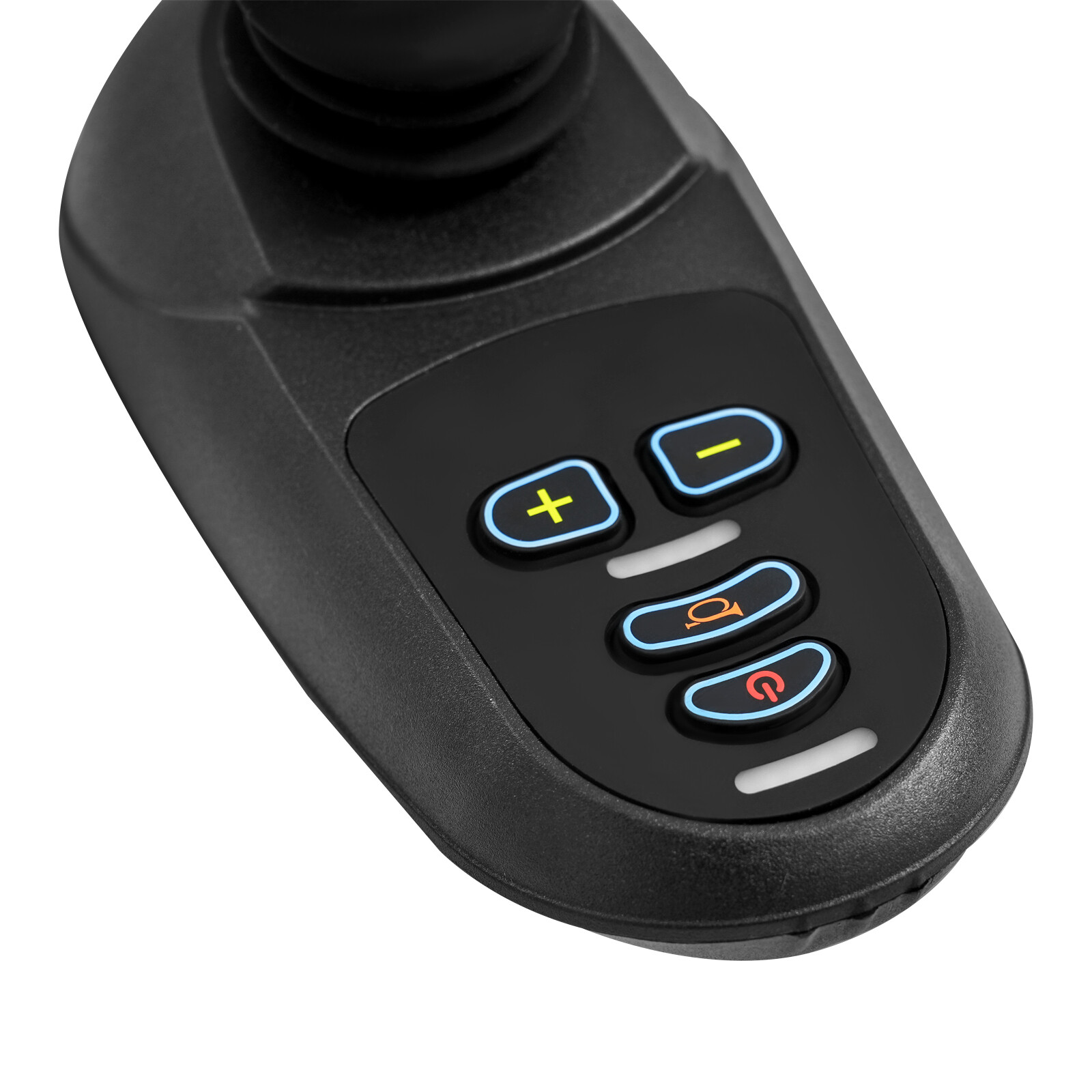

User-Friendly Design: Clear battery level and speed gear indicators allow easy monitoring of usage status. It can add a remote wireless control (not included), which can be controlled wirelessly within 65.62ft.

Ideal Gift: Because of its excellent performance and practical function, you can give it as a gift to the elderly or disabled people who need to use wheelchairs on Christmas, Thanksgiving, housewarmings, and other holidays.

Customer Service: We stand behind all our guests and look forward to assisting you with your purchase. It is our pleasure to answer your confusion and questions. The end of the story between us is not "we sell and you buy".

Details

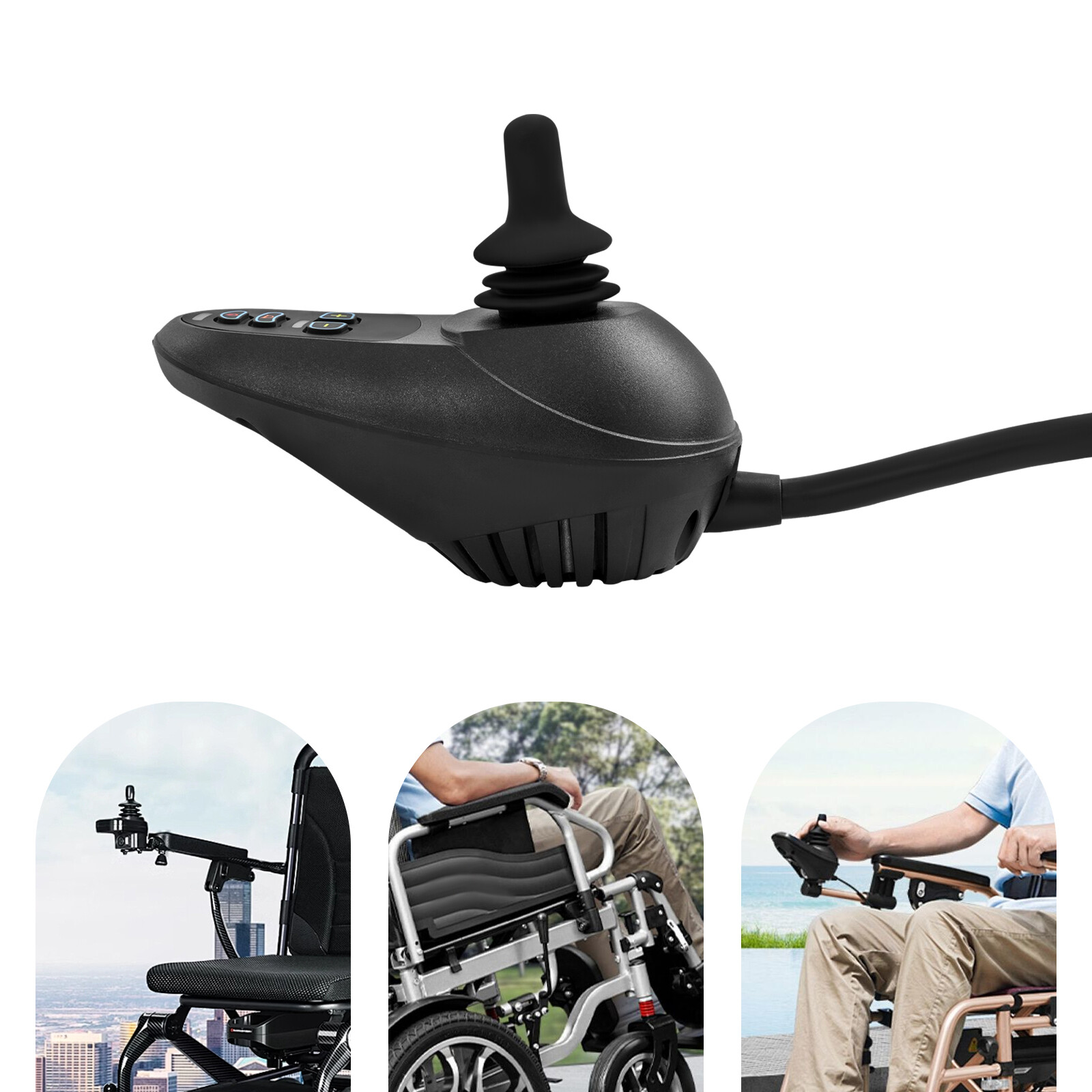

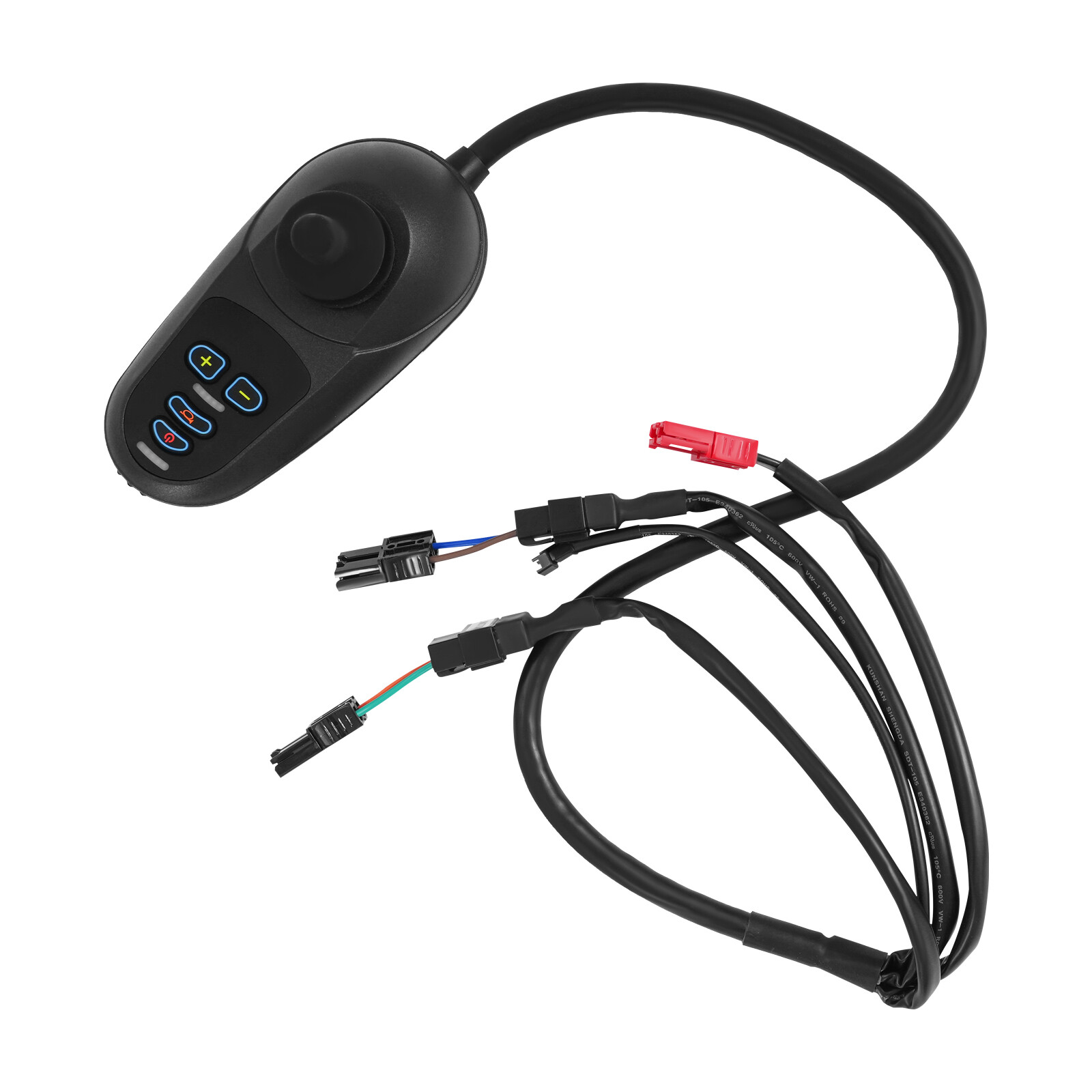

Long Cable: The 3.93ft cable allows for easy connection, reducing restrictions for convenient use.

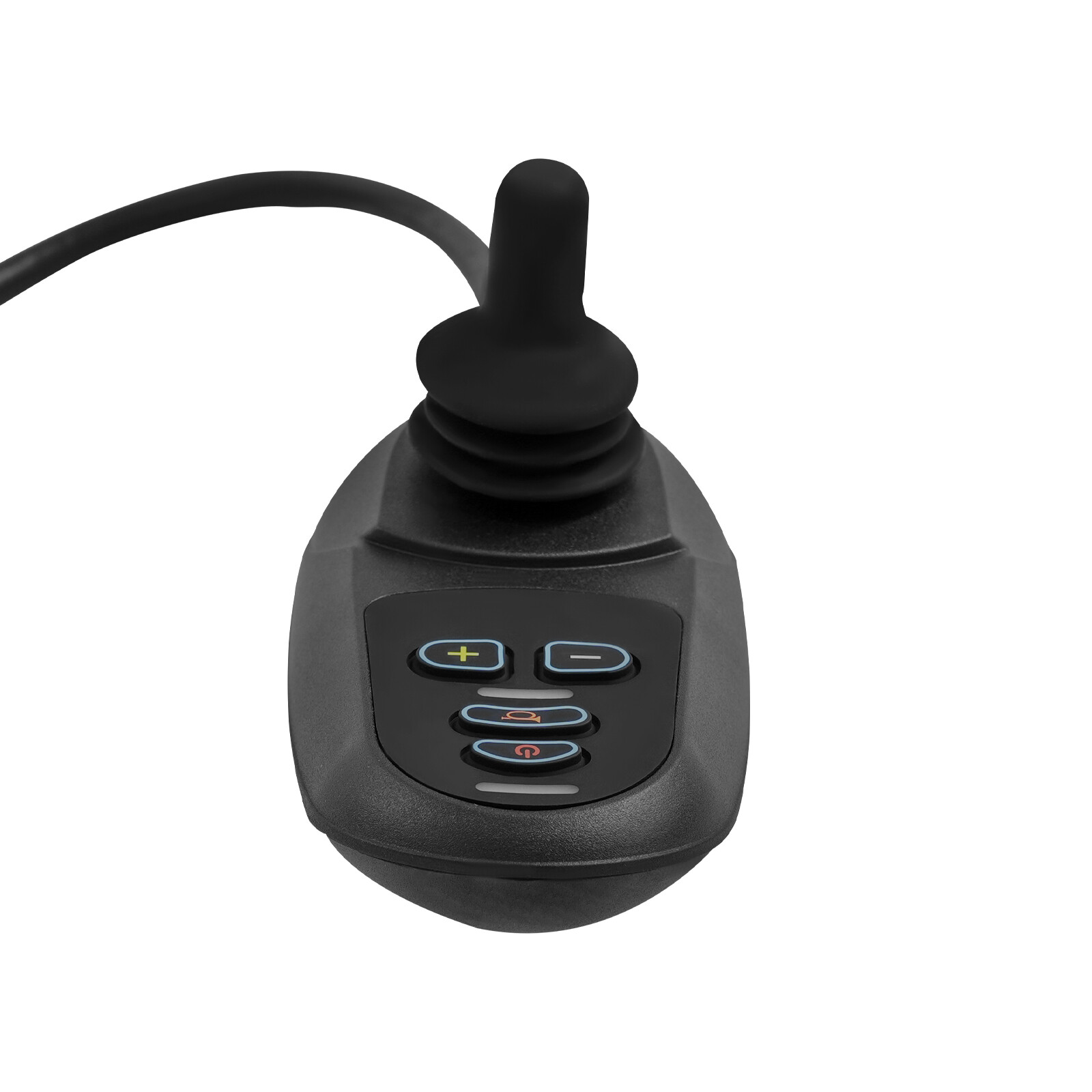

Horn Button: It has a horn button. When it is pressed, the controller can emit a sound to warn people and vehicles around you, avoiding accidents.

Application

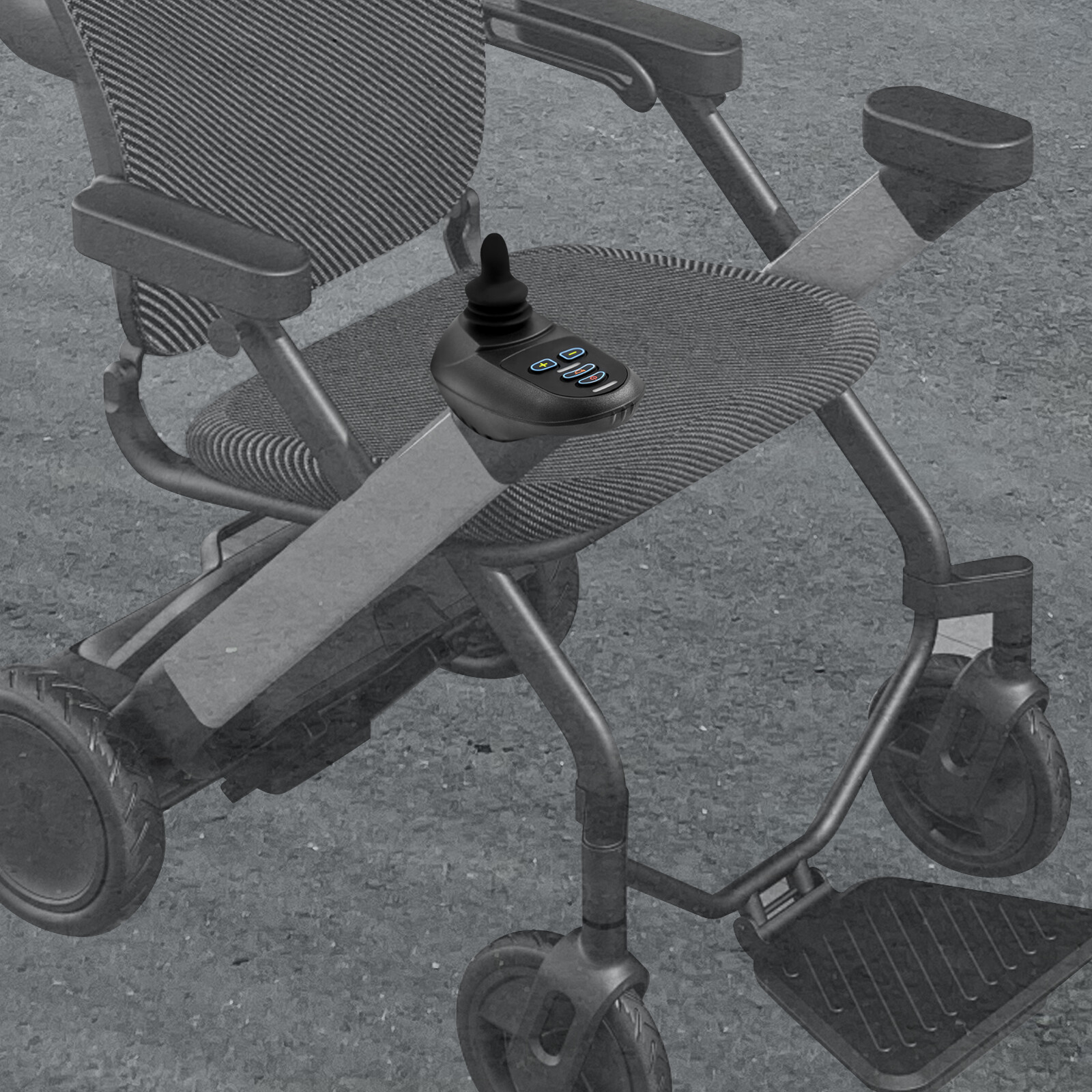

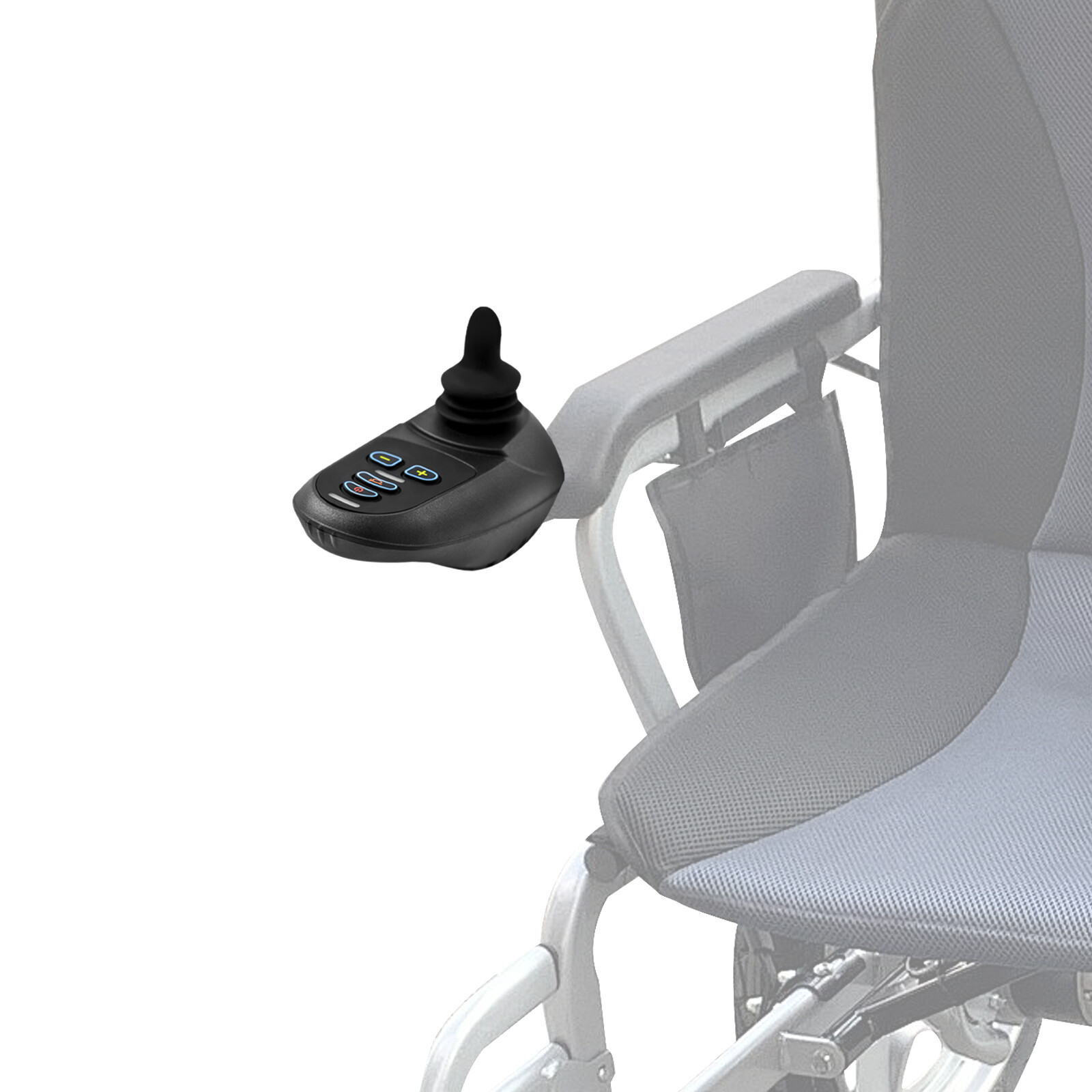

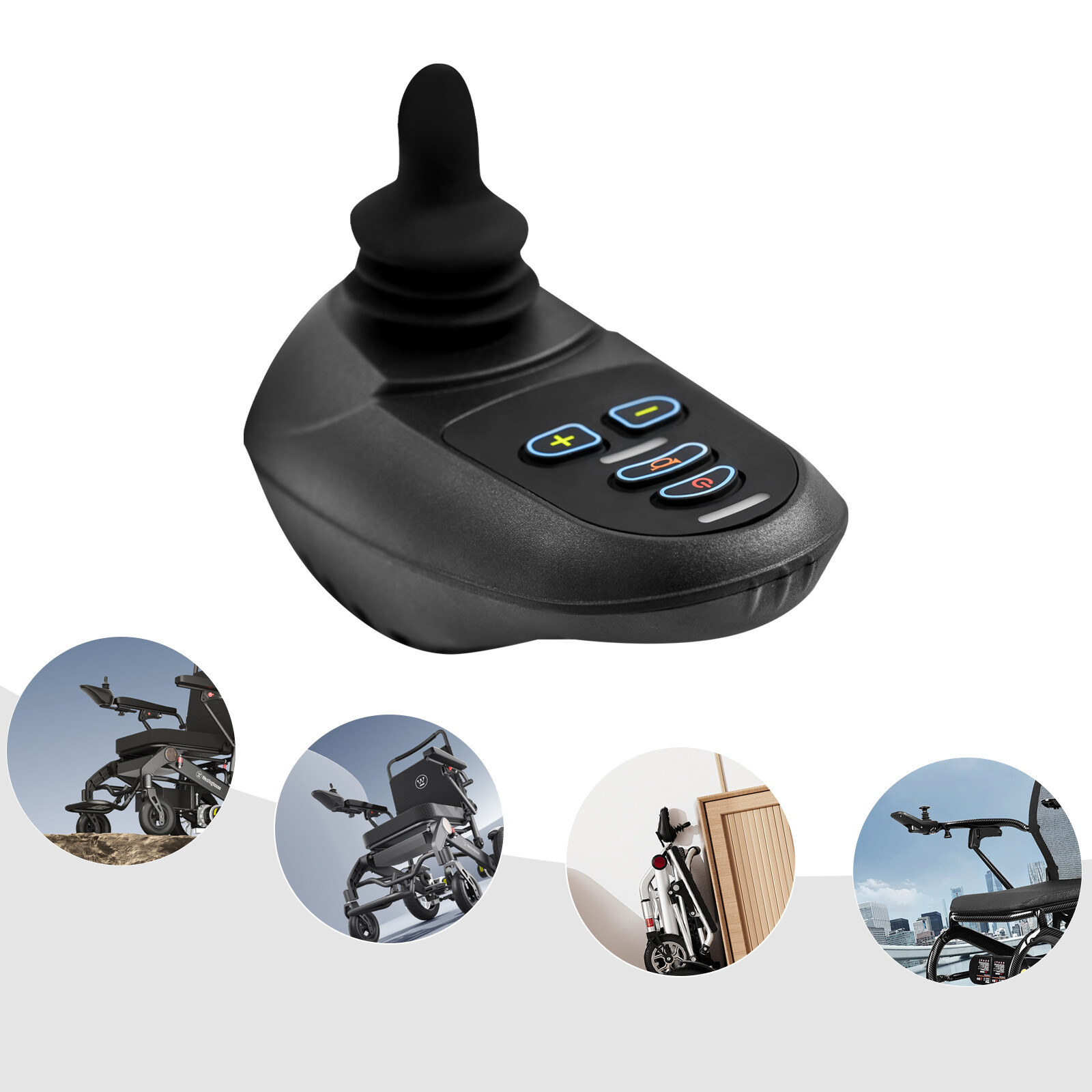

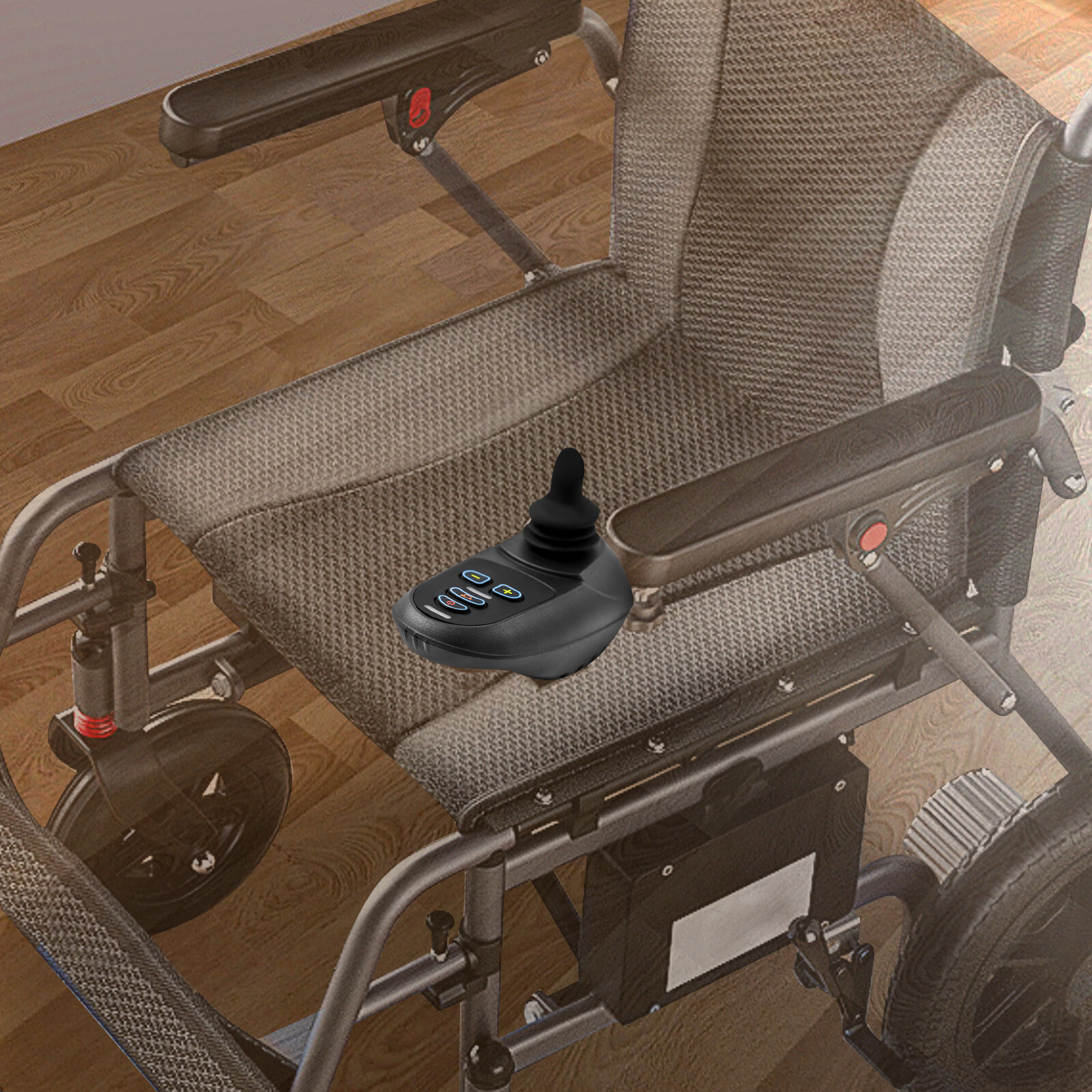

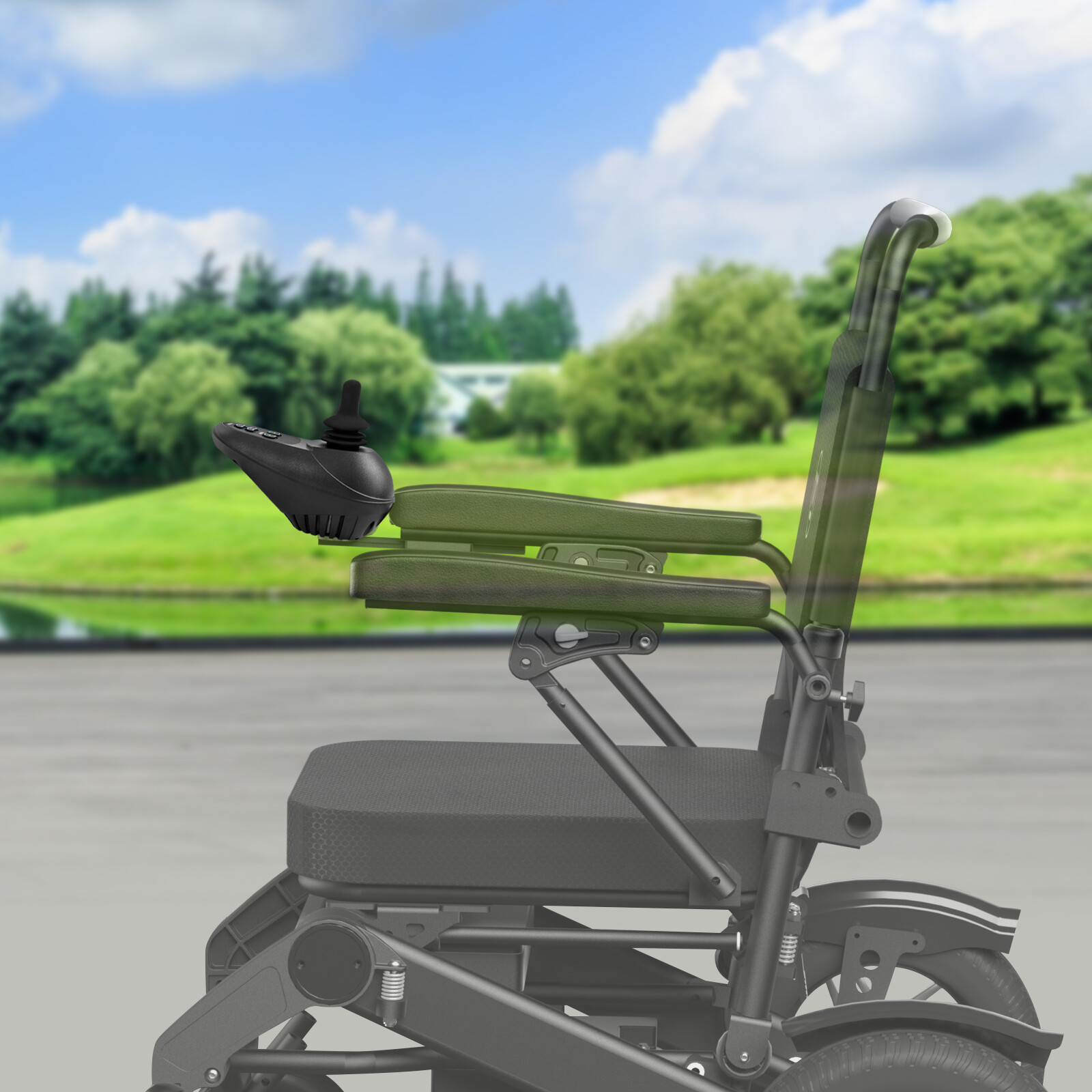

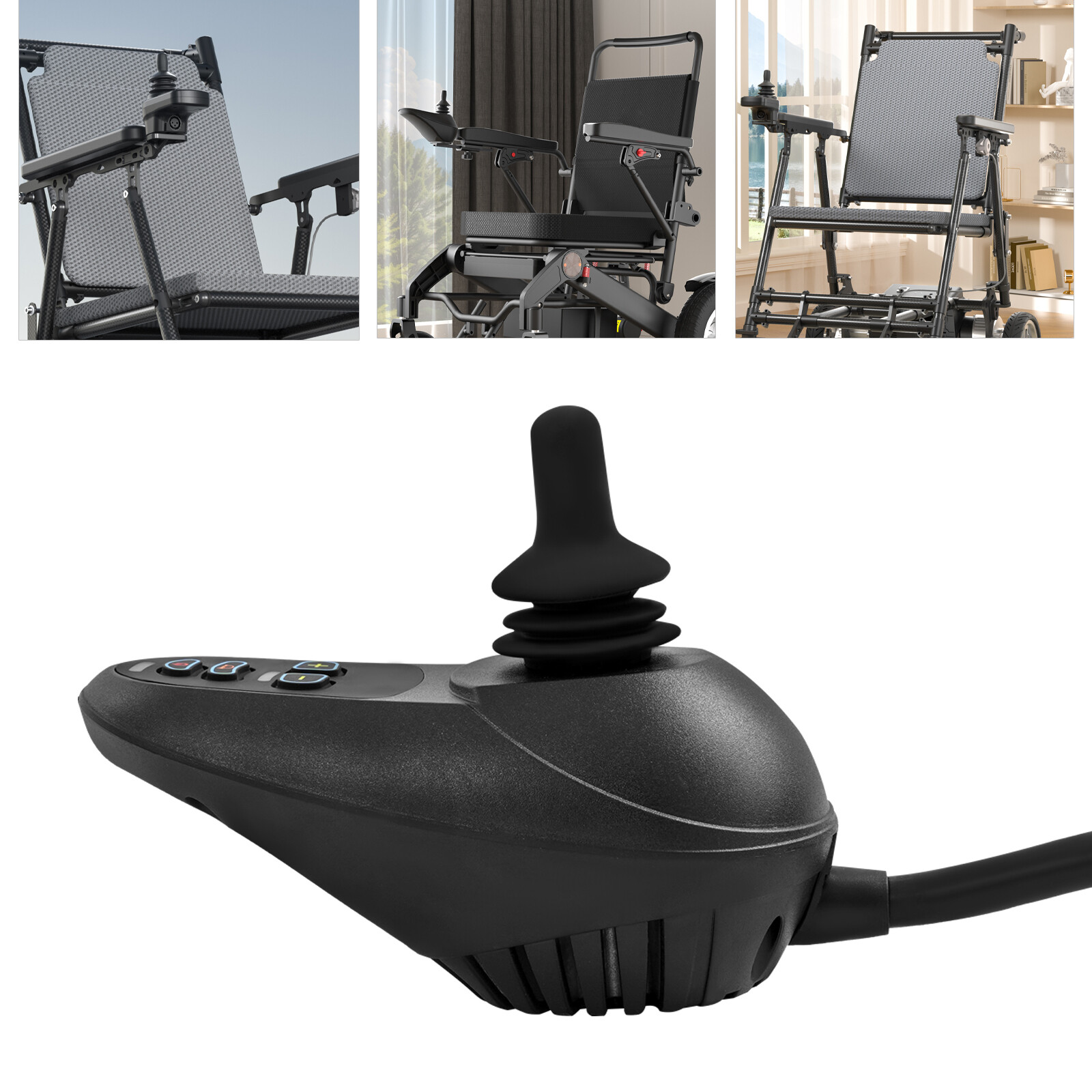

This product is suitable for electric wheelchairs, intelligent robots, entertainment equipment, and various mobile products.

Specifications

Item Type: Electric Wheelchair Controller

Color: Black

Material: Aluminum, ABS

Connection Mode: ML2P+ Adapter Cable

Supply Voltage: DC 24V

Operating Voltage: DC19-32V

Peak Voltage: DC 35V

Output Current: 50A

Brake Voltage: DC24V

Brake Current: 3A Max. For Single Circuit

Battery Charging Current: Maximum 6A(Through the Controller Charging)

Standby Current(Stationary): ≤ 50mA

Standby Current(Power Off): 0.1 ± 0.05mA

Operating Temperature: -25~60°C/-13~140℉

Storage Temperature: -45~ 80°C/-49~176℉

Applicable Drive Motor: 24V DC Brush Motor

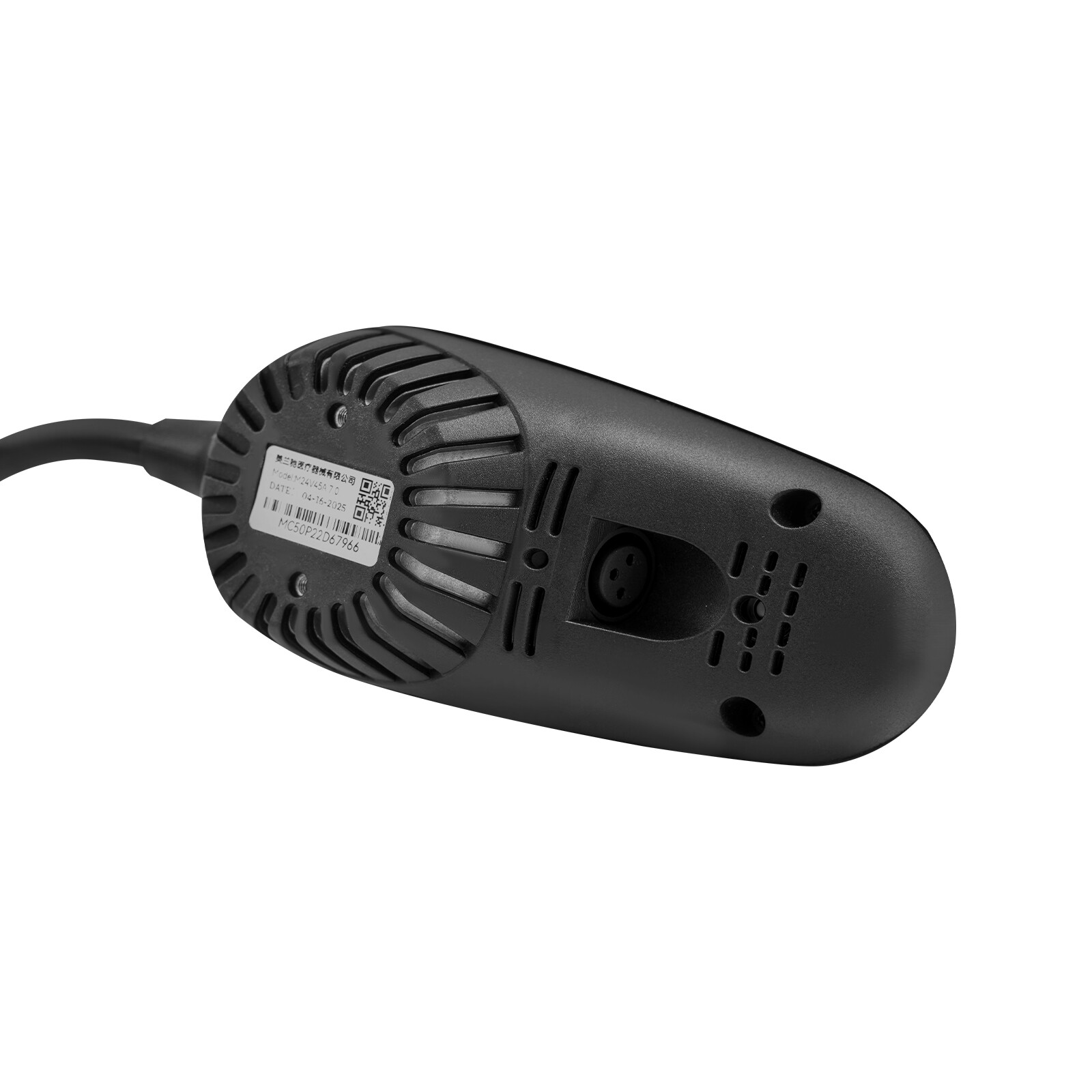

Mounting Hole Distance: 40mm/1.57in

Drive Mode: PWM Duty Cycle Adjustment, Soft Start, Electrical Differential

Adjustable Speed: 5 Gears

Waterproof Level: IPX3

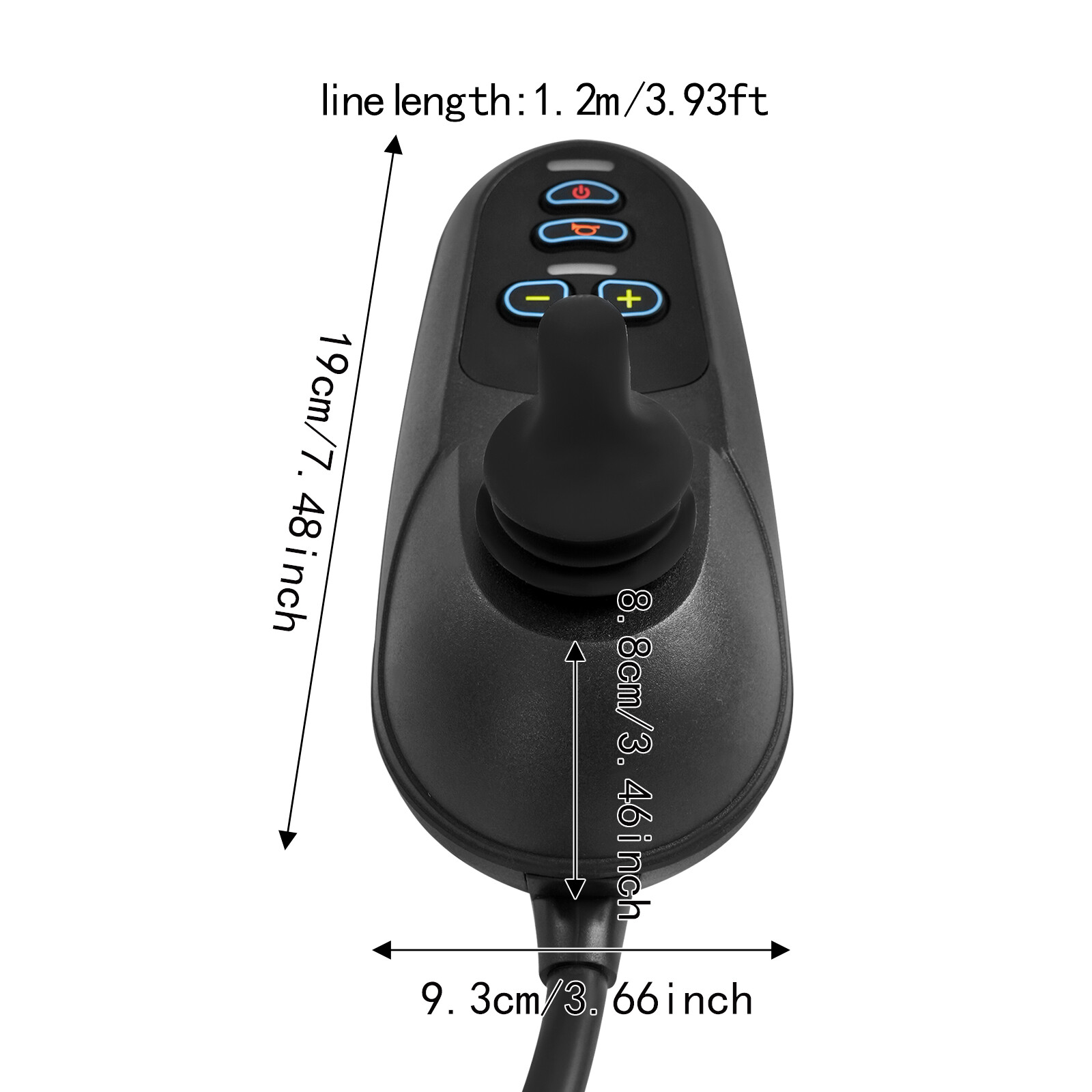

Line Length: 1.2 m/3.93ft

Product Size: 19*9.3*8.8cm/7.48*3.66*3.46in

Package Size: 23*13*16cm/9.06*5.12*6.3in

Gross Weight: 1.3kg/2.87 lbs

Net Weight: 1.24kg/2.73 lbs

Package Included

1* Electric Wheelchair Joystick Controller

2* Cable Ties

2* Screws

Notes

• Please check the product size before ordering to make sure it fits your needs.
• Please note that the product can only be normally waterproof and cannot be exposed to rain.
• Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
