Nachi EMC-PC6-A-20 6-Ch Proportional Valve Amplifier Solenoid 900mA
- In Stock: 1
- Brand: Nachi
- Condition: Used
- Notes: Previously used item in very good condition. Minimal signs of wear. Tested and fully functional. We warranty all items for 30 days.
- Model: EMC-PC6-A-20
- Type: Control Valve
- Shelf: E-15
- Part Number: EMC-PC6-A-20
- Manufacturer: Nachi
- Full Load Amps:: 900 mA (20Ω solenoid)
- MPN: EMC-PC6-A-20
- Media 1 Description: Nachi EMC-PC6-A-20 Control Valve - Photo 1
- Media 2 Description: Nachi EMC-PC6-A-20 Control Valve Image 2
- Media 3 Description: Nachi EMC-PC6-A-20 Control Valve View 3
- Media 4 Description: Nachi EMC-PC6-A-20 Control Valve - Photo 4
- Mounting Type: Panel Mount
- Country of Origin: Japan

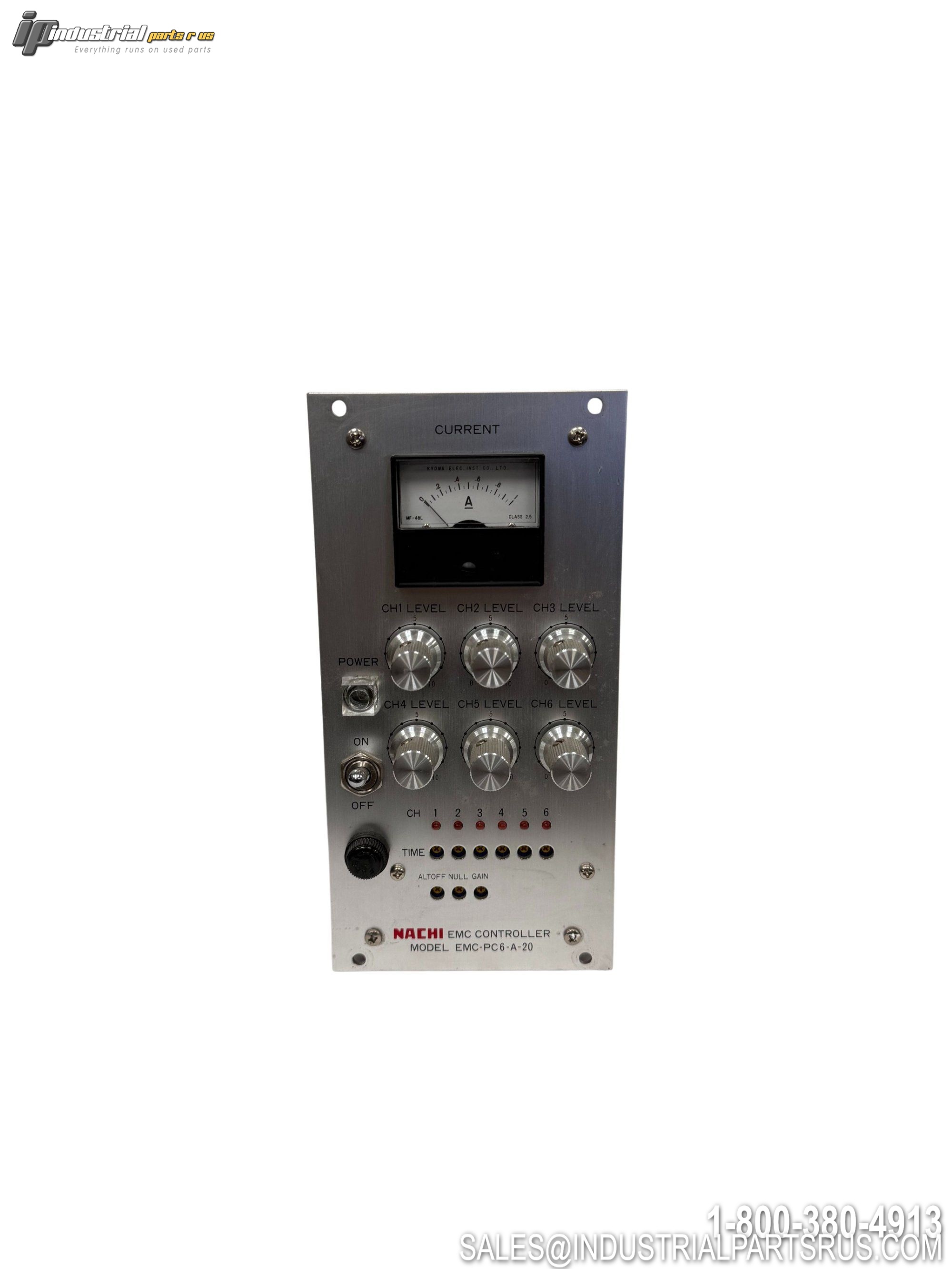

The Nachi EMC-PC6-A-20 is a 6-channel Controller Type power amplifier from Nachi-Fujikoshi's EMA/EMC Series, designed for driving electro-hydraulic proportional pressure, flow, and directional control valves. It performs multi-stage control of output current in response to ON/OFF signals from external contacts such as relay contacts, limit switches, or timer contacts. The unit features built-in command voltage setting potentiometers for each channel, internal dither adjustment, and supports both AC100/110V and AC200/220V power supply inputs.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Nachi |
| Model / Part Number | EMC-PC6-A-20 |
| Manufacturer | Nachi-Fujikoshi Corp. |
| Series | EMA / EMC Series |
| Product Type | Controller Type Power Amplifier (Electro-Hydraulic Proportional Valve Drive) |
| Function | Controller Type (multi-stage current control via ON/OFF external contacts) |
| Number of Channels | 6 |
| Maximum Output Current | 900 mA (20Ω solenoid) |
| Zero Adjust (NULL) | 0 to 900 mA |
| Dither Level | 0 to 500 mAp-p (internal, semi-fixed) |
| Dither Frequency | 50 to 220 Hz (internal, semi-fixed) |
| Supply Voltage | AC100/110V or AC200/220V (selectable) |
| Command Input | External contact inputs (CH1–CH6); relay contacts, limit switches, timer contacts |
| Built-in Command Voltage Setting | Yes (potentiometers, 1-rotation adjuster knob) |

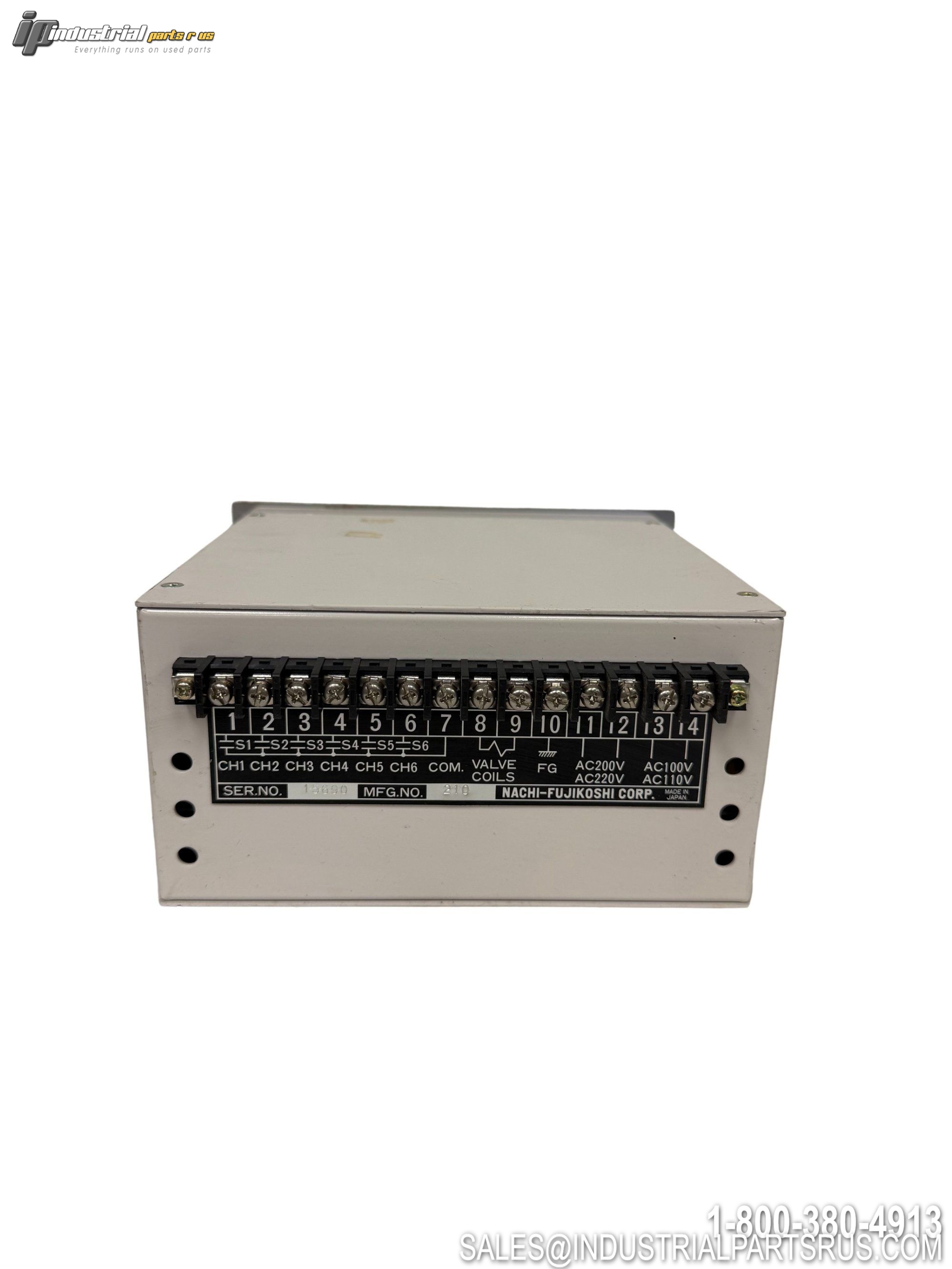

| Output | Direct to valve coil (terminals 8 & 9) |
| Compatible Valve Types | Electro-hydraulic proportional pressure, flow, and directional control valves |
| Mounting Type | Panel Mount |
| Width | 10 in (254 mm) |
| Height | 8 in (203 mm) |
| Depth | 12 in (305 mm) |
