Martin 40BB25H 5/8 #40 Ball Bearing Idler Sprocket 25T 5/8" Bore Hardened
- In Stock: 4
- Brand: Martin
- Condition: New
- Notes: New item in original sealed manufacturer packaging. Unopened and unused. We warranty all items for 30 days.
- Model: 40BB25H 5/8
- Type: Idler Sprocket
- Shelf: GS- 34
- Part Number: 40BB25H 5/8
- Manufacturer: Martin
- MPN: 40BB25H 5/8

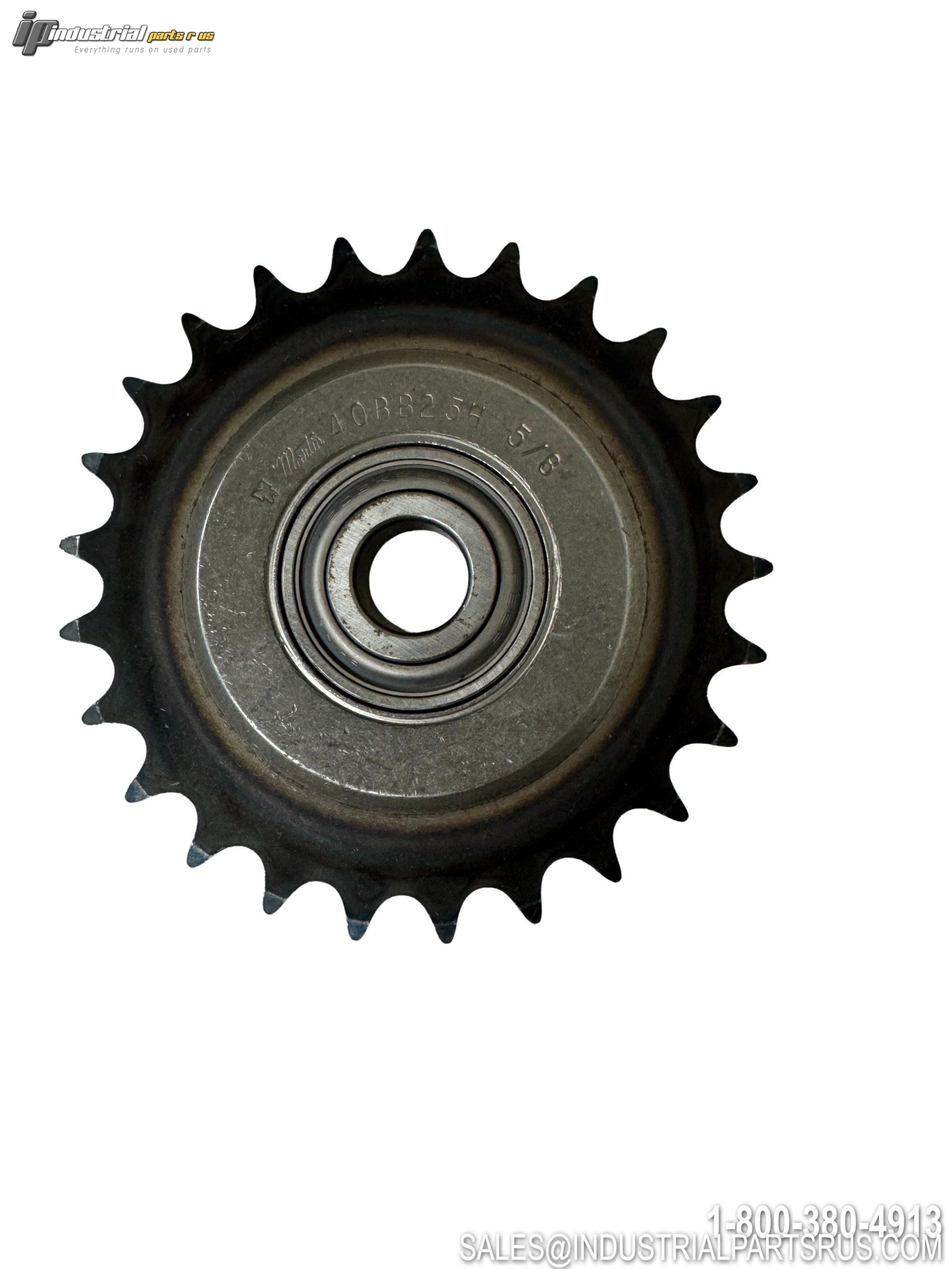

- Media 1 Description: Martin 40BB25H 5/8 Idler Sprocket - Photo 1

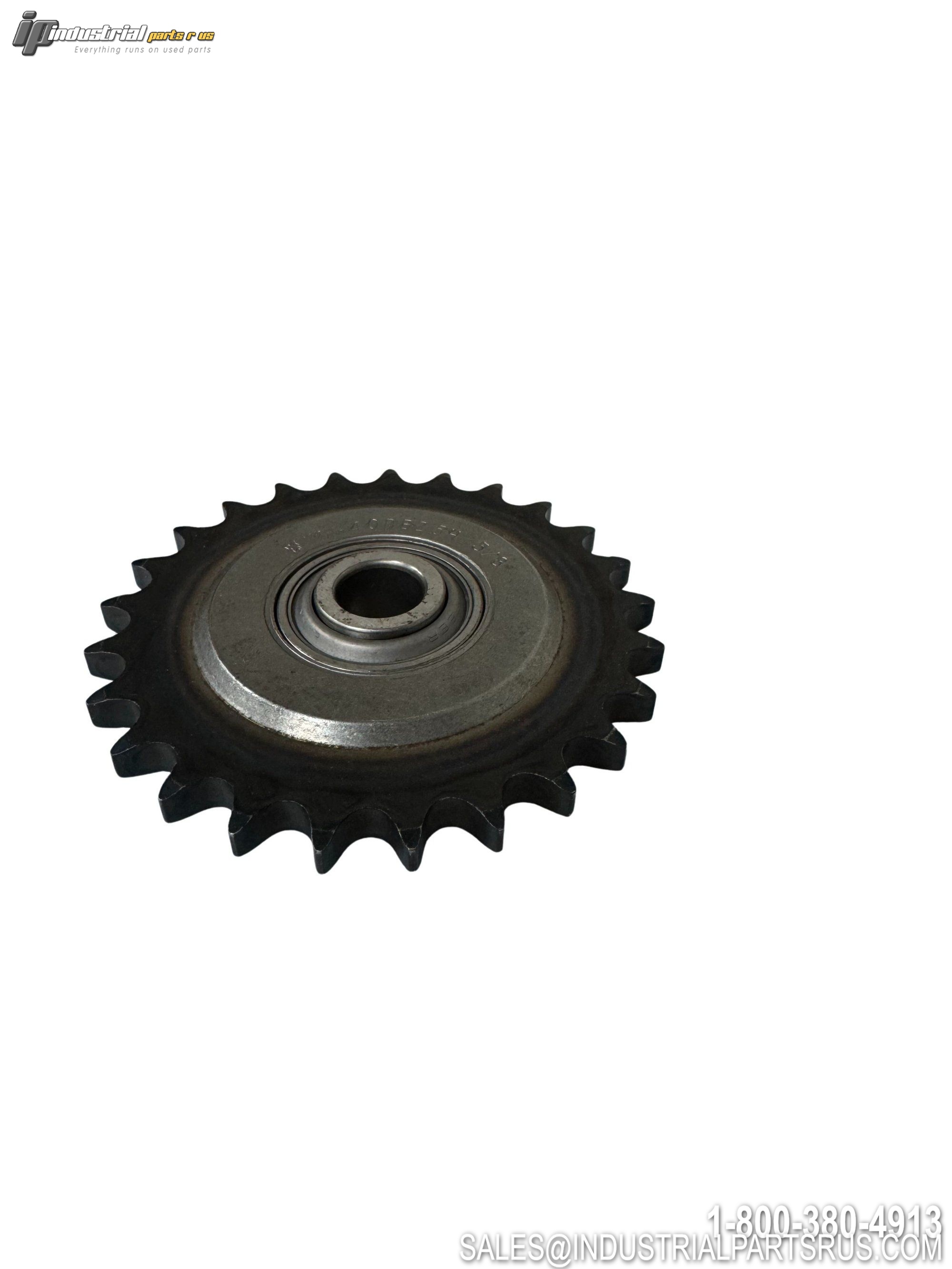

- Media 2 Description: Martin 40BB25H 5/8 Idler Sprocket Image 2

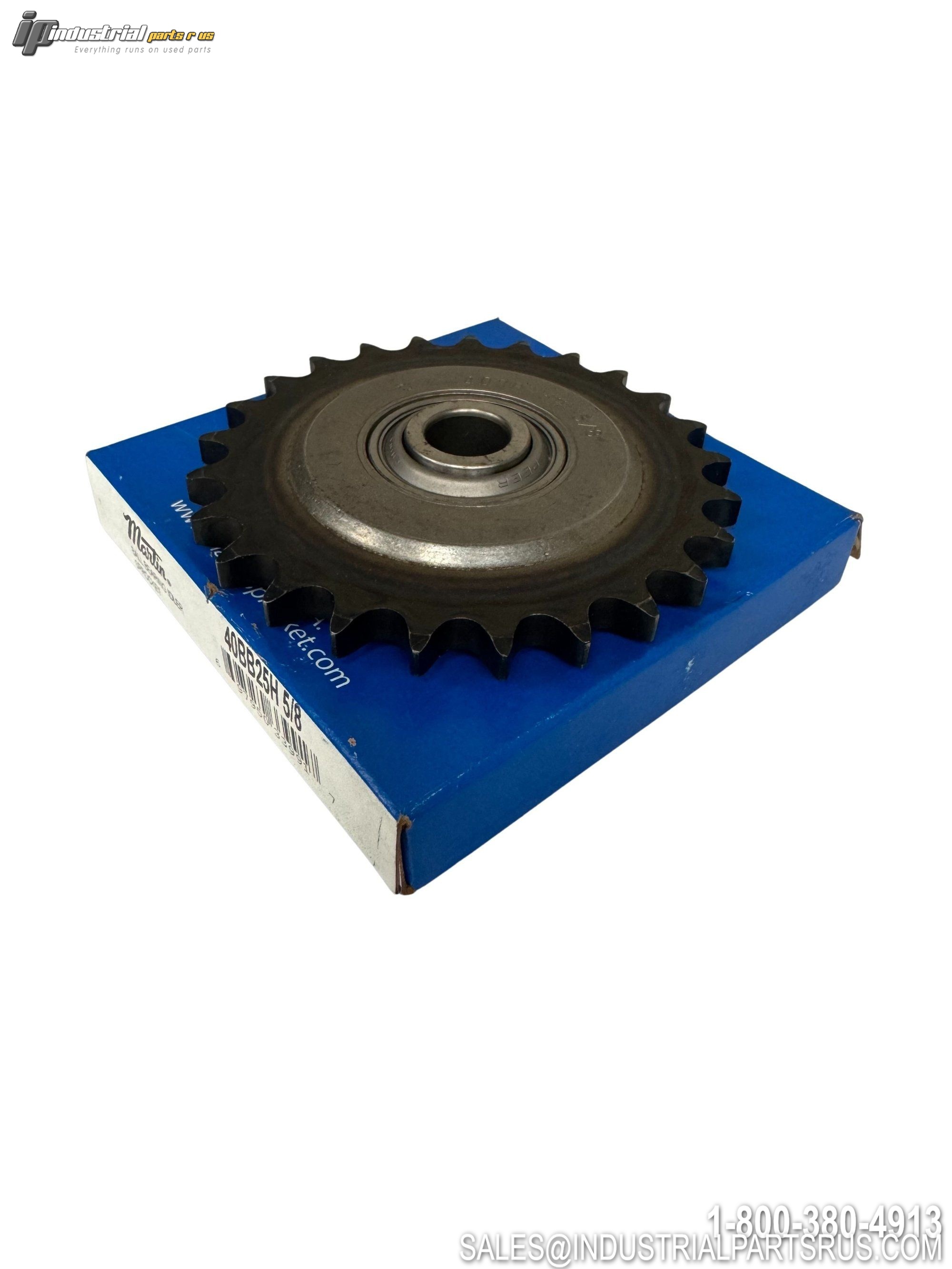

- Media 3 Description: Martin 40BB25H 5/8 Idler Sprocket View 3

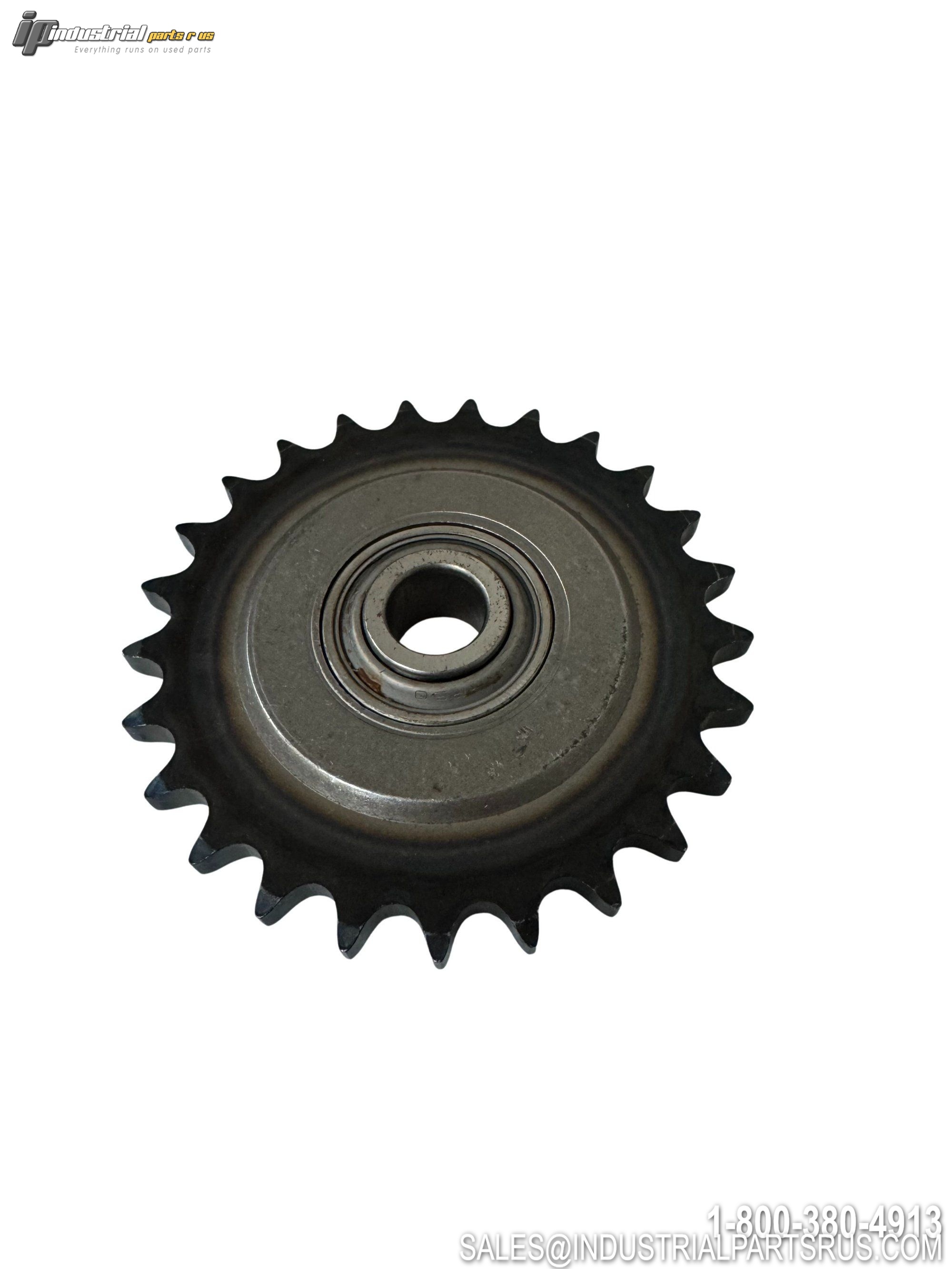

- Media 4 Description: Martin 40BB25H 5/8 Idler Sprocket - Photo 4
The Martin Sprocket & Gear 40BB25H 5/8 is a ball bearing idler chain sprocket designed for use with ANSI #40 roller chain (1/2" pitch). It features hardened teeth for extended wear life and is mounted on a precision ball bearing for smooth, free-running idler operation. The sprocket is manufactured from steel and is suitable for tensioning or guiding roller chain in power transmission and conveyor applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Martin Sprocket & Gear |
| Model / Part Number | 40BB25H 5/8 |
| Product Type | Ball Bearing Idler Sprocket |
| Chain Size / Number | #40 |
| Chain Type | Roller Chain (ANSI) |
| Chain Pitch | 1/2 in (0.500 in / 12.7 mm) |
| Number of Teeth | 25 |
| Number of Rows (Strands) | 1 (Single Strand) |
| Bore Diameter | 5/8 in (0.625 in / 15.875 mm) |
| Outside Diameter (OD) | 4.26 in (108.204 mm) |
| Teeth Width | 0.284 in |
| Length Through Bore | 0.72 in (18.288 mm) |
| Bearing Type | Ball Bearing |
| Hardened Teeth | Yes |
| Material | Steel |
| Inch / Metric | Inch |
| Weight | 0.9 lbs (0.681 kg) |
| UNSPSC Code | 31171901 |
