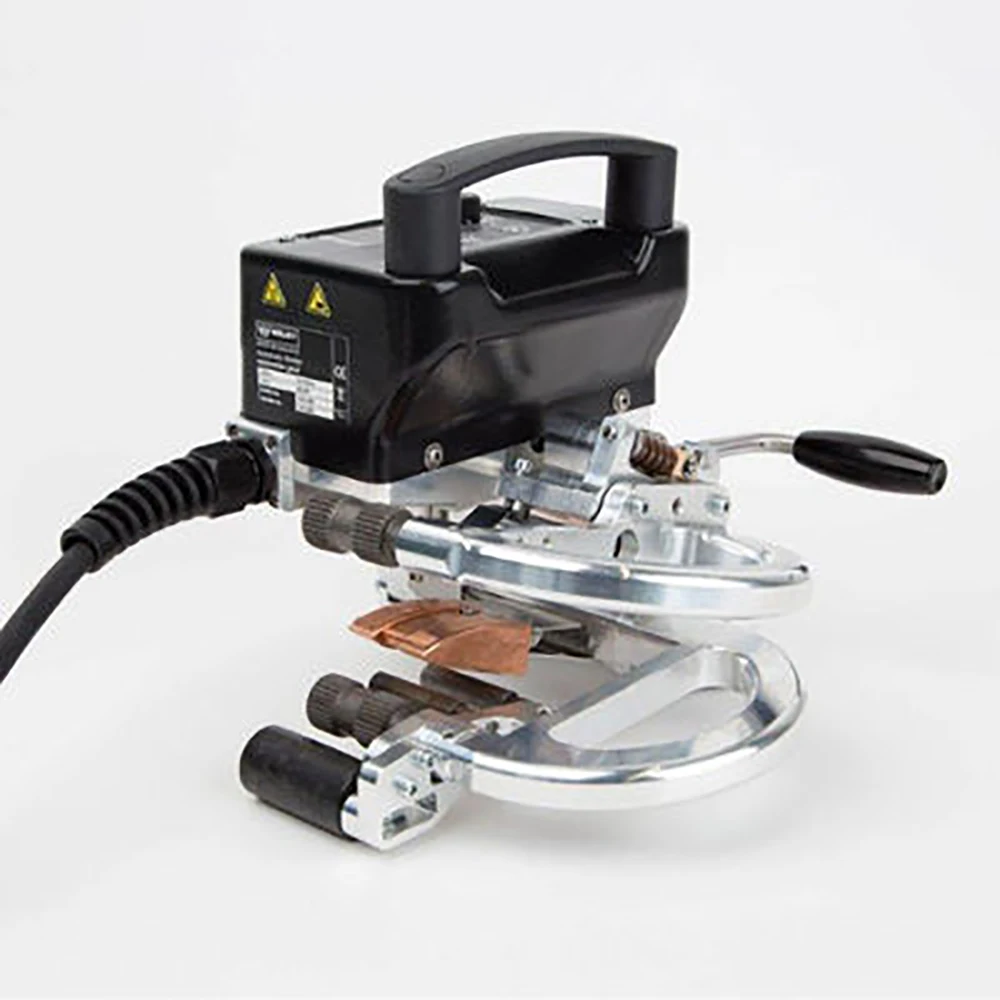

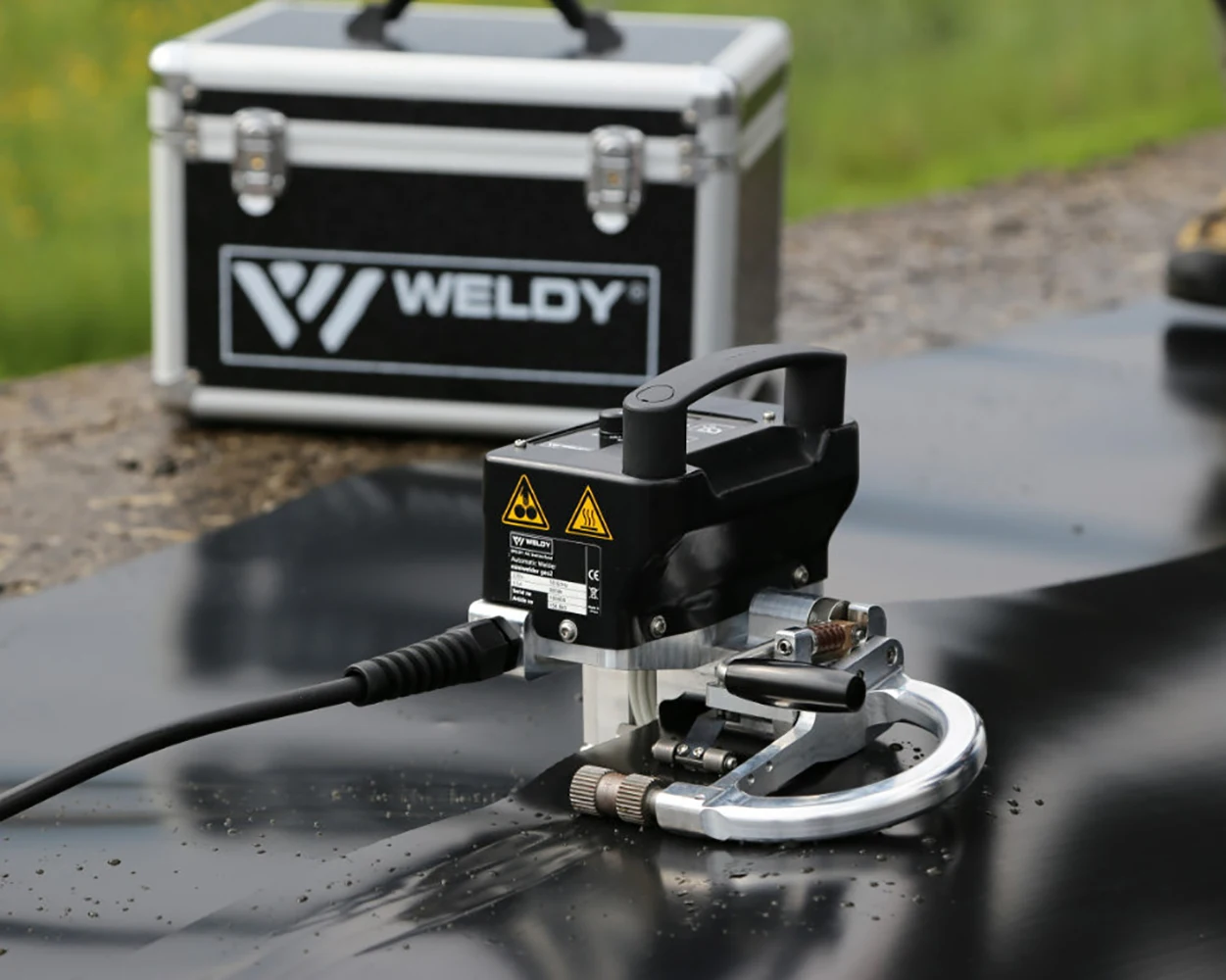

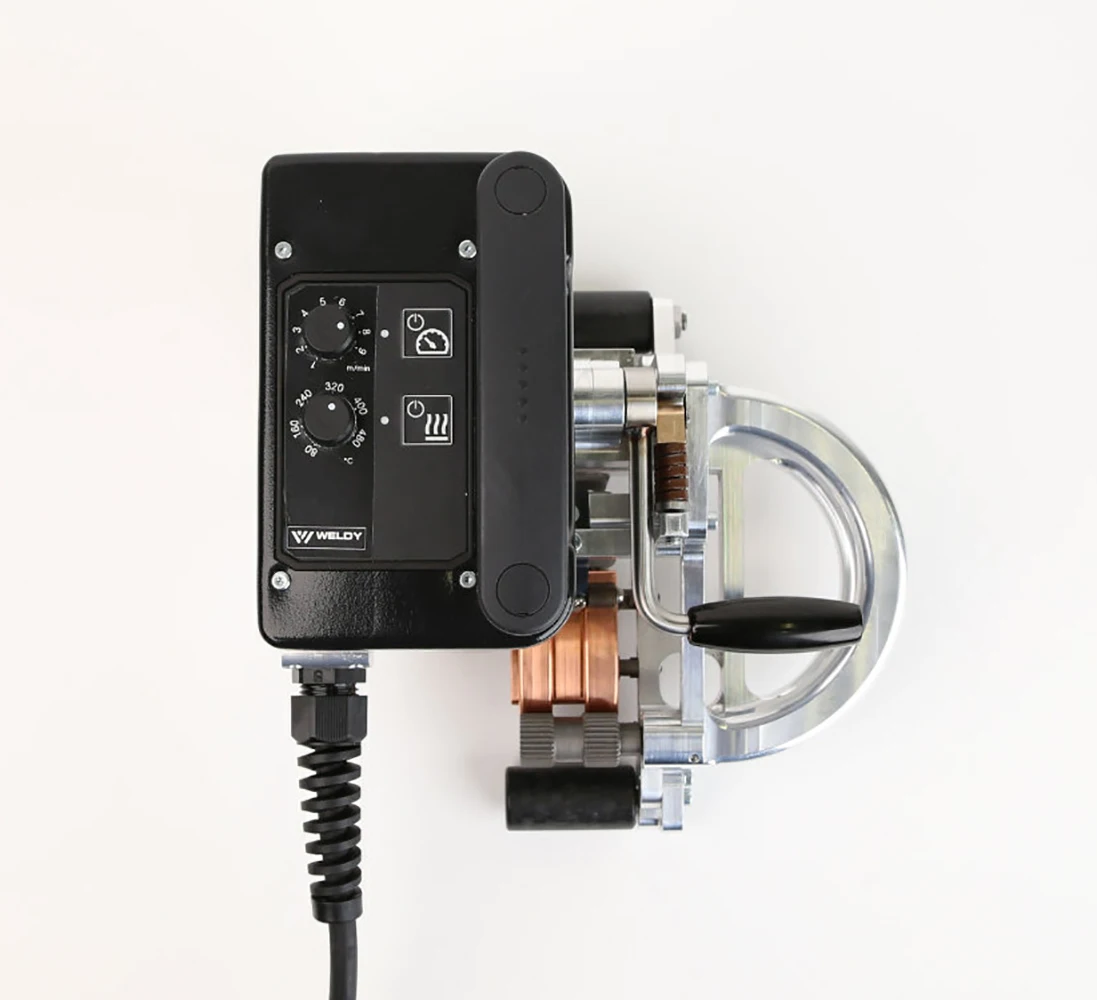

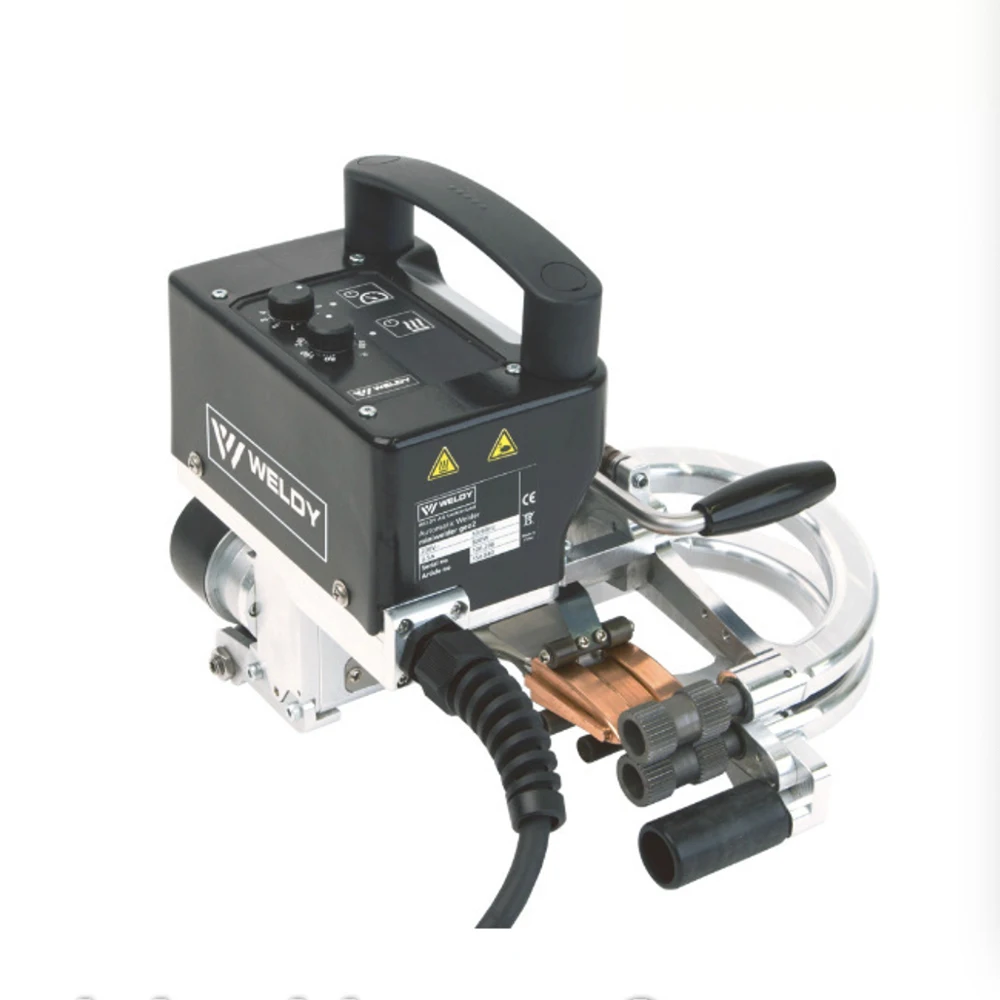

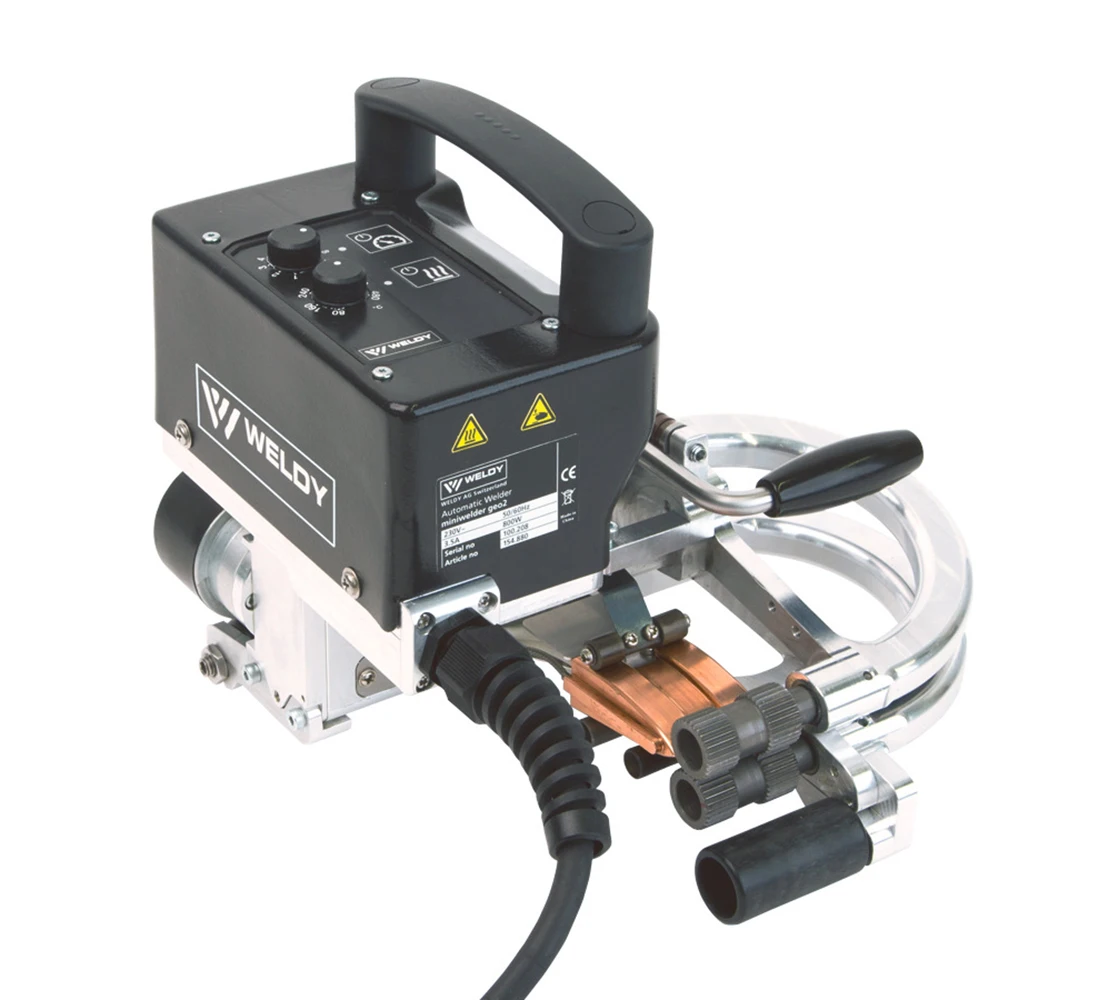

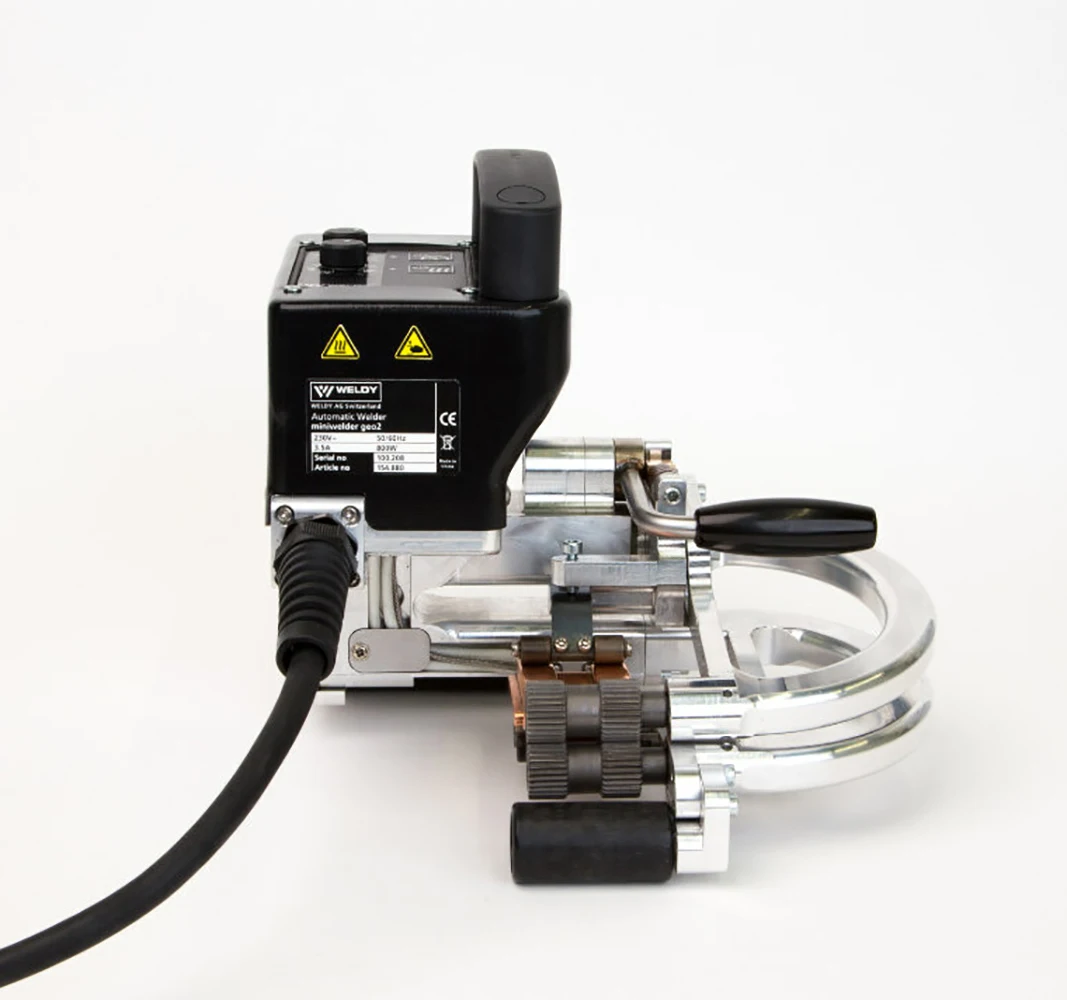

Portable Earthwork Membrane Welding Machine Wedge Mini Welding Machine 220V 800W

Technical Data

Voltage V~ 120/230

Frequency Hz 50/60

Maximum power W 800

Temperature Thermal Wedge Material ℃ 60-480 Copper/Chrome Steel

Welding width mm 2x12

Max. lap width mm 100

Speed m/min 0.4-7.5

Dimensions (LxWxH) mm 228 x 228x 170

Weight kg 4

European Standard Conformity Marking Protection Class

LD-PE, PVC* (0.5- 1.5 mm)

Weldable materials HD-PE (0.4-1.0 mm) TPO/FPO (0.7-1.5 mm)

*Welding of PVC with steel chisel
