Features:
1. 1500/1800TVL high horizontal resolution, Super WDR + 3D digital noise reduction, 0.001Lux ultra-low illumination, maintain sharp picture in dusk, tunnel and dim environment.

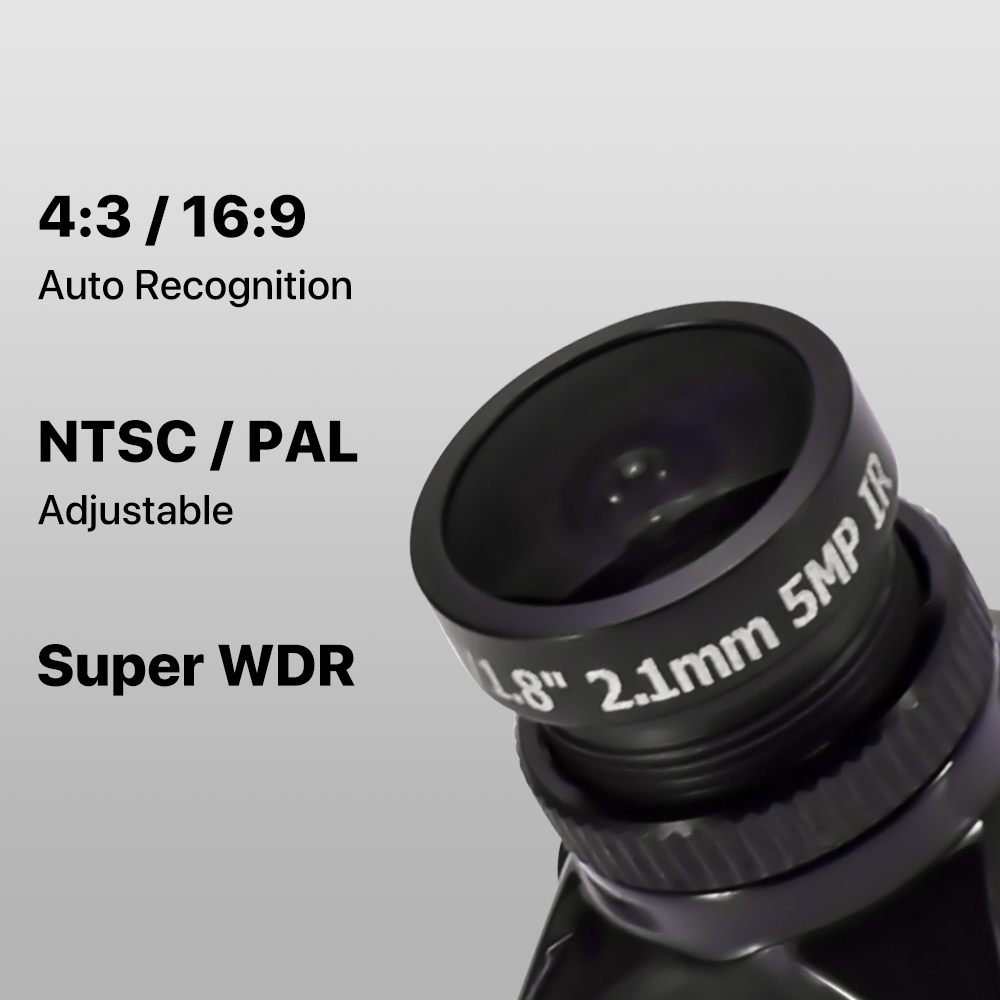

2. MS-514 1.8mm 165° panoramic lens for freestyle flight; 2.1mm 135mm standard lens for stable racing, eliminate blind area during high-speed maneuver.
3. Freely toggle NTSC/PAL, color/black-white day-night mode, electronic shutter up to 1/100000s; multi-language OSD menu for easy parameter tuning.
4. 5-40V wide voltage compatibility, no need extra voltage regulator; works stably in -20℃ to 60℃ cold/hot outdoor flight condition.
5. Lightweight design, cube miniature structure, two dimension specs available, ultra-light load, no extra drag for micro racing drones.
Description:

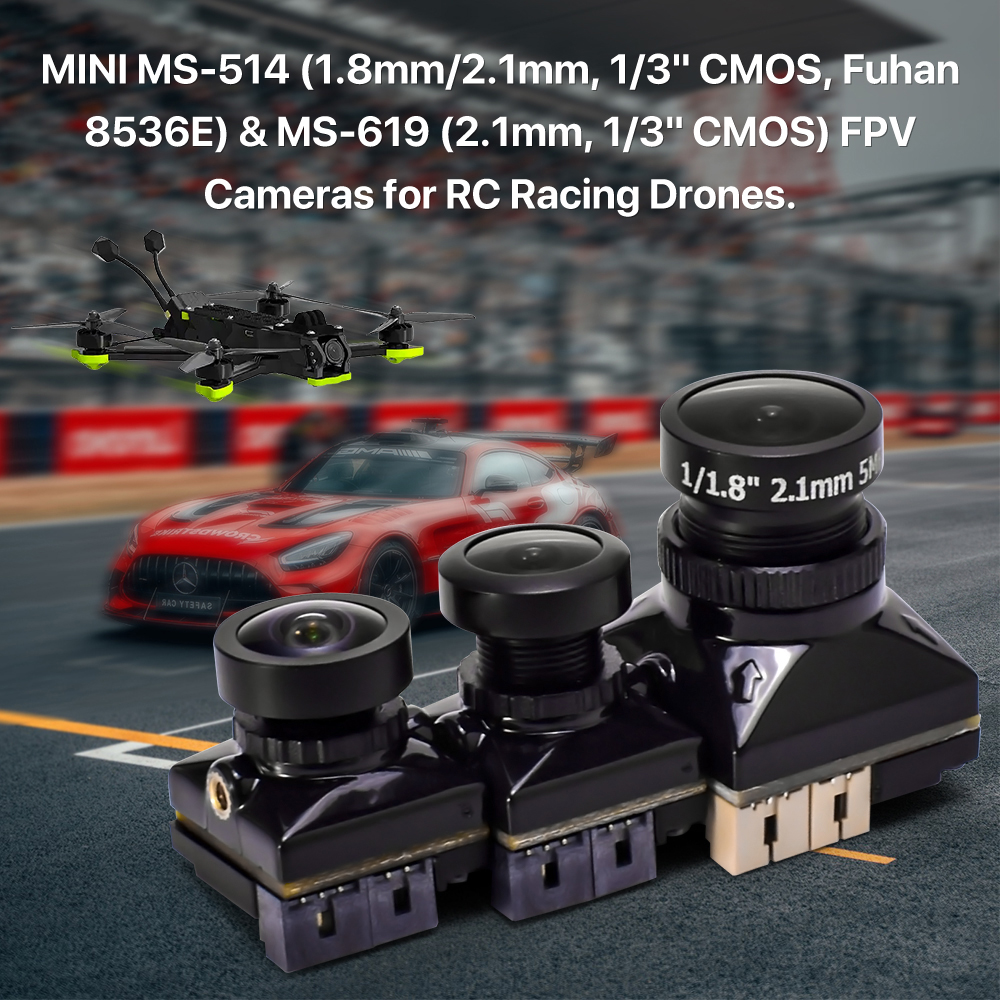

Compact 14/19mm cube FPV drone camera with optional 1.8mm/2.1mm lens, featuring Super WDR, 3D noise reduction, 0.001Lux ultra-low light performance and multi-language OSD, ideal for tiny whoop and racing drones.

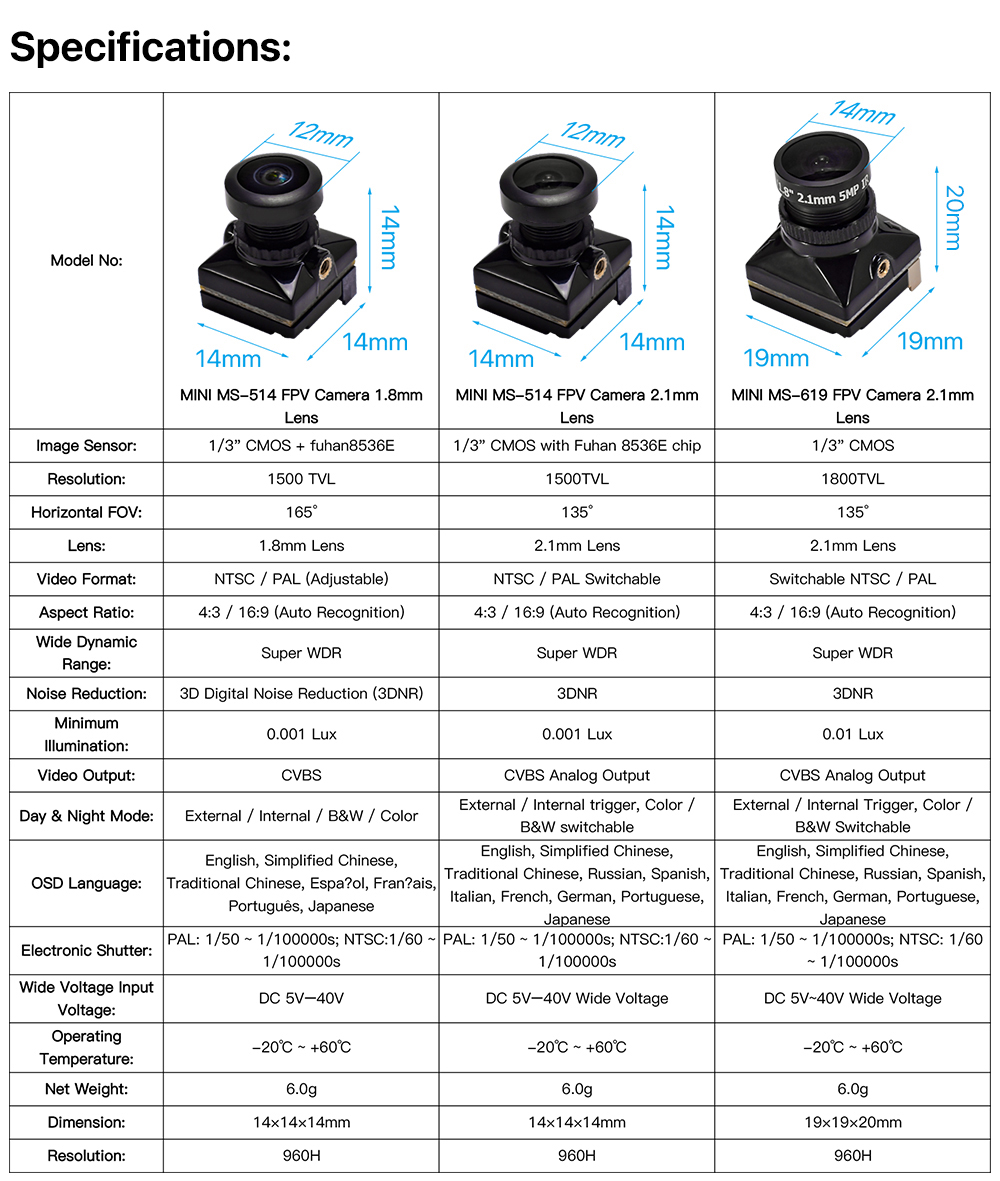

Specifications:
MINI MS-514 FPV Camera 1.8mm Lens
Image Sensor: 1/3" CMOS + fuhan8536E
Resolution: 1500 TVL
Horizontal FOV: 165°
Lens: 1.8mm Lens
Video Format: NTSC / PAL (Adjustable)
Aspect Ratio: 4:3 / 16:9 (Auto Recognition)
Wide Dynamic Range: Super WDR
Noise Reduction: 3D Digital Noise Reduction (3DNR)
Minimum Illumination: 0.001 Lux
Video Output: CVBS
Day & Night Mode: External / Internal / B&W / Color
OSD Language: English, Simplified Chinese, Traditional Chinese, Espa?ol, Fran?ais, Português, Japanese
Electronic Shutter: PAL:1/50 ~ 1/100000s; NTSC:1/60 ~ 1/100000s
Wide Voltage Input Voltage: DC 5V–40V
Operating Temperature: -20℃ ~ +60℃
Net Weight: 6.0g
Dimension: 14×14×14mm
Resolution: 960H
MINI MS-514 FPV Camera 2.1mm Lens
Image Sensor: 1/3" CMOS with Fuhan 8536E chip
Horizontal Resolution: 1500TVL
Horizontal FOV: 135°
Lens: 2.1mm Lens
Video System: NTSC / PAL Switchable
Aspect Ratio: 4:3 / 16:9 (Auto Recognition)
WDR: Super WDR
Noise Reduction: 3DNR
Min. Illumination: 0.001 Lux
Video Output: CVBS Analog Output
Day/Night Mode: External / Internal trigger, Color / B&W switchable
OSD Languages: English, Simplified Chinese, Traditional Chinese, Russian, Spanish, Italian, French, German, Portuguese, Japanese
Electronic Shutter: PAL:1/50 ~ 1/100000s; NTSC:1/60 ~ 1/100000s
Input Voltage: DC 5V–40V Wide Voltage
Operating Temperature: -20℃ ~ +60℃
Net Weight: 6.0g
Dimension: 14×14×14mm
Resolution: 960H
MINI MS-619 FPV Camera 2.1mm Lens
Image Sensor：1/3" CMOS
Horizontal Resolution：1800TVL
FOV：135°
Lens：2.1mm Lens
Video Format：Switchable NTSC / PAL
Aspect Ratio：4:3 / 16:9 (Auto Recognition)
WDR：Super WDR
Noise Reduction：3DNR
Minimum Illumination：0.01 Lux
Video Output：CVBS Analog Output
Day/Night Mode：External/Internal Trigger, Color/B&W Switchable
OSD Languages：English, Simplified Chinese, Traditional Chinese, Russian, Spanish, Italian, French, German, Portuguese, Japanese
Electronic Shutter：PAL: 1/50 ~ 1/100000s；NTSC: 1/60 ~ 1/100000s
Input Voltage：DC 5V~40V Wide Voltage
Operating Temperature：-20℃ ~ +60℃
Net Weight：6.0g
Dimensions：19×19×20mm
Resolution：960H

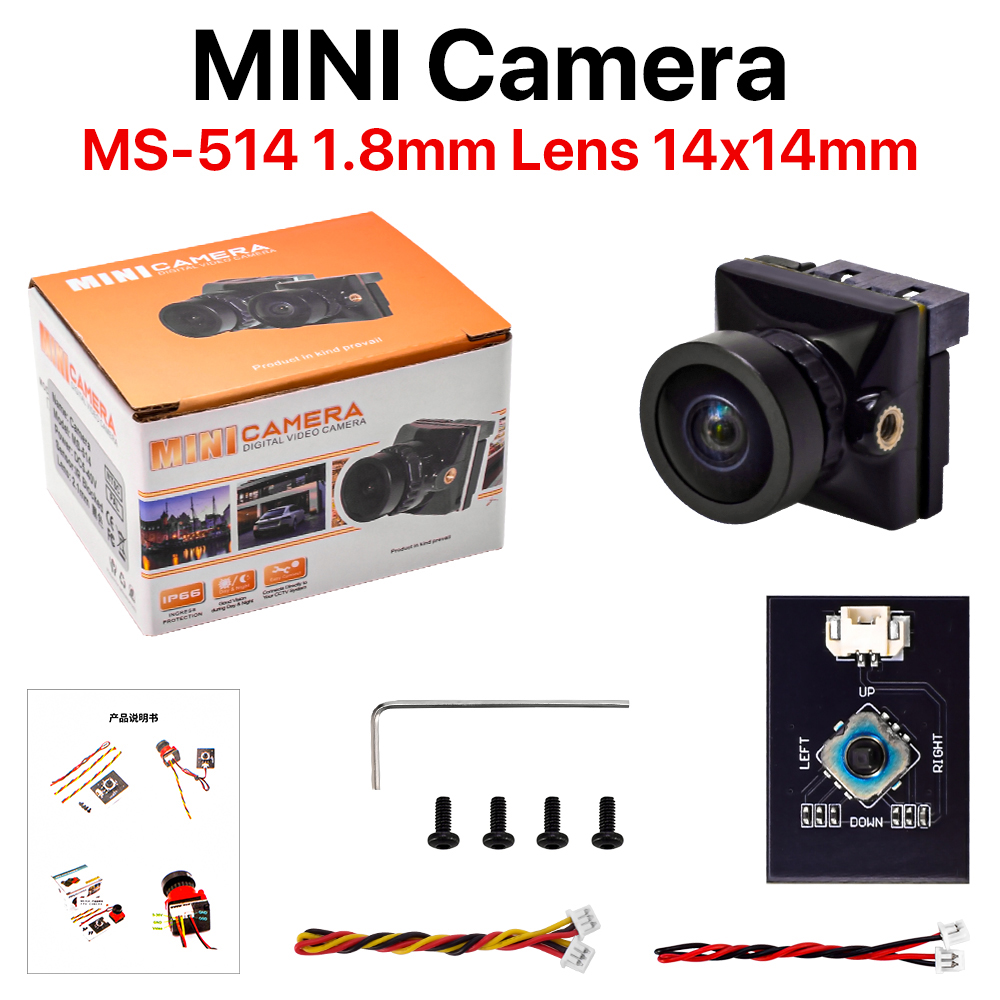

Package contents:
1 * Mini FPV Camera
1 * Control board
1 * Wrench
4 * Screws
1 * Instruction manual
2 * Connection cable
