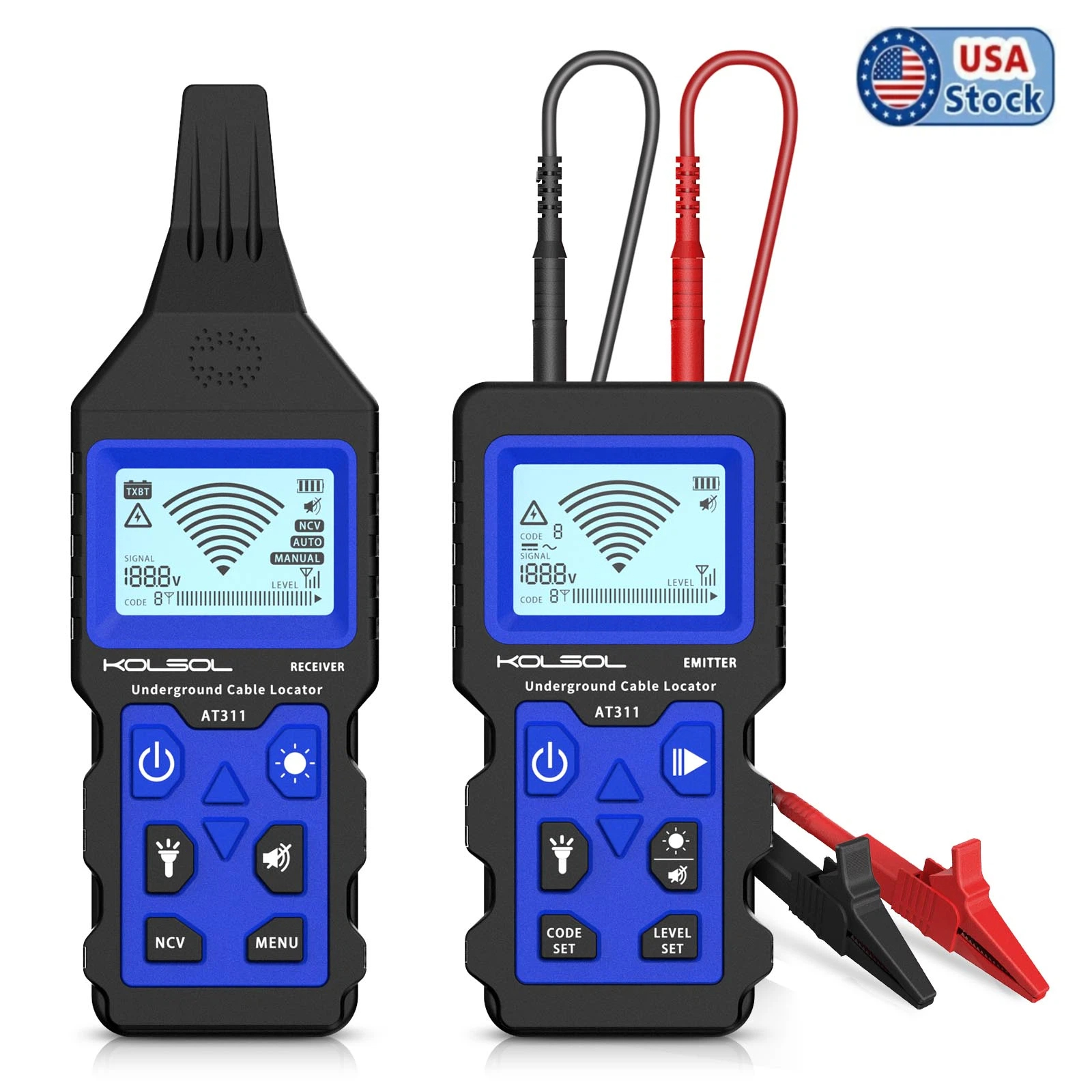

KOLSOL NF-826 Network Tracking Device Wire Circuit Breaker Cable Tester Phone Cable Detector Locator Meter Tracking Device


Main features

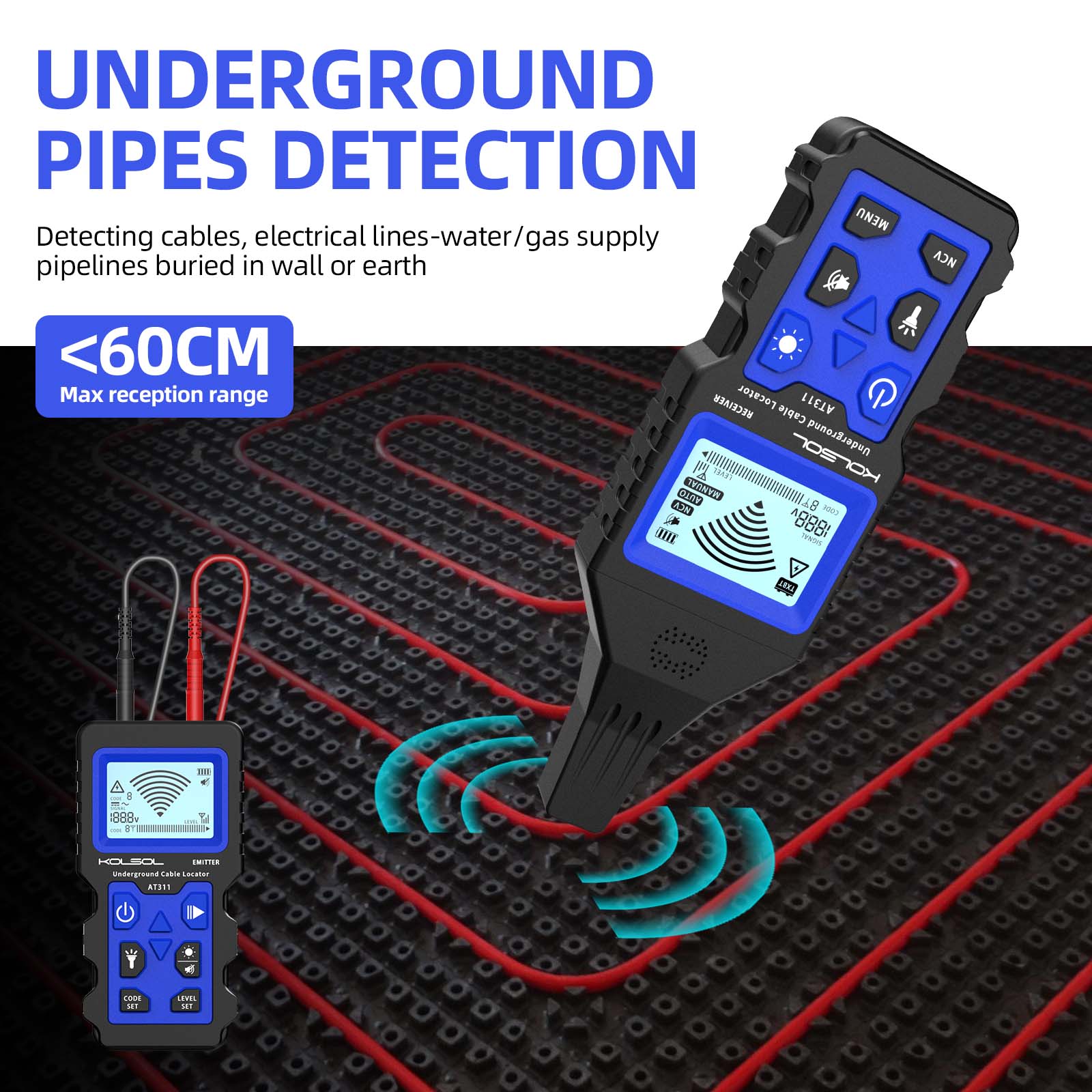

Detecting cables, electrical lines-water/gas supply pipelines buried in wall or earth

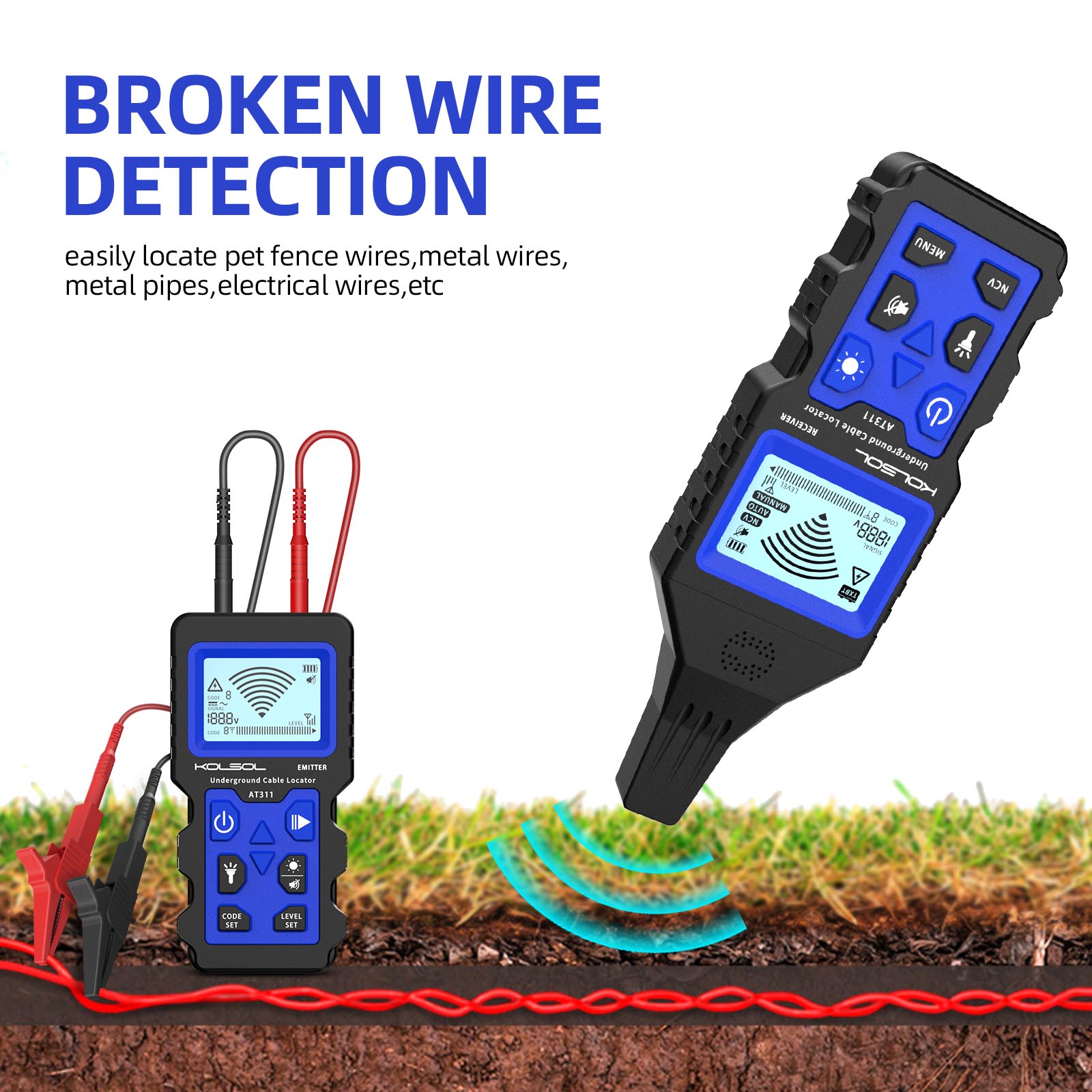

Detecting interruptions and short circuit in cables and electrical lines buried in wall or earth


Detecting fuses and assigning current circuits.

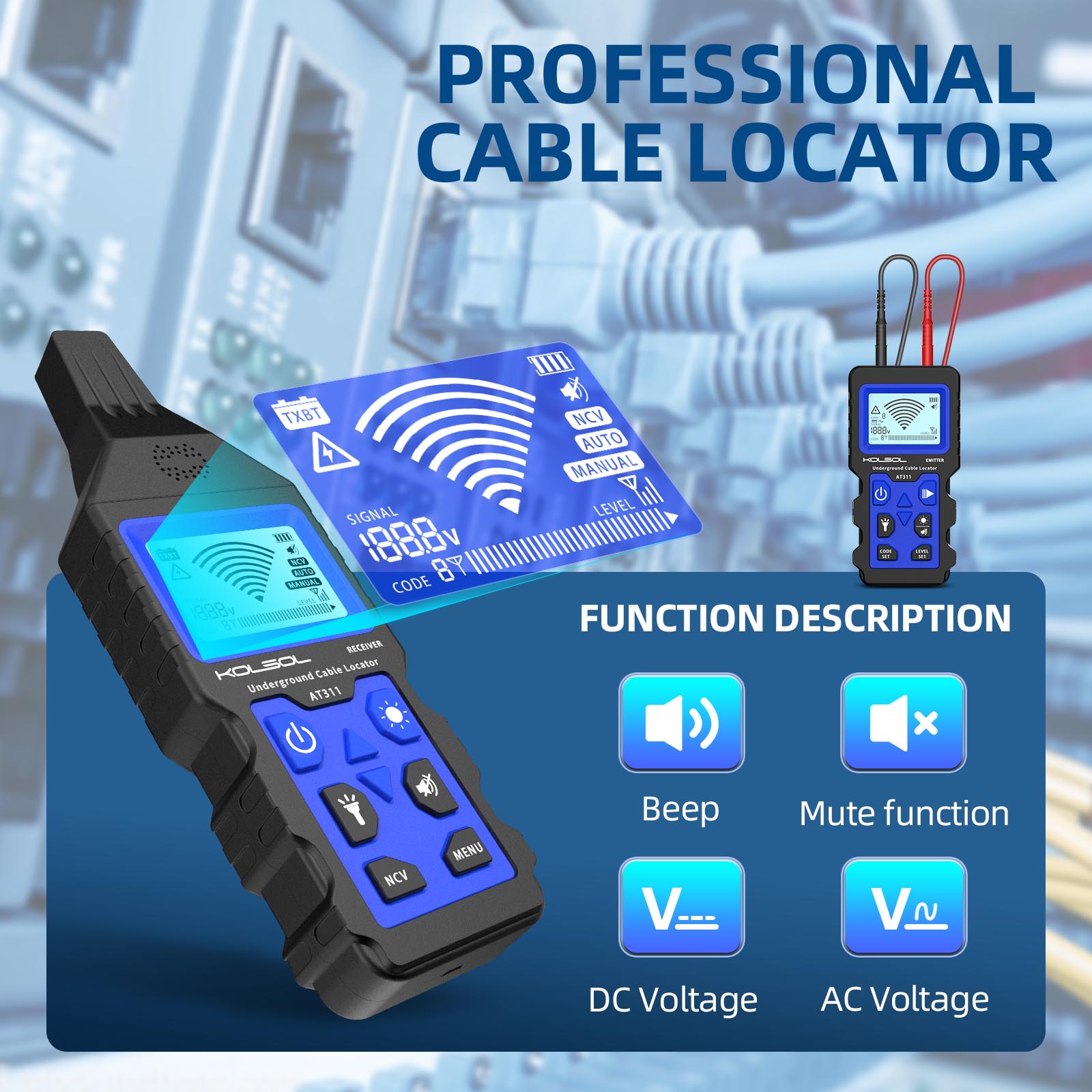

Both transmitter and receiver display power level, code, battery, detected voltage type and value, and high-voltage alert.

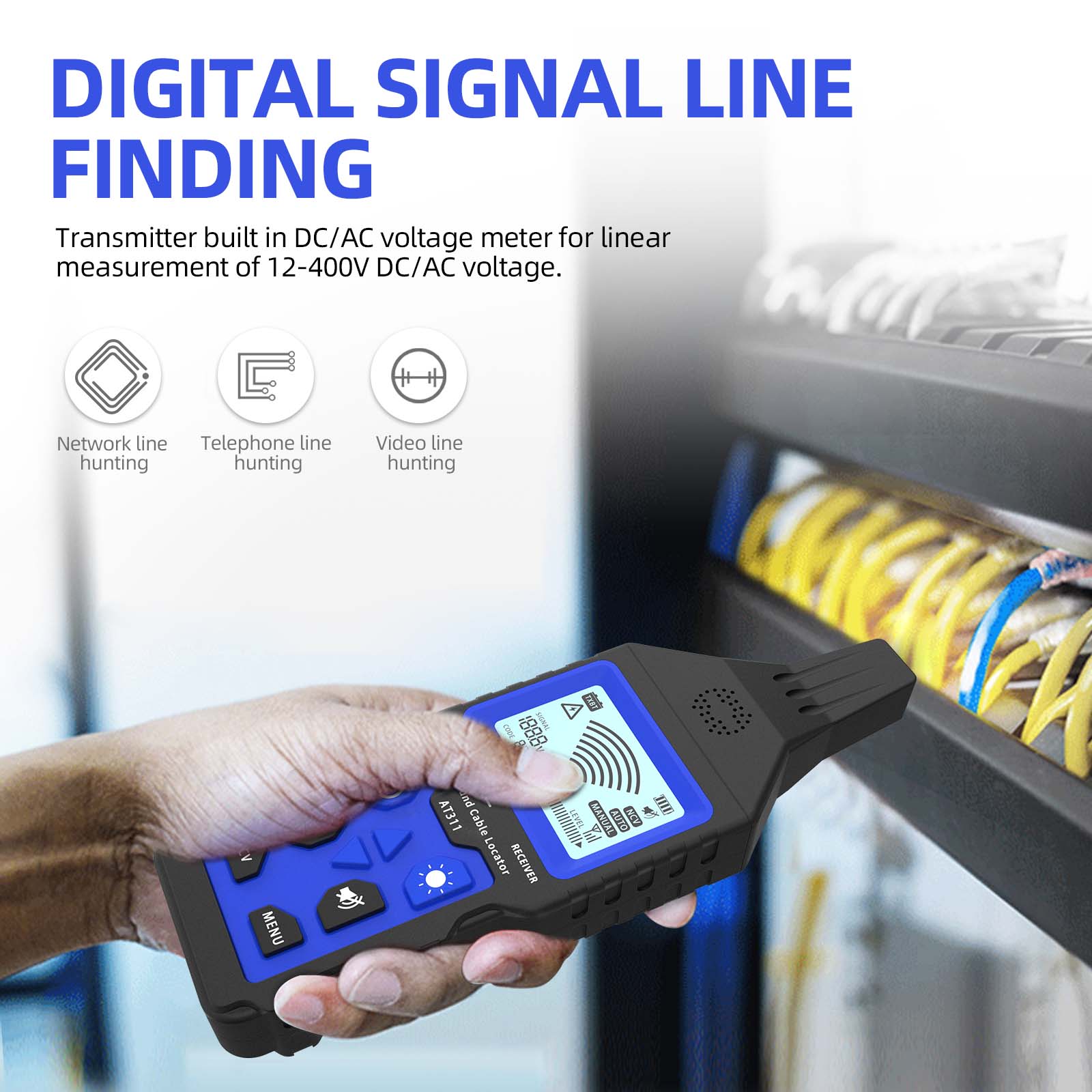

Transmitter built in DC/AC voltage meter for linear measurement of 12-400V DC/AC voltage


Large LCD screen on transmitter & receiver with digit readout, bar graph and sound to easily determine wire location




Applications:

Installation and maintenance of weak current system, communication line, comprehensive wiring circuit, telephone system, computer network, other metal wire circuit etc.


Specification

Transmitter

LCD Screen

52*35mmTN screen with backlight

transmitter signal frequency

125KHz

Signal Vp-p

<8V

transmitter self-inspection

Yes

Circuit voltage testing

AC:12~400V(50~60Hz)+/-2.5%

DC:12~400V +/-2.5%

Interface type

multimeter jack

Max working current

< 250 mA

Demension

158*80*33mm

Receiver

LCD Screen

52*35mmTN screen with backlight

Received signal strength display

√

recognize low battary warning of transmitter

√

Received signal frequency

125KHz

Max reception range

<60cm

Short circuit detection

√

open circuit detection

√

Automatic frequency sweep

√

Reception mode

Manual / Auto

NCV function

AC:50~400V(50~60Hz)+/-2.5%

Auto-off time

10 mins

Max working current

<250 mA

Demension

228*74*28mm

General

Key

silicon keys * 8

Accpetable transmitter signal codes

6 types

Acceptable transmitter signal amplitude

3 degrees

Buzzer

√

Mute

√

Lamp

√

LCD backlight

on/off

Power supply

3.7V 1400mAh Lithium battary

Battary indicator

√

Charging voltage

DC5V

Charging current

<600mA

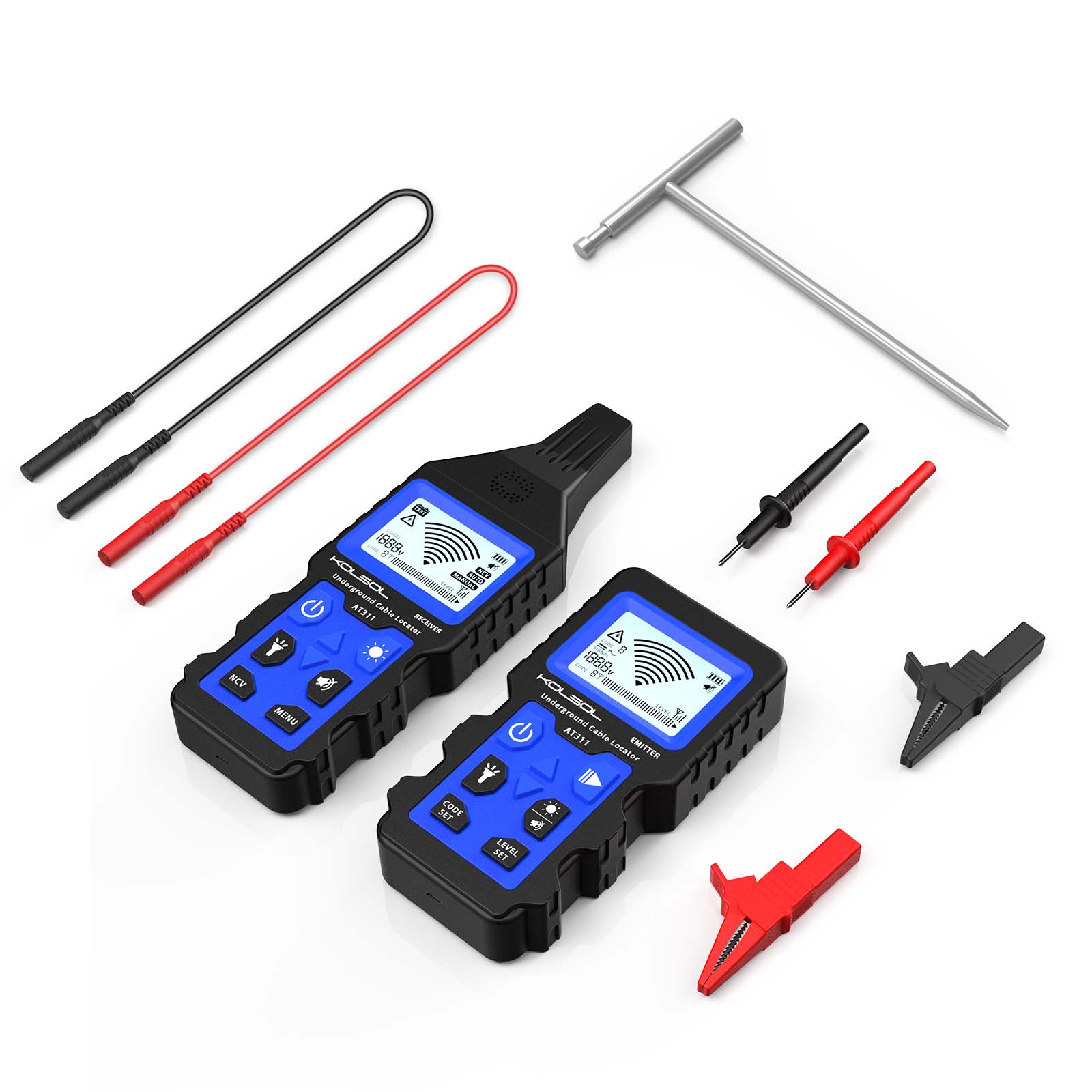

Package includes:

1pc x Test lead (red/black)

1pc x Crocodile clamps (red/black)

1pc x Test probe (red/black)

2pc x Built-in battary (red/black)

1pc x Grounding rod

1pc x Carry bag

1pc x Color box

1pc x User manual
