Product Description

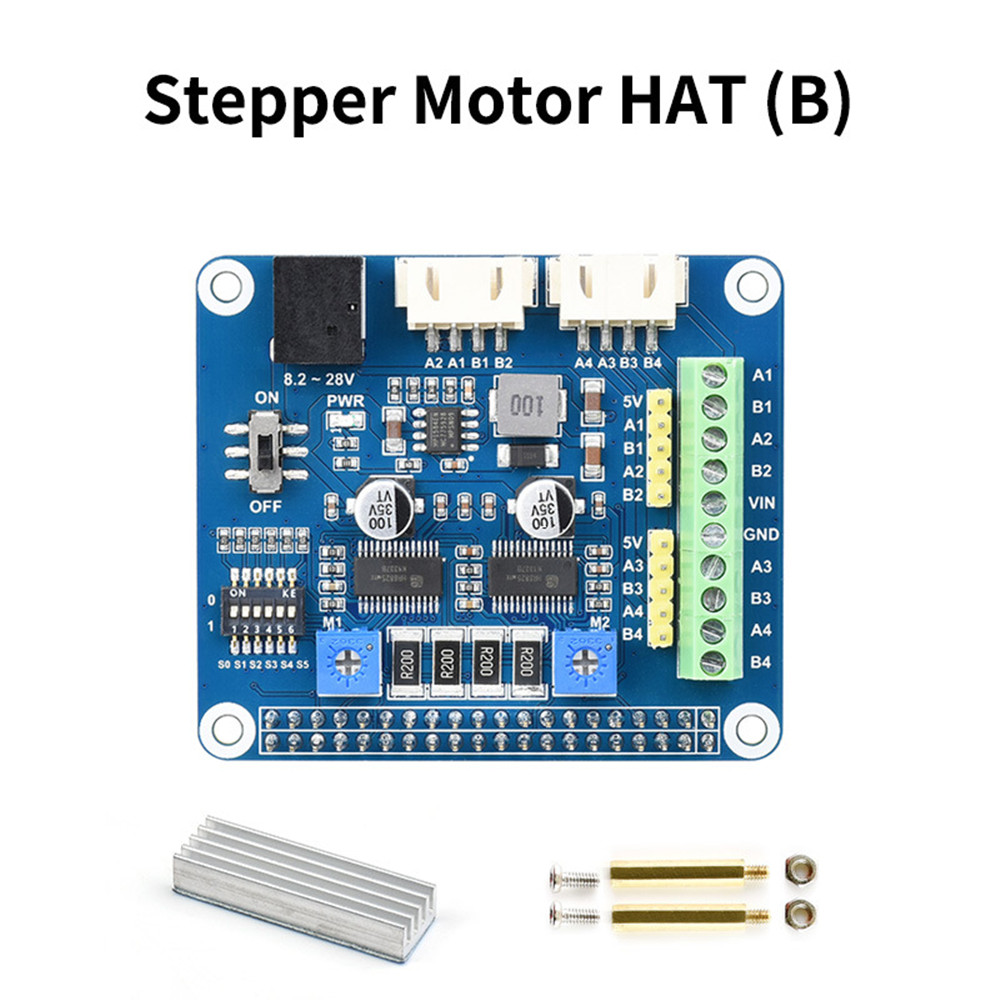

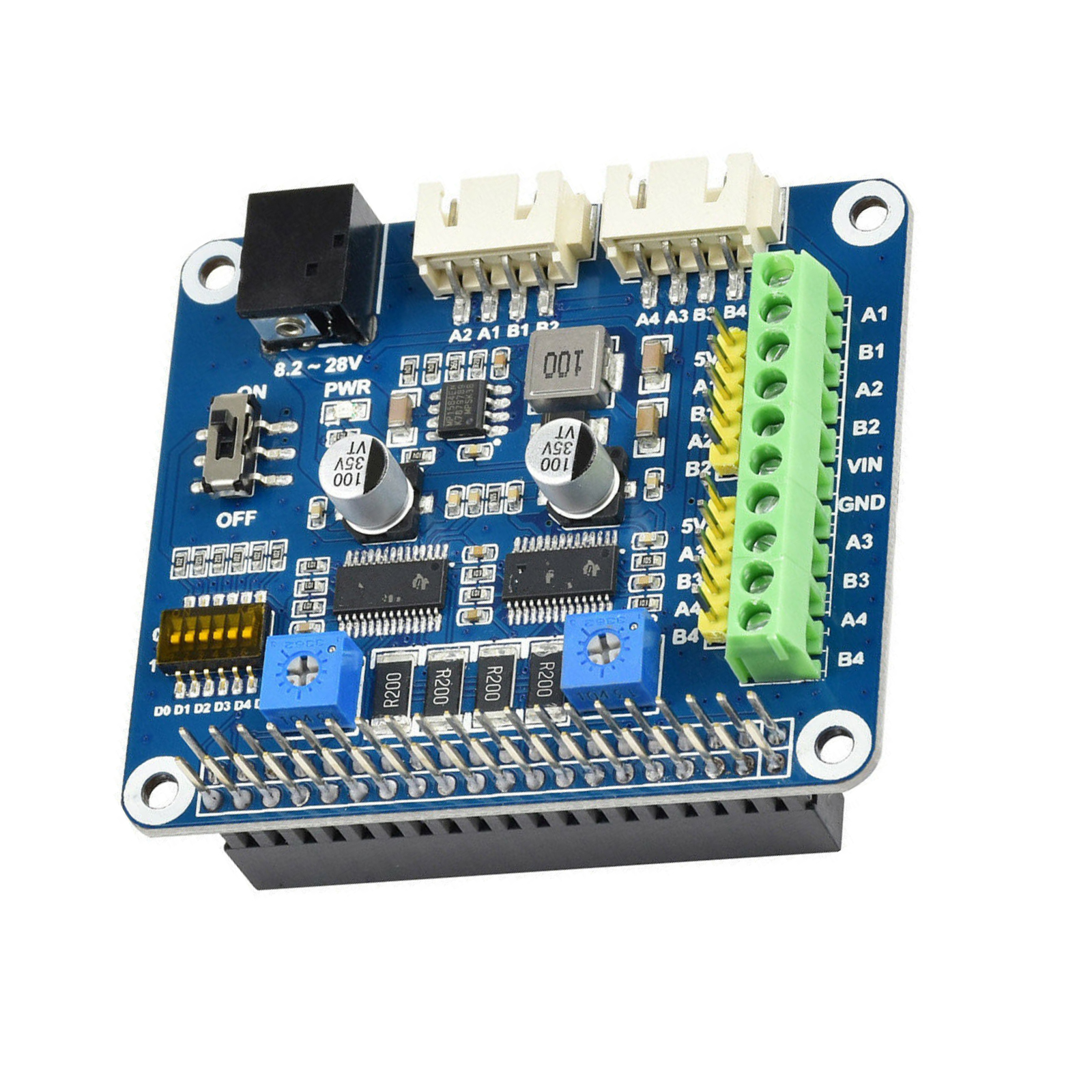

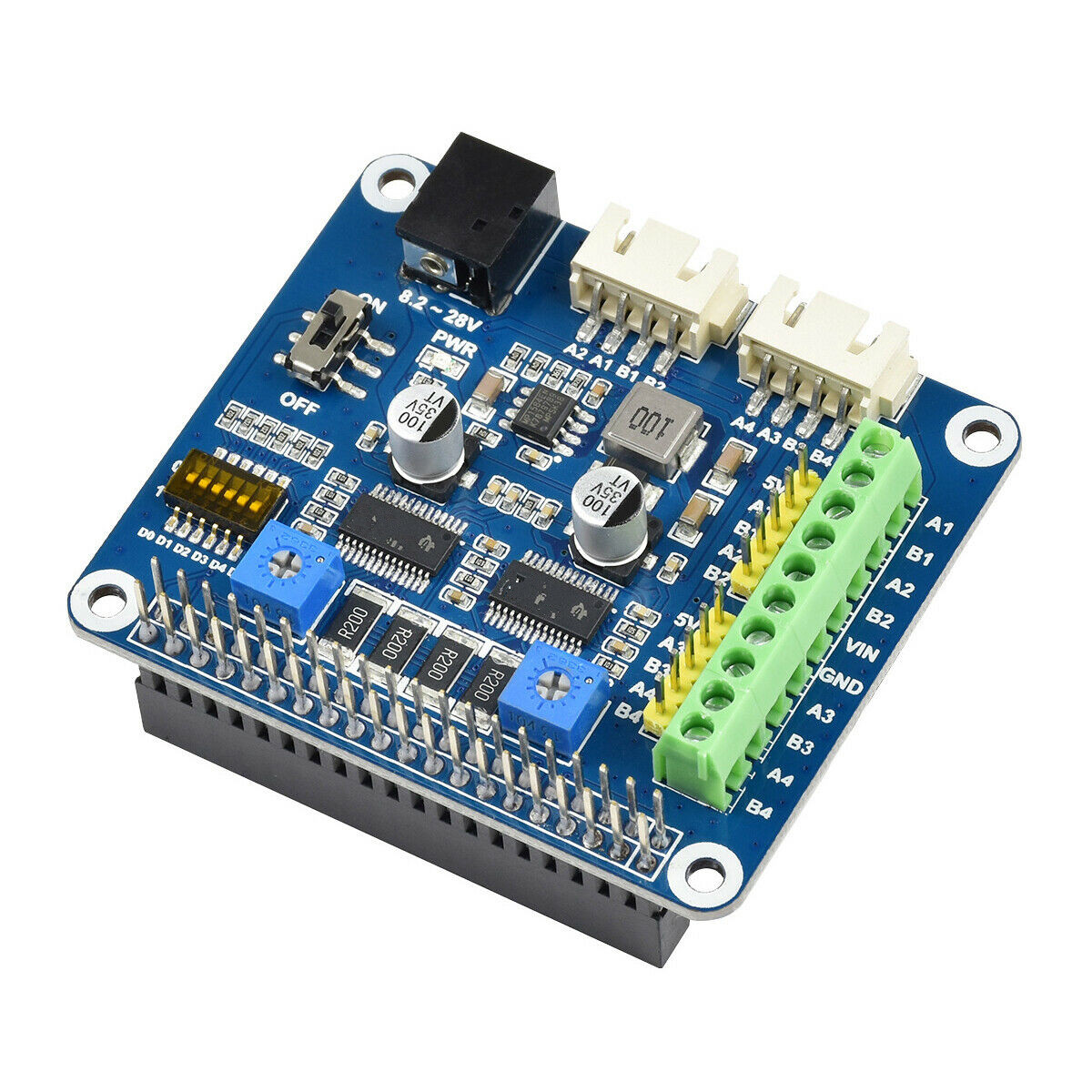

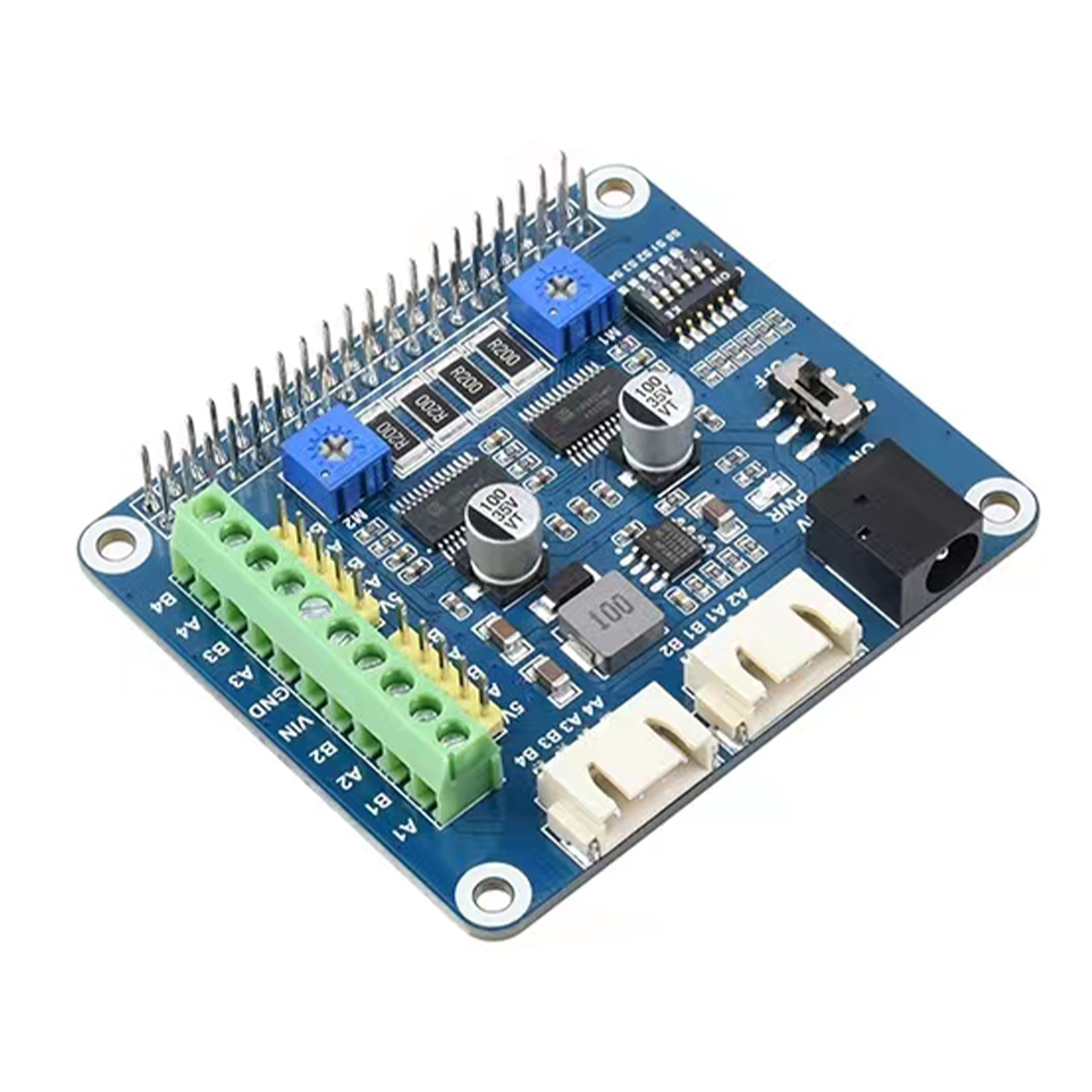

2.5A Stepper Motor Driver Controller HAT for Raspberry Pi Zero 2W 3 4 Model B


Features:
Alternative Solution Of Stepper Motor HAT, Drives Two Stepper Motors, Up To 1/32 Microstepping

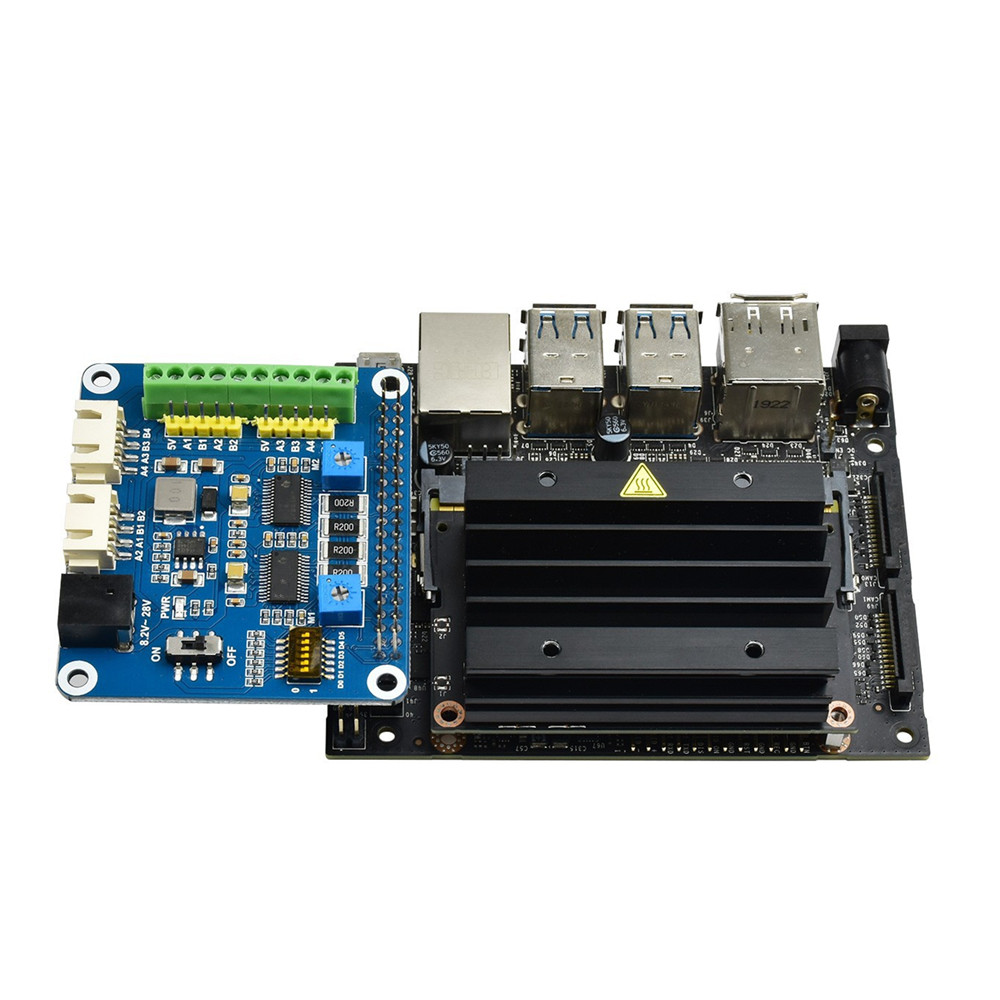

Standard 40 PIN GPIO extension header, supports for Raspberry Pi series boards, for Jetson Nano

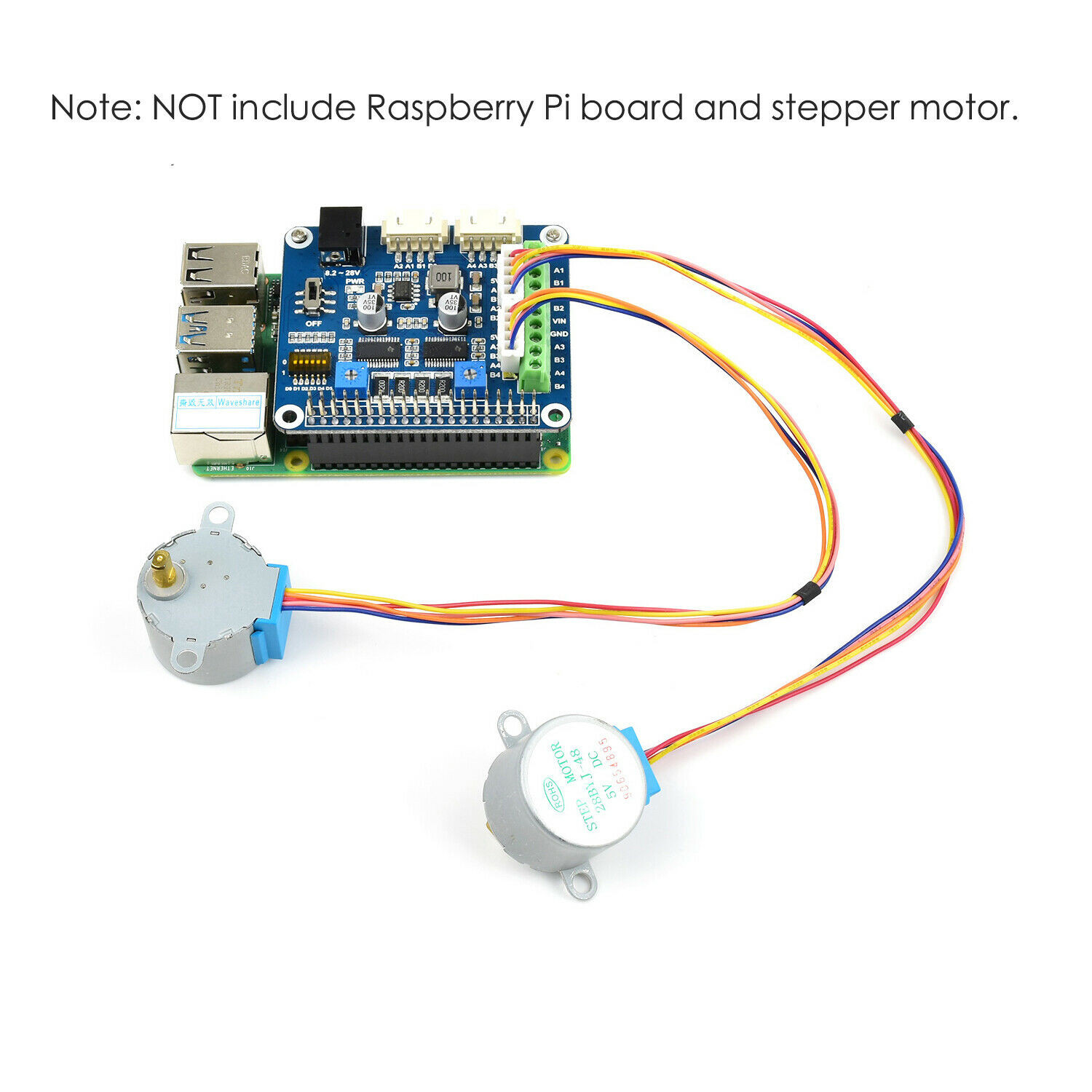

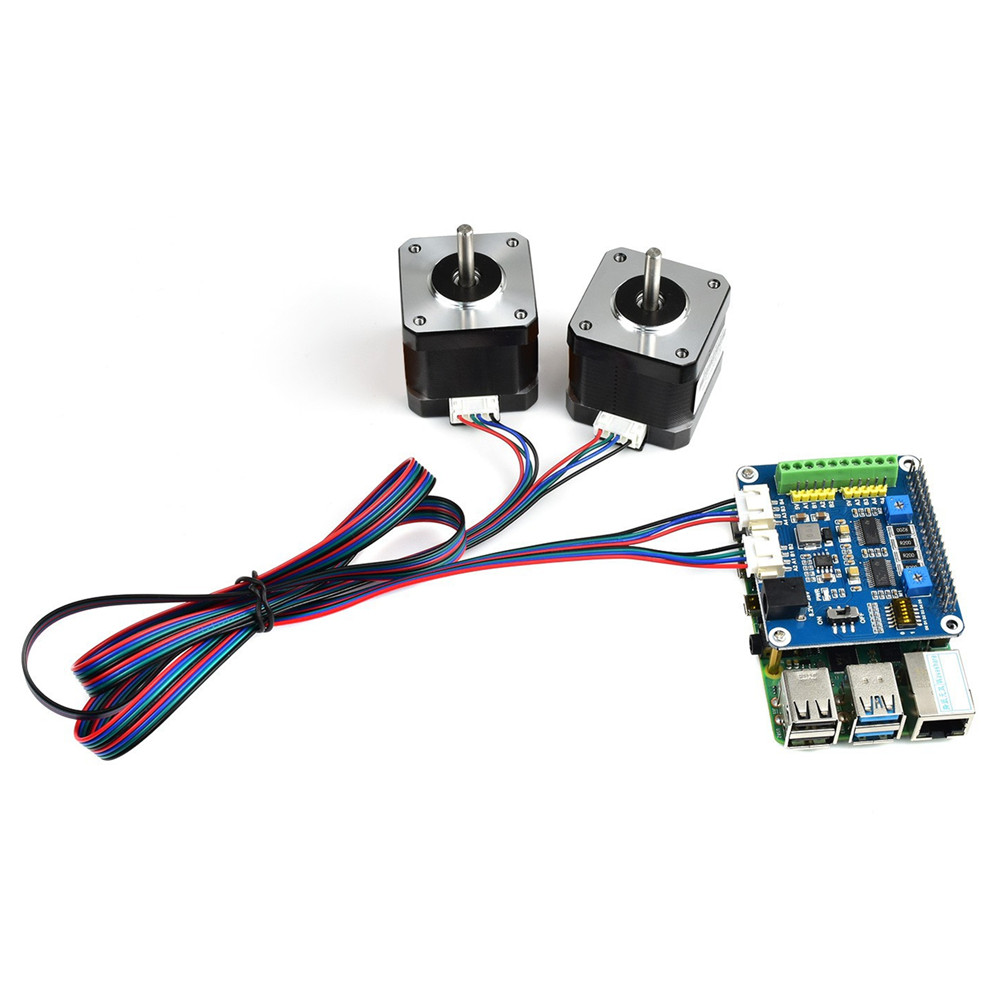

Onboard dual HR8825 motor controller IC with built-in microstepping indexer, drives two stepper motors, easy to use

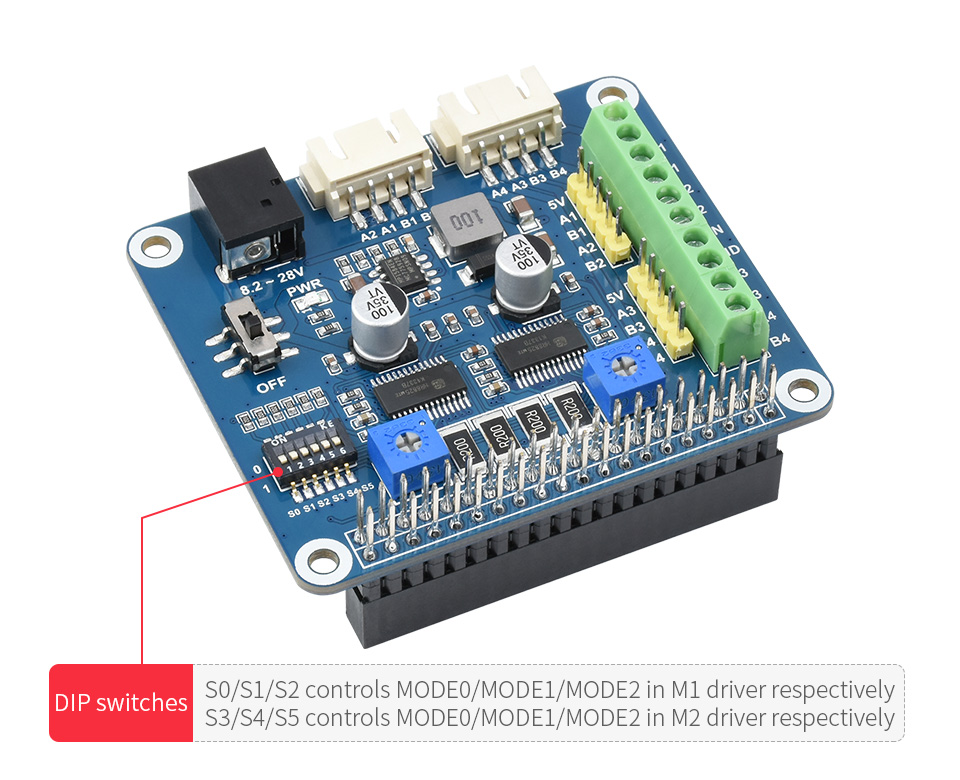

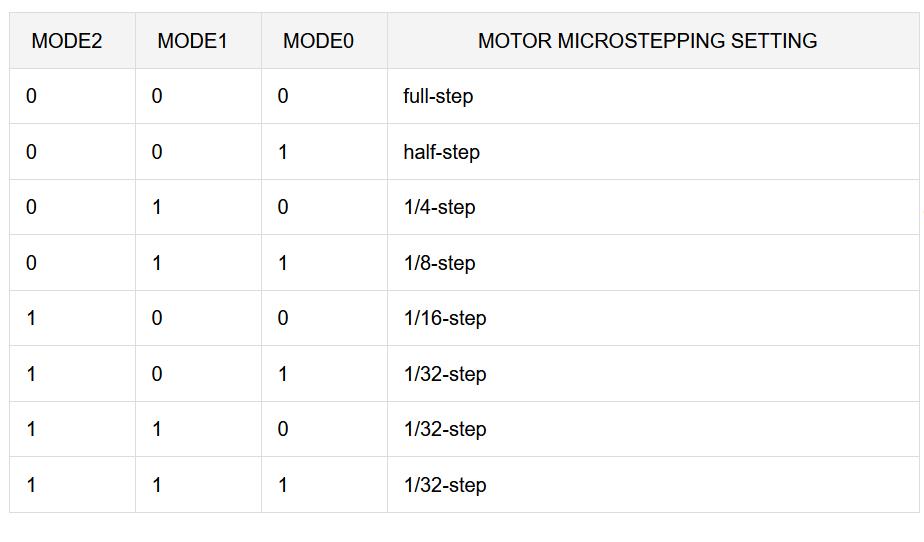

6 available microstepping modes, configured with the DIP switches: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
Adjustable motor drive current via potentiometer, maximum 2.5A current output
Overcurrent Protection (OCP), Thermal Shutdown (TSD), VM Undervoltage Lockout (UVLO)
Integrates 5V regulator, allows providing power to For Raspberry Pi

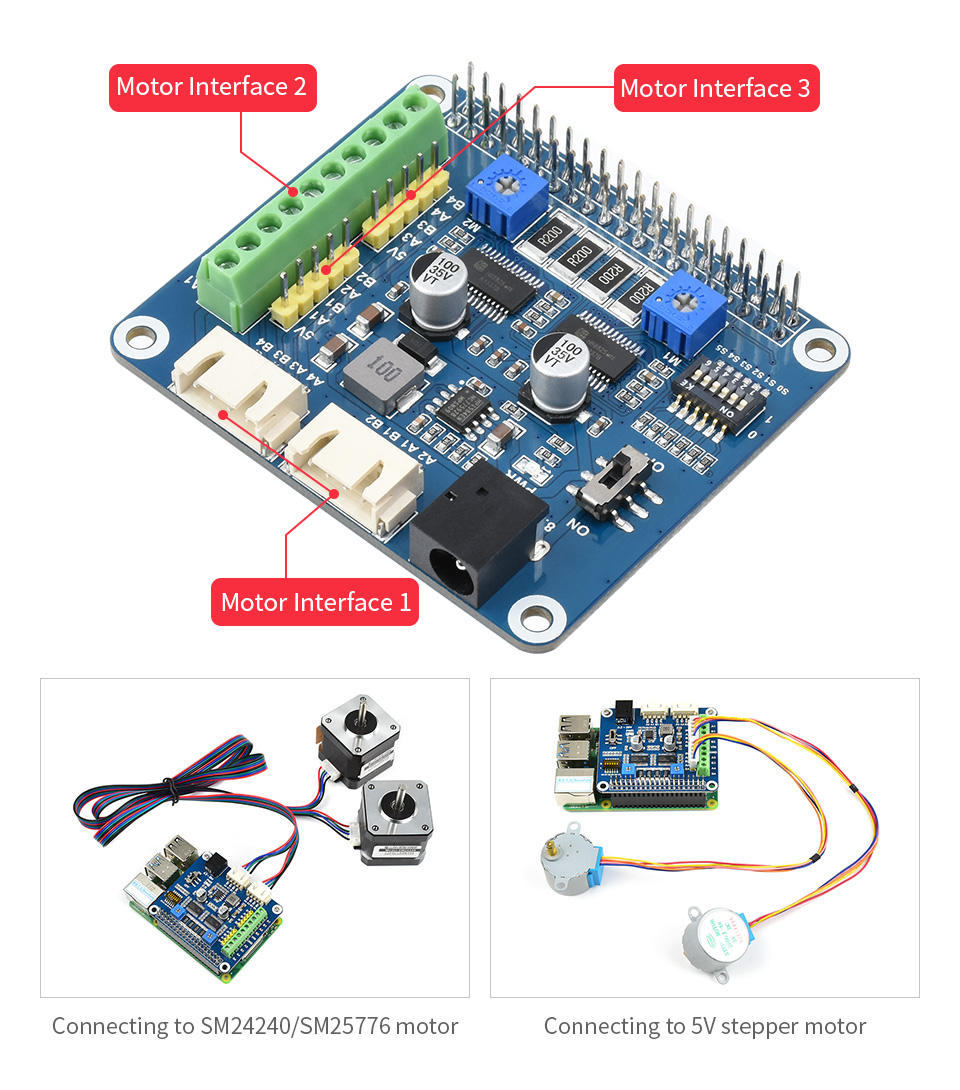

Onboard multi connector options for stepper motors in different specifications

Specifications:
MOTOR CONTROLLER: HR8825
MOTOR DRIVE VOLTAGE: 8.2V~28V
MOTOR DRIVE CURRENT: 2.5A
LOGIC VOLTAGE: 3.3V

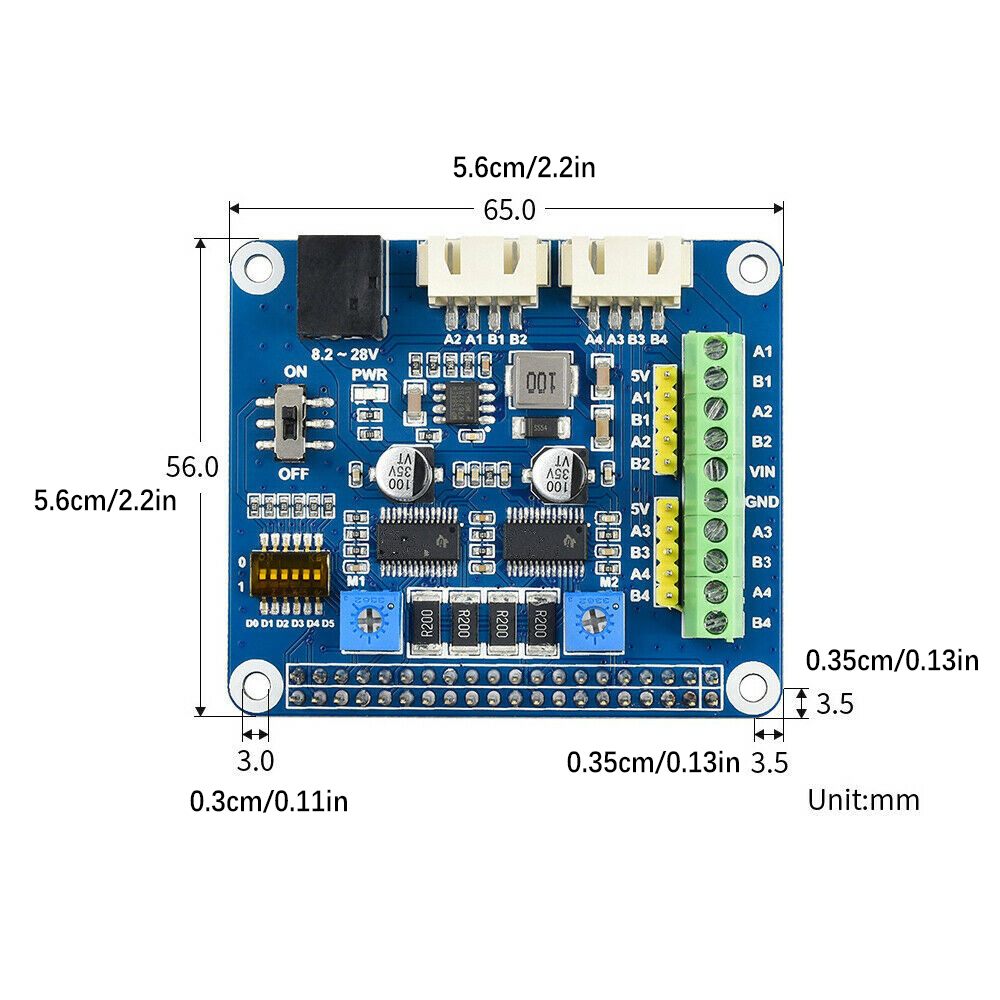

MOUNTING HOLE SIZE: 3.0mm

Package includes:
1* Stepper Motor Driver
2* Screws
