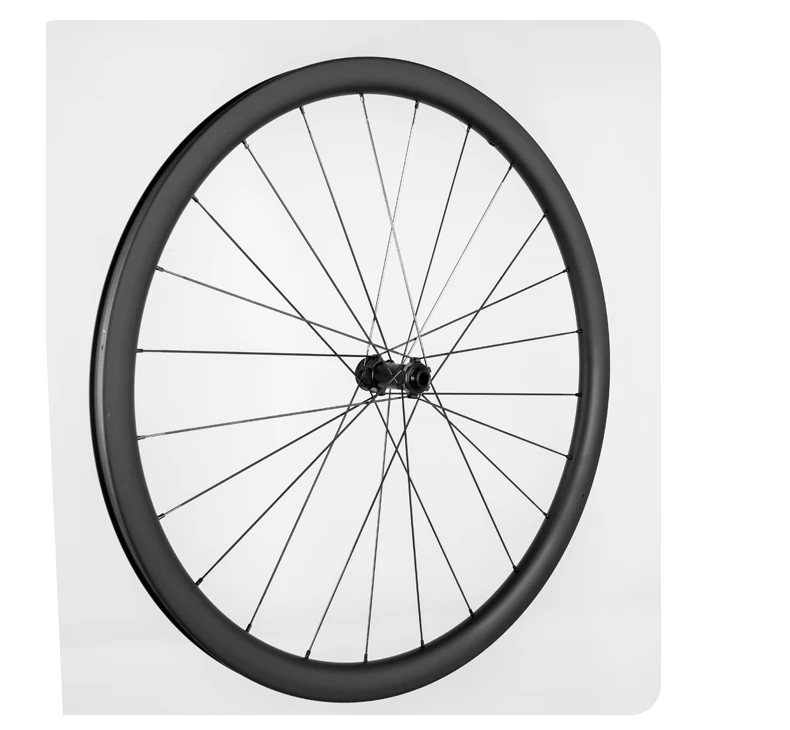

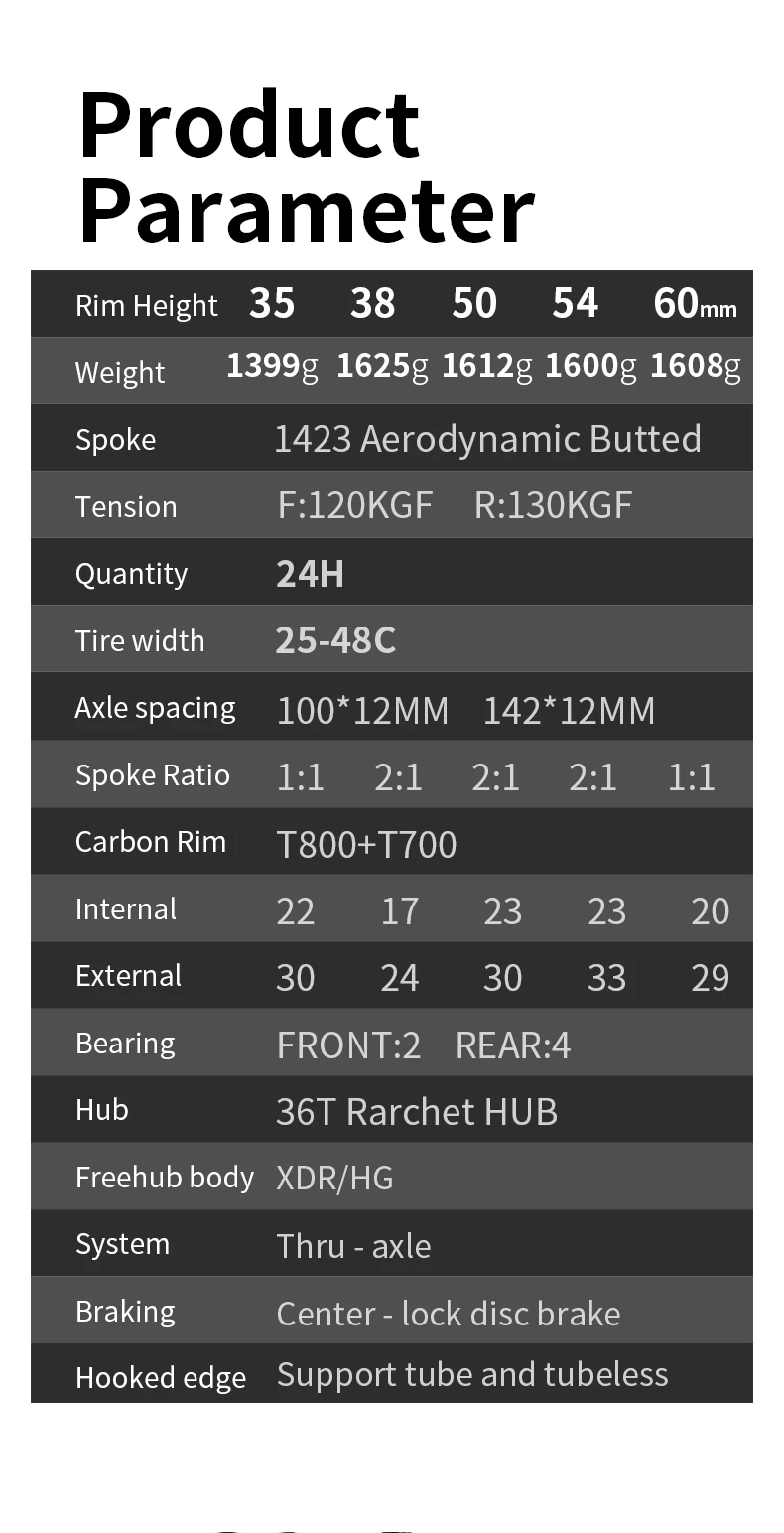

TYRE SIZE:700C ROAD CARBON WHEELS(ETRTO 622mm)

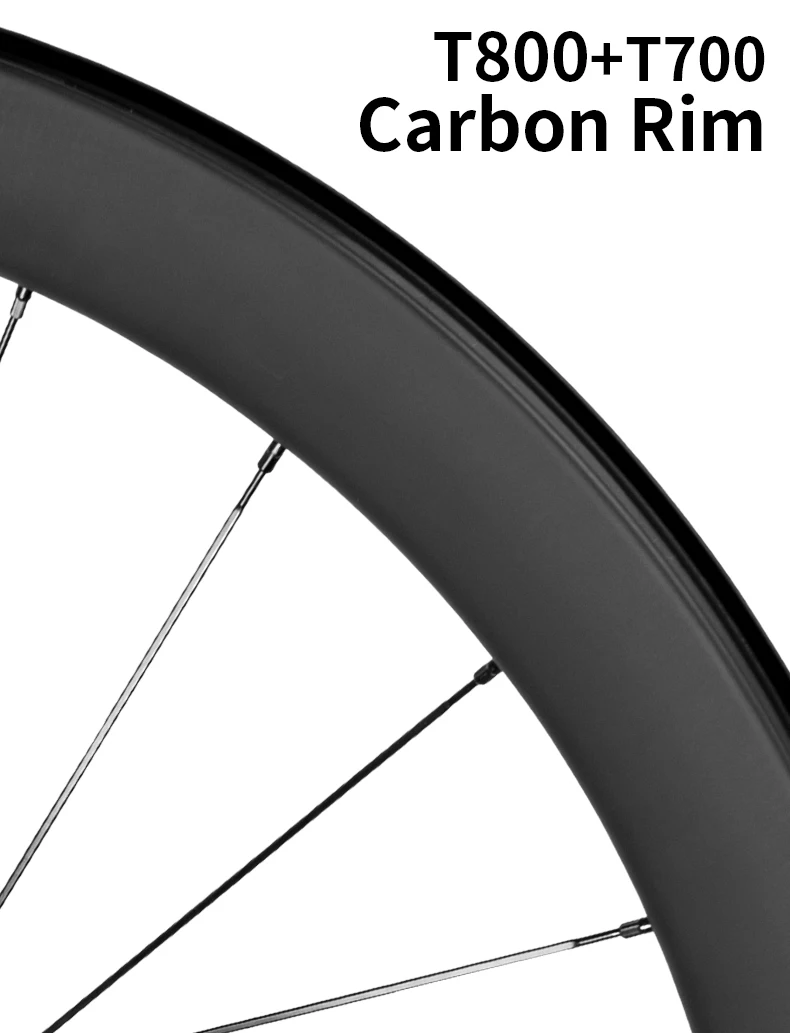

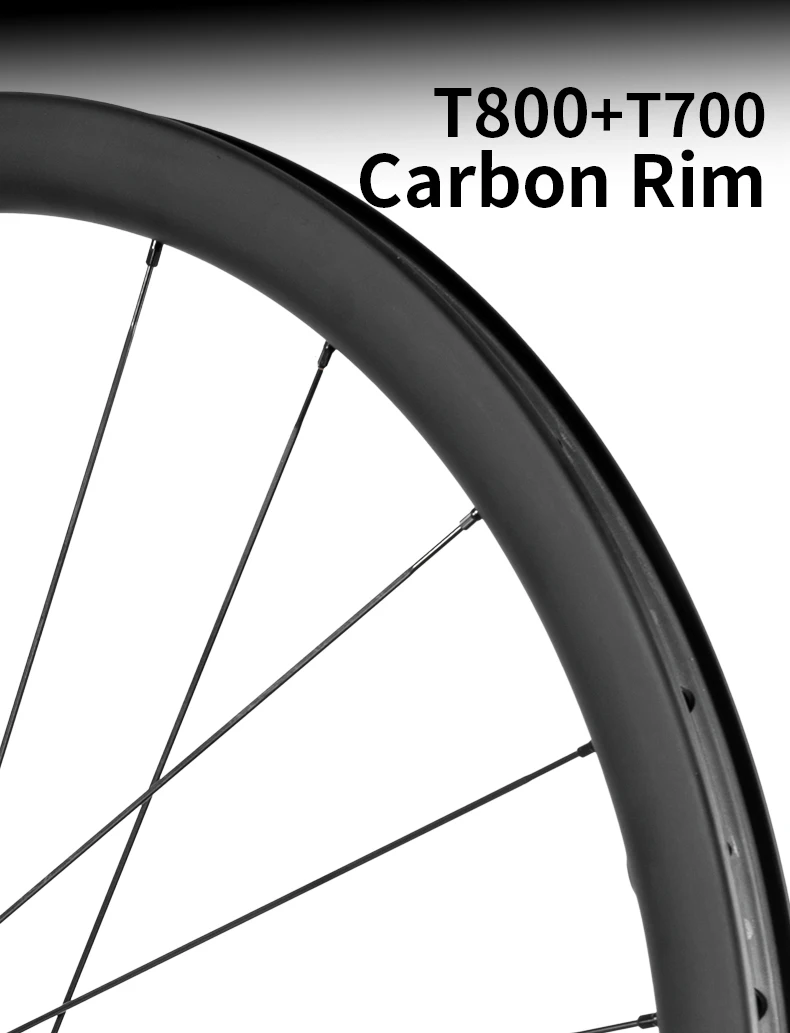

RIM MATERIAL:Toray T800 &T700 Premium Carbon Fiber

Intended Use: Road/CX/Gravel

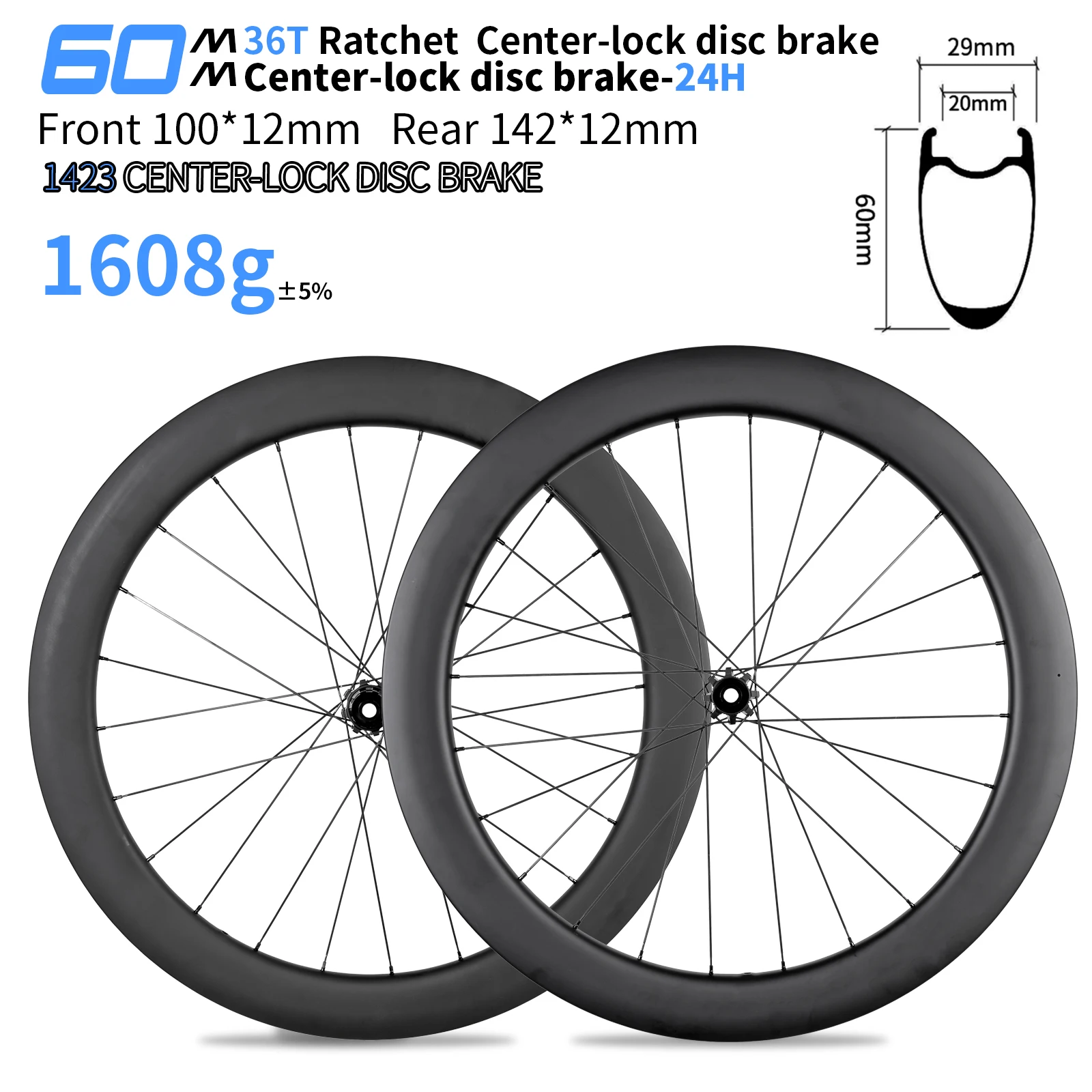

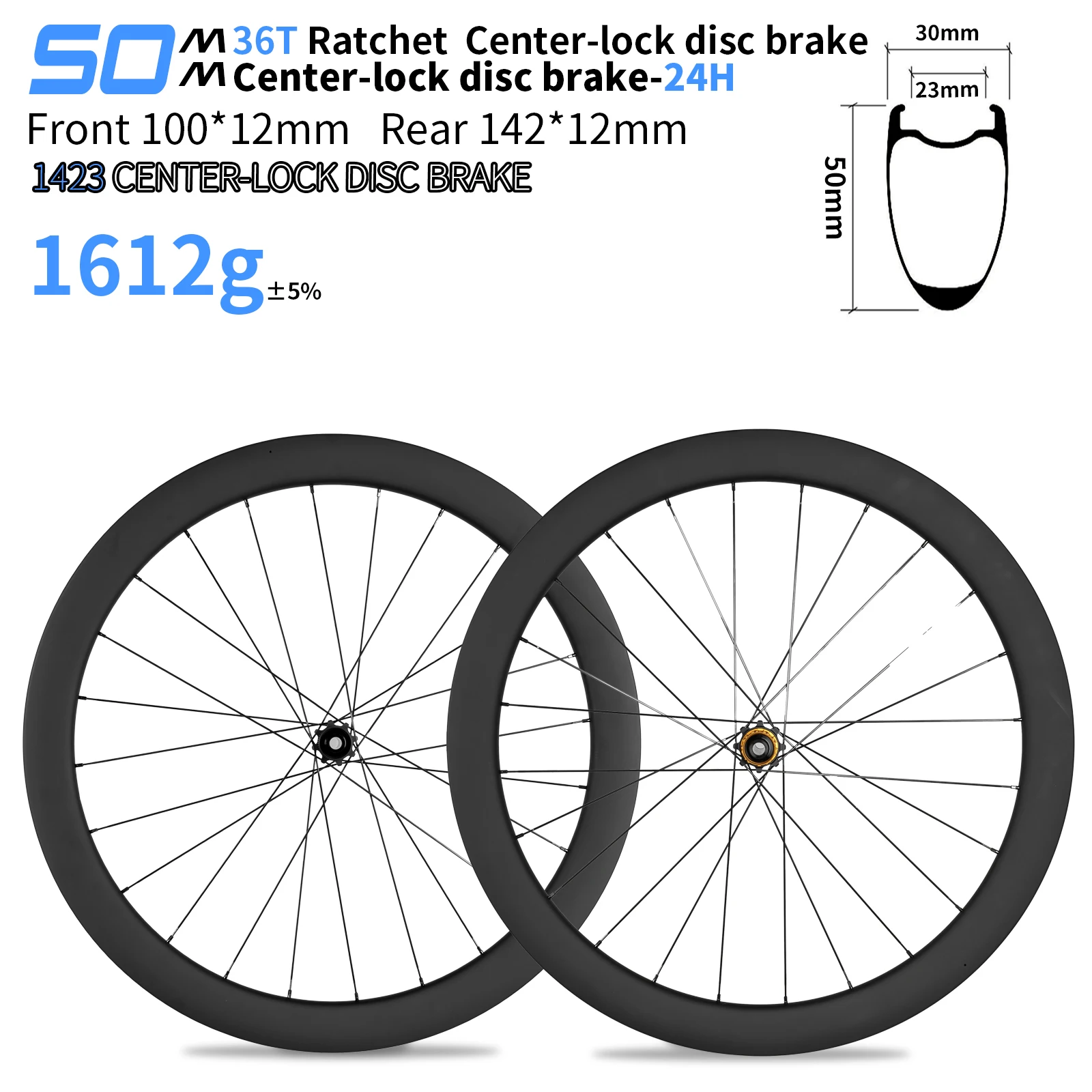

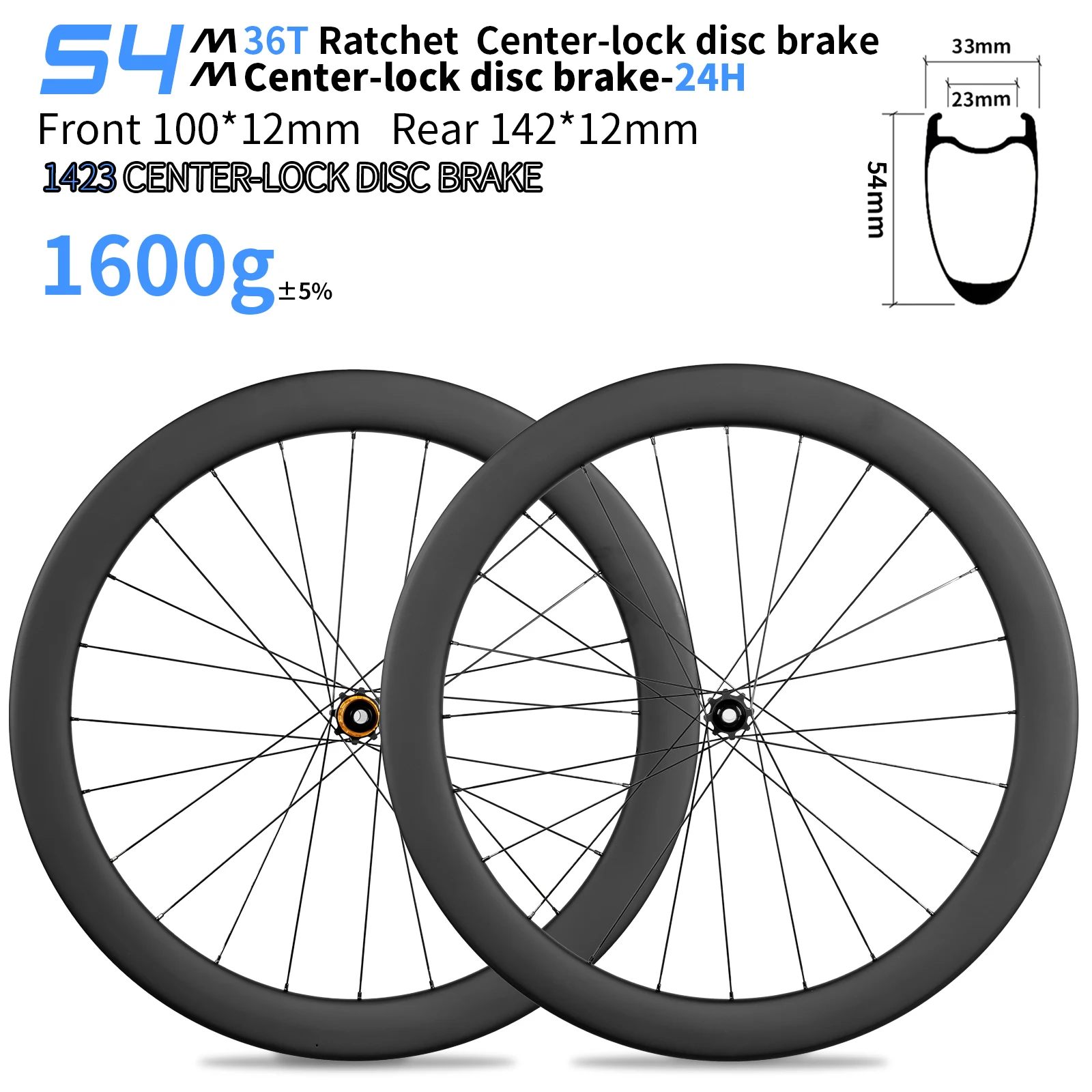

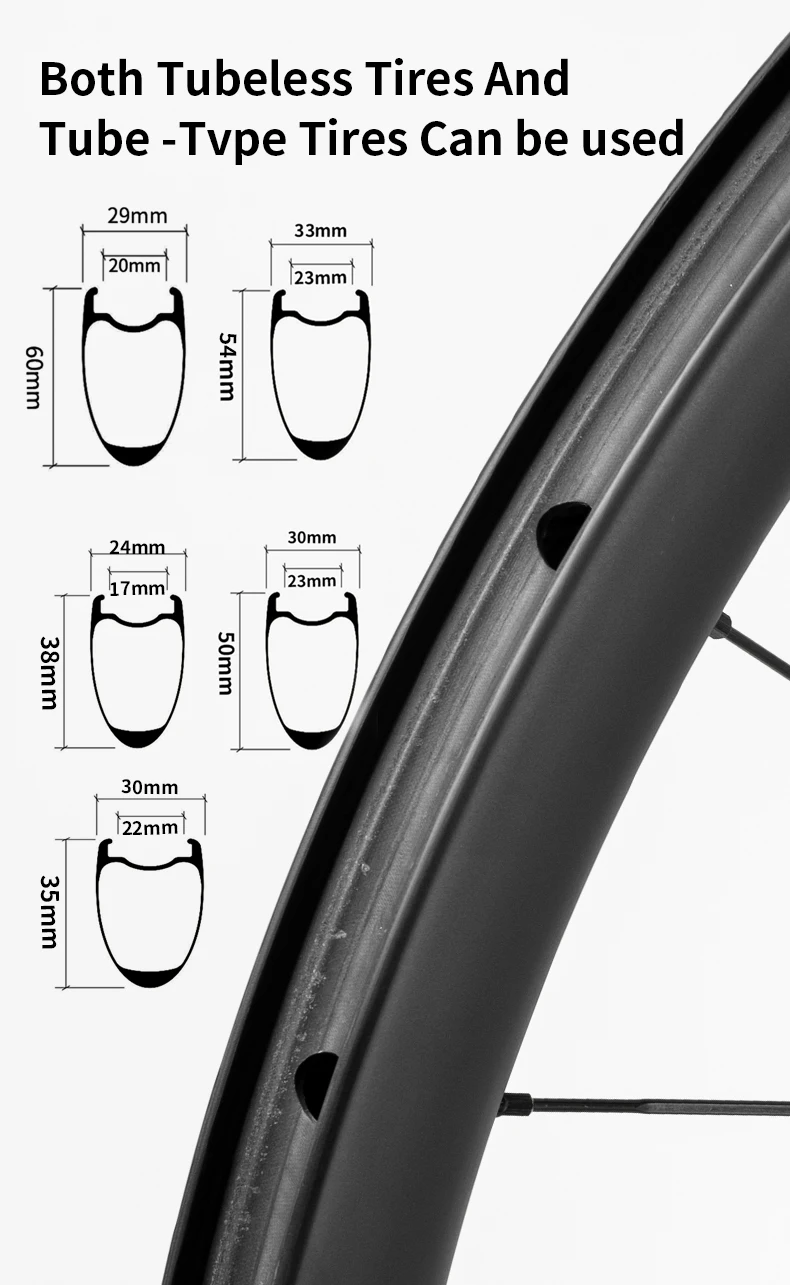

RIM HEIGHT:             35MM  38MM  50MM  54MM  60MM

OUTER RIM WIDTH: 22MM  17MM  23MM  23MM  20MM

INNER RIM WIDTH : 30MM  24MM  30MM  33MM  29MM

Bead Type: Presta valve inner tube / tubeless

Profile: Symmetric (0mm)

BRAKING SYSTEM: Center - lock disc brake

FRONT AXLE COMPATIBILITY: 12-100mm/9-100mm(Please contact customer service if you need the 9mm specification.)

REAR AXLE COMPATIBILITY: 12-142mm/9-135mm(Please contact customer service if you need the 9mm specification.)

FRONT WHEEL SPOKES: 24H

REAR WHEEL SPOKES: 24H

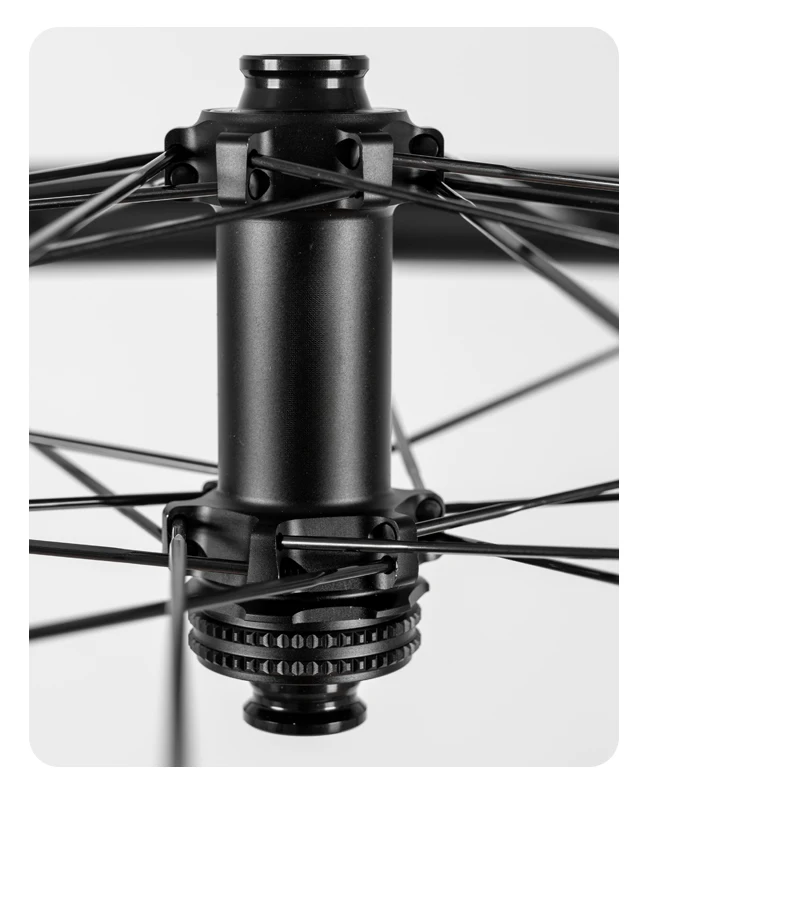

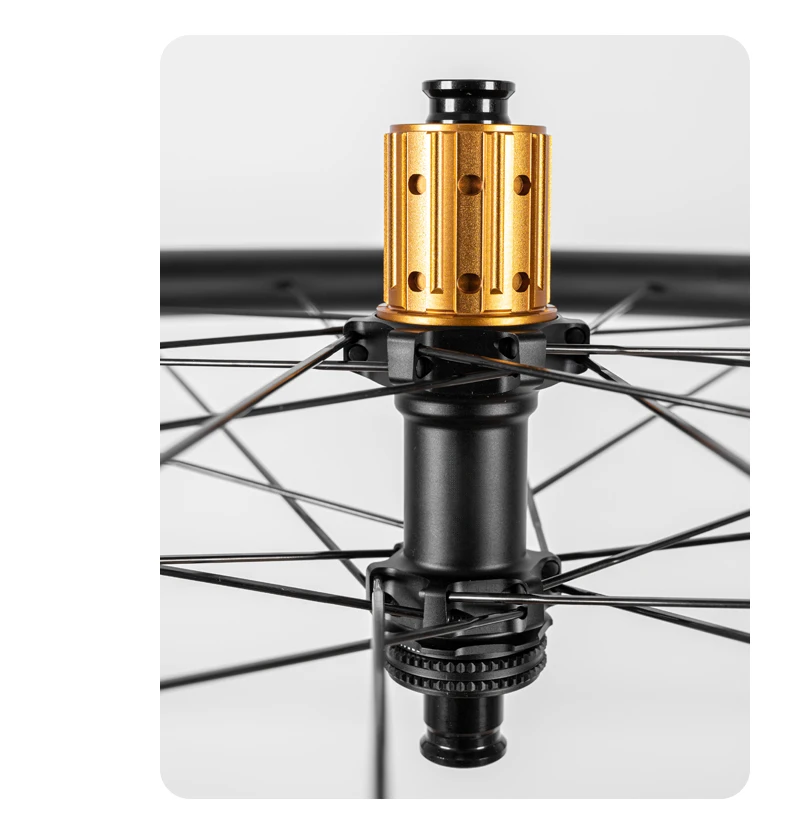

REAR HUB:60T Ratchet straight - pull hub

Spoke Tension: front 130kgf Rear140 KGF

Recommended Tire Width: 25C~48C

WEIGHT LIMIT :100kg (rider,bike, equipment and luggage)

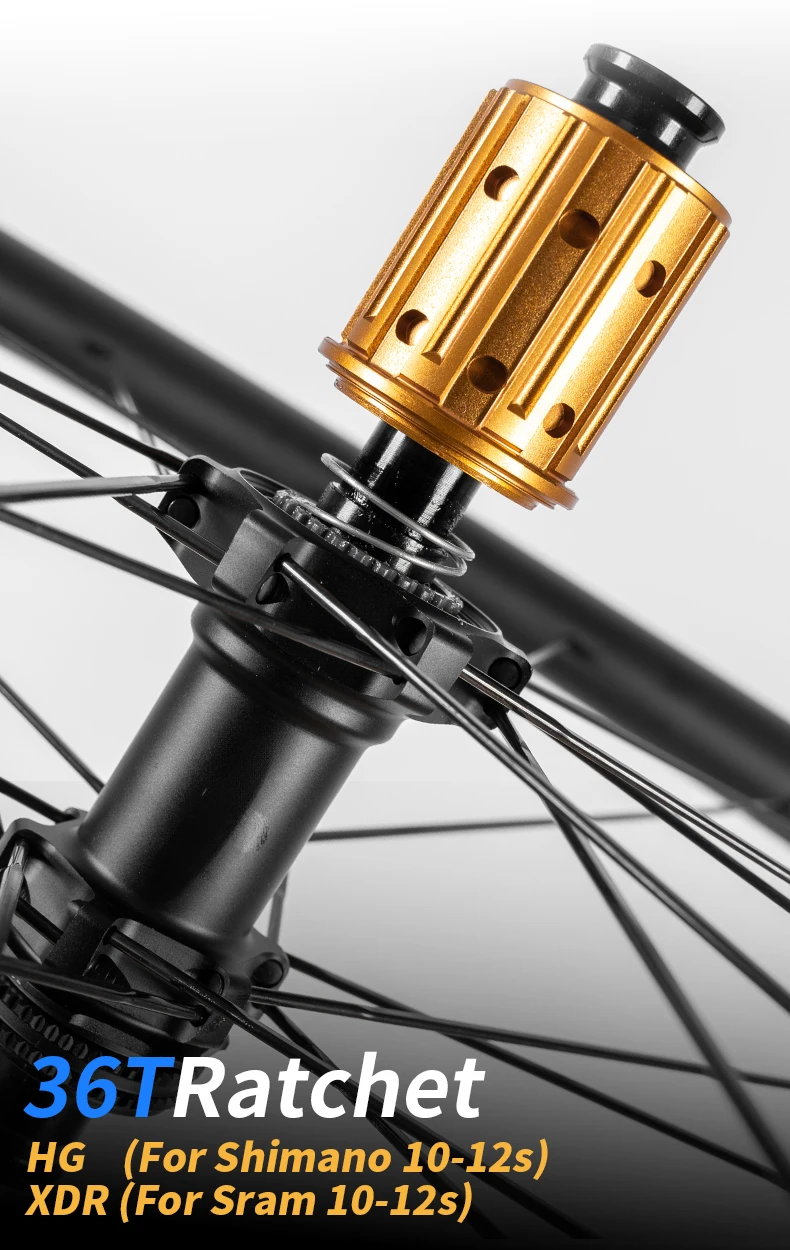

FWB OPTIONS:HG(for shimano 10-12S)

                          XDR(For sram 10-12s)

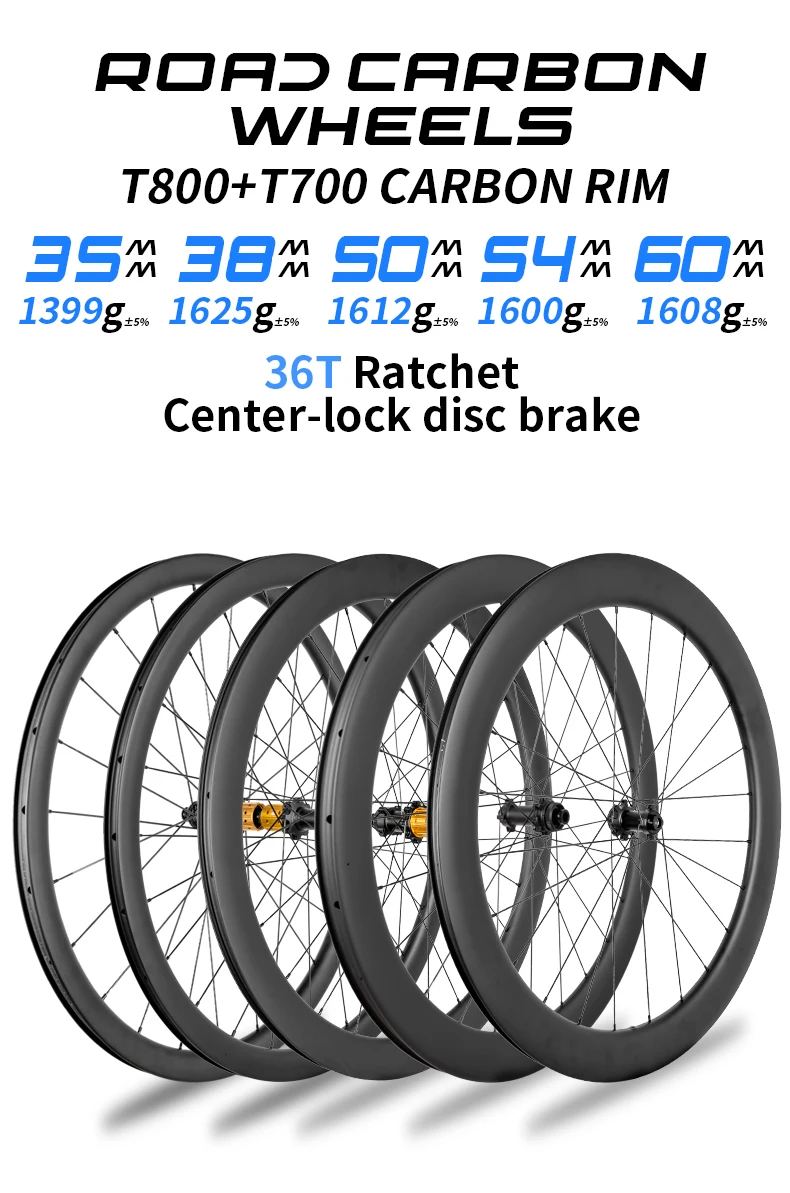

WEIGHT:1399g(35mm) 1625g(38mm)  1612g(50mm)  1600g(54mm)  1608g(60mm)±5%

<We have installed a inner tube tape(weight ≈ 50g) before shipping. Please subtract this weight when weighing.>

Front wheel spokes * 2
Rear wheel spokes * 2
