NOTE:

·If you decide to purchase, please choose from the following order spec template and tell us.

·Spoke Hole Dia：4.5mm or 2.5mm(internal nipple)

·Rim Type : Outer holes or Not outer holes ( tapeless )

·Finish：Matte or Glossy

·If not specified, the Hole Type defaults to Outer holes, and the Nipples position defaults to External.

Detailed Informatica

·Size:24inch507 and 520

·Material: Toray T700 & T800 Premium Carbon Fiber

·Depth：30/38mm

·Outer Width: 25/30mm

·Inner Width：18.4/23mm

·Profile：Symmetric (0mm)

·Rim Type: Tubeless or Clincher

·Weave：UD/3K/3K Twill/12K/12K Twill

·Hole：16/18/20/21/22/24/28/32/36

·Finish：Matte/Glossy

·Spoke Hole Dia：4.5mm

·Valve Hole Dia：6.5mm

·Assembly Hole Dia：7.5mm

·Spoke Tension：120~130kgf

·Max Cyclist Weight：130KG

·Max Tire Pressure：120psi

·Warranty: 2 year

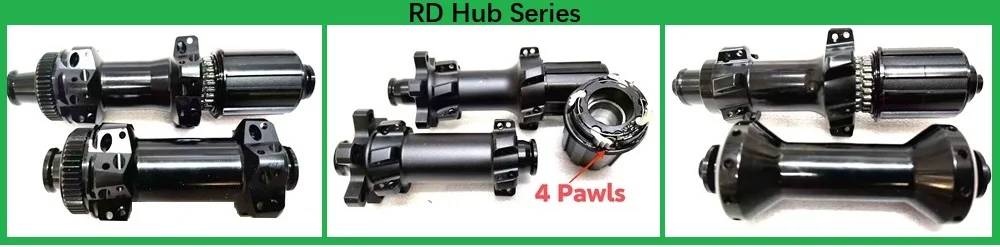

HUB

·Model name: RD Hub【If you want to use another brand of hub,please contact us】

·Front Axle Size：9*100mm/12x100mm

·Rear Axle Size：10*130mm/10*135mm/12*142mm

·Driver Body：Shimano 9/10/11/12S,SRAM XDR

·Brake System: V Brake or 6-Bolt or Center Lock

·Hole: 20/24H; 24/24H

·Warranty: 1 year

SPOKE

·Model name: 1423

·Color：Black【Or other color】

NIPPLE

·Meterial：Pillar alloy

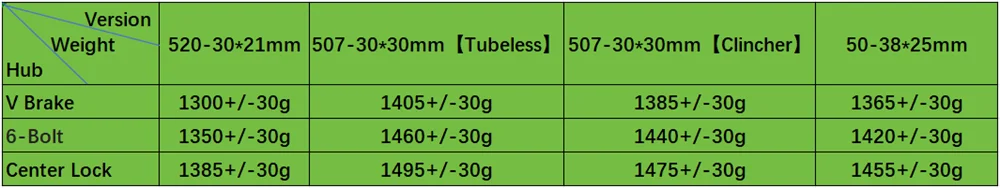

Weight
