Mitsubishi QY40P MELSEC-Q Digital Transistor Output Module 16pt 24VDC
- In Stock: 9
- Brand: Mitsubishi
- Condition: Used
- Notes: Previously used item in good condition. Tested and fully functional. May show normal signs of wear from use. We warranty all items for 30 days.
- Model: QY40P
- Type: PLC I/O Module
- Shelf: E-6 Tub 2
- Controller Platform: MELSEC-Q
- Part Number: QY40P
- Manufacturer: Mitsubishi
- Full Load Amps:: 0.1A per point, 1.6A common
- MPN: QY40P

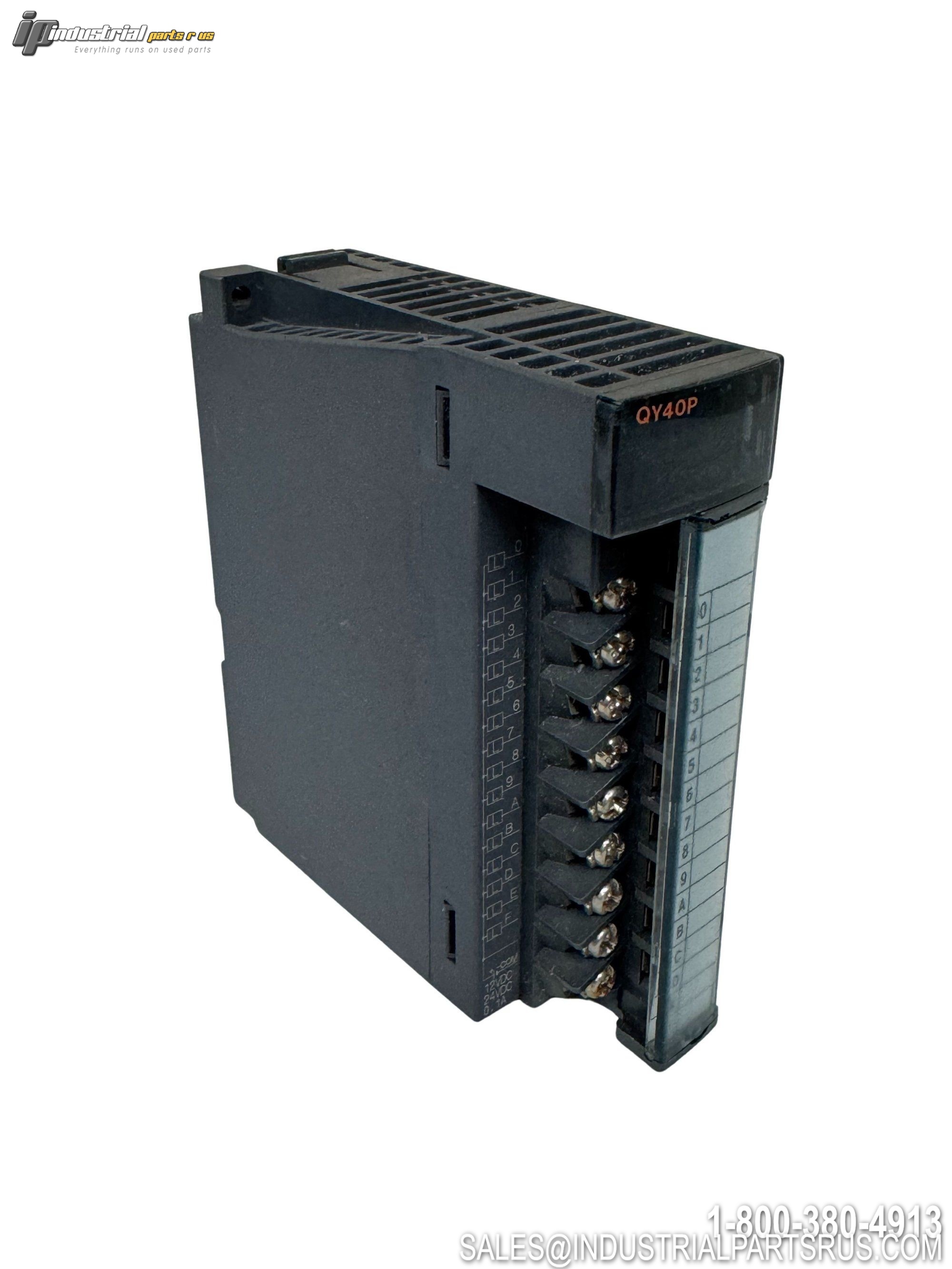

- Media 1 Description: Mitsubishi QY40P PLC I/O Module - Photo 1

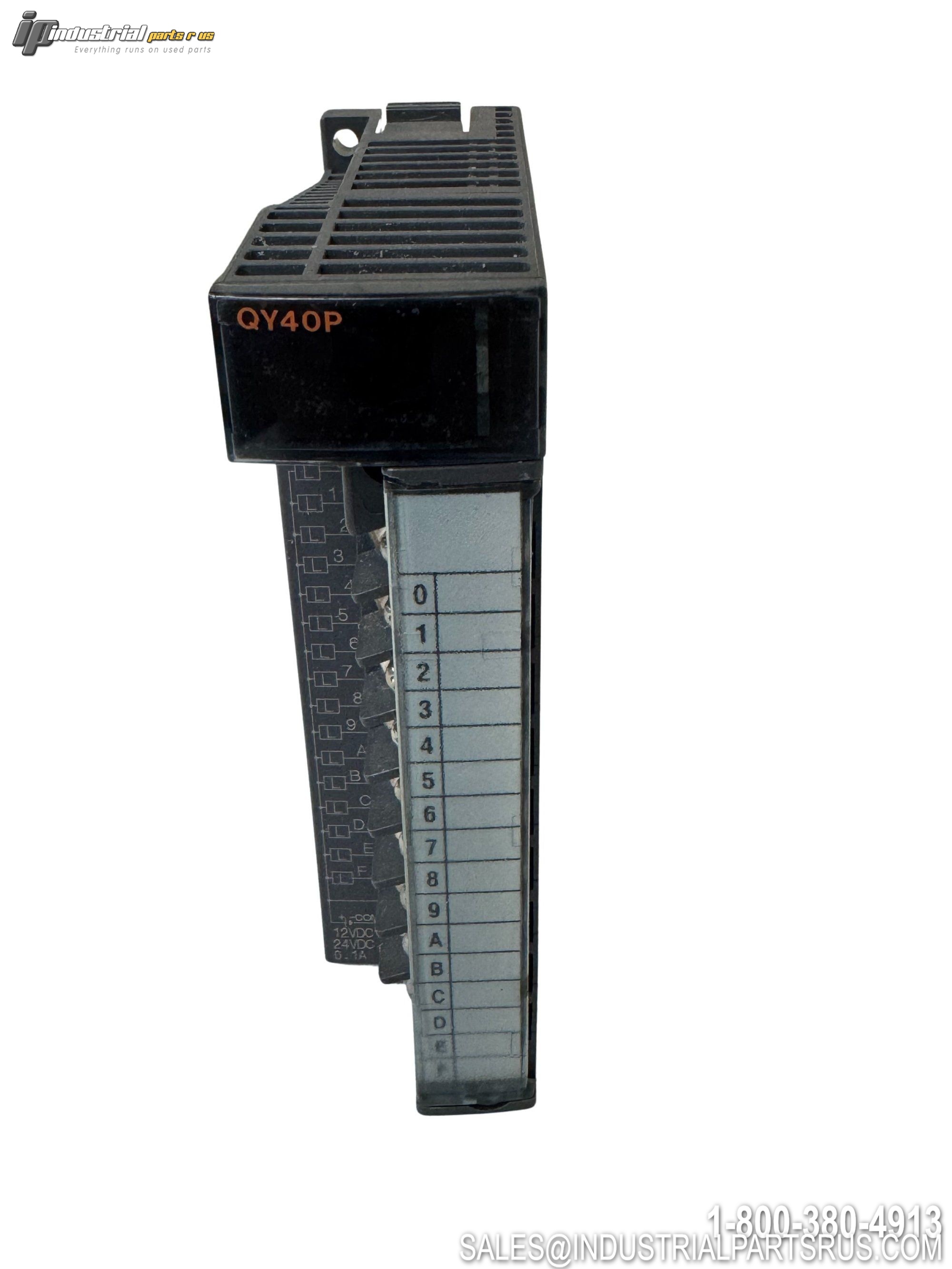

- Media 2 Description: Mitsubishi QY40P PLC I/O Module Image 2

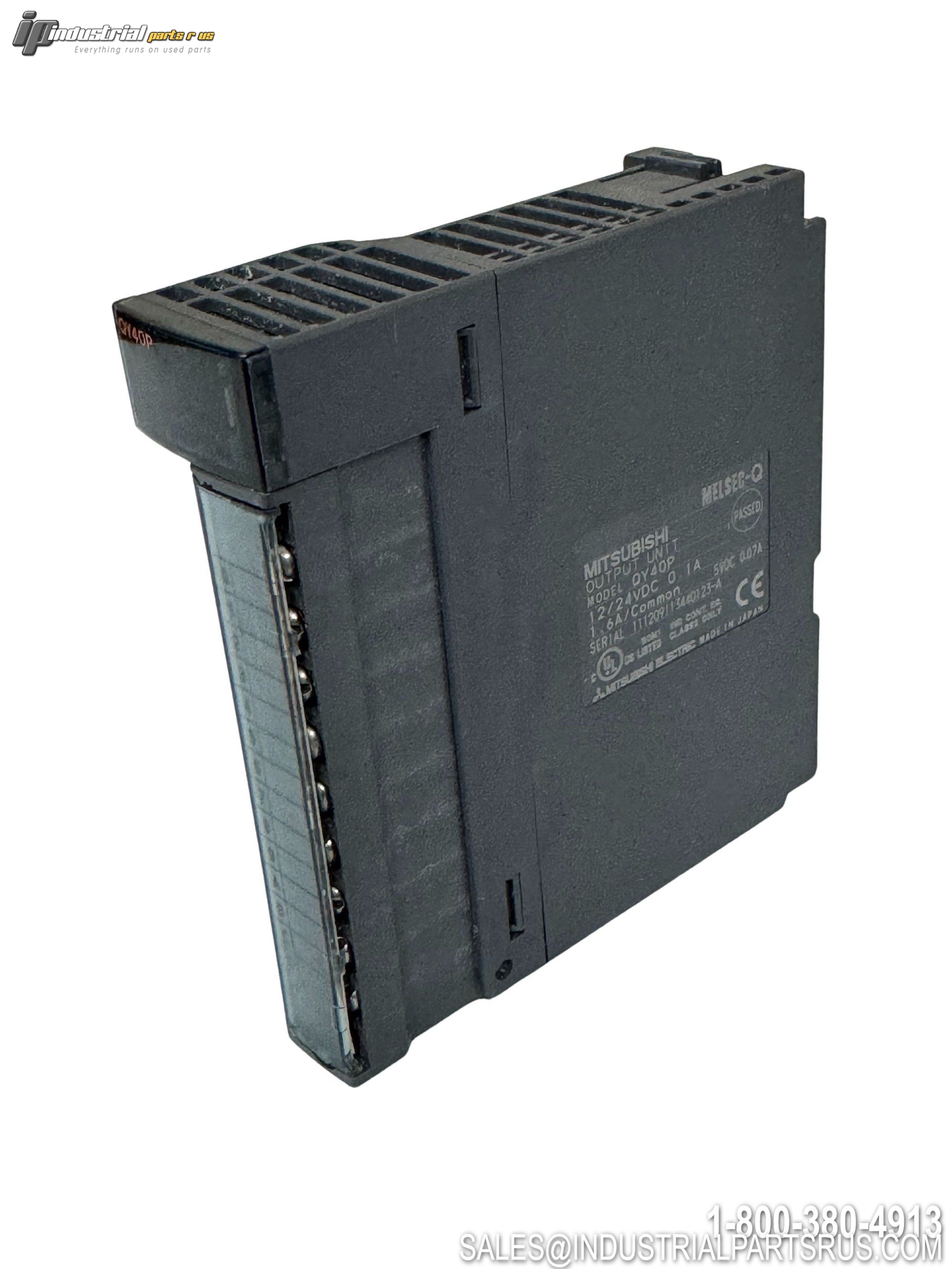

- Media 3 Description: Mitsubishi QY40P PLC I/O Module View 3

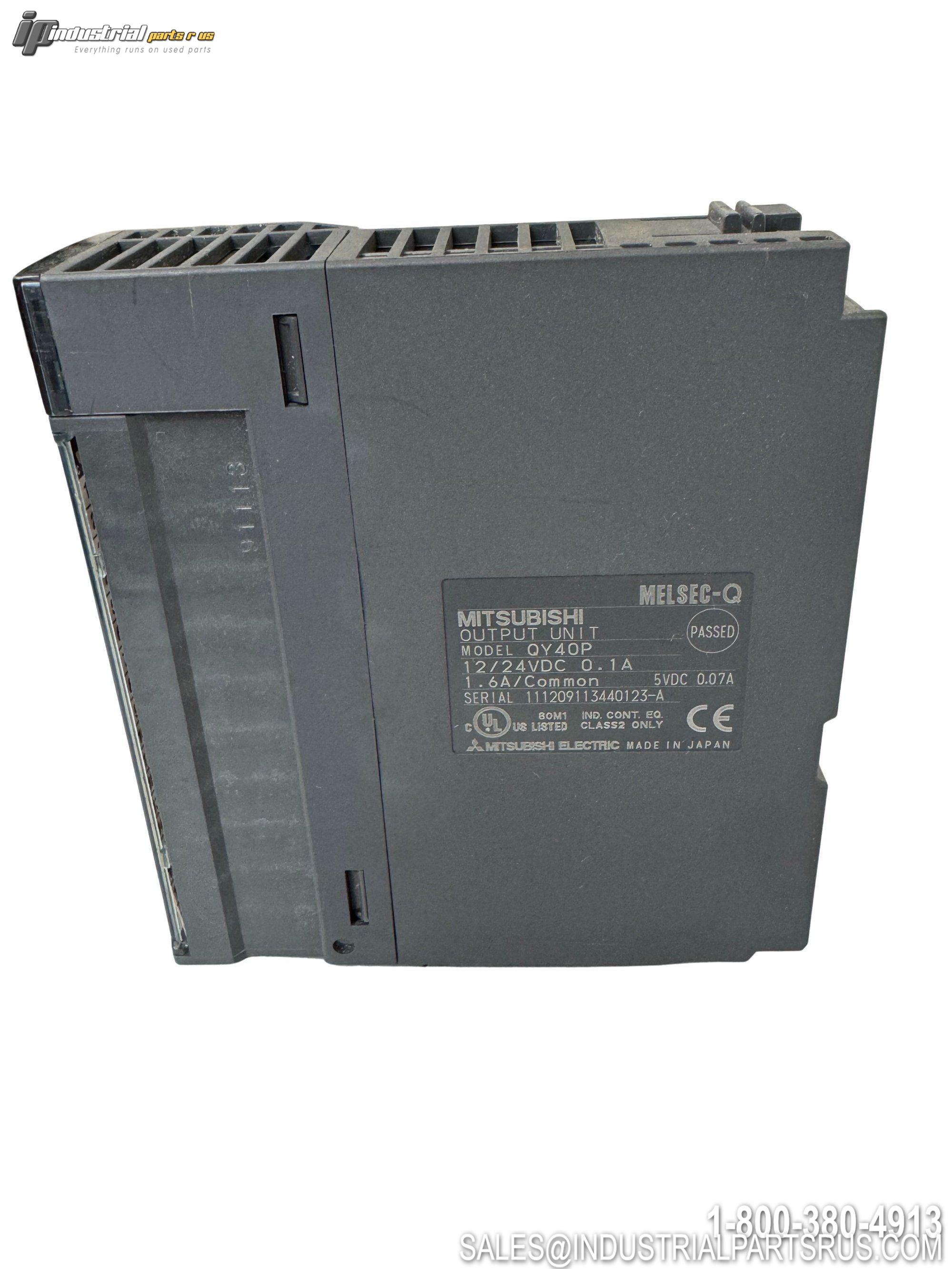

- Media 4 Description: Mitsubishi QY40P PLC I/O Module - Photo 4
- Analog/Digital: Digital
- Country of Origin: Japan
The Mitsubishi QY40P is a 16-point digital transistor output module designed for use in MELSEC-Q series programmable logic controller systems. This sink-type output module features photocoupler isolation and is rated for 12-24VDC operation with a maximum load current of 0.1A per point.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Mitsubishi Electric |
| Model/Part Number | QY40P |
| Product Type | Transistor Output Module (Sink Type) |
| Series | MELSEC-Q |
| Number of Output Points | 16 points |
| Output Type | Transistor (Sink) |
| Isolation Method | Photocoupler |
| Rated Load Voltage | 12-24VDC (+20/-15%) |
| Maximum Load Current | 0.1A per point, 1.6A common |
| Maximum Inrush Current | 0.7A, 10ms or less |
| Leakage Current at OFF | 0.1mA or less |
| Max Voltage Drop at ON | 0.1VDC (TYP), 0.2VDC (MAX) |
| Response Time | 1ms |
| Surge Suppressor | Zener diode |
| Dielectric Withstand Voltage | 560VAC rms/3 cycles |
| Insulation Resistance | 10MΩ or more |
| Protection Degree | IP2X |
| Terminal Type | 18-point screw terminal (M3 screws) |
| Common Terminal | 16 points/common, sink type |
