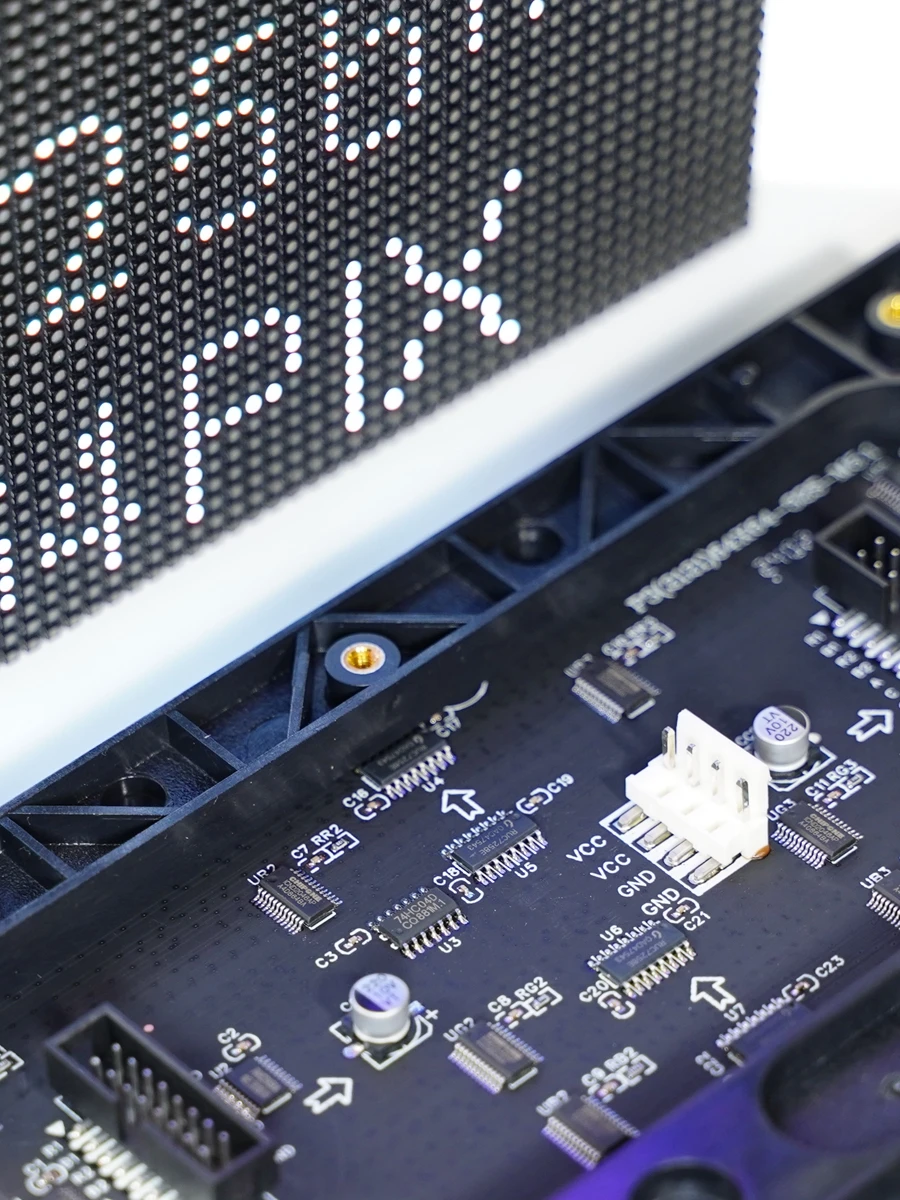

Indoor SMD P3 RGB LED Matrix Screen Module 64x64 Pixels High Resolution 1/32 Scan Sign Board Wholesale

Pitch/mm: P3
Module size/mm: 192*192
Density of pixel(dots/m2): 111111
Pixel composition: 1R1G1B
Led encapsulation: SMD2121/2020
Resolution of module:64*64
Optimum viewing distance: 23m
View angle /°: V160/H140
Average power :220 consumption/W/M2
Max power :600 consumption/W/M2
Frame frequency/Hz/S ≥60
Refresh rate Hz/S :1920
Luminance of white balance: >500nits
Driving method :1/32 scan constant current
Operation of Environmental: below 30 to above 65 (Temperature/℃)
Working voltage:DC 5V
Grey scale/color:displaying colors≥16.7M(synchronized)
Brightness adjustment: 256 levels of each color(manually),100 levels of each
color(automatically)
Input signal: RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
Control system Huidu/linsn/Nova(sending card,receiving cards and Hubs)
Average of non-failure life >50,00h
Life span >100,000h
Blind dot rate <0.0002

Packing list：
1 pcs led display module
1 pcs power cable
1 pcs data cable
