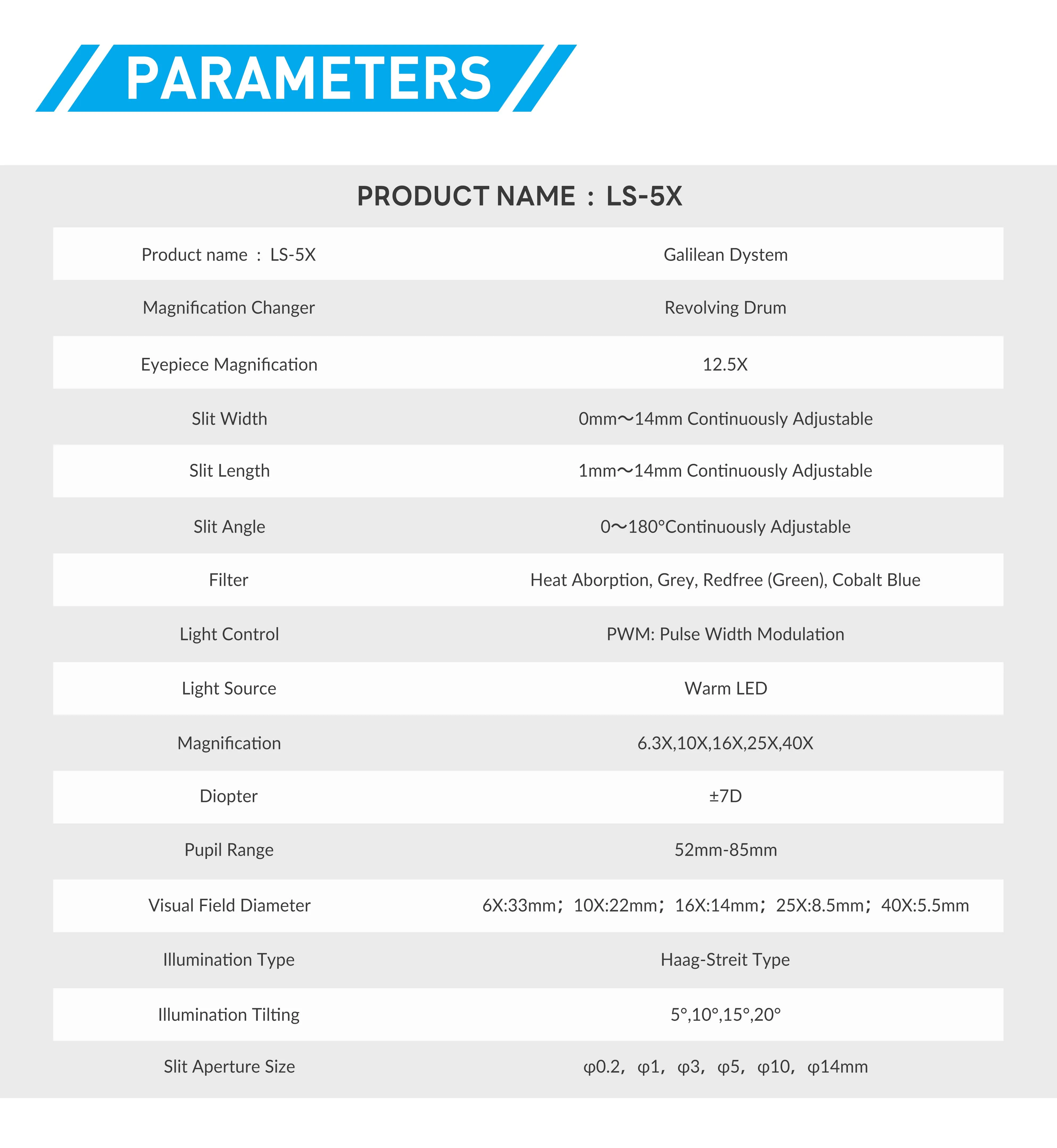

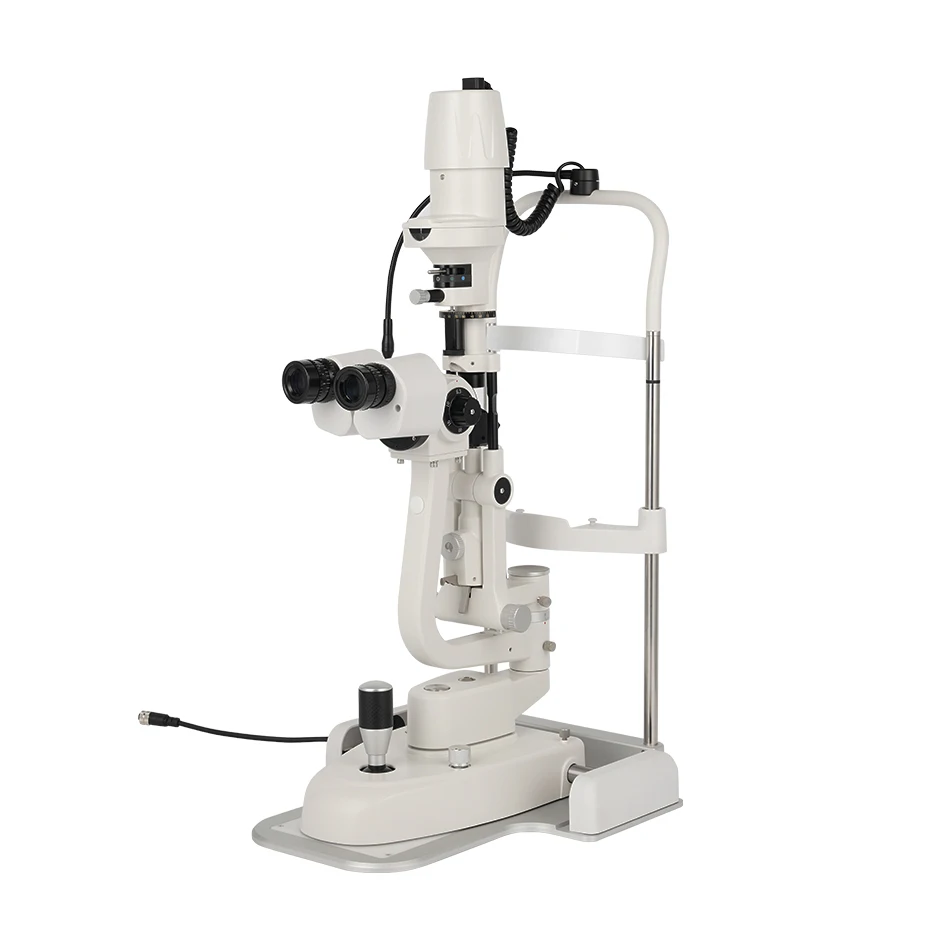

Optical System LS-5X

llumination Type: Galilean system, Parallel type, Haag-streit type

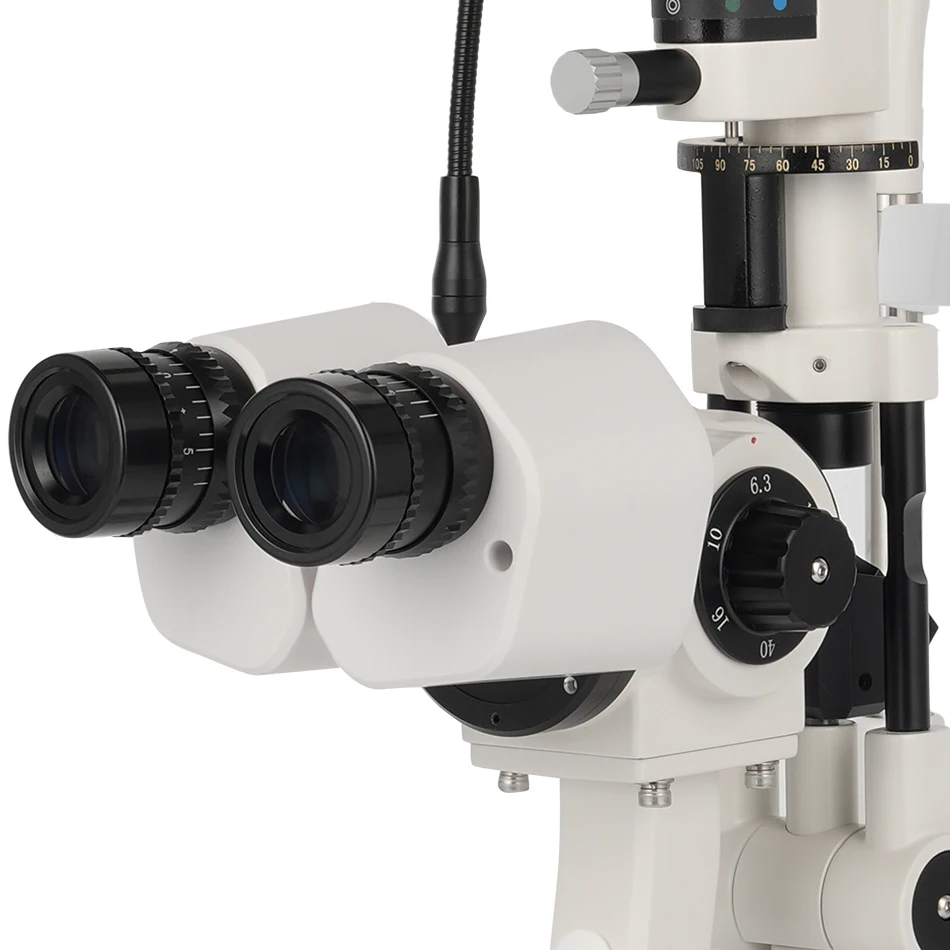

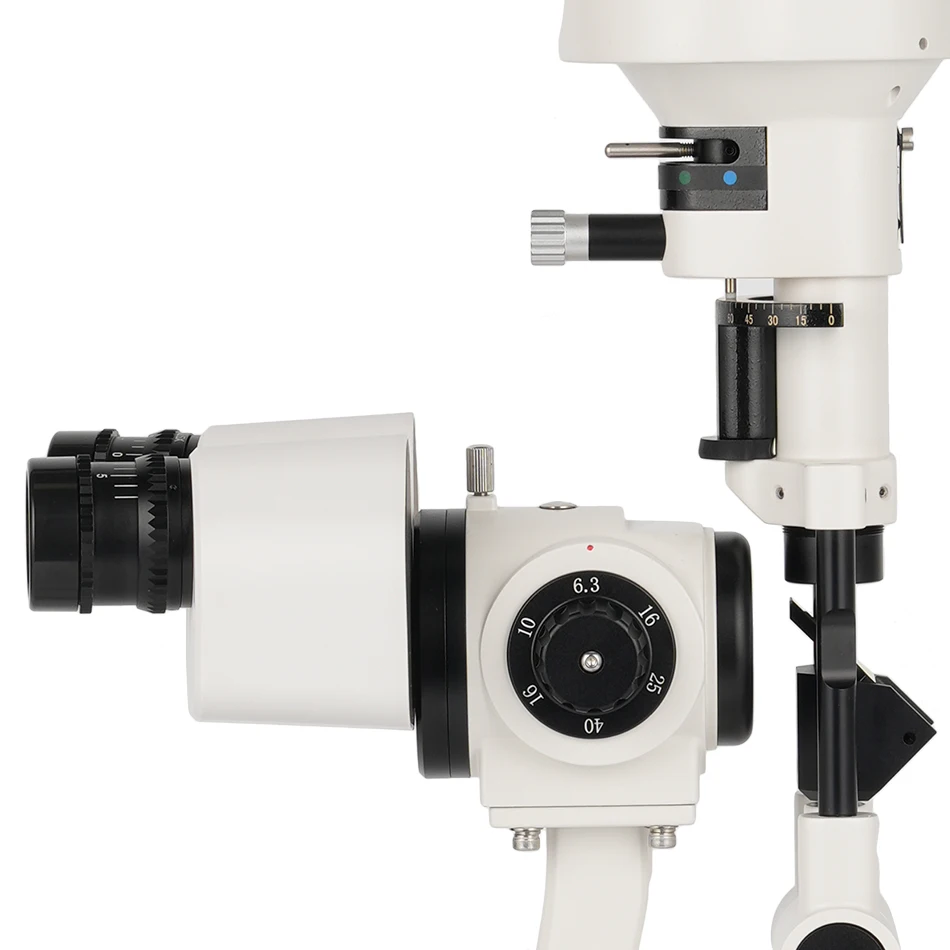

Magnification Changer: Rotating drum change
Magnification: 6.3X 10X 16X 25X 40X
Eyepiece Magnifcation: 12.5X
visual Field Diameter: 6x(φ33) 10x(φ22) 16x(φ14) 25x(φ8.5) 40x(φ5.5) mm
Pupil Range: 52 - 85 mm
Diopter: ±7D

llumination

Slit Width: Continuous from 0 to 14 mm
Slit Length: Continuous from 1 to 14 mm

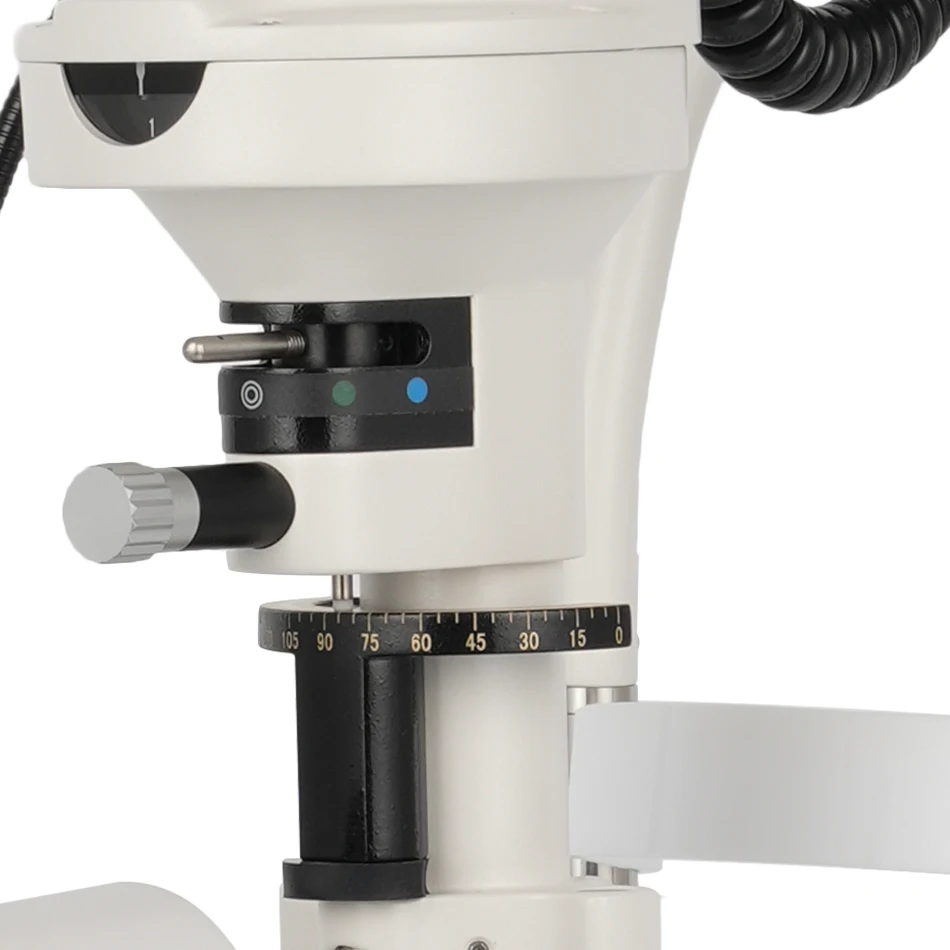

Slit angle: 0° - 180° Continuously Adjustable
Slit Aperture Size: Continuous from 1 - 14 mm, φ14, φ10, φ5, φ3, φ1, φ0.2 mm
Slit llumination Tilt: 5° 10° 15° 20°
Filter: Heat Absorption, Grey, Redfree(Green), Cobalt Blue
Fixation Lamp: Red LED 3.5V

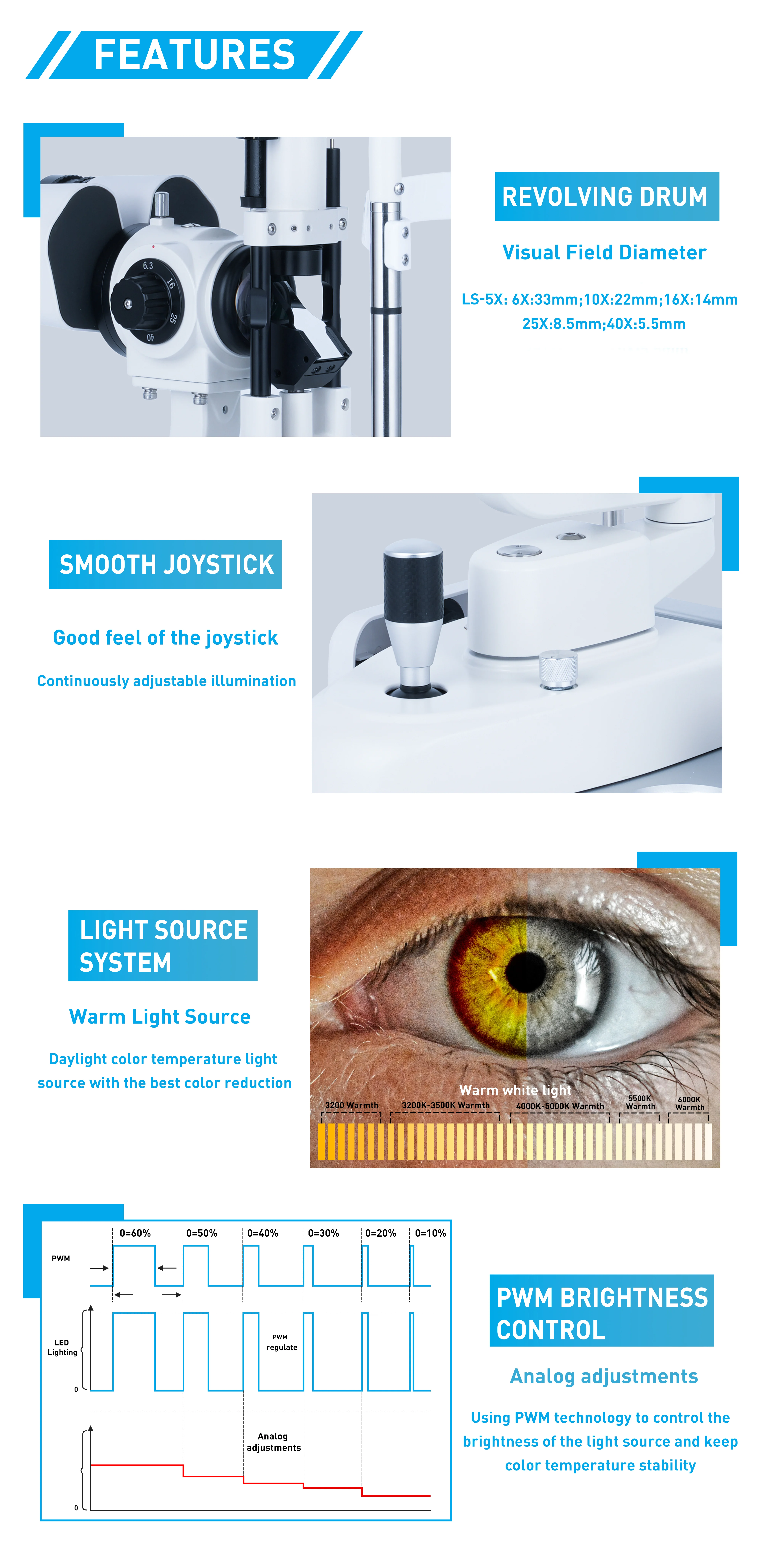

Light Control: PWM: Pulse Width Modulation
Light Resource: Warm LED

Power

Input Voltage: 100 - 240V 48 - 62Hz
Input Power: 70VA

Dimensions and Weight

Dimensions: 740*640*450 mm
Net Weight: 21kg
Gross Weight: 24k
