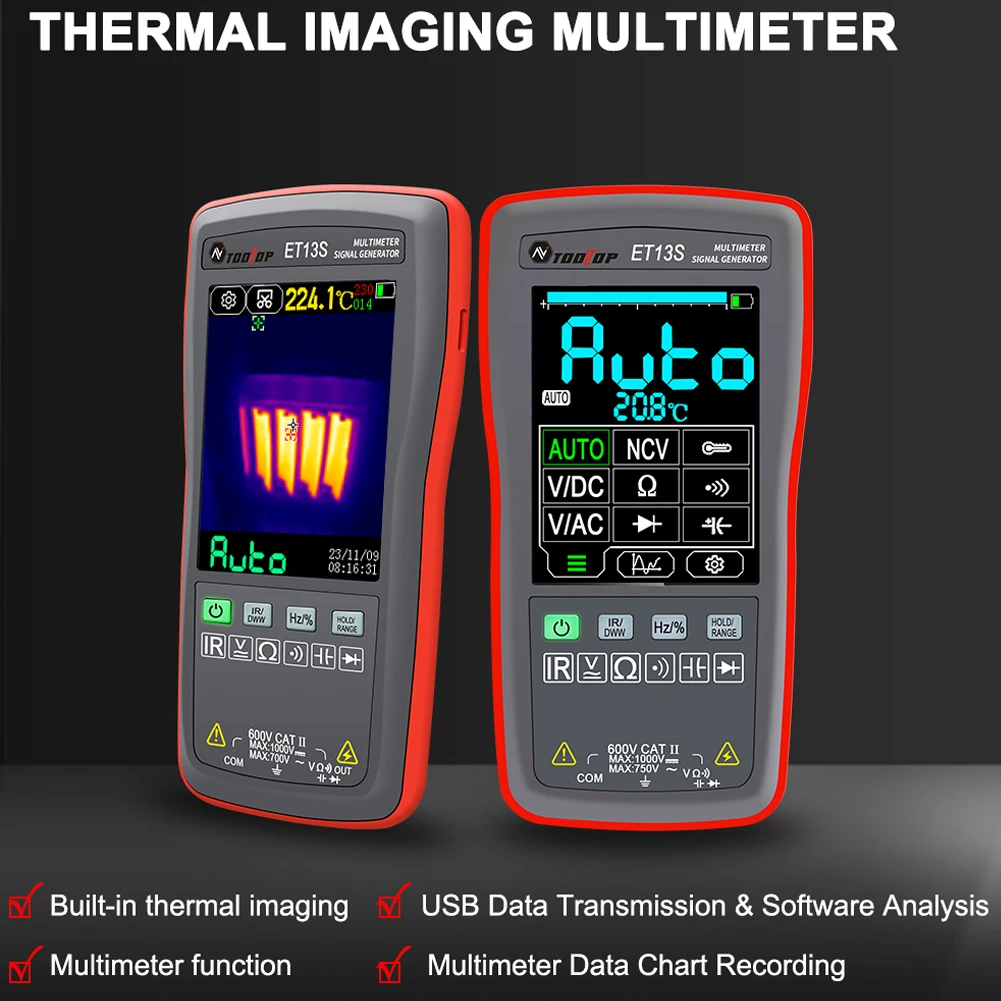

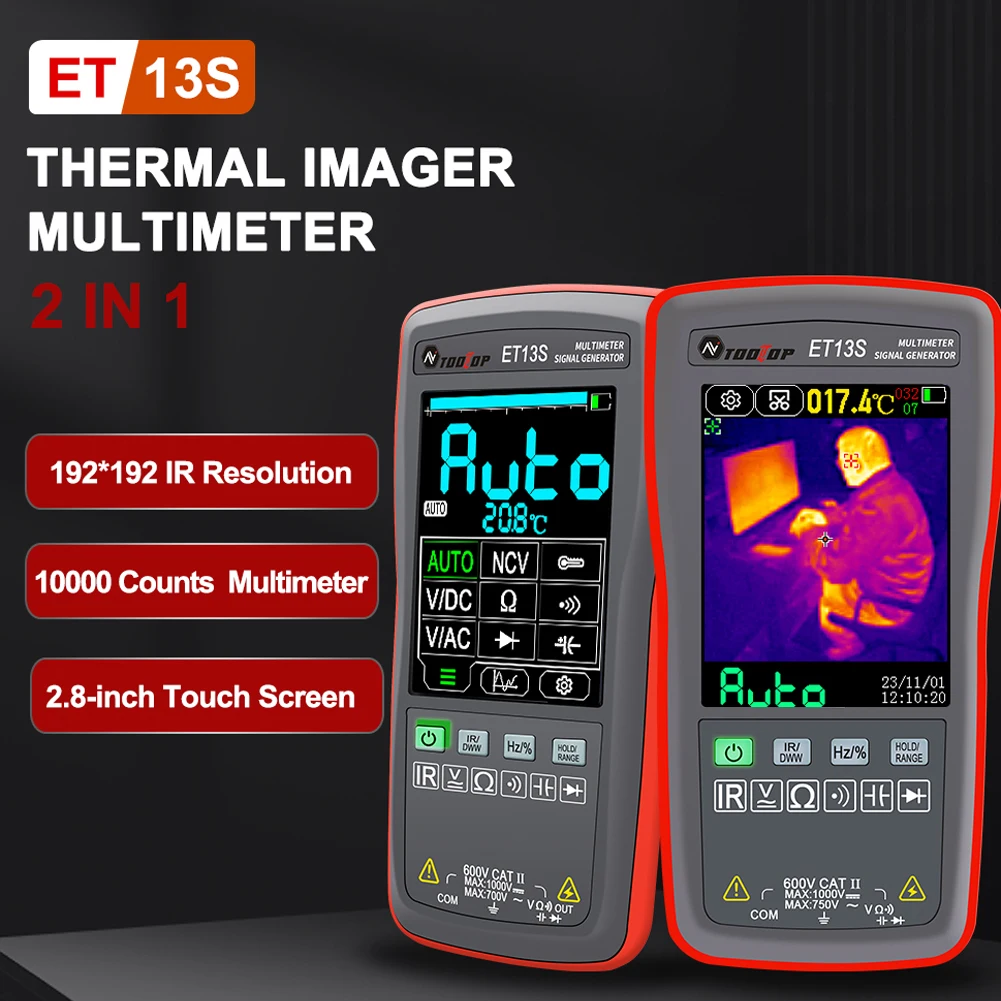

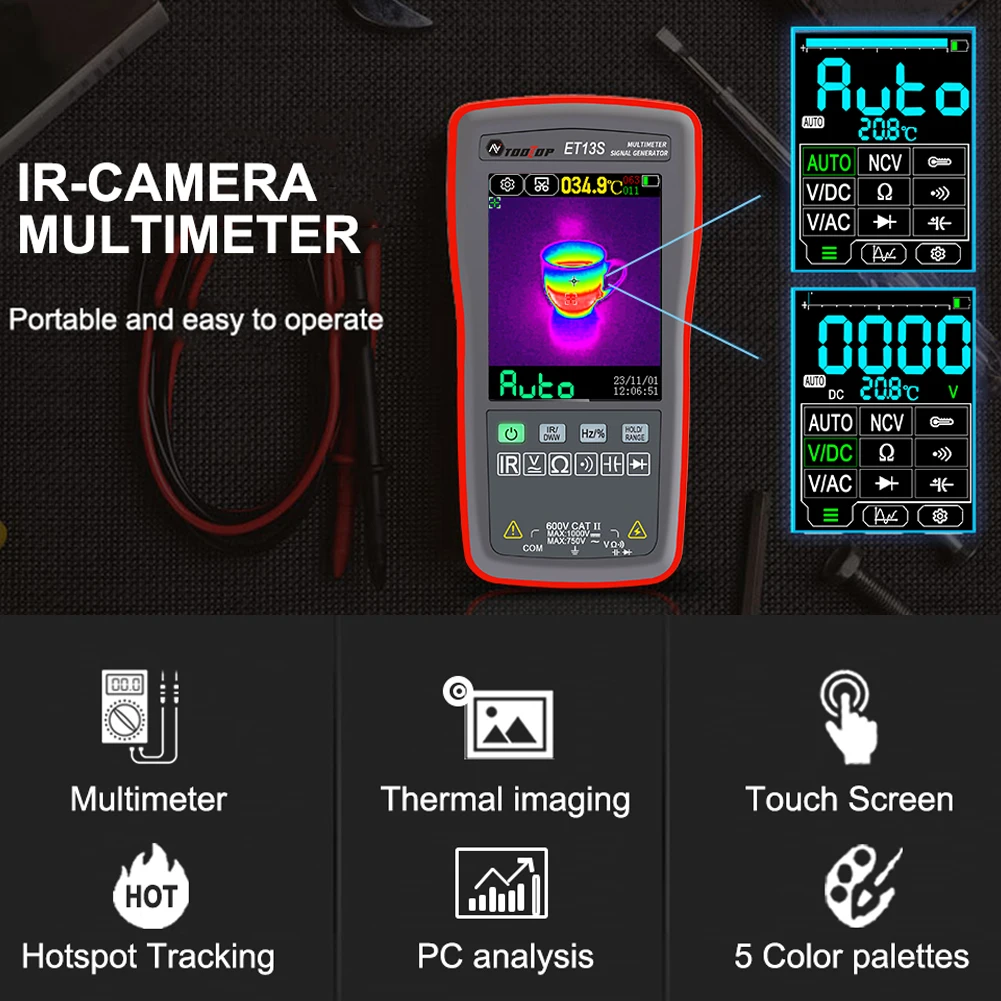

Portable Handheld Multifunction Infrared Thermal Imager and Multimeter: Industrial Circuit Board Repair Tool
ET11S
Image capture rate: 16 Hz
Thermal imaging resolution: (768) × 24 × 32
Display resolution: 187 × 251
Field of view (FOV): 55° (H) × 35° (V)
Temperature measurement range: -40°C to +300°C
Multimeter display: 4000 counts, updated 3 times per second
Sensor: Uncooled Focal Plane
Emissivity: Adjustable from 0.1 to 0.99, default value 0.95

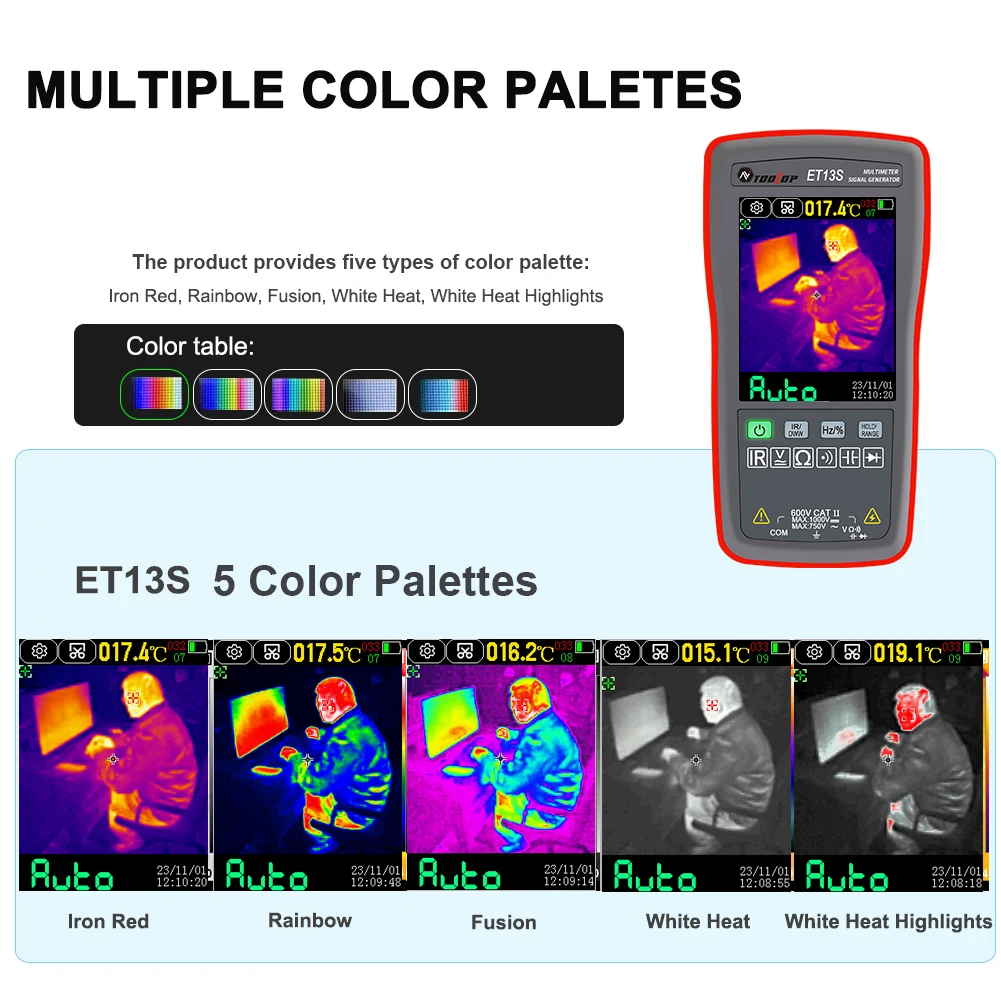

Color Plate Mode: Iron Oxide Red / Rainbow
Temperature Measurement Error: >0°C ±2°C or ±2%; ≤0°C ±5°C or ±5%
Display Temperature Accuracy: 0.1°C / 0.1°F
Maximum DC Input Voltage: 1000V
Maximum AC Input Voltage: 750 V
Maximum Resistance Measurement: 40 MΩ
Maximum Capacitance Measurement: 100 μF
Duty Cycle Measurement Range: 0.1% – 99.9%
Diode Measurement Range: 0 V – 1.5 V
Maximum Switch Detection Resistance: 30 Ω

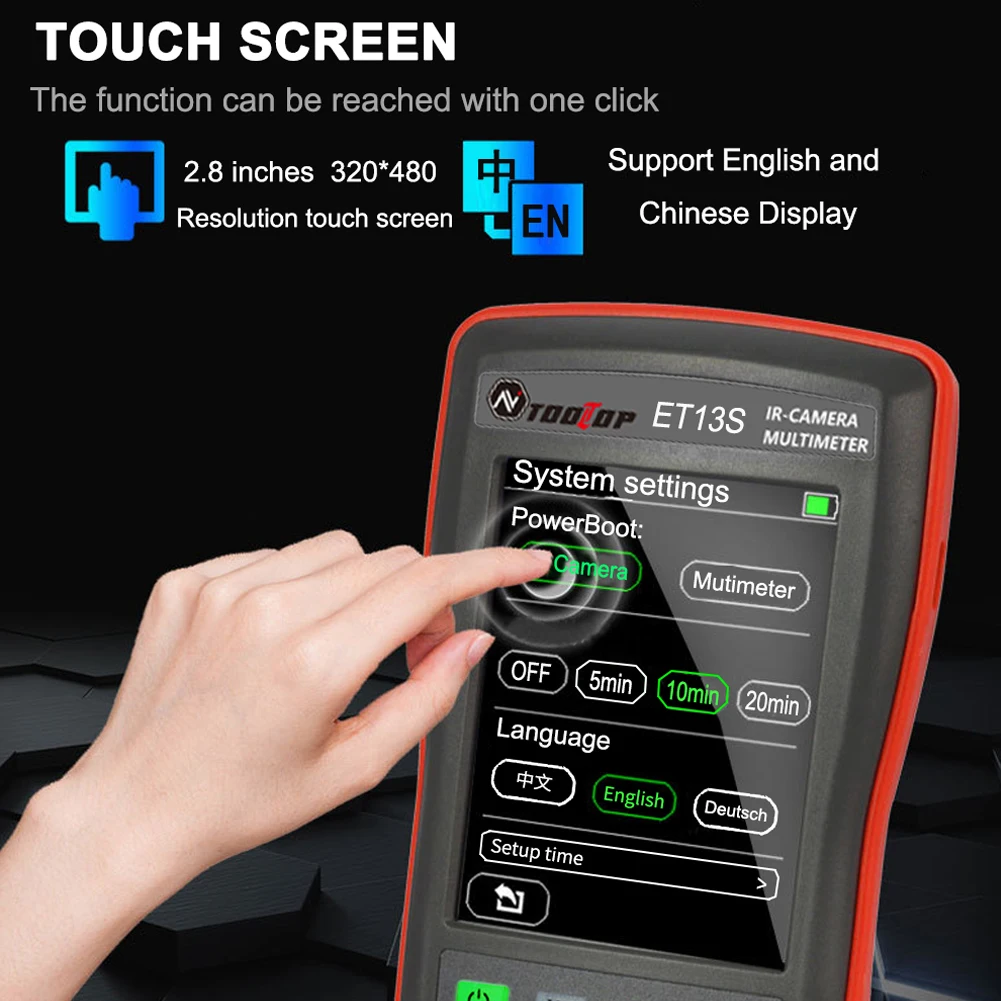

Display: 2.8-inch, 320×480 resolution

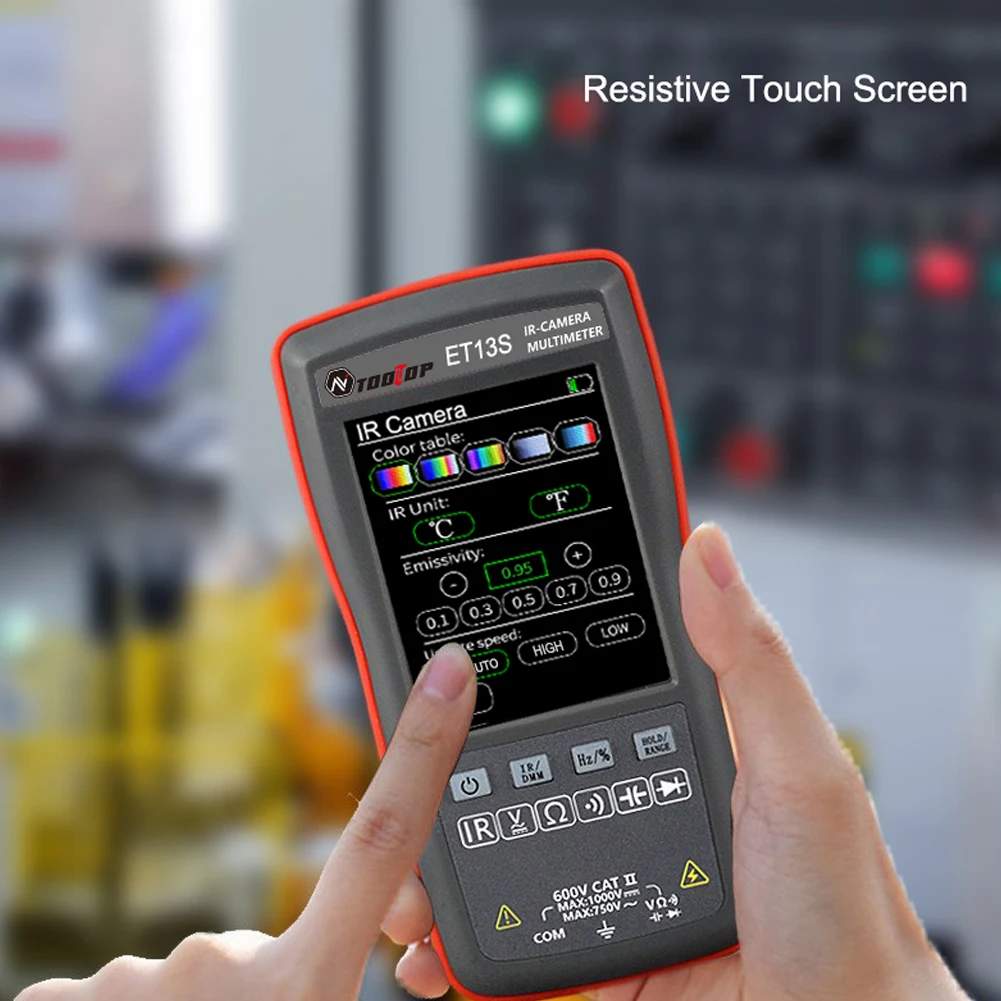

Touchscreen: Resistive touchscreen
USB Port: Type-C USB
Storage Capacity: 3.5 MB
Image Format: BMP files
Battery: Built-in lithium battery
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Operating Humidity: <85% RH (non-condensing)

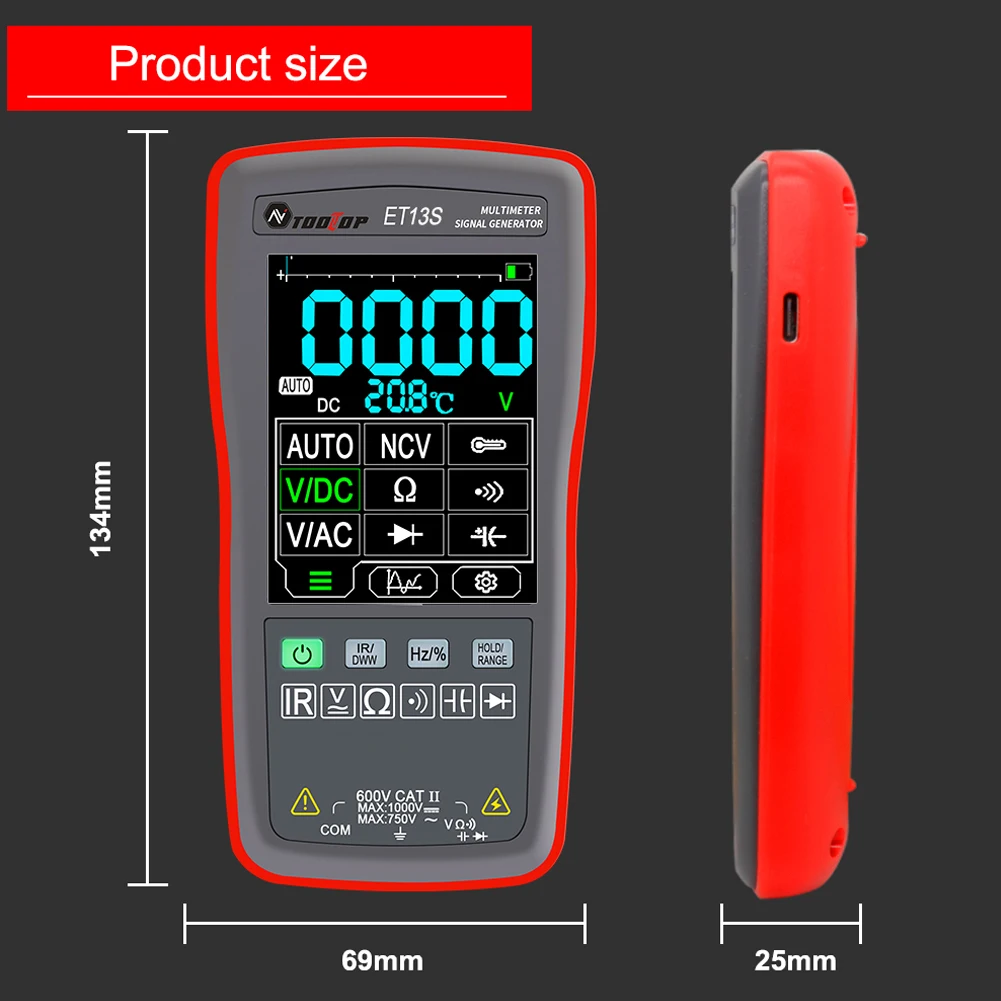

Dimensions: 134 mm × 69 mm × 25 mm
Weight: 125 g
ET12S
Image Capture Rate: 20 Hz

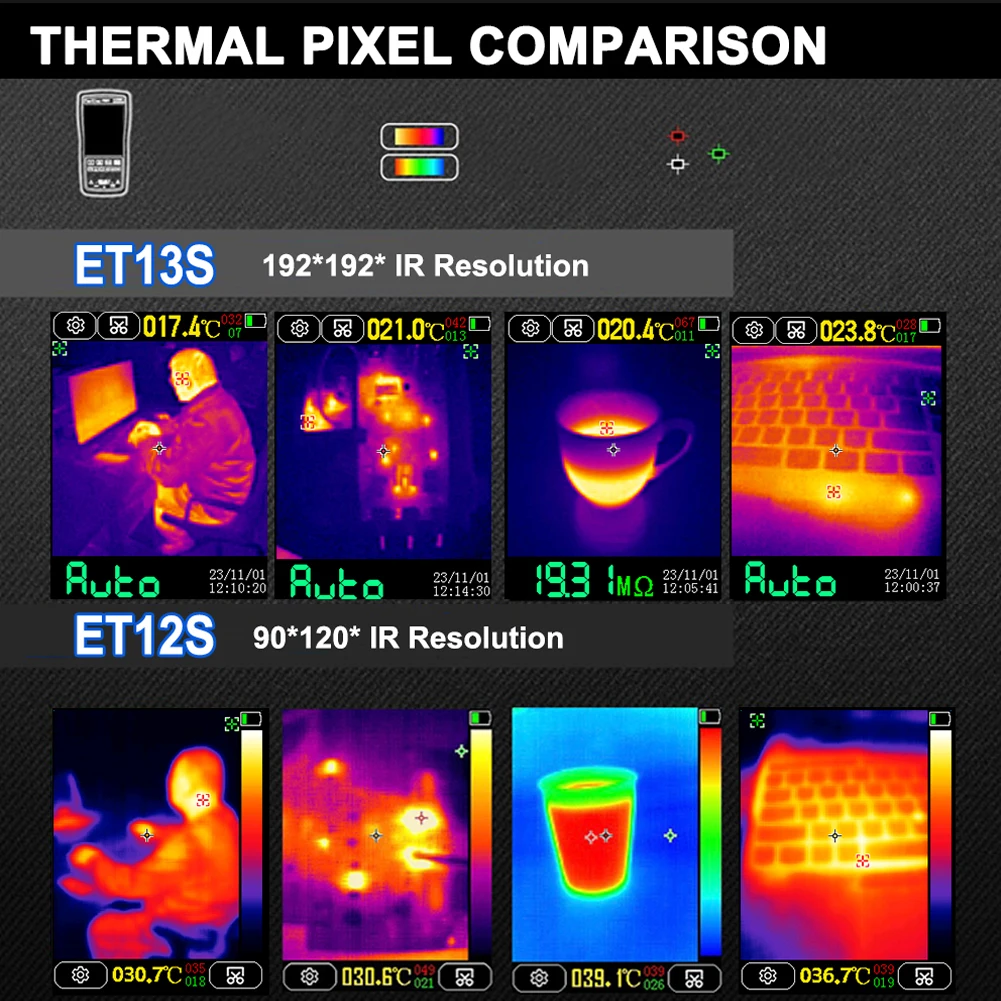

Thermal Imaging Resolution: (10,800) × 90 × 120
Display Resolution: 216 × 288
Temperature Measurement Range: -20°C to +400°C
Multimeter Display: 4,000 counts, updated 6 times per second
Sensor: Uncooled Focal Plane
Emissivity: Adjustable from 0.1 to 0.99, default 0.95
Color Palette Mode: Iron Oxide Red / Rainbow
Temperature Measurement Error: >0°C ±2°C or ±2%; ≤0°C ±5°C or ±5%
Display Temperature Accuracy: 0.1°C / 0.1°F
Maximum DC Input Voltage: 1000V
Maximum AC Input Voltage: 750 V
Maximum Resistance Measurement: 40 MΩ
Maximum Capacitance Measurement: 100 μF
Duty Cycle Measurement Range: 0.1% to 99.9%
Diode Measurement Range: 0 V to 1.5 V
Maximum Switch Detection Resistance: 30 Ω
Display: 2.8-inch, 320×480 resolution
Touchscreen: Resistive touchscreen
USB Port: Type-C USB
Storage Capacity: 3.5 MB
Image Format: BMP files
Battery: Built-in lithium battery
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Operating Humidity: <85% RH (non-condensing)
Dimensions: 134 mm × 69 mm × 25 mm
Weight: 125 g
ET11S
Image capture rate: 16 Hz
Thermal imaging resolution: (768) × 24 × 32
Display resolution: 187 × 251
Field of view (FOV): 55° (H) × 35° (V)
Temperature measurement range: -40°C to +300°C
Multimeter display: 4000 counts, updated 3 times per second
Sensor: Uncooled Focal Plane
Emissivity: Adjustable from 0.1 to 0.99, default value 0.95
Color Plate Mode: Iron Oxide Red / Rainbow
Temperature Measurement Error: >0°C ±2°C or ±2%; ≤0°C ±5°C or ±5%
Display Temperature Accuracy: 0.1°C / 0.1°F
Maximum DC Input Voltage: 1000V
Maximum AC Input Voltage: 750 V
Maximum Resistance Measurement: 40 MΩ
Maximum Capacitance Measurement: 100 μF
Duty Cycle Measurement Range: 0.1% – 99.9%
Diode Measurement Range: 0 V – 1.5 V
Maximum Switch Detection Resistance: 30 Ω
Display: 2.8-inch, 320×480 resolution
Touchscreen: Resistive touchscreen
USB Port: Type-C USB
Storage Capacity: 3.5 MB
Image Format: BMP files
Battery: Built-in lithium battery
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Operating Humidity: <85% RH (non-condensing)
Dimensions: 134 mm × 69 mm × 25 mm
Weight: 125 g
ET12S
Image Capture Rate: 20 Hz
Thermal Imaging Resolution: (10,800) × 90 × 120
Display Resolution: 216 × 288
Temperature Measurement Range: -20°C to +400°C
Multimeter Display: 4,000 counts, updated 6 times per second
Sensor: Uncooled Focal Plane
Emissivity: Adjustable from 0.1 to 0.99, default 0.95
Color Palette Mode: Iron Oxide Red / Rainbow
Temperature Measurement Error: >0°C ±2°C or ±2%; ≤0°C ±5°C or ±5%
Display Temperature Accuracy: 0.1°C / 0.1°F
Maximum DC Input Voltage: 1000V
Maximum AC Input Voltage: 750 V
Maximum Resistance Measurement: 40 MΩ
Maximum Capacitance Measurement: 100 μF
Duty Cycle Measurement Range: 0.1% to 99.9%
Diode Measurement Range: 0 V to 1.5 V
Maximum Switch Detection Resistance: 30 Ω
Display: 2.8-inch, 320×480 resolution
Touchscreen: Resistive touchscreen
USB Port: Type-C USB
Storage Capacity: 3.5 MB
Image Format: BMP files
Battery: Built-in lithium battery
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Operating Humidity: <85% RH (non-condensing)
Dimensions: 134 mm × 69 mm × 25 mm
Weight: 125 g
