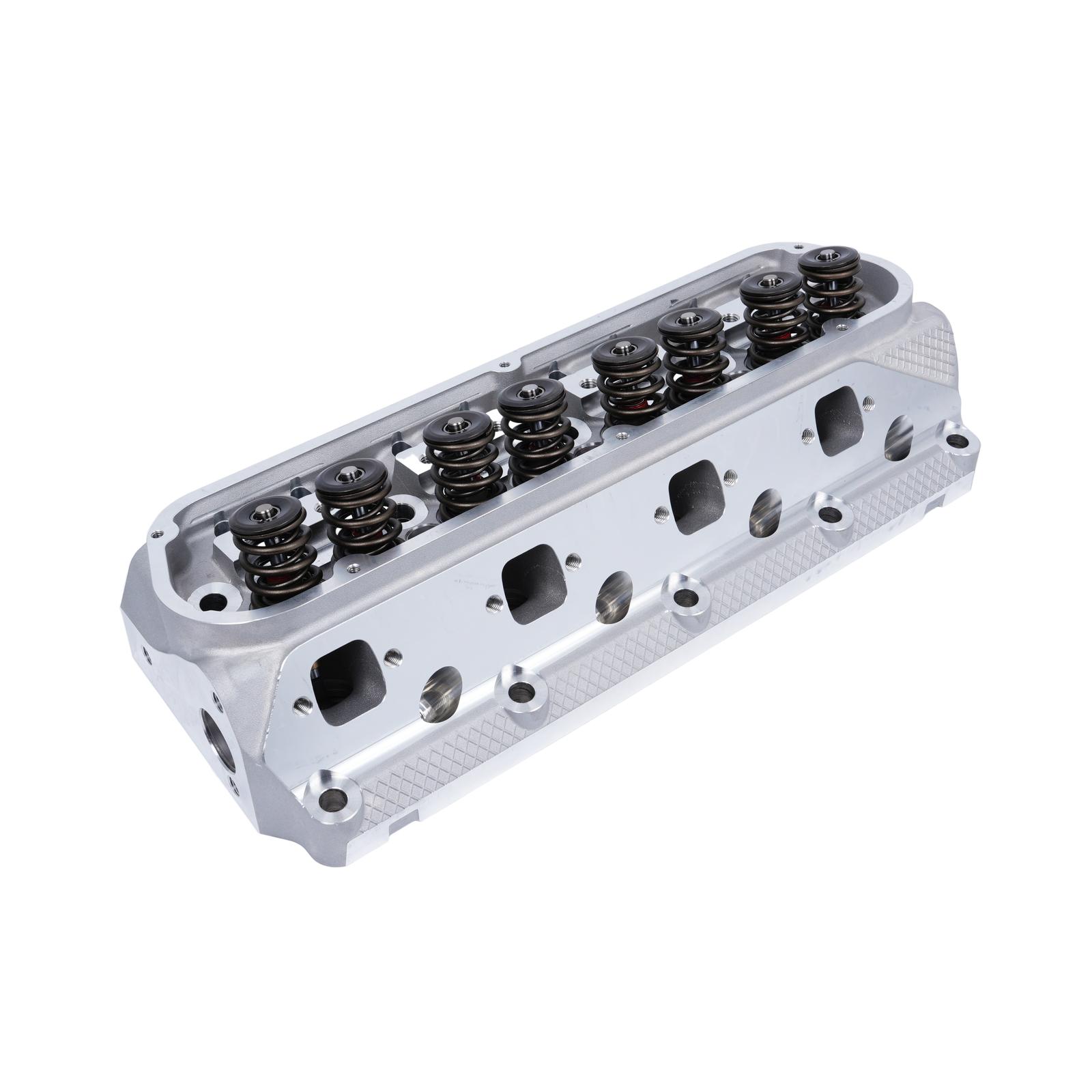

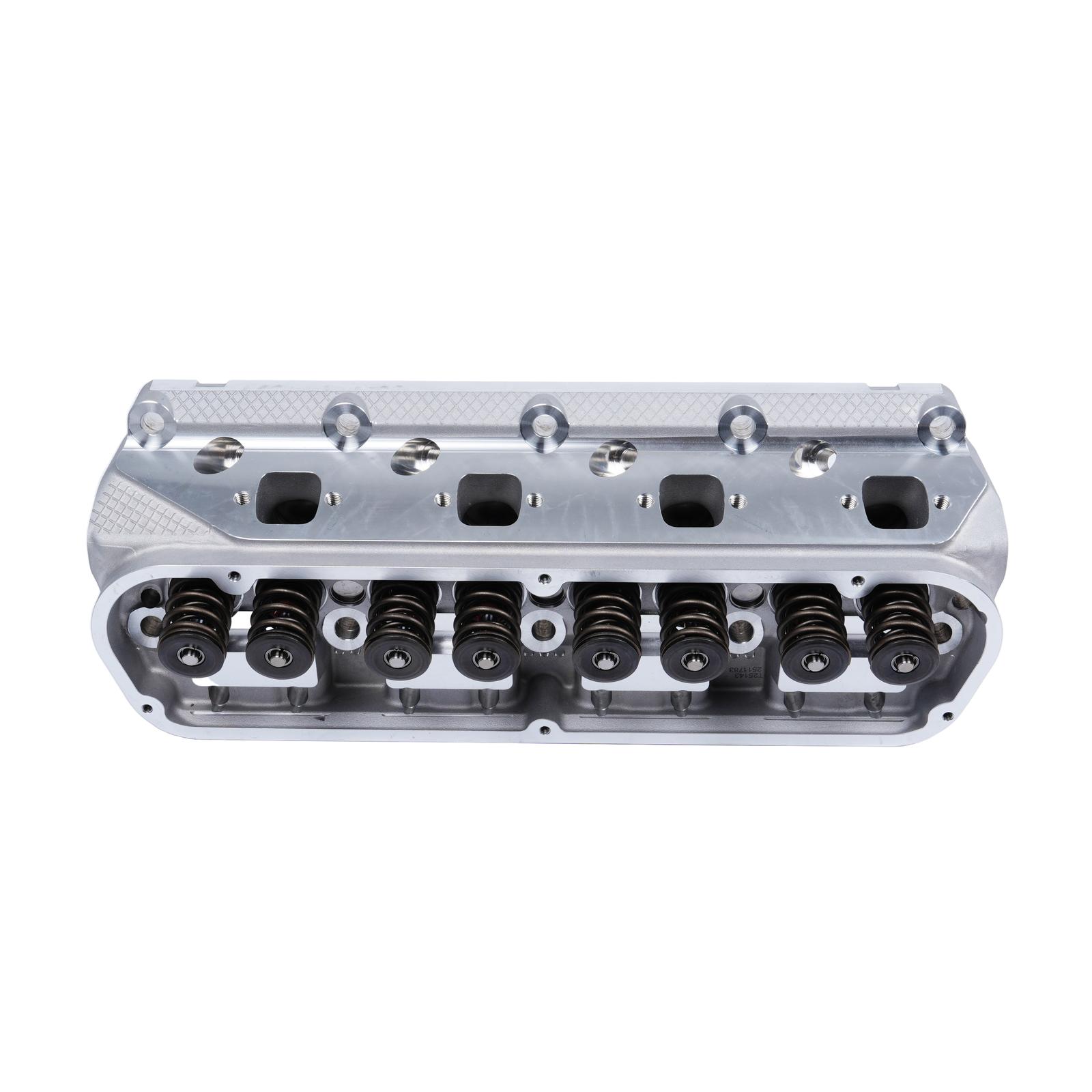

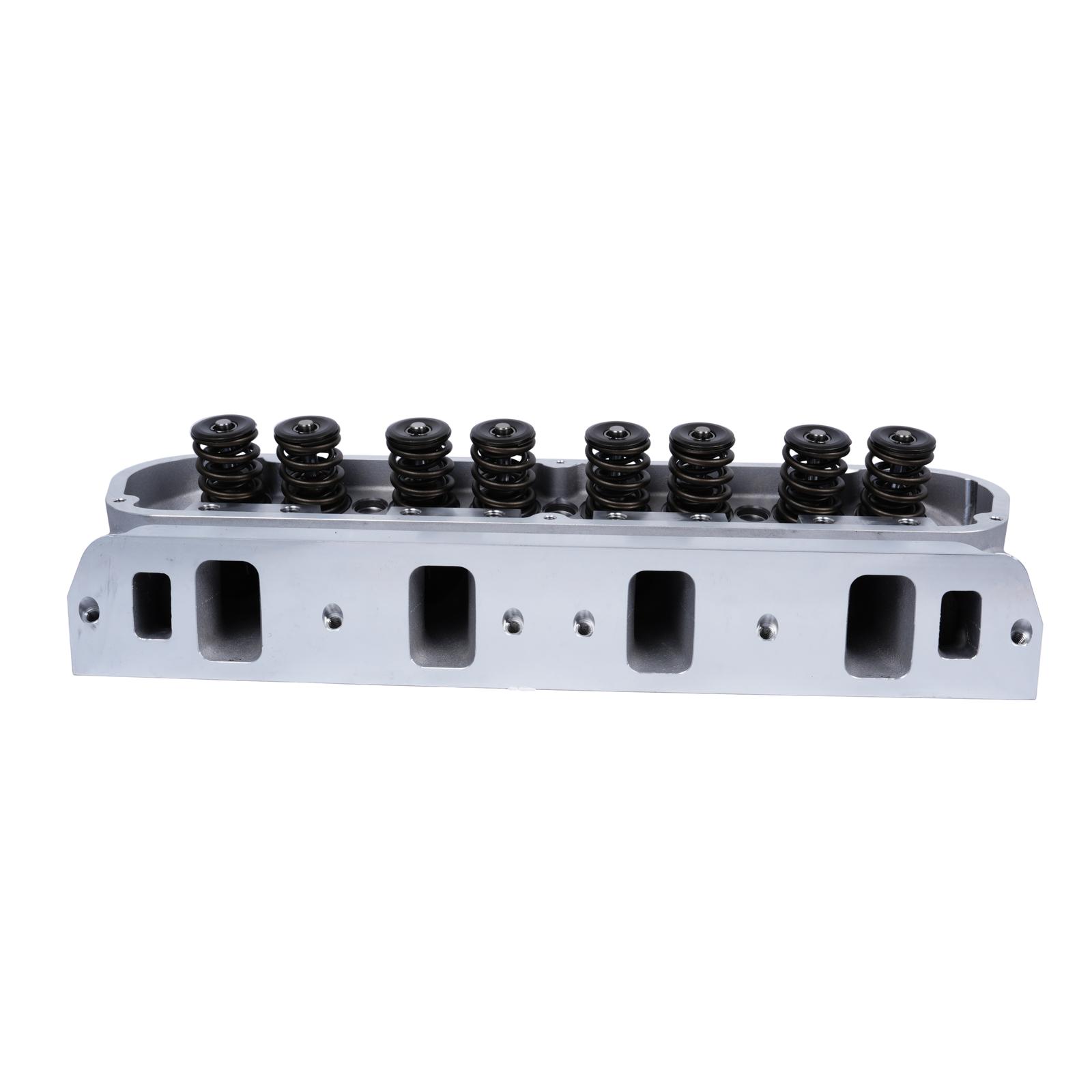

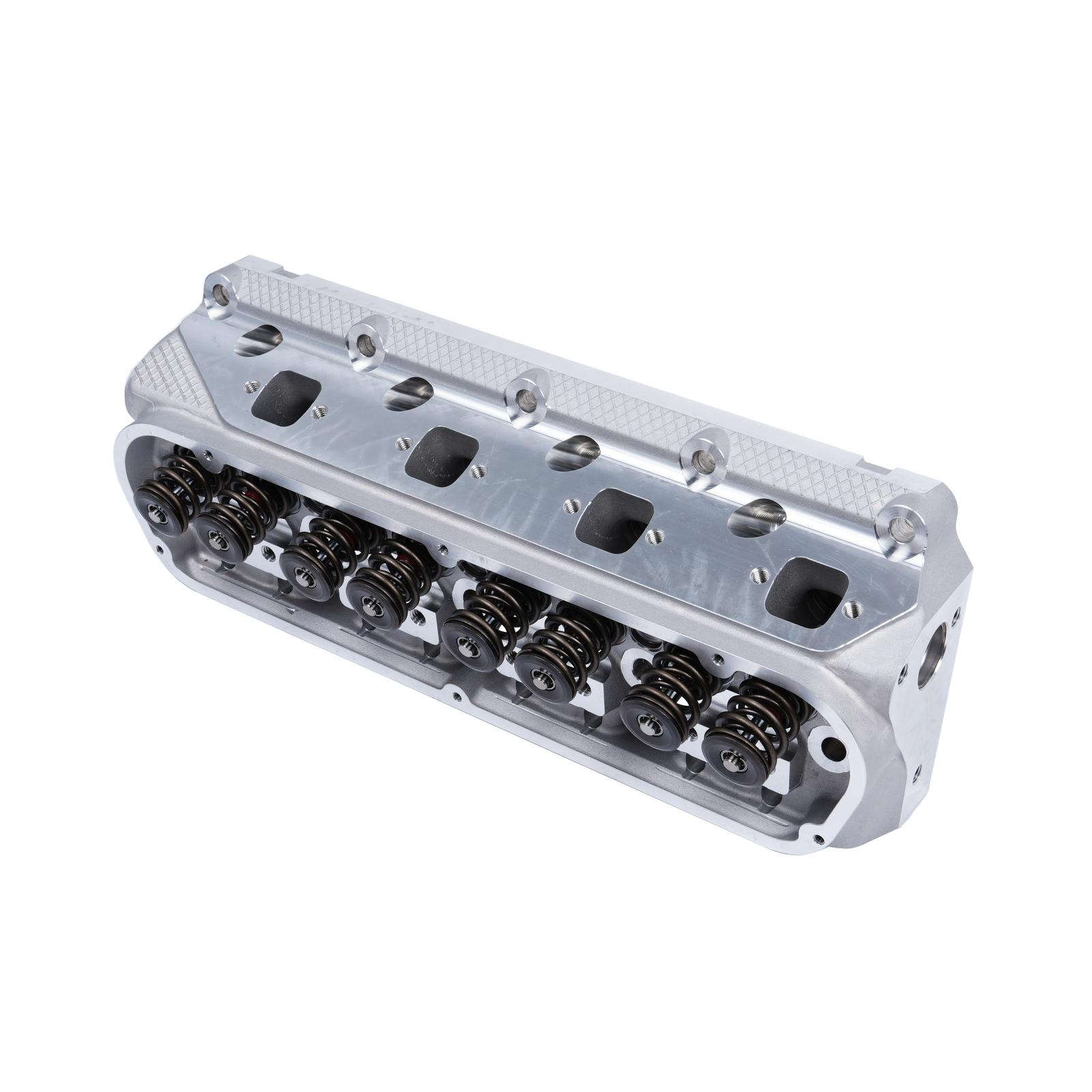

Part Number: FF281.1004

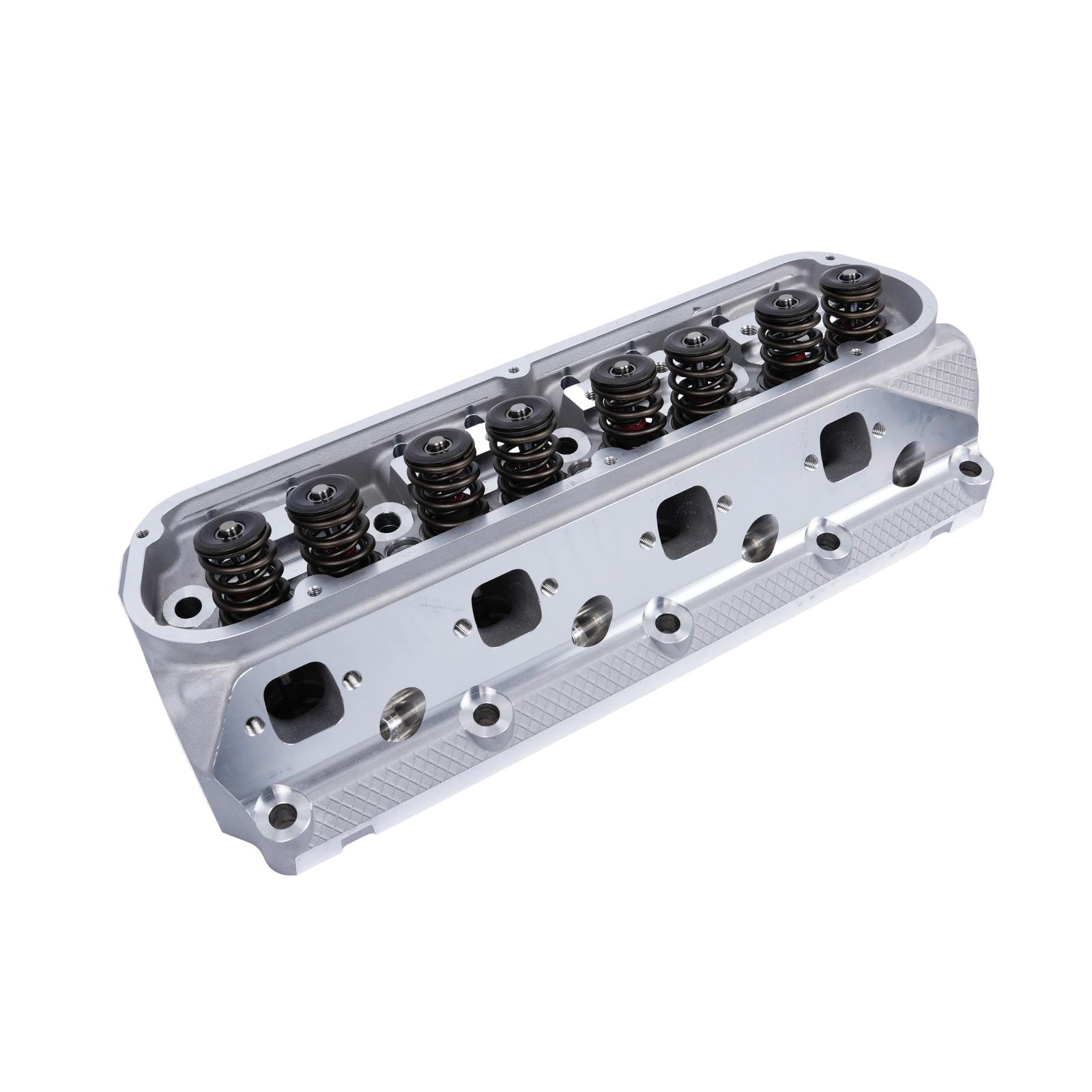

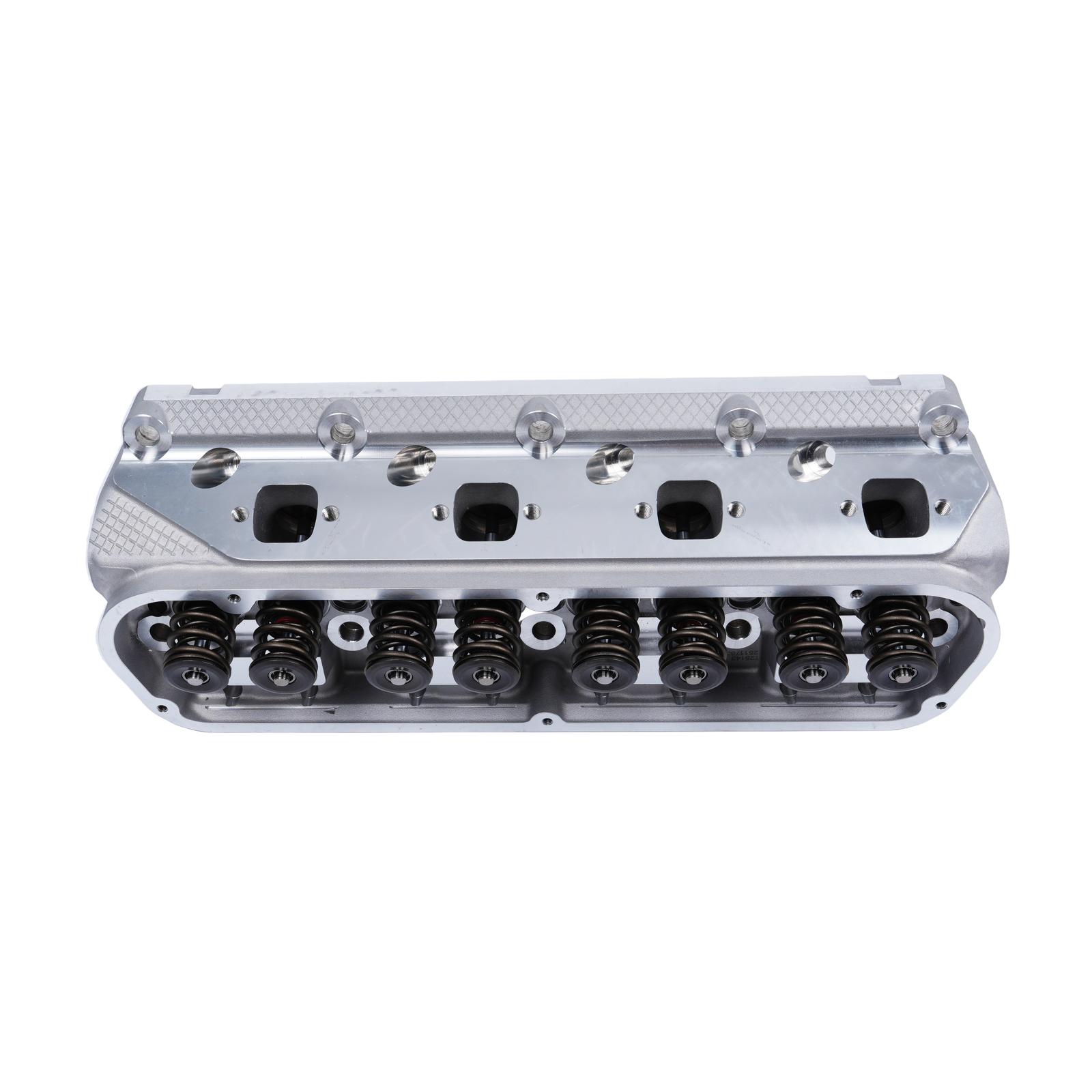

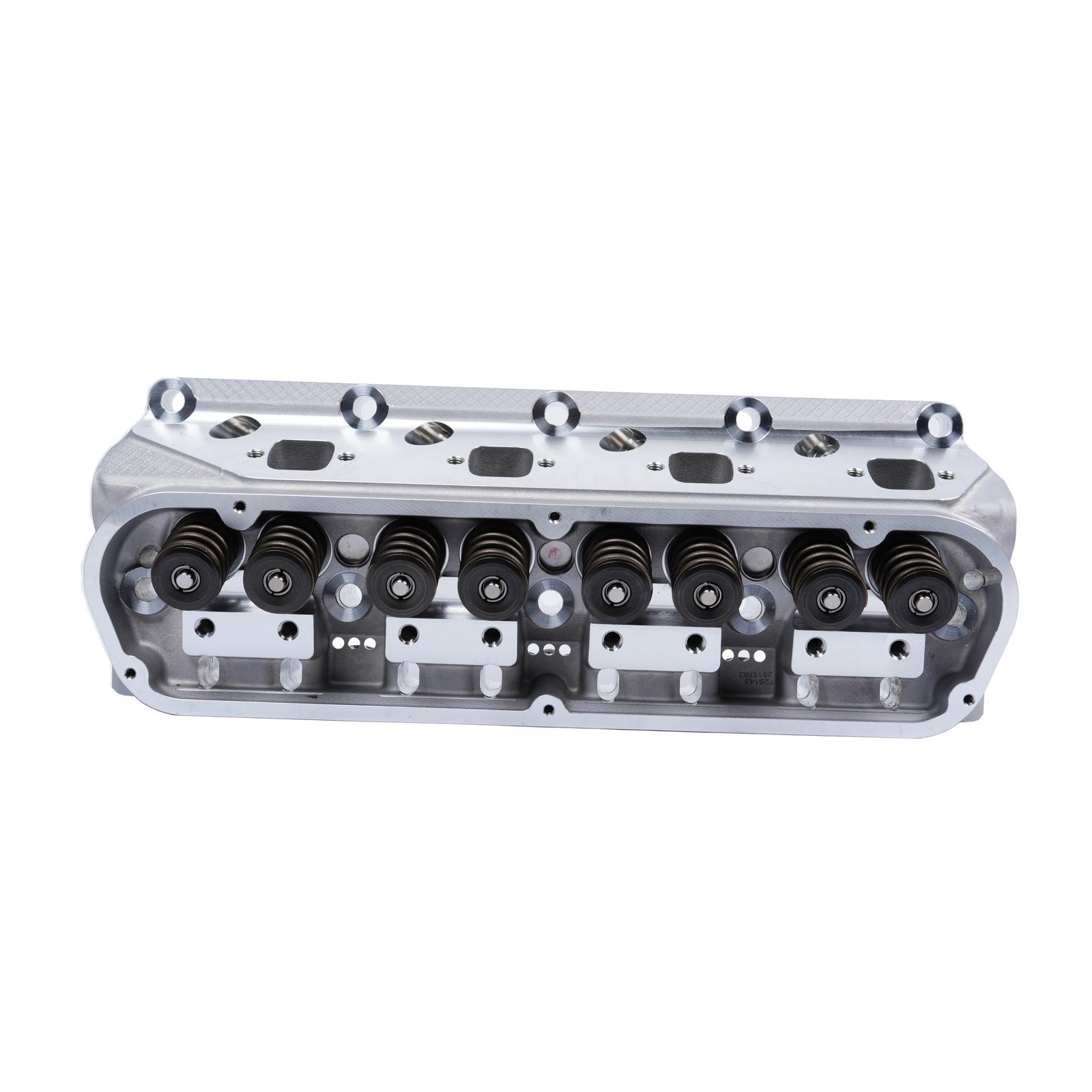

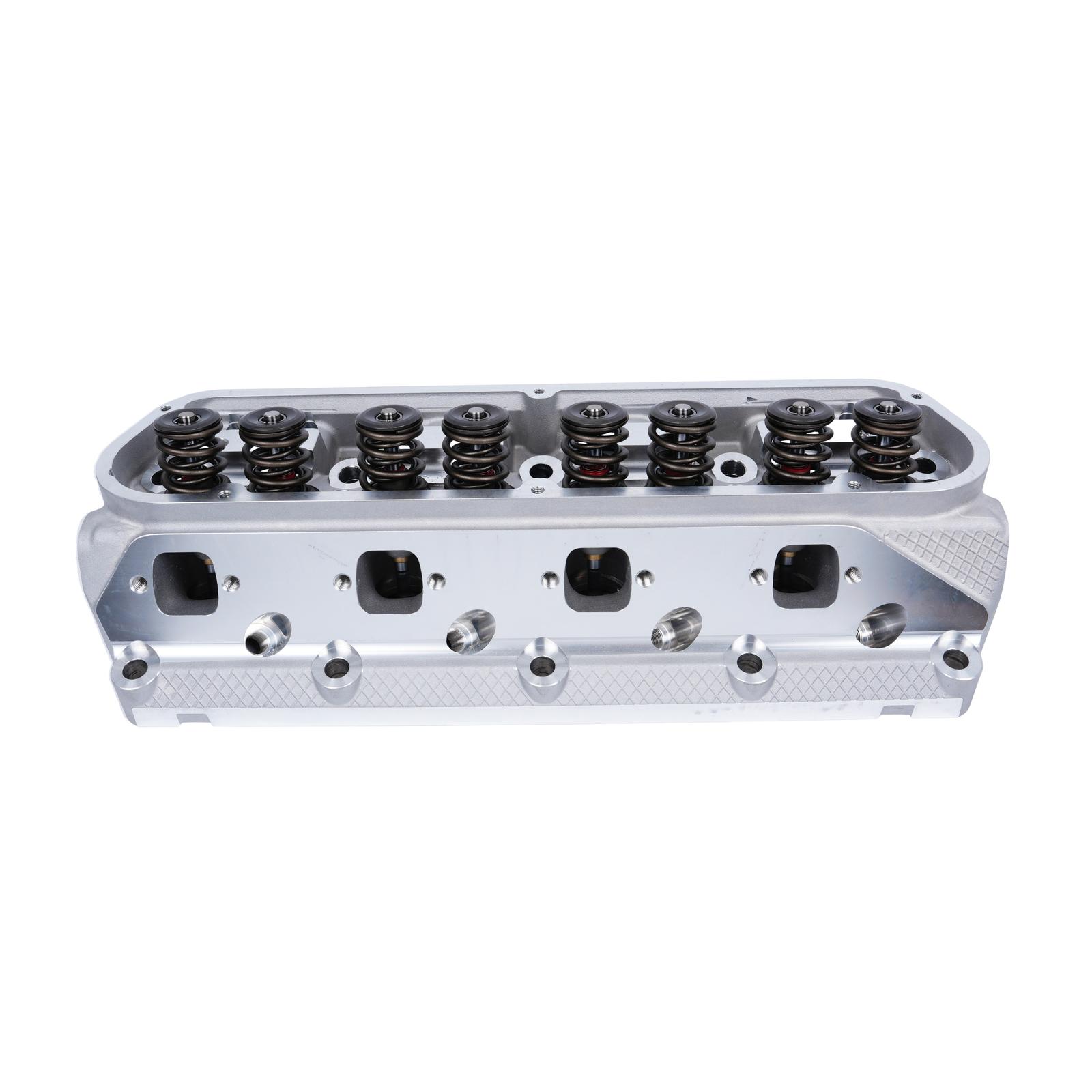

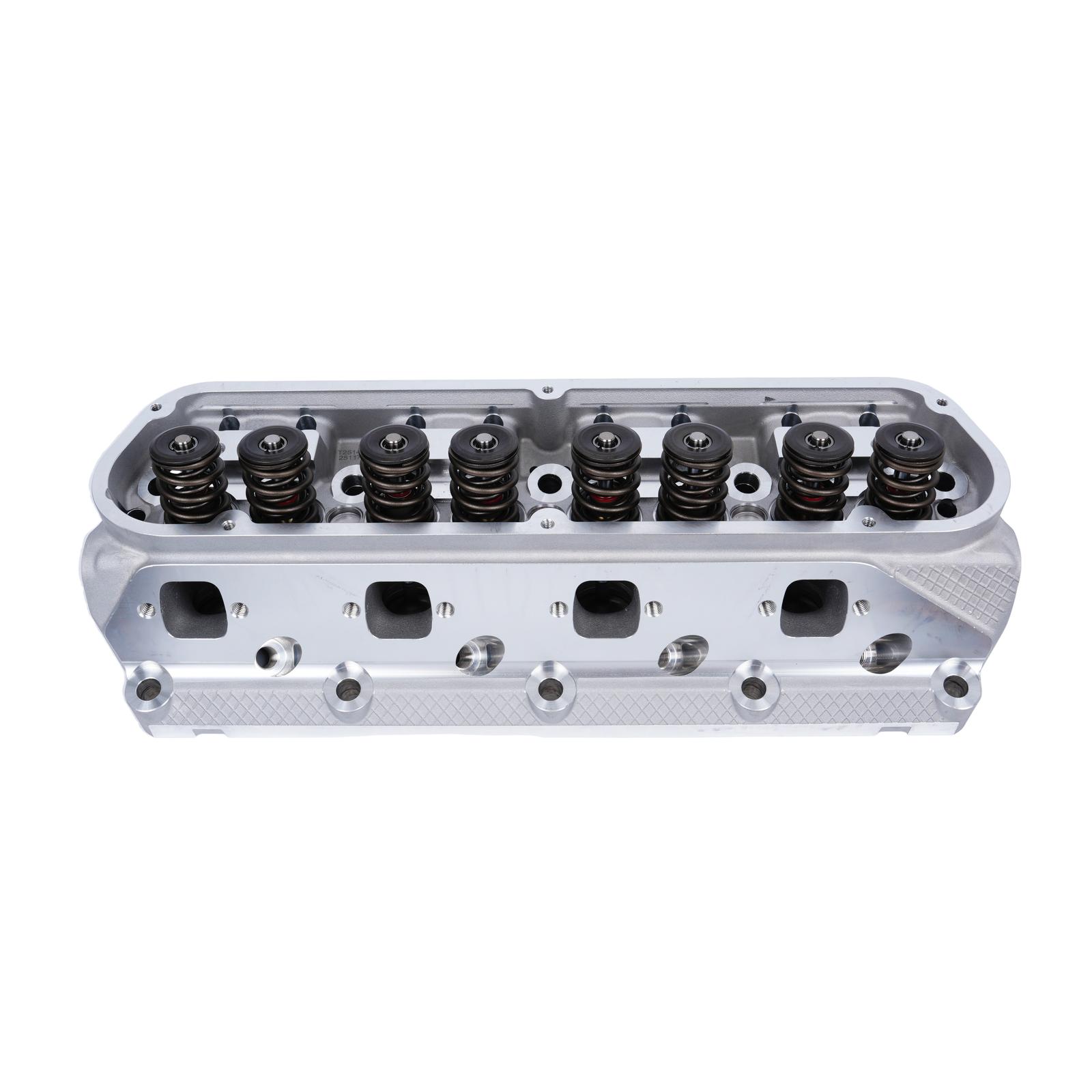

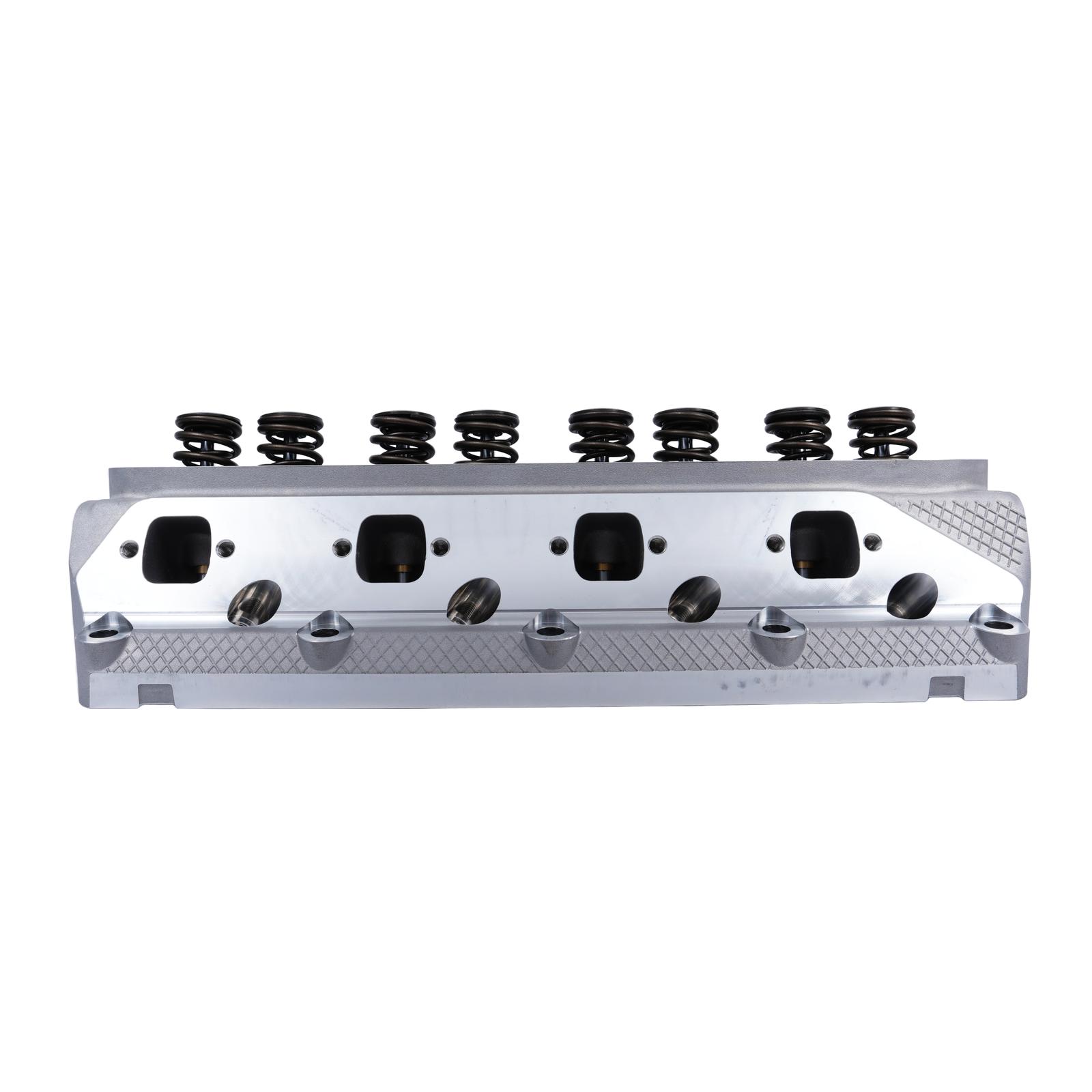

Part Type: Cylinder Head [Assembled]

Product Line: Hydraulic Flat Tappet

Cylinder Head Style: Assembled

Cylinder Head Material: Aluminum

Cylinder Head Finish: Natural

Combustion Chamber Volume (cc): 62 cc

CNC-Machined Combustion Chamber: No

Intake Runner Volume (cc): 175 cc

Exhaust Runner Volume (cc): n/a

CNC-Machined Intake Runner: No

CNC-Machined Exhaust Runner: No

Intake Port Shape: Rectangular

Intake Port Location: Standard

Exhaust Port Shape: Square

Exhaust Port Location: Standard

Spark Plug Style: Standard

Comp. Valve Job: No

Intake Valves Included: Yes

Intake Valve Diameter (in): 2.020 in.

Exhaust Valves Included: Yes

Exhaust Valve Diameter (in): 1.600 in.

Valve Springs Included: Yes

Maximum Valve Lift (in): 0.550 in.

Outside Diameter of Outer Spring (in): 1.450 in.

Damper Spring Included: Yes

Number of Springs Per Valve: Dual

Retainers Included: Yes

Retainer Material: Chromoly steel

Locks Included: Yes

Lock Style: 10 degree

Valve Stem Seals Included: Yes

Valve Stem Seal Style: Positive stop

Rocker Arm Studs Included: No

Rocker Arms Included: No

Rocker Arm Nuts Included: No

Guideplates Included: No

Valve Cover Mounting Style: Perimeter Bolt

Accessory Bolt Holes Drilled: Yes

Intake Valve Angle: 20 deg.

Exhaust Valve Angle: 20 deg.

Valve Guides Included: Yes

Valve Guide Material: Bronze

Valve Seats Machined: Yes

Valve Seat Machine Style: 3-angle

Valve Seat Material: Ductile iron

Steam Holes Drilled: No

Oiling Style: Through pushrod

Machined for O-Ring: No

Heat Crossover: No

Quantity: Sold as a pcs.
