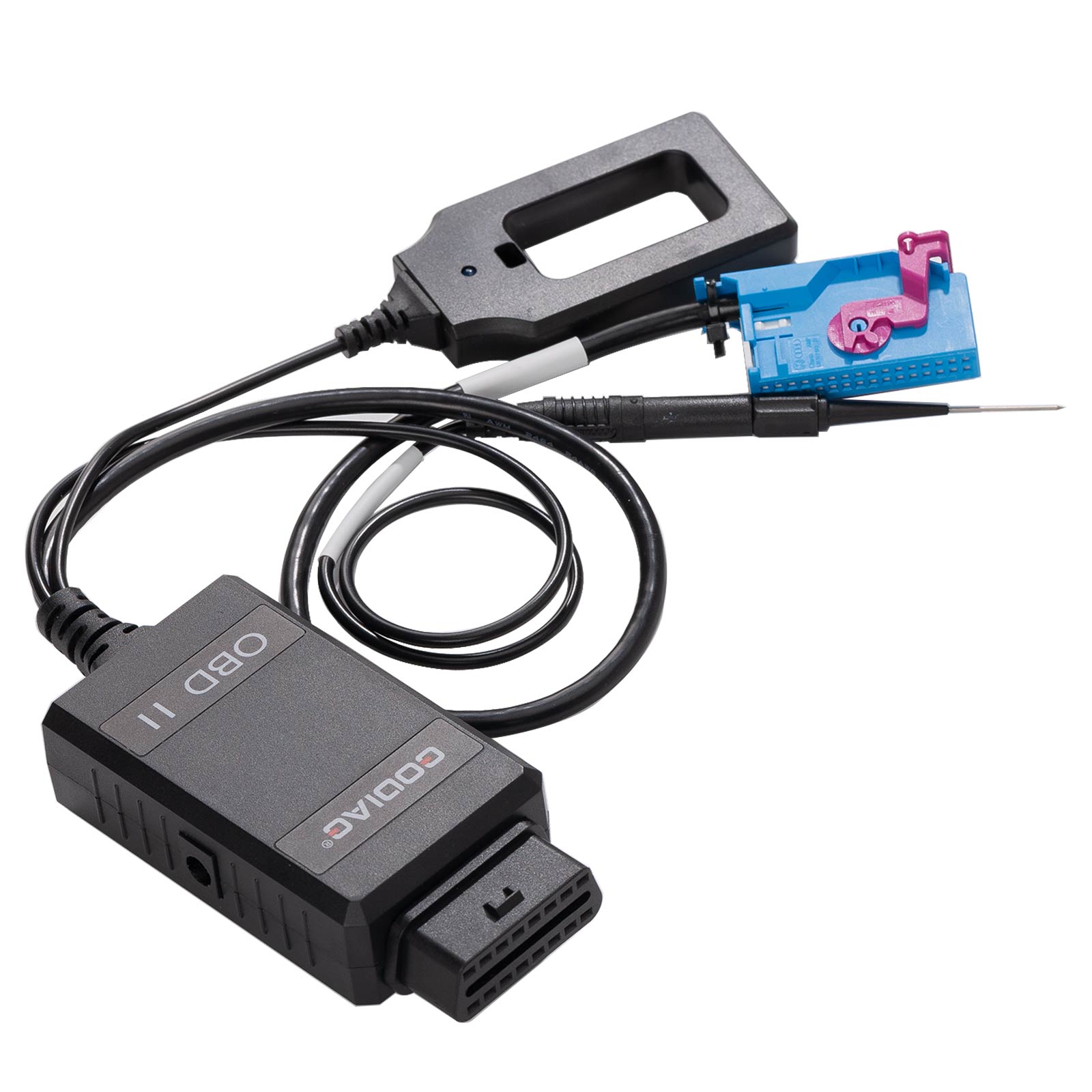

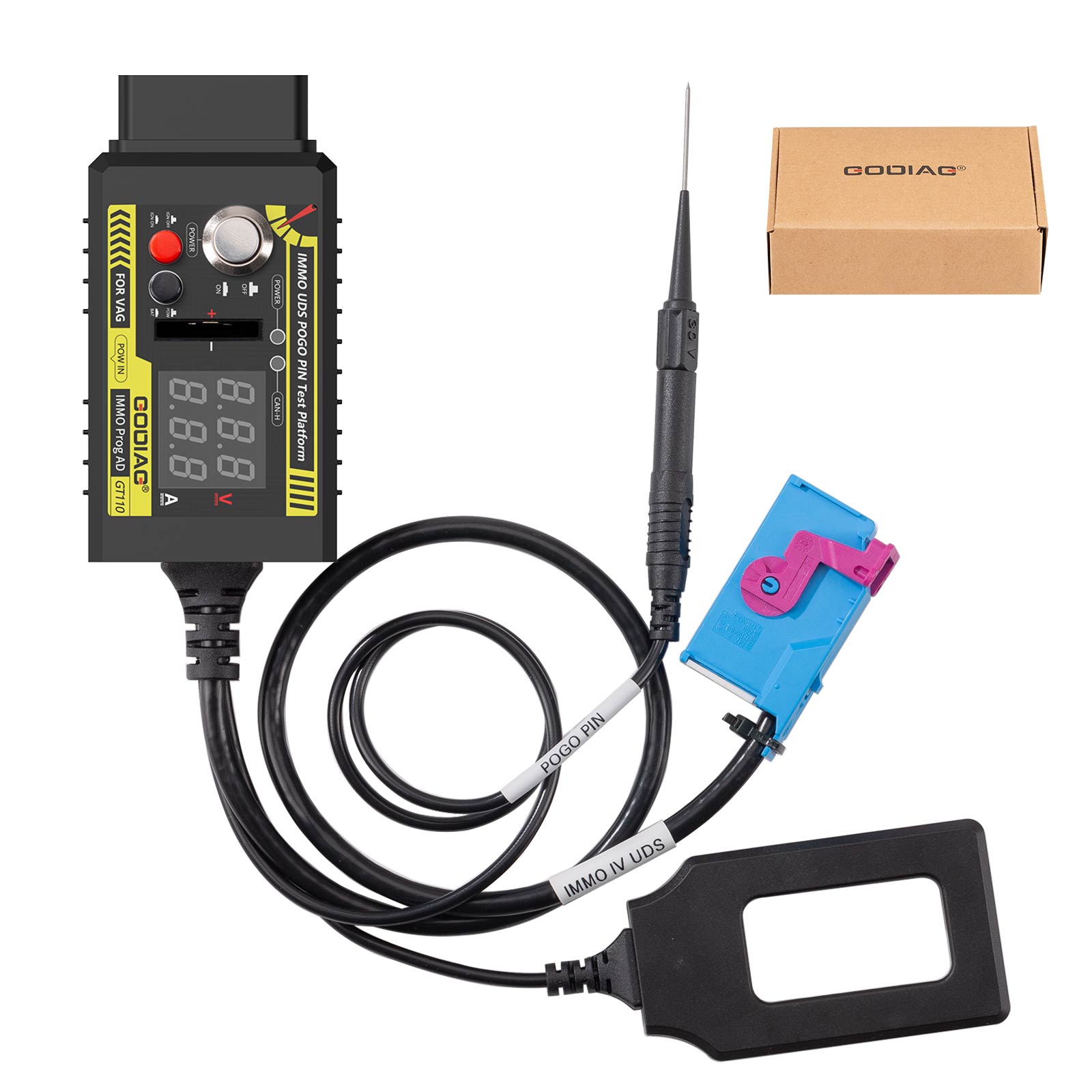

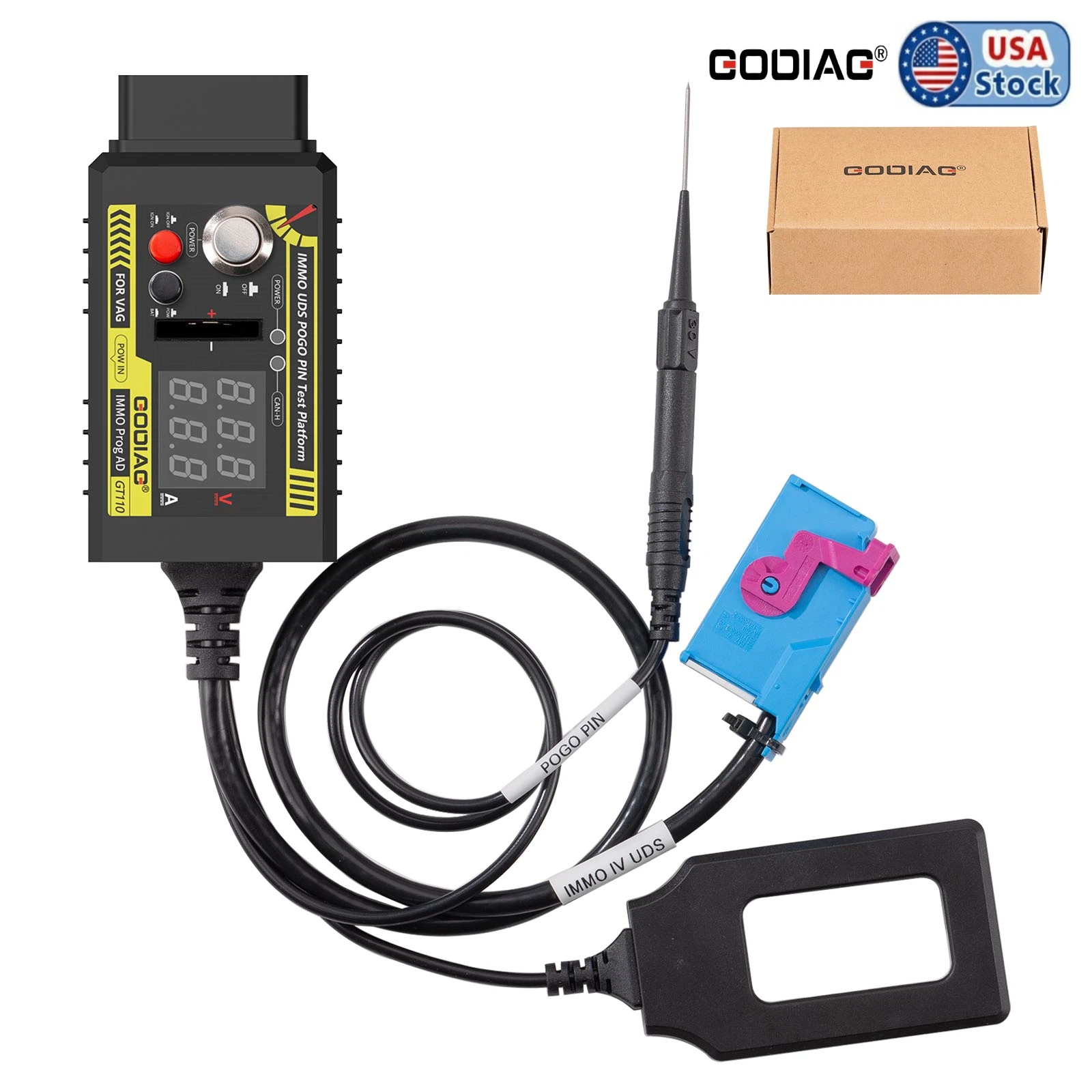

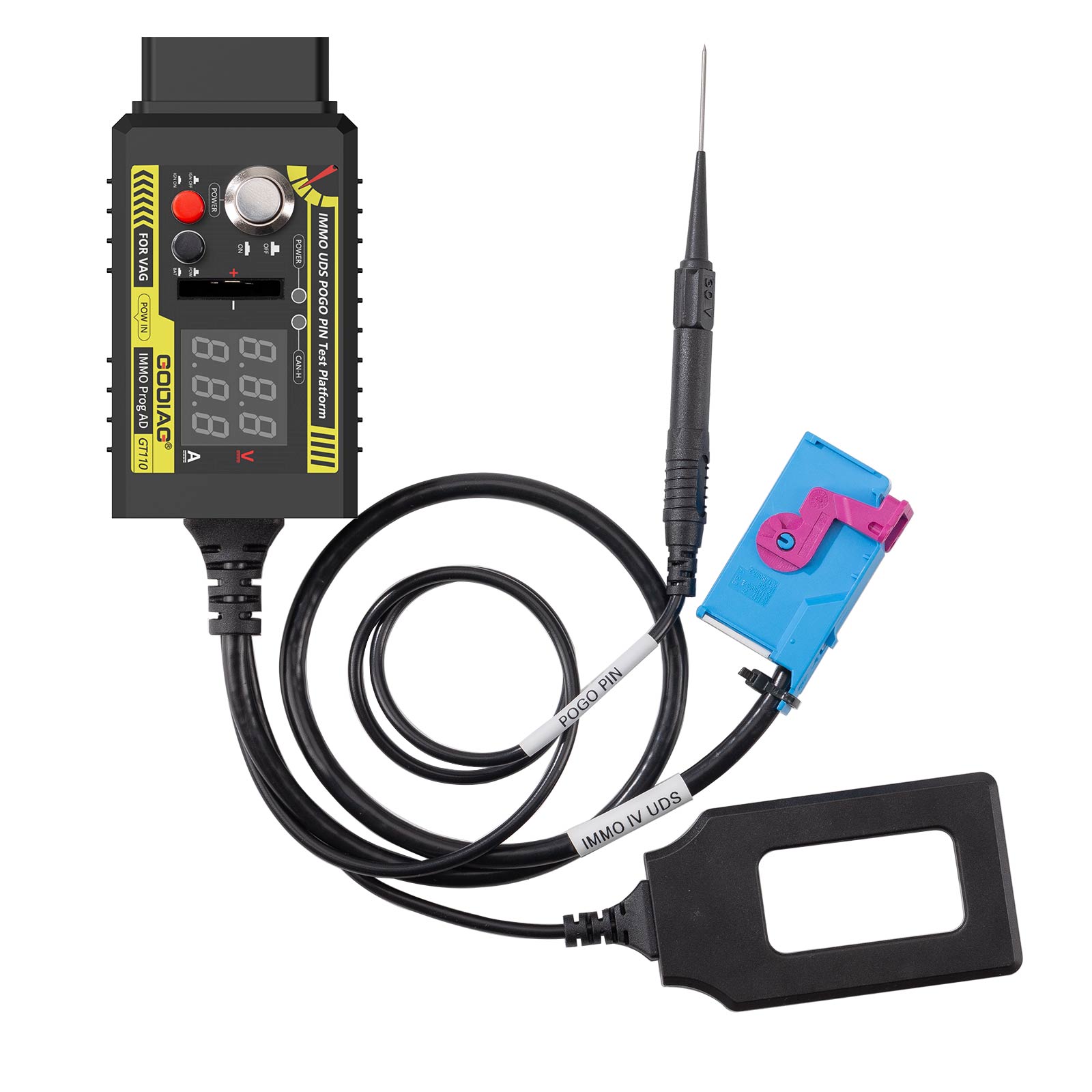

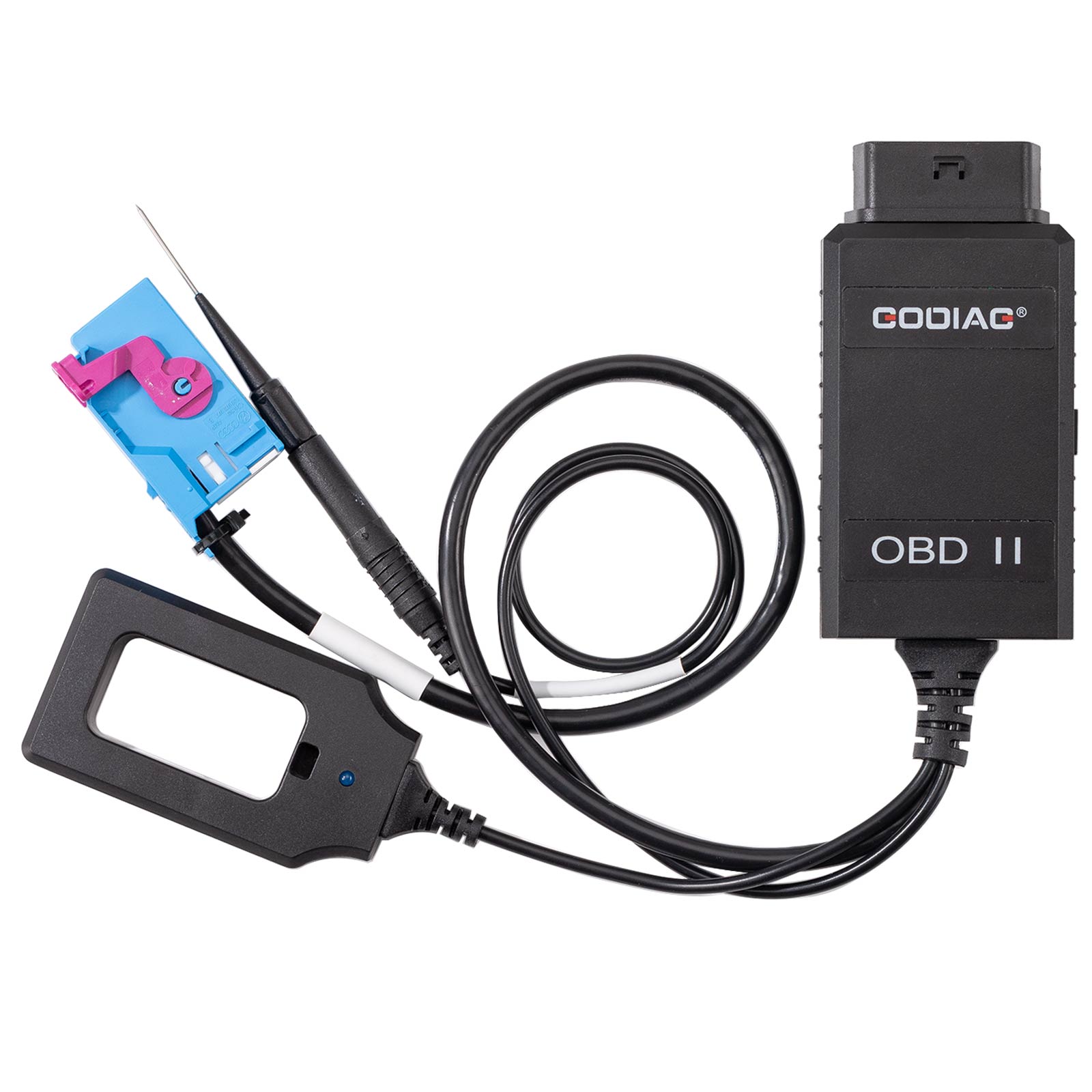

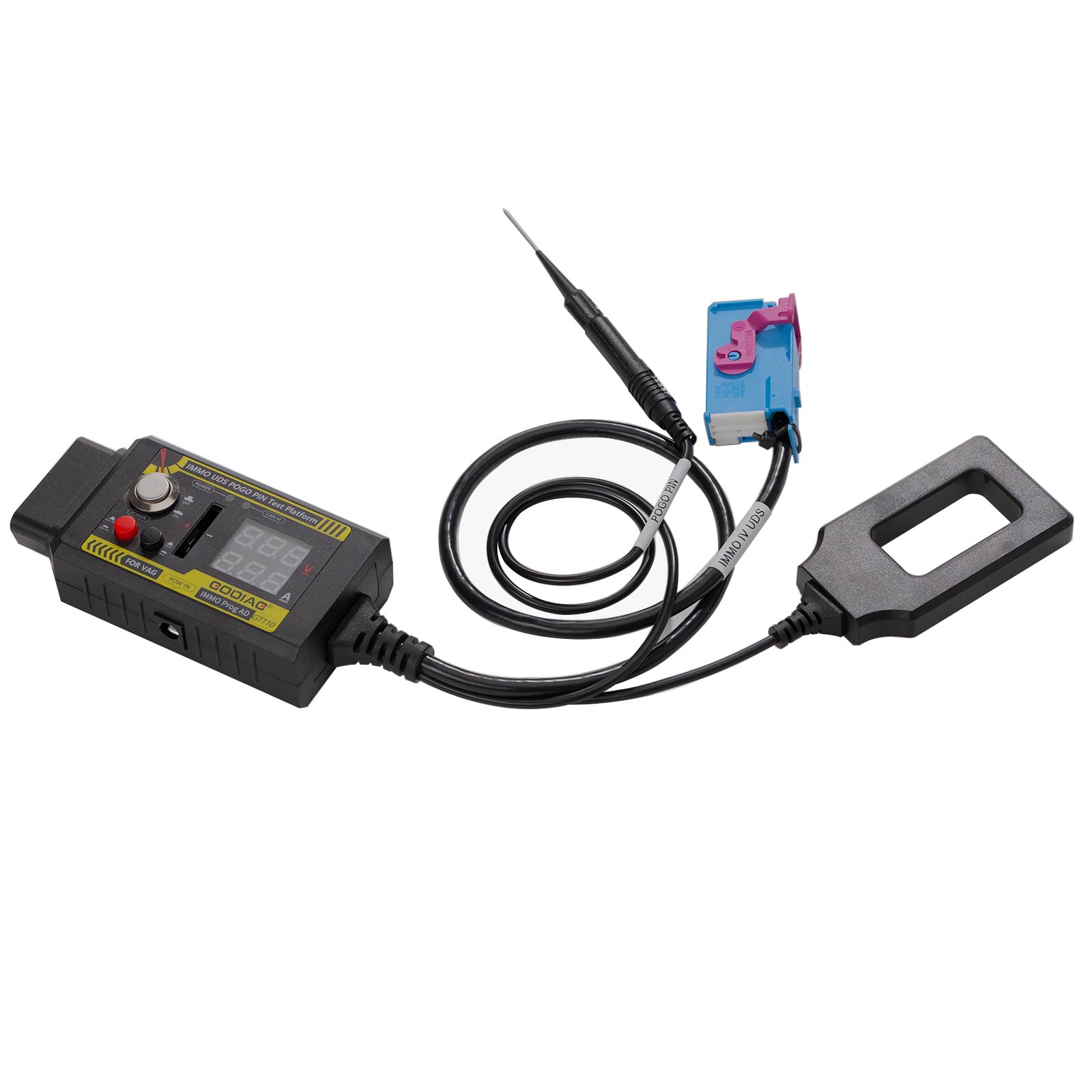

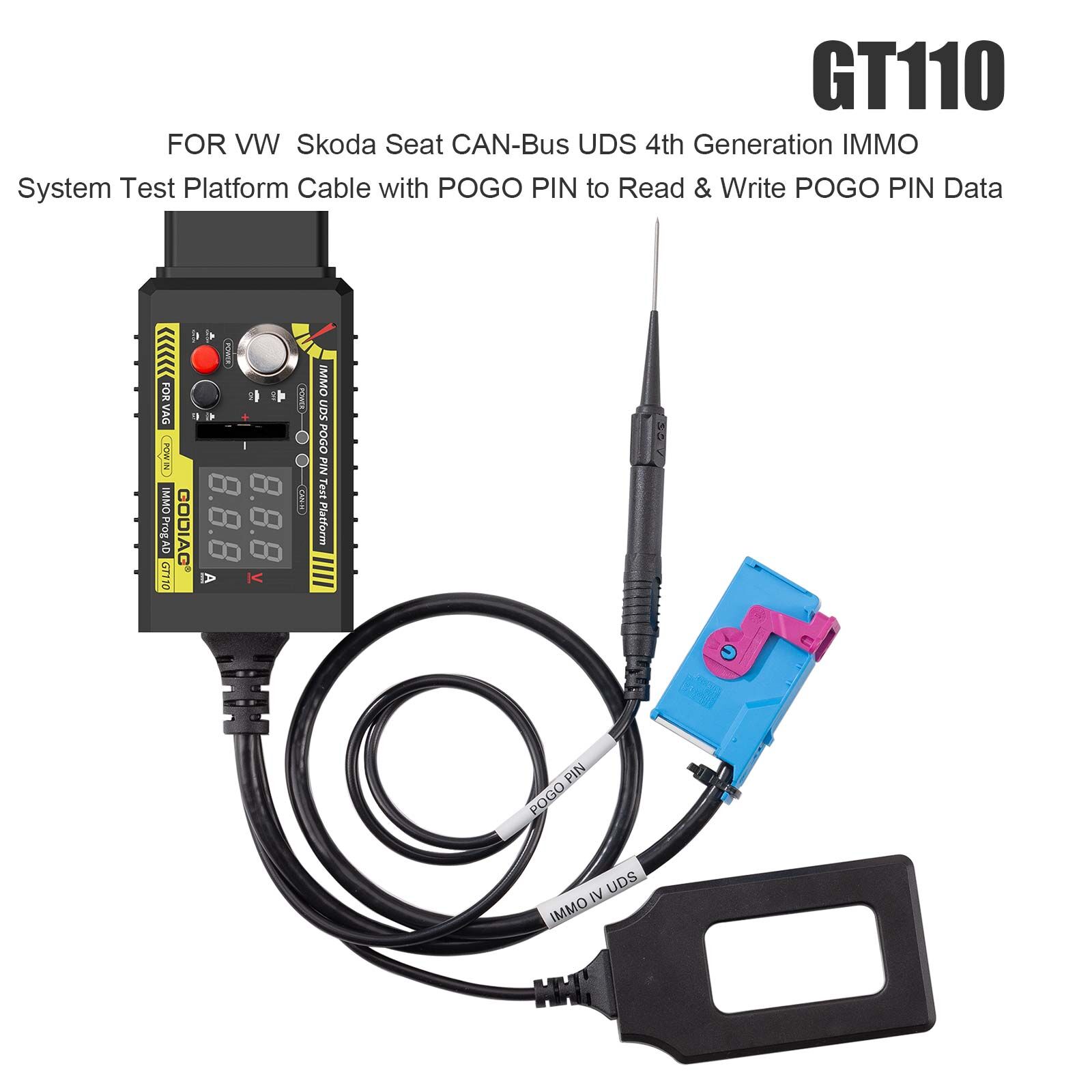

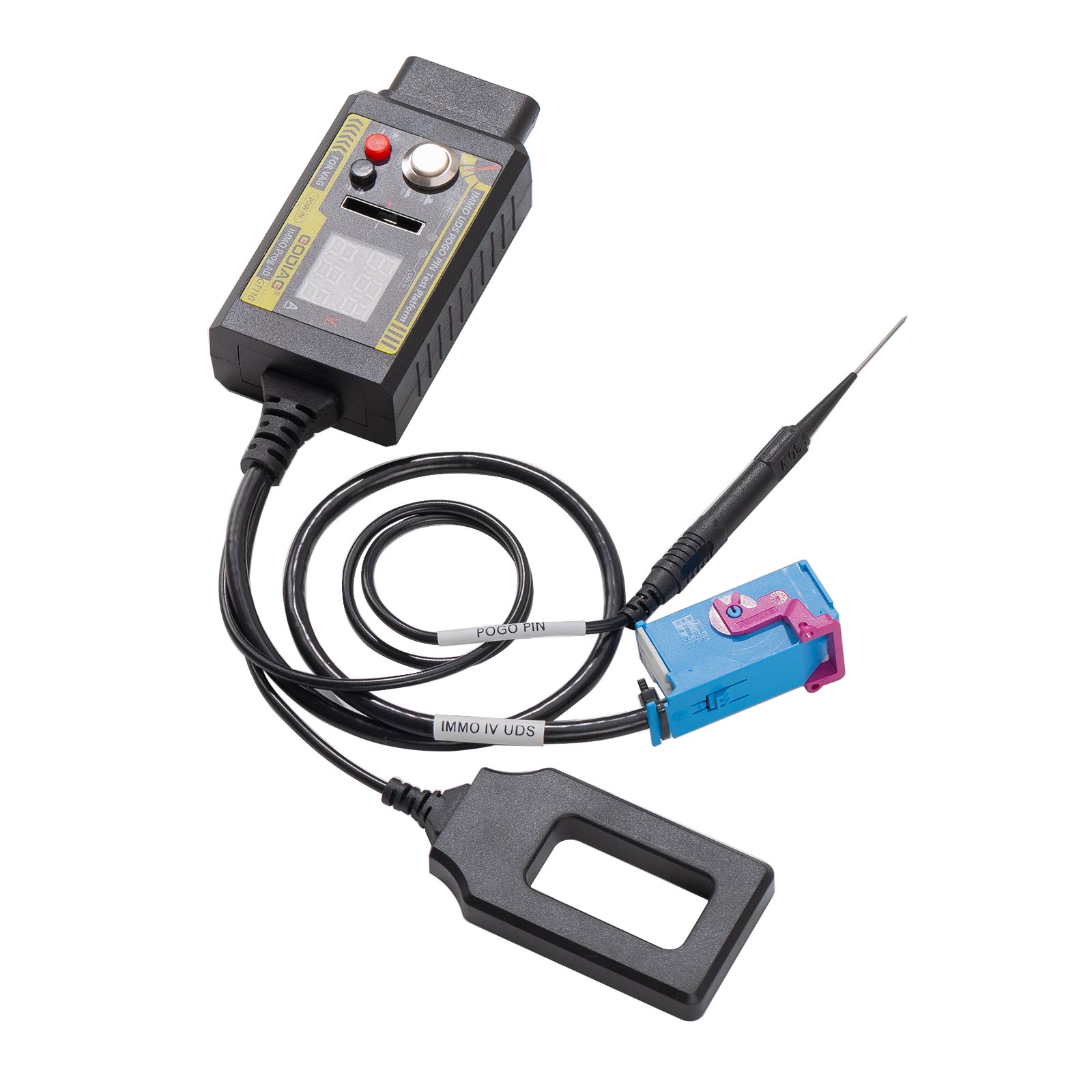

GODIAG GT110 FOR V.W Skoda Seat CAN-Bus UDS 4th Generation IMM0 System Test Platform Cable with POGO PIN to Read & Write POGO PIN Data
Product Introduction:
GODIAG GT110 FOR V.W Skoda Seat CAN-Bus UDS 4th Generation IMM0 System Test Platform Cable supports for V.W Skoda Seat and other models, and performs offline POGO PIN data reading and writing. lt is for dashboards k-ey progarmming (including Boot Probe).of all UDS systems of for V-o-l-ksw-a-gen, for Skoda and for Seat. The product can display the current working voltage and current, has a power switch, the simulation ignition switch, and a buzzer to prompt the ignition start and shut down. It supports CANH UDS communication indication, CR2032 remote key battery detection, key and IMM0 instrument synchronization test, intelligent IMM0 system emergency start area induction detection, IMM0 combination instrument offline diagnosis, instrument IMM0 data reading and writing, instrument mileage repair, key matching and other functions.
It can be used with devices like HEX V2, V-A-GC/OM VCDS 5-0-5-3, V-A-S5-0-5-4-A, V-A-S6-1-5-4, SUPER V-A-G K+CAN, Obdstar, Lonsdor, AVDI, ZEDFULL, VVDI2, Key Tool Plus, X300 DP Plus, Lonsdor, SUPER V-A-G, AUTEL, etc.

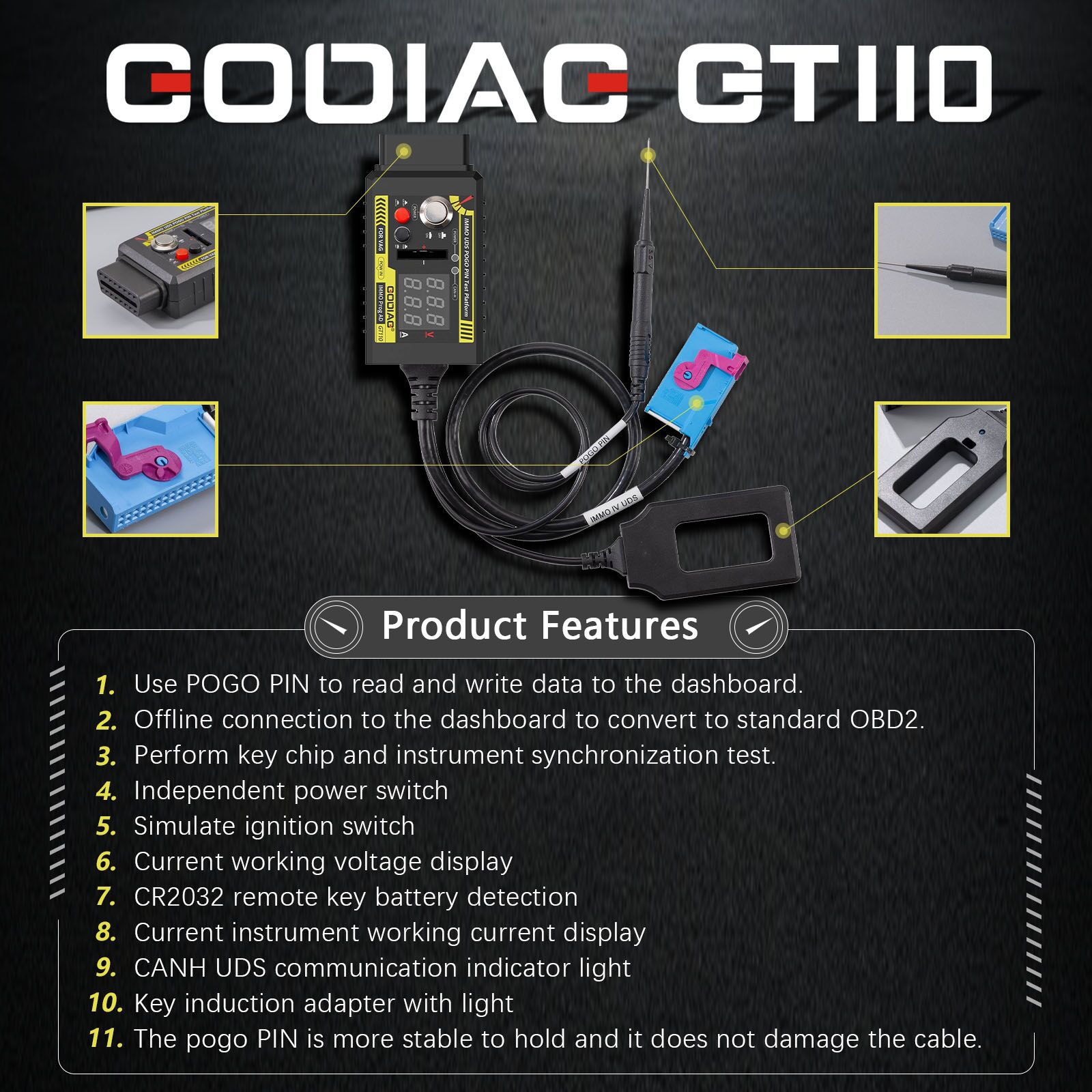

Product Functions:
1. Use POGO PIN to read and write data to the dashboard.
2. Offline connection to the dashboard to convert to standard OBD2.
3. Perform key chip and instrument synchronization test.
4. Independent power switch
5. Simulate ignition switch
6. Current working voltage display
7. CR2032 remote key battery detection
8. Current instrument working current display
9. CANH UDS communication indicator light
10. Key induction adapter with light
11. The pogo PIN is more stable to hold and it does not damage the cable.
POGO PIN usage steps:
1. Connect the power supply [Note: the power switch must be off].
2. Press the IGN ignition power [the IGN ignition switch must be turned on].
3. Connect the instrument plug.
4. Find the POGO PIN connection point of the corresponding instrument and connect it with a probe.
5. Turn on the power switch for about 3-5 seconds. As long as the instrument ABS light is flashing, it means that the POGO PIN read and write mode has been entered.
Intelligent IMM0 System Emergency Start Area Induction Detection
Press the vehicle's start switch and bring the device's key identifier close to a certain area. If the key identifier light flashes or lights up, it means that the area is the vehicle's key emergency start sensing area. If the customer's smart key is out of power, just put the dead smart key in the key emergency start sensing area to start the vehicle.
Car IMM0 Start and Start Key Chip Detection
Test Result Analysis:
1. The light of the key identifier flashes and then goes out, indicating that the IMM0 chip and the chip key are working properly.
2. The light of the key identifier flashes for a long time, indicating that the chip key and the vehicle's IMM0 system do not match, and the chip key needs to be re-matched.
3. The light of the key identifier does not flash, which means that the vehicle's IMM0 system is faulty. Please check the vehicle's IMM0 system.
Product Comparison:
| Model | GODIAG GT110 | Other Brands |
| OBD2 | √ | √ |
| BENCH | √ | √ |
| POGO pin | √ with extended pogo pin | √ with short pogo pin |
| Voltage display | √ | × |
| Current display | √ | × |
| IMMO Synchronization Test | √ | × |
| Main power switch | √ | × |
| CAN communication display | √ | × |
| Key recognition coil | √ Smart key emergency start test for all vehicles | × |

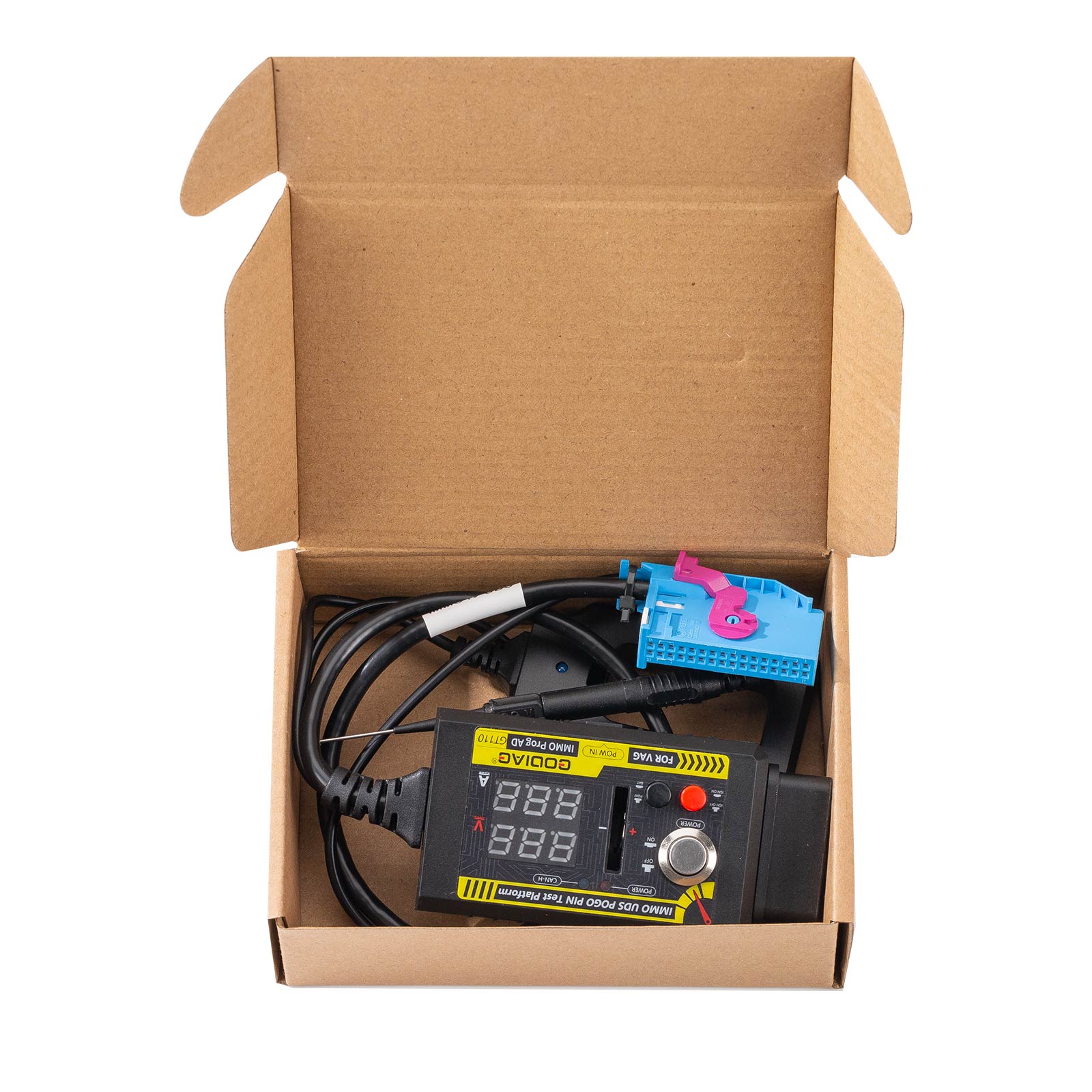

Package includes:
1pc x GODIAG GT110 FOR V.W Skoda Seat CAN-Bus UDS 4th Generation IMM0 System Test Platform Cable with POGO PIN to Read & Write POGO PIN Data
