Refrigerant Leak Detector, Freon Leak Detector, Freon Sniffer Automotive Halogen Gas Leak Detector for R134A R410A R1234YF R600A R290 Cfcs Hcfcs Hfcs Hcs Hfos, LD-100+

Description

Unit Count	1 Count
Style	modern
Mfr Part Number	LD-100+
Sensor Type	Heated diode
Power Source	Battery Powered
Color	LD-100+
Upper Temperature Rating	52 Degrees Celsius
Alarm	Audible
Material	Metal, Plastic, Rubber
Model Number	LD-100+
Enclosure Material	Metal, Plastic, Rubber
Item Weight	0.77 Pounds
Operating Humidity	80 percent
Number of Items	1
Manufacturer Warranty Description	Manufacturer warranty for 365 days from date of purchase.
Product Style	modern

• UPGRADED MODEL FROM LD-100: Comes with a high-precision heated diode sensor with longer life. It triggers on R11/R22/R404a/R410a/R600a/R1234yf and all halogenated refrigerants including CFCs, HFCs, HCFCs, HCs, HFOs, and blends.
• TWO DETECTION MODE: Automatic and manual mode suitable for locating leaks in various complex environments.
• FAST RESPONSE: Warms up in the 30s and responds in 3s; 3 adjustable sensitivity with maximum sensitivity 0.11oz/yr.
• HIGH EFFICIENCY: The new pump-suction structure increases the sensitivity while having the anti-water absorption function at the same time.
• SAFE & RELIABLE: Meets CE, EN14624. 24/7 US Technician Support via Email and Phone.

Product description

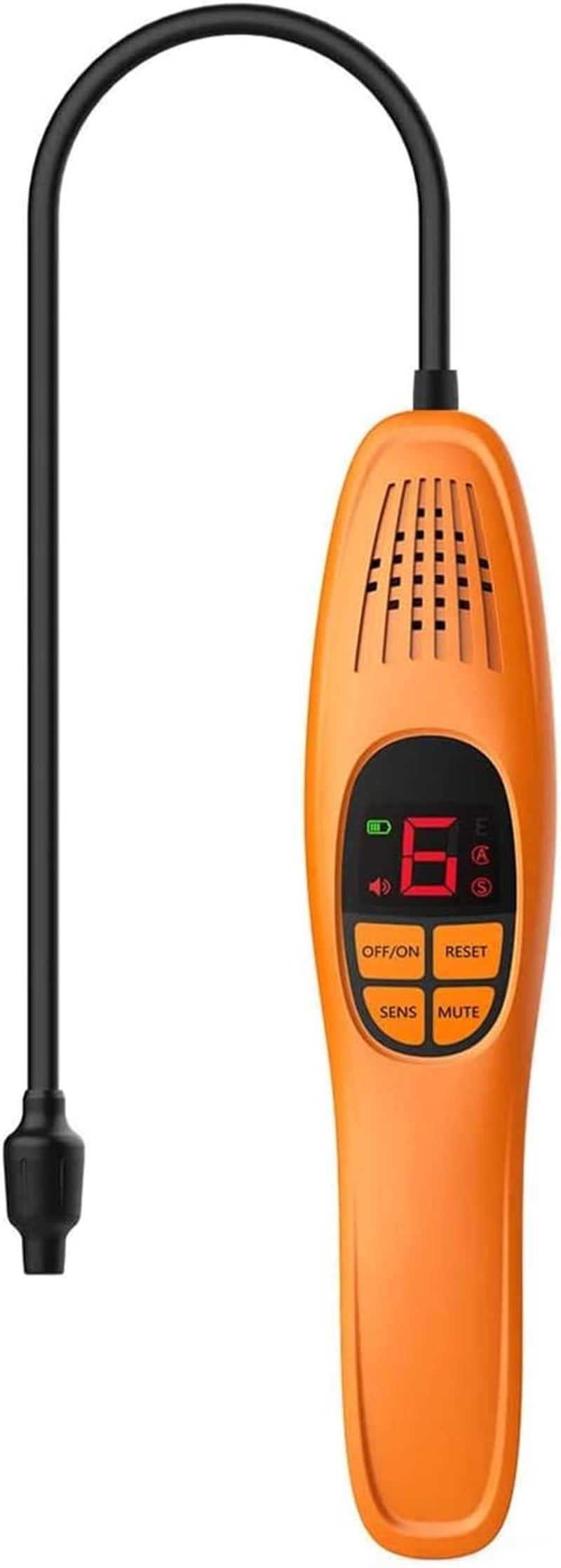

Elitech LD-100+ CFCs HCFCs HFCs Halogen Refrigerant Leak Detector Checker

Elitech LD-100+ Heated Diode HVAC Refrigerant Leak Detector features high sensitivity, quick response, and long sensor lifetime.

This is achieved automatic and manual mode suitable for locating leaks in various complex environments.

In addition to the supreme performance and functional advantages, it offers a new suction structure design that increases the sensitivity while having the anti-water absorption function at the same time.

Product Details

Package Included

• 1 X LD-100+ leak detector ( excluding sensor)
• 1 X Heated diode gas sensor
• 3 X AA alkaline battery
• 1 X Packing box
• 1 X Performance report

Applicable to all halogen refrigerants, including but not limited to

CFCs： Such as R12, R11, R500, R503

HCFCs： Such as R22, R123, R124, R502

HFCs： Such as R134a, R404a, R410a, R407C, R32

HCs： Such as R600a, R290

HFOs： Such as R1234YF

Trouble Guide

E1 Probe power failure

E2 Probe missing or faulty

E3 Fan shutdown

Parameters

Sensor Type Heated diode gas sensor Applicable refrigerant CFCs, HCFCs, HFCs, HCs and HFOs Minimum detectable leakage ≤ 3g/y Sensor lifetime ≥1 year Reaction time ≤3s Reset Automatic/manual Warm-up time 30s Probe length 16.5 in/420mm Reset time 10s Package size 12.3oz/ 350g Working temperature range 0-50℃ Battery life 7 hours Working Humidity Range <80%RH (non-condensing) Weight 17x9.6x27.5 in /430x245x700 mm Auto-off Time: 30 min
