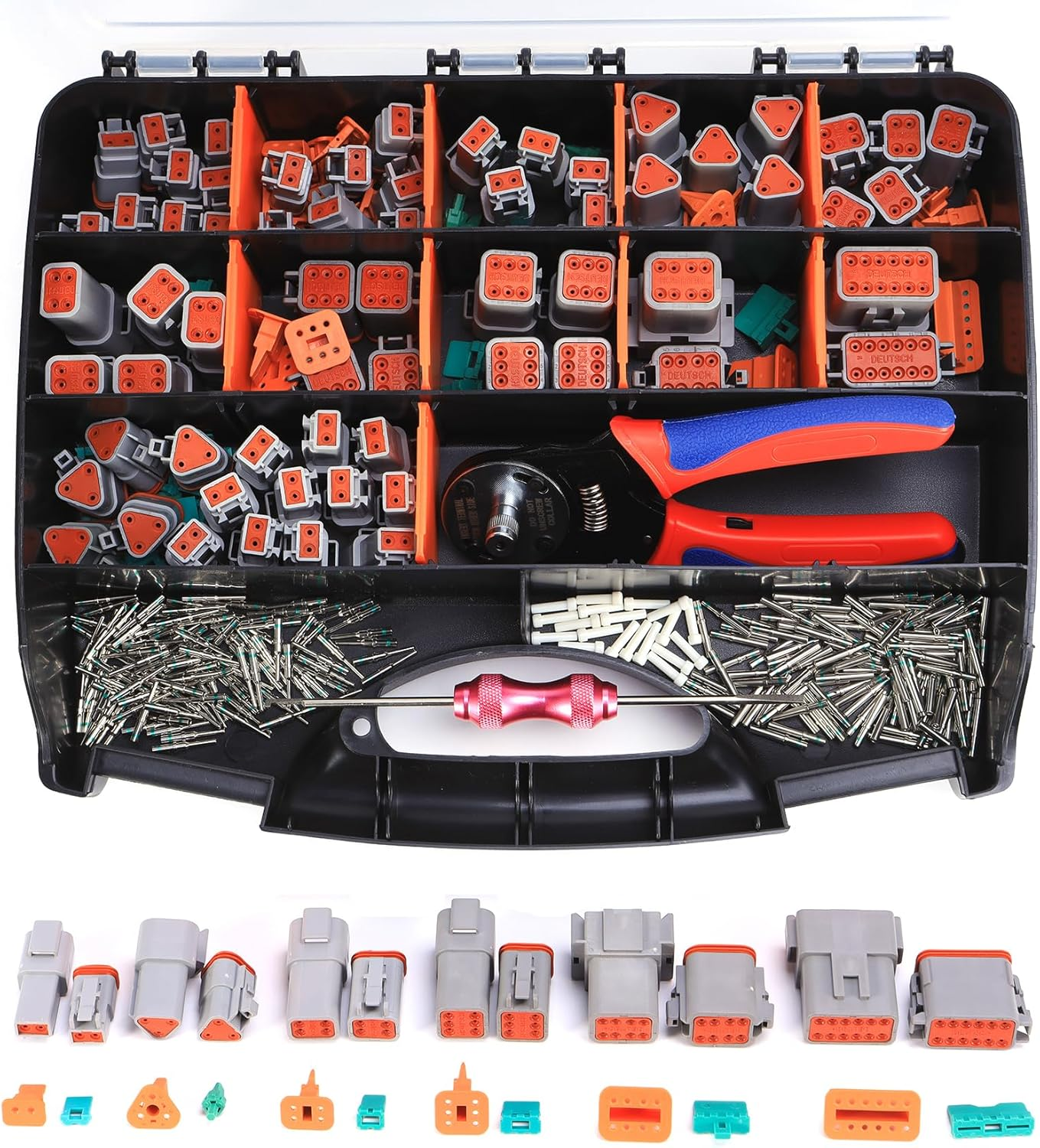

371 PCS DT Deustch Connector Kit, 2 3 4 6 8 12 Pin Waterproof Automotive Electrical Connectors, Including Deutsch Crimping Tool, Removal Tool, 16# Solid Contacts

Description

Item model number	SKU20905#B
Manufacturer Part Number	SKU20905#B
Item Weight	3.39 pounds
Exterior	Polished
Model	ST6146
Package Dimensions	13.19 x 10.87 x 2.4 inches

• ✅【Package Content】Totally 371PCS, contain 6 types of connectors and wedgelocks ranging from 2 to 12 cavities, SIZE 16 Solid Pin/Socket, sealing plugs, mini wire stripper tool and Multi-use wedgelock removal tool.
• ✅【DT Series Connector Kit】Deutsch connector are made of Flame Retardant PA66 Nylon, 2/3/4/6/8/12 cavity arrangements, features thermoplastic housing, waterpoof & dustproof, corrosion-resistant & wear-resistant. Easy to connect and disconnect, suitable for long time use.
• ✅【Pb-free Size 16 Solid Contacts】111 Pairs Pins & Sockets. These contact are tin bronze with nickle plated, accept 20/18/16/14AWG gauge wire. Green band above, which has strong stability and conductivity. Easy to crimp with wire and install, providing reliable connections for variety applications.
• ✅【Seal Plugs】18PCS Deutsch Sealing Plugs are non-conductive dummy pins that are inserted to fill an open cavity in a connector. Sealing plugs are required to maintain the integrity of the environmental seal.
• ✅【Multi-Use Tool】1PC Wedgelock & Contact Extraction Tool. One small hook on the end for removing the wedge lock. The other side is a small screwdriver to push back the locking fingers and release the contact. Suitable for DT, DTM, DTP, DRB, DTV, and STRIKE Series.
• ✅【Mini Wire Stripping Tool】1PC Mini Punch Down Cutter. Made of High quality SK manganese steel 110 blade, sharp wear, stripping easy and accurate. Small and convenient to carry, ideal addition to keep in your pocket or tool kit.
• ✅【4-Indent Wire Crimper】1PC Profession 4 Way Crimper. 4 indent 8 impression crimping, smooth precision ratchet ensures the same accurate crimps every time. Wire Range 14-18AWG.
• ✅【Wide Application】Deutsch DT Connectors are designed for harsh operating environments and critical applications. Widely applied in Car, Truck, Bus, Boat, Motorcycle, Off-road vehicles, Emergency Vehicles, Off-highway, Construction, Agriculture, Mining, Forestry, Recreational, Marine, scooter, quad bike, caravan, forestry, jet ski, extreme sports ect.

Product description

MUYI 371PCS DT CONNECTOR TOOL KIT is made of PA66 nylon, this material has a certain thermostability, and make the plugs durable wear-resisting. Applied with the good quality rubber seal to make it better dustproof and waterproof. Optional in-line, flange, or PCB mount. Widely applied in Car, Truck, Bus, Boat, Motorcycle, Off-road vehicles, Emergency Vehicles, Off-highway, Construction, Agriculture, Mining, Forestry, Recreational, Marine, scooter, quad bike, caravan, forestry, jet ski, extreme sports ect.

DT electrical connectors will stand up to the harsh environmental challenges that are common to industrial markets that require advanced performance. Proper parts, procedures, and tooling must be used.

4-Indent 8 Impression Wire Crimper

● Wire Range: 18-14AWG

● PLEASE DOUBLE CHECK THE COLLAR BEFORE CRIMPING

• Put the pins/soc into jaw
• Insert the wire into pins/soc and crimp tightly
• Get the crimped wire
• DON'T UNSCREW THE COLLAR!

MUYI 371PCS DT CONNECTOR TOOL KIT

Package Content

• 16PCS DT04-2P/W2P, DT06-2S/W2S
• 5PCS DT04-3P/W3P, DT06-3S/W3S
• 5PCS DT04-4P/W4P, DT06-4S/W4S
• 4PCS DT04-6P/W6P, DT06-6S/W6S
• 1PC DT04-8P/W8P, DT06-8S/W8S
• 1PC DT04-12P/W12P, DT06-12S/W12S
• 11PCS SEAL PLUG, 1PC WIRE CRIMPER
• 1PC REMOVAL TOOL, 1PC MINI WIRE CUTTER
• 111PCS SIZE16 PINS/SOC (SOLID BARREL CONTACTS)

• DT Series Connector features thermoplastic housing
• Rectangular connectors for series, printed circuit board or flange mounting
• Accepts contact Size 16 (13Amps), 18-14AWG

Product Cavity

MUYI DT Series Connector features 2, 3, 4, 6, 8, and 12 cavity arrangements. Each package comes with Male Housing, Female Housing, Orange Wedgelock, Green Wedgelock, Male Contact, Female Contact and Installation instruction.

Product Specific

• Series: DT Series, IP Rating: IP68;
• Shape: Rectangular, Color: Grey;
• Operating Temperature: 14°F (-10°C) to +176°F (+80°C);
• Wire Gauge: 18-14 AWG, Insulation: .088"-.145";
• Contact Size: 16, Current Rating: 13 Amps Continuous

Covenient and Quick

• Temperature - Operating at temperatures from -10° C to +80° C continuous at rated current.
• Durability - No electrical or mechanical defects after 100 cycles of engagement and disengagement.
• Insulation Resistance - 1000 megohms minimum at 25° C.
• Moisture Resistance - Properly wired and mated connections will withstand immersion under three feet of water without loss of electronic qualities or leakage.
• Dielectric Withstanding Voltage - Current leakage less than 2 milliamps at 1500 VAC.

Buckle Design

Buckle design ensures accurate and complete insertion of the contact in the housing and prevents it from slipping out of the connector. It can also be easily removed when need.
