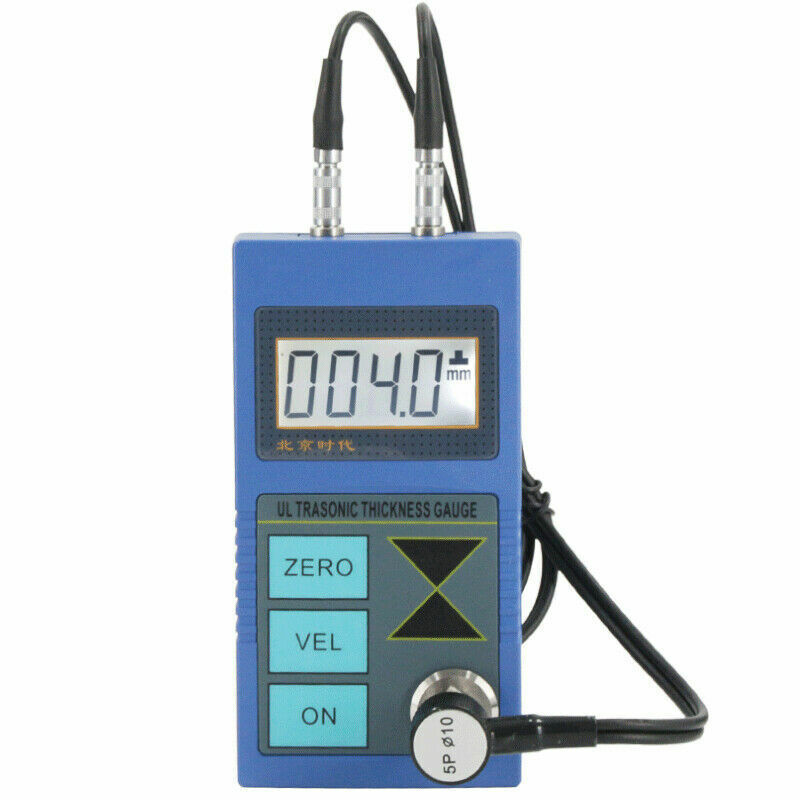

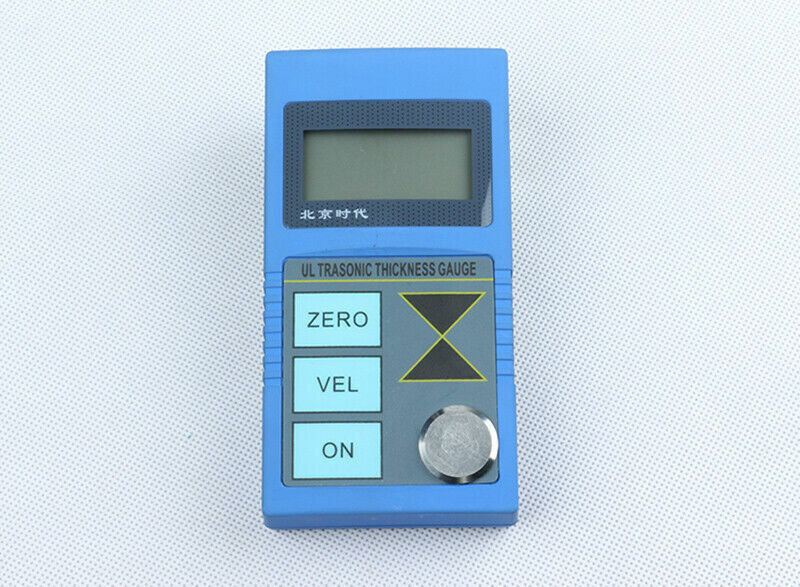

0.8-300mm Portable Ultrasonic Thickness Meter | Handheld Thickness Gauge

  • New

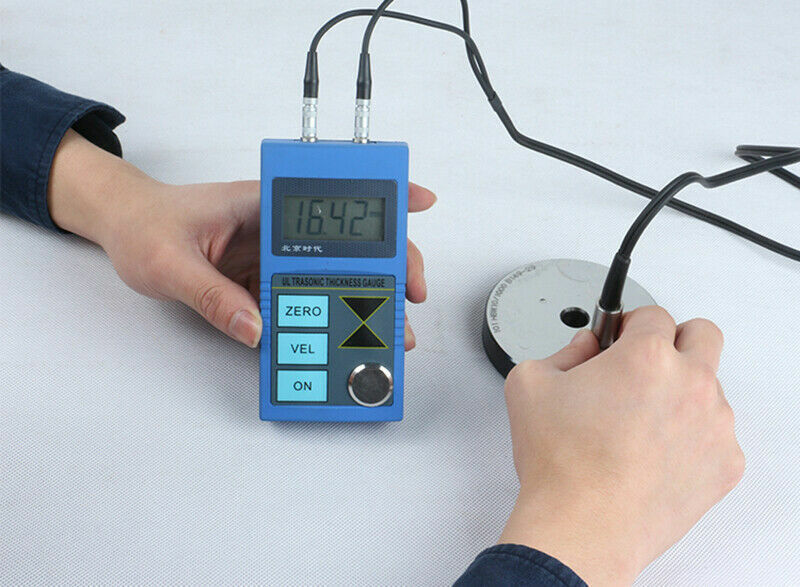

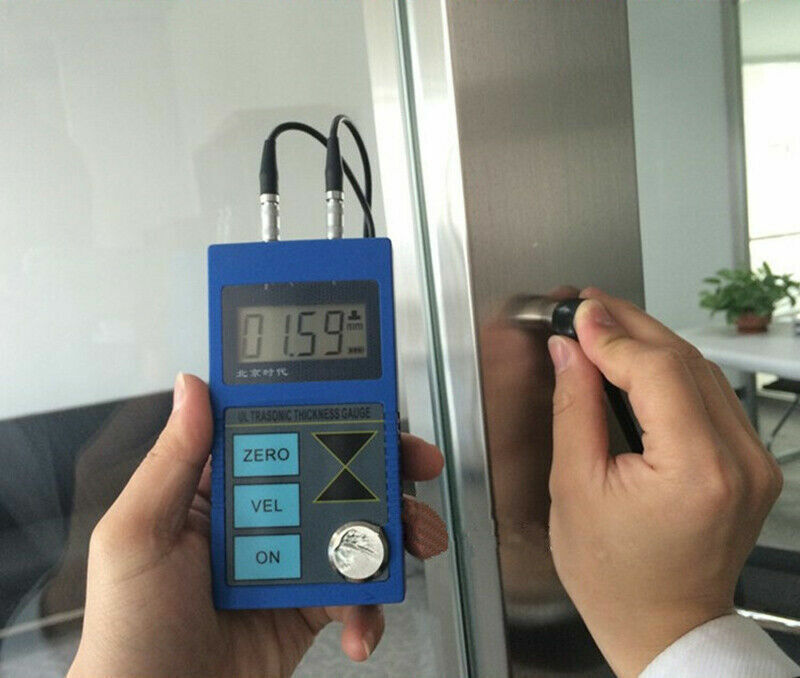

  • Applications:The handheld microprocessor-controlled thickness gauge is designed for measuring the thickness of metals, and non-metallic materials e.g. aluminum, titanium, plastics, ceramics, glass and any other good ultrasonic wave-conductor as far as it has two parallel surfaces on the top and bottom. The TT100 can be used in industrial applications to perform precise measurements on various kinds of new materials, parts and components, and it can also be used to monitor various kinds of pipes and pressure vessels for the decrease of their thickness due to corrosion and/or erosion.

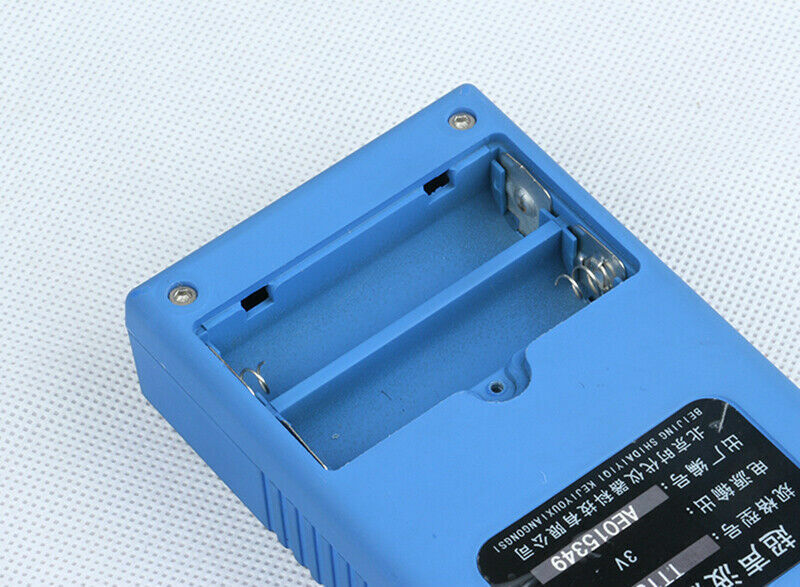

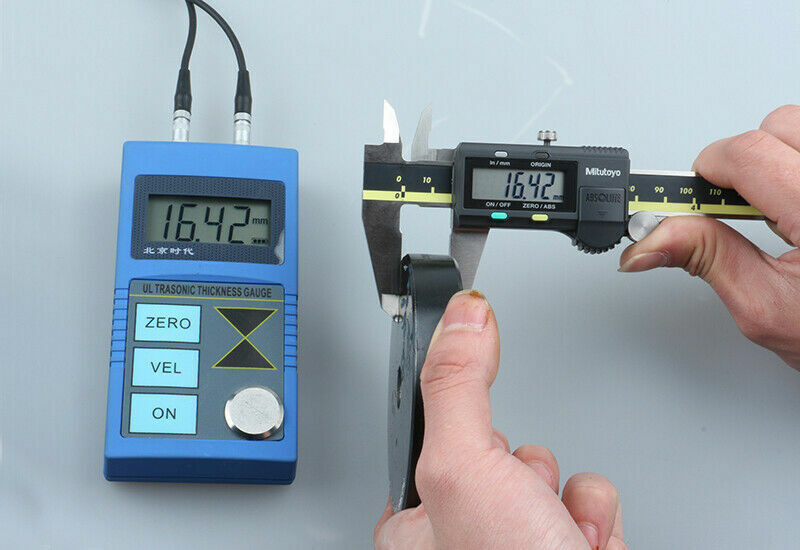

  • Technical Parameters:Measuring range: 0.8~300.0mm (45# steel, identified by the probe)Pipe measurement limit: ø20mm × 3.0mm(thickness); ø15mm ×  2.0mm(thickness)Measuring accuracy: 0.1mmVelocity range: 1000-9999m/sCalibration: 4.0mm ( steel )Surface temperature : -10 − 60 °cDisplay: 4 digits LCDProbe Specifications: ø10mmPower source: AA 1.5V 2pcs alkaline batteries (not included)Operating time: up to 250 hours of continuous operationDimensions: 125mm × 65mm × 27mmWeight: 170g

    Specifications of  standard and optional probes: (Unit only comes with standard probe but it can be  replaced by an optional probe if needed.)



    Probes

    Frequency

    Measuring  range(steel)

    Ф

    Min pipe size

    Characteristic

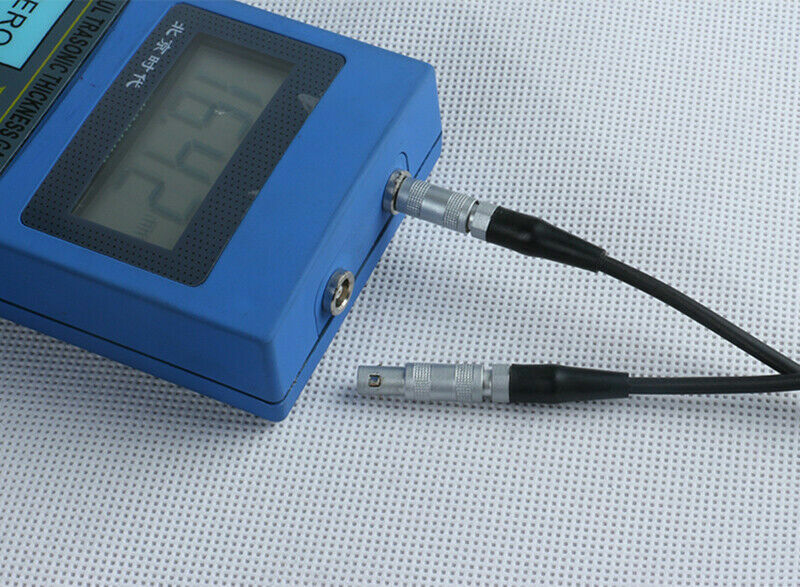

    5PФ10/90º

    5MHz

    1.2-225mm

    10mm

    Ф20х3.0mm

    Standard

    7PФ6

    7MHz

    0.75-60mm

    7mm

    Ф15х2.0mm

    Optional, need add more $18

  • Features:
    1) Automatic transducer zero adjustment: automatically correct the system errors
    2) Automatic non-linear compensation: within the full range, computer software is used
    to correct the non-linear errors of transducer with the purpose of improving the accuracy
    3) Keys up & down are used for fast adjustment of sound velocity and thickness as well as fast
    checking the thickness memory unit
    4) Calibration of known sound velocity
    5) Calibration of a known thickness (the sound velocity can be directly determined
    according to a known thickness, avoiding the trouble of looking into table.)
    6) Ten different thickness values can be stored and kept after switch-off
    7) Coupling indication: the stability can tell if the coupling is normal
    8) Sound velocity of five different materials can be stored
    9) Indication at low voltage
    10) Automatic switch off

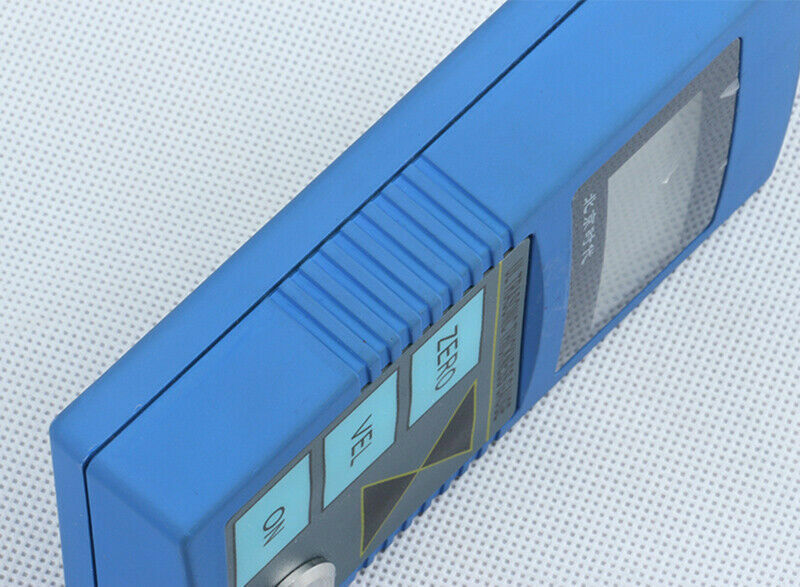

    11) Oil proof keyboard with longer service life
